2N136

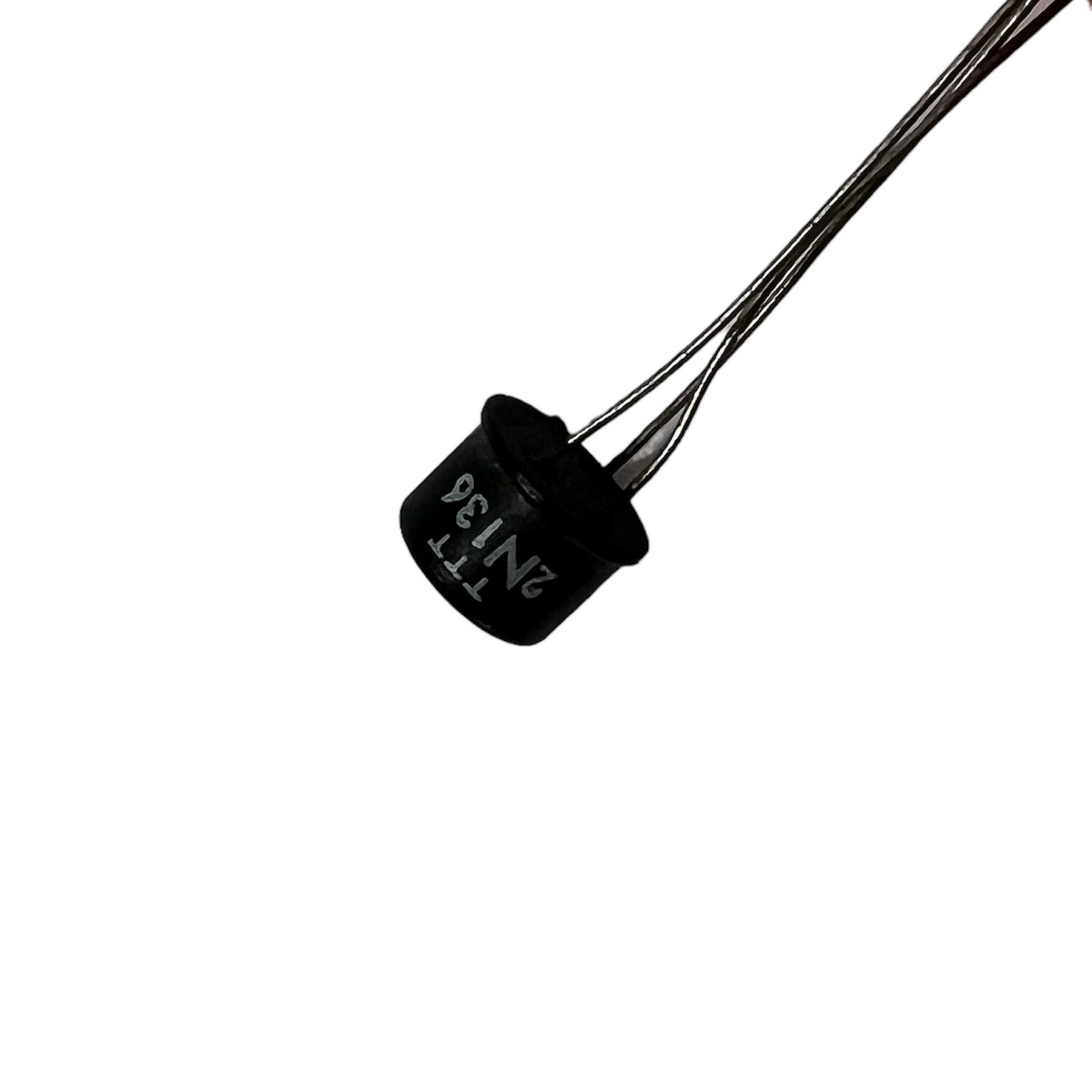

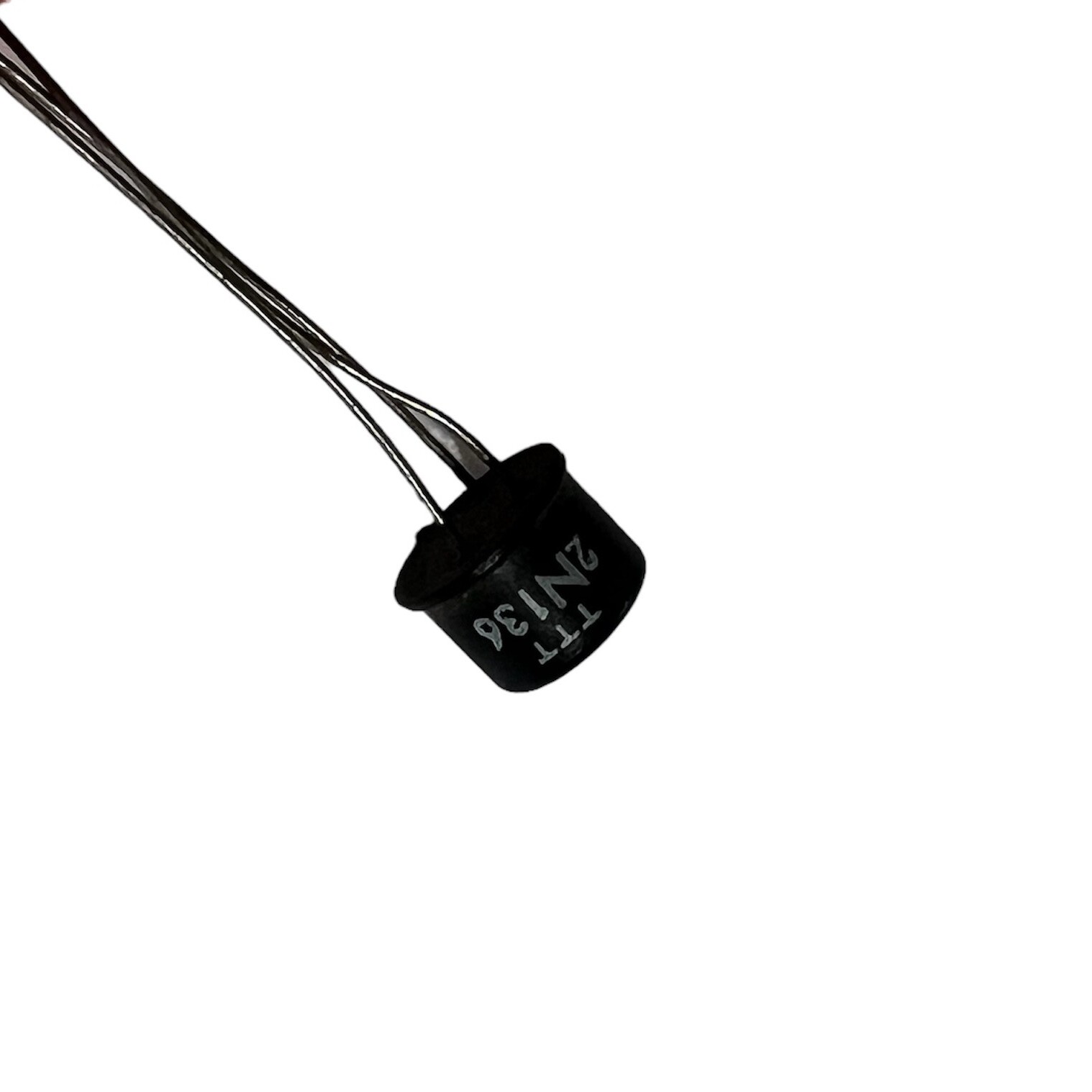

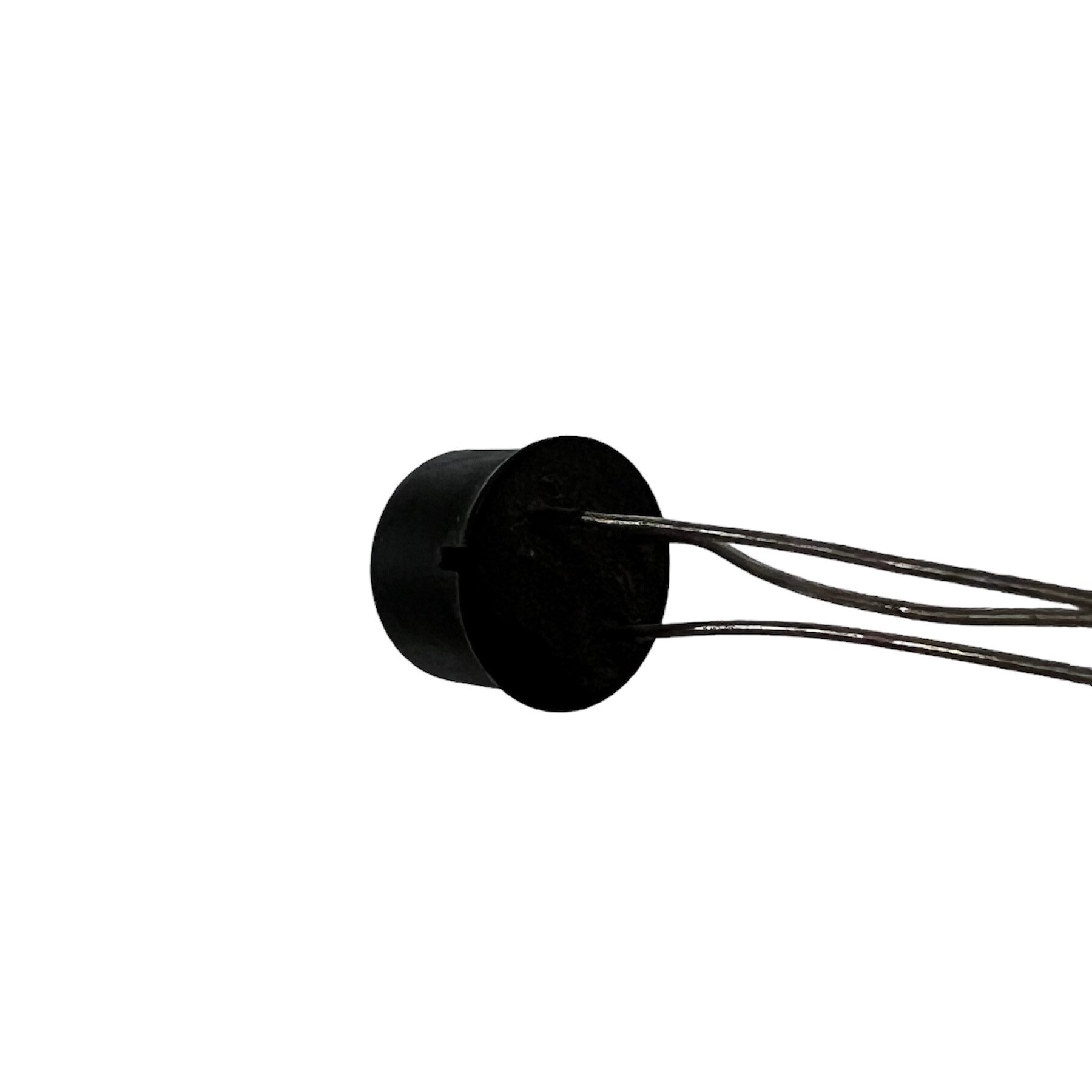

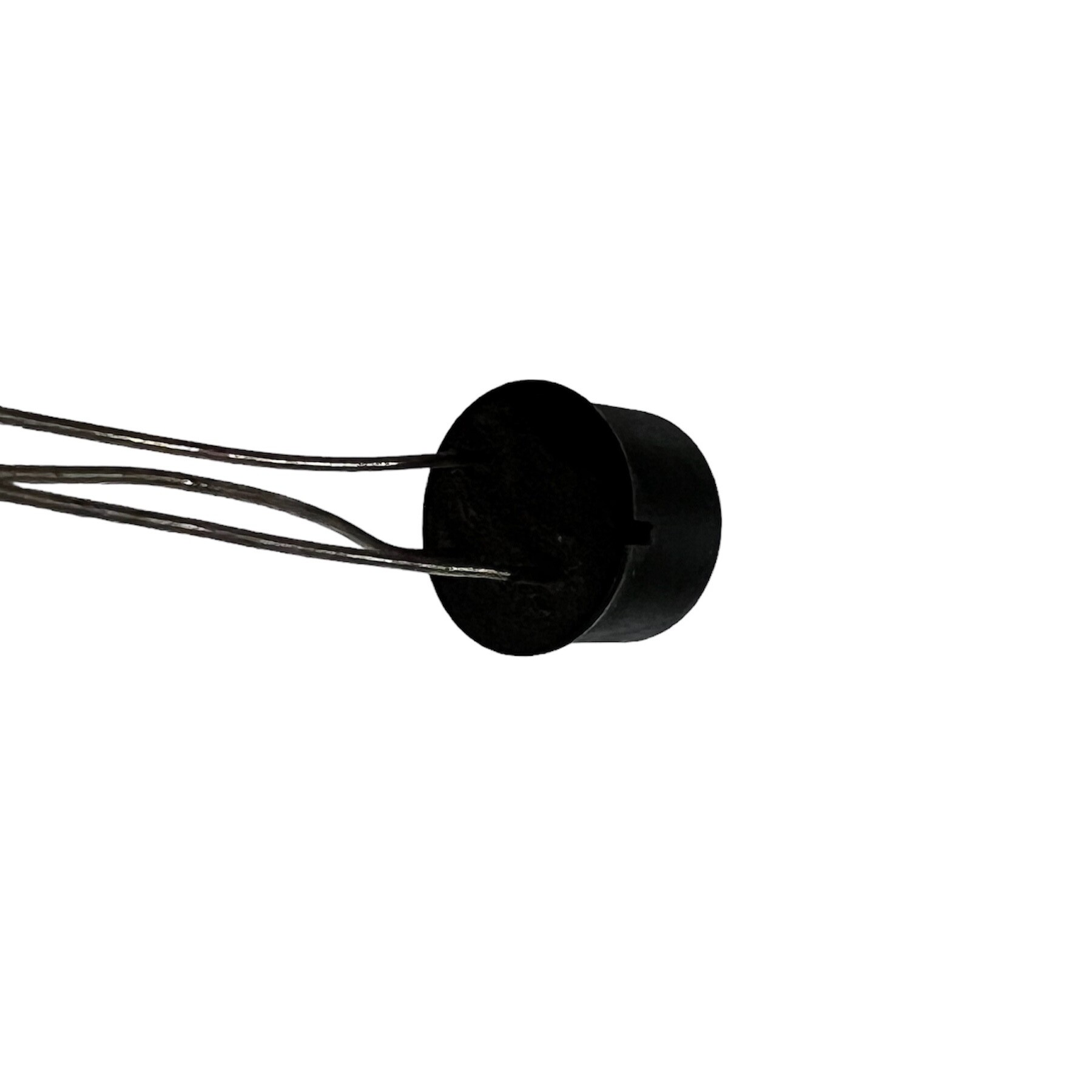

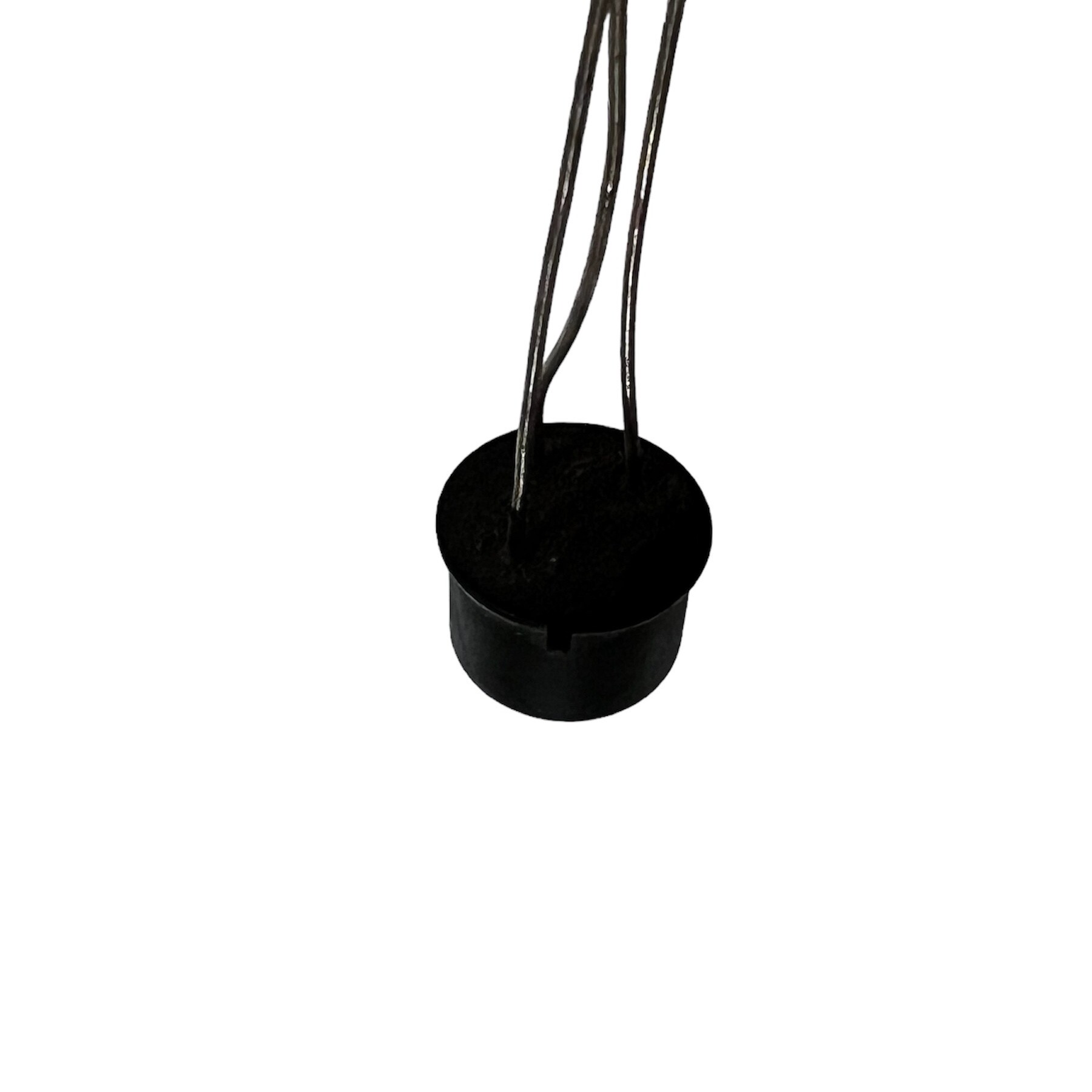

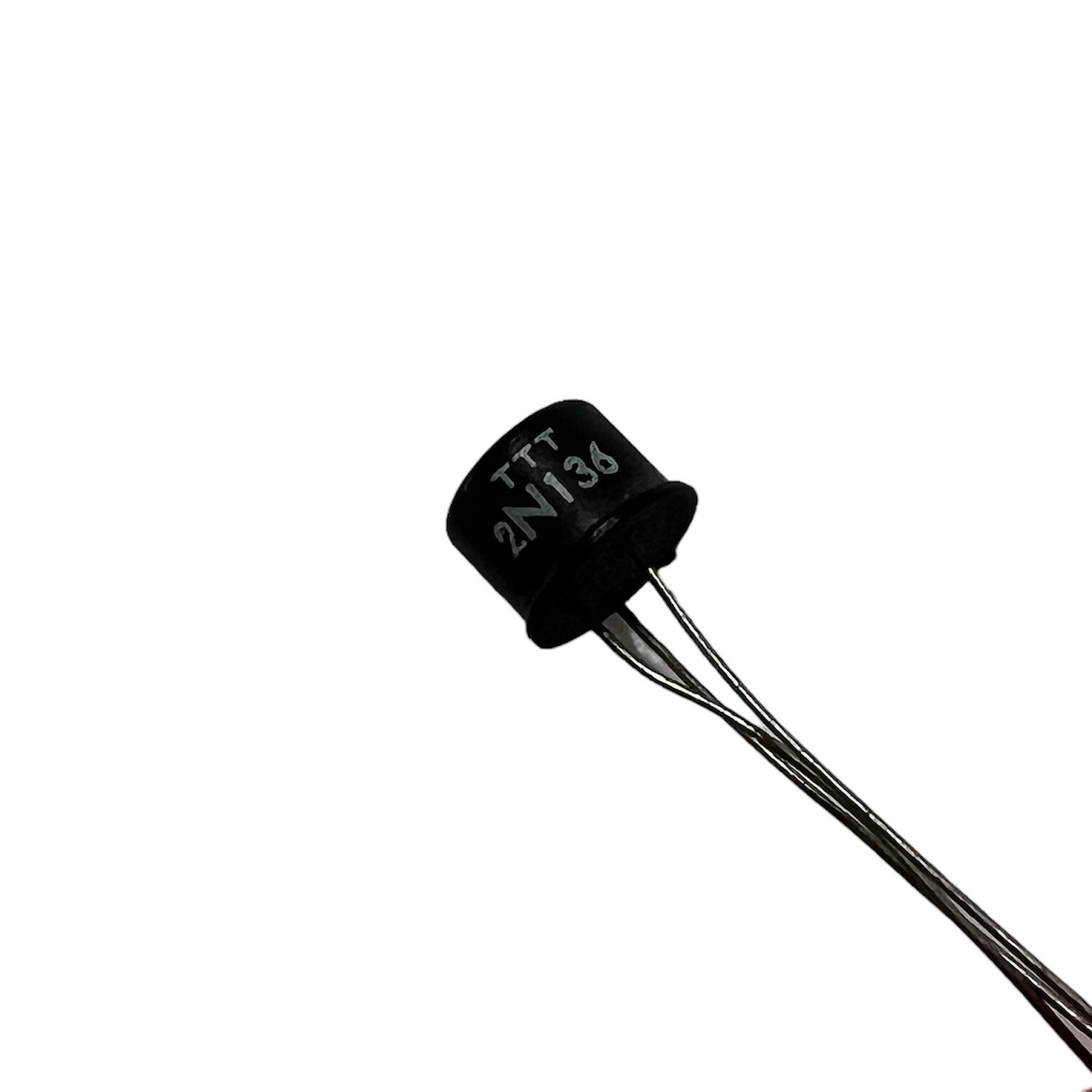

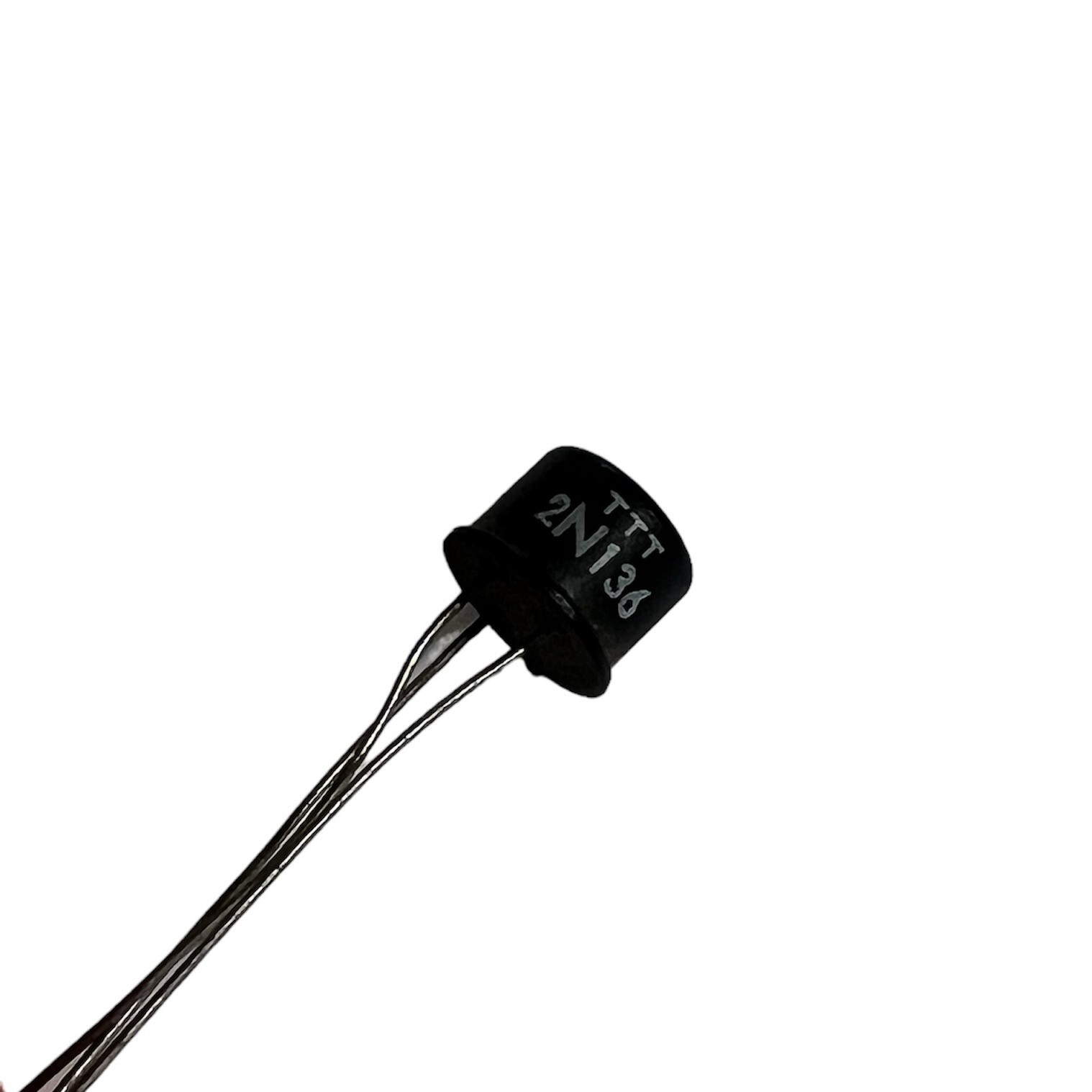

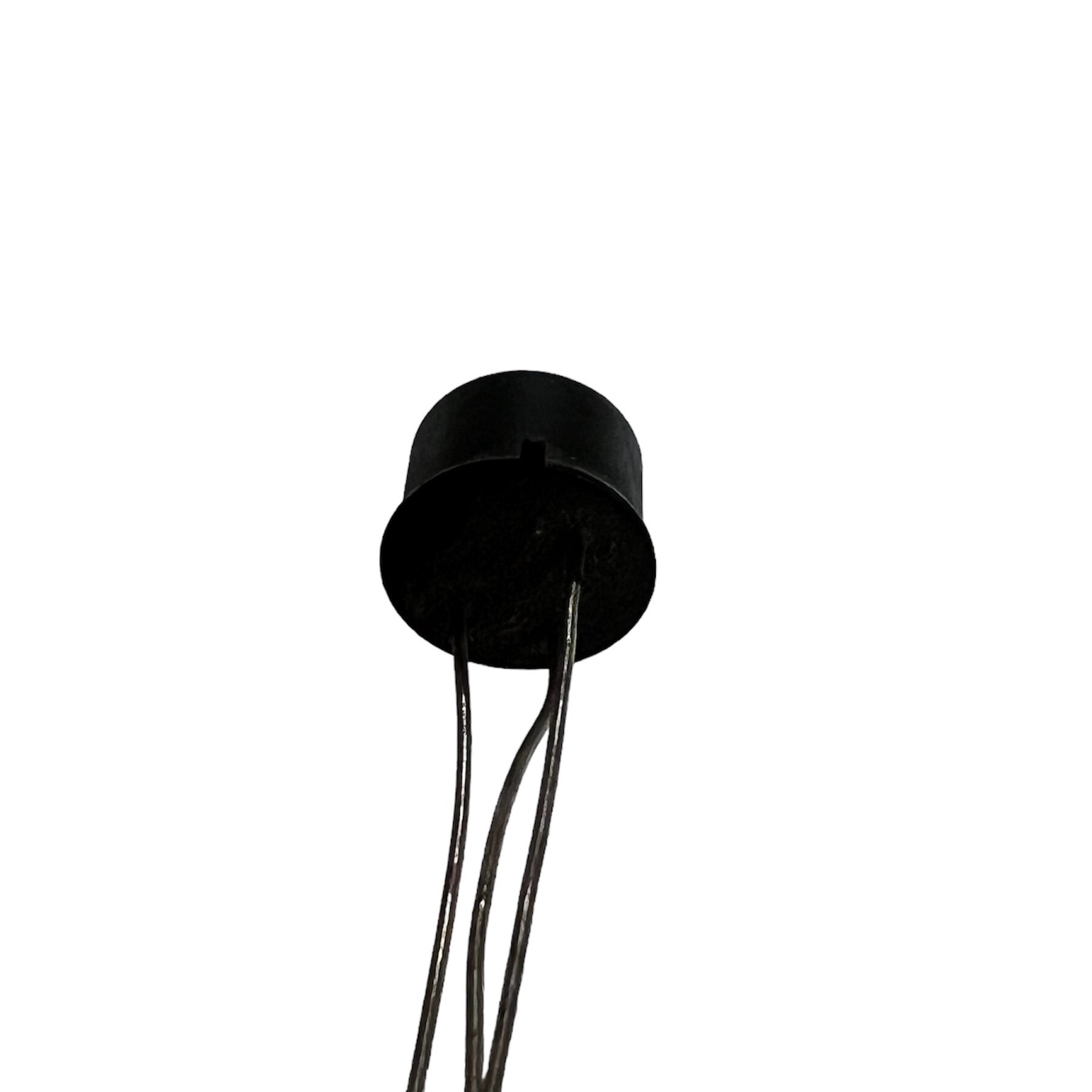

View detailed images (8)

2N136

SKU: 2N136
2N136 Transistor Germanium PNP CASE: R32 MAKE: General Electric
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Germanium PNP
Case R32
Manufacturer General Electric
Vbr CBO 20
Vbr CEO 20
Max. PD (W) 100m
C(ob) (F) 14p
Derate (Amb) (W/°C) 1.7m
hfe 40
Ic Max. (A) 50m
Icbo Max. @Vcb Max. (A) 5.0u
Polarity PNP
Trans. Freq (Hz) Min. 5.0M
@VCE (test) (V) 5.0i
Oper. Temp (°C) Max. 85
@Ic (A) 1.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.1 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 12 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 85 °C
Collector Capacitance (Cc) 25 pF
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 312676
