Home / Semiconductors / 10RC80A
10RC80A
View detailed images (12)

10RC80A

SKU: 10RC80A

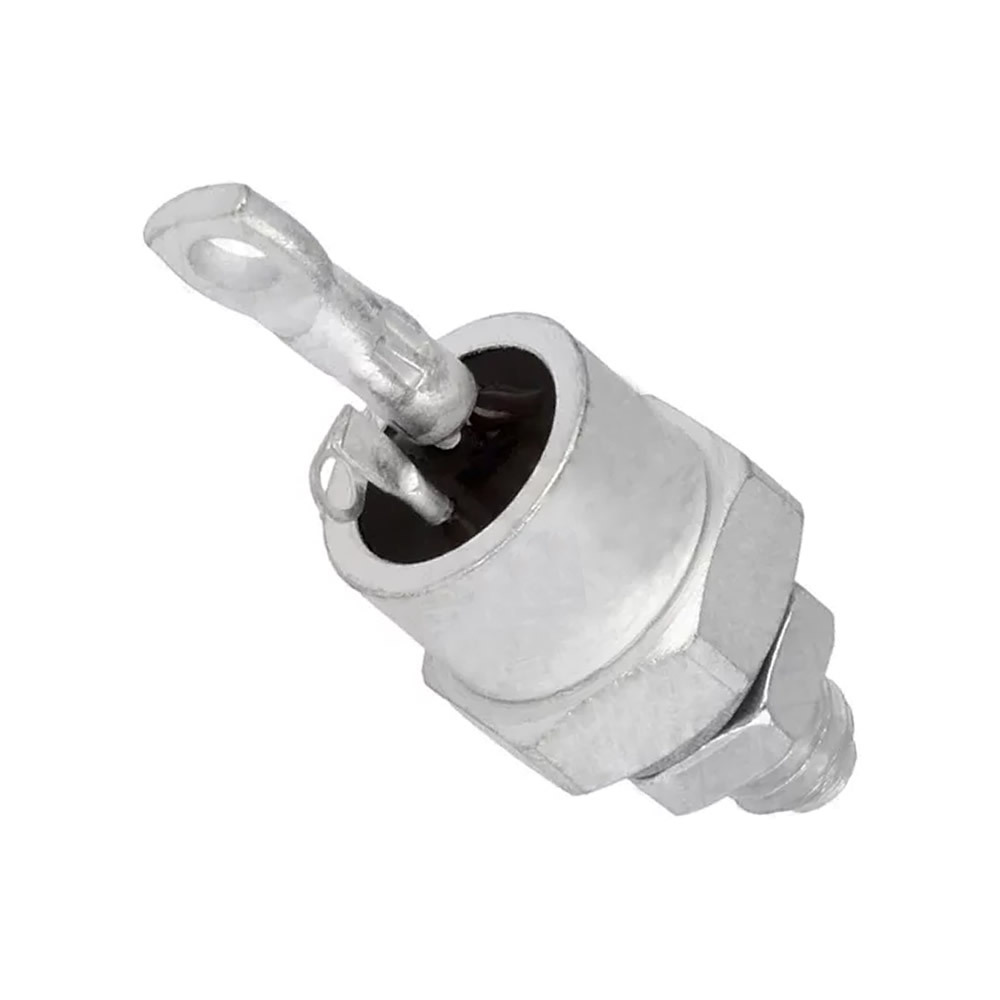

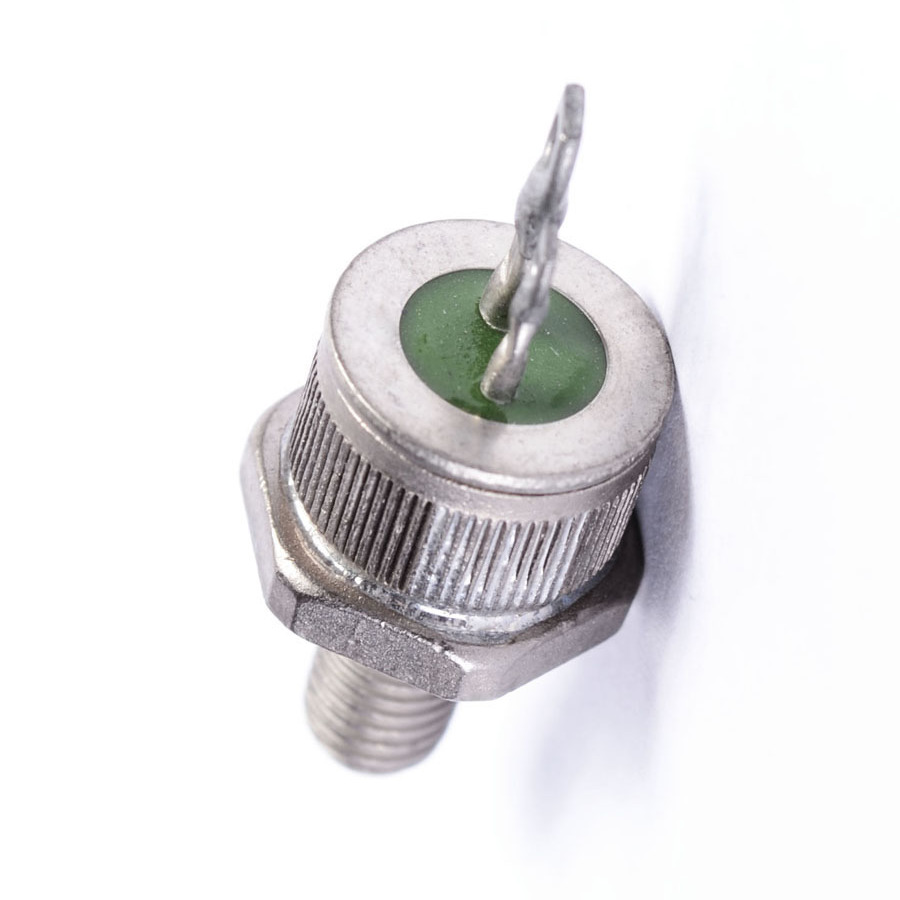

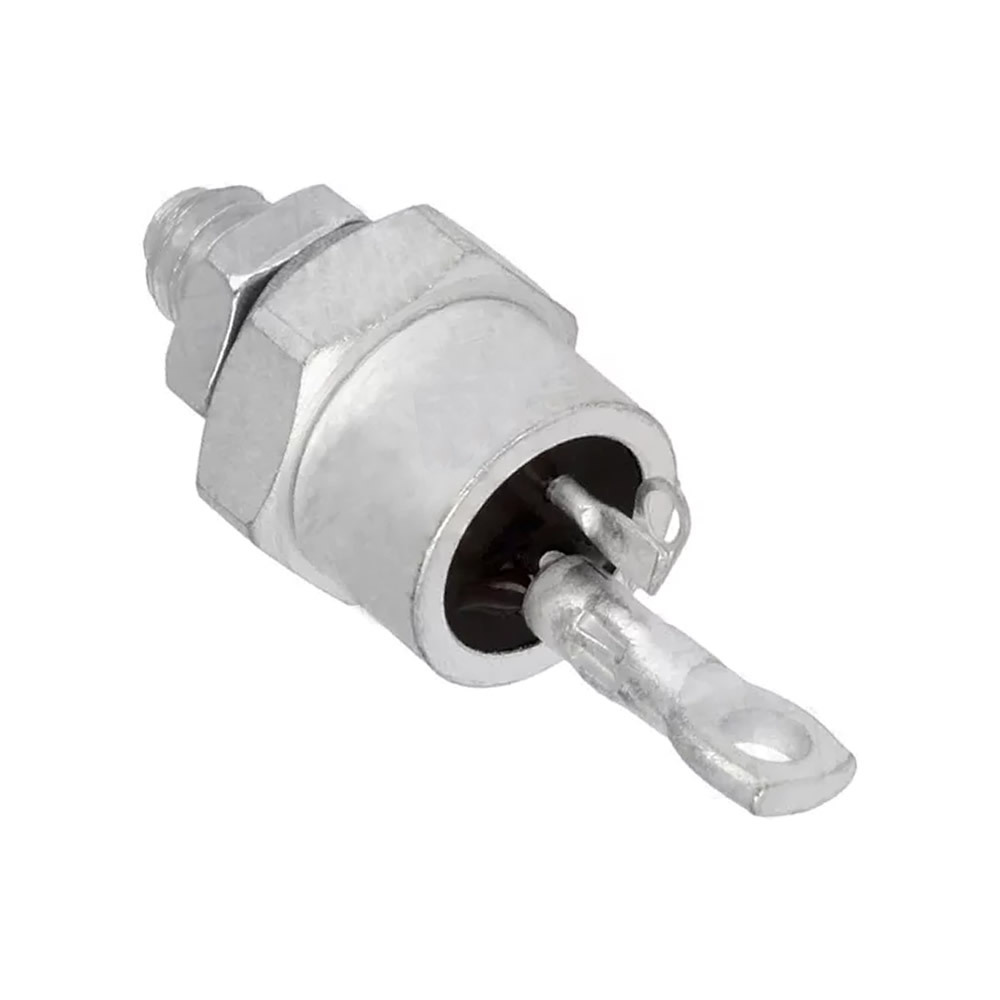

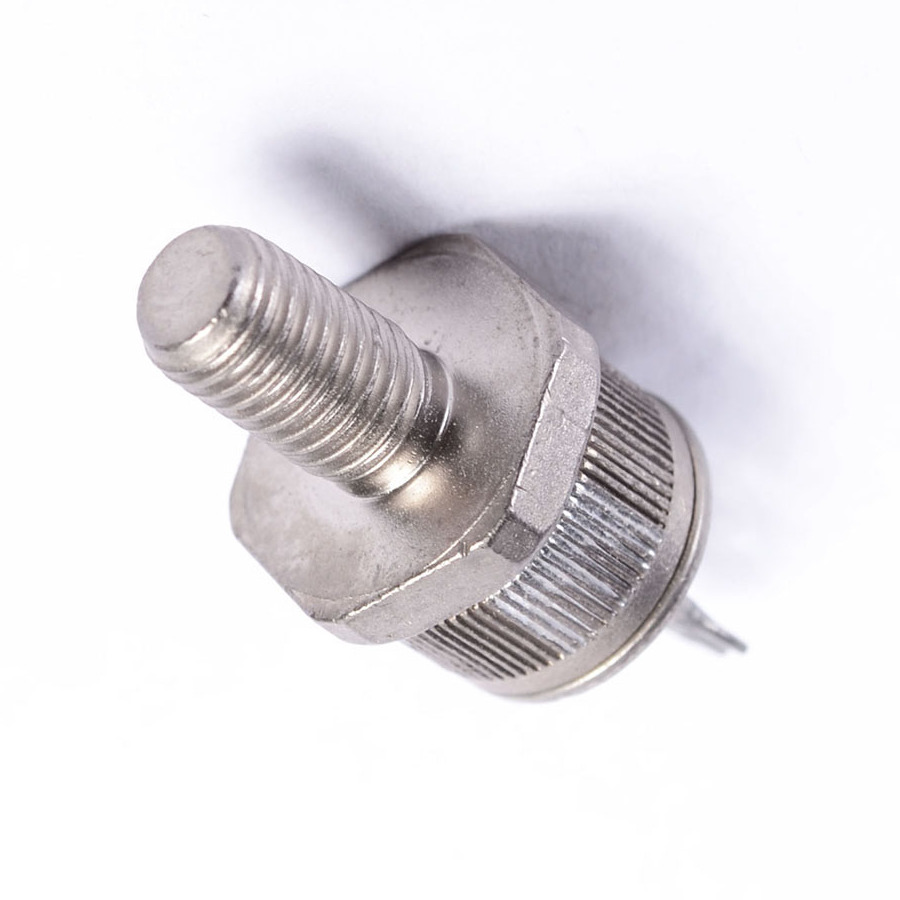

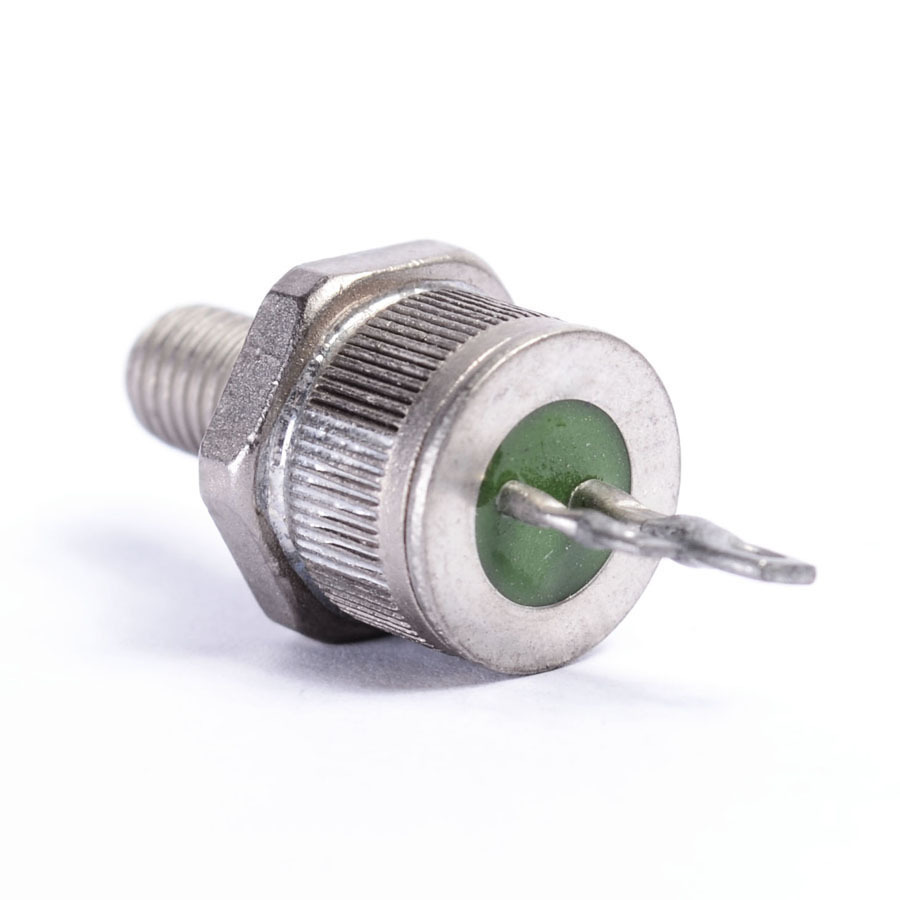

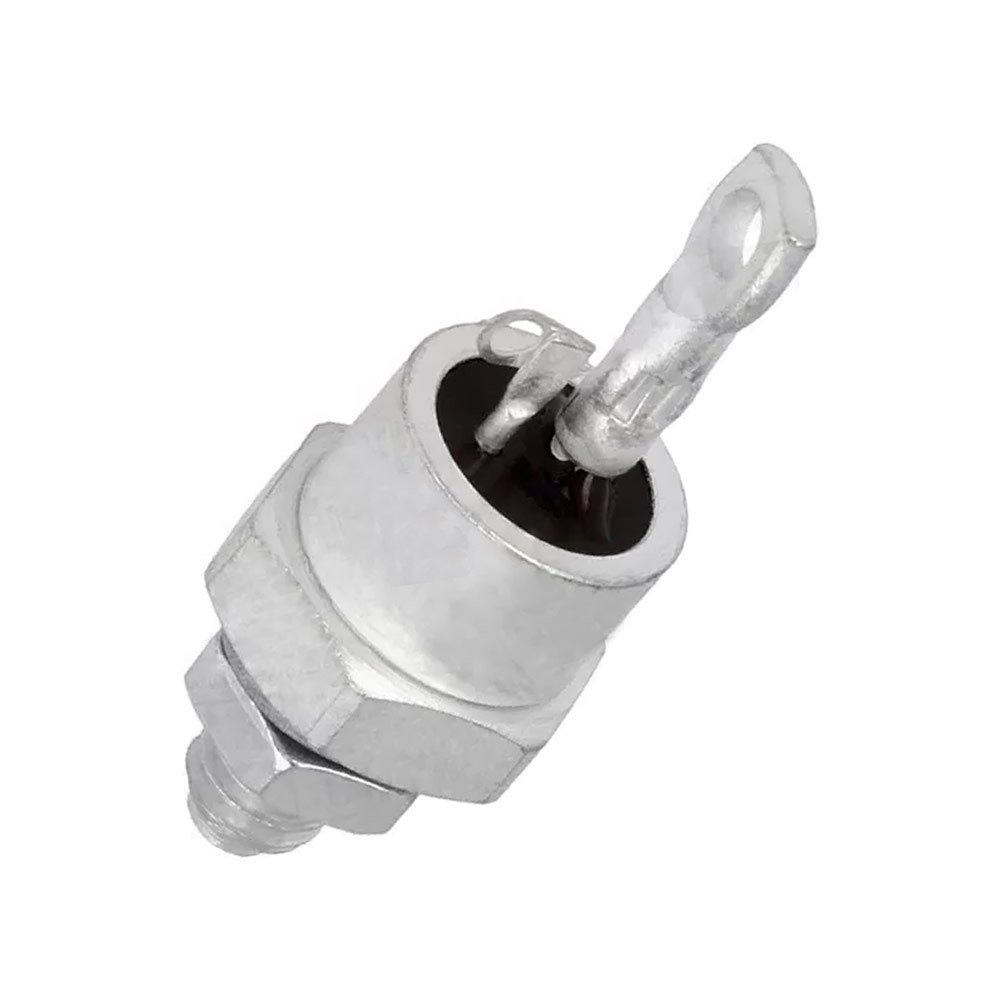

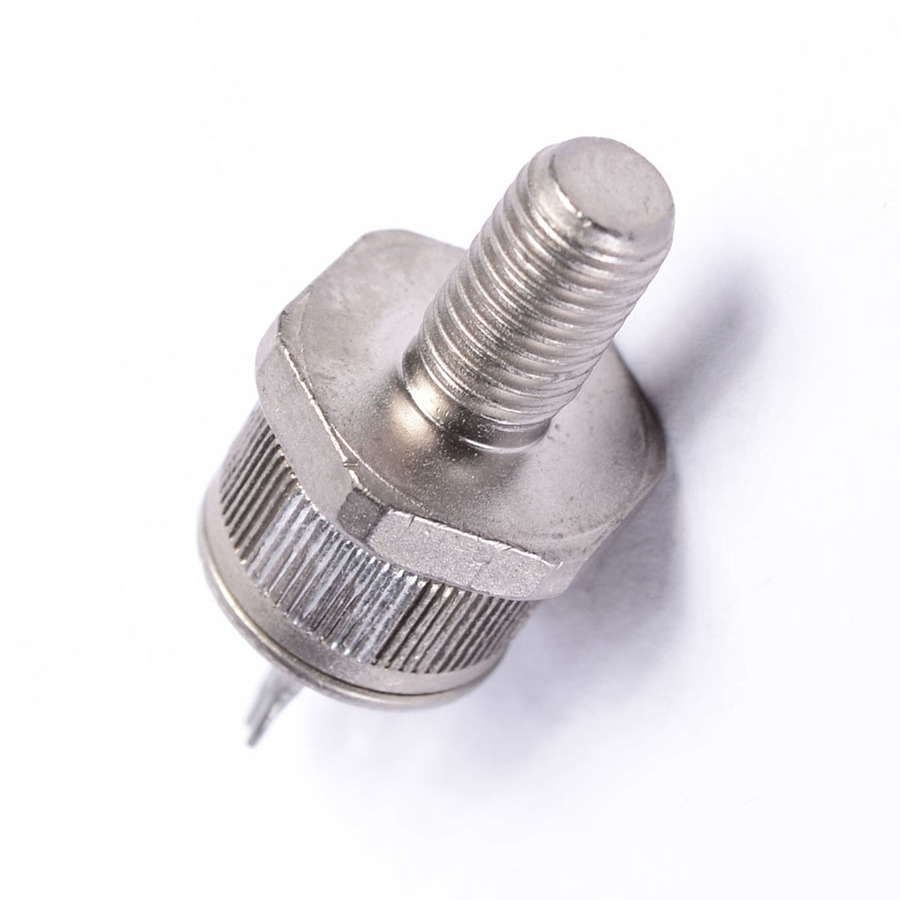

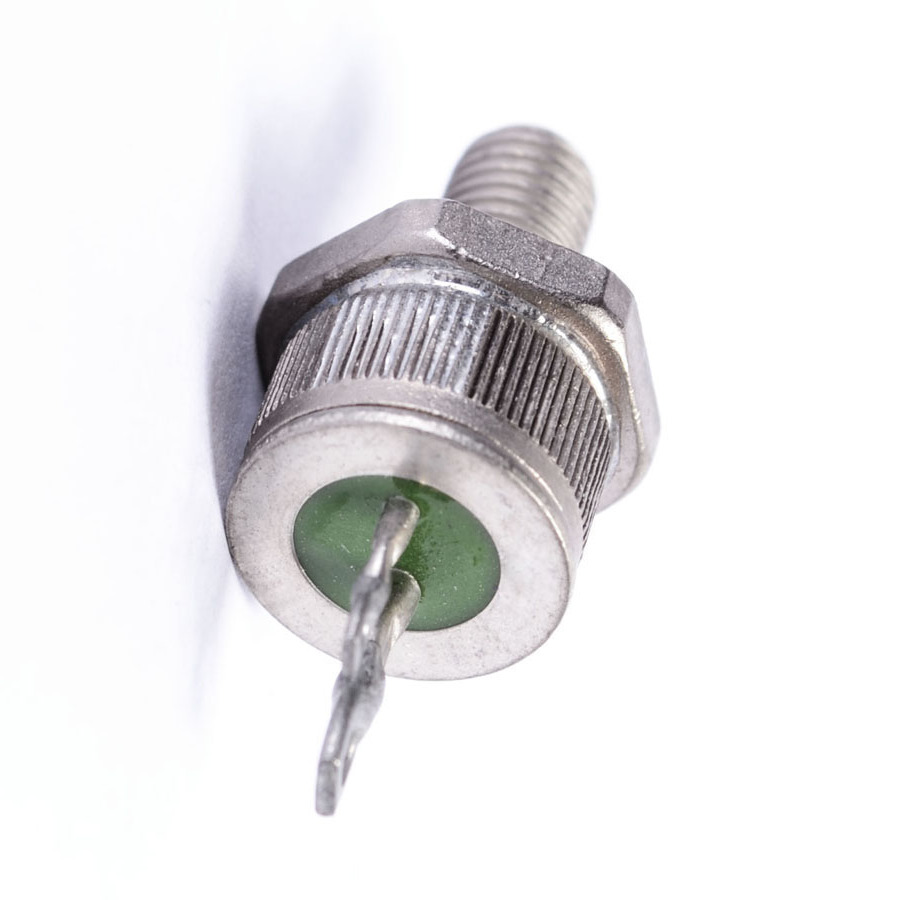

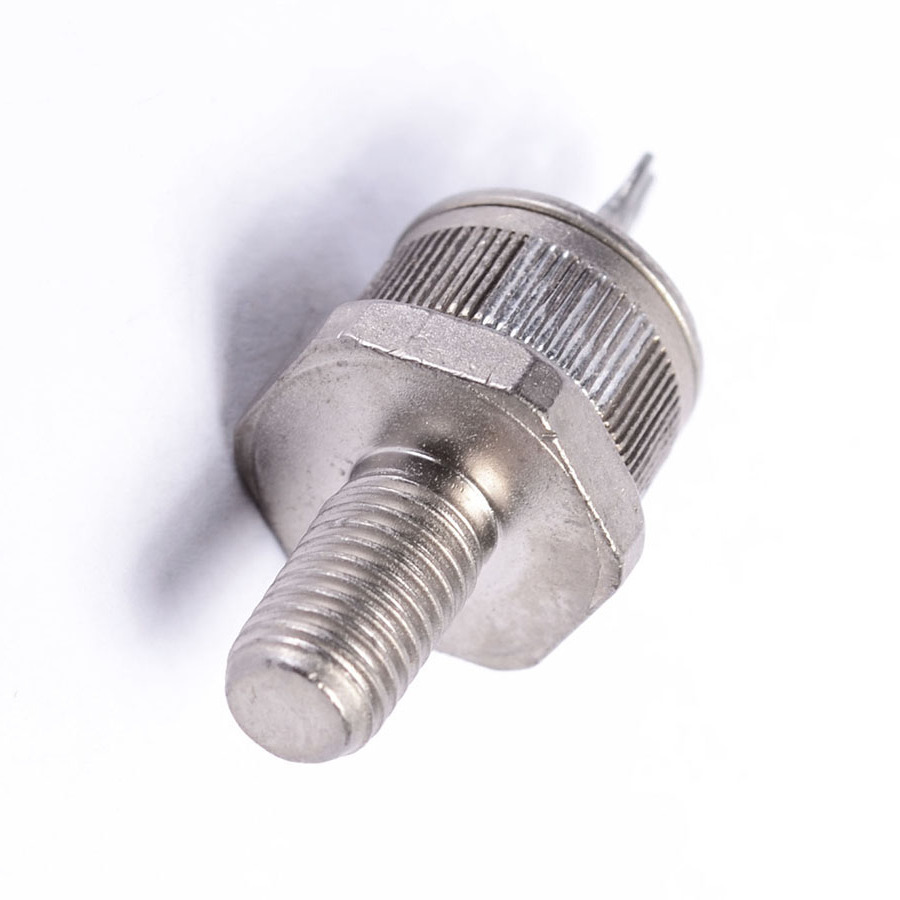

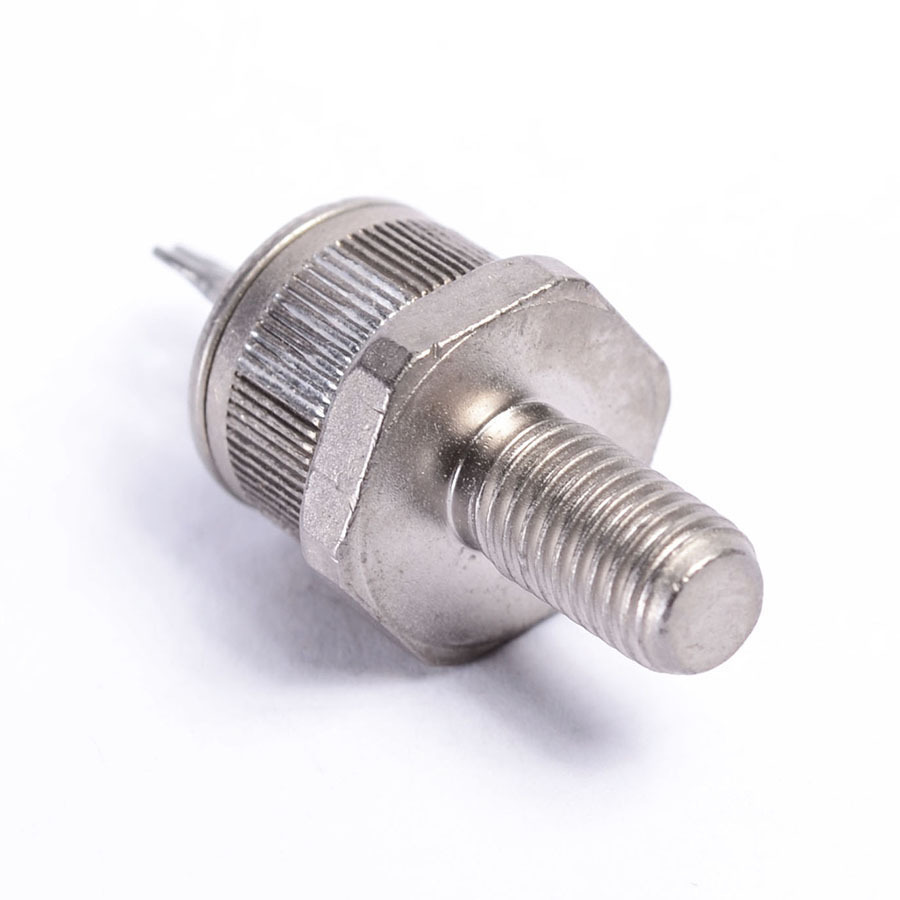

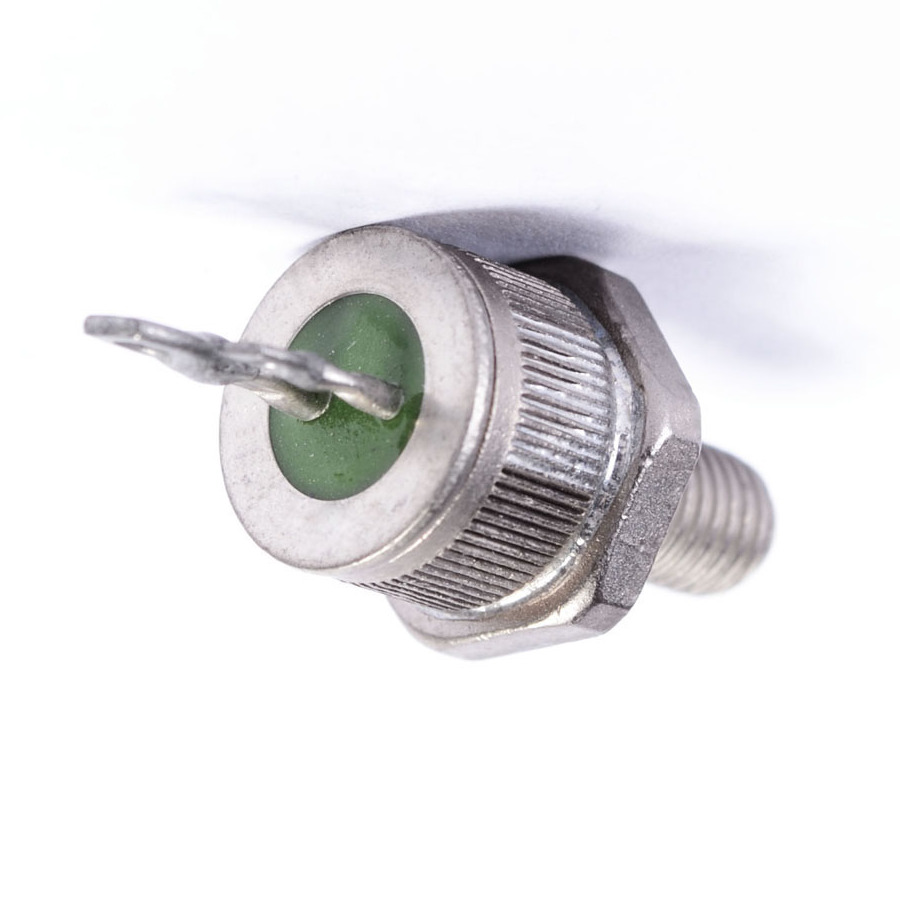

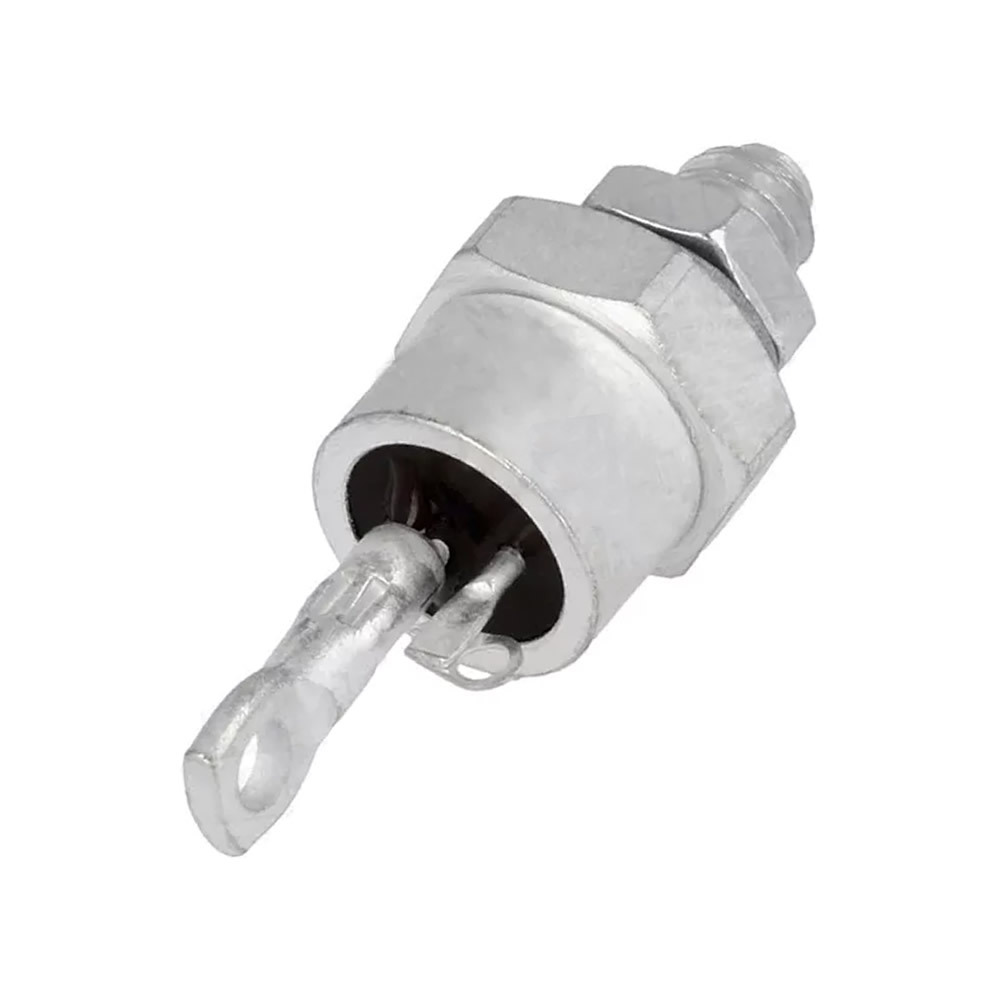

10RC80A Semiconductor CASE: TO48 MAKE: International Rectifier - IR
Product specifications
Type Semiconductor
Case TO48
Manufacturer International Rectifier - IR
Dv/Dt Worst Case 10
Firing Char-Igt Max. 90m
Firing Char-Vgt Max. 2.5
I(h) Max. (A) 10m-
Id(off) Max. (A) 2.0m
@It (test) (A) 10
It(stat) Max. (A) 25
Supp Curr. I(TSM) 200+
t(switch) Off Typ. Time (S) 30u
t(switch) Off Typ. Time (S) 3.0u
V(drm) Max. 800
V(T) Max. 2.8
@Temp. (test) (°C) 125
@Temp. (test) (°C) 45#
Oper. Temp (°C) Min -60
Oper. Temp (°C) Max. 125
@It (A) 70
Surface Mounted Yes/No NO
SKU 1294257
