Home / Actives / Diode / 1N5809
1N5809

1N5809

SKU: 1N5809

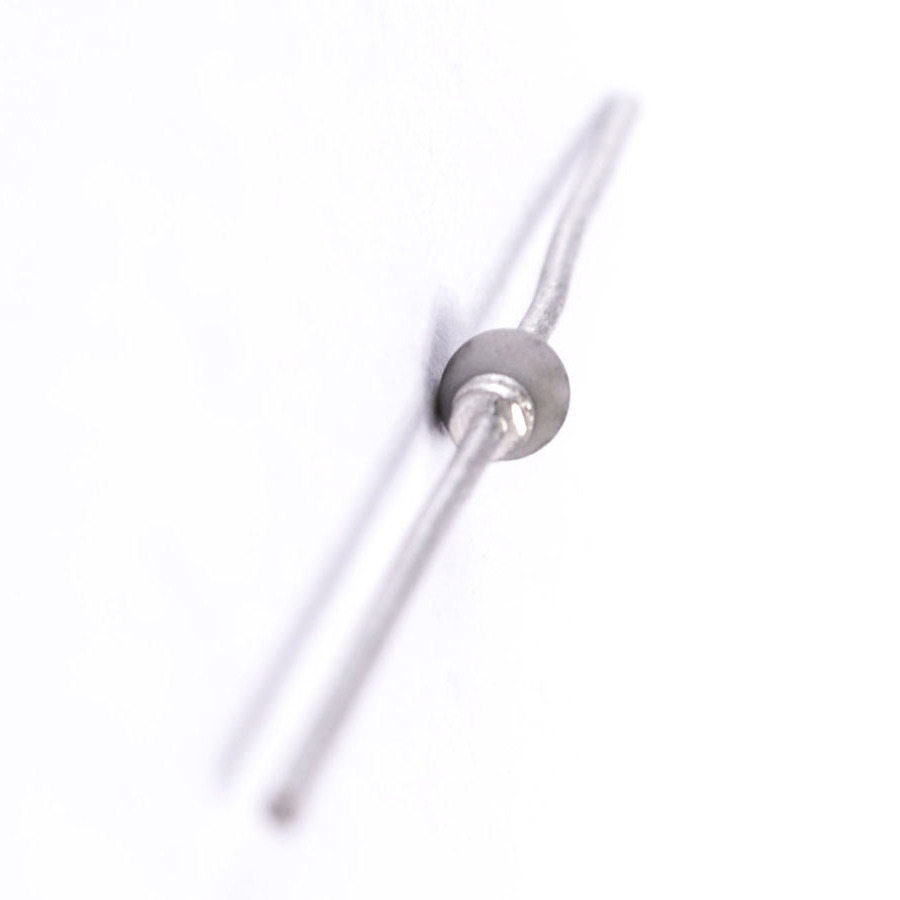

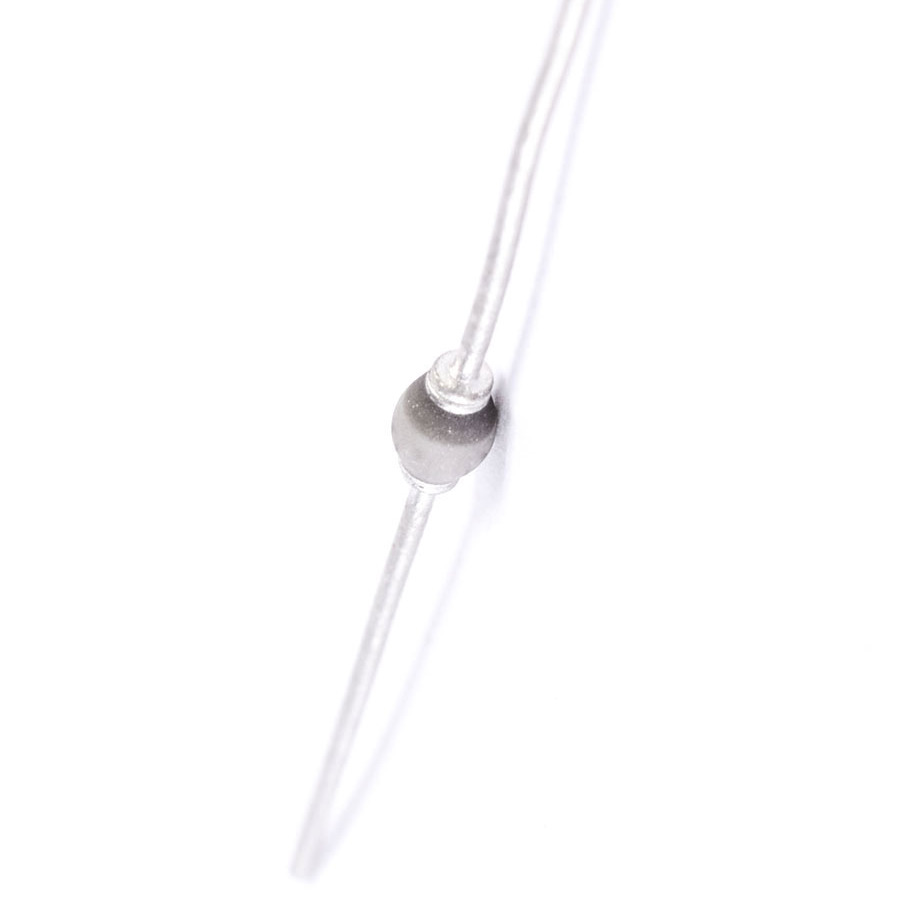

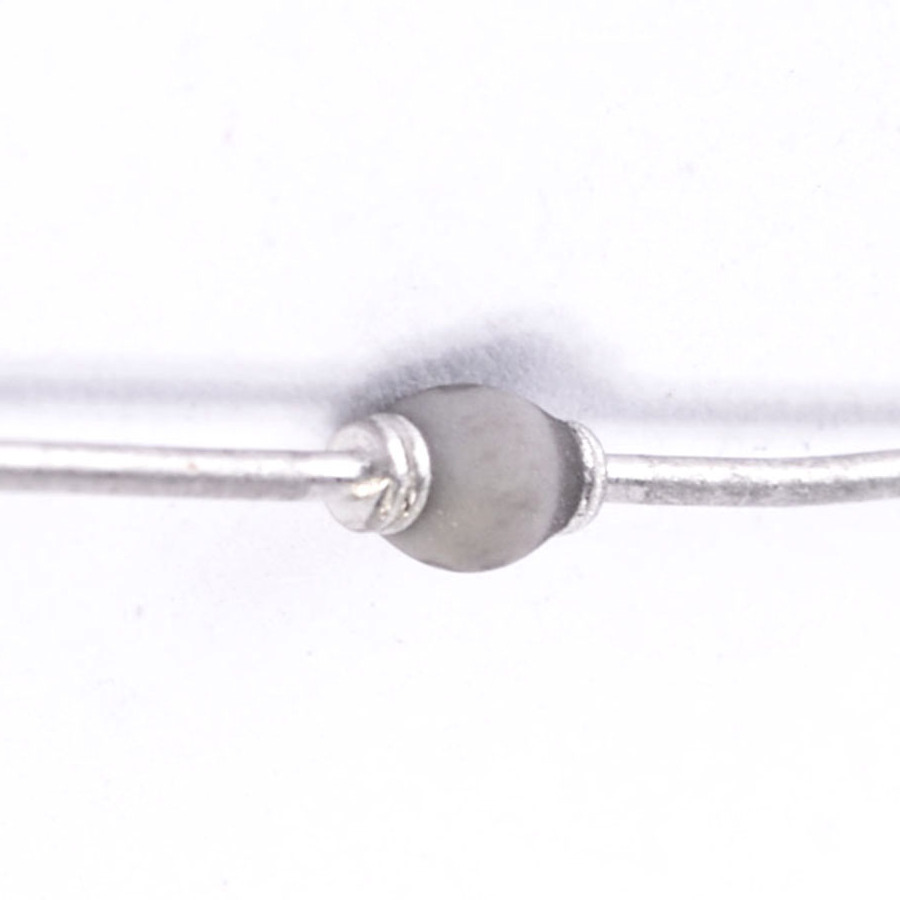

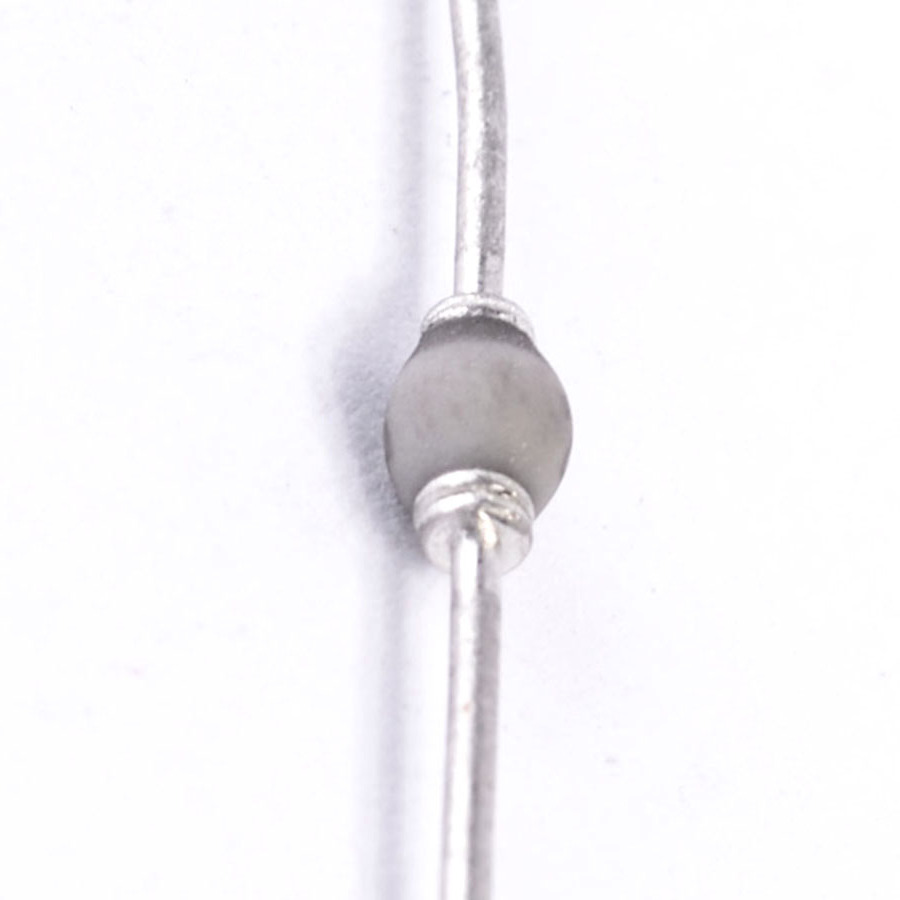

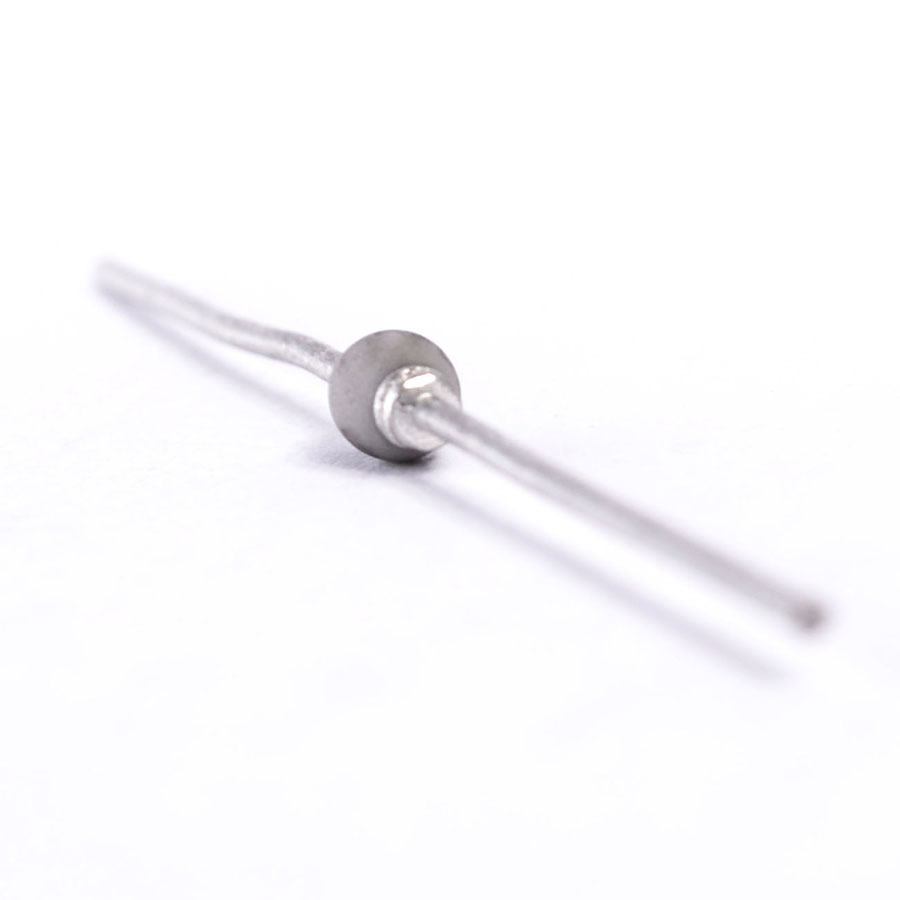

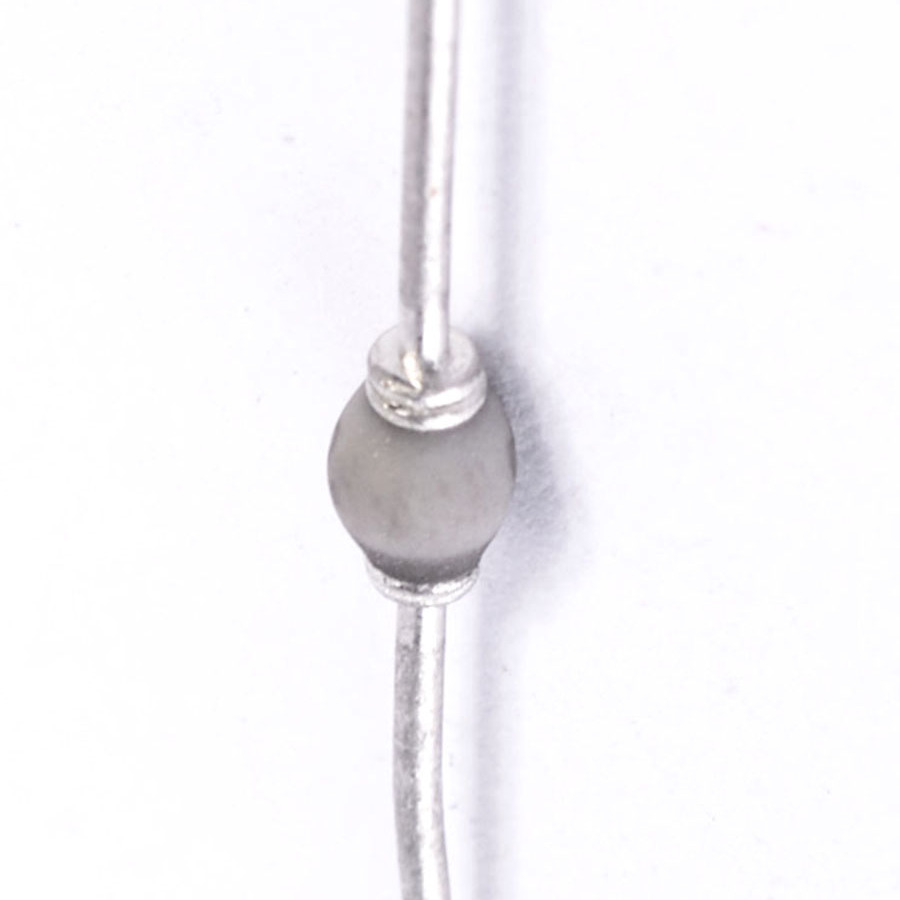

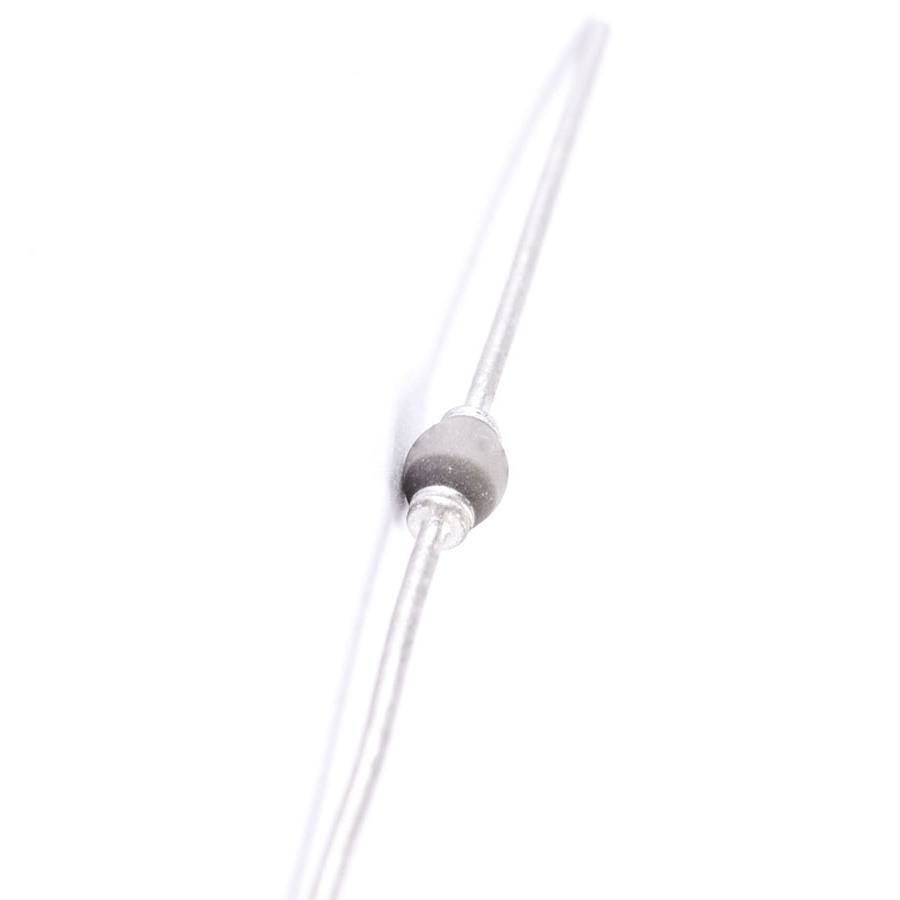

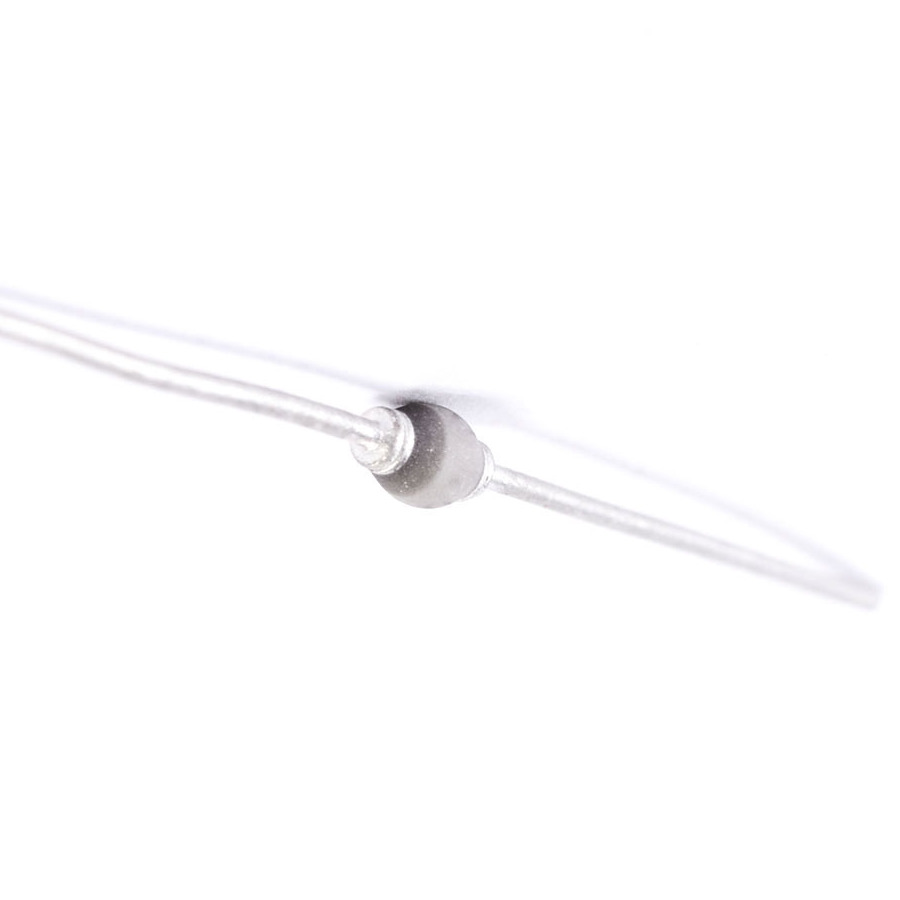

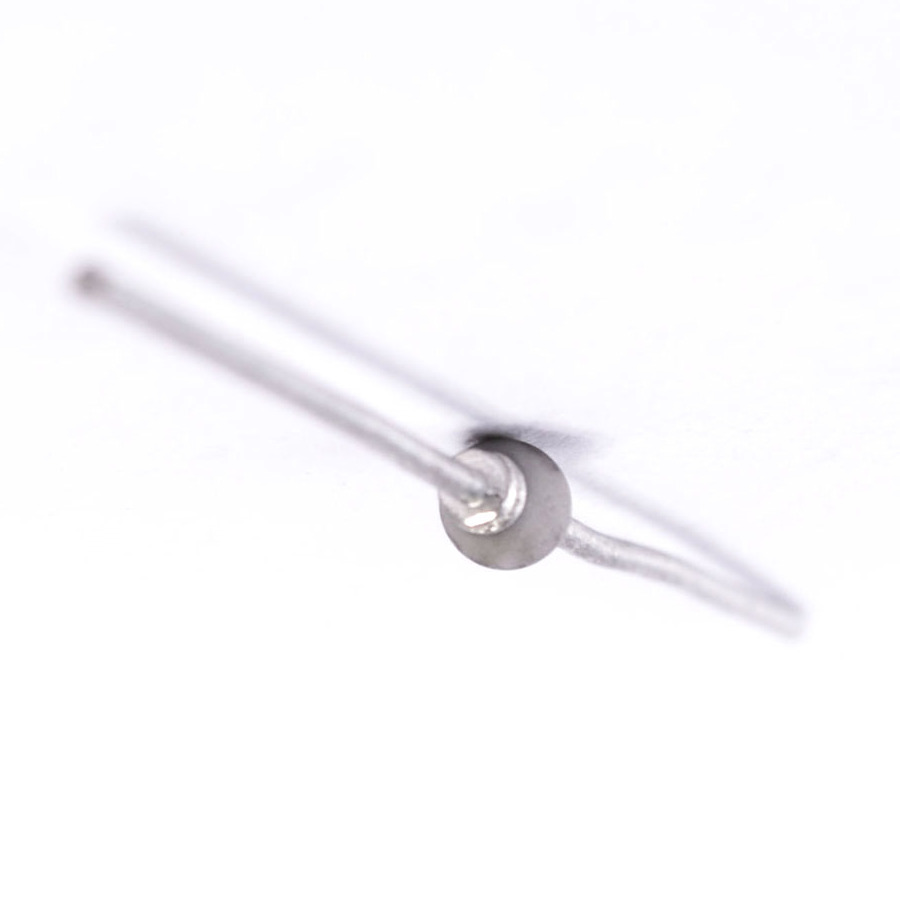

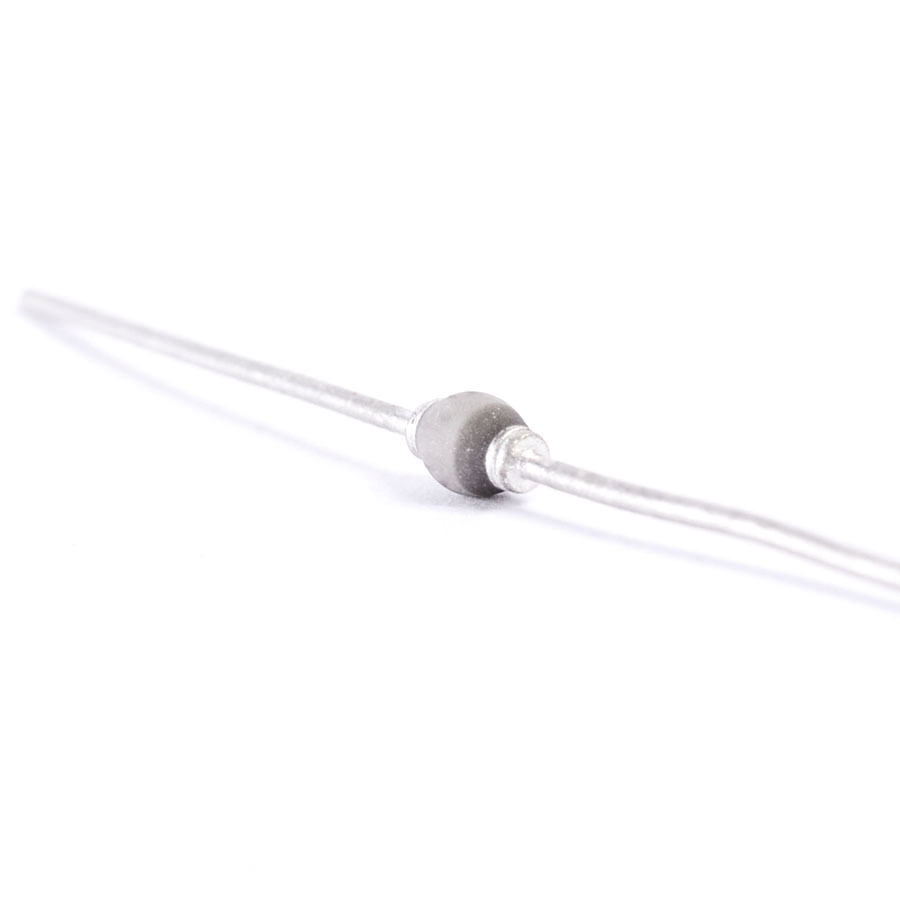

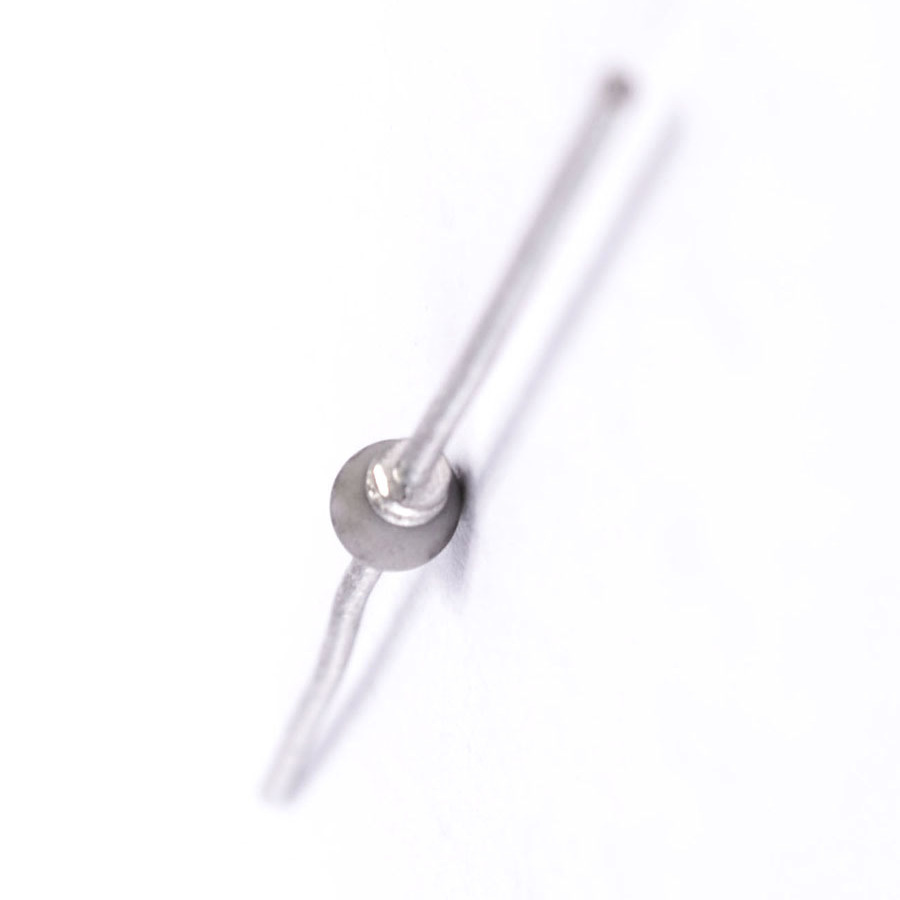

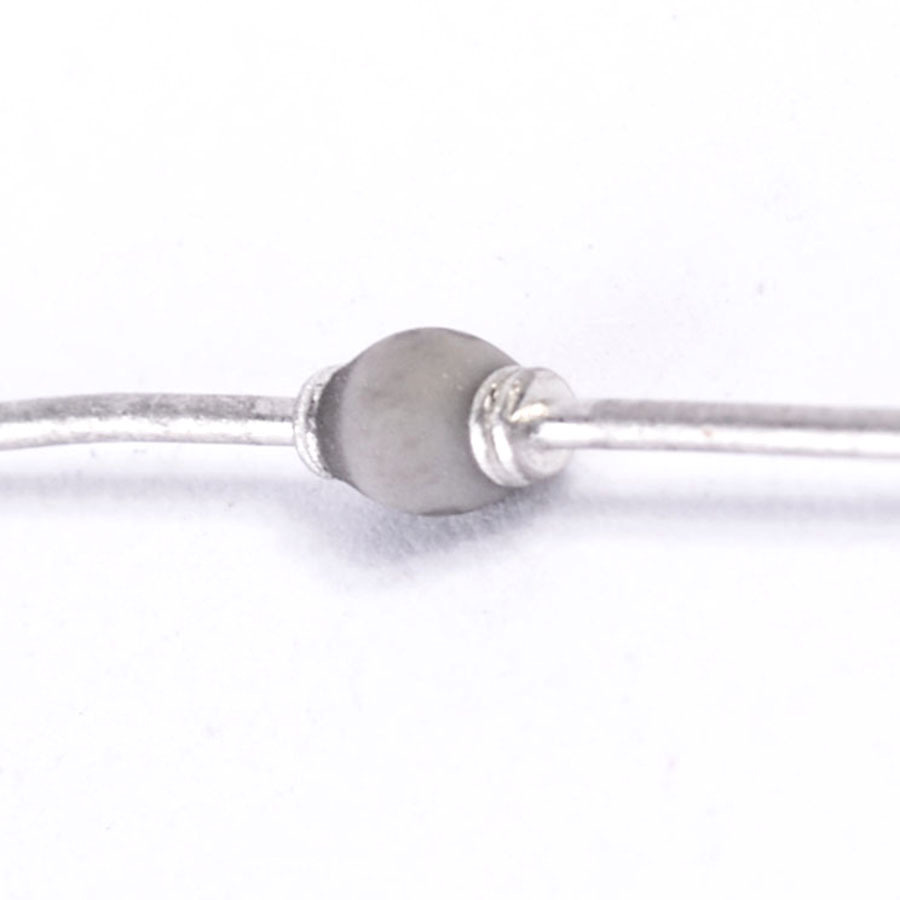

1N5809 Silicon Diode CASE: SOD51 MAKE: Microsemi Corporation
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 7 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
1N5809 Datasheet
Product specifications
Type Silicon Diode
Case SOD51
Manufacturer Microsemi Corporation
Ir @ Diff. Temp (A) 150u
Mat. Silicon Logic
VRRM 100
t(rr) (S) 30n
@Temp (test) (°C) 75
Vf Max. 875m
Ir @25°C 5.0u
I(out) (If AVG) Max. 6.0
@Volts (test) (V) 70
@If (test) 1.0
@If (test) 4.0
Oper. Temp (°C) Max. 175
@Ir (A) 1.0
Surface Mounted Yes/No NO
SKU 90984
