Home / Actives / Diode / 1N5814
1N5814

1N5814

SKU: 1N5814

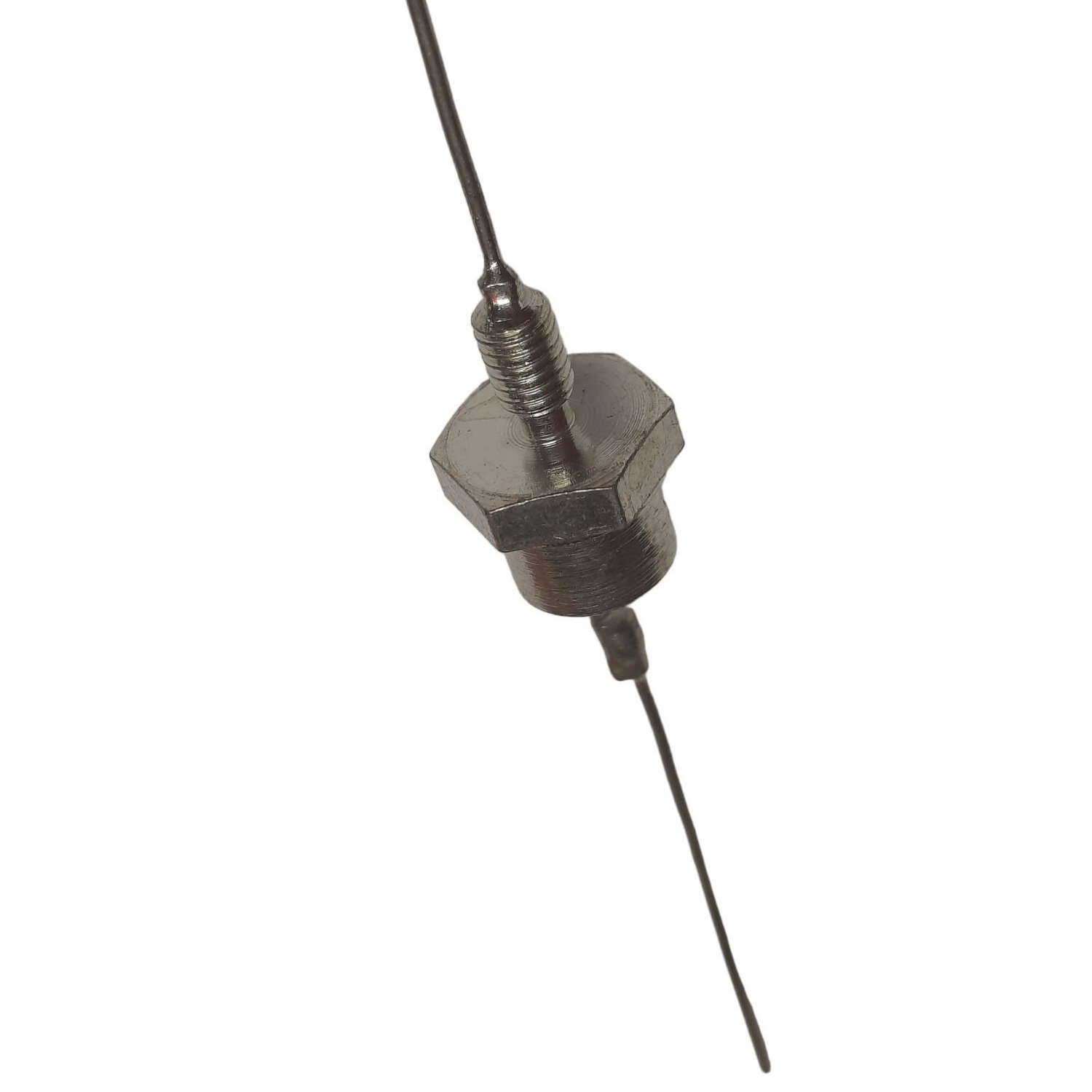

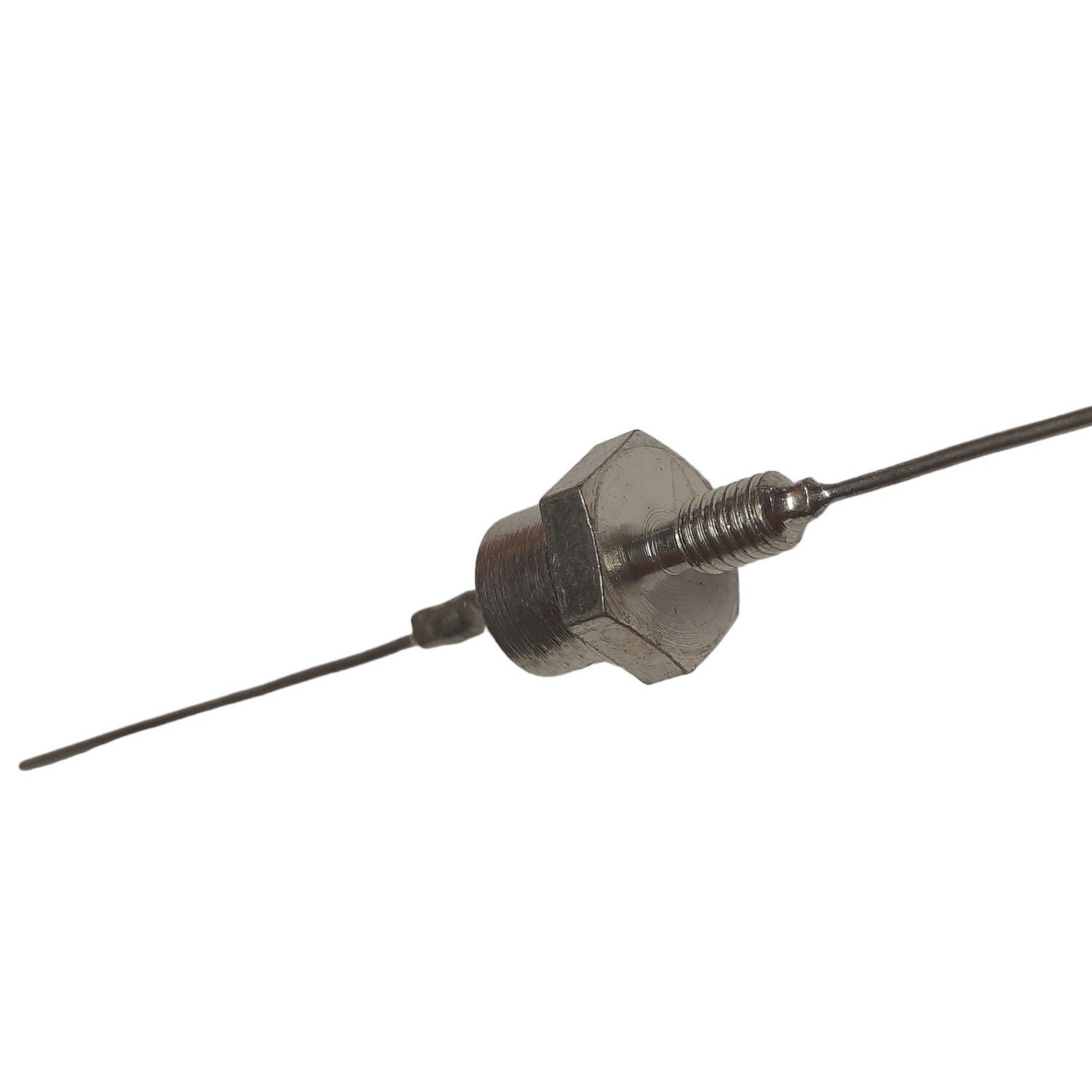

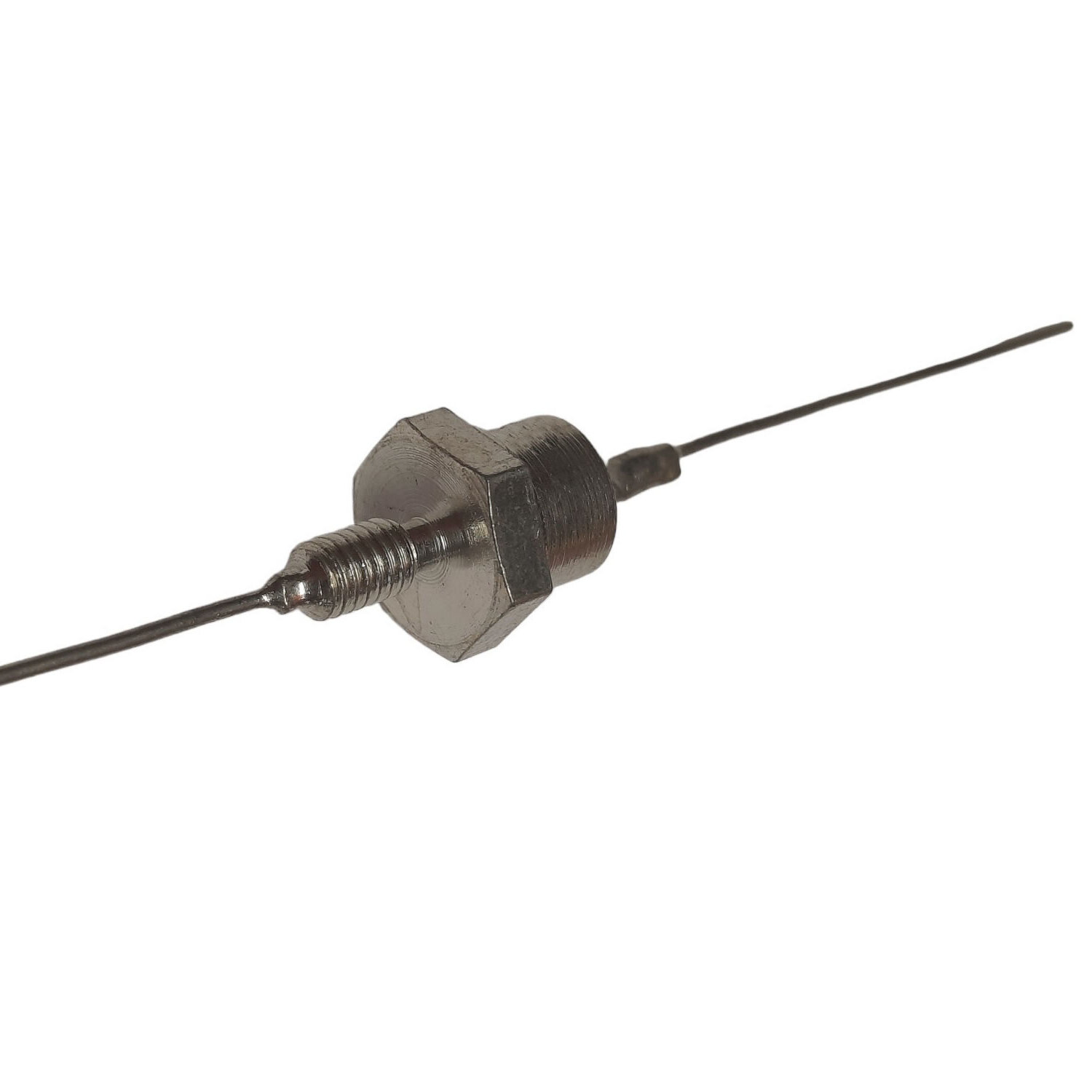

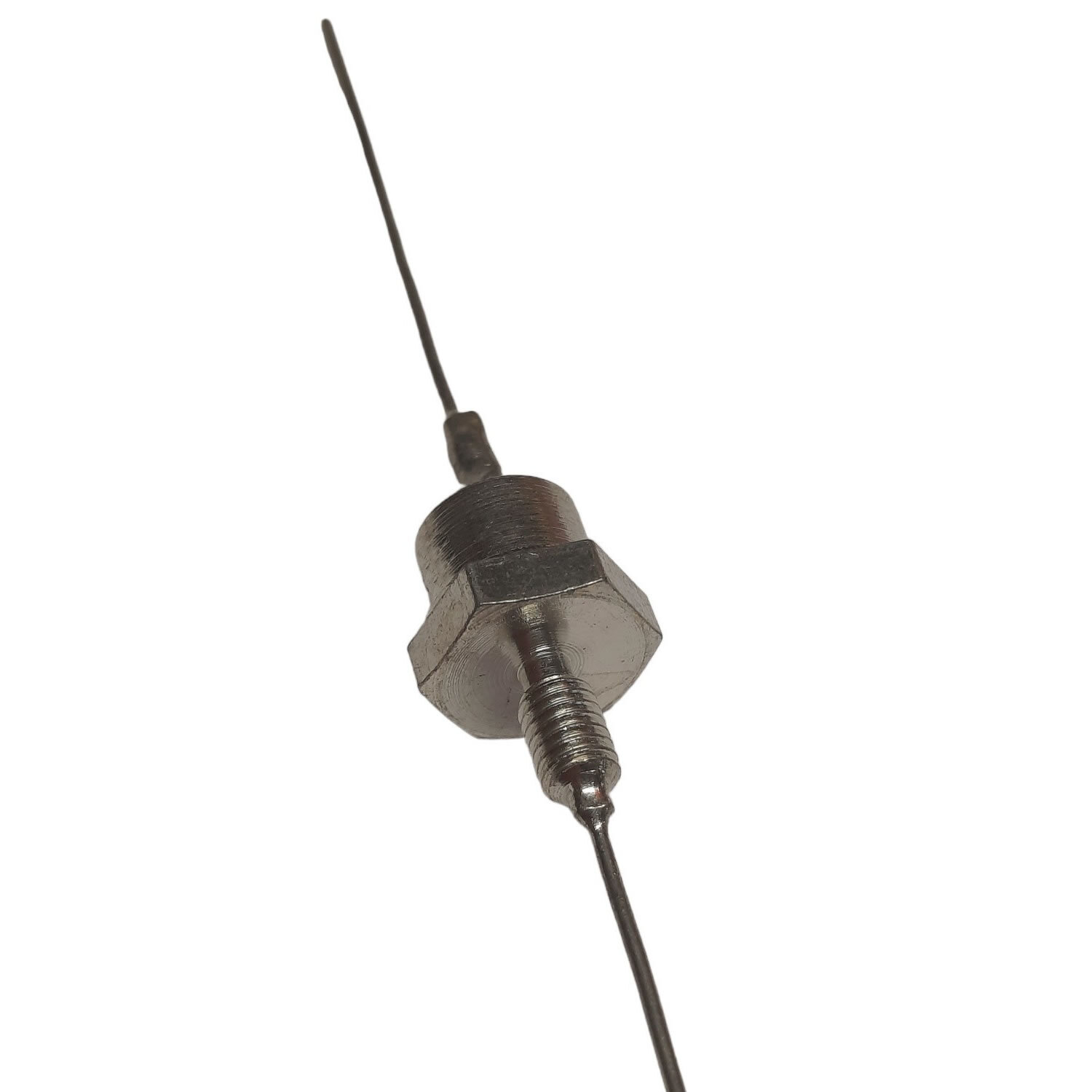

1N5814 Schottky Diode CASE: DO4 MAKE: Generic
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
1N5814 Datasheet
Product specifications
Type Schottky Diode
Case DO4
Manufacturer New Jersey Semiconductor
Ir @ Diff. Temp (A) 750u
Mat. Silicon Logic
VRRM 100
t(rr) (S) 35n
@Temp (test) (°C) 100
Vf Max. 900m
Ir @25°C 10u
I(out) (If AVG) Max. 20
@Volts (test) (V) 100
@If (test) 500m
@If (test) 10
Oper. Temp (°C) Max. 175
@Ir (A) 1.0
Surface Mounted Yes/No NO
SKU 367511
