1N5814R

1N5814R

SKU: 1N5814R

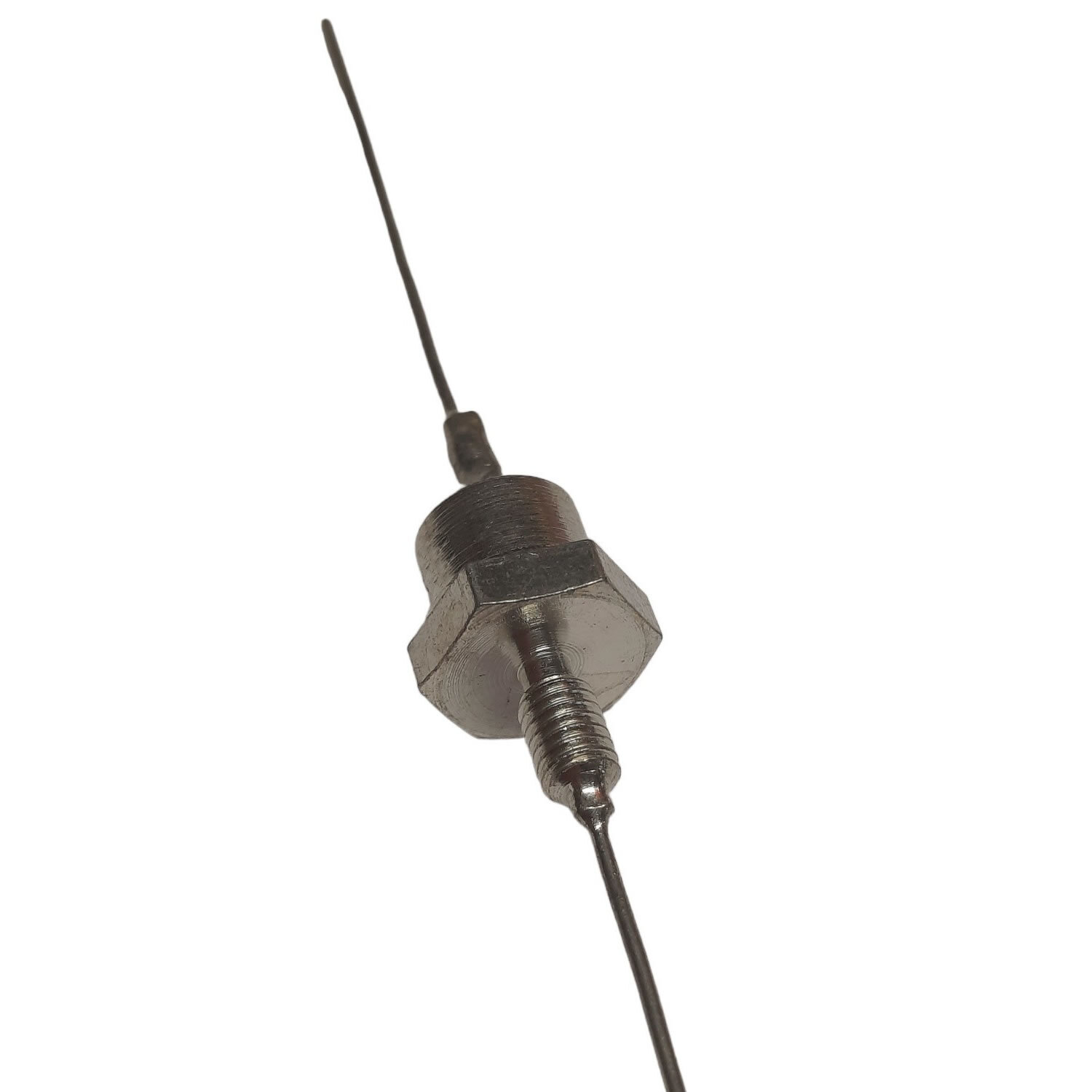

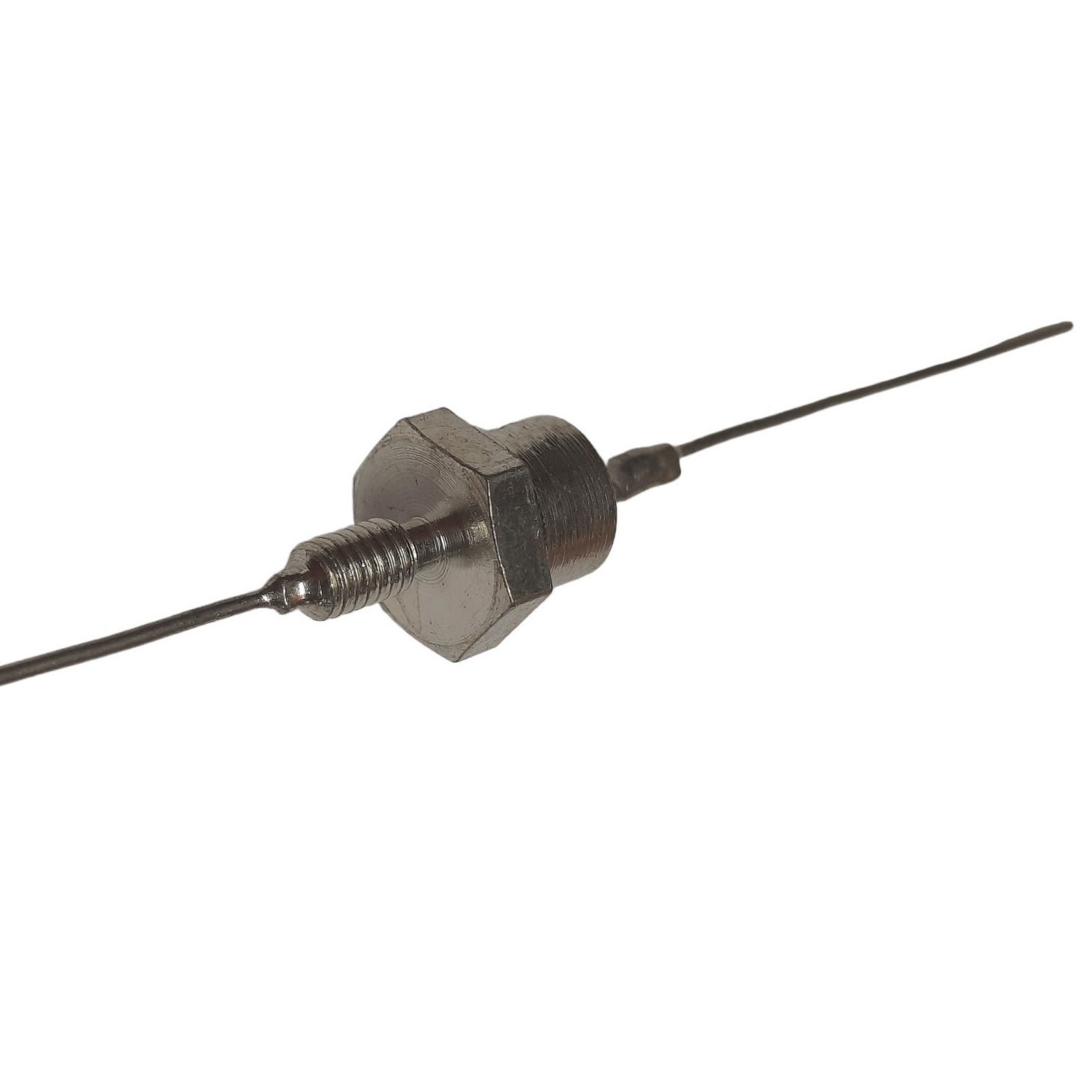

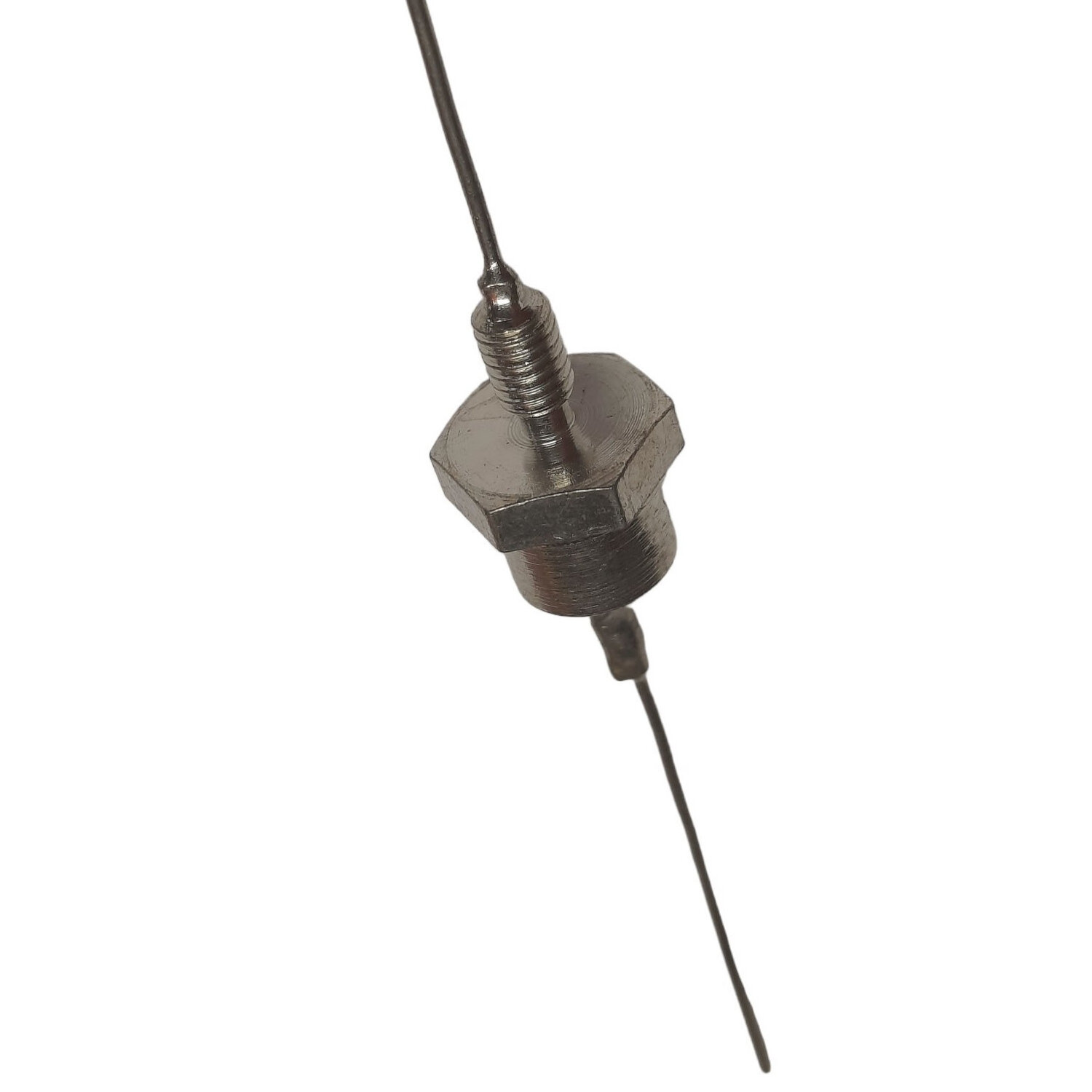

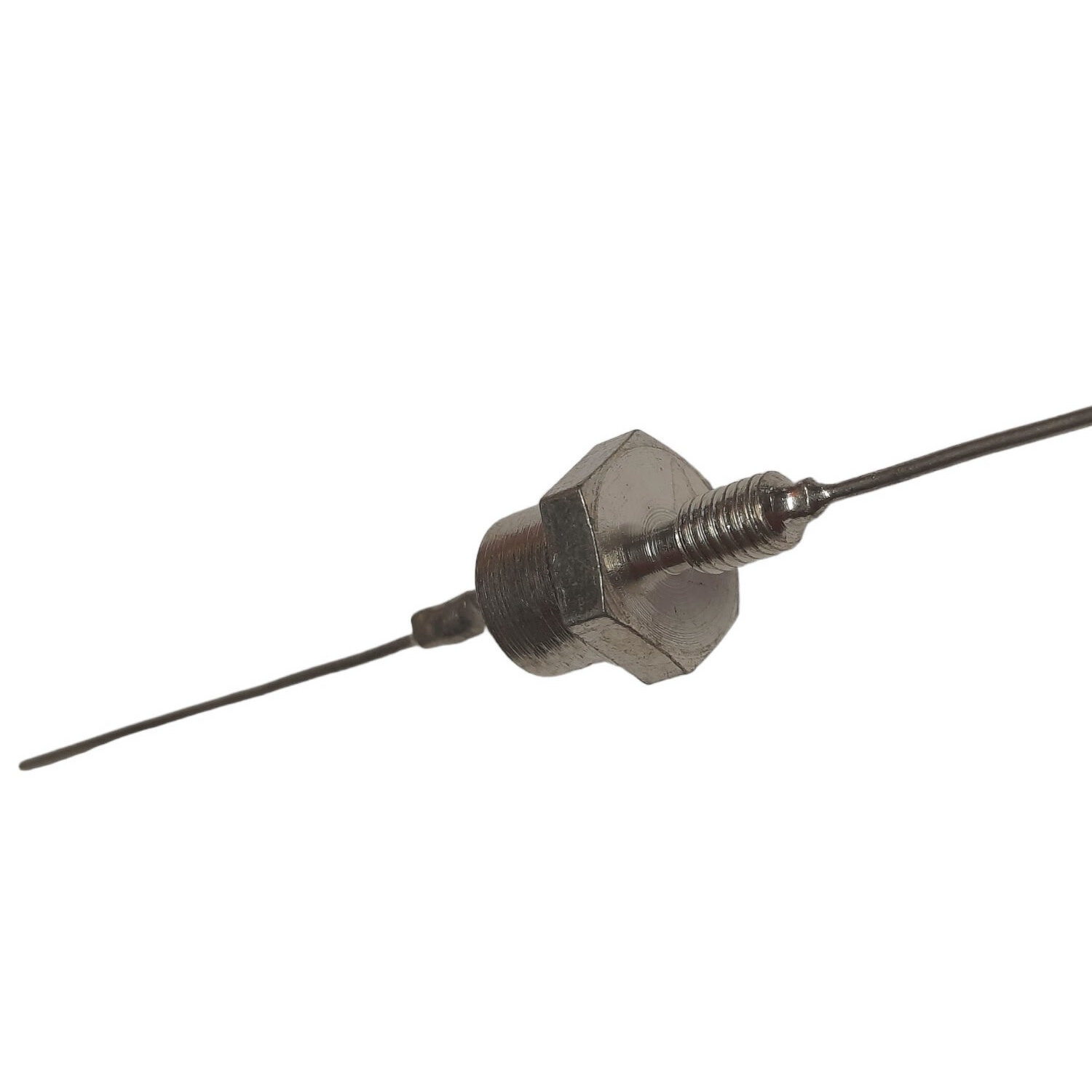

1N5814R Schottky Diode CASE: DO4 MAKE: Generic
Datasheet
1N5814R Datasheet
Product specifications
Type Schottky Diode
Case DO4
Manufacturer Microsemi
Ir @ Diff. Temp (A) 750u
Mat. Silicon Logic
VRRM 100
t(rr) (S) 35n
@Temp (test) (°C) 100
Vf Max. 950m
Ir @25°C 10u
I(out) (If AVG) Max. 20
@Volts (test) (V) 100
@If (test) 1.0
@If (test) 20
Oper. Temp (°C) Max. 175
@Ir (A) 1.0
Surface Mounted Yes/No NO
SKU 367514
