1N5815

1N5815

SKU: 1N5815

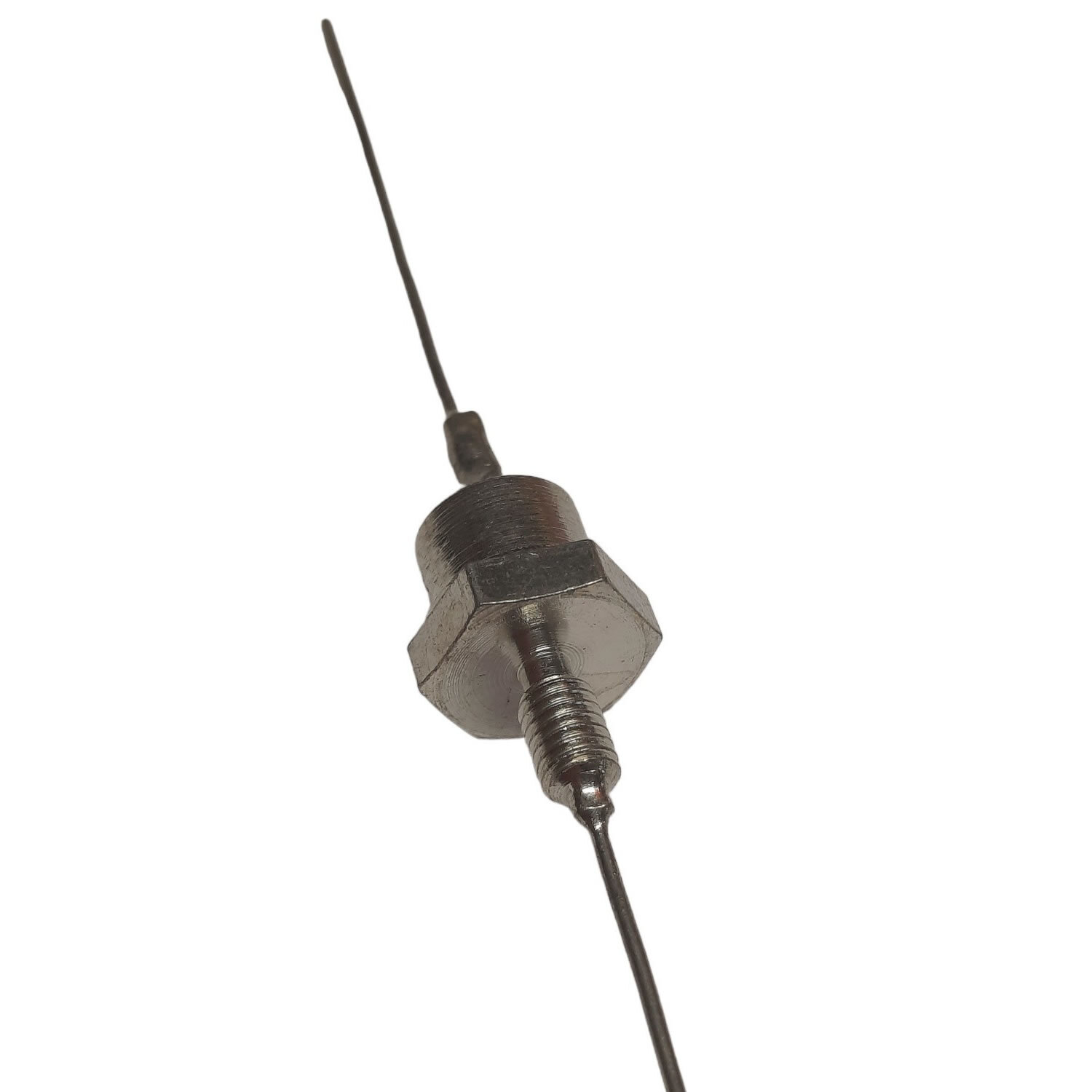

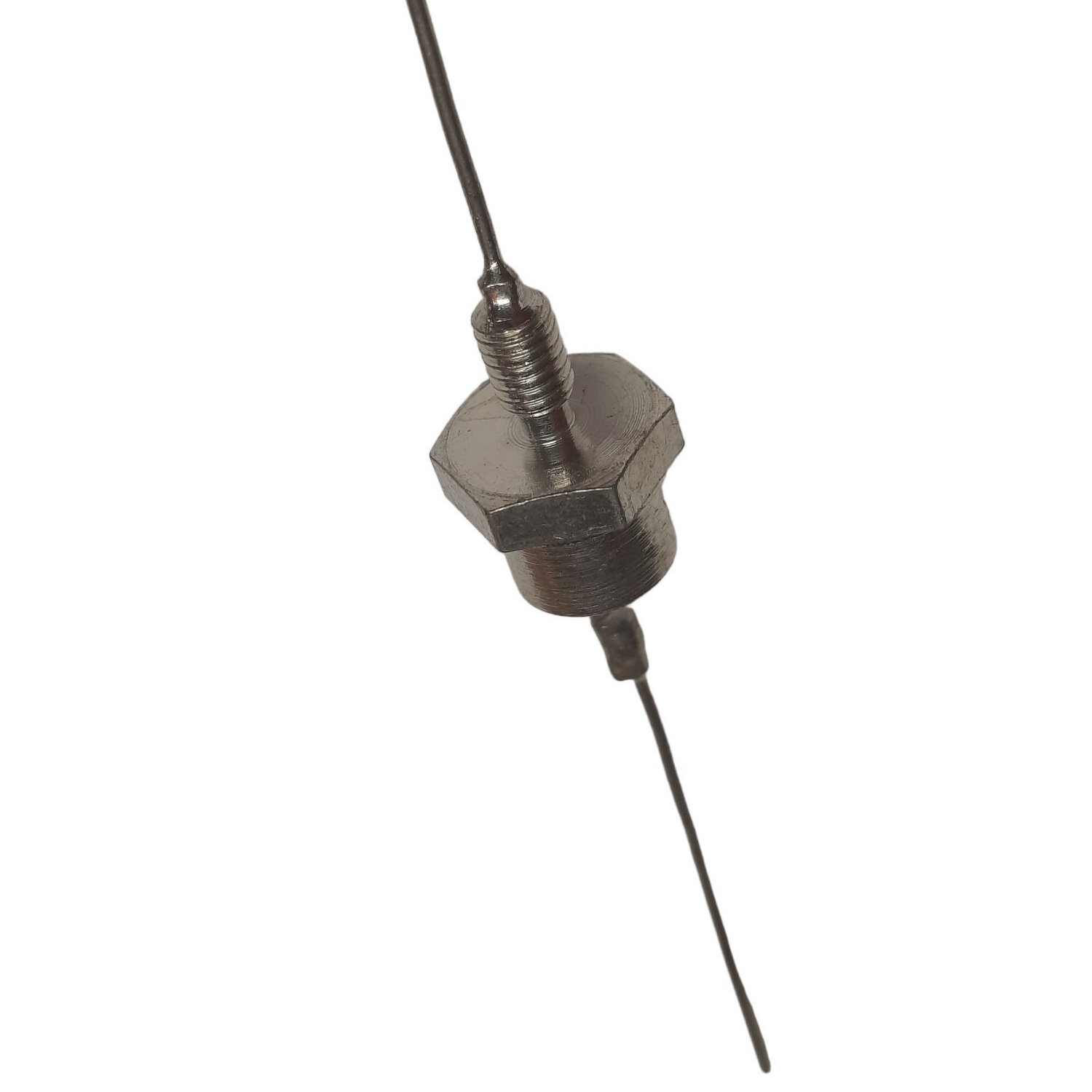

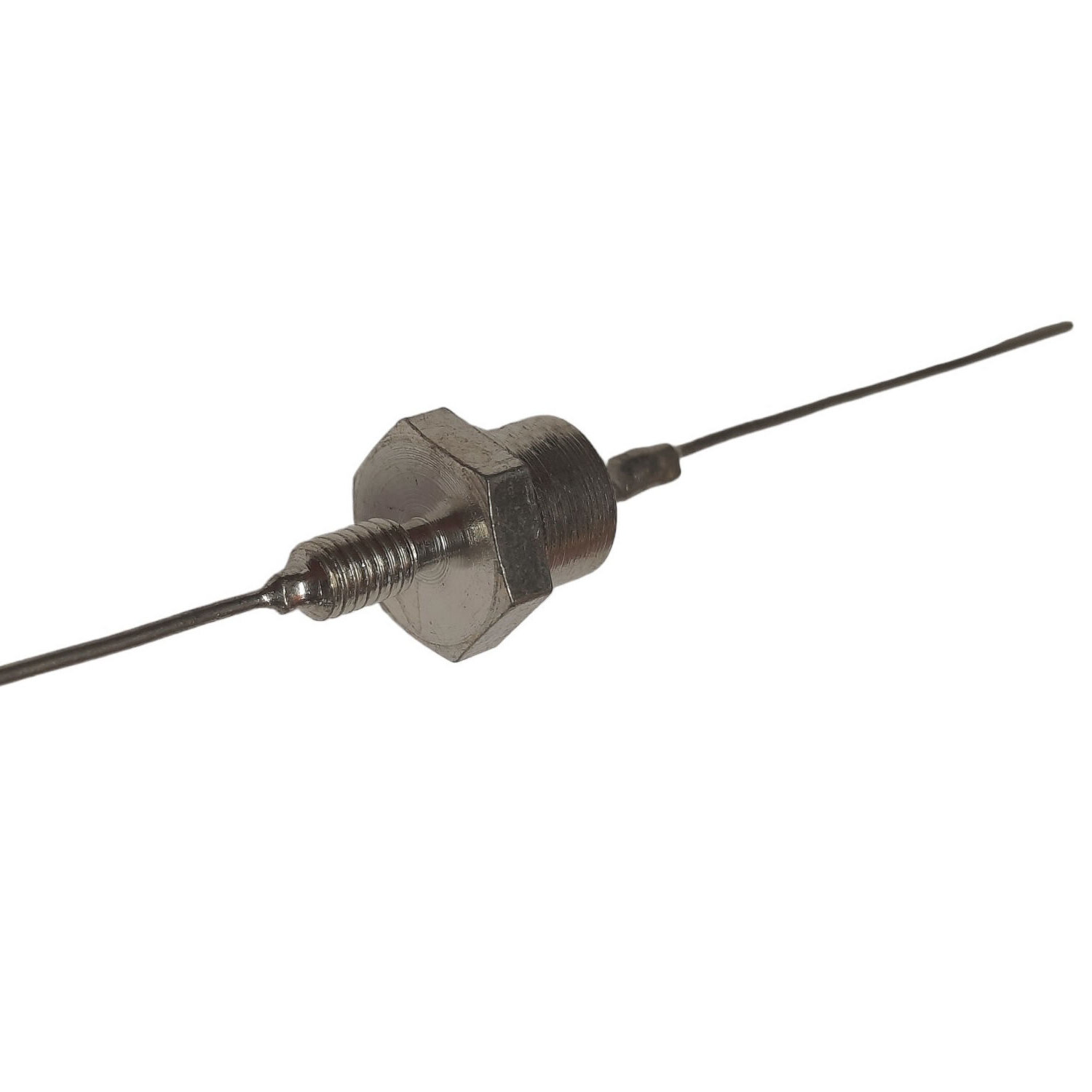

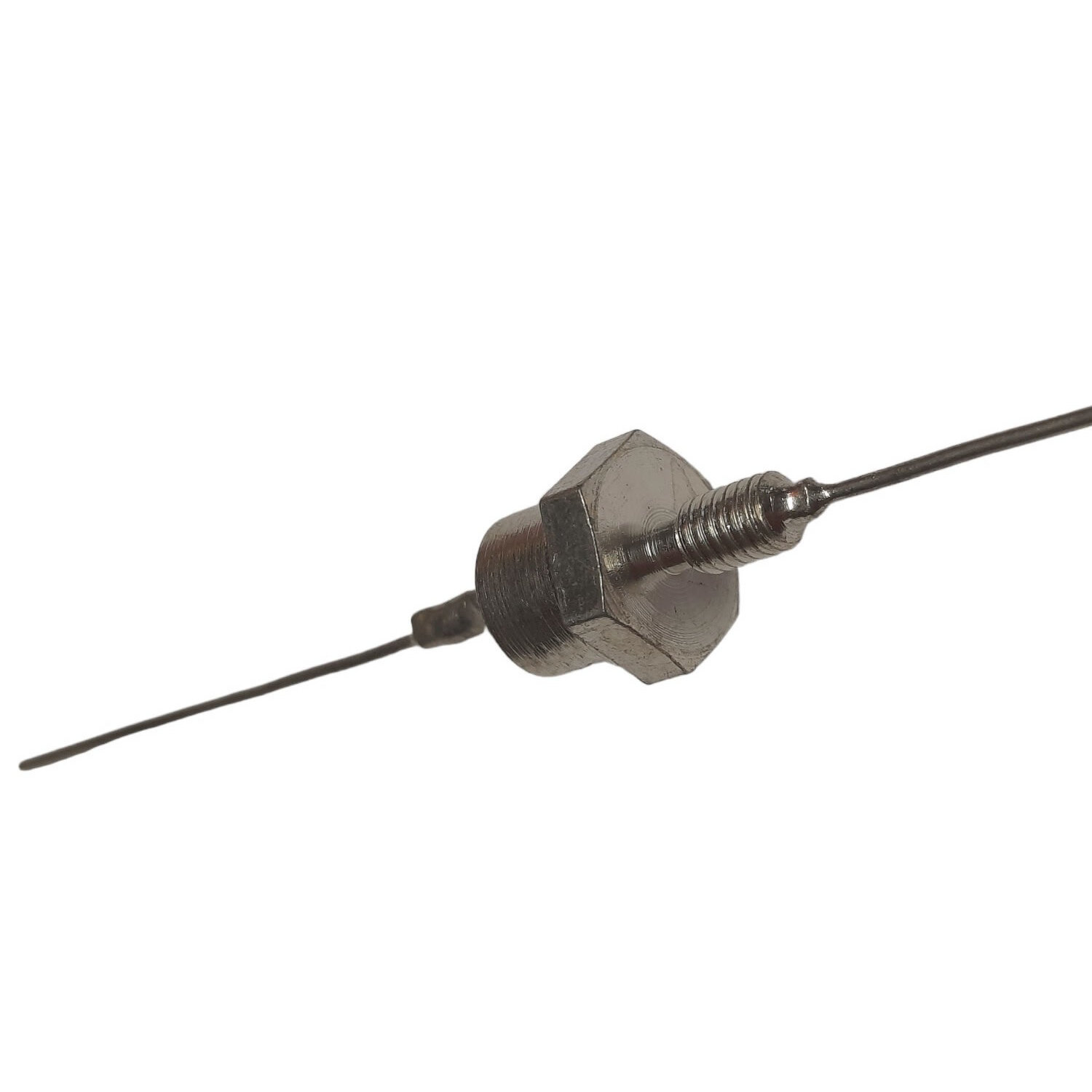

1N5815 Schottky Diode CASE: DO4 MAKE: Generic
Datasheet
1N5815 Datasheet
Product specifications
Type Schottky Diode
Case DO4
Manufacturer New Jersey Semiconductor
Ir @ Diff. Temp (A) 10m
Mat. Silicon Logic
VRRM 125
t(rr) (S) 35n
@Temp (test) (°C) 100
Vf Max. 900m
I(out) (If AVG) Max. 20
@Volts (test) (V) 125
@If (test) 1.0
@If (test) 10
Oper. Temp (°C) Max. 175
@Ir (A) 1.0
Surface Mounted Yes/No NO
SKU 367515
