1N5824

1N5824

SKU: 1N5824

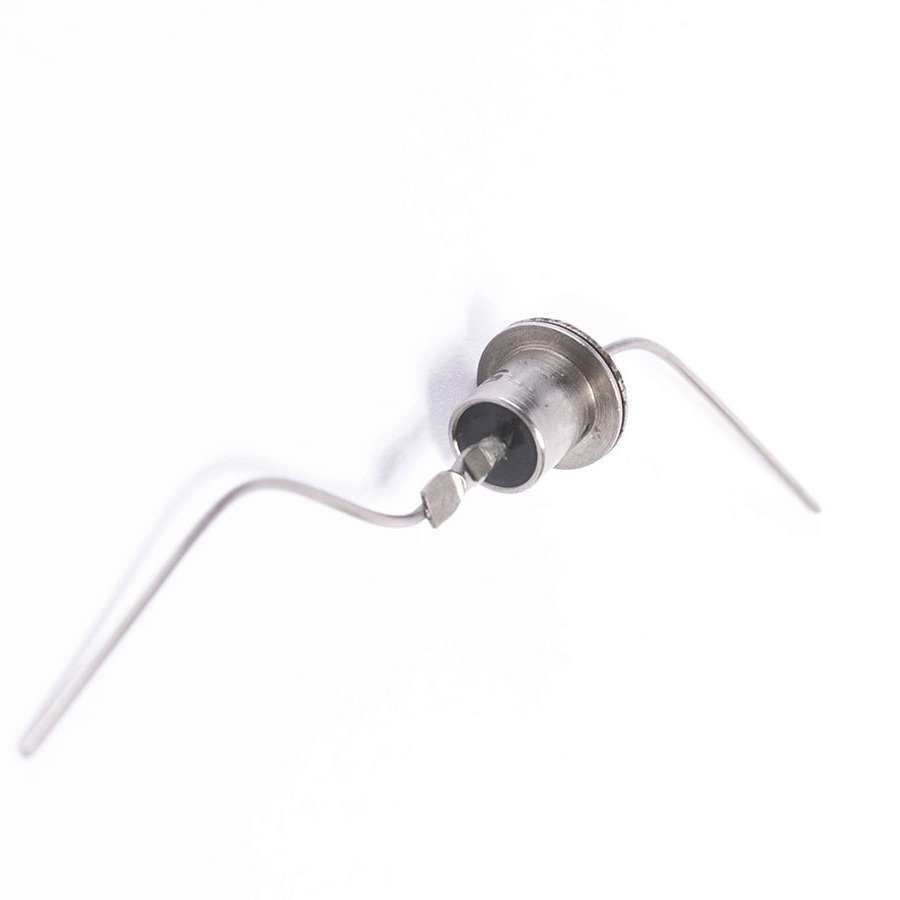

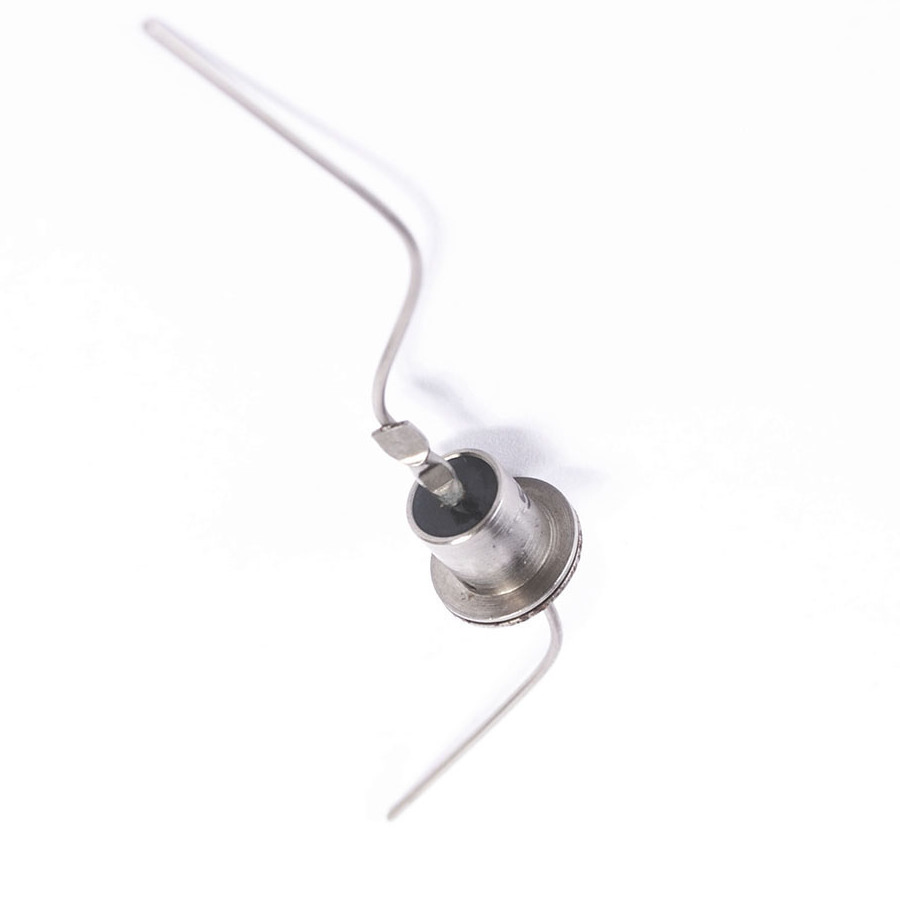

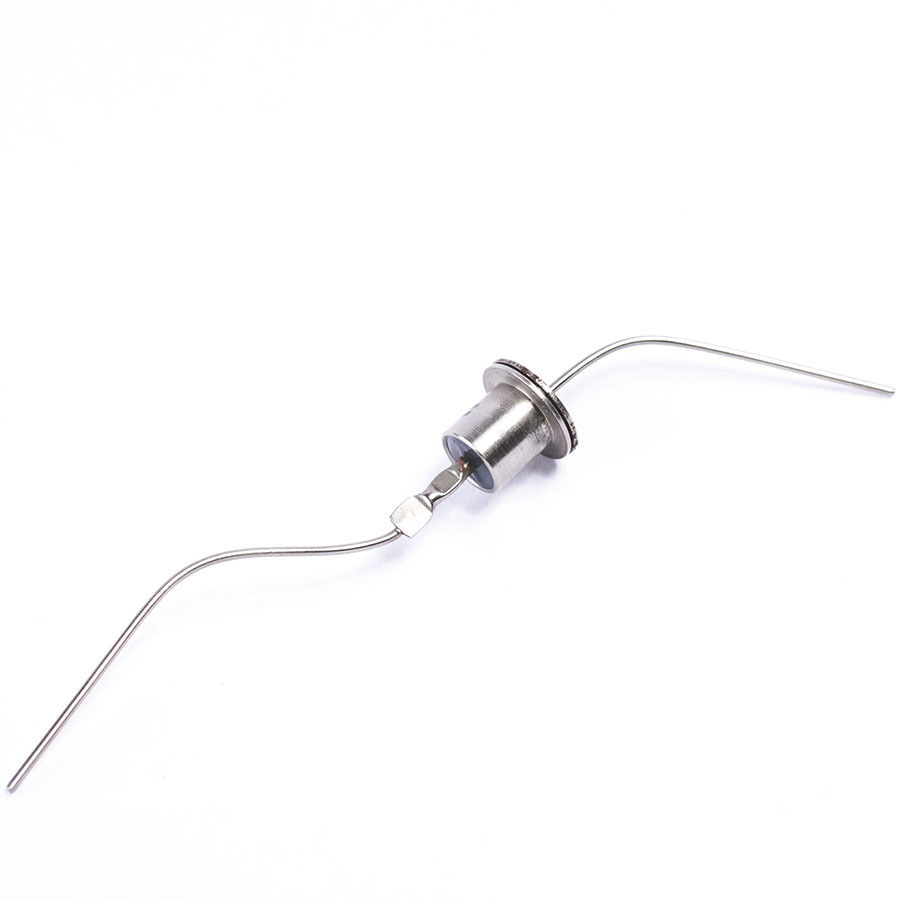

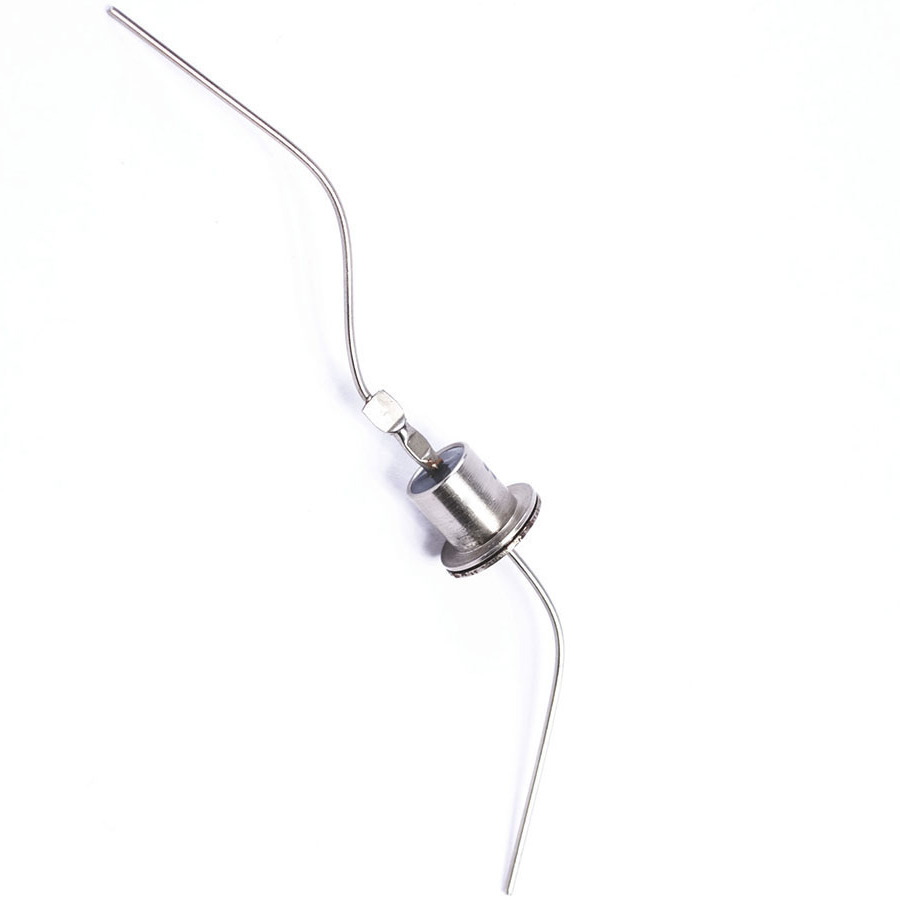

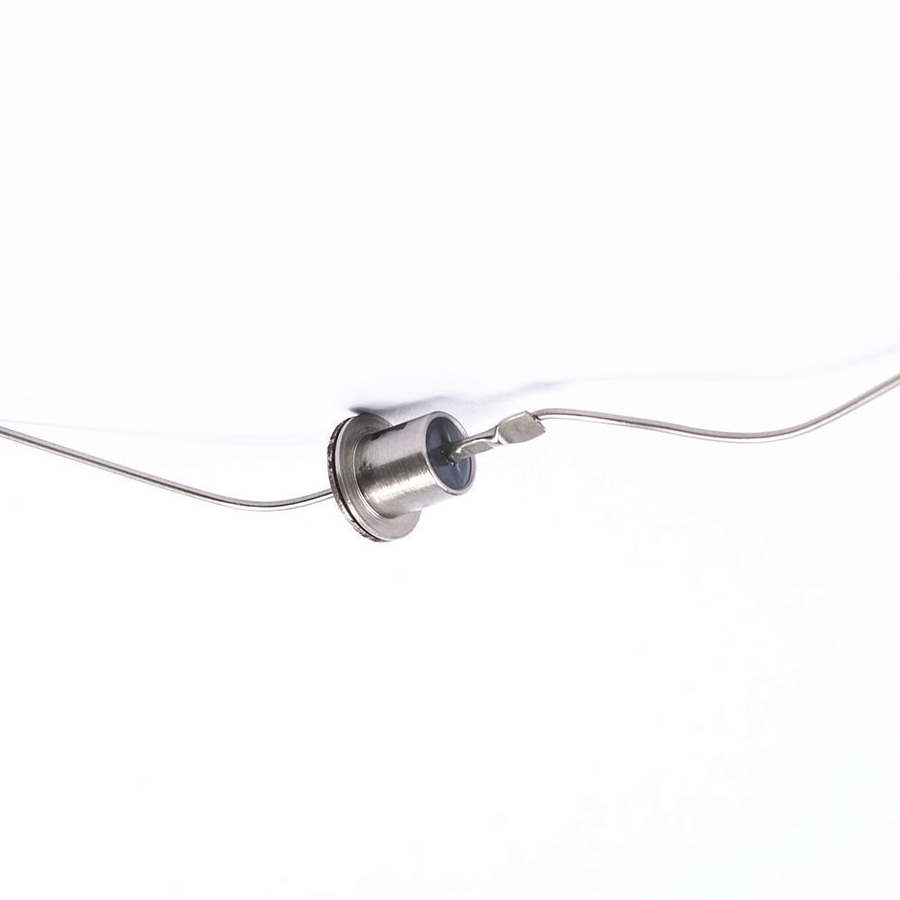

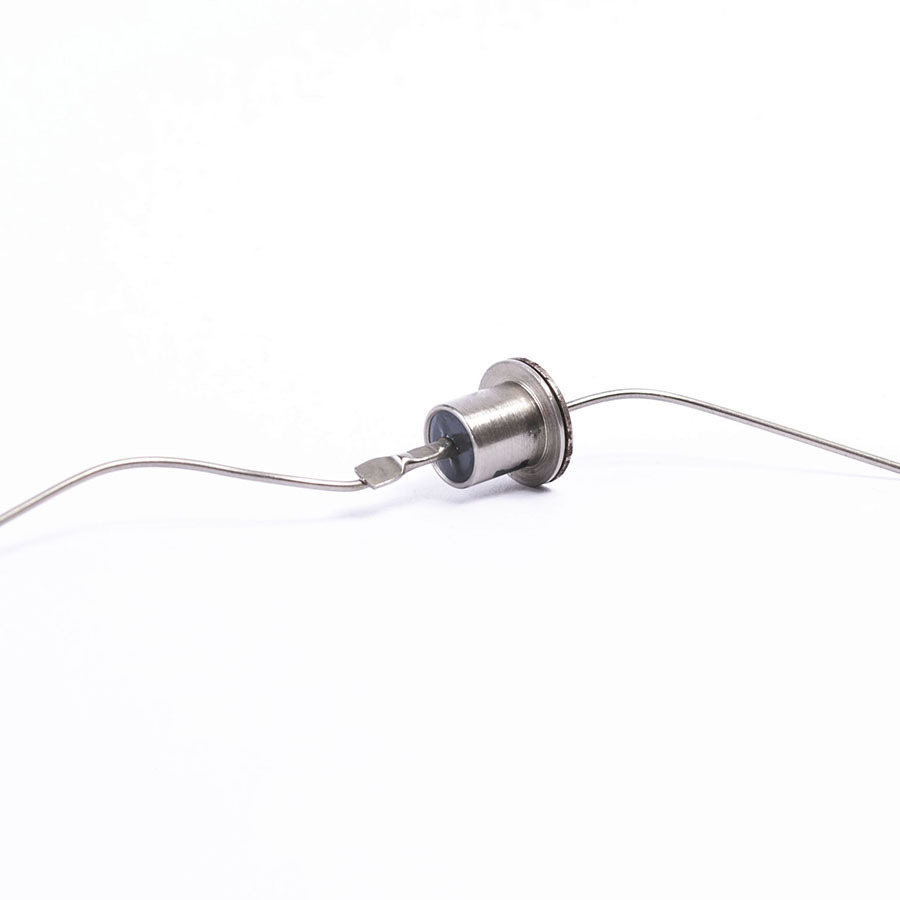

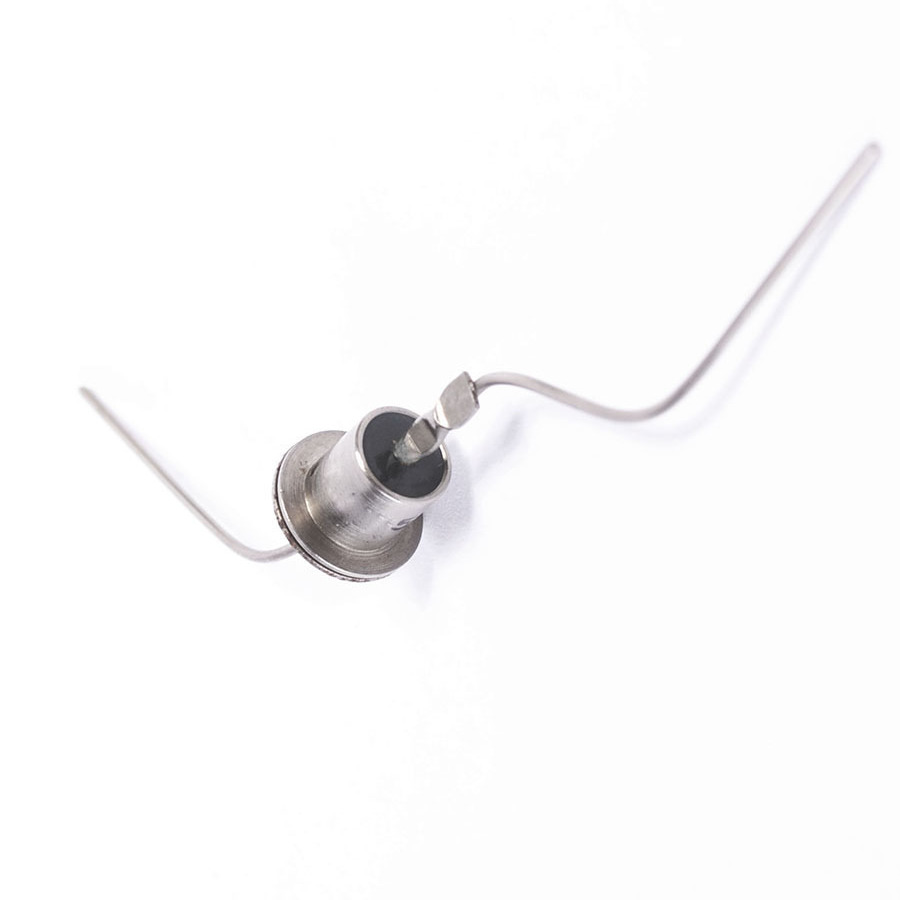

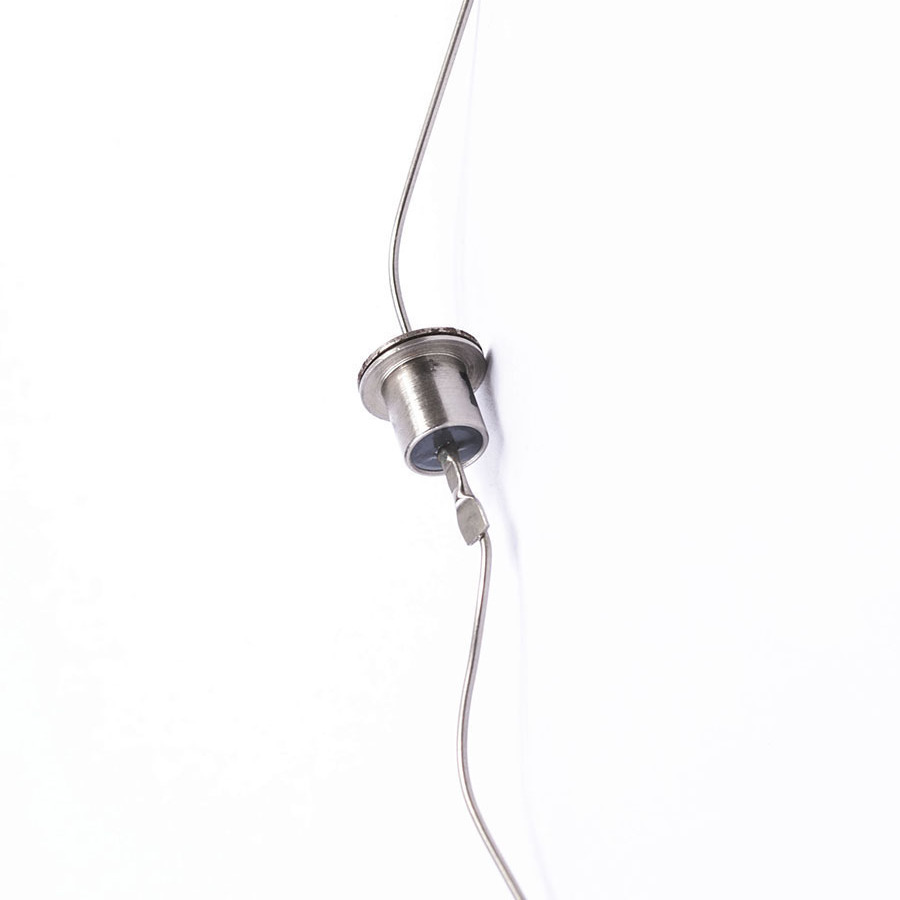

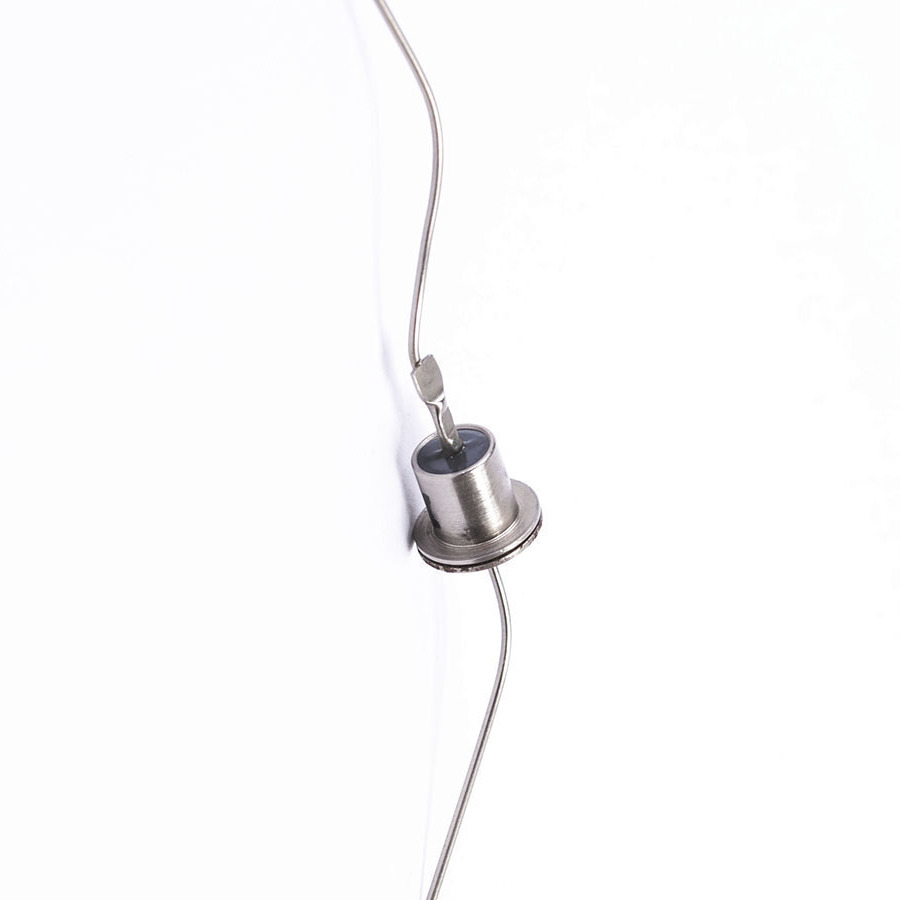

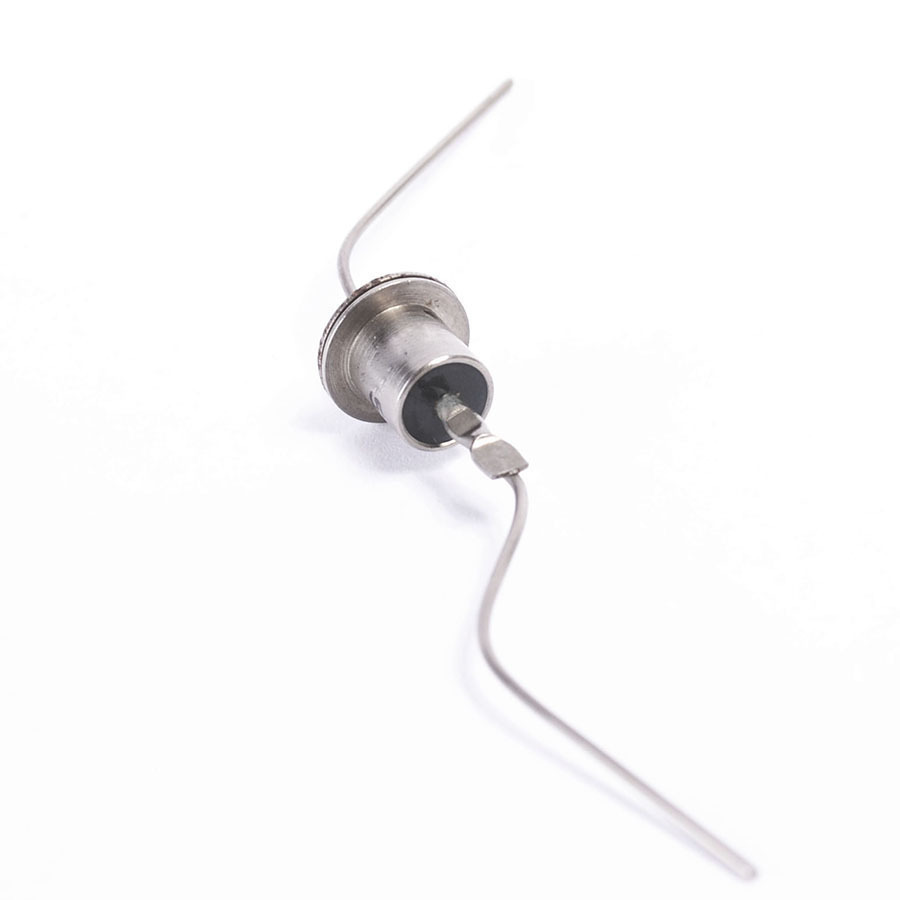

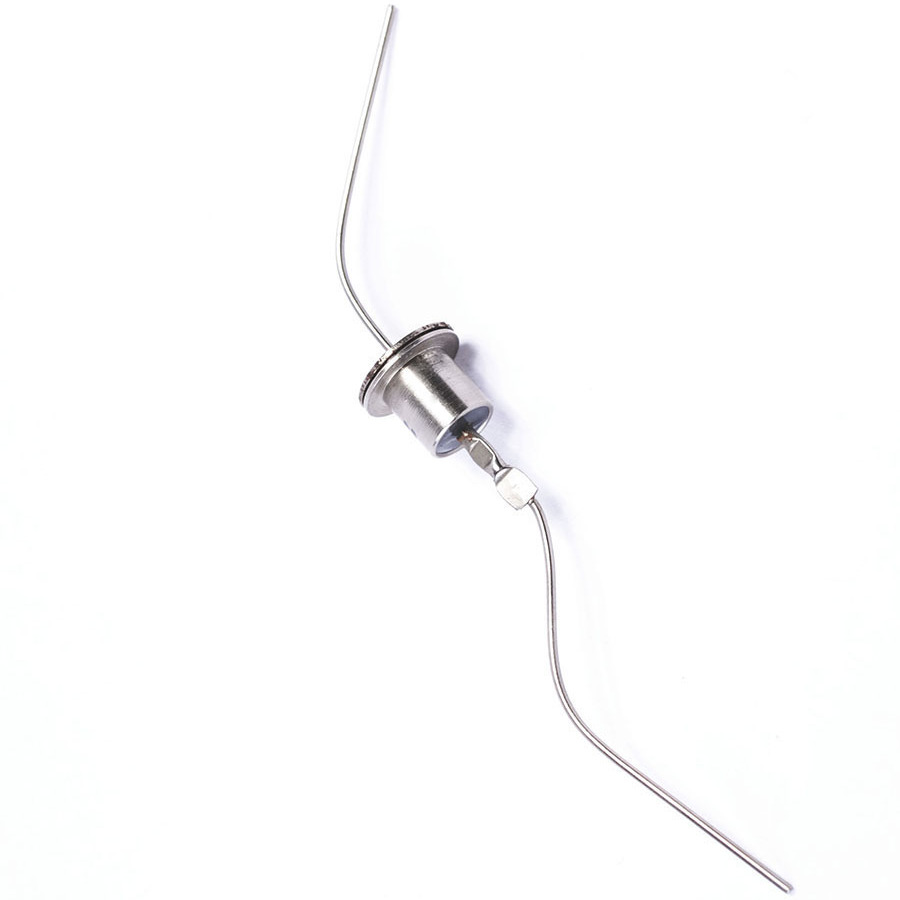

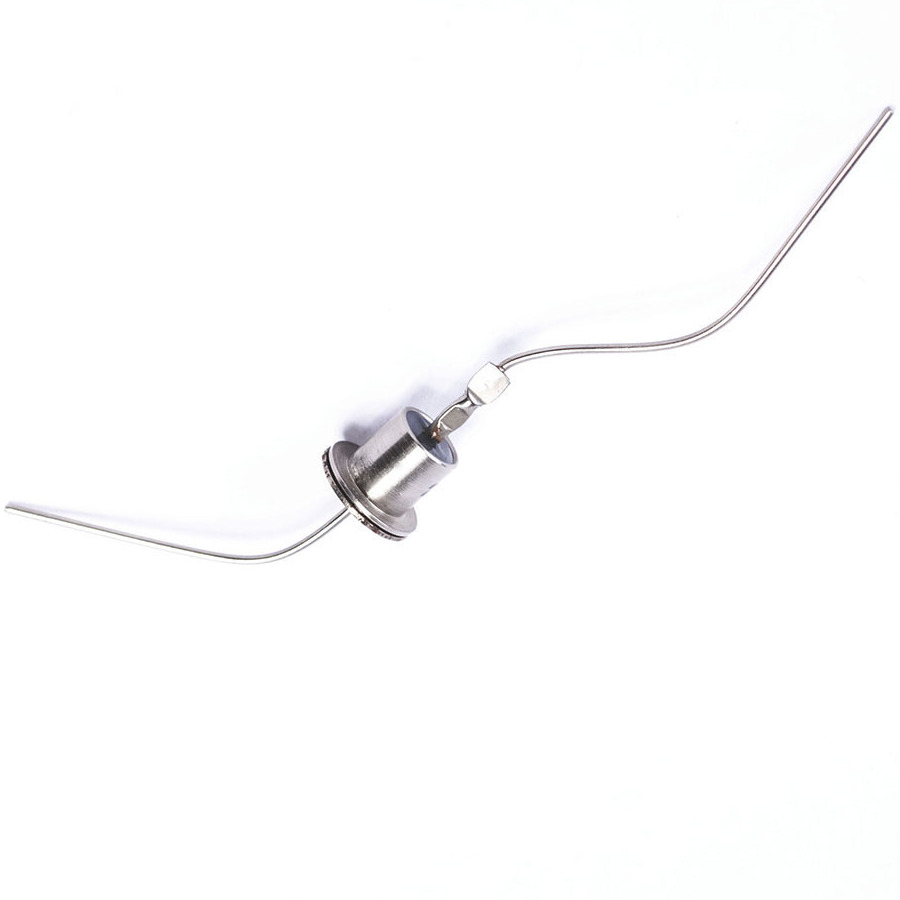

1N5824 Silicon Diode CASE: DO1 MAKE: Motorola Semiconductor
Datasheet
1N5824 Datasheet
Product specifications
Type Silicon Diode
Case DO1
Manufacturer Motorola Semiconductor
@Temp. (test) (°C) 75#
Ir @ Diff. Temp (A) 125m
VRRM 30
1-Cycle Surge Current (A) 500
@Temp (test) (°C) 100#
@Temp. (test) for Vf) 25#
Vf Max. 490m
Ir @25°C 10m
I(out) (If AVG) Max. 15
@Volts (test) (V) 30
@If (test) 15
Oper. Temp (°C) Max. 125
Surface Mounted Yes/No NO
SKU 367518
