2005

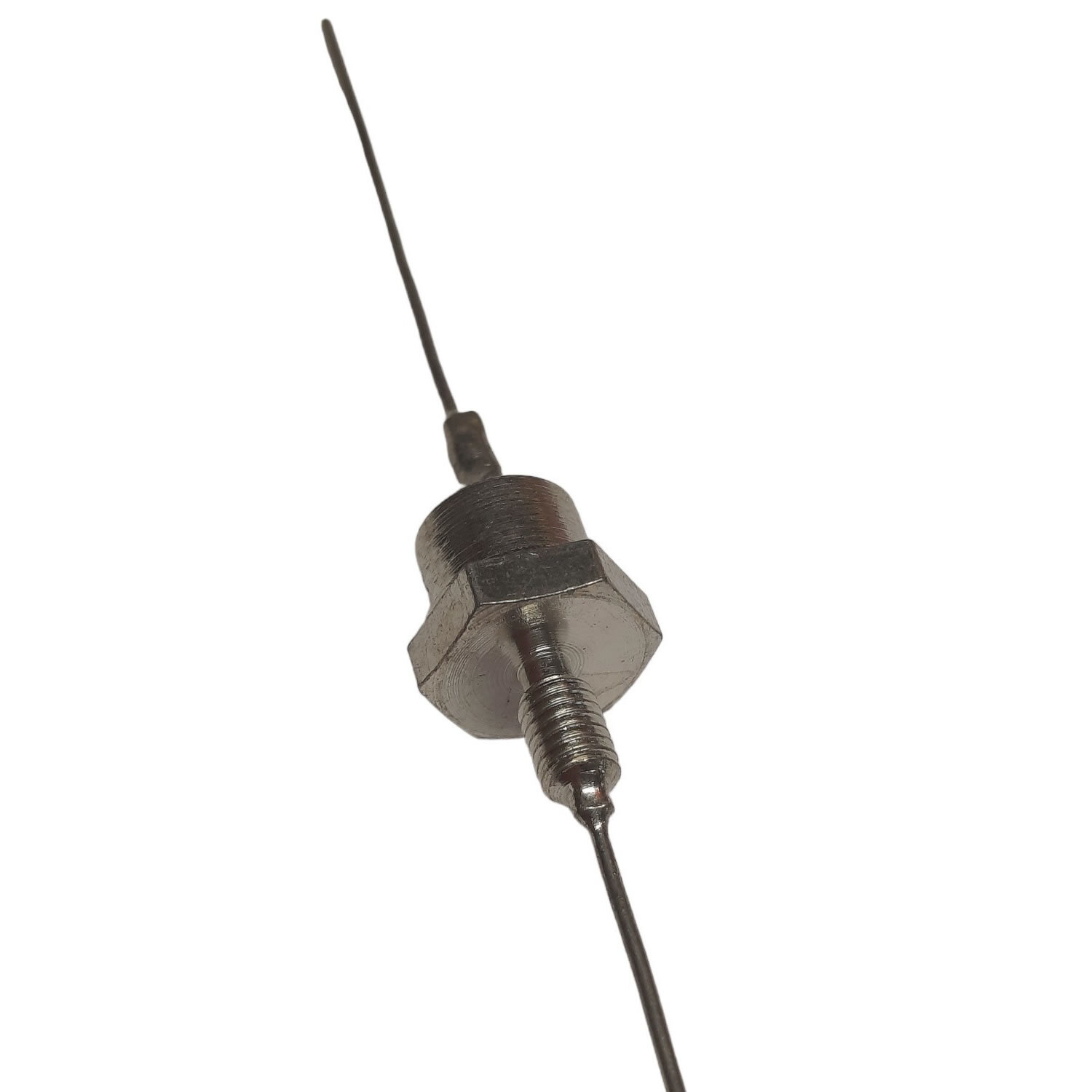

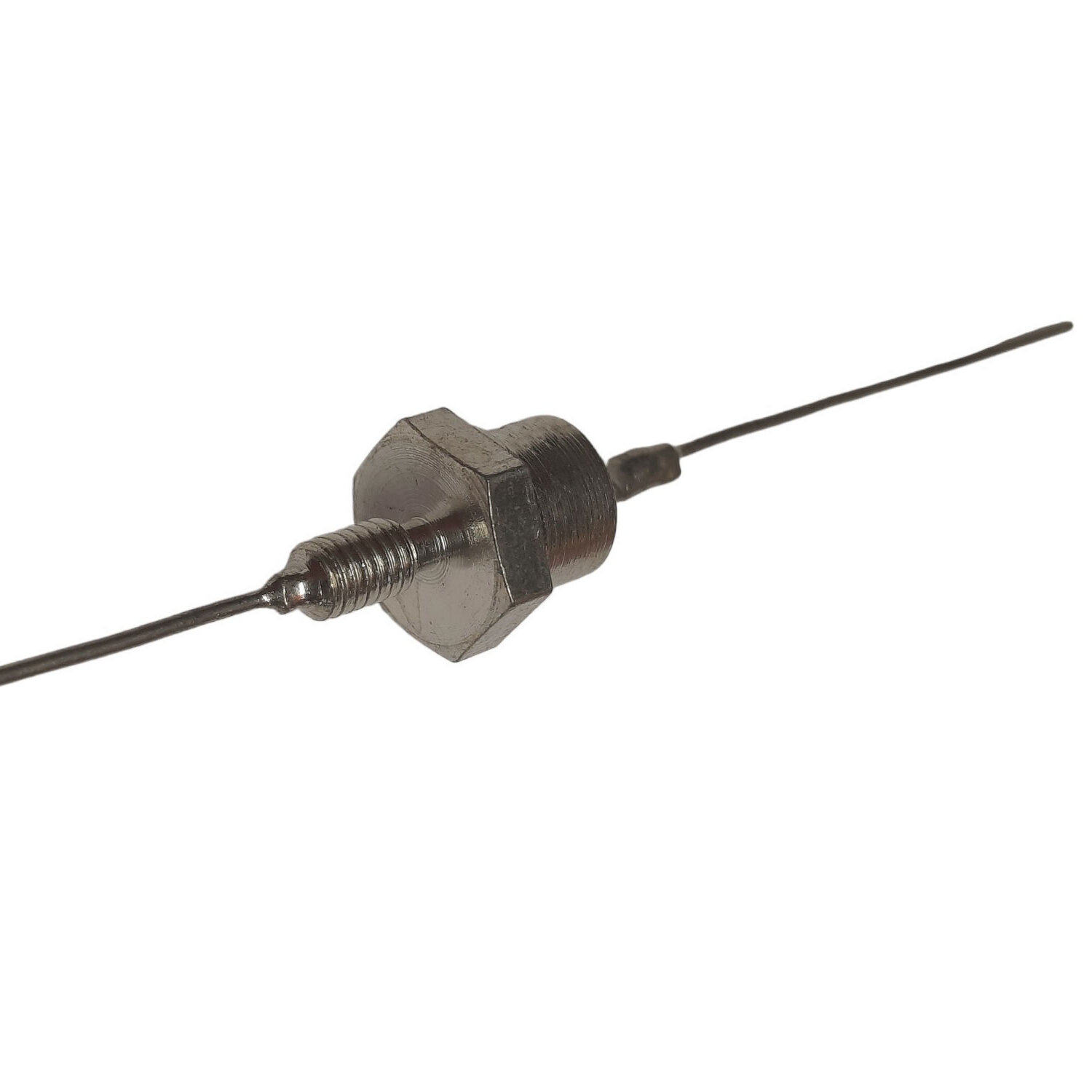

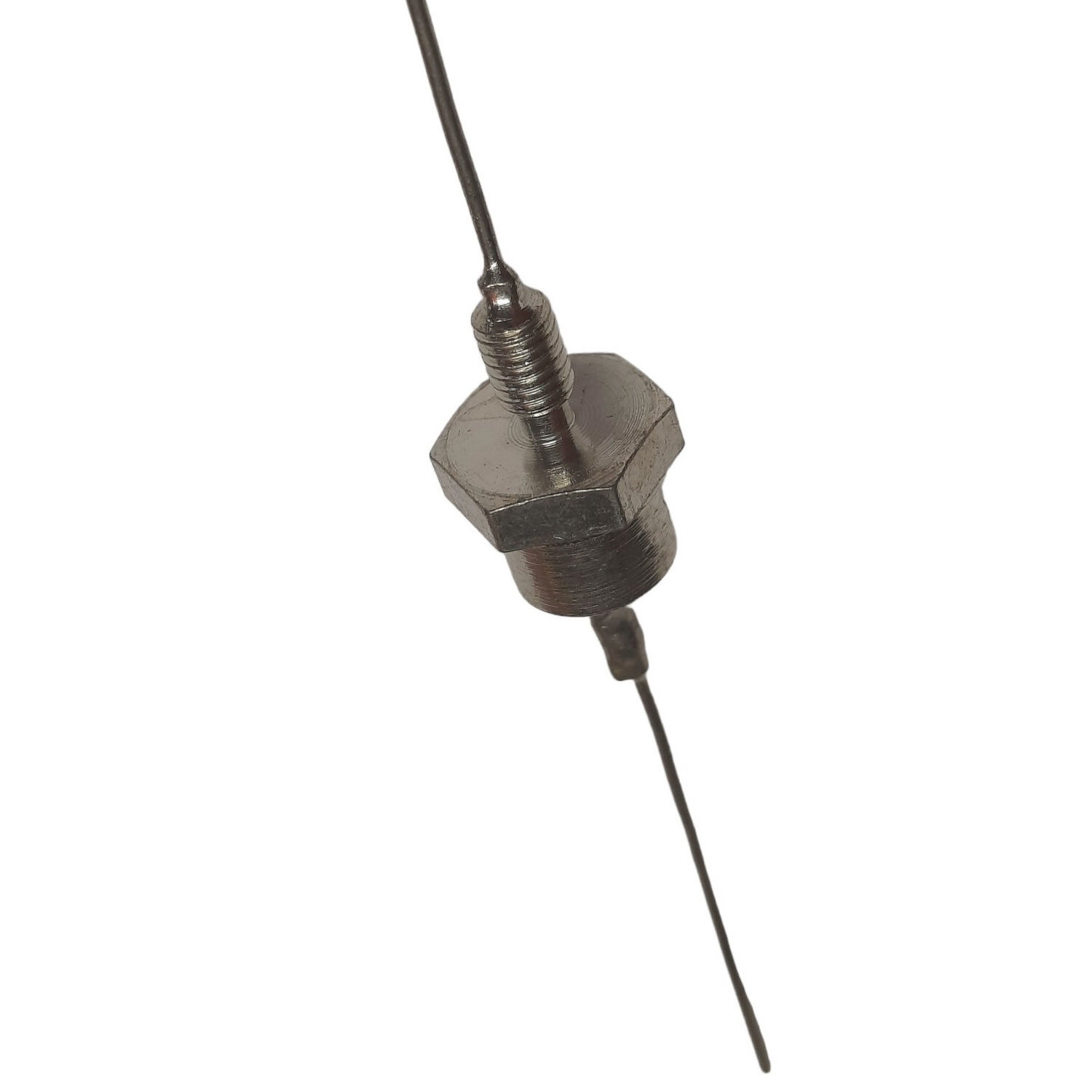

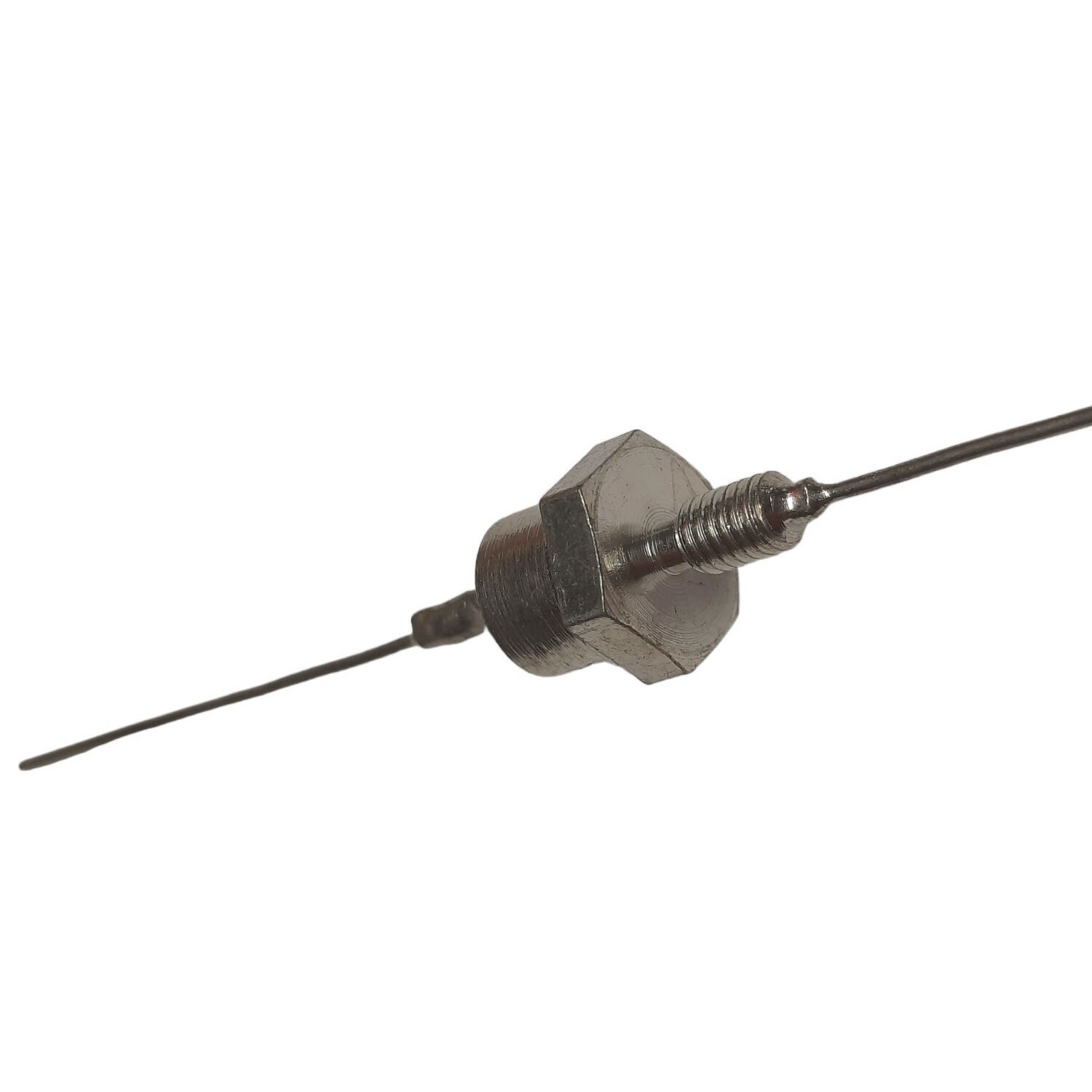

View detailed images (4)

2005

SKU: 2005
2005 Semiconductor CASE: DO4 MAKE: COO
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
2005 Datasheet
Product specifications
Type Semiconductor
Case DO4
Manufacturer COO
Vbr CBO 50
@Freq. (test) 2.0G
@Ic (A) 5.0
@Ic (A) 1.0
@Temp. (test) (°C) 25
Ir @ Diff. Temp (A) 1.0m
Mat. Silicon Logic
Oper. Gain Typ (S21) 7.4
Oper. Pwr Out Typ. 5.5
f(osc) Max. (Hz) 2.0G
VRRM 50
PD Max. (W) 17
S11 Deg. (Typ) 13.5
S11 Mag Typ. 2.2
S22 Deg. Typ. -2.0
S22 Mag Typ. 3.0
1-Cycle Surge Current (A) 200
@Temp (test) (°C) 150#
@Temp. (test) for Vf) 25
@VDS (VCE) (test) (V) 28
Vf Max. .60
I(out) (If AVG) Max. 16.5
Coll. (or drain) Current Max. 1.0
@Volts (test) (V) 50
@Freq. (test) 2.0G
@If (test) 19
@VCE (test) 28
Oper. Temp (°C) Max. 175
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
SKU 866483
