2519B

2519B

SKU: 2519B
2519B Integrated Circuit CASE: DIP16 MAKE: Signetics
Product specifications
Type Integrated Circuit
Case DIP16
Manufacturer Signetics
Mode Dyn/ Stat Static
f(oper) Max. (Hz) 2.0M
Bits Per Reg. 40
No. of Reg. 6
PD Max. (W) 640m
tPD Max. (S) 350n
Nom. Supp Volt 5.0
Tech. PMOS Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Data Inp Mode Serial
Data Outp Mode Serial

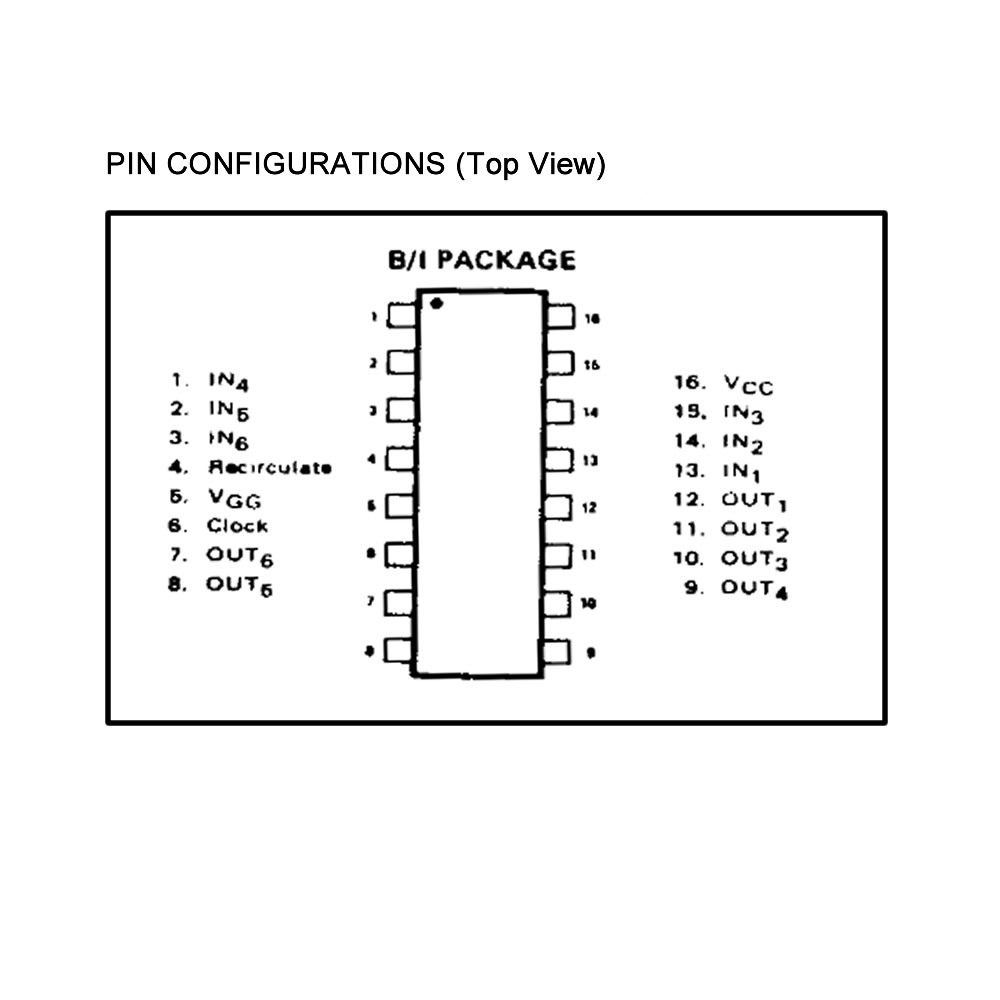

Pinout Equivalence Number 16-382
Surface Mounted Yes/No NO
SKU 393858
