Home / Semiconductors / 253RL120
253RL120
View detailed images (5)

253RL120

SKU: 253RL120

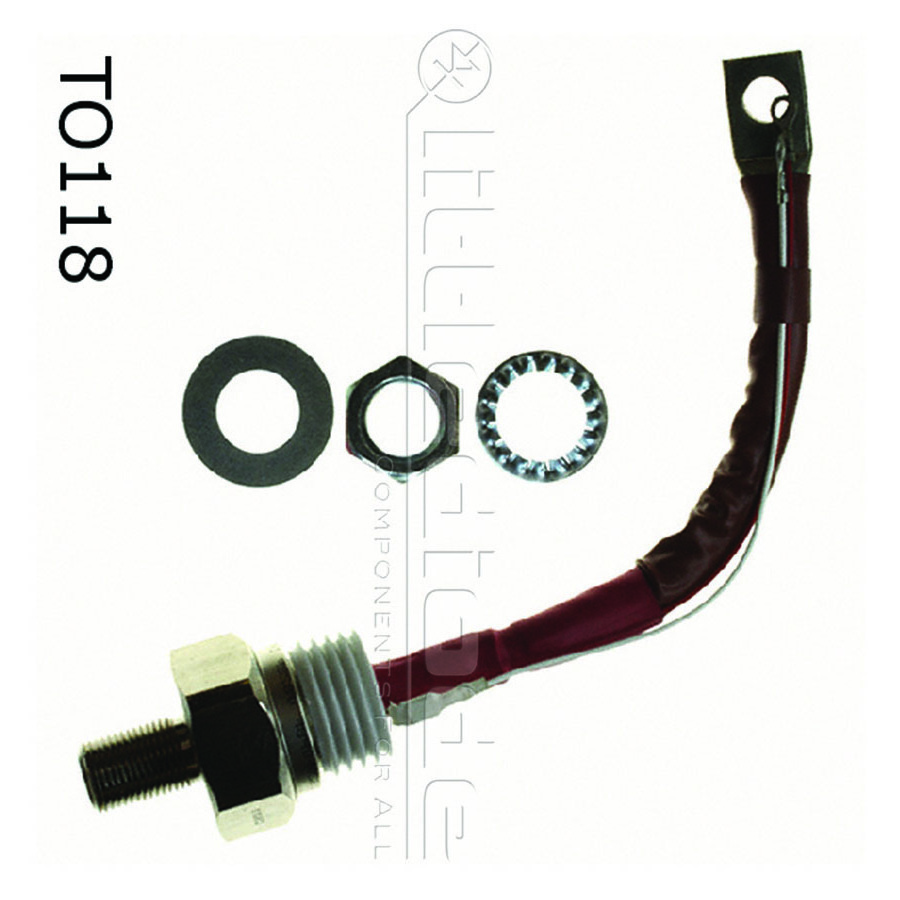

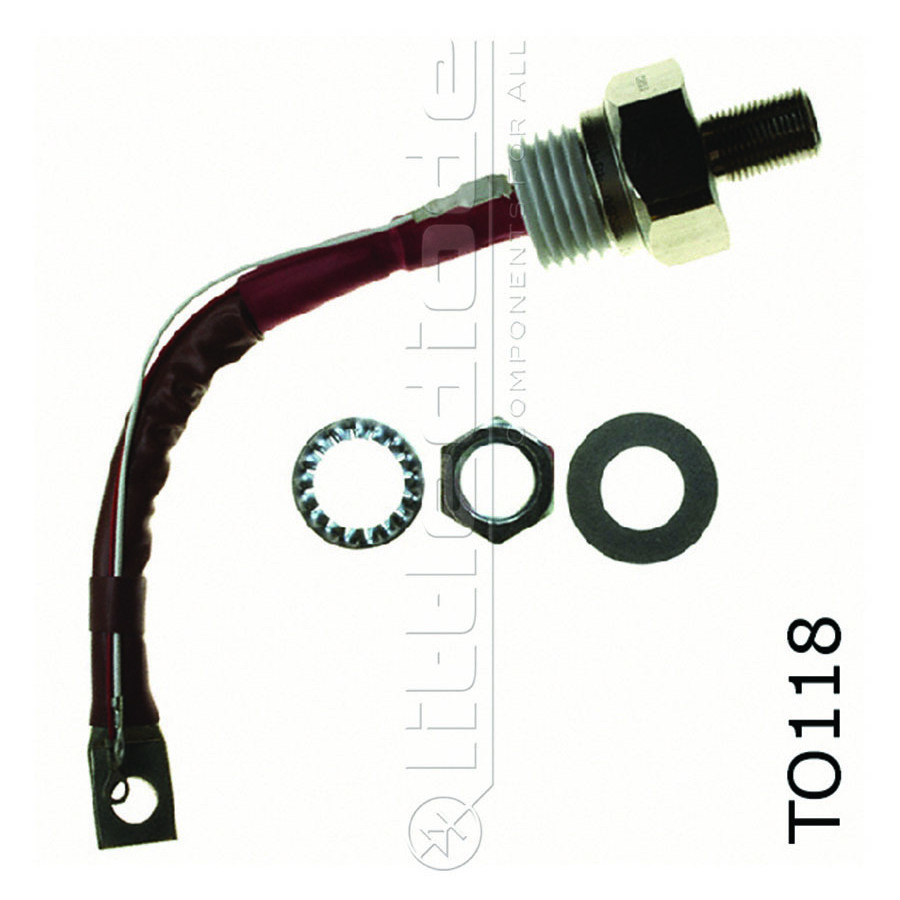

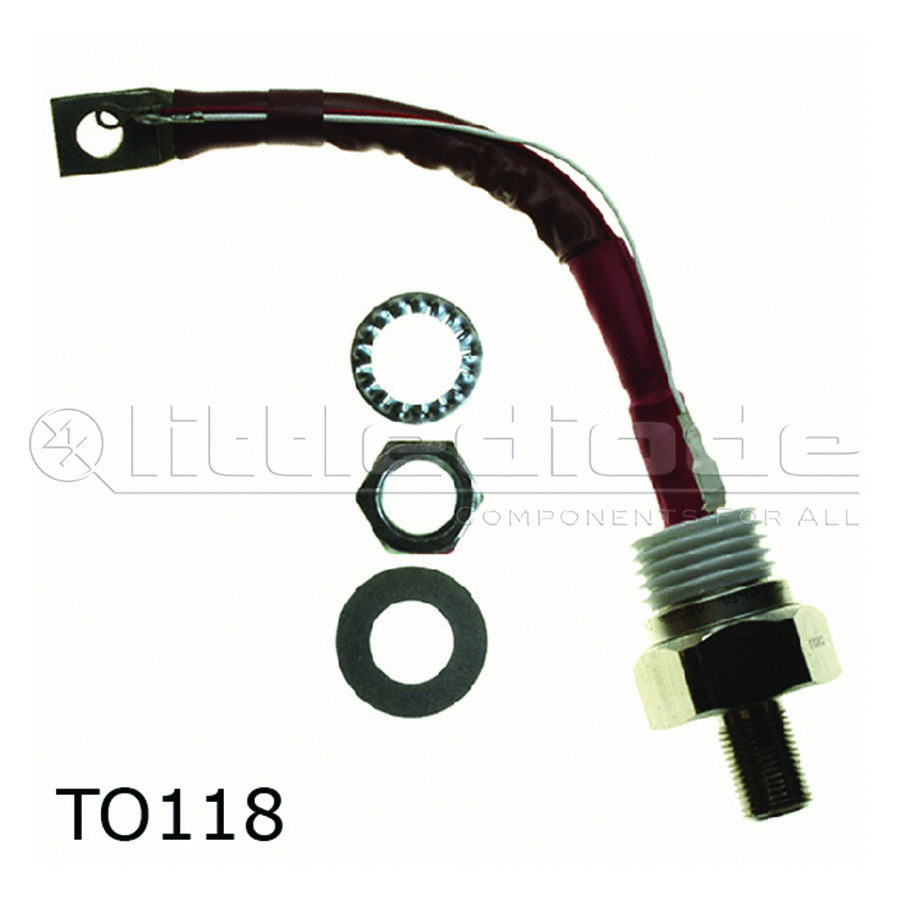

253RL120 Semiconductor CASE: TO118 MAKE: International Rectifier - IR
Product specifications
Type Semiconductor
Case TO118
Manufacturer International Rectifier - IR
Dv/Dt Worst Case 200
Firing Char-Igt Max. 200m
Firing Char-Vgt Max. 2.5
I(h) Max. (A) 500m
Id(off) Max. (A) 45m
@It (test) (A) 50
It(stat) Max. (A) 285
Supp Curr. I(TSM) 8.0k
t(switch) Off Typ. Time (S) 60u
t(switch) Off Typ. Time (S) 1.0u
V(drm) Max. 1.2k
V(T) Max. 2.0
@Temp. (test) (°C) 125
@Temp. (test) (°C) 70#
Oper. Temp (°C) Min -45
Oper. Temp (°C) Max. 125
@It (A) 285
Surface Mounted Yes/No NO
SKU 1332156
