2G381
View detailed images (8)

2G381

SKU: 2G381

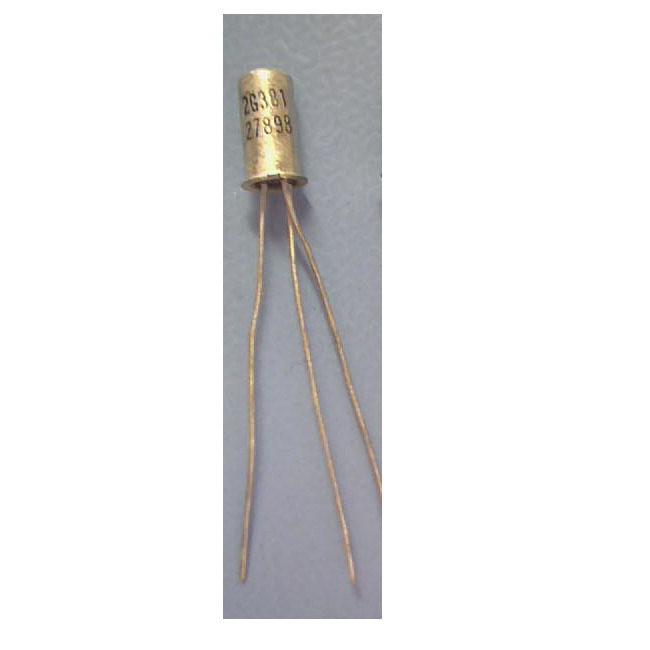

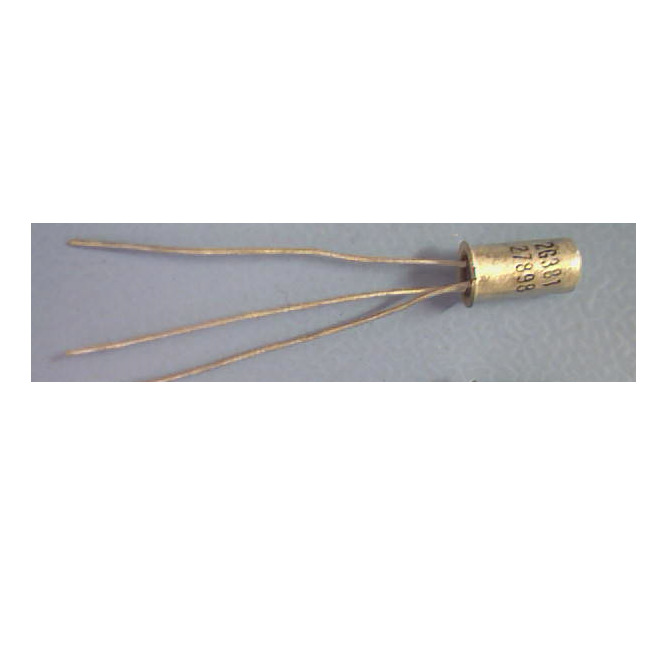

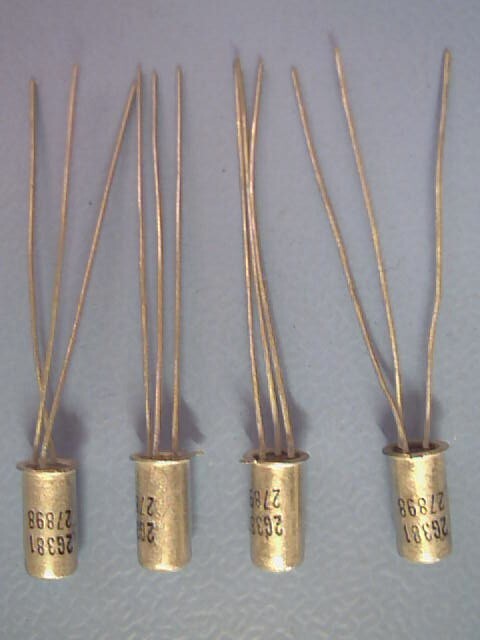

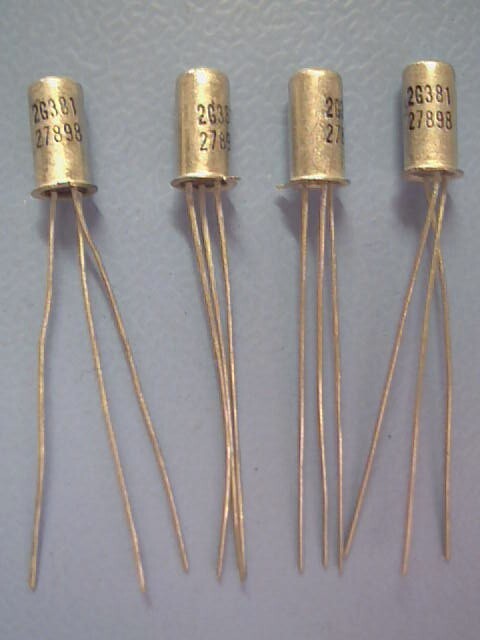

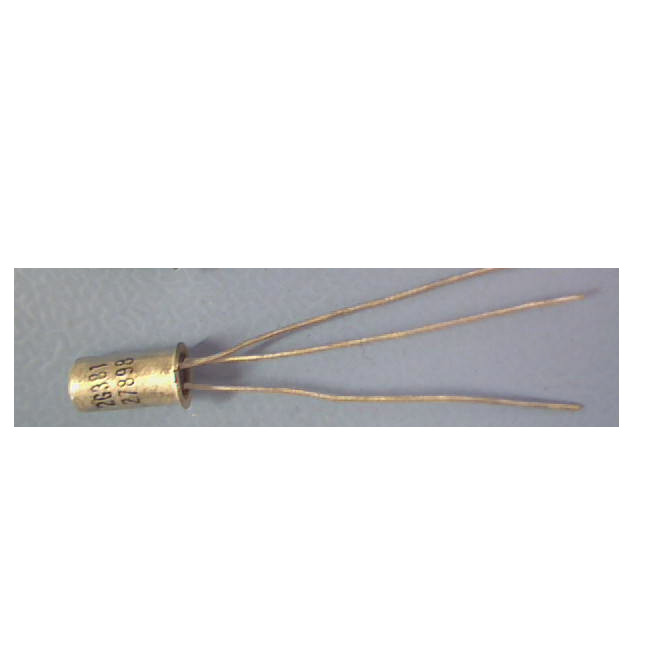

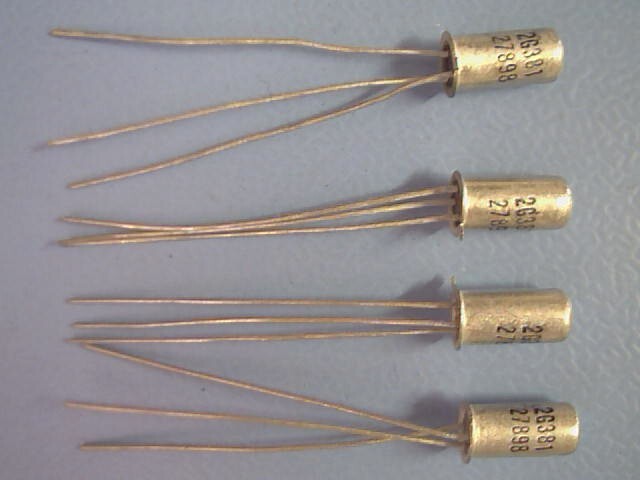

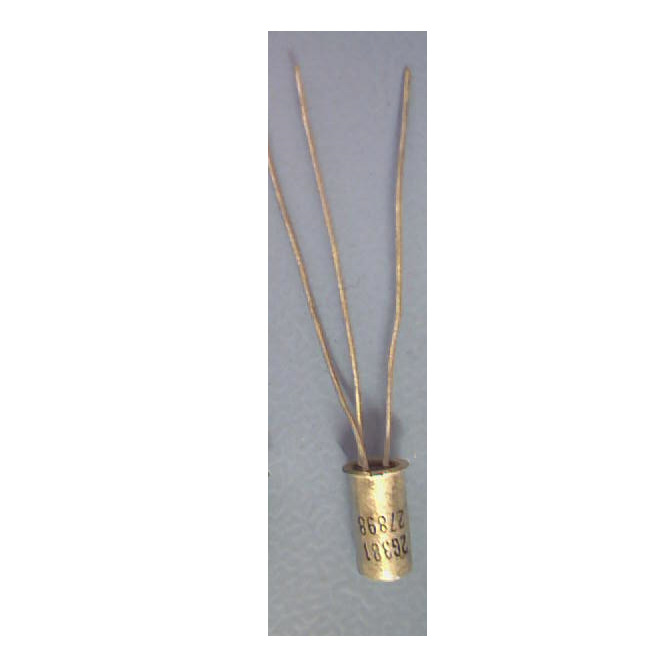

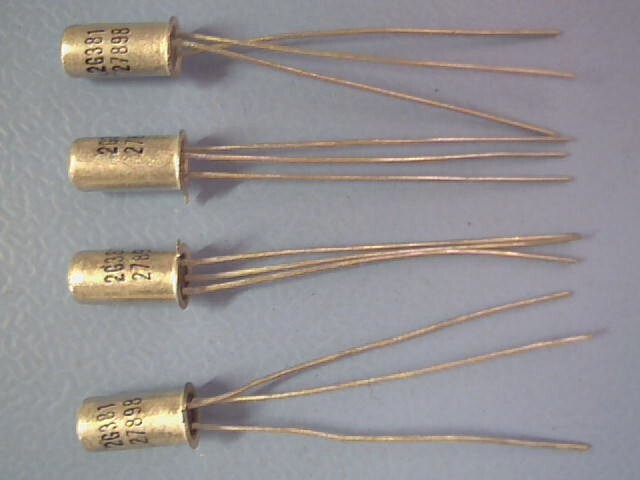

2G381 Transistor - Case: TO1 Make: S&W Manufacturing
Price: £19.99
+ VAT 20% for UK purchases
£19.99
Qty
+ VAT 20% for UK purchases
  • 3 pieces in 1-2 Days
Datasheet
2G381 Datasheet
Product specifications
Type Transistor Germanium PNP
Manufacturer S&W Manufacturing
Case TO1
Vbr CBO 20
Vbr CEO 20
Max. PD (W) 250m
C(ob) (F) 35p
hfe 30
Ic Max. (A) 500m
Polarity PNP
Trans. Freq (Hz) Min. 1.0M
@VCE (test) (V) 6.0
@Ic (A) 1.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 85 °C
Collector Capacitance (Cc) 50 pF
Transition Frequency (ft): 1 MHz
Forward Current Transfer Ratio (hFE), MIN 75
SKU 368035
