2N1524
View detailed images (13)

2N1524

SKU: 2N1524

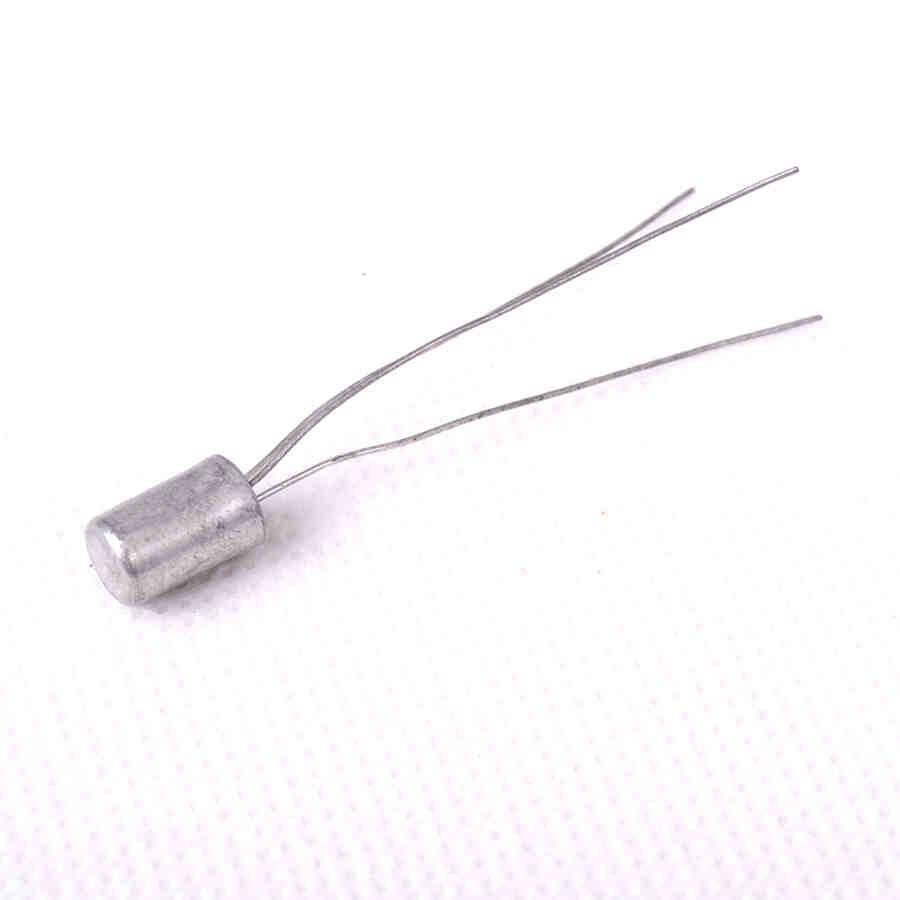

2N1524 Transistor Germanium PNP CASE: TO1 MAKE: USA Make
Product specifications
Type Transistor Germanium PNP
Case TO1
Manufacturer USA Make
Vbr CBO 24
Max. PD (W) 80m
C(ob) (F) 3.6p
Derate (Amb) (W/°C) 2.5m
hfe 17
Ic Max. (A) 10m
Icbo Max. @Vcb Max. (A) 16u
Polarity PNP
Trans. Freq (Hz) Min. 33M
@VCE (test) (V) 6.0
Oper. Temp (°C) Max. 85
@Ic (A) 1.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.08 W
Maximum Collector-Base Voltage |Vcb| 24 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Collector Current |Ic max| 0.01 A
Max. Operating Junction Temperature (Tj) 85 °C
Collector Capacitance (Cc) 4 pF
Transition Frequency (ft): 12 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 116206
