2N1701
View detailed images (4)

2N1701

SKU: 2N1701

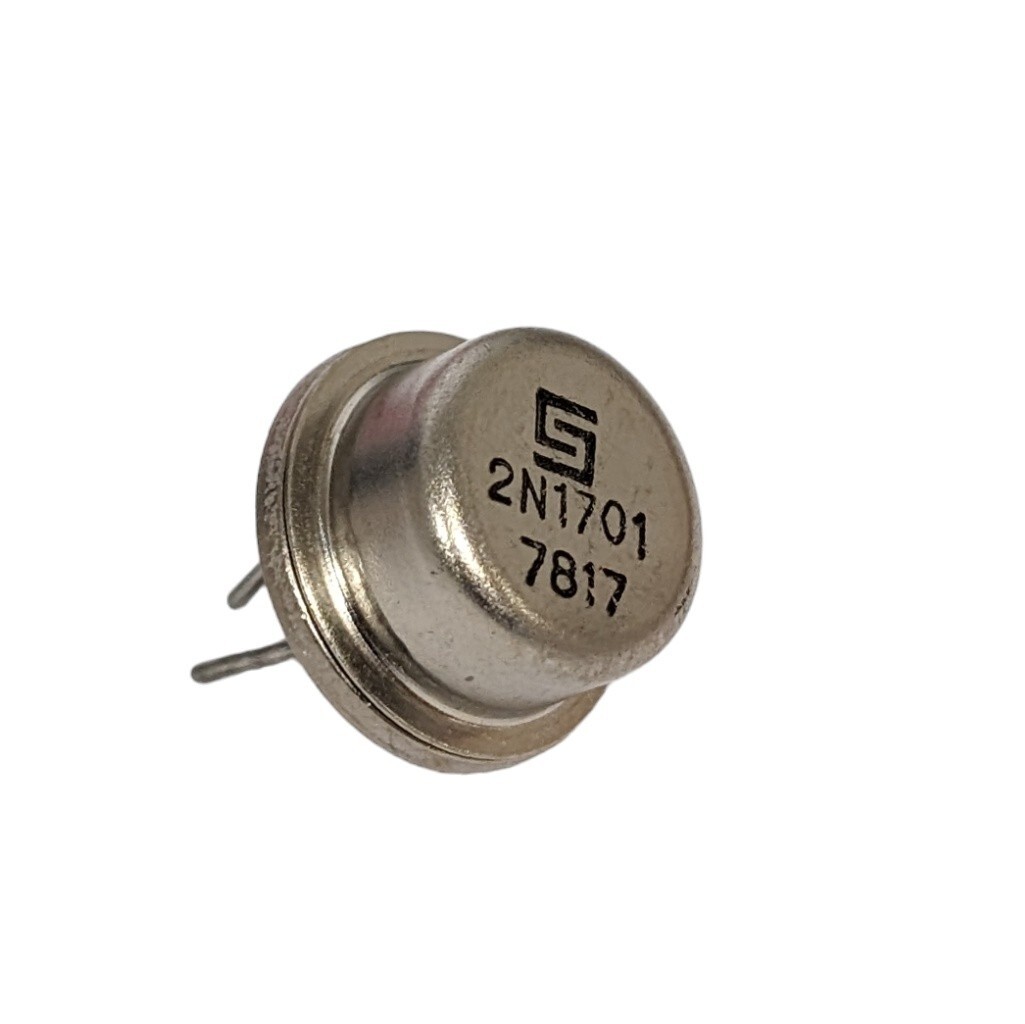

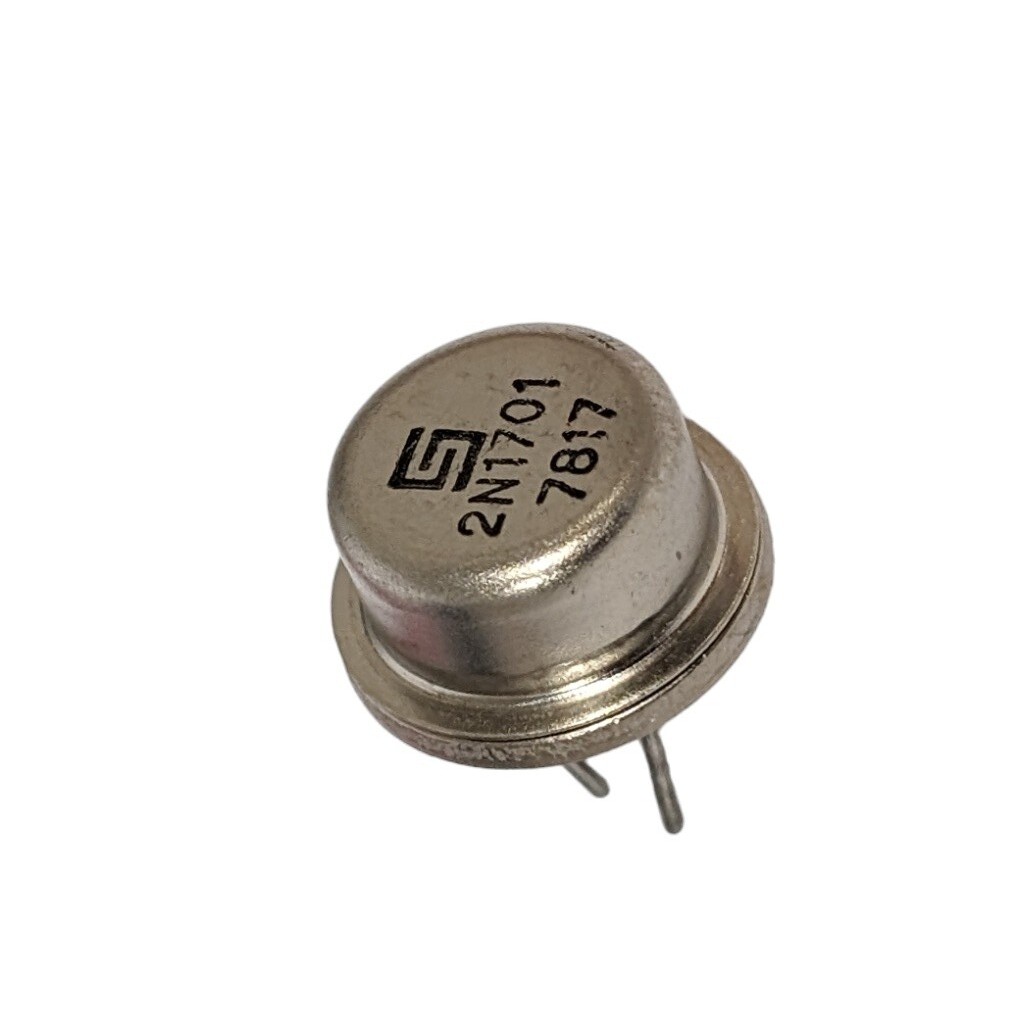

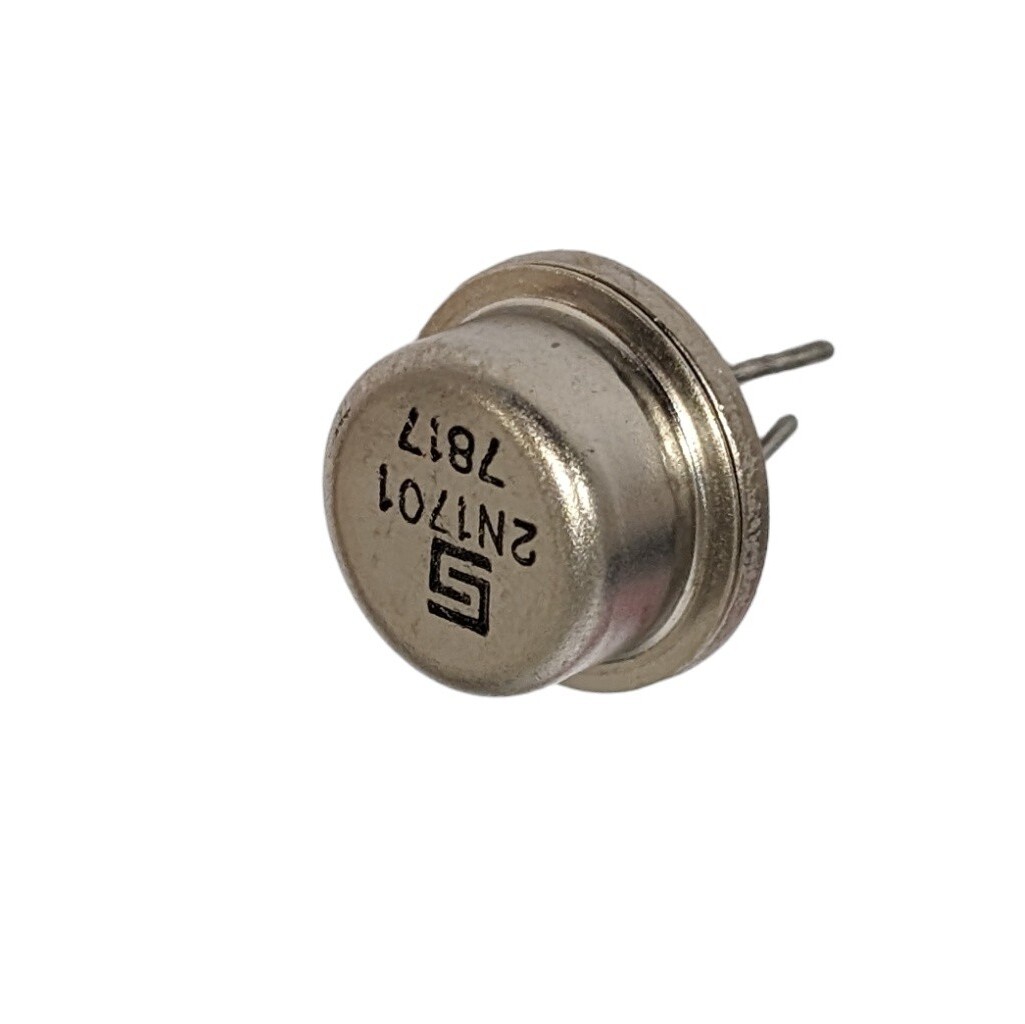

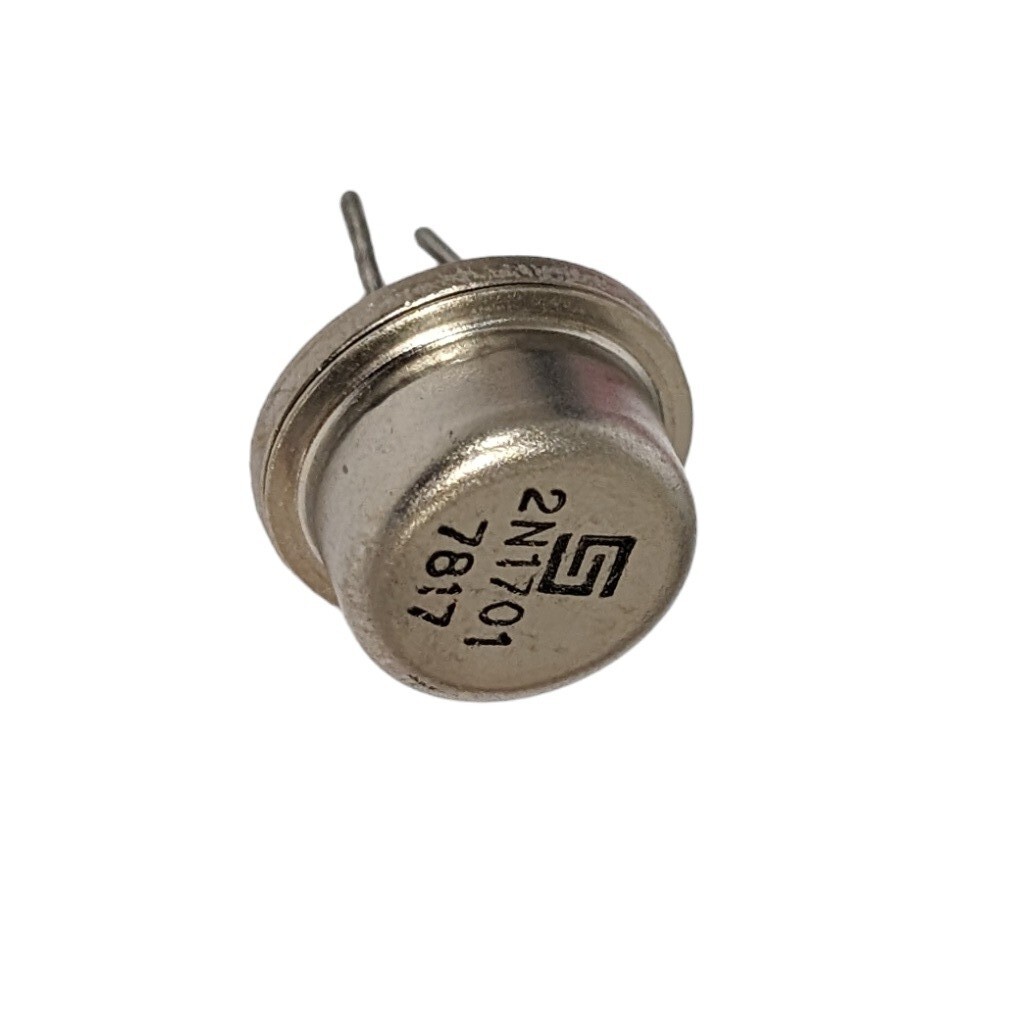

2N1701 Transistor Silicon NPN CASE: TO8 MAKE: Generic
Price:
£16.79 Inc. VAT (£13.99 Ex. VAT)
£16.79 Inc. VAT (£13.99 Ex. VAT)
Qty
  • 10 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO8
Manufacturer Generic
Vbr CBO 60
Vbr CEO 40
Max. PD (W) 25
Max. hFE 80
Min hFE 20
Ic Max. (A) 2.5
@Ic (test) (A) 300m
Icbo Max. @Vcb Max. (A) 100u
Polarity NPN
R(sat) (Û) 5.0
Derate Above 25°C 143m
Trans. Freq (Hz) Min. 350k
Oper. Temp (°C) Max. 175
@VCE (V) 4.0
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 2.5 A
Max. Operating Junction Temperature (Tj) 200 °C
Transition Frequency (ft): 0.1 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 368114
