2N1724
View detailed images (4)

2N1724

SKU: 2N1724

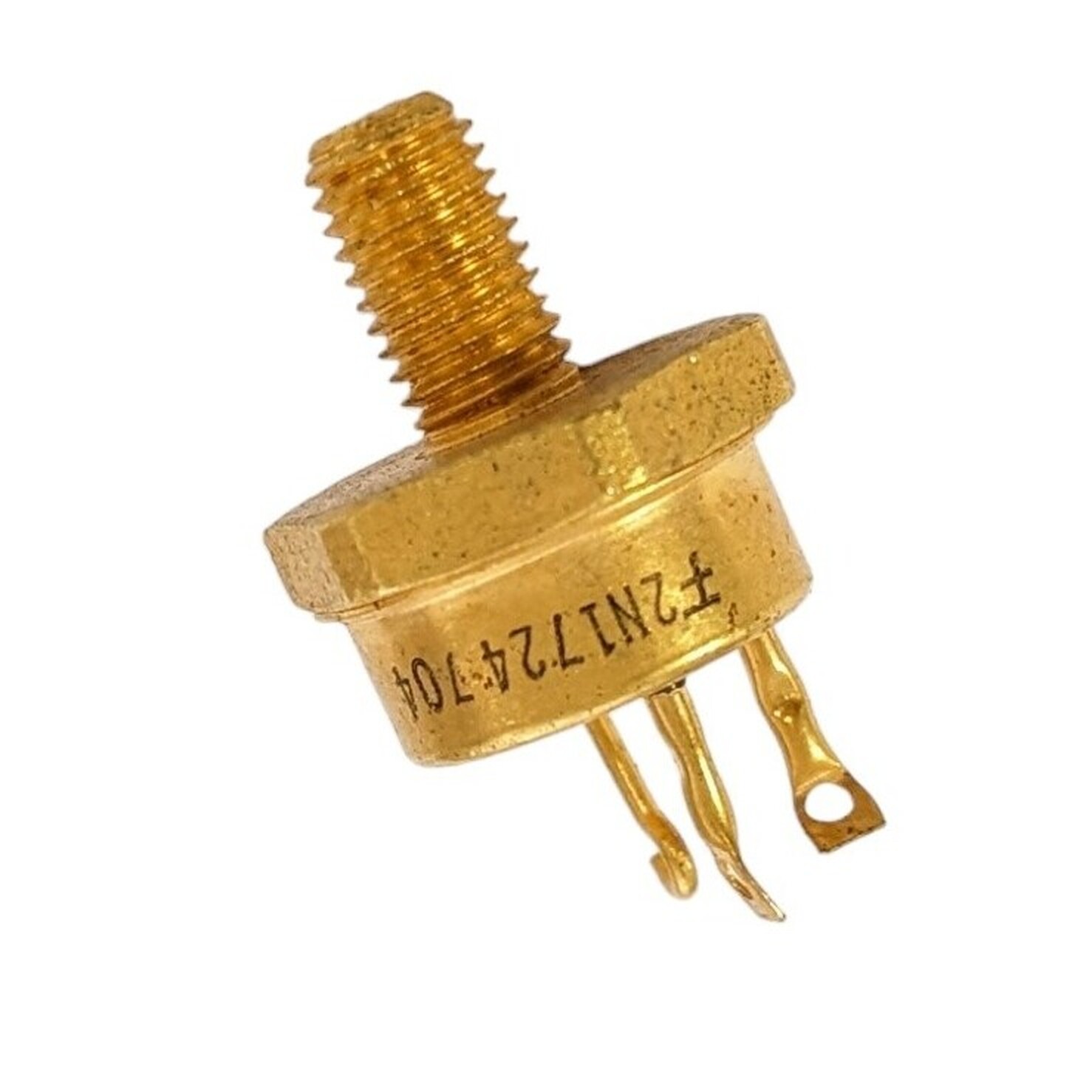

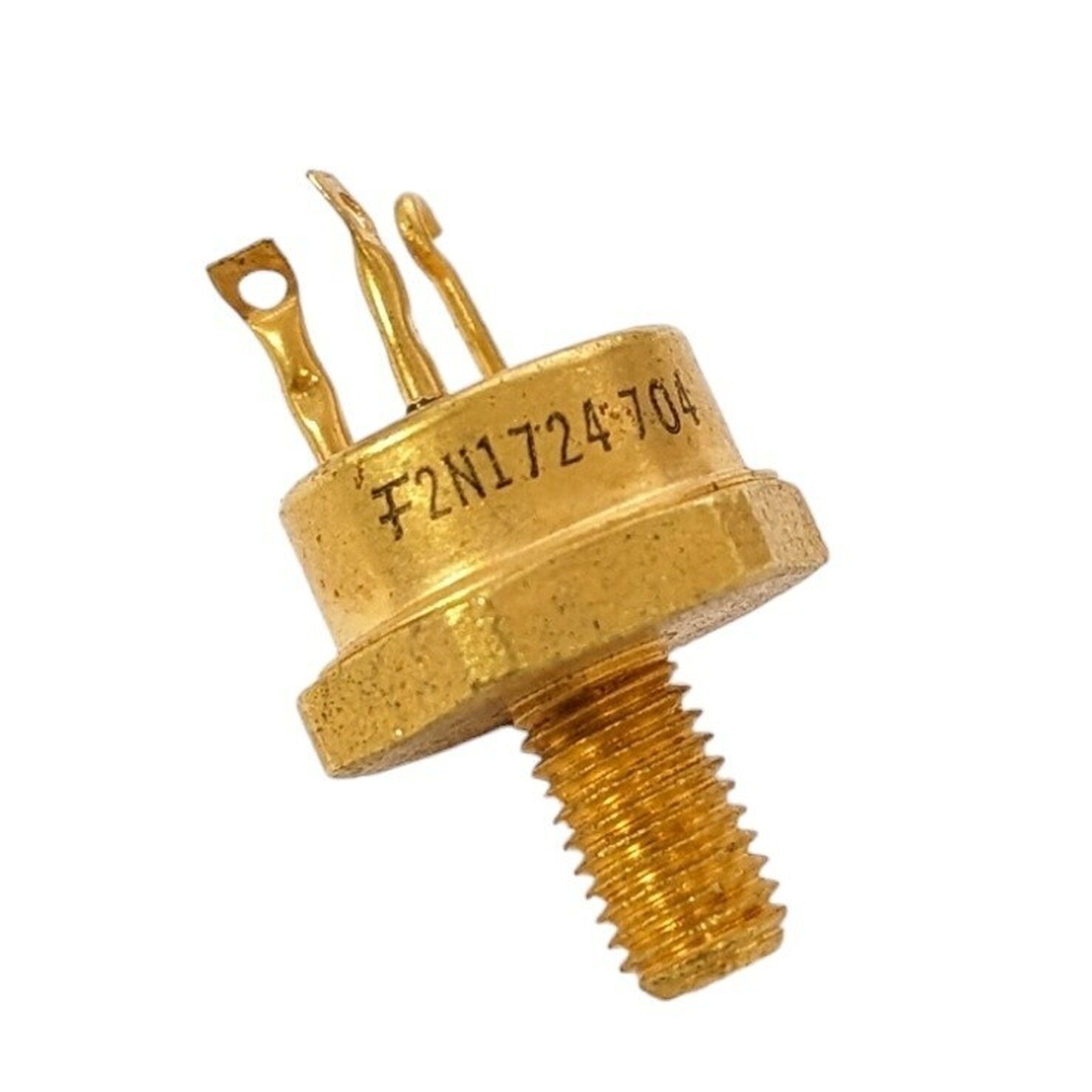

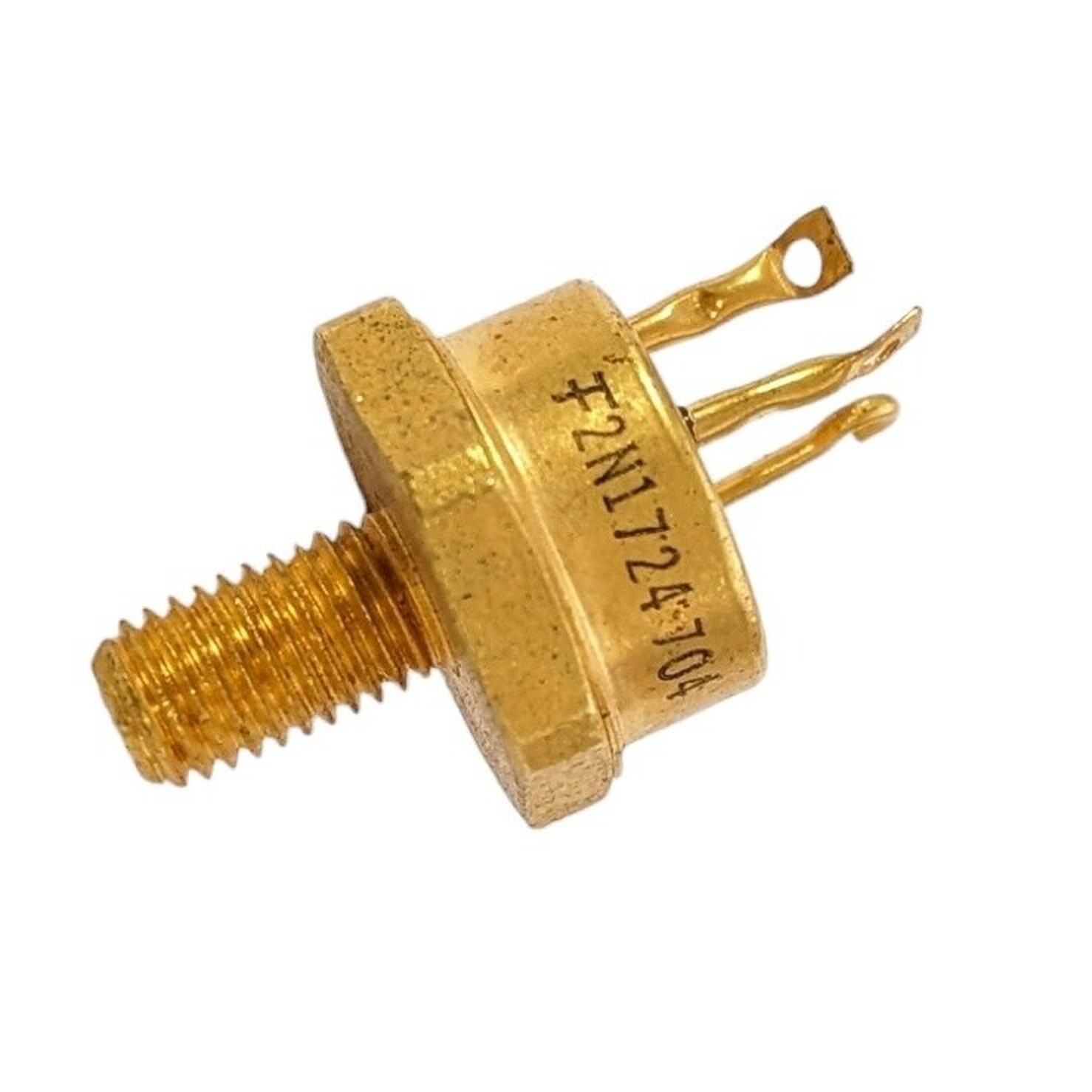

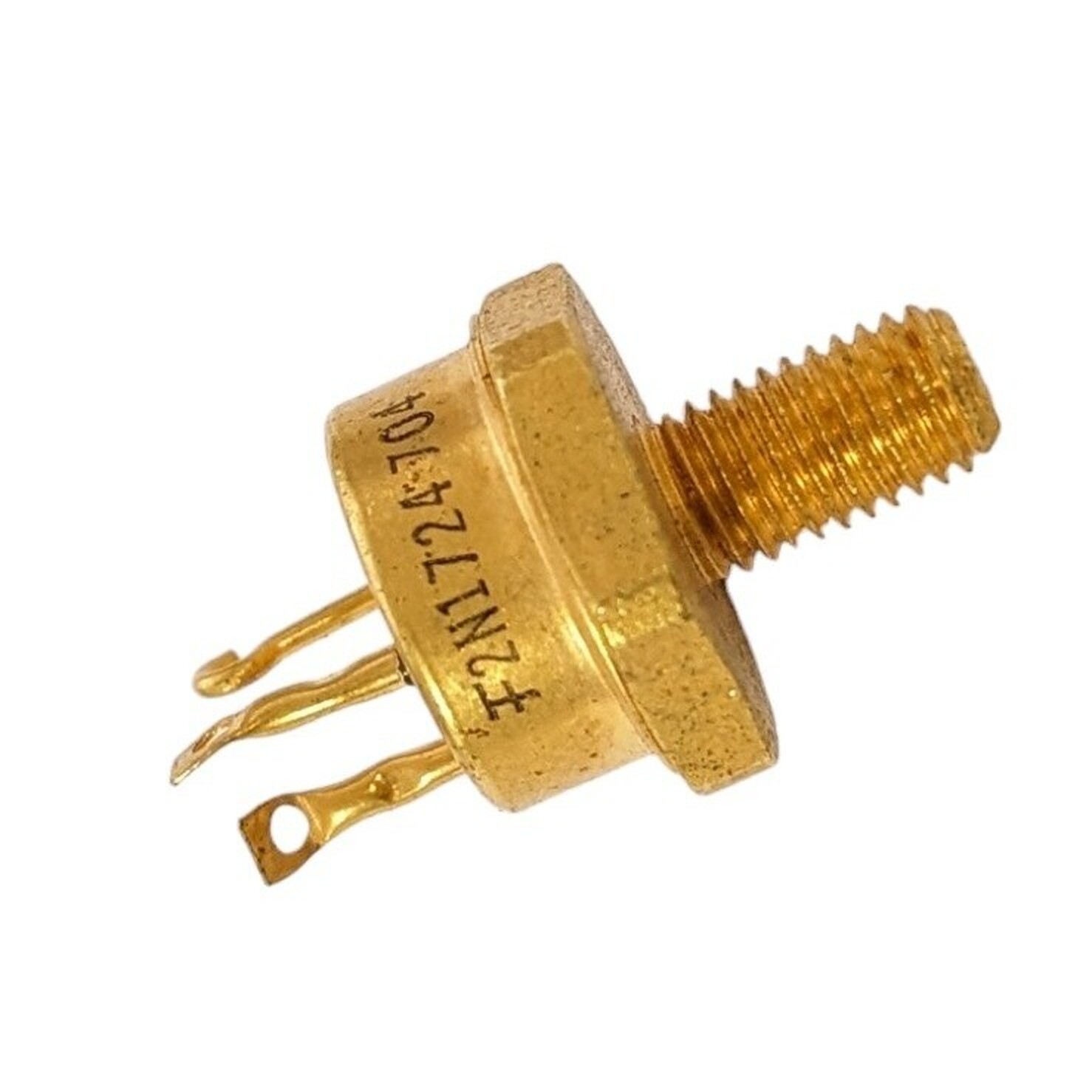

2N1724 Transistor Silicon NPN CASE: TO61 MAKE: THAT Corporation
Price:
£40.79 Inc. VAT (£33.99 Ex. VAT)
£40.79 Inc. VAT (£33.99 Ex. VAT)
Qty
  • 3 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2N1724 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO61
Manufacturer THAT Corporation
Vbr CBO 120
Vbr CEO 80
Max. PD (W) 3.0
Max. hFE 90
Min hFE 20
Ic Max. (A) 5.0
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 500u
Polarity NPN
Derate Above 25°C 666m
Trans. Freq (Hz) Min. 10M
Oper. Temp (°C) Max. 175
@VCE (V) 15
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 117 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 50 pF
Transition Frequency (ft): 10 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 81992
