2N174
View detailed images (9)

2N174

SKU: 2N174

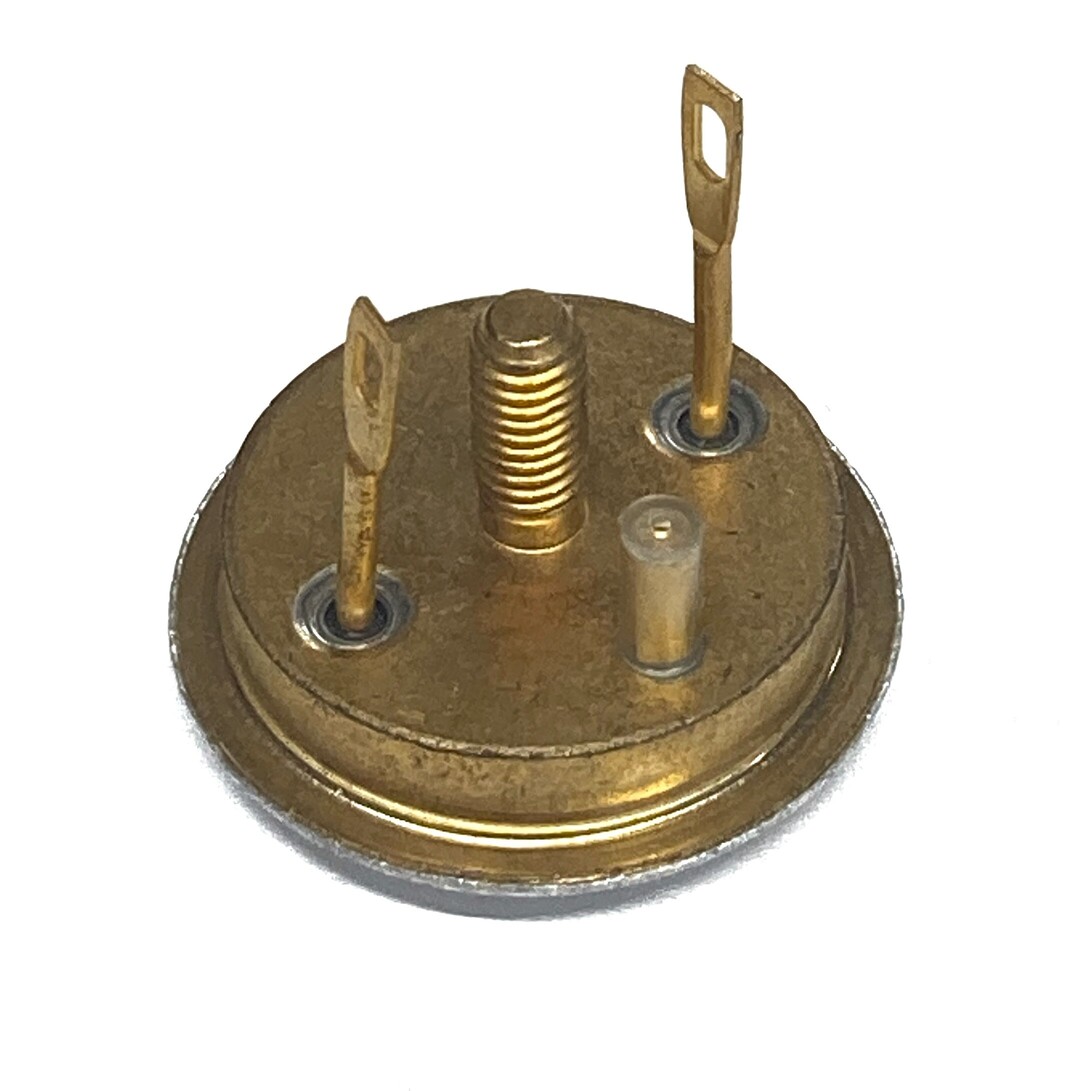

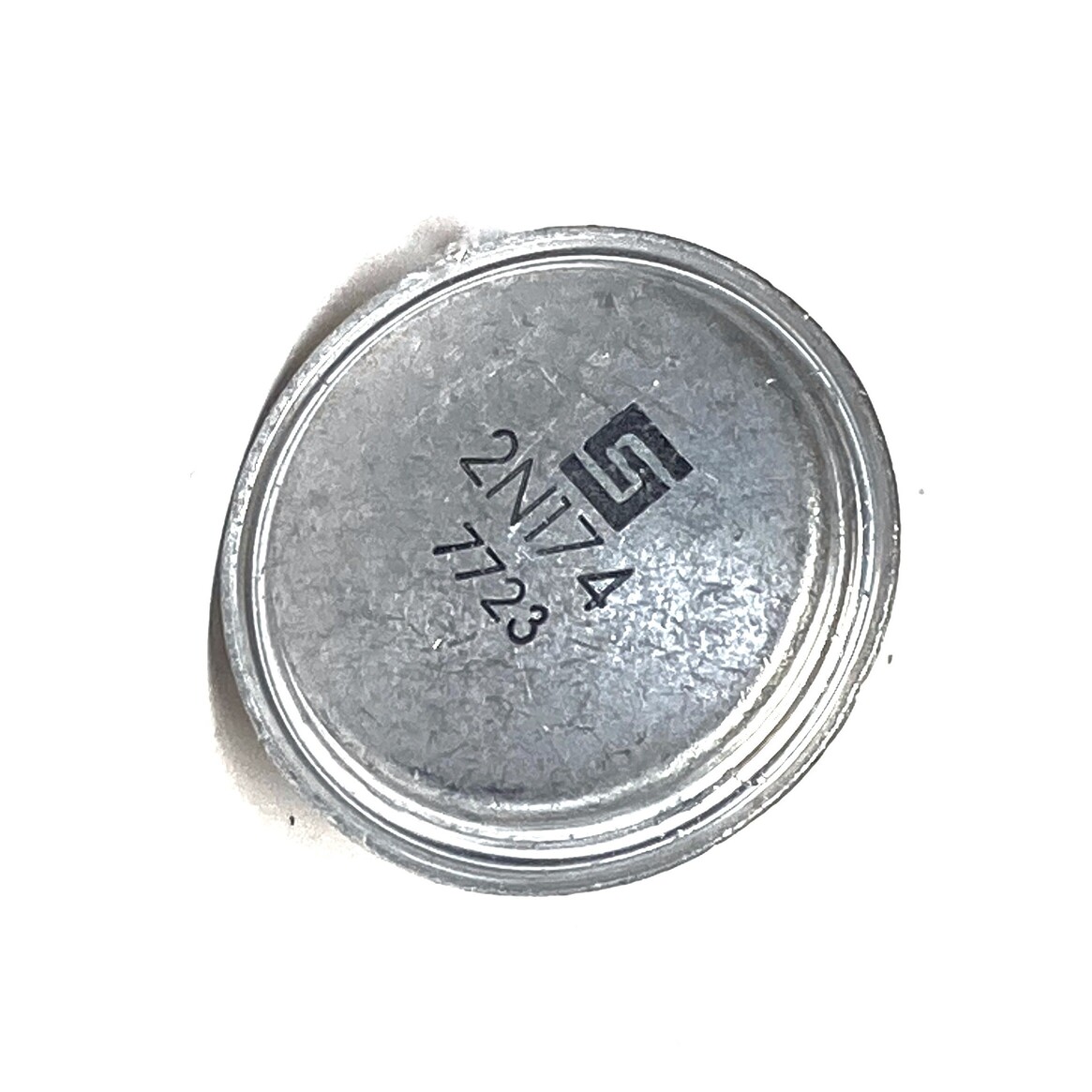

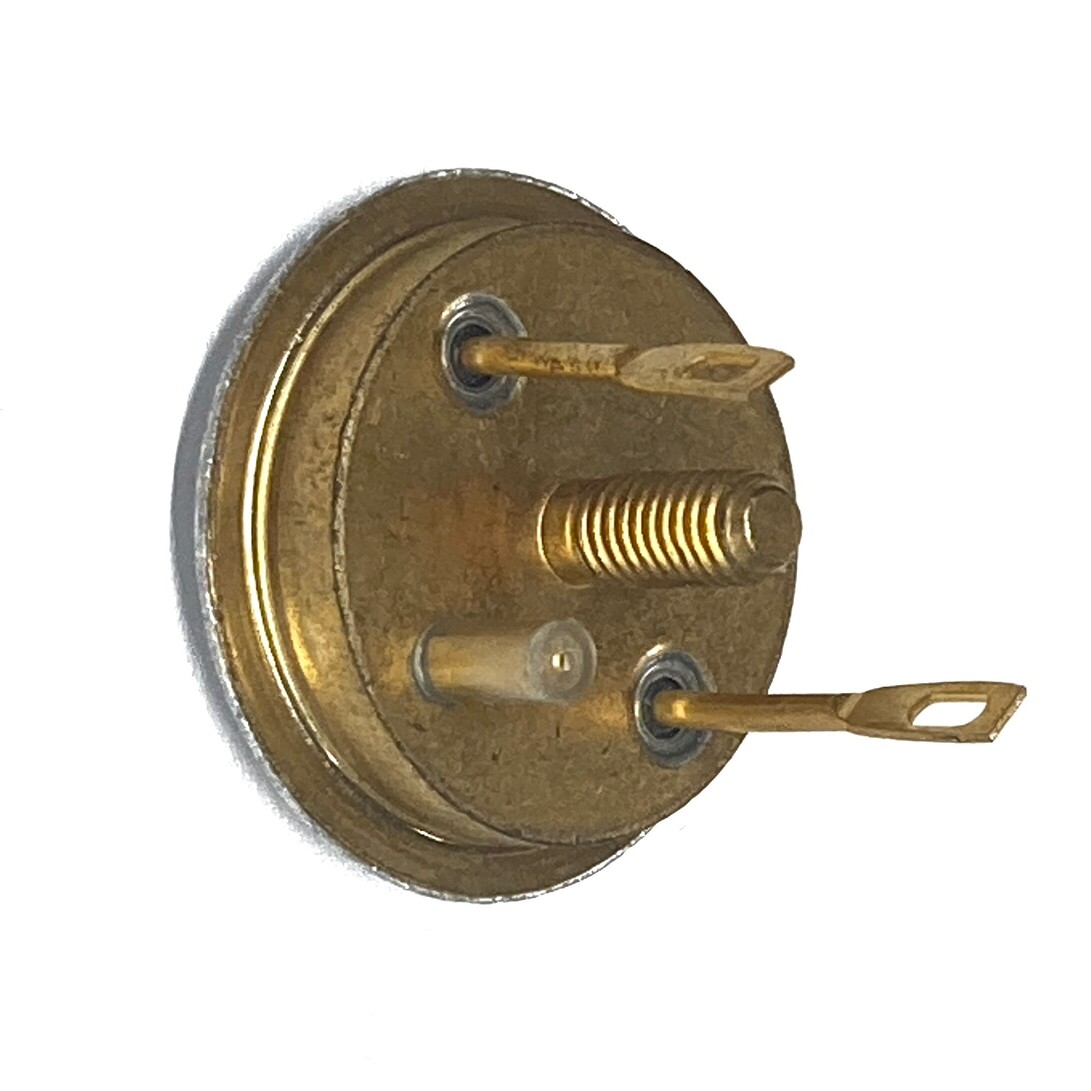

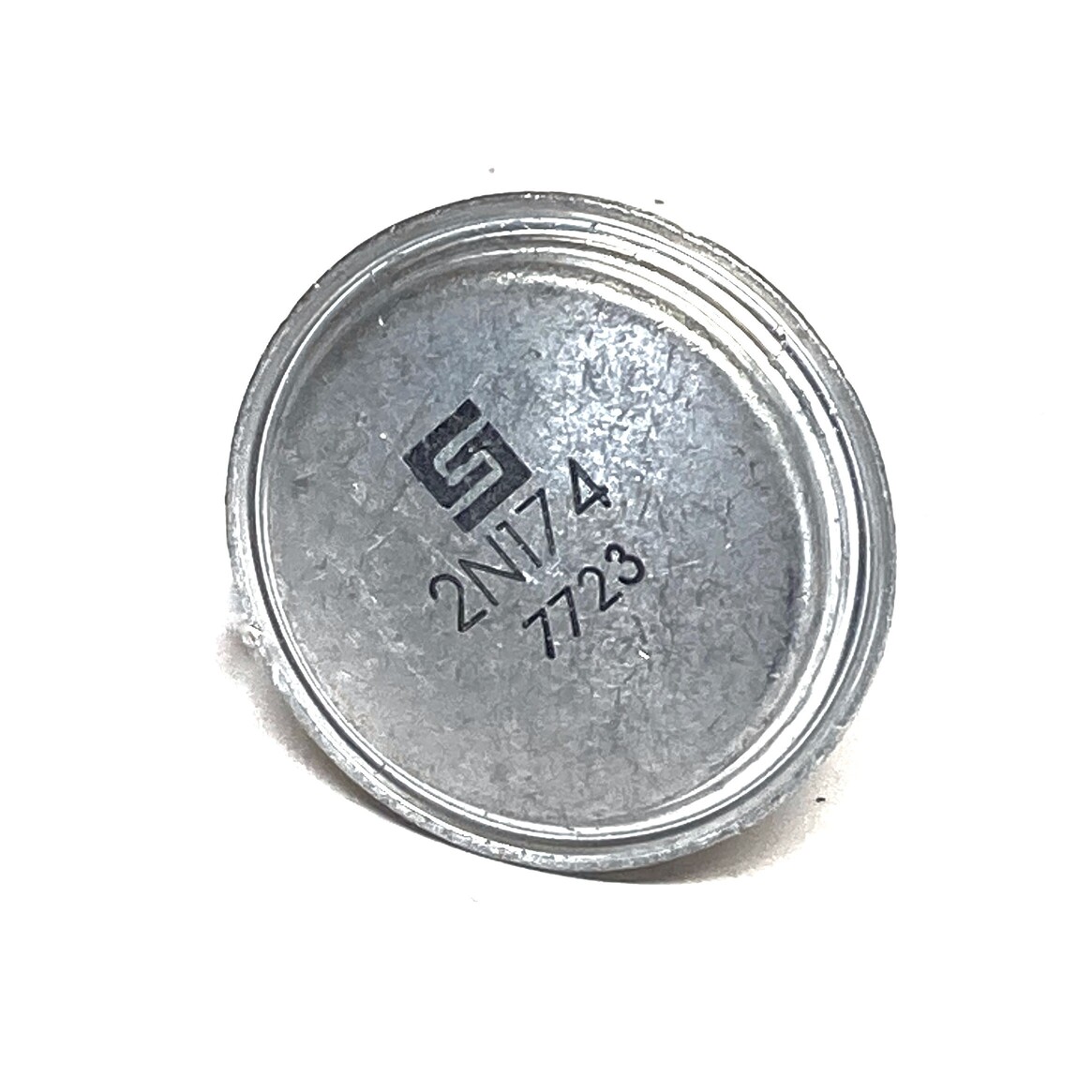

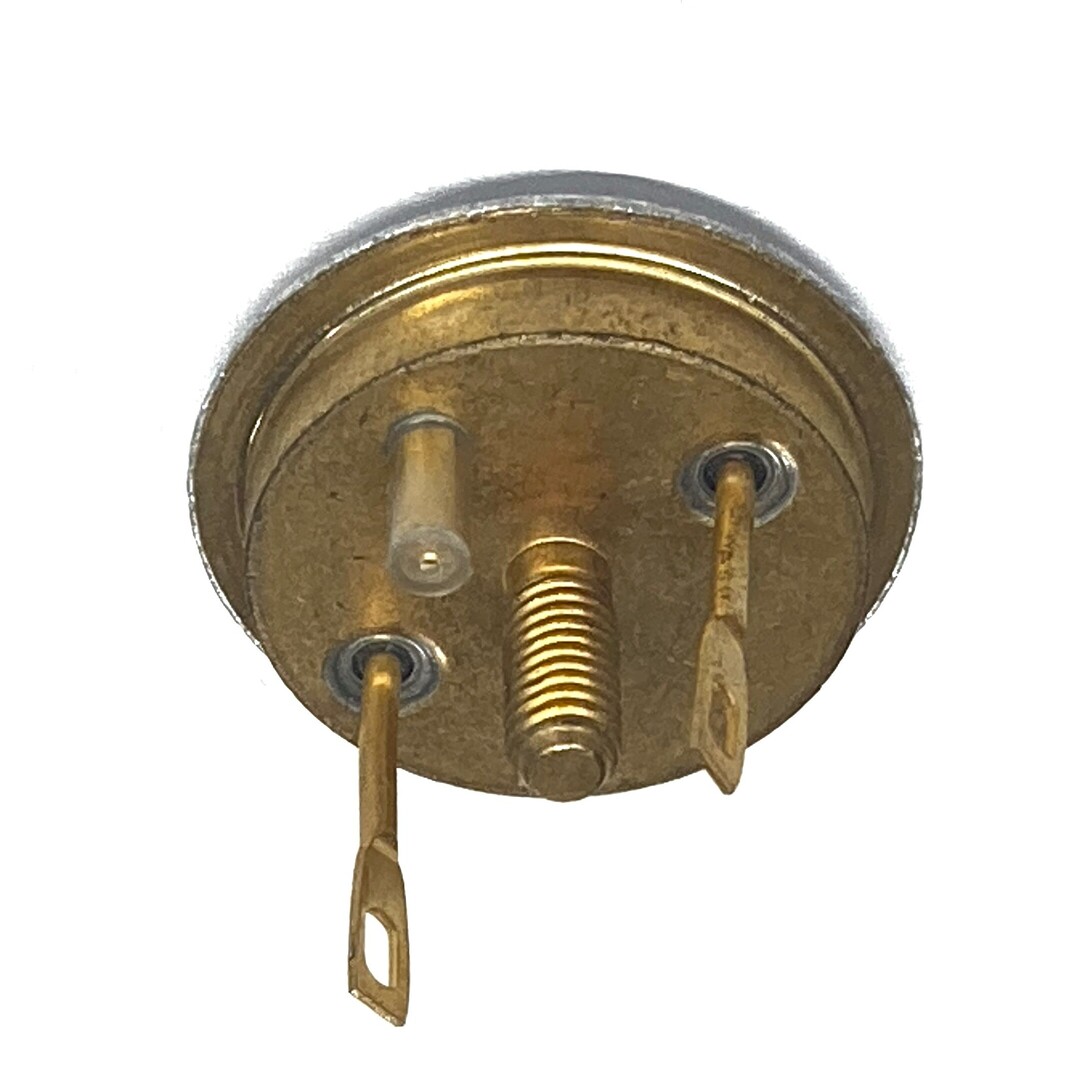

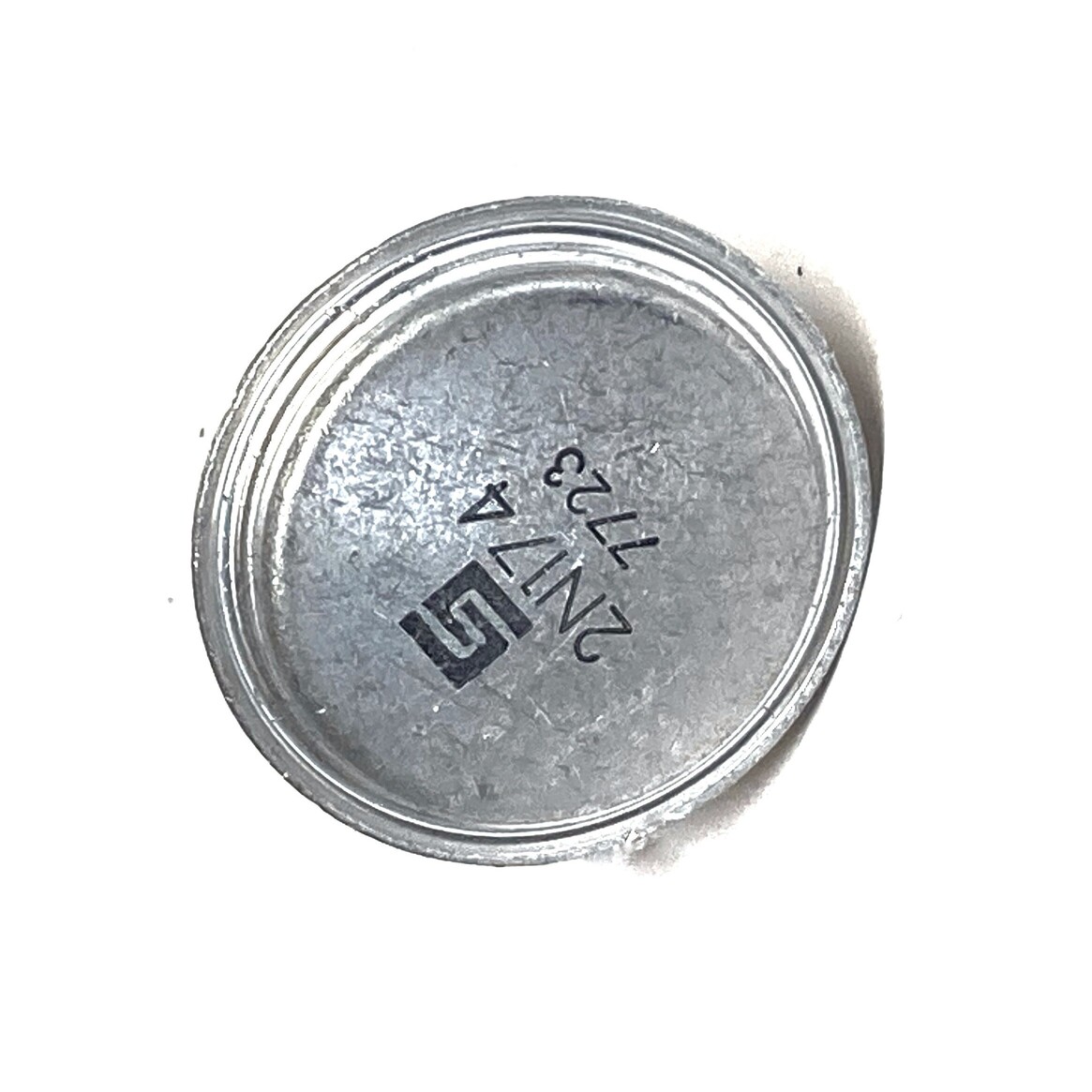

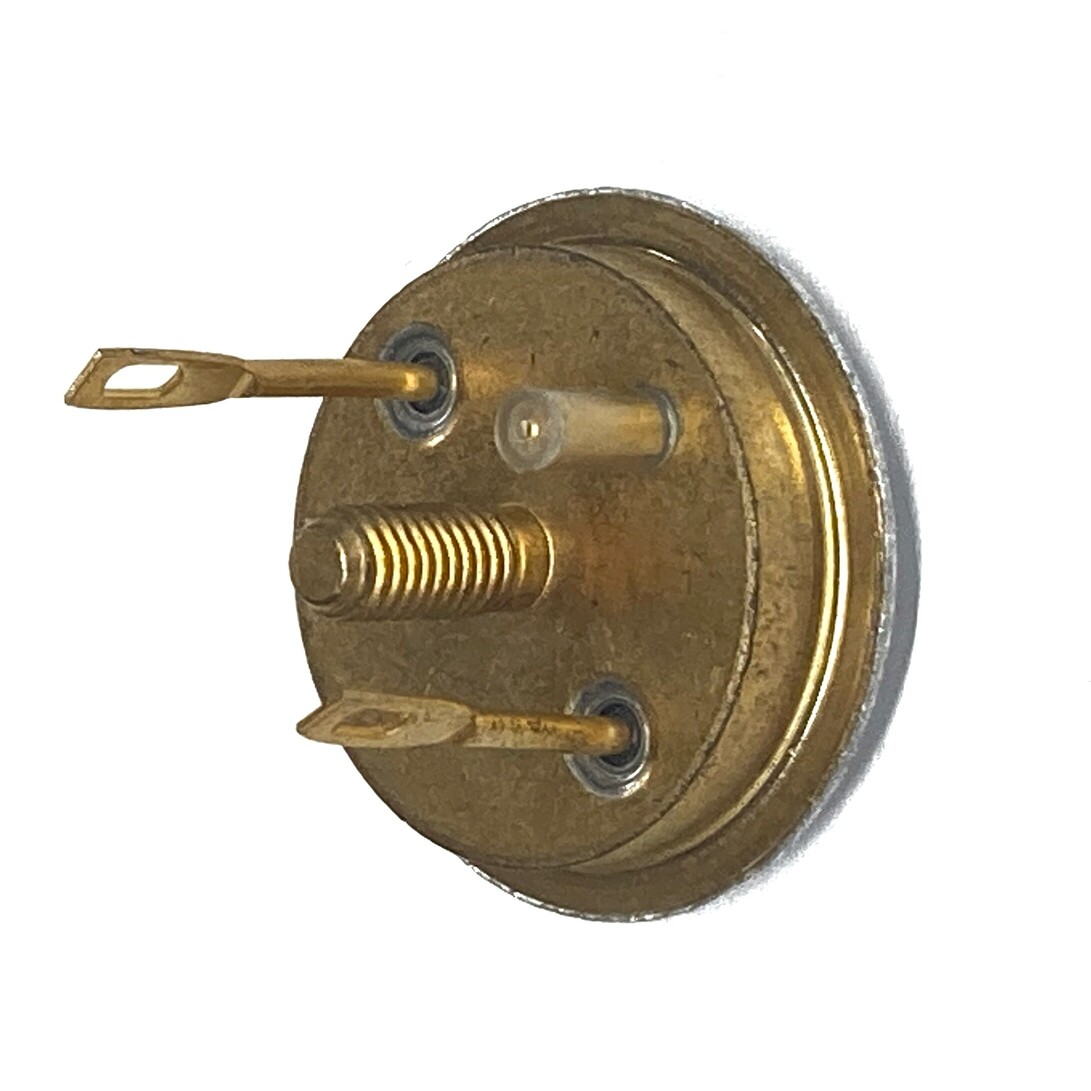

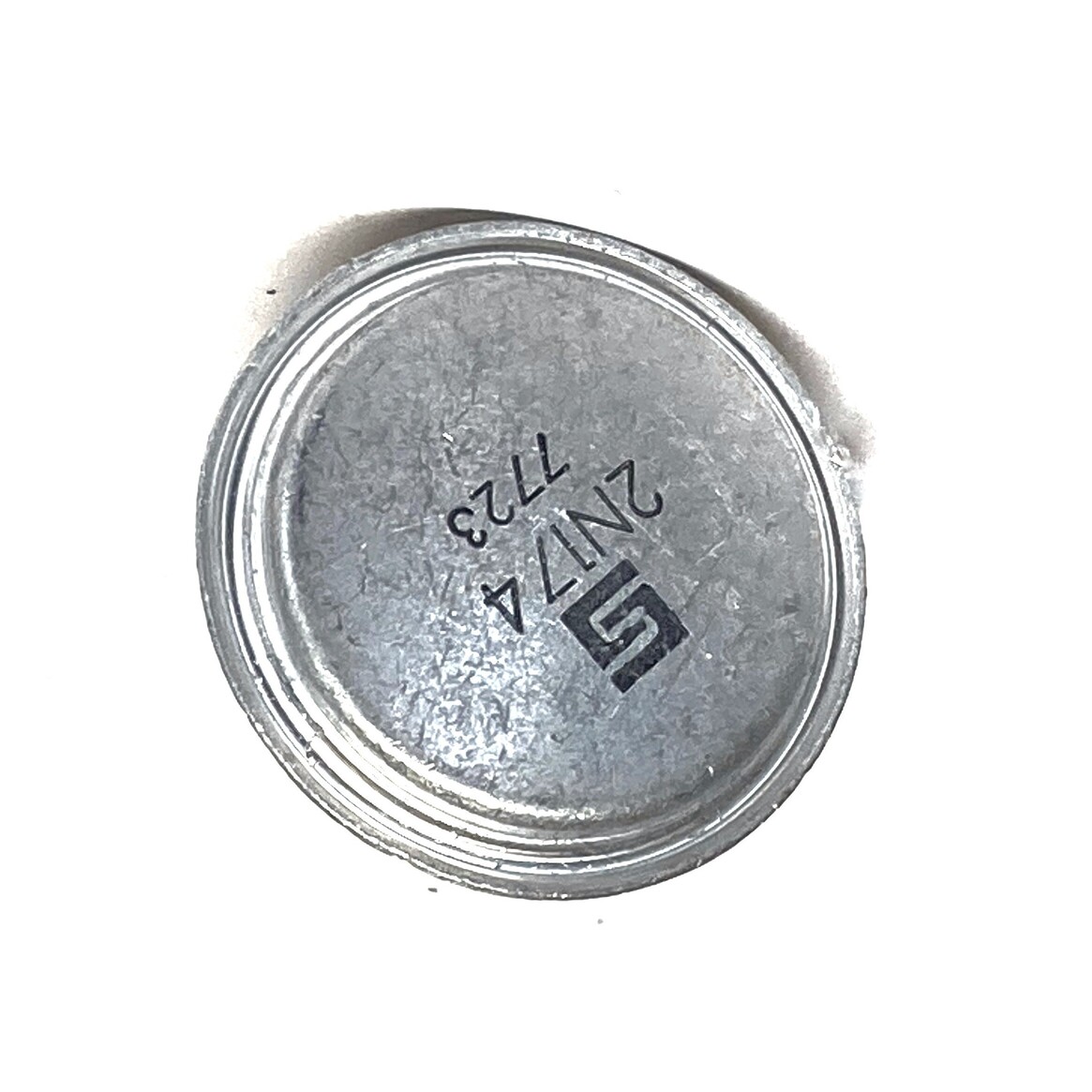

2N174 Transistor Germanium PNP CASE: TO36 MAKE: Generic
Price:
£28.79 Inc. VAT (£23.99 Ex. VAT)
£28.79 Inc. VAT (£23.99 Ex. VAT)
Qty
  • 11 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Equivalent 2N174A
Type Transistor Germanium PNP
Case TO36
Manufacturer Generic
Vbr CBO 80
Vbr CEO 70
Max. PD (W) 30
t(f) Max. (S) 15u-
Max. hFE 50
Min hFE 25
Ic Max. (A) 15
@Ic (test) (A) 5.0
Icbo Max. @Vcb Max. (A) 8.0m
Polarity PNP
Tr Max. (s) 15u-
Derate Above 25°C 1.2
Trans. Freq (Hz) Min. 10k
Oper. Temp (°C) Max. 95
@VCE (V) 2.0
Pinout Equivalence Number 3-14
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 150 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 55 V
Maximum Emitter-Base Voltage |Veb| 60 V
Maximum Collector Current |Ic max| 15 A
Max. Operating Junction Temperature (Tj) 100 °C
Transition Frequency (ft): 0.1 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 116211
