2N1805
View detailed images (5)

2N1805

SKU: 2N1805

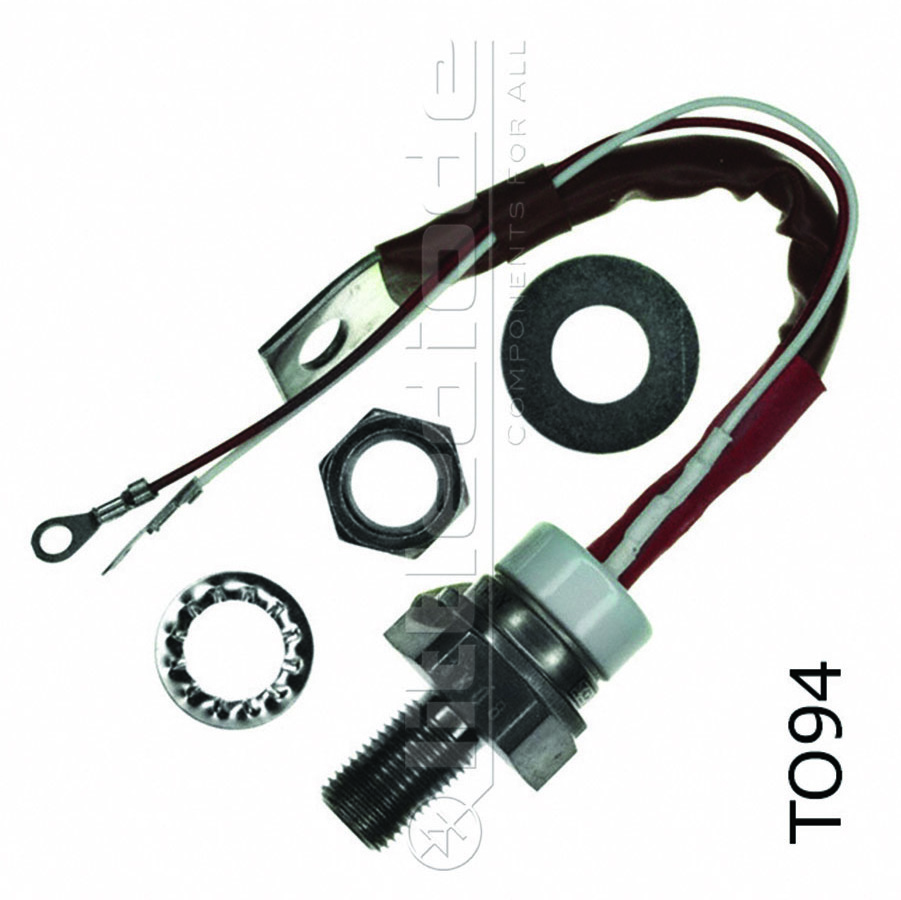

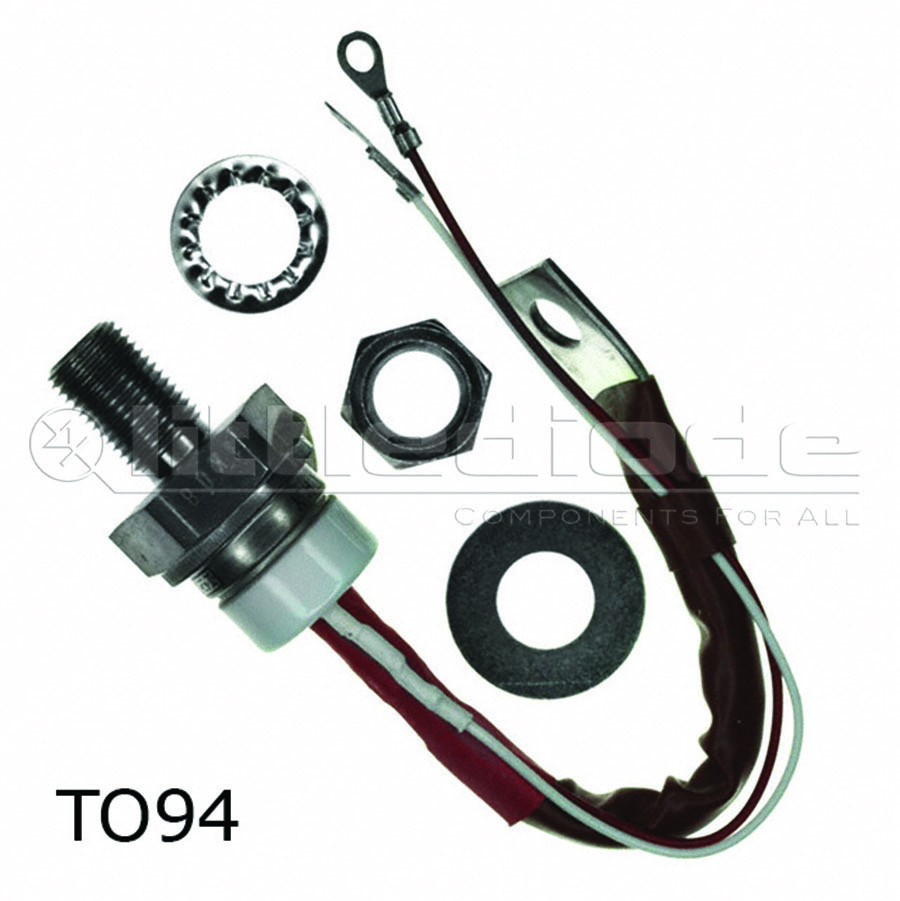

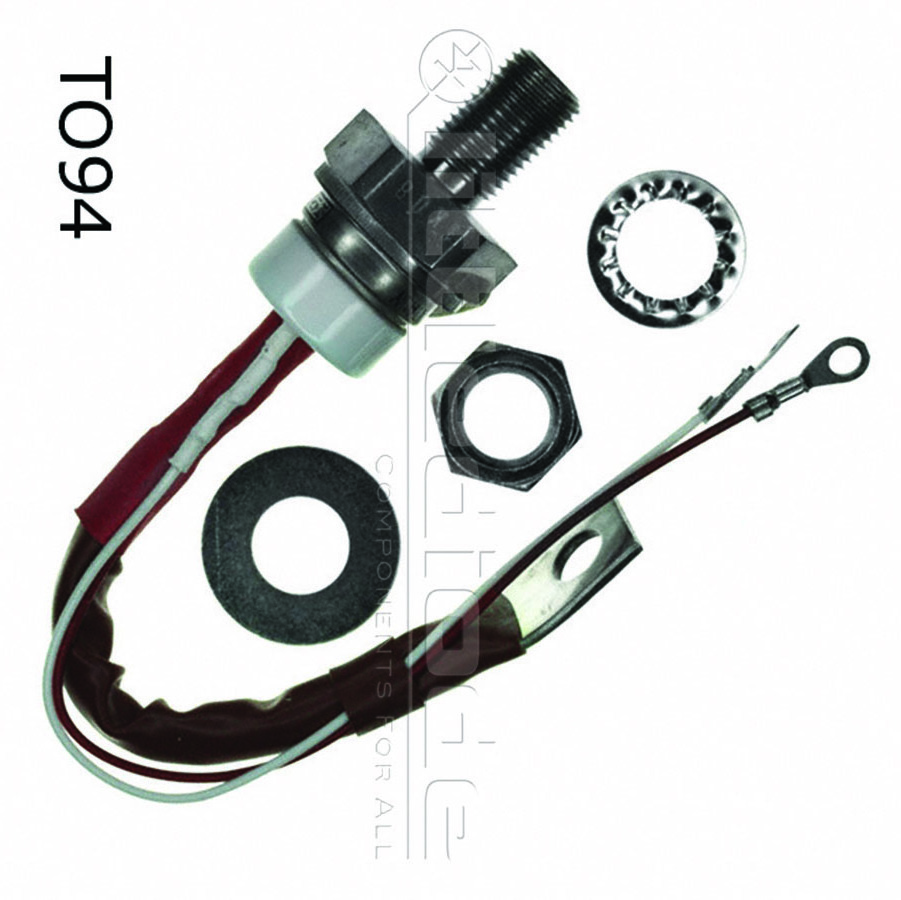

2N1805 Transistor CASE: TO94 MAKE: Generic
Datasheet
2N1805 Datasheet
Product specifications
Type Transistor
Case TO94
Manufacturer Microsemi
Firing Char-Igt Max. 130m
Firing Char-Vgt Max. 3.0
Id(off) Max. (A) 3.3m
It(stat) Max. (A) 70
Supp Curr. I(TSM) 1.0k
V(drm) Max. 500
V(T) Max. 1.8
@Temp. (test) (°C) 62#
@Temp. (test) (°C) 62#
Oper. Temp (°C) Min -45
Oper. Temp (°C) Max. 125#
@It (A) 219
Surface Mounted Yes/No NO
SKU 342759
