2N2189
View detailed images (4)

2N2189

SKU: 2N2189

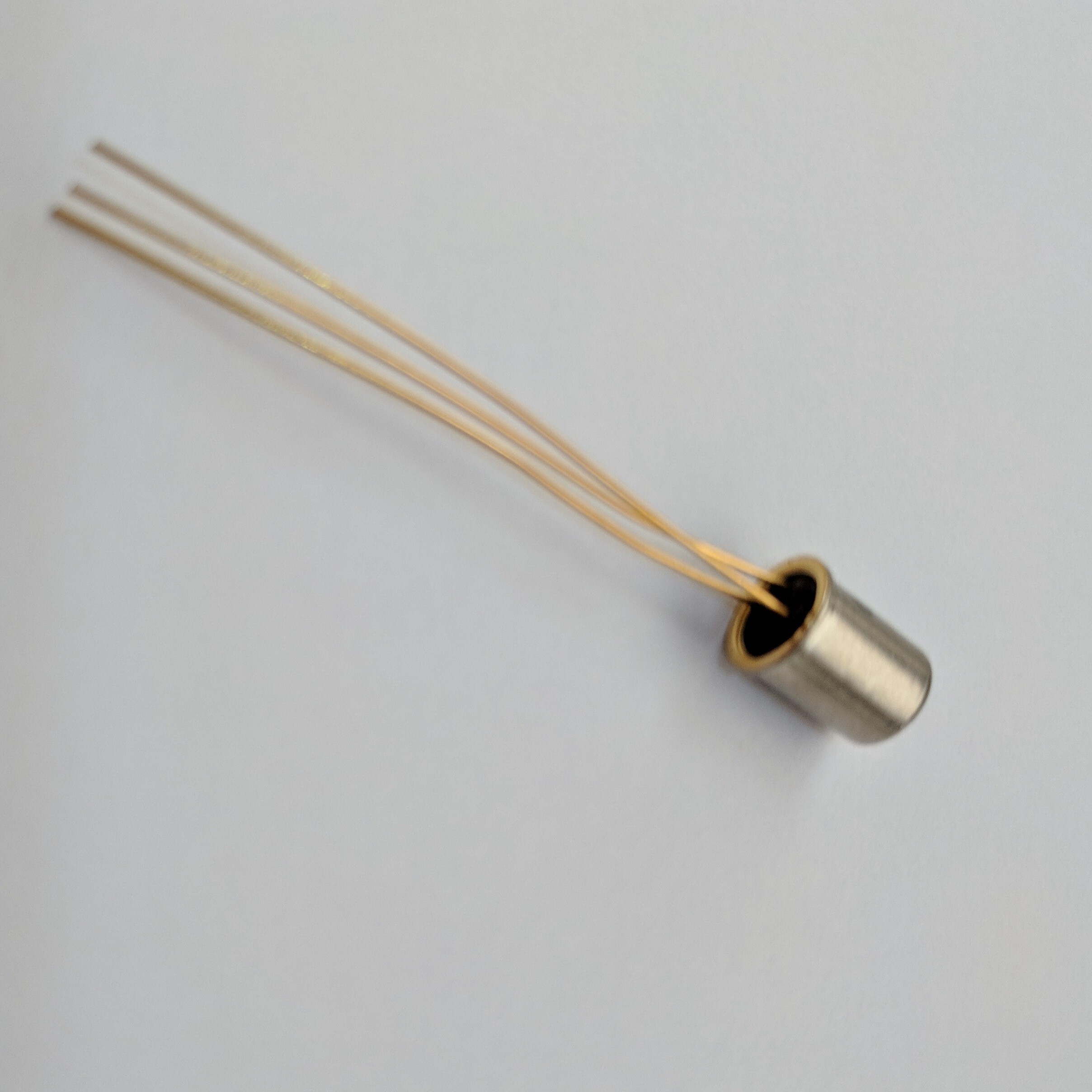

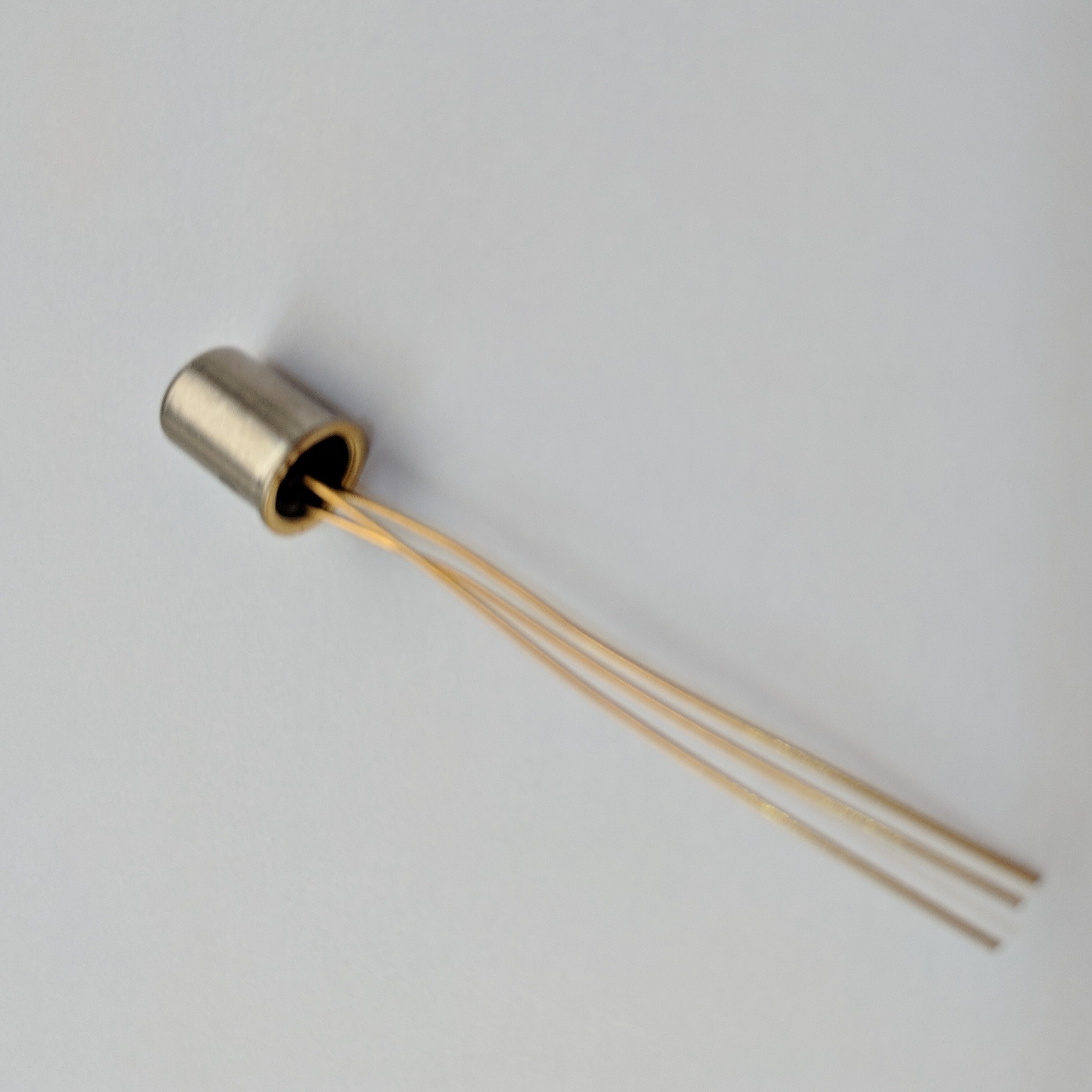

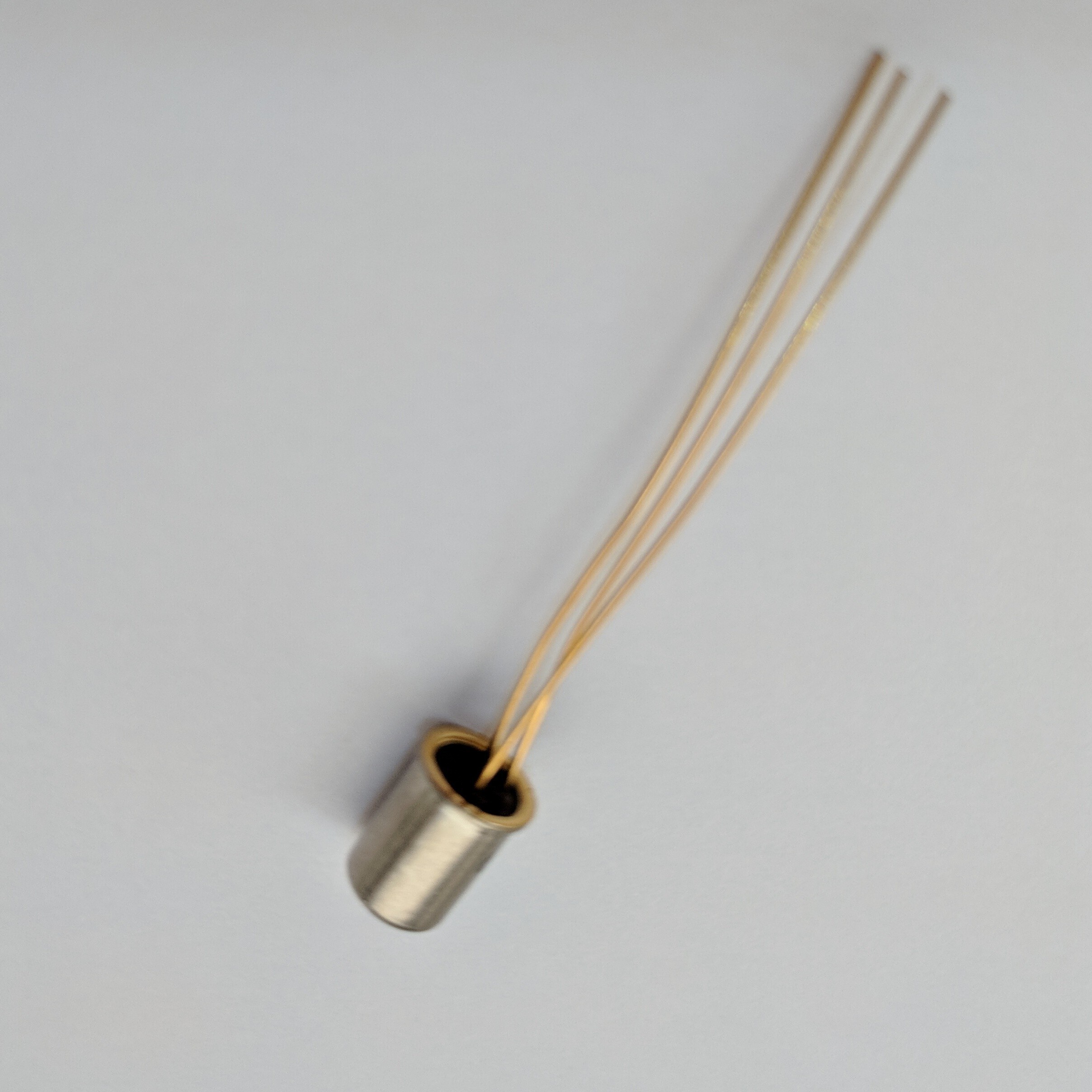

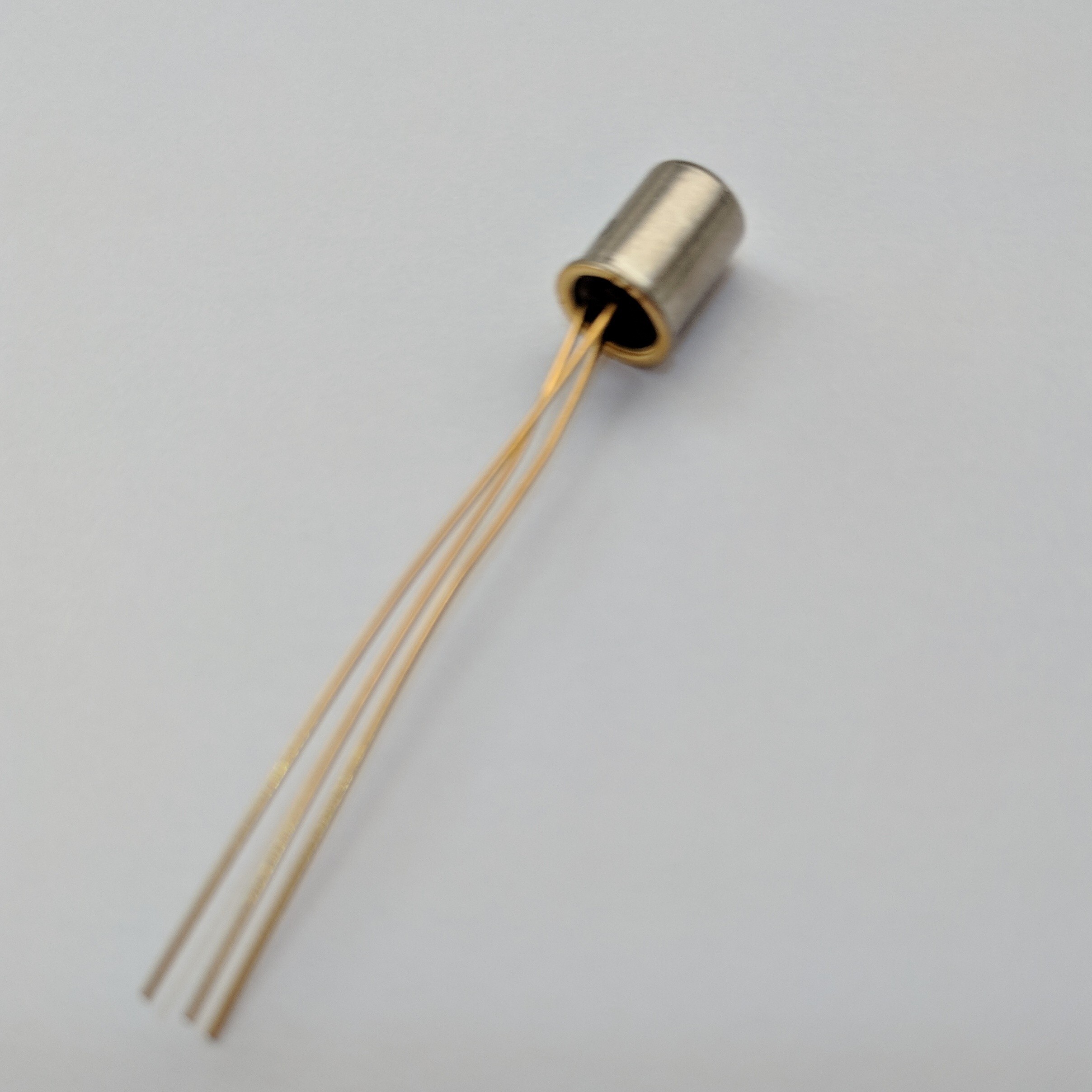

2N2189 Transistor Germanium PNP CASE: TO58 MAKE: Texas Instruments
Price: £19.99
+ VAT 20% for UK purchases
£19.99
Qty
+ VAT 20% for UK purchases
  • 15 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Germanium PNP
Case TO58
Manufacturer Texas Instruments
Vbr CBO 40
Vbr CEO 25
Max. PD (W) 125m
Derate (Amb) (W/°C) 2.1m
hfe 60
Ic Max. (A) 30m
Icbo Max. @Vcb Max. (A) 3.0u
Polarity PNP
Trans. Freq (Hz) Min. 102M
@VCE (test) (V) 9.0
Oper. Temp (°C) Max. 100
@Ic (A) 1.5m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.125 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 75 °C
Collector Capacitance (Cc) 2.5 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 60
SKU 82297
