2N2196
View detailed images (4)

2N2196

SKU: 2N2196

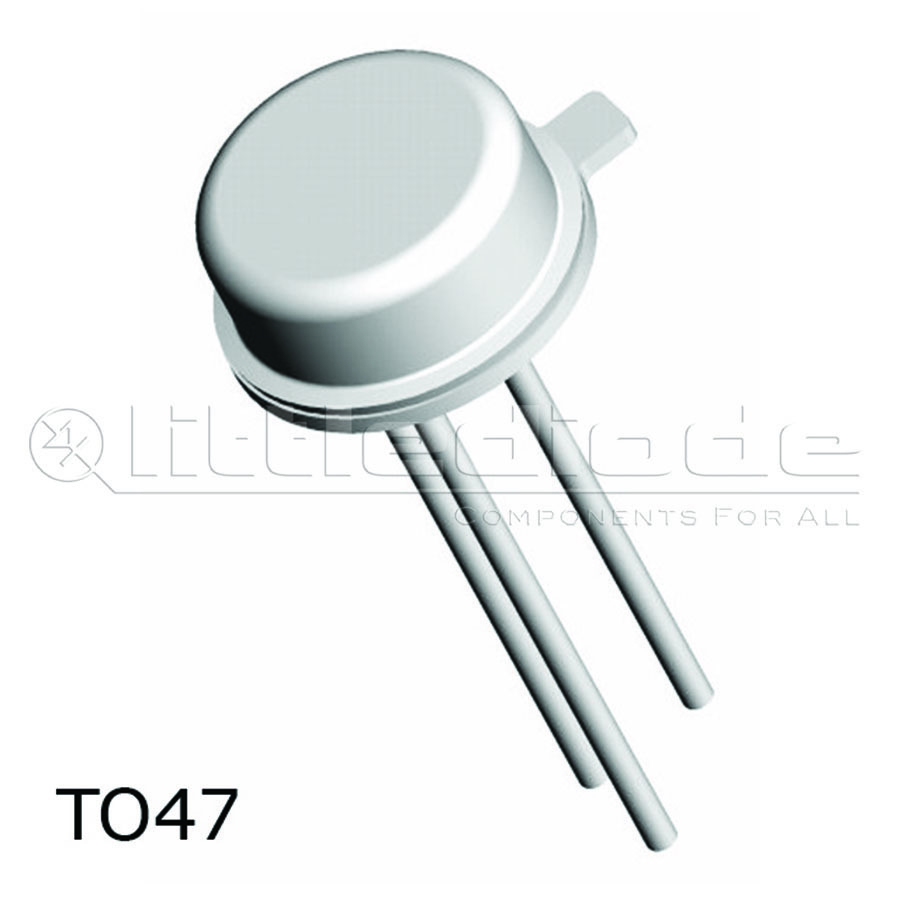

2N2196 Transistor Silicon NPN CASE: TO47 MAKE: Microsemi Corporation
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 1 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO47
Manufacturer Microsemi Corporation
Vbr CBO 80
Vbr CEO 60
Max. PD (W) 2.0
Max. hFE 90
Min hFE 30
Ic Max. (A) 1.0
@Ic (test) (A) 200m
Icbo Max. @Vcb Max. (A) 75u
Polarity NPN
R(sat) (Û) 10
Derate Above 25°C 133m
Oper. Temp (°C) Max. 175#
@VCE (V) 10
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 2 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 8 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 15 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 85290
