2N2196A
View detailed images (4)

2N2196A

SKU: 2N2196A

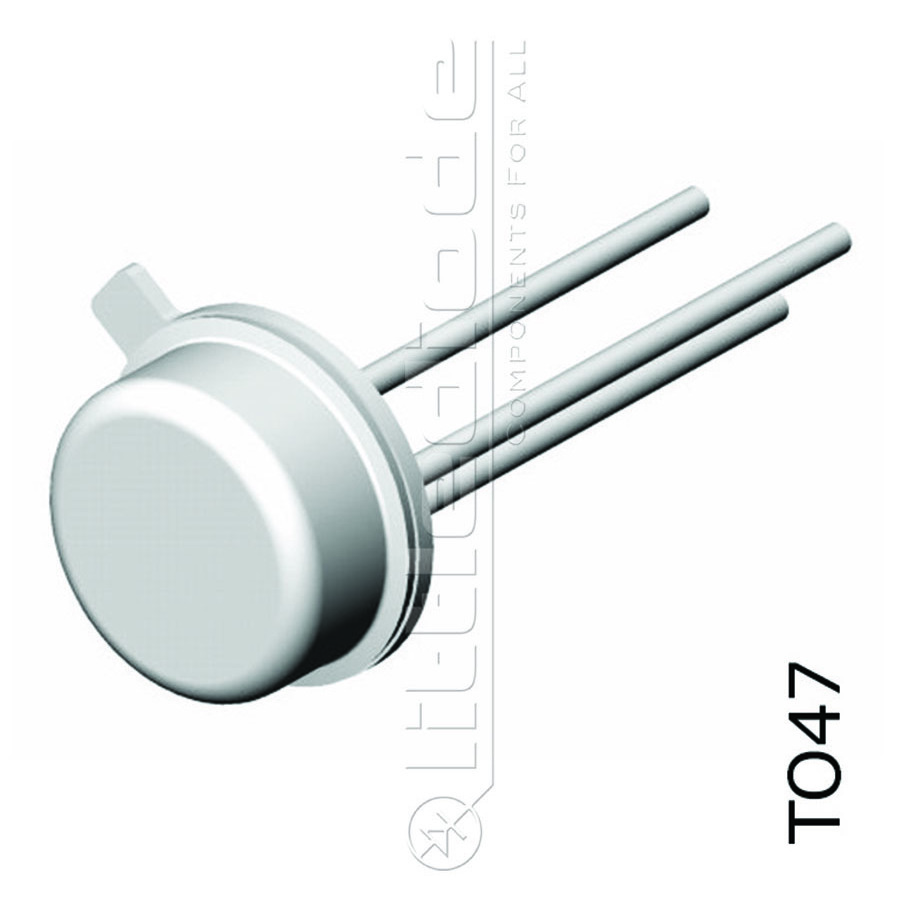

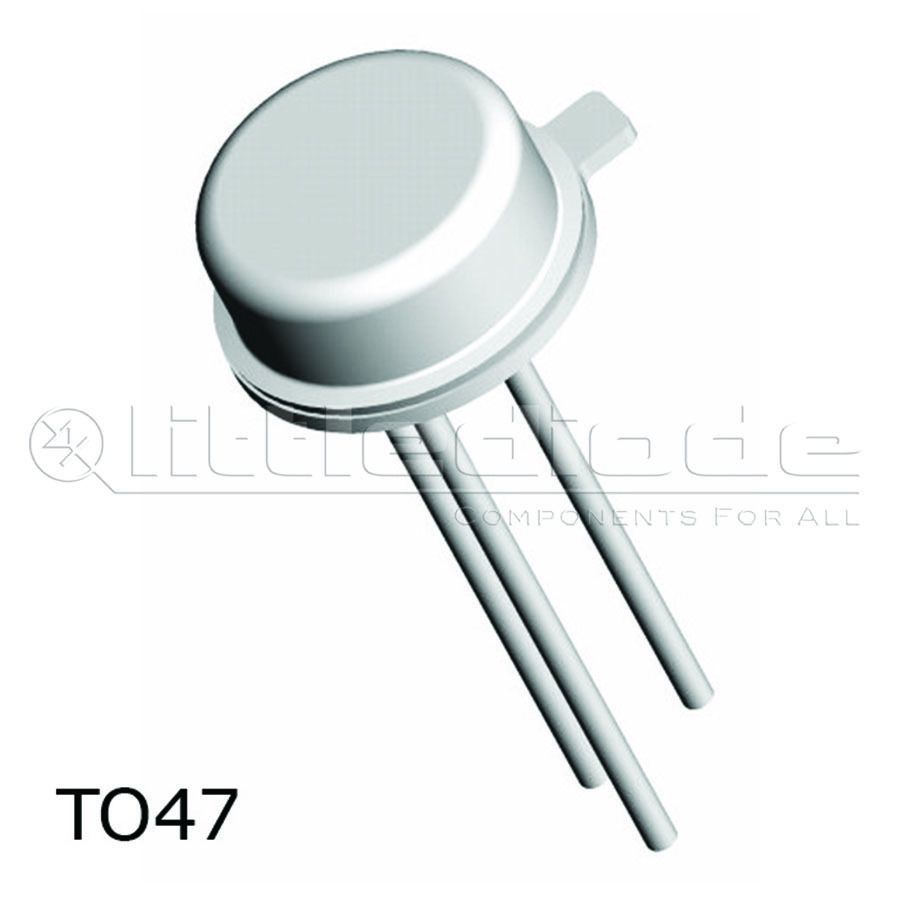

2N2196A Transistor Silicon NPN CASE: TO47 MAKE: Microsemi Corporation
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO47
Manufacturer Microsemi Corporation
Polarity NPN
Maximum Collector Power Dissipation (Pc) 2 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 8 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 15 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 85625
