2N2222ADCSM

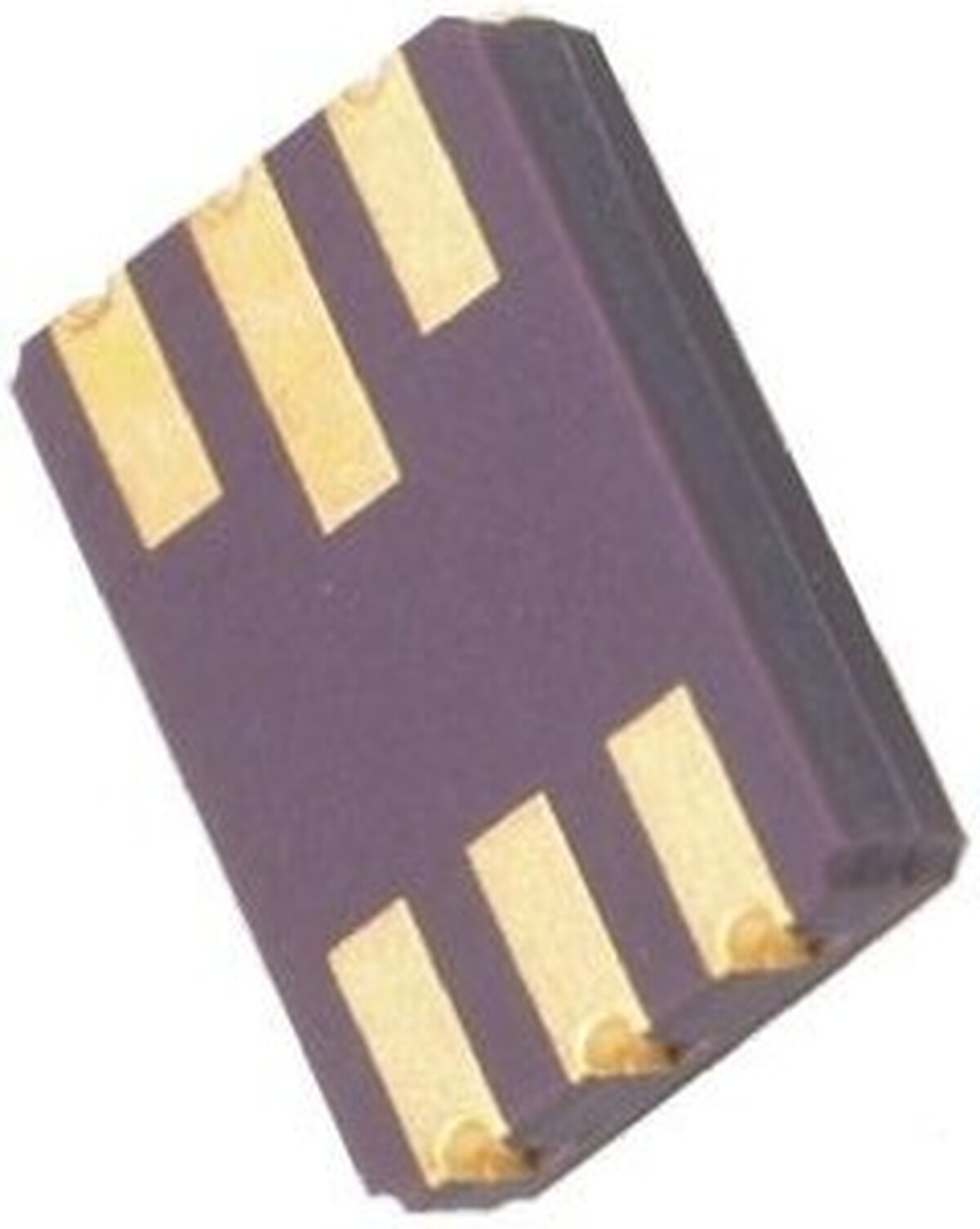

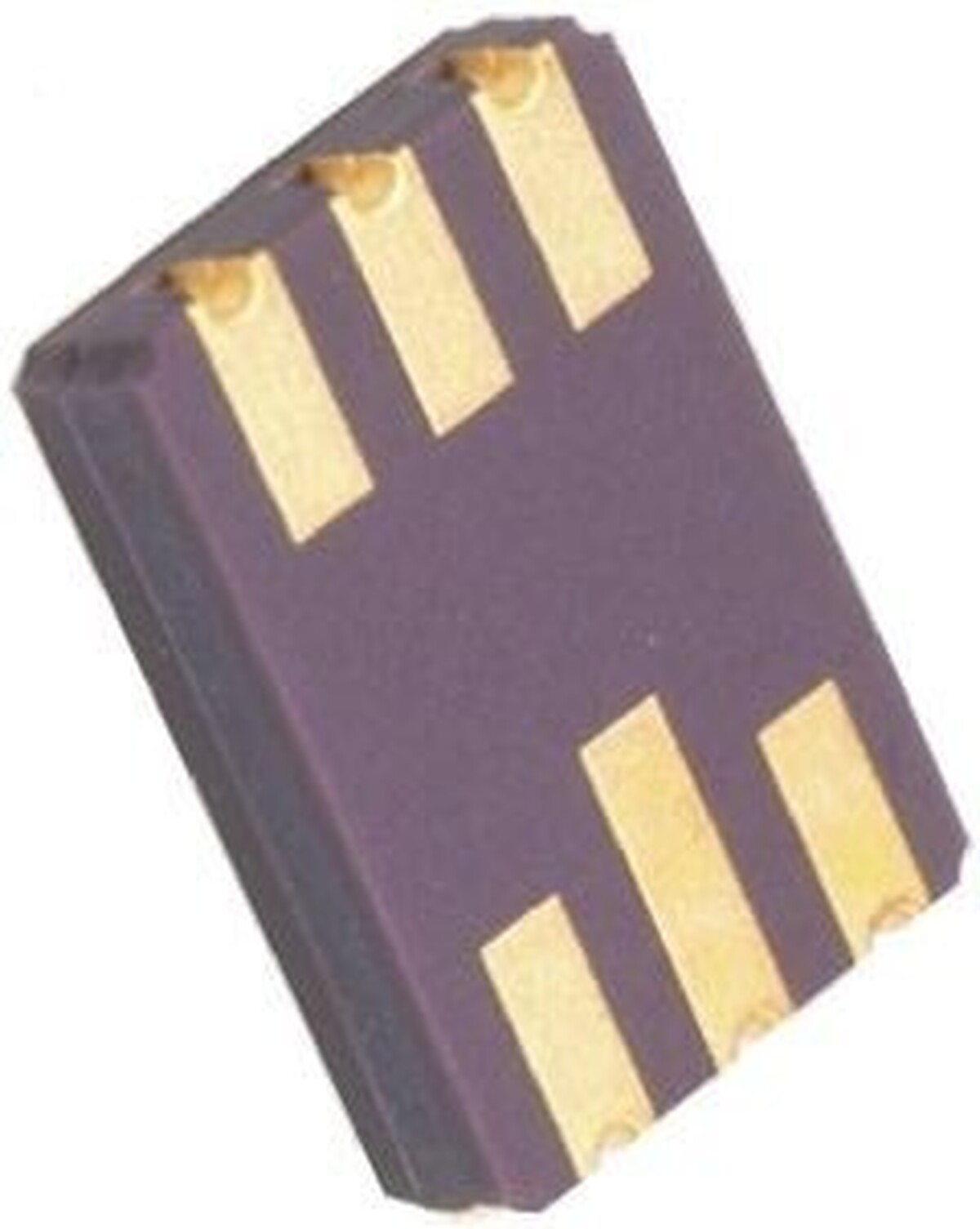

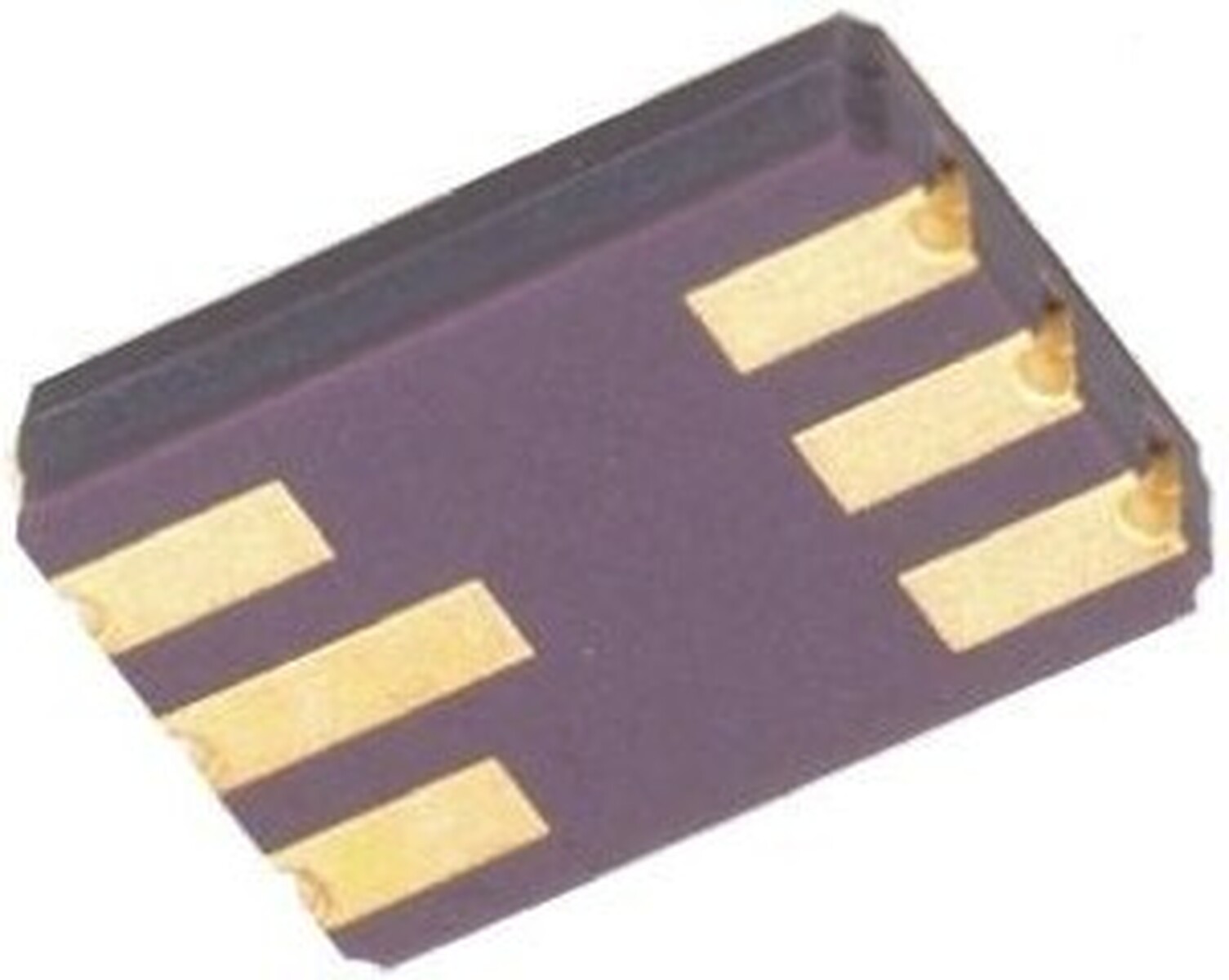

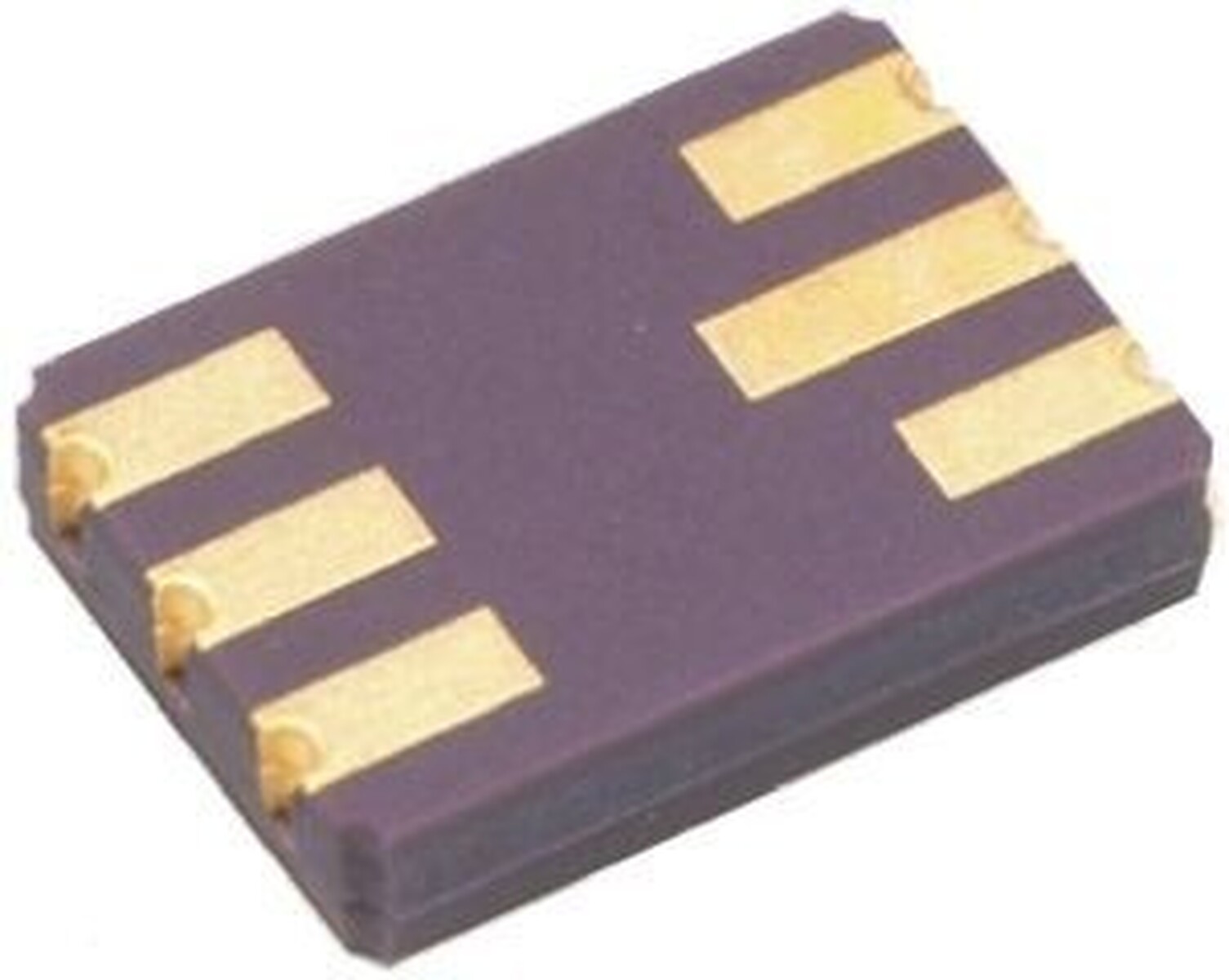

View detailed images (4)

2N2222ADCSM

SKU: 2N2222ADCSM
2N2222ADCSM Transistor Silicon NPN CASE: LCC2 MAKE: Generic
Datasheet
2N2222ADCSM Datasheet
Product specifications
Type Transistor Silicon NPN
Case LCC2
Manufacturer SemeLAB
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.35 W
Maximum Collector-Base Voltage |Vcb| 75 V
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.6 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 8 pF
Transition Frequency (ft): 300 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 1421515
