2N2228

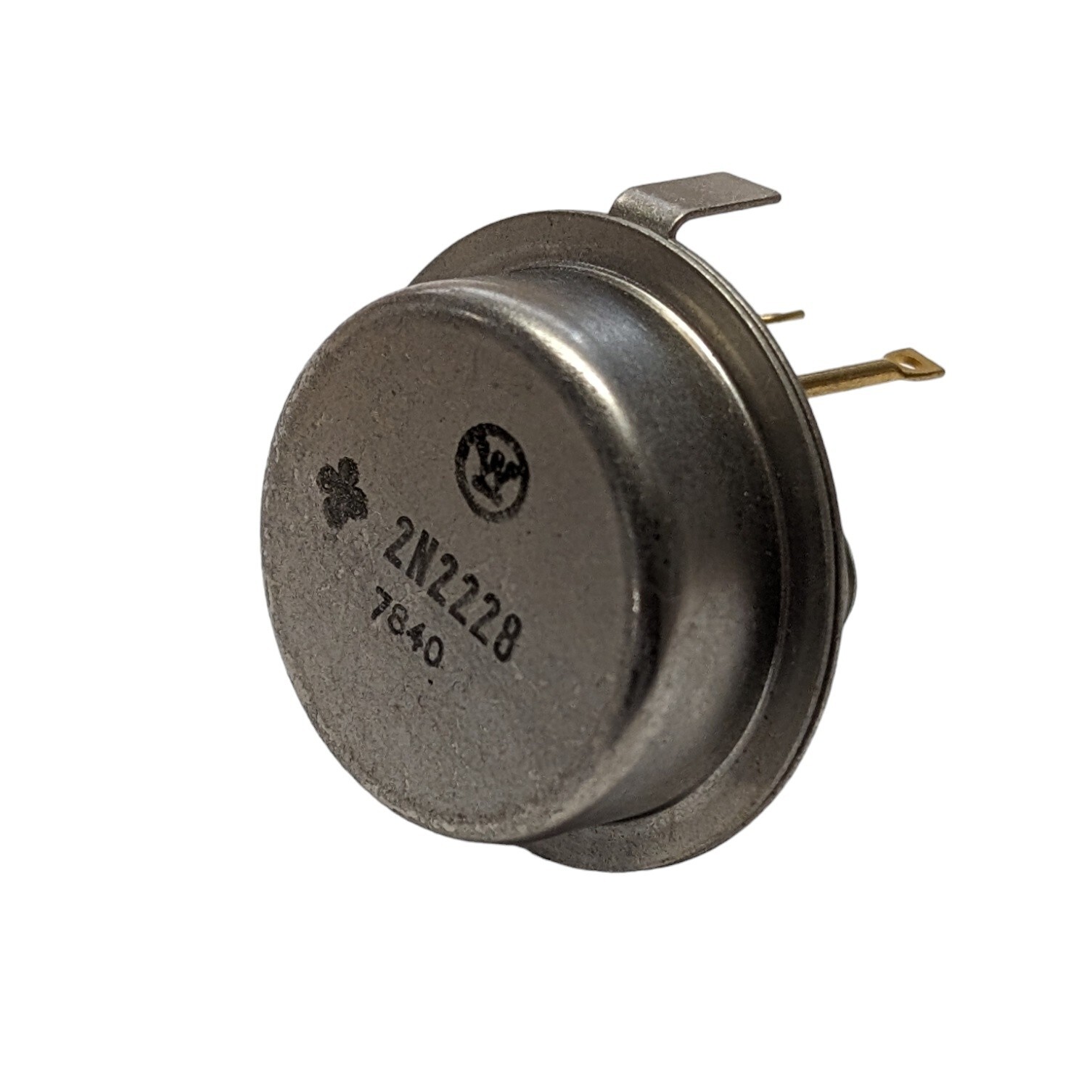

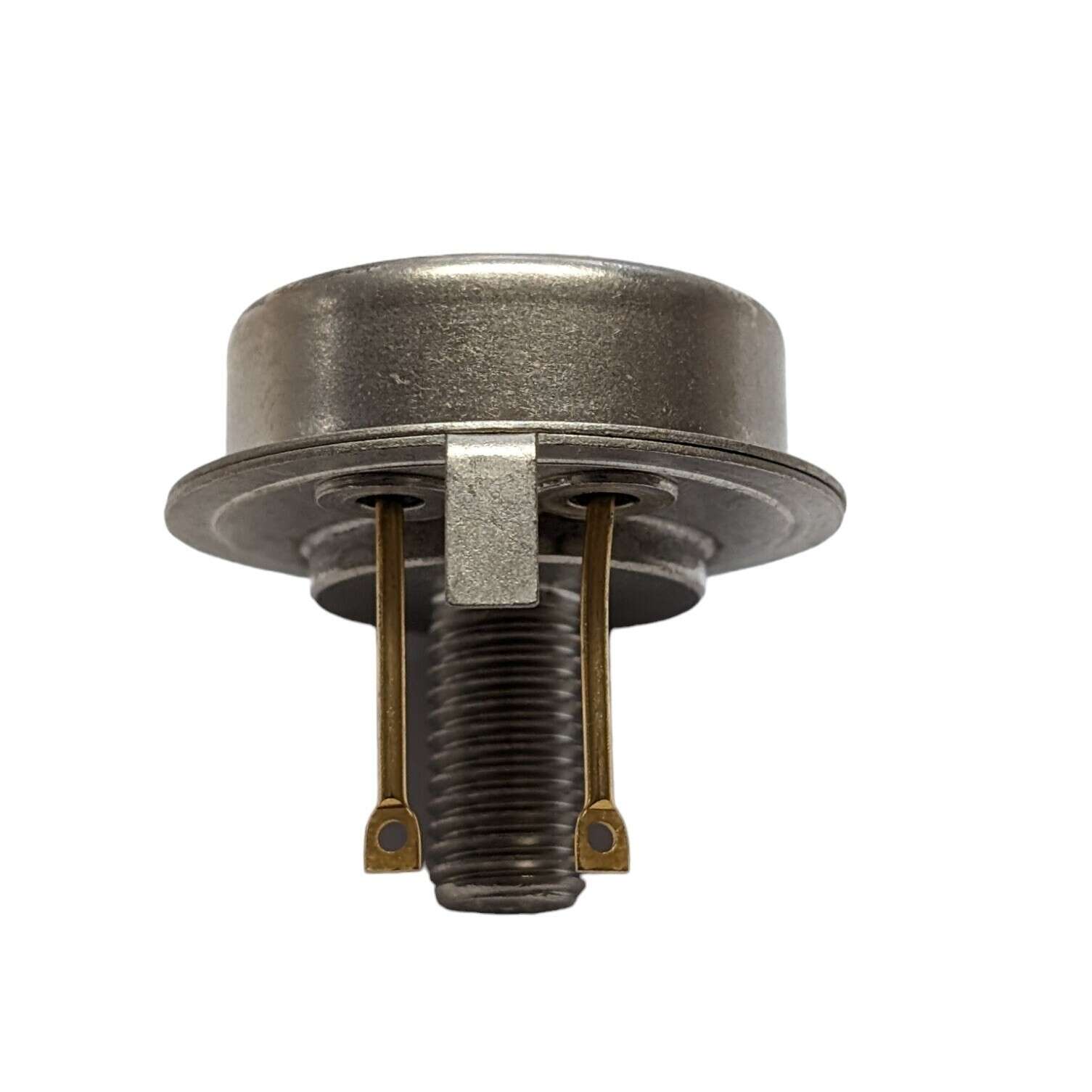

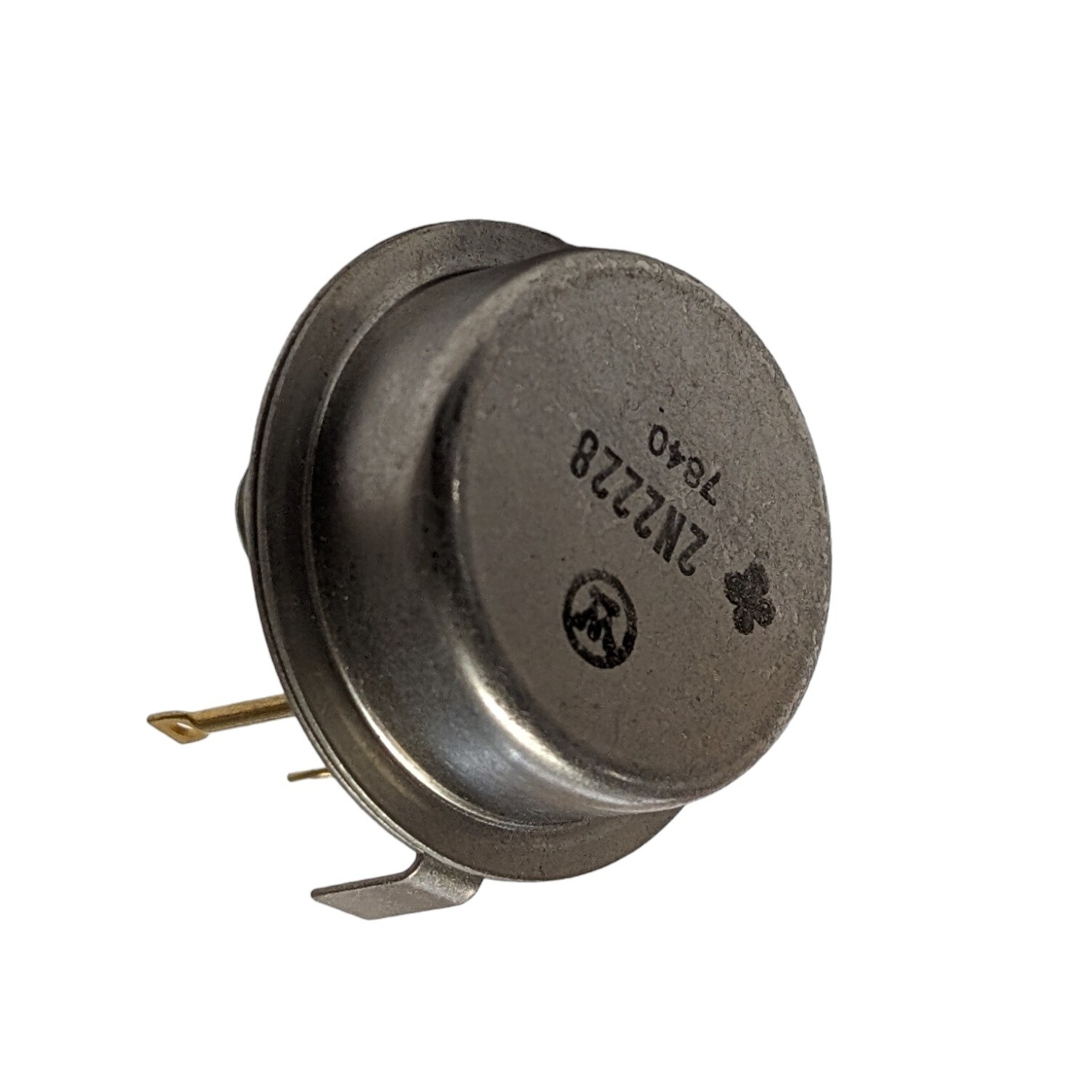

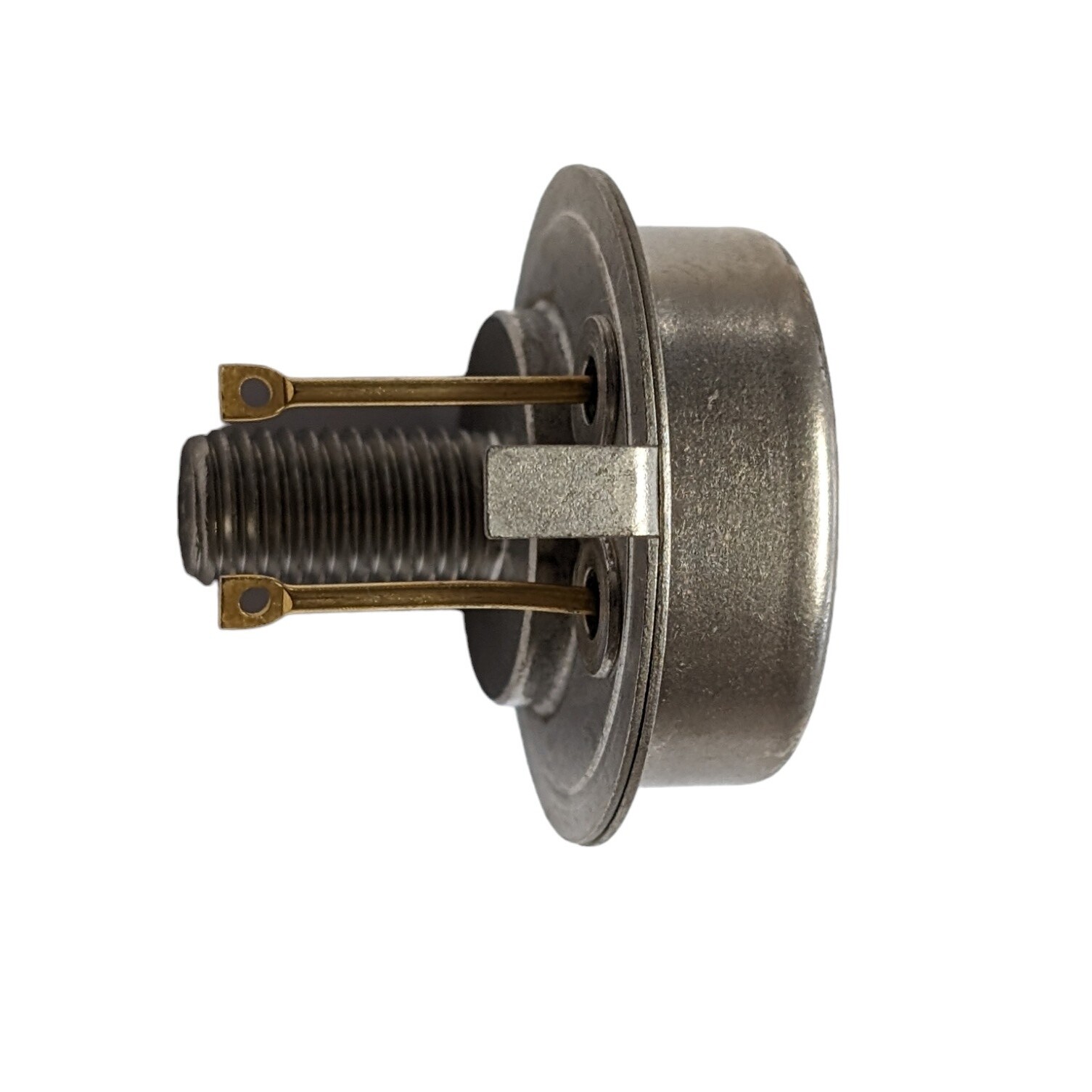

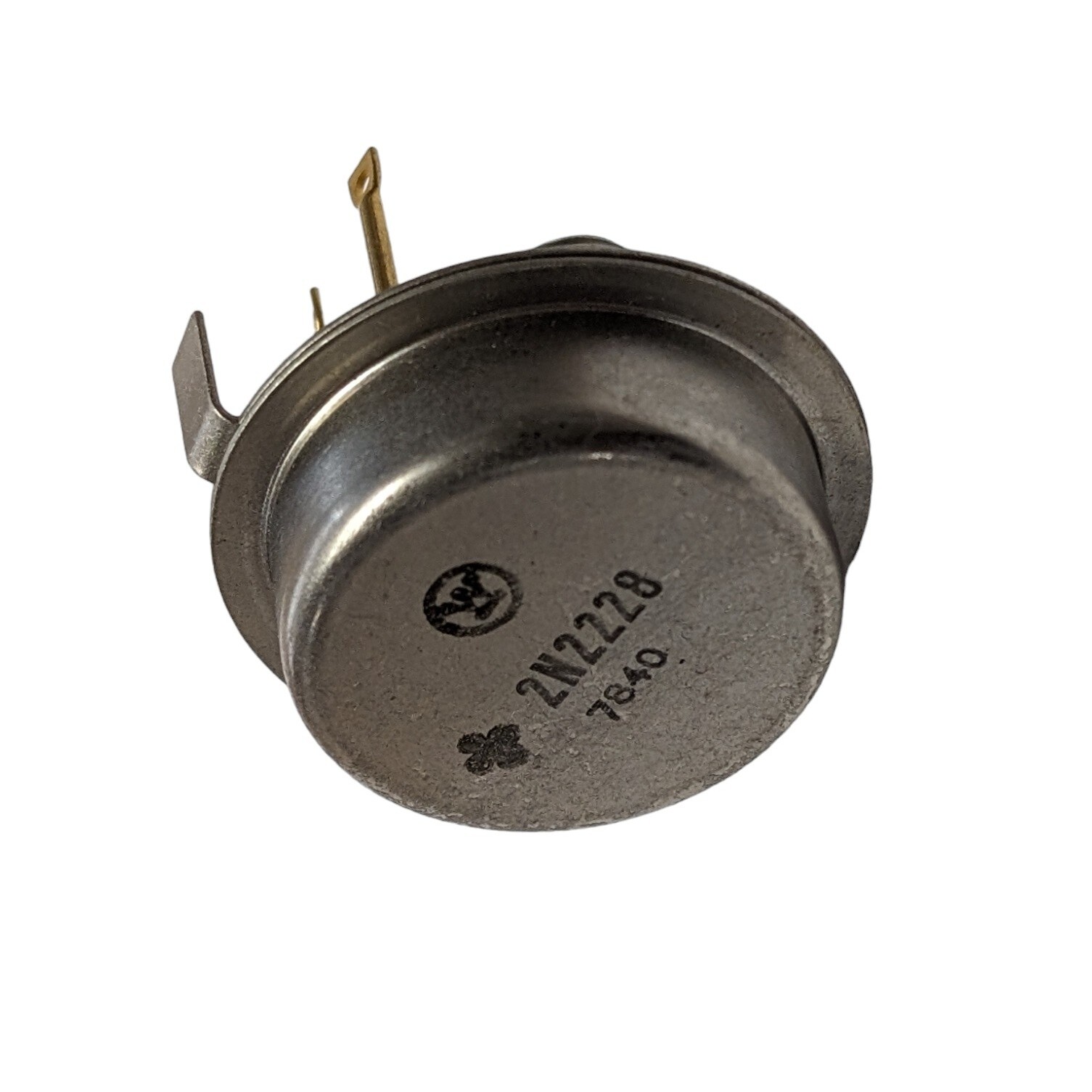

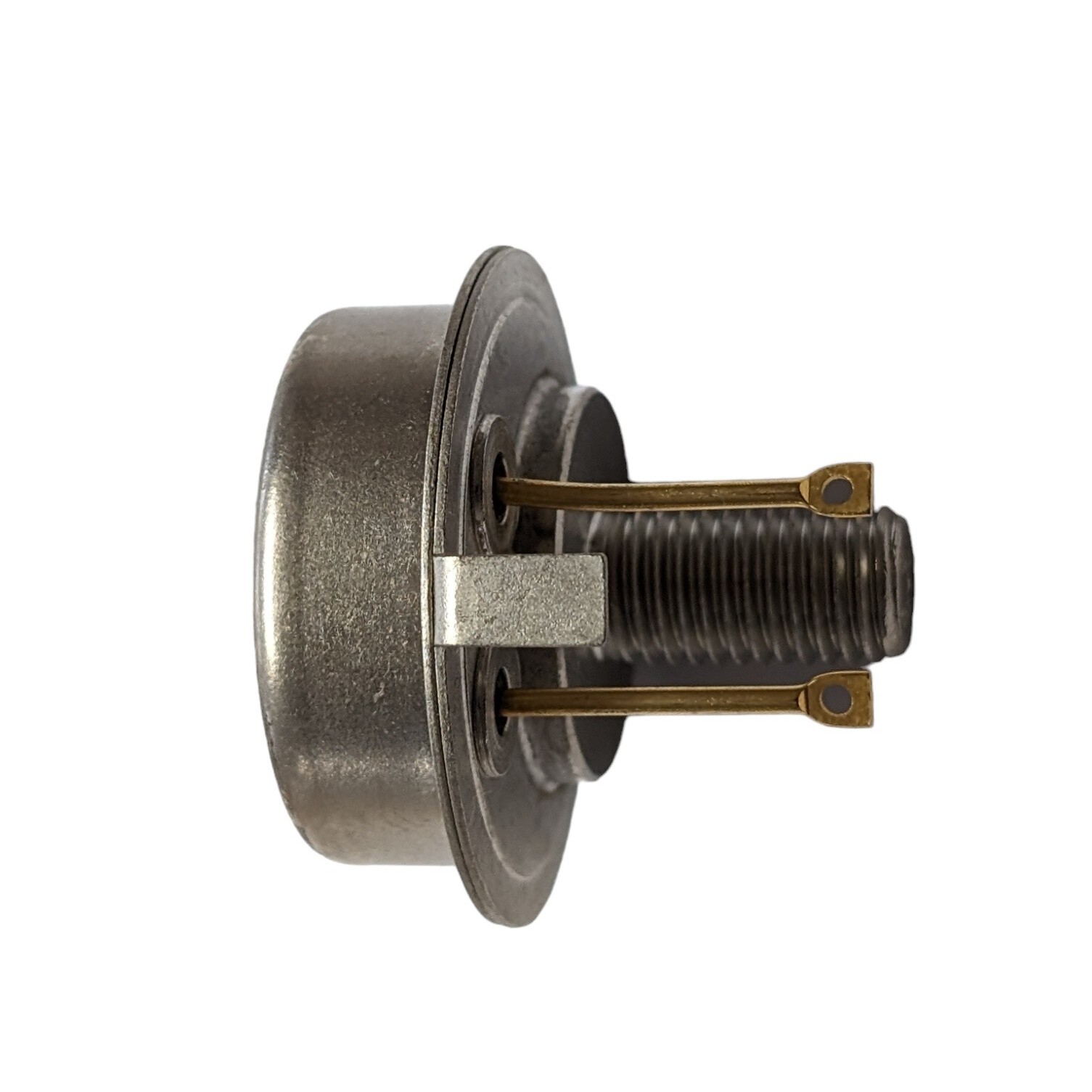

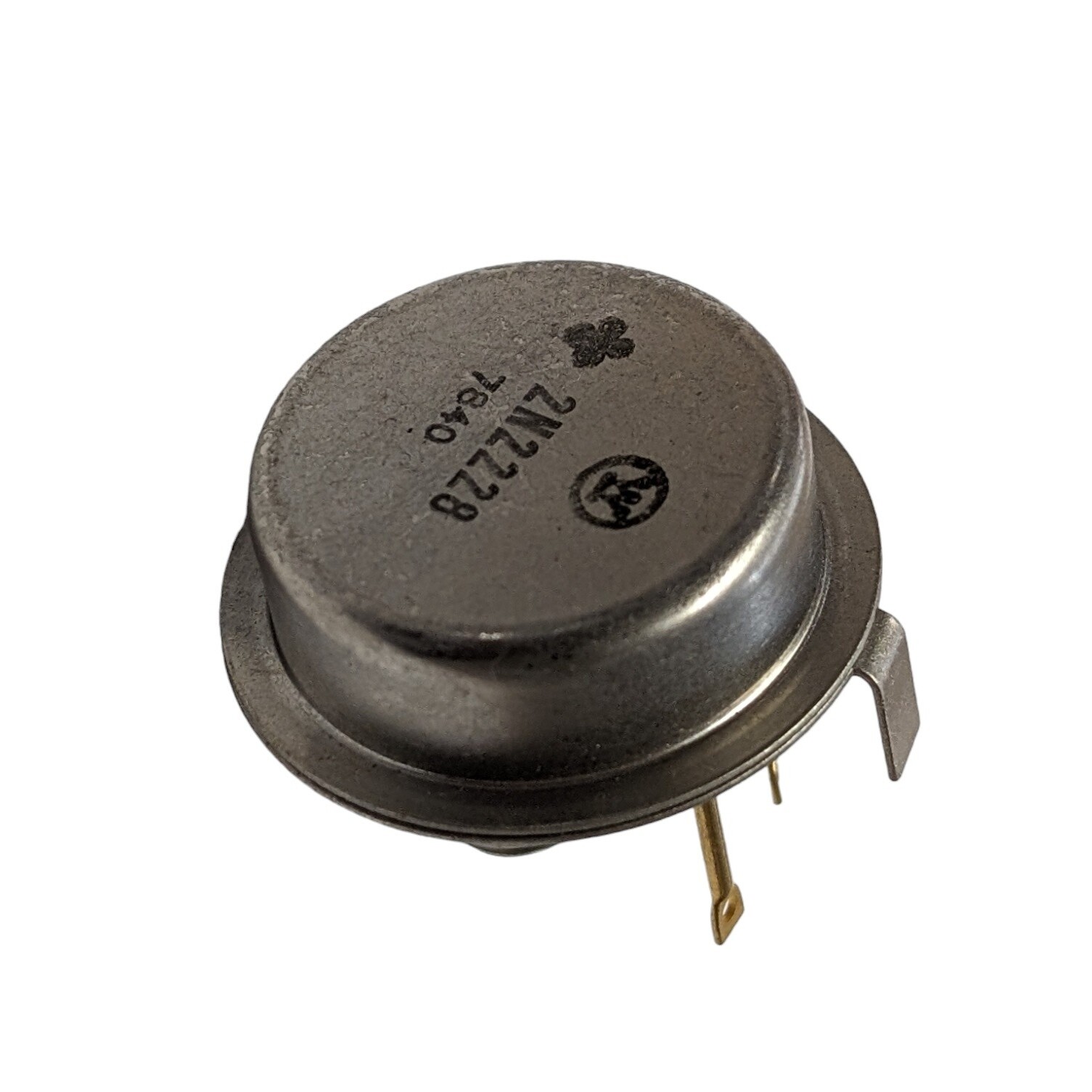

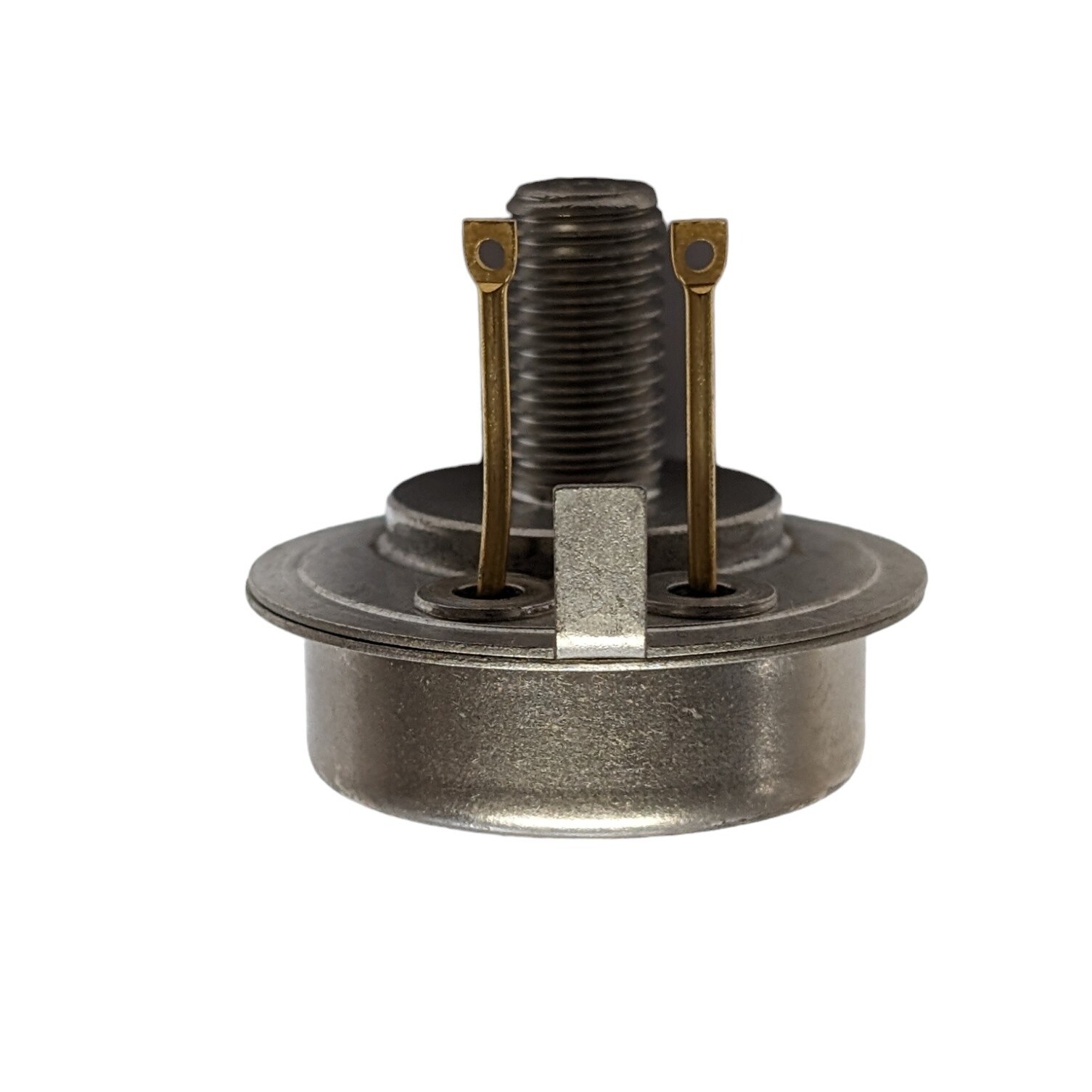

View detailed images (9)

2N2228

SKU: 2N2228
2N2228 Transistor Silicon NPN CASE: MT38 MAKE: Generic
Price:
£215.99 Inc. VAT (£179.99 Ex. VAT)
£215.99 Inc. VAT (£179.99 Ex. VAT)
Qty
  • 5 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case MT38
Manufacturer Generic
Vbr CBO 150
Vbr CEO 150
Max. PD (W) 150
Max. hFE 500
Min hFE 100
Ic Max. (A) 10
@Ic (test) (A) 9.0
Icbo Max. @Vcb Max. (A) 20m
Polarity NPN
R(sat) (Û) 380m
Derate Above 25°C 2.0
Trans. Freq (Hz) Min. 7.0k
Oper. Temp (°C) Max. 140#
@VCE (V) 6.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 150 W
Maximum Collector-Base Voltage |Vcb| 150 V
Maximum Collector-Emitter Voltage |Vce| 150 V
Maximum Emitter-Base Voltage |Veb| 15 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 0.5 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SKU 81910
