2N2369ACSM

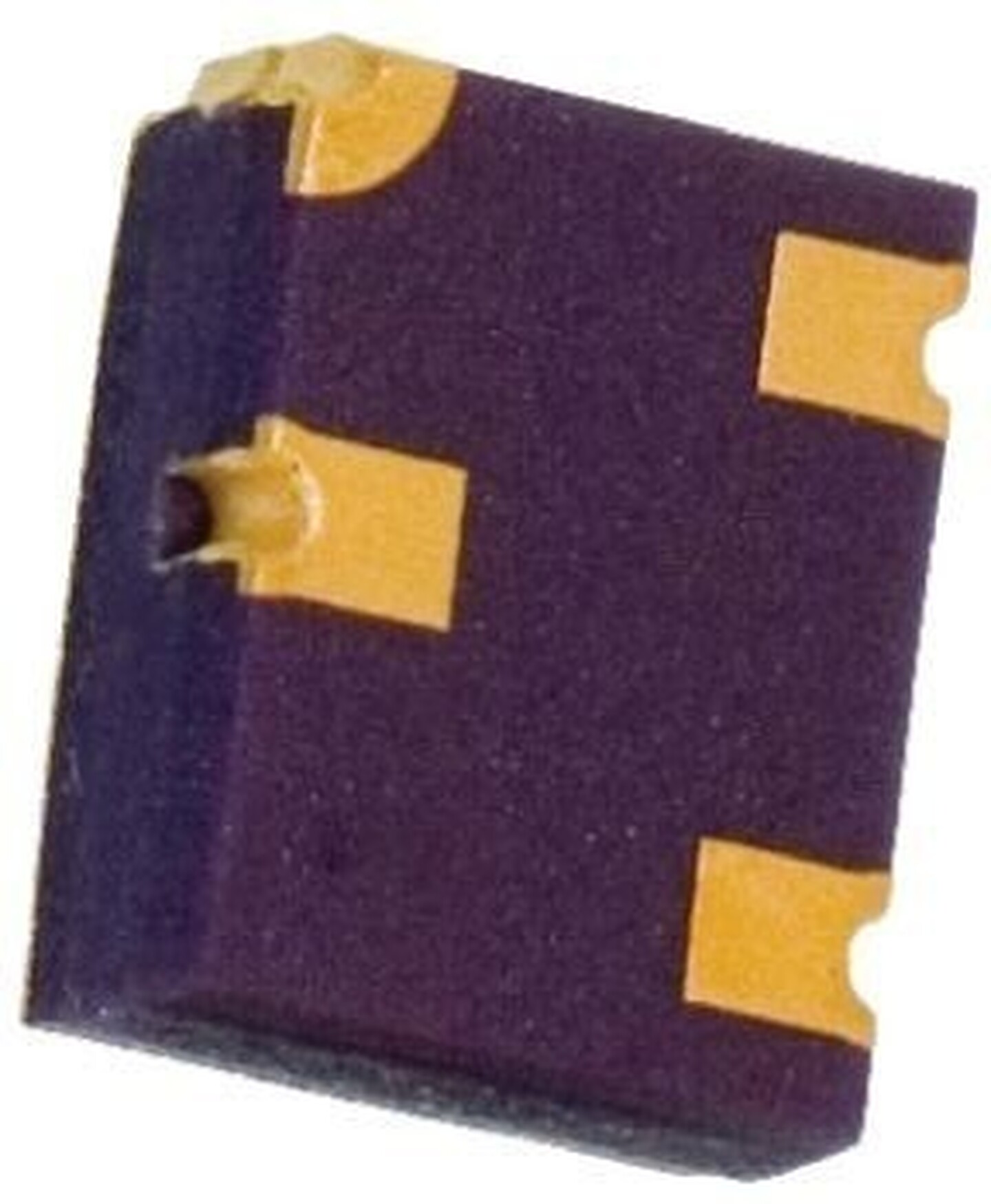

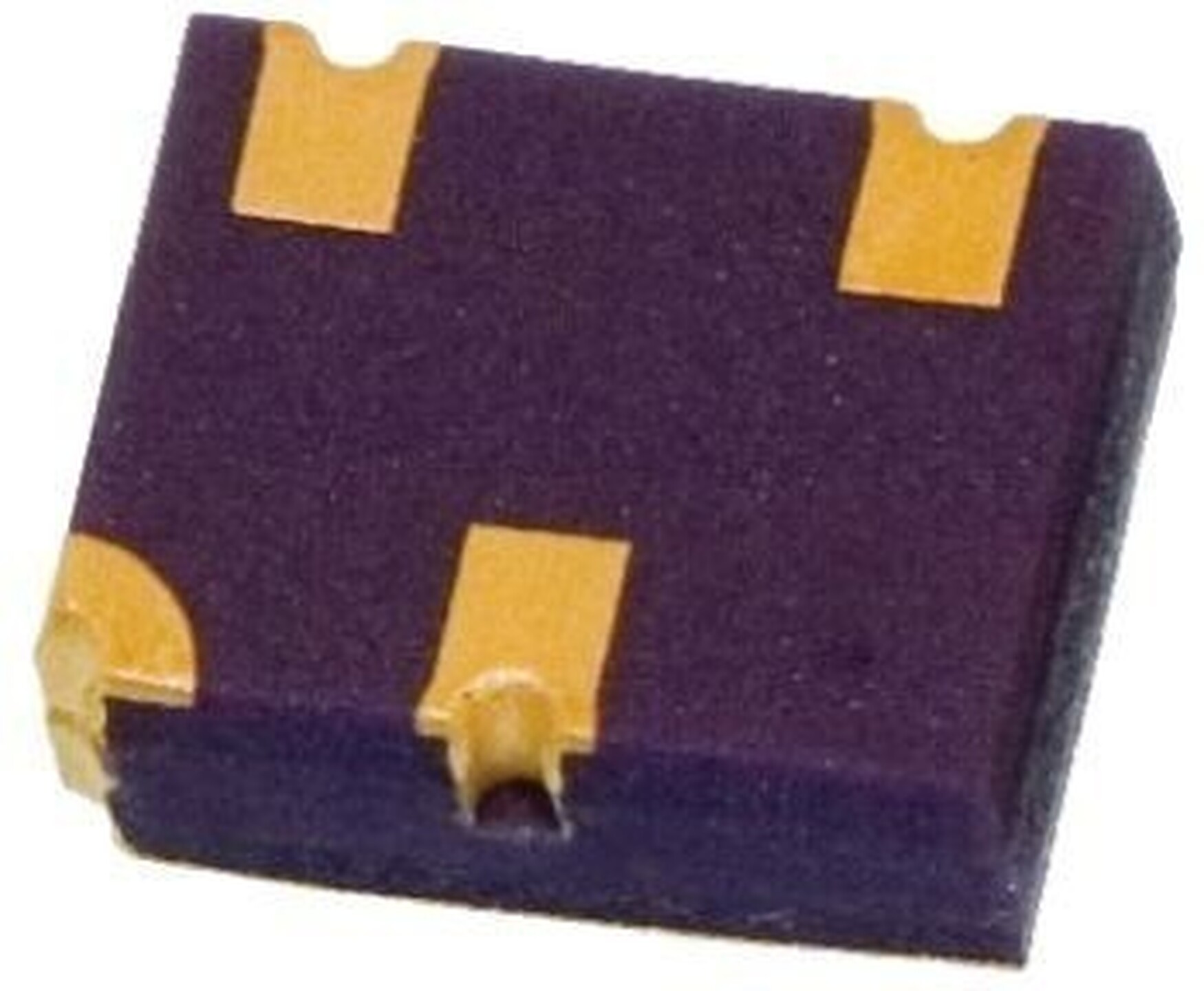

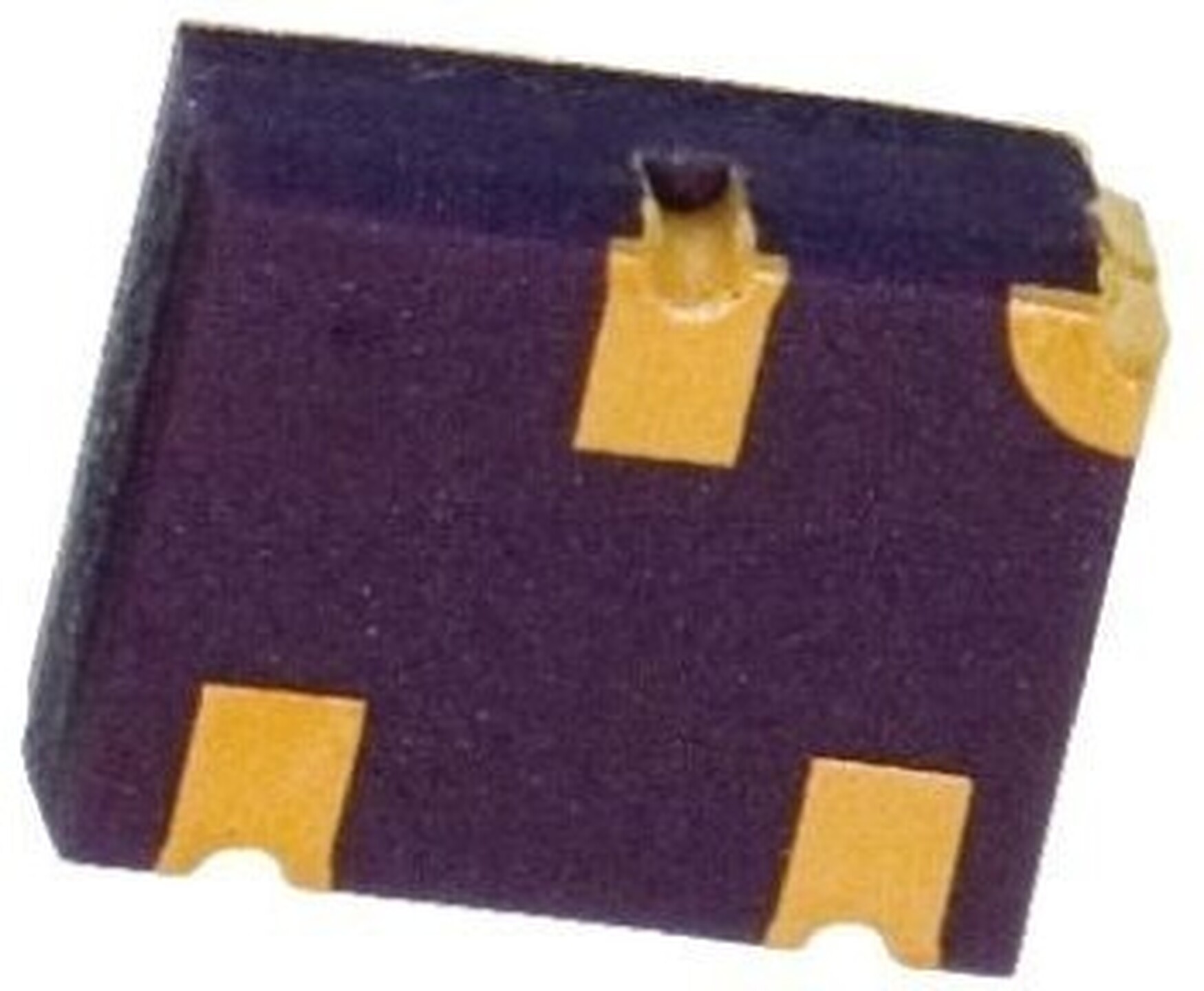

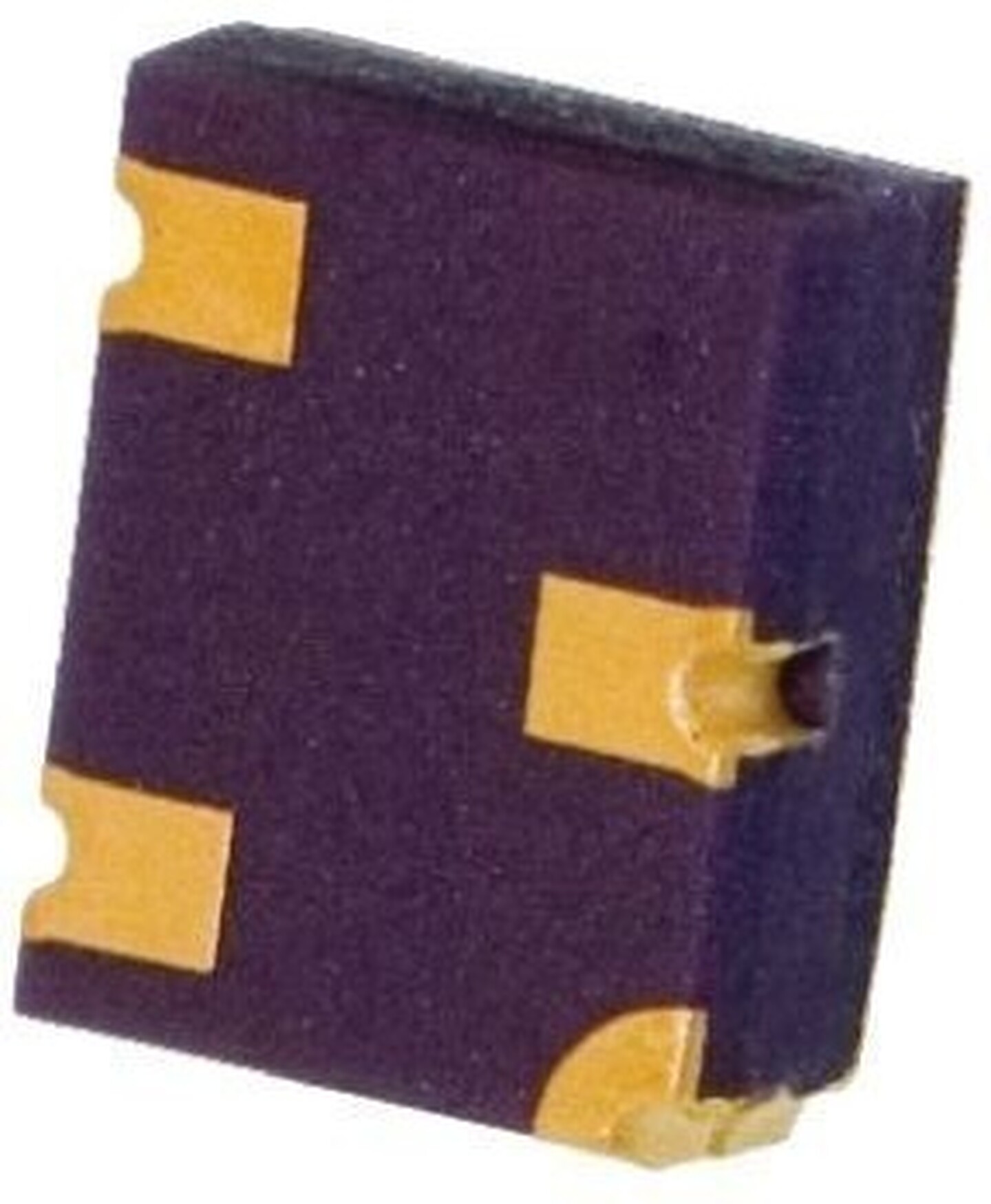

View detailed images (4)

2N2369ACSM

SKU: 2N2369ACSM
2N2369ACSM Transistor Silicon NPN CASE: LCC3 MAKE: Generic
Datasheet
2N2369ACSM Datasheet
Product specifications
Type Transistor Silicon NPN
Case LCC3
Manufacturer SemeLAB
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.36 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 4 pF
Transition Frequency (ft): 500 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 776007
