2N2394
View detailed images (8)

2N2394

SKU: 2N2394

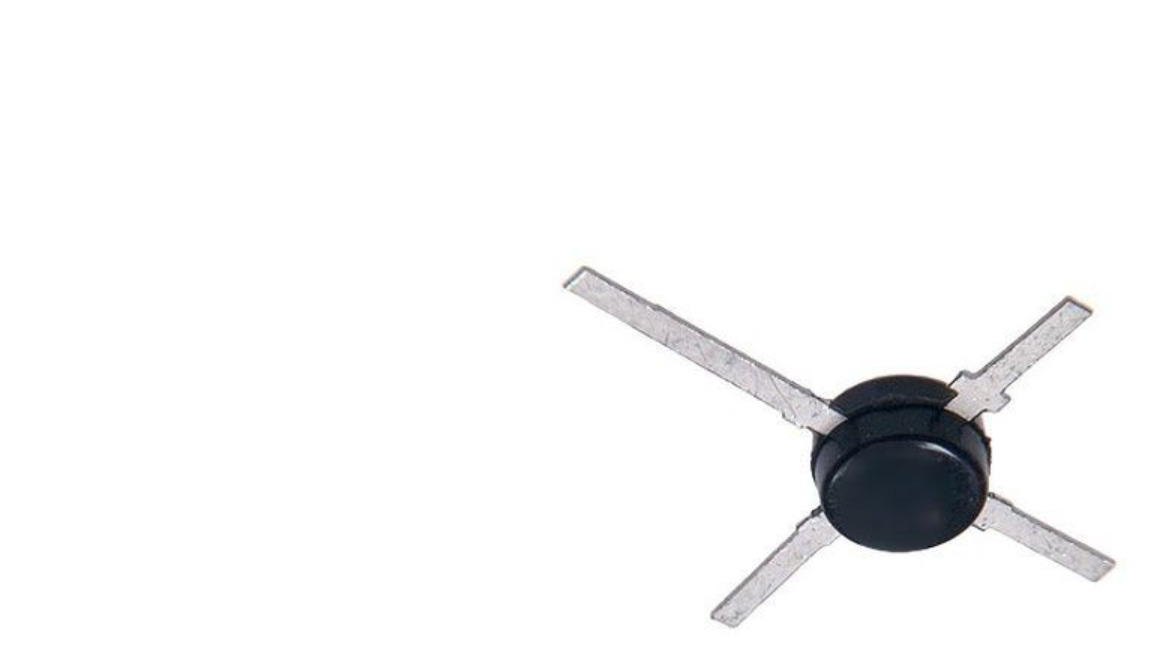

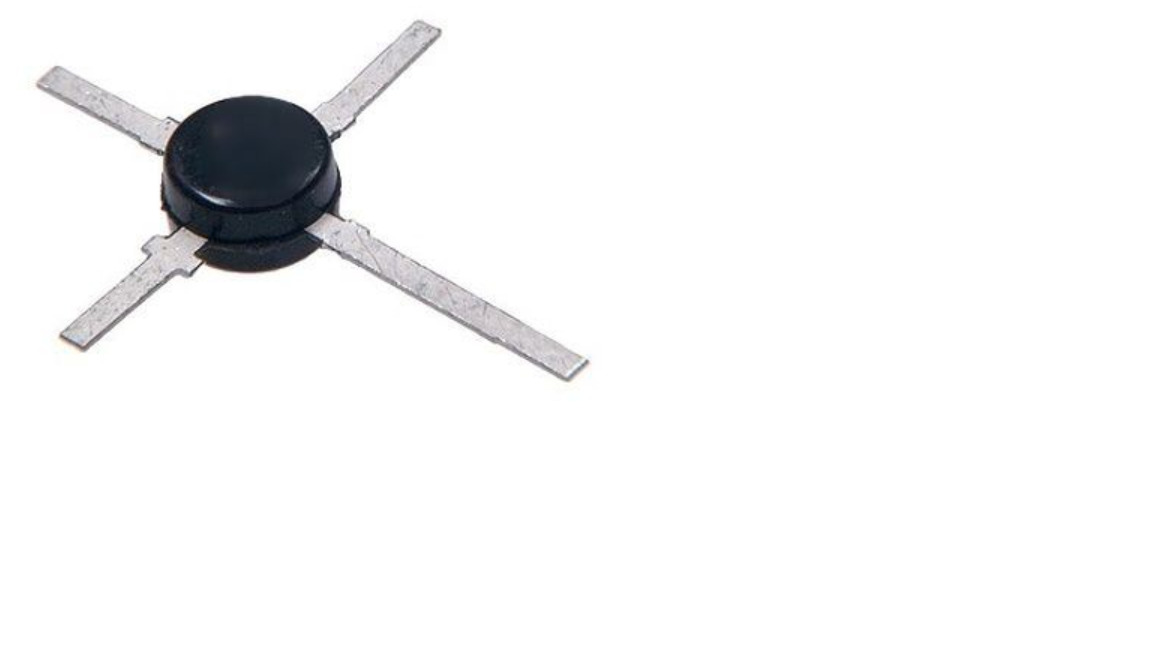

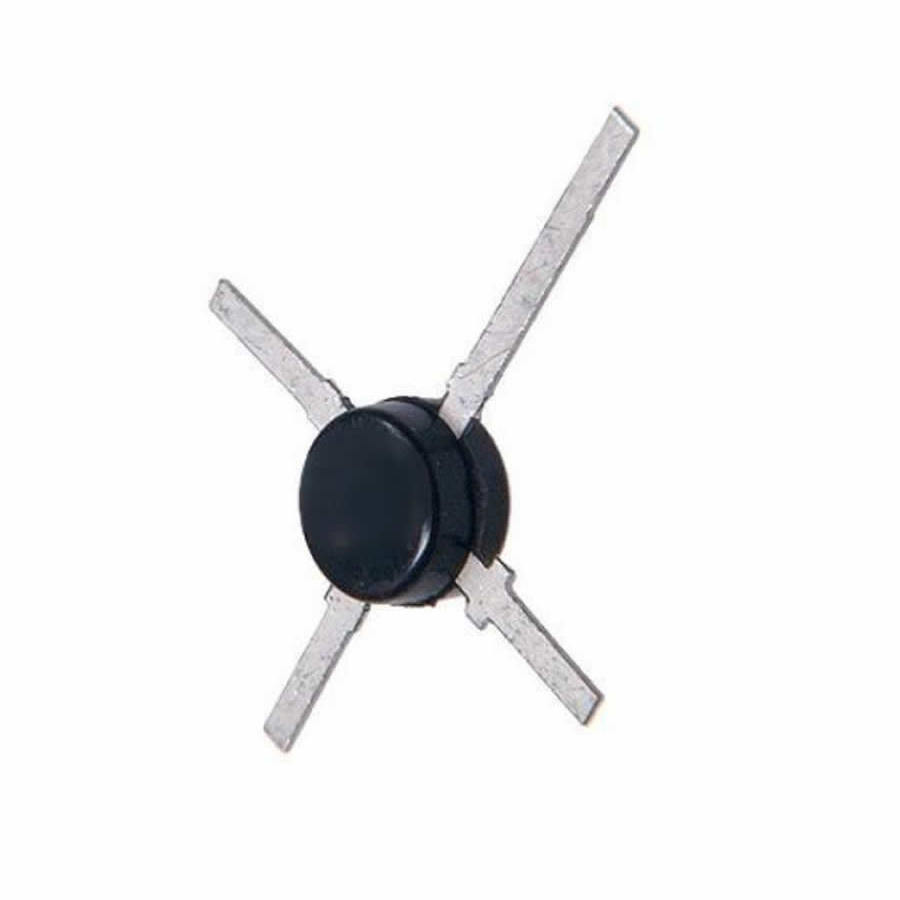

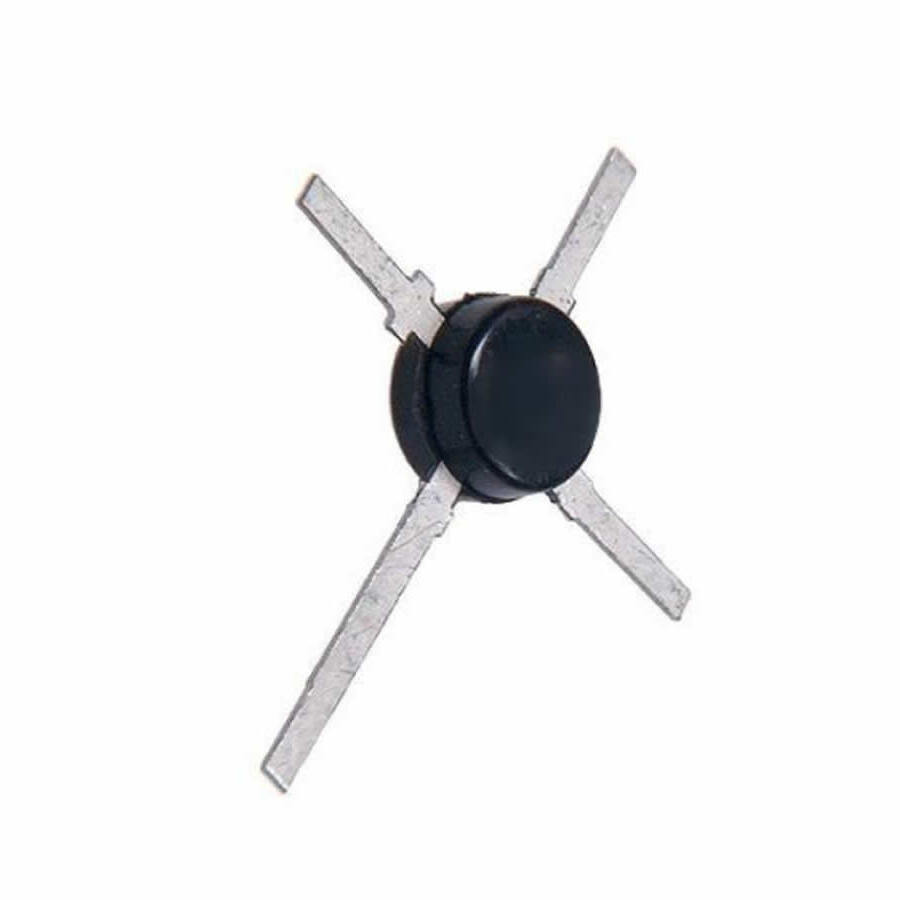

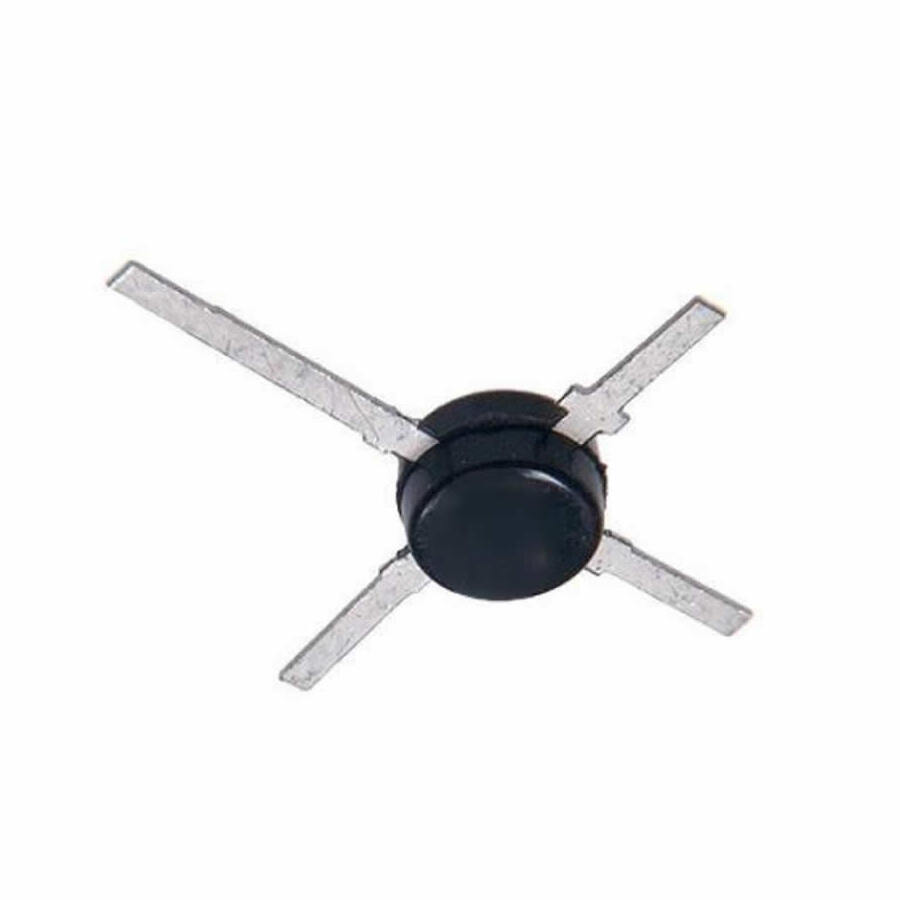

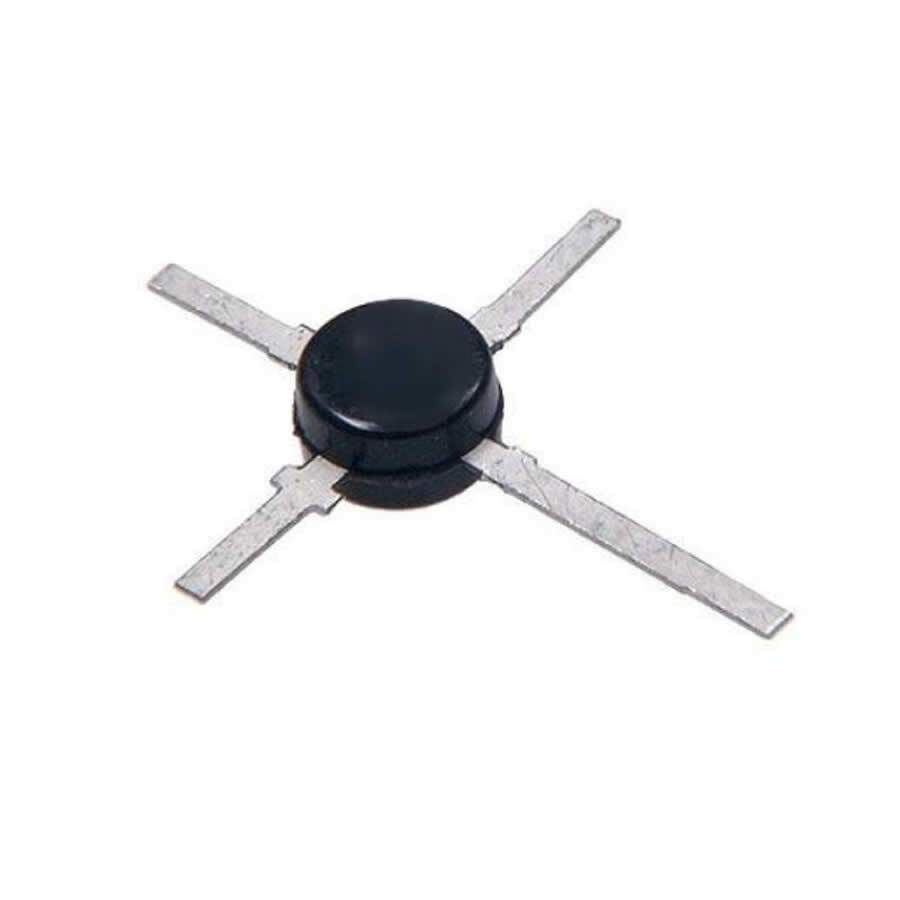

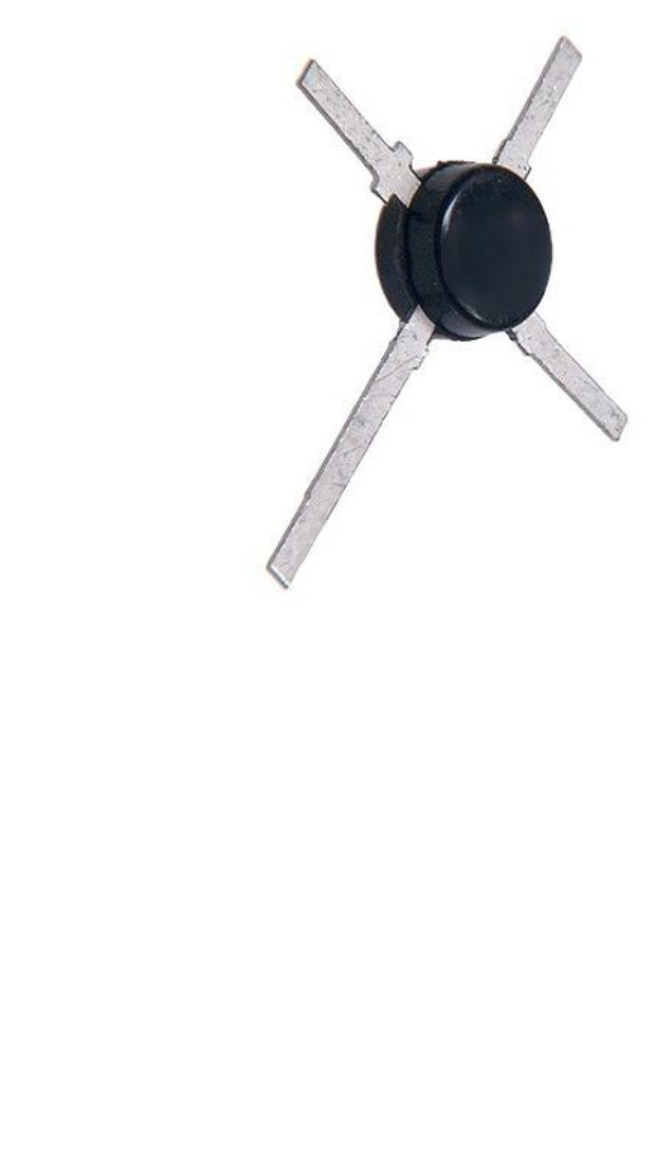

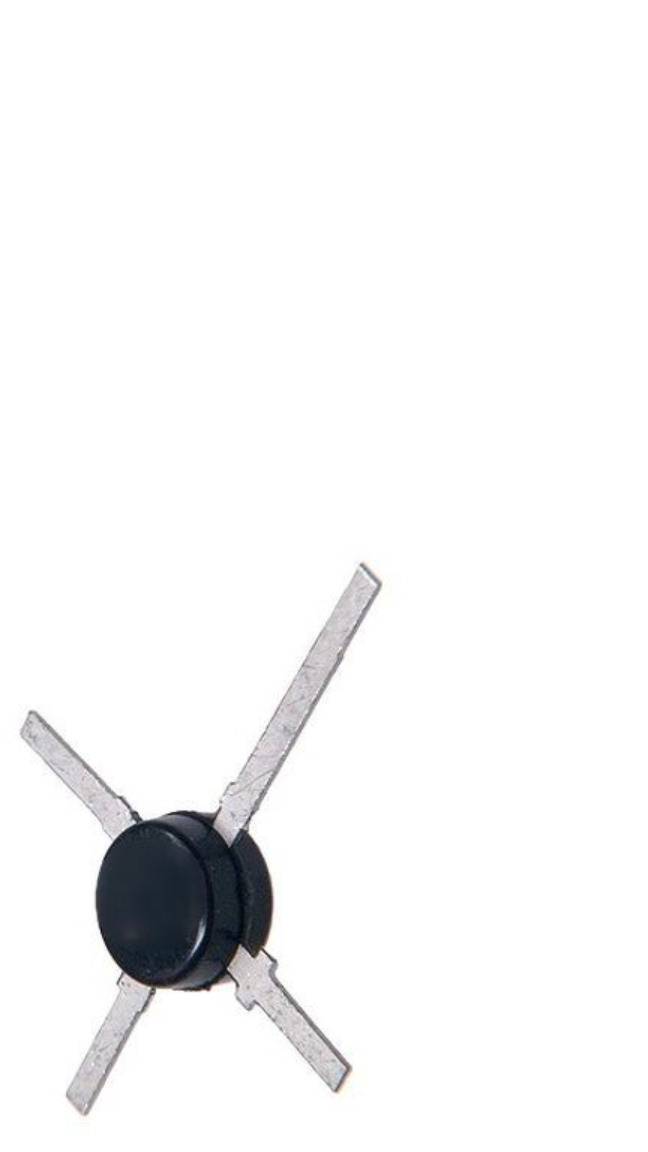

2N2394 Transistor Silicon PNP CASE: TO50 MAKE: Texas Instruments
Product specifications
Type Transistor Silicon PNP
Case TO50
Manufacturer Texas Instruments
Vbr CBO 50
Vbr CEO 35
Max. PD (W) 450m
C(ob) (F) 45p
Derate (Amb) (W/°C) 3.0m
hfe 25
Ic Max. (A) 300m
Icbo Max. @Vcb Max. (A) 1.0u
Polarity PNP
Trans. Freq (Hz) Min. 60M
@VCE (test) (V) 5.0
Oper. Temp (°C) Max. 175
@Ic (A) 1.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.45 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 35 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.3 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 45 pF
Transition Frequency (ft): 60 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 583327
