2N2396
View detailed images (8)

2N2396

SKU: 2N2396

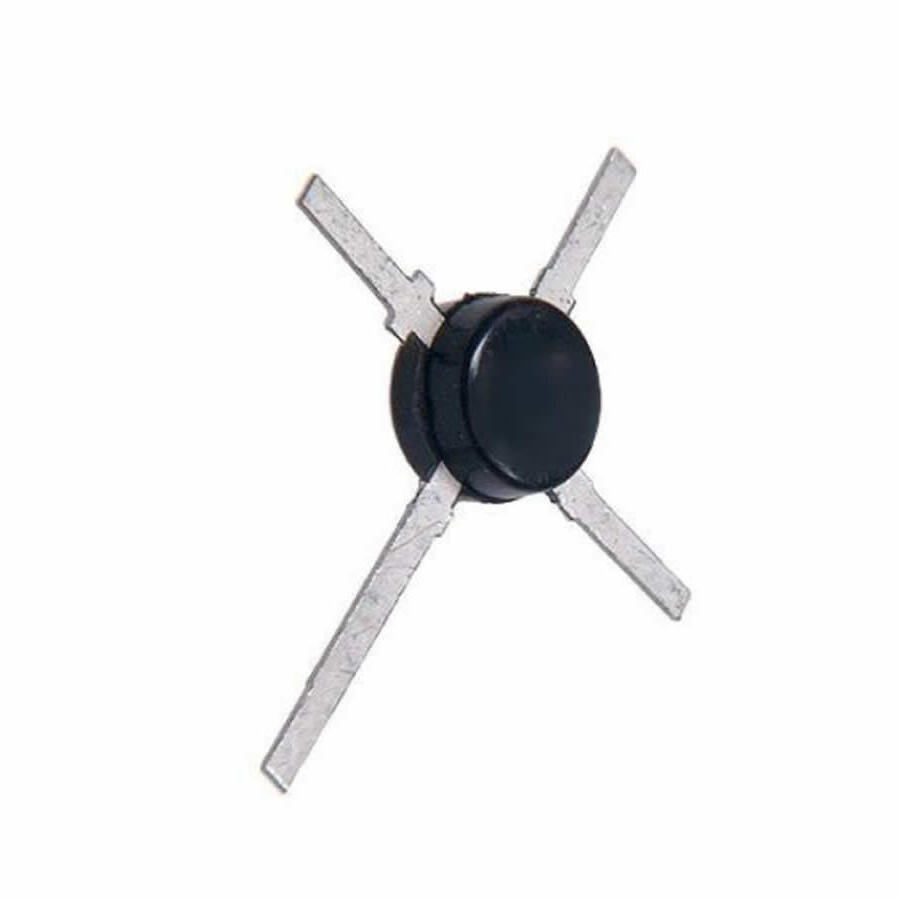

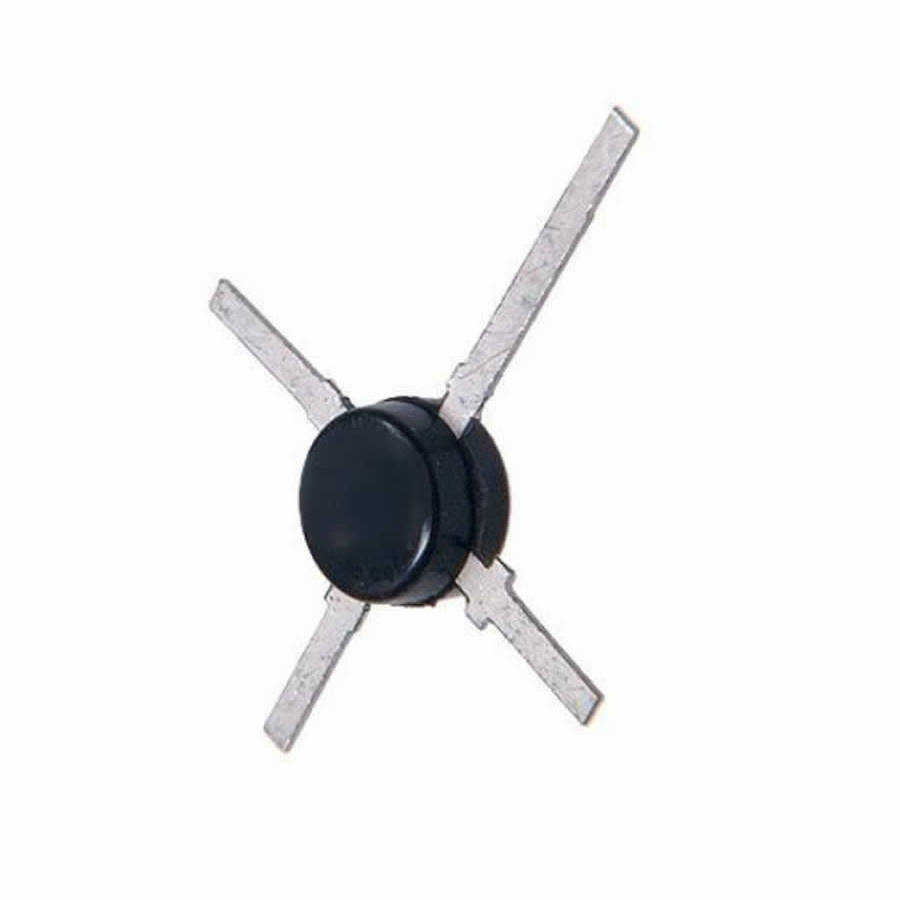

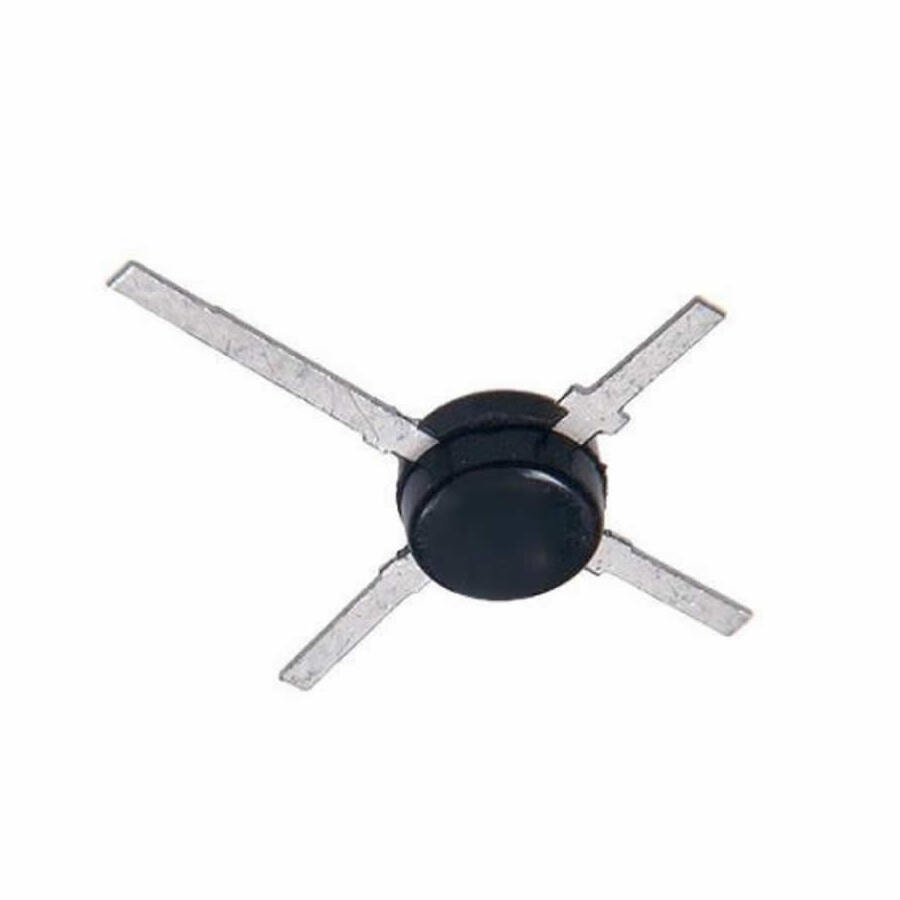

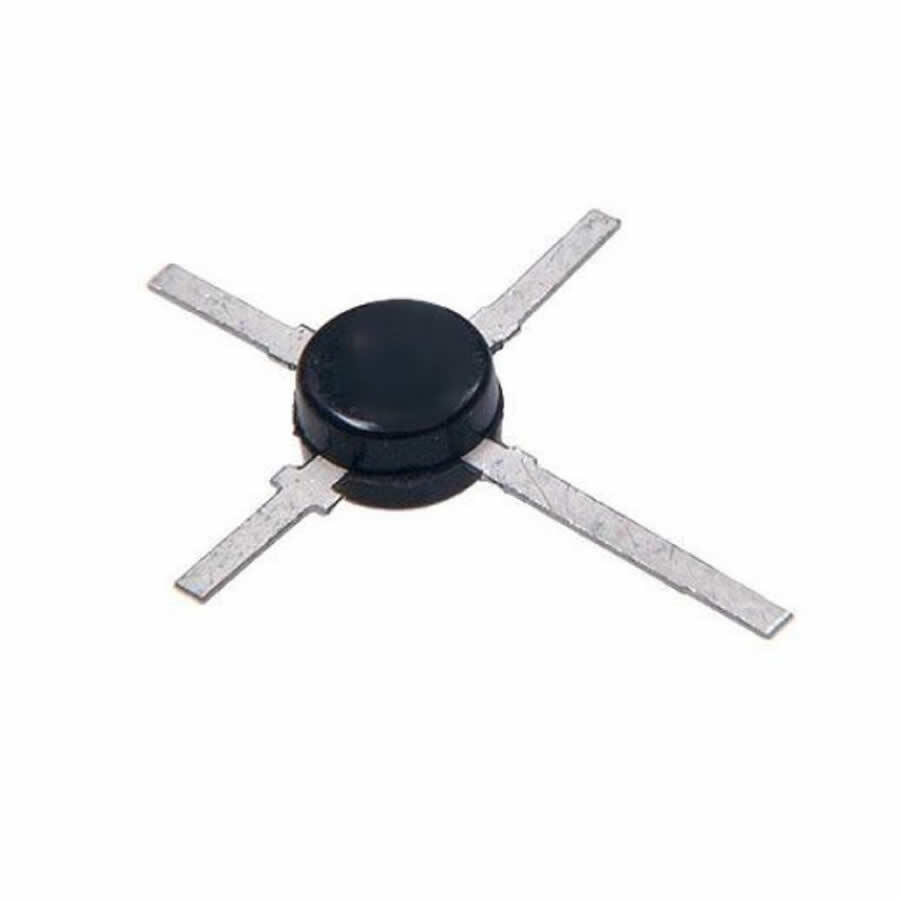

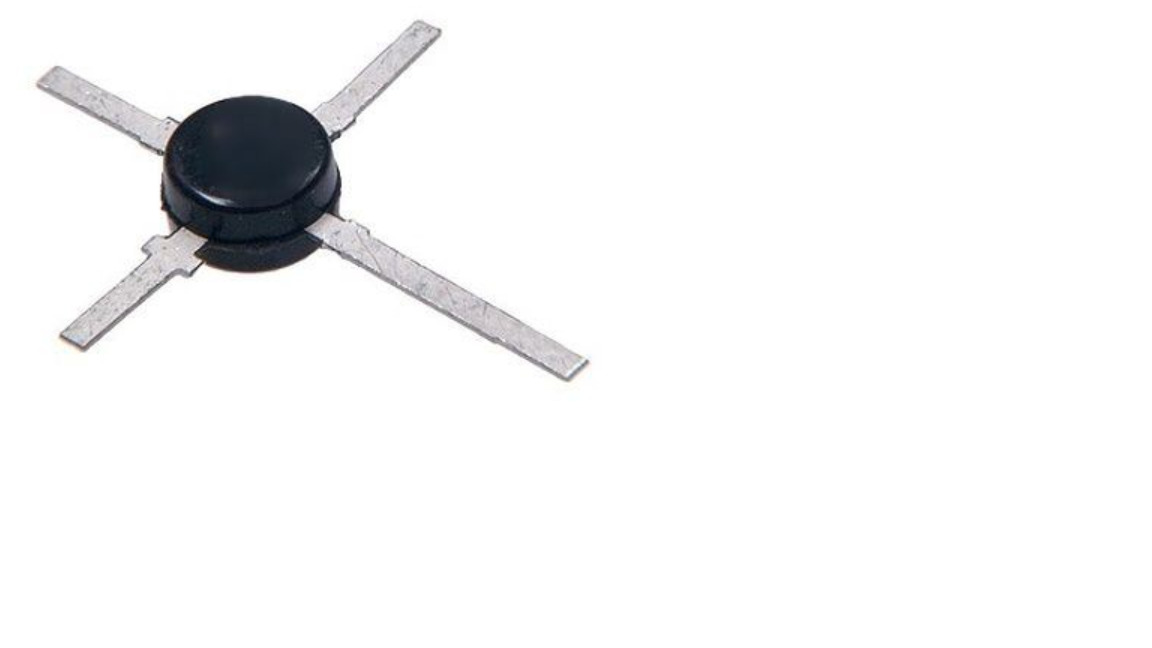

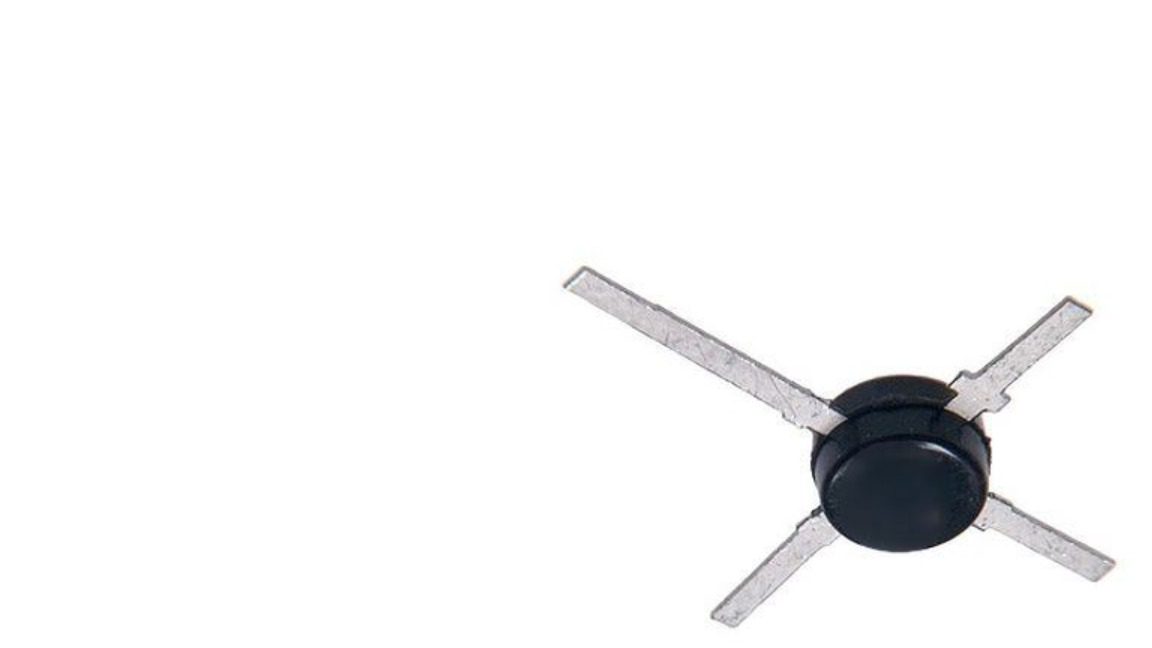

2N2396 Transistor Silicon NPN CASE: TO50 MAKE: Texas Instruments
Product specifications
Type Transistor Silicon NPN
Case TO50
Manufacturer Texas Instruments
Vbr CBO 60
Vbr CEO 40
Max. PD (W) 450m
C(ob) (F) 30p
Derate (Amb) (W/°C) 2.6m
hfe 40
Ic Max. (A) 300m
Icbo Max. @Vcb Max. (A) .01u
Polarity NPN
Trans. Freq (Hz) Min. 50M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 175
@Ic (A) 150m
Pinout Equivalence Number N/A
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.45 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.3 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 30 pF
Transition Frequency (ft): 40 MHz
Forward Current Transfer Ratio (hFE), MIN 40
