2N2614
View detailed images (12)

2N2614

SKU: 2N2614

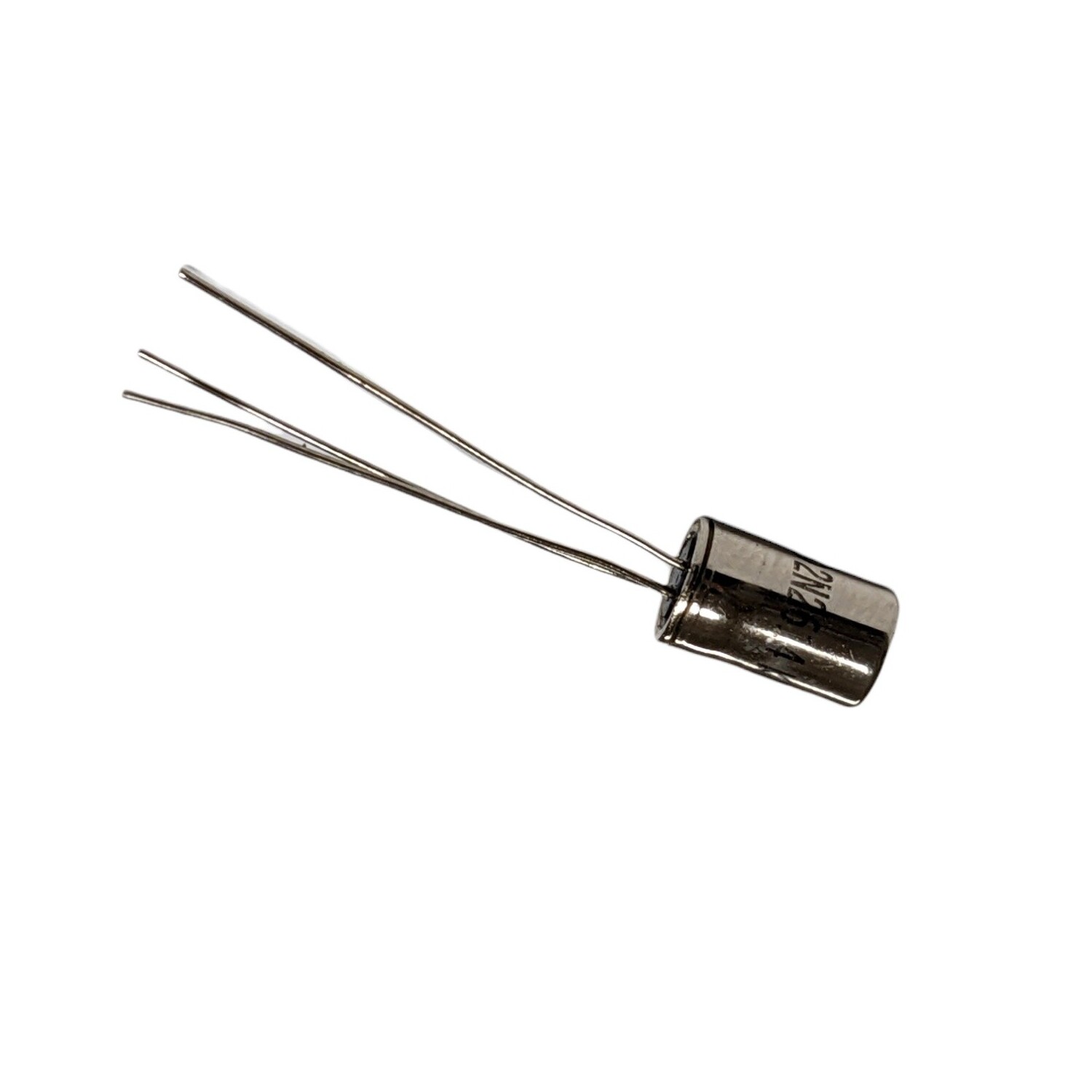

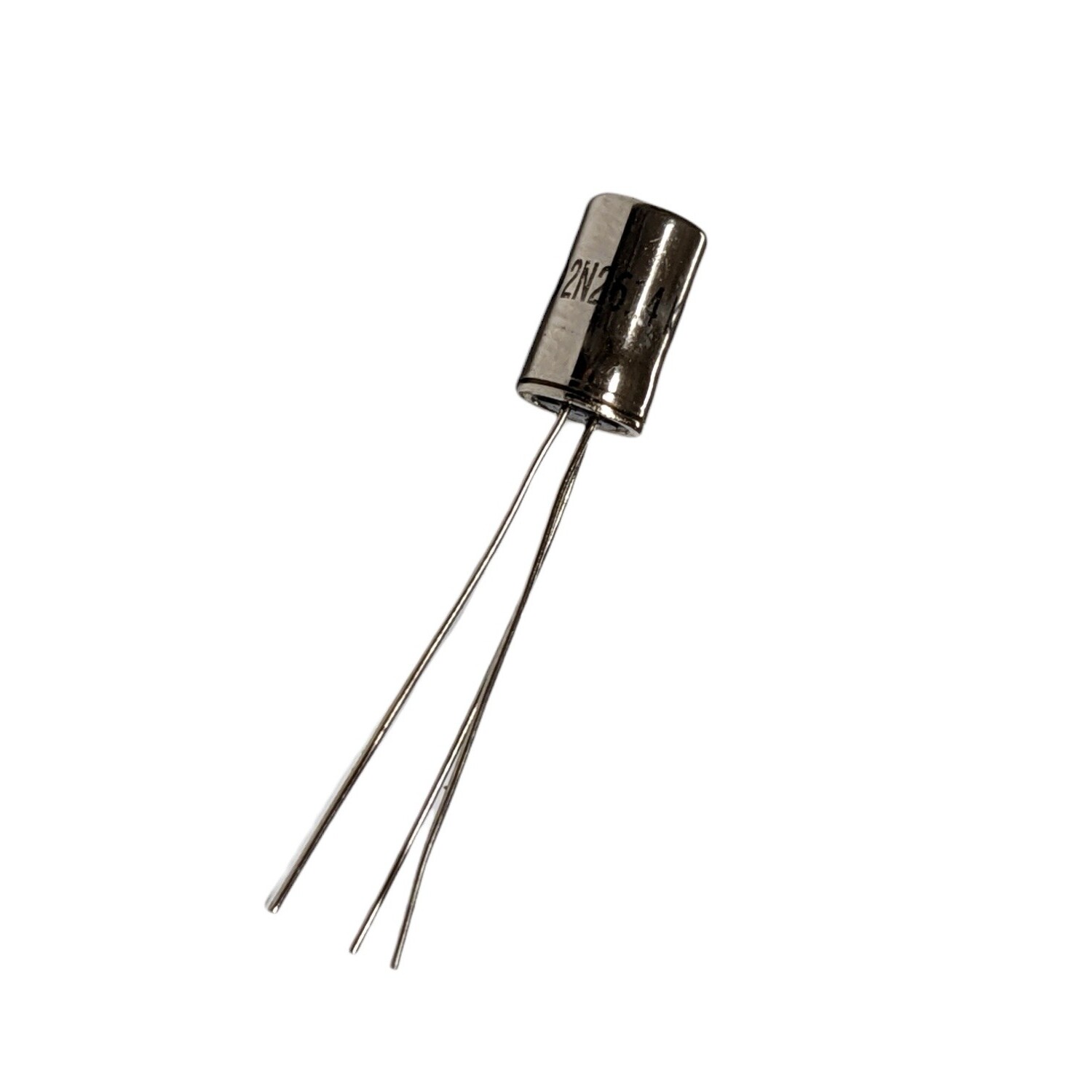

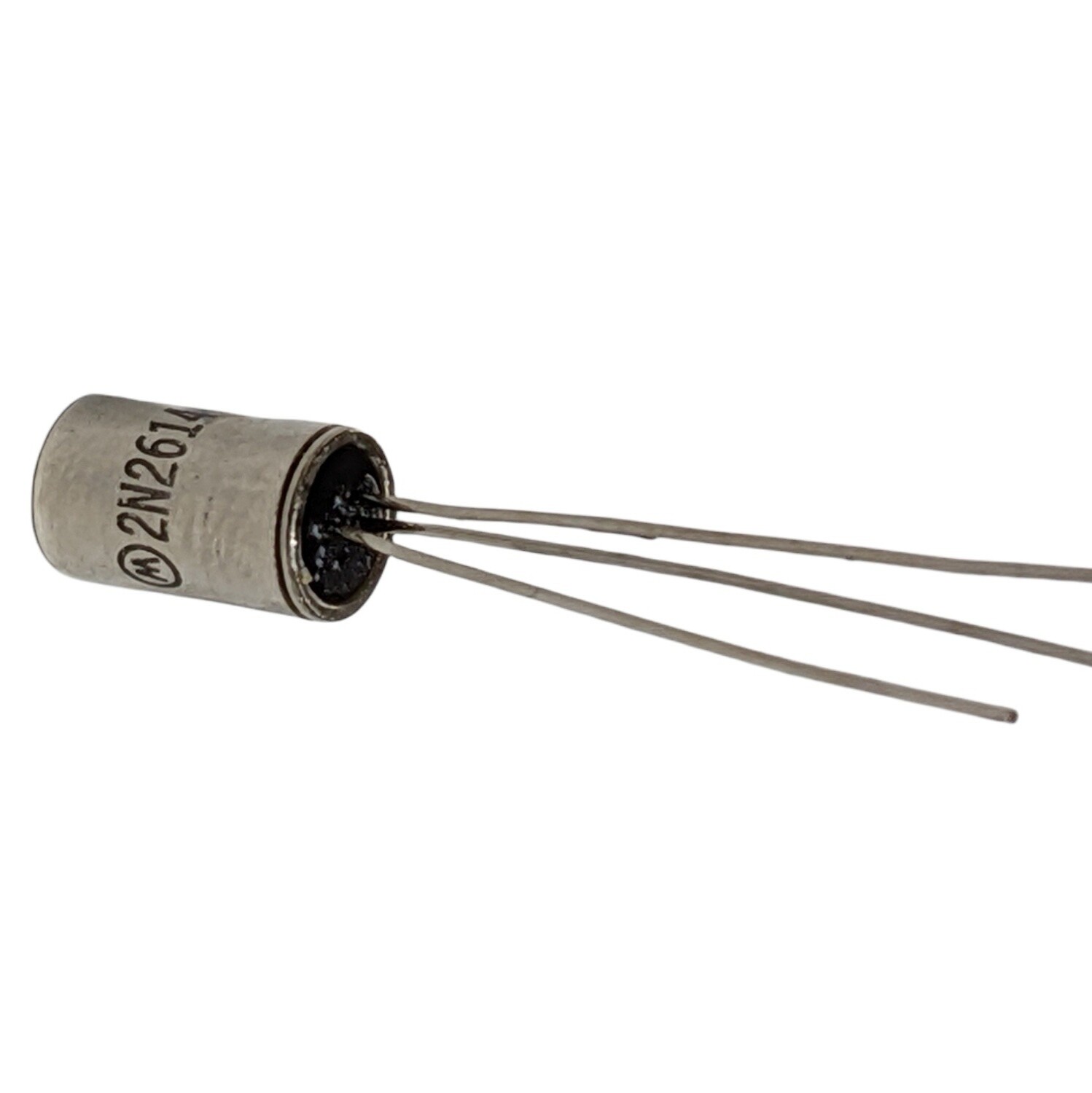

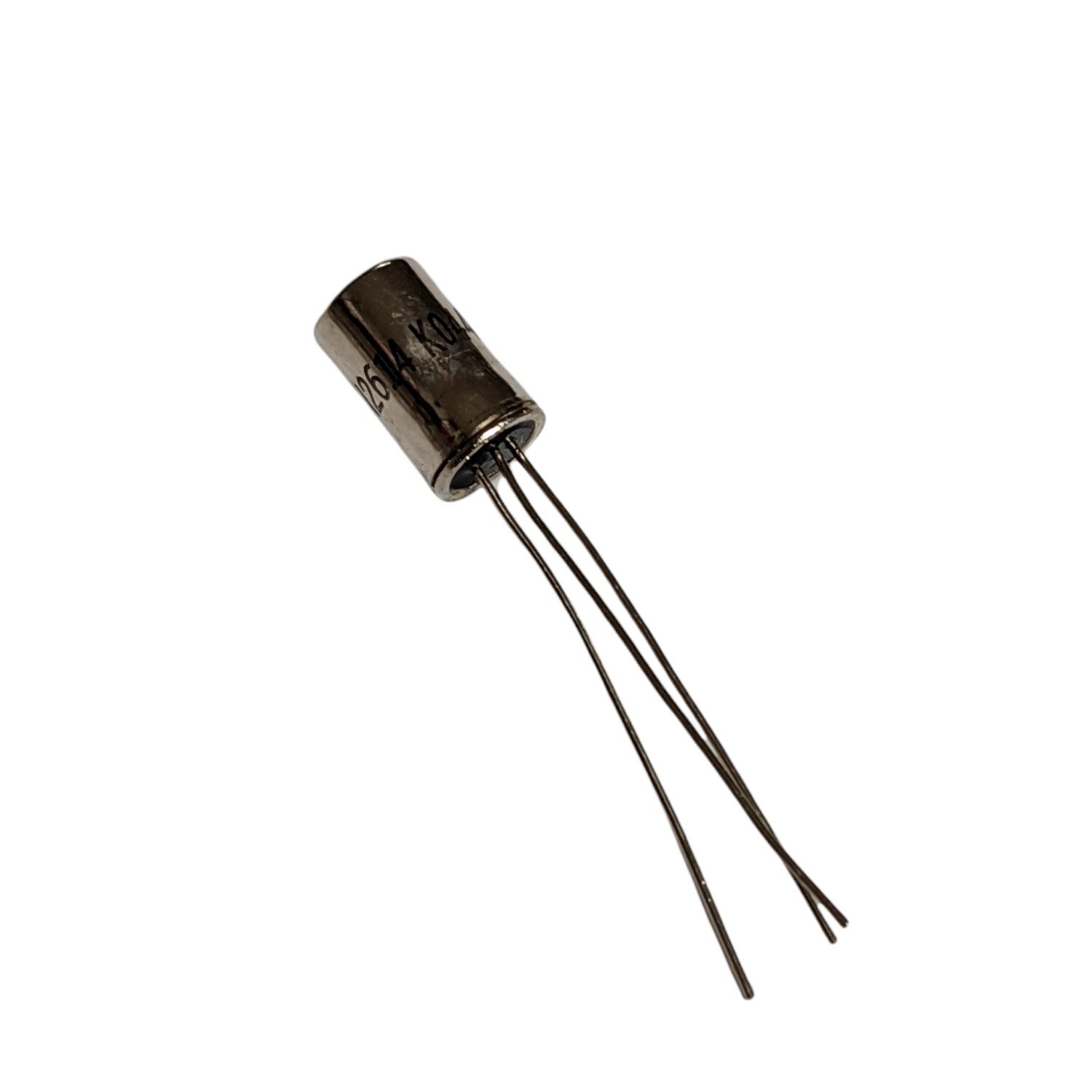

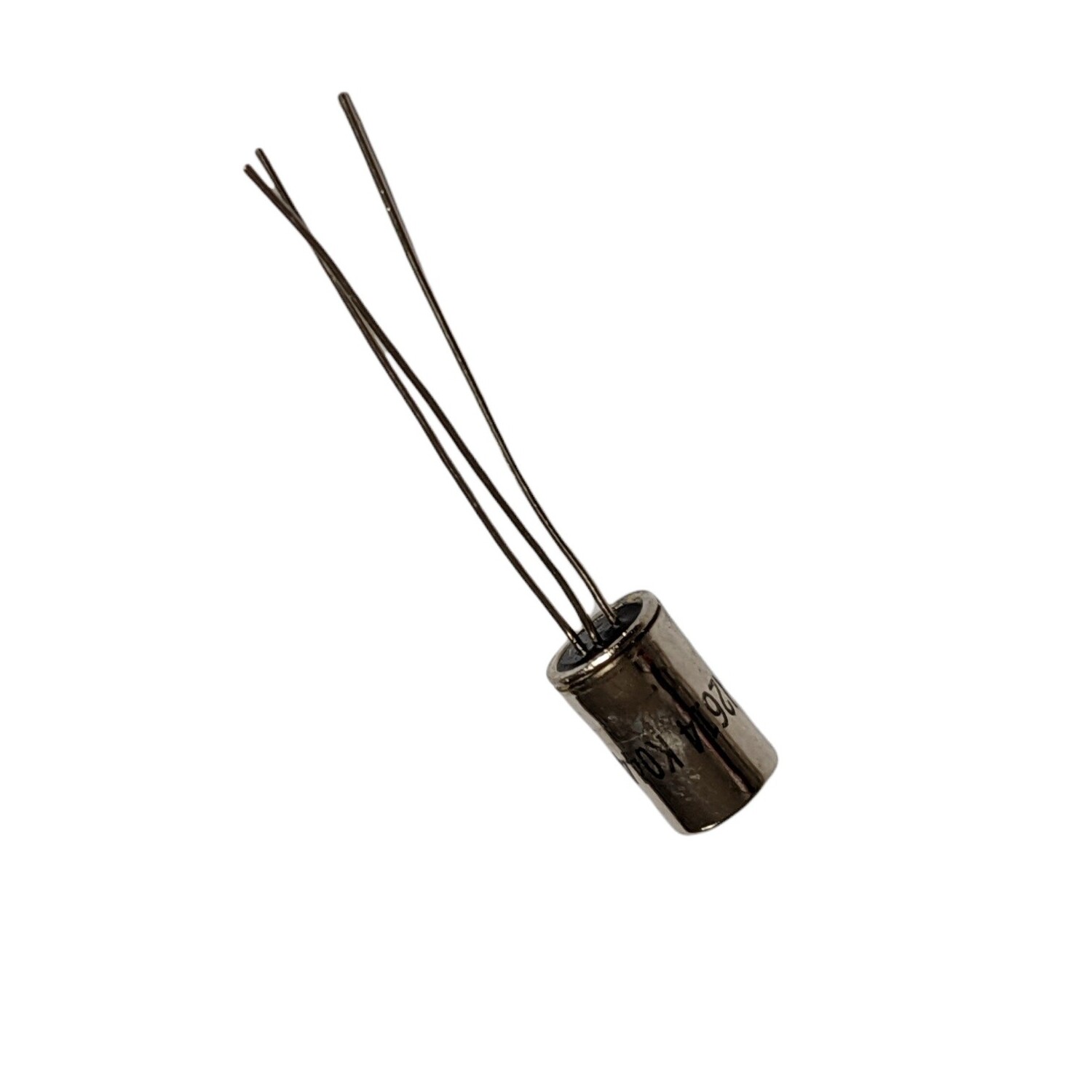

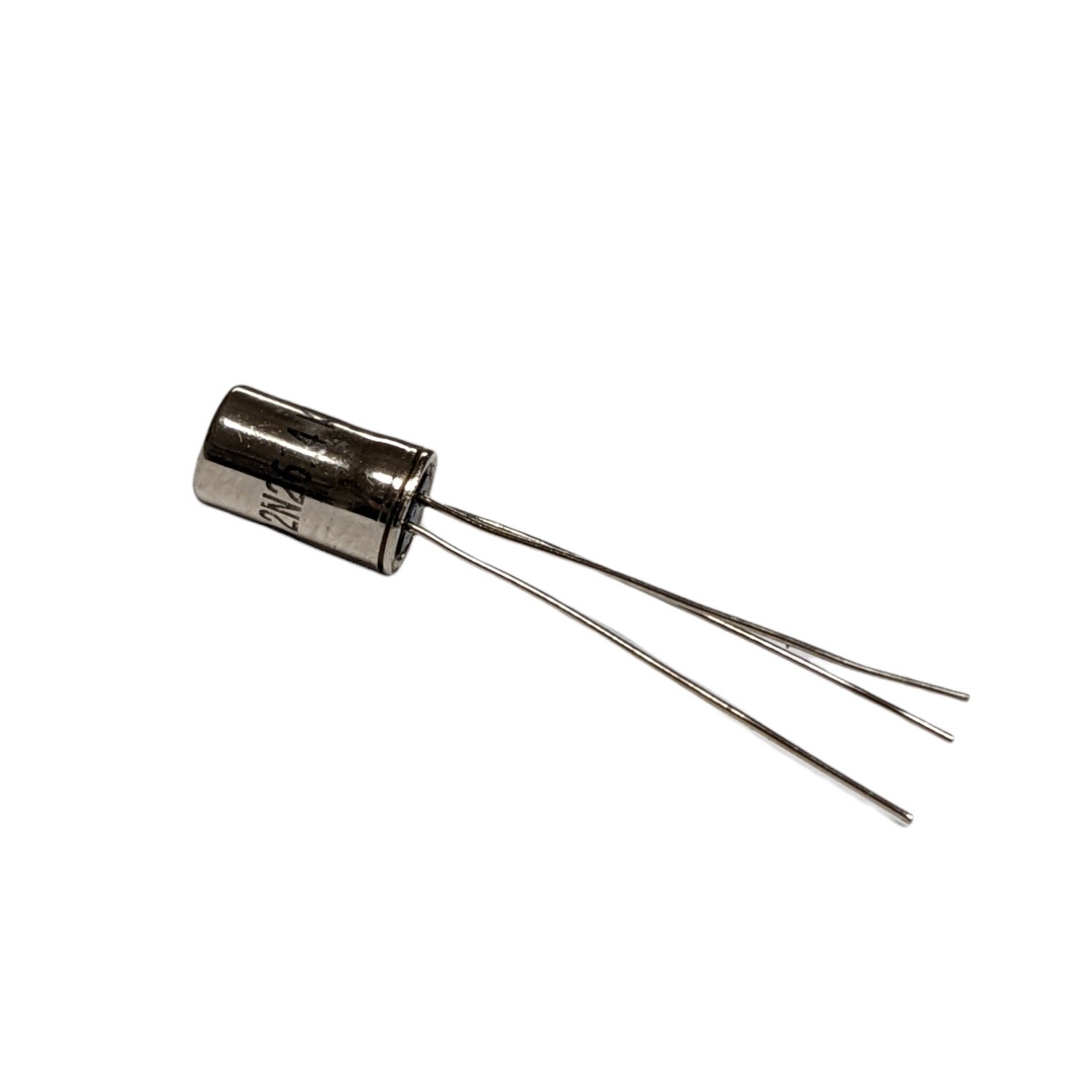

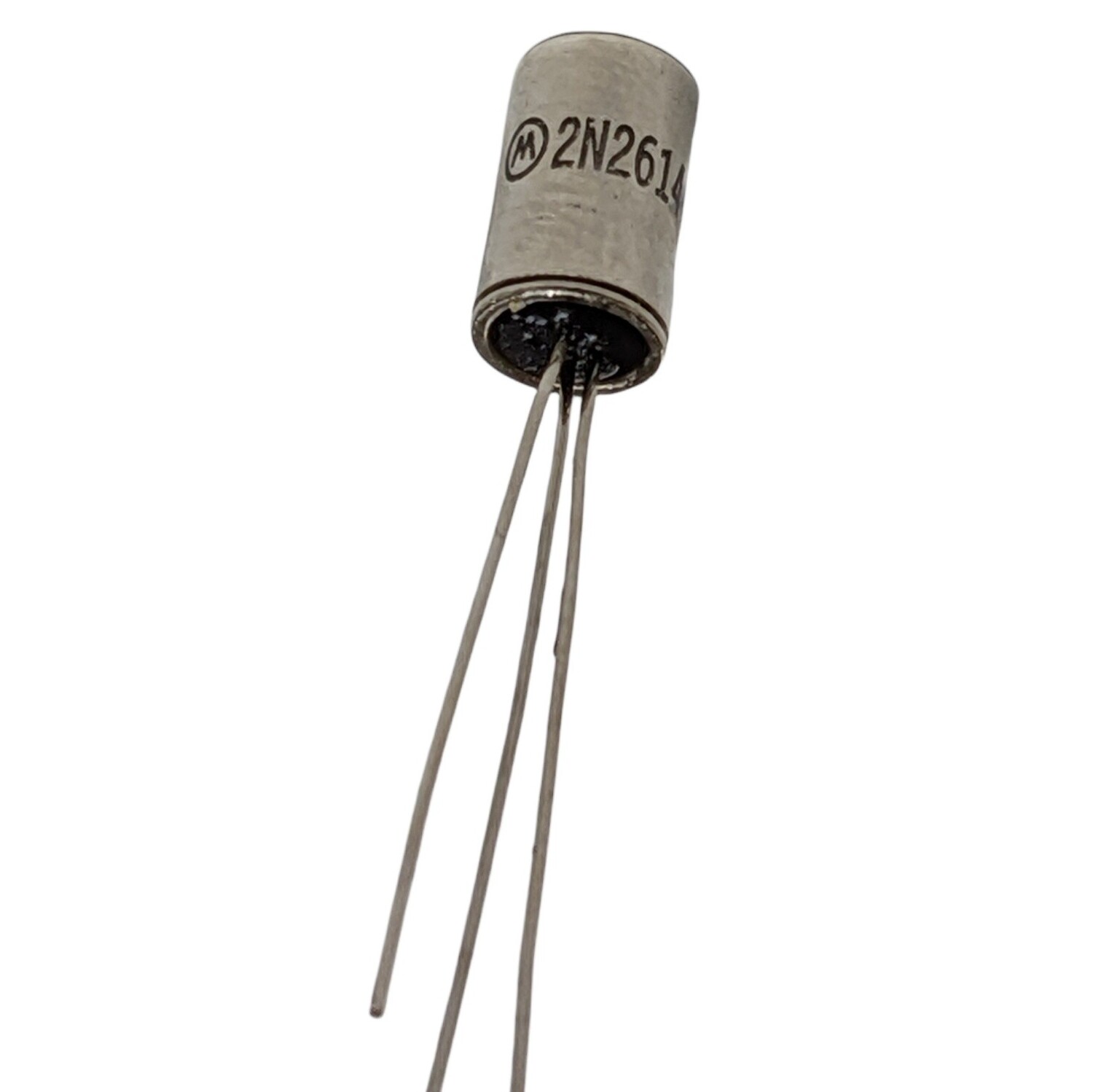

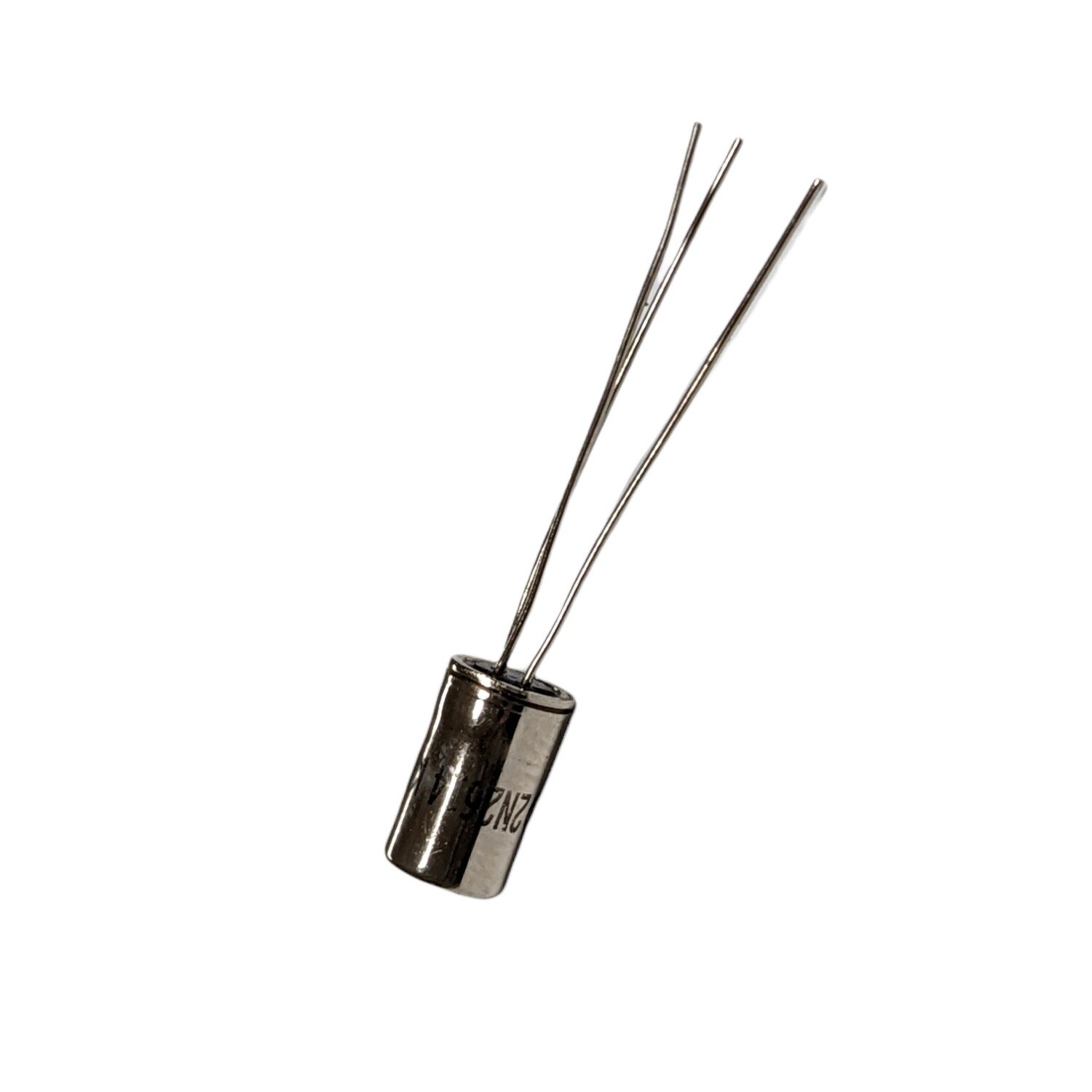

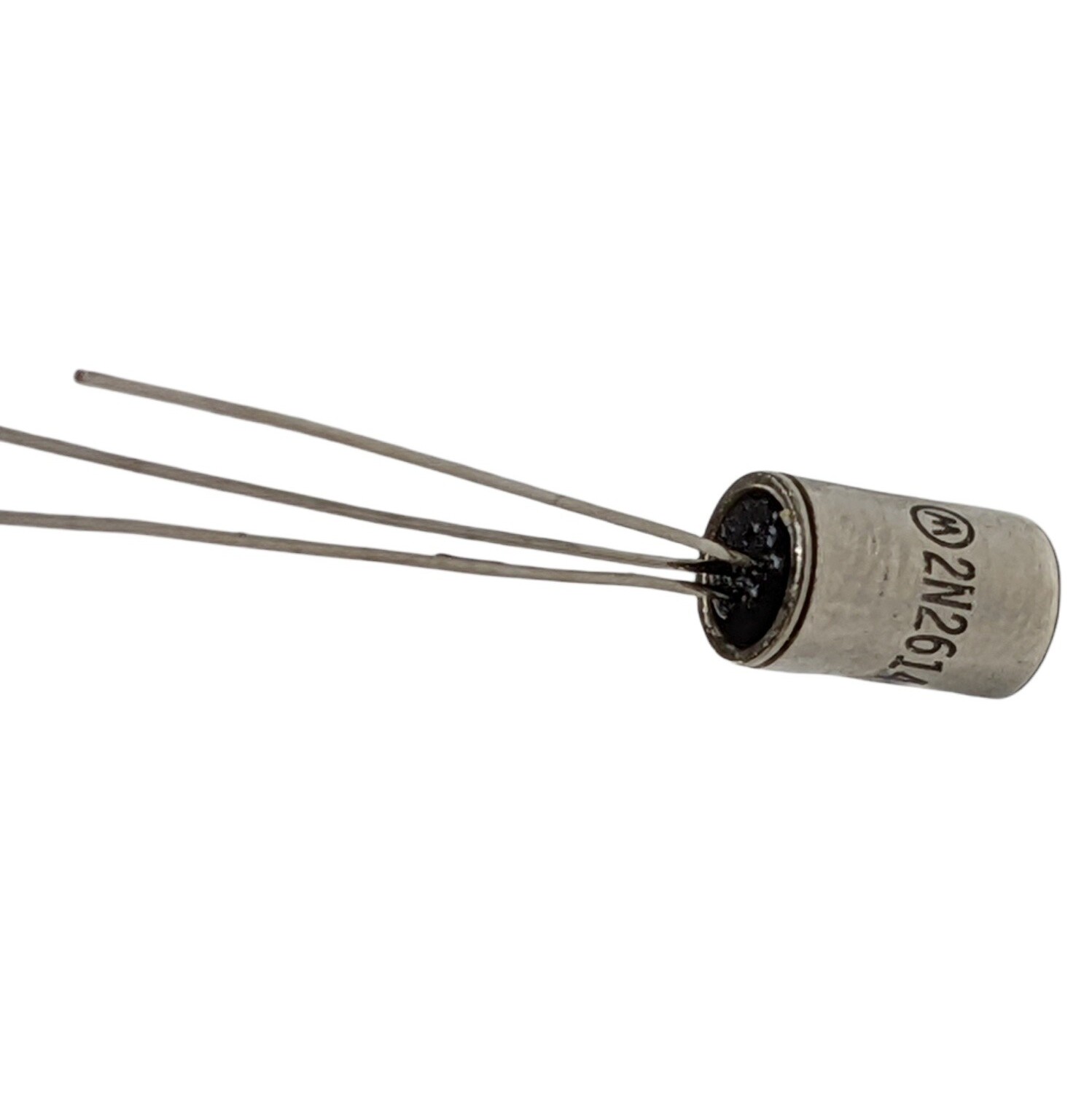

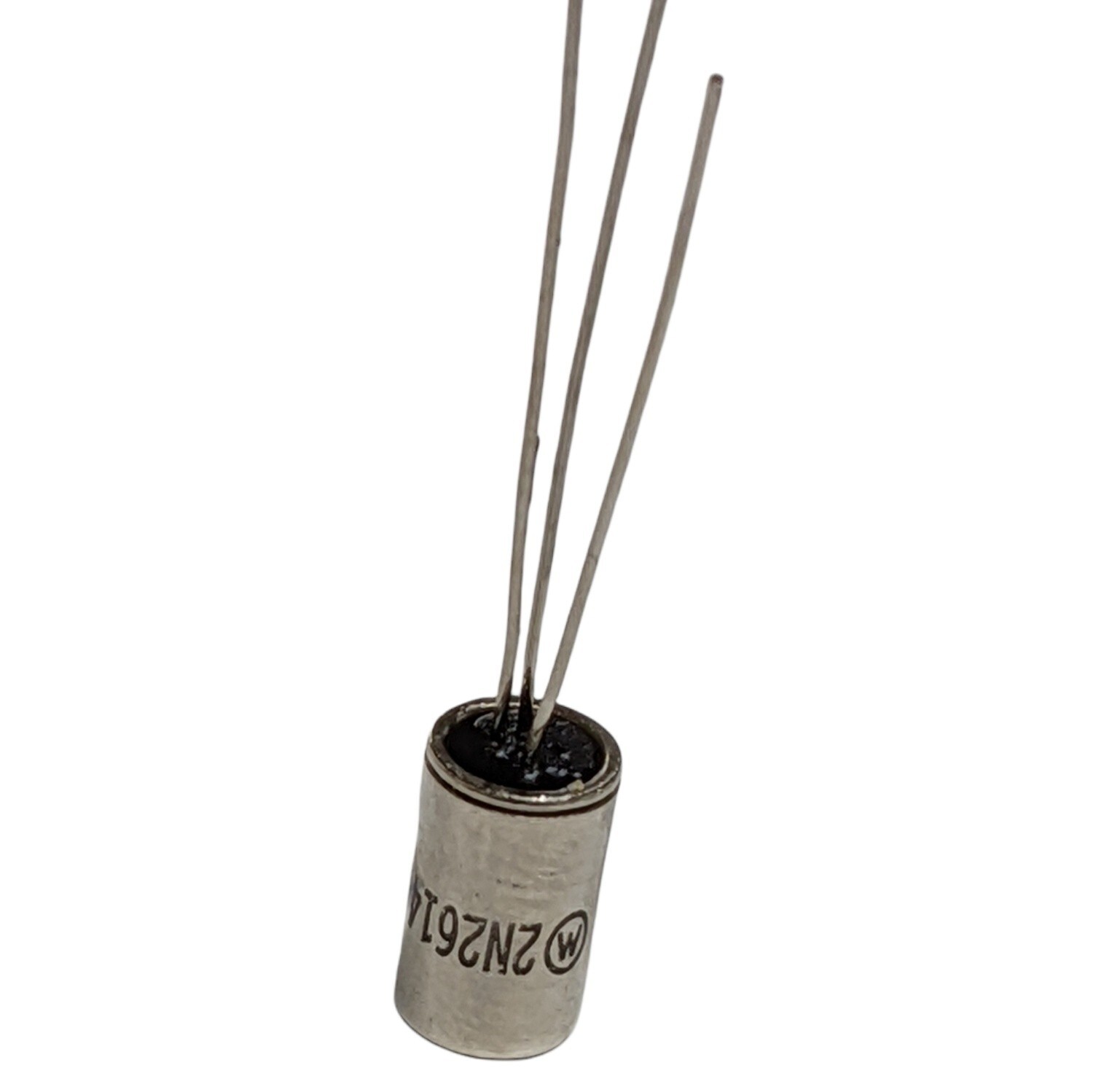

2N2614 Transistor Germanium PNP CASE: TO1 MAKE: Harris Semiconductor
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 6 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Germanium PNP
Case TO1
Manufacturer Harris Semiconductor
Vbr CBO 40
Vbr CEO 35
Max. PD (W) 120m
C(ob) (F) 12p
Derate (Amb) (W/°C) 2.6m
hfe 100
Ic Max. (A) 50m
Icbo Max. @Vcb Max. (A) 5.0u
Polarity PNP
Trans. Freq (Hz) Min. 4.0M
@VCE (test) (V) 6.0
Oper. Temp (°C) Max. 100
@Ic (A) 1.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.12 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 100 °C
Collector Capacitance (Cc) 18 pF
Transition Frequency (ft): 4 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SKU 116218
