2N2714
View detailed images (12)

2N2714

SKU: 2N2714

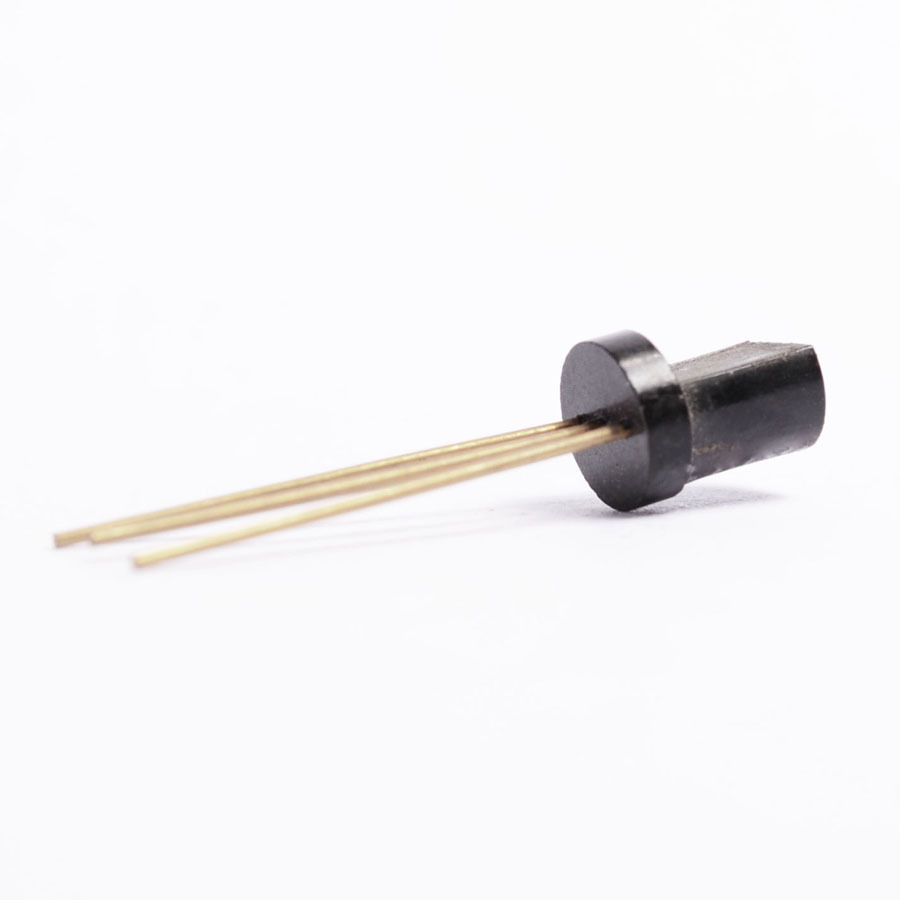

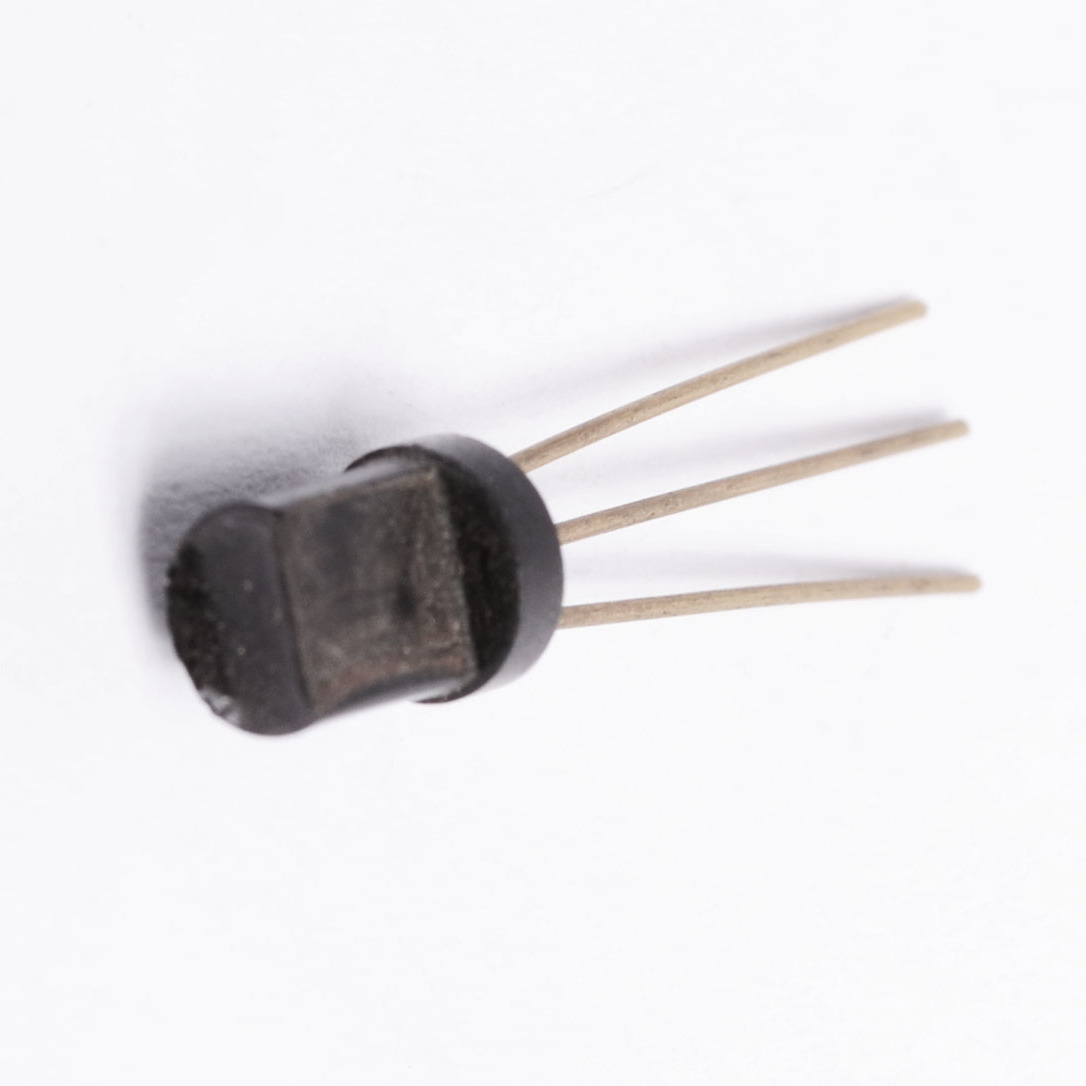

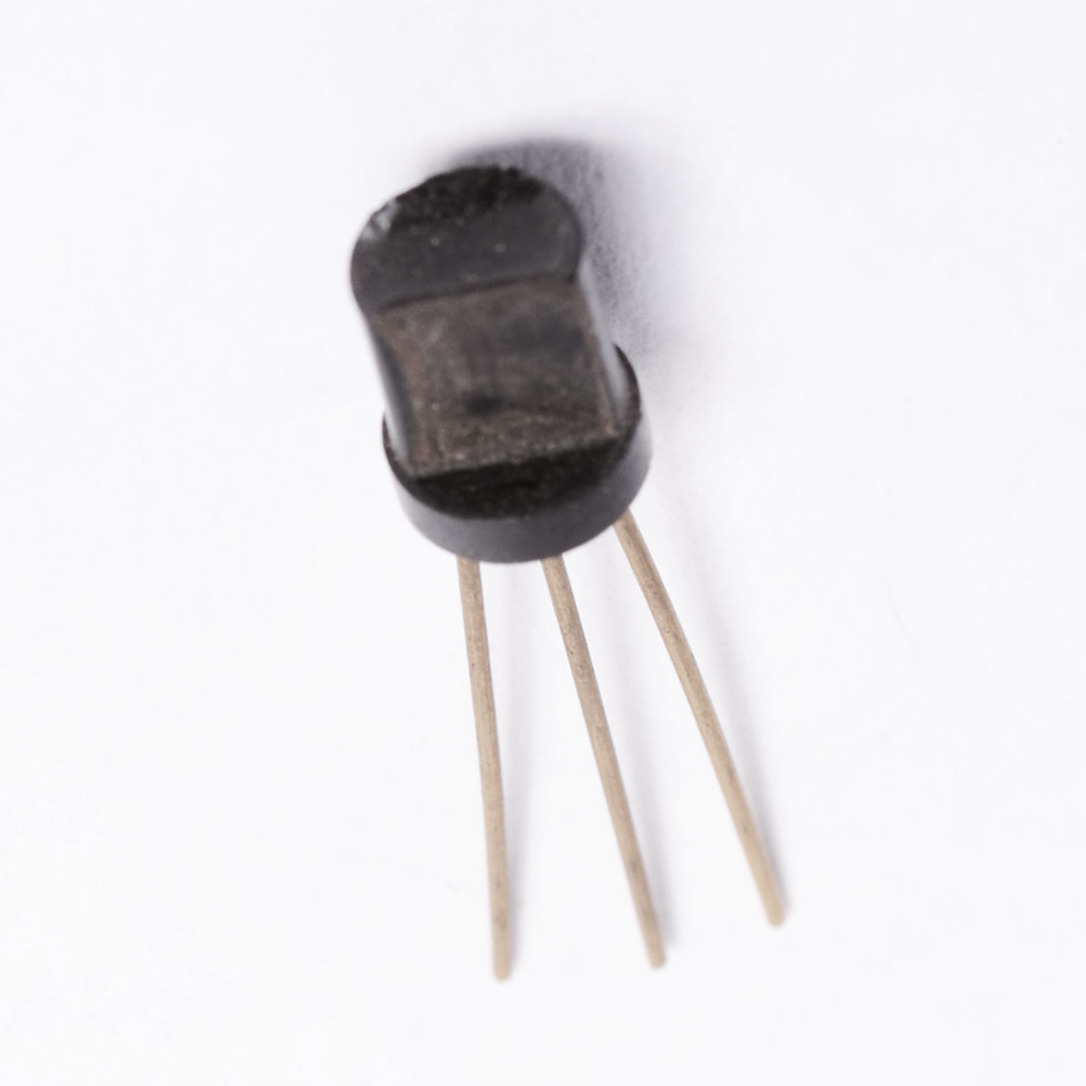

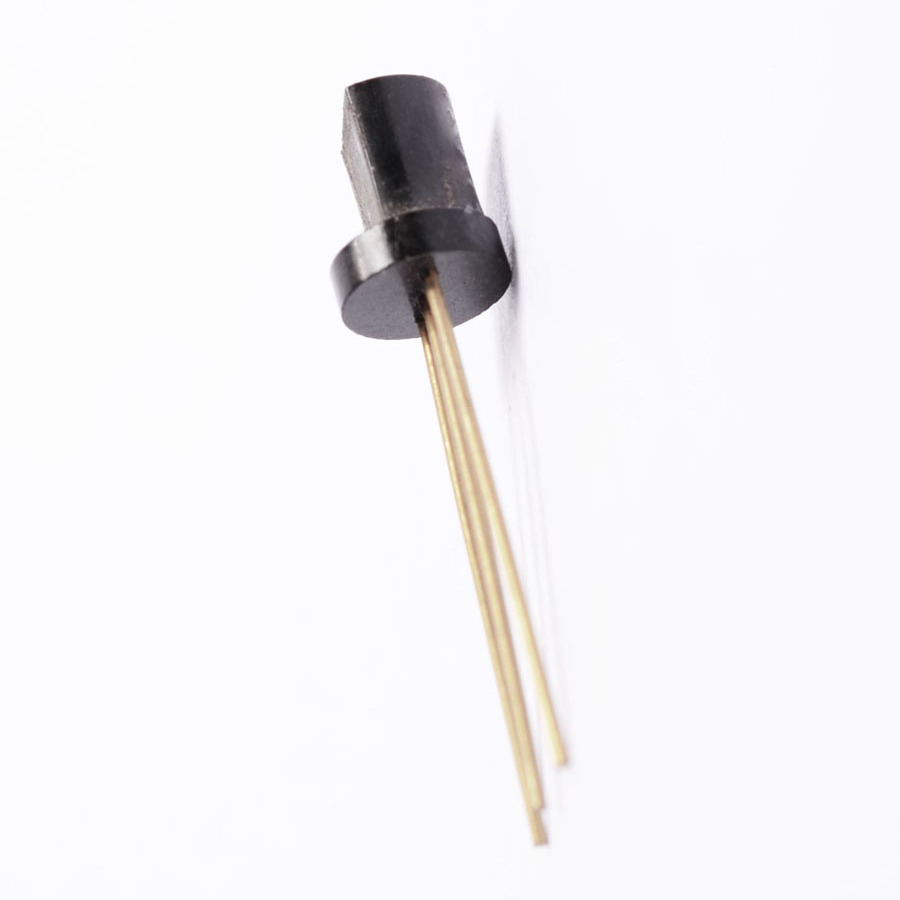

2N2714 Transistor Silicon NPN CASE: TO98 MAKE: National Semiconductor - NSC
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 52 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2N2714 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO98
Manufacturer National Semiconductor - NSC
Vbr CBO 18
Vbr CEO 18
Max. PD (W) 200m
Derate (Amb) (W/°C) 2.6m
hfe 75
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
@VCE (test) (V) 4.5
Oper. Temp (°C) Max. 125
@Ic (A) 2.0m
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 18 V
Maximum Collector-Emitter Voltage |Vce| 18 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 12 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 86173
