2N2802
View detailed images (12)

2N2802

SKU: 2N2802

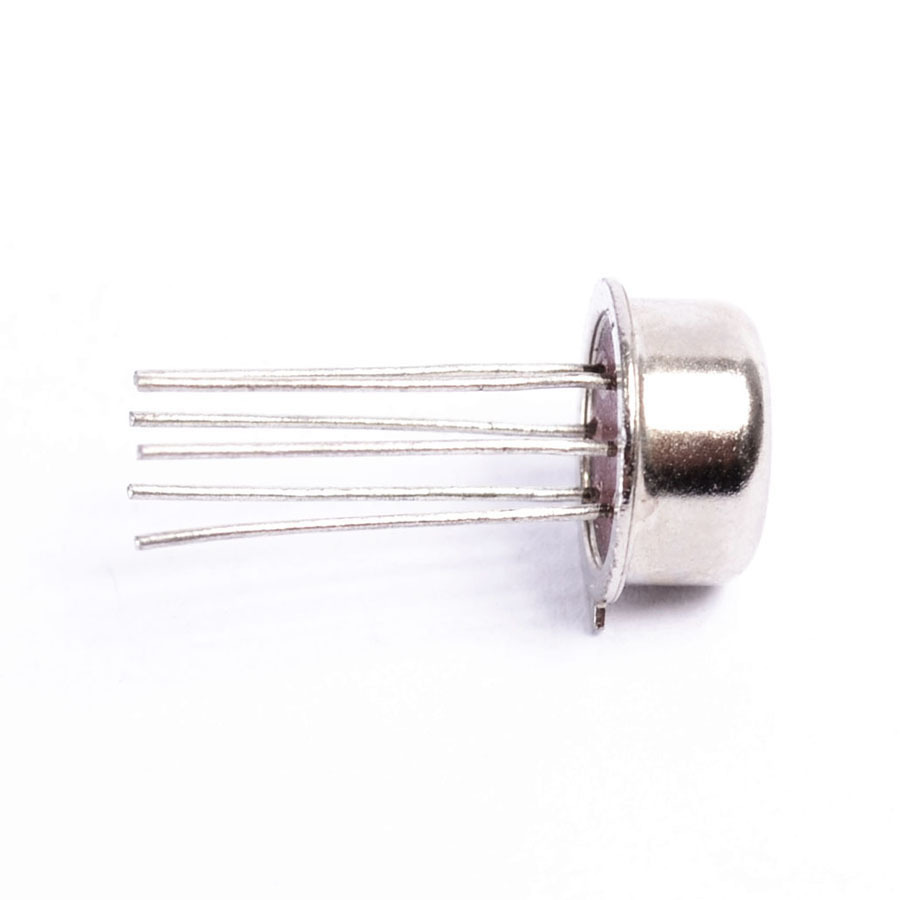

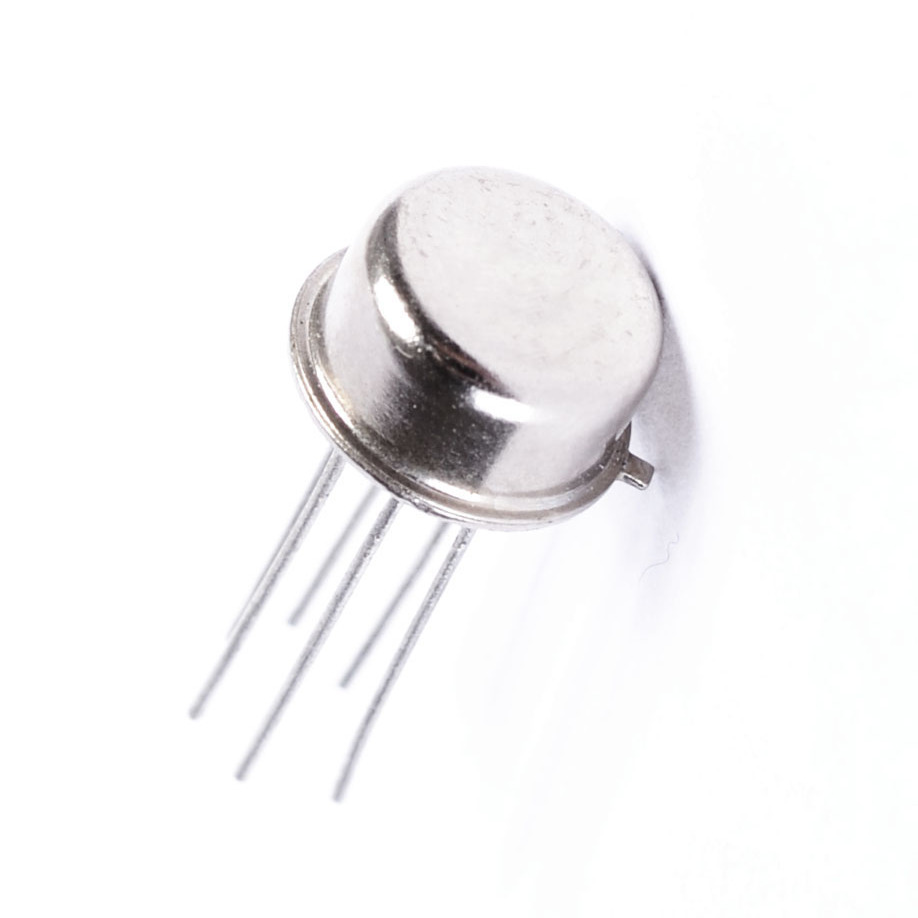

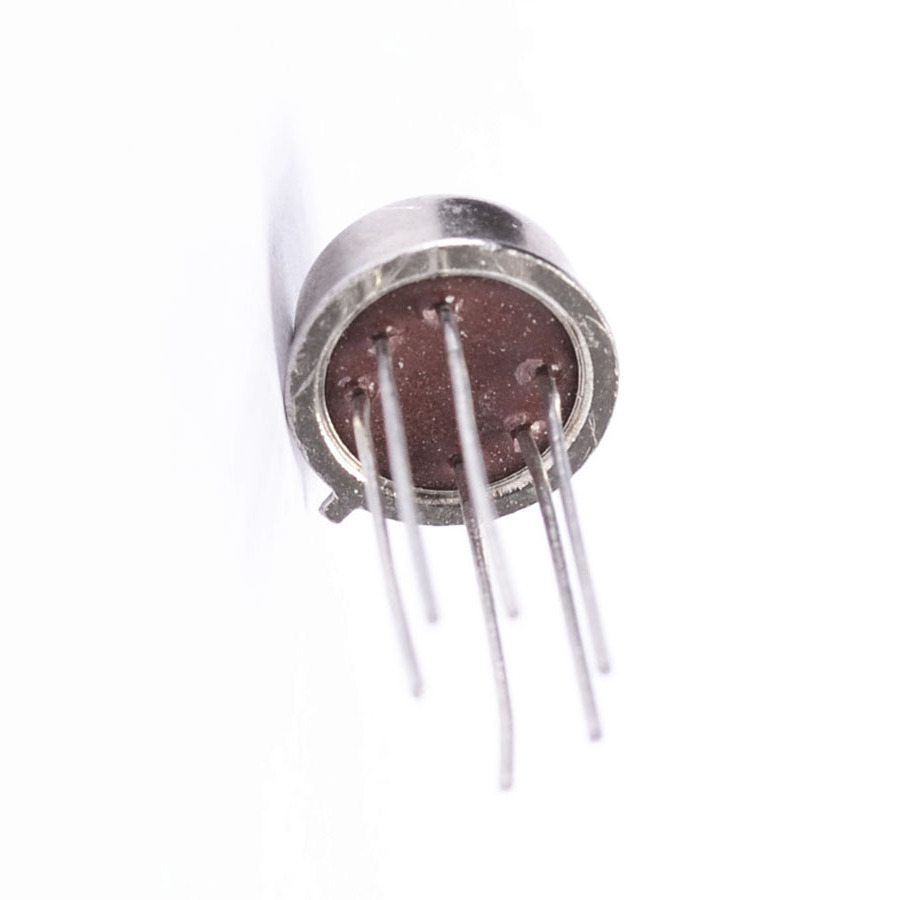

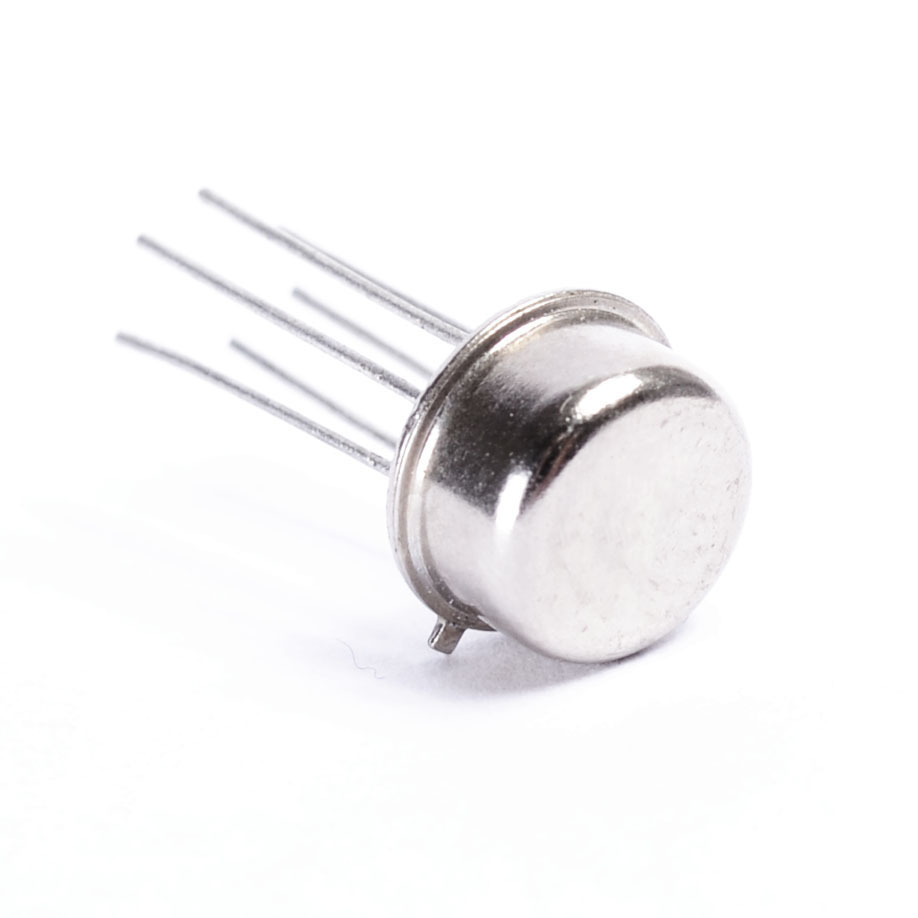

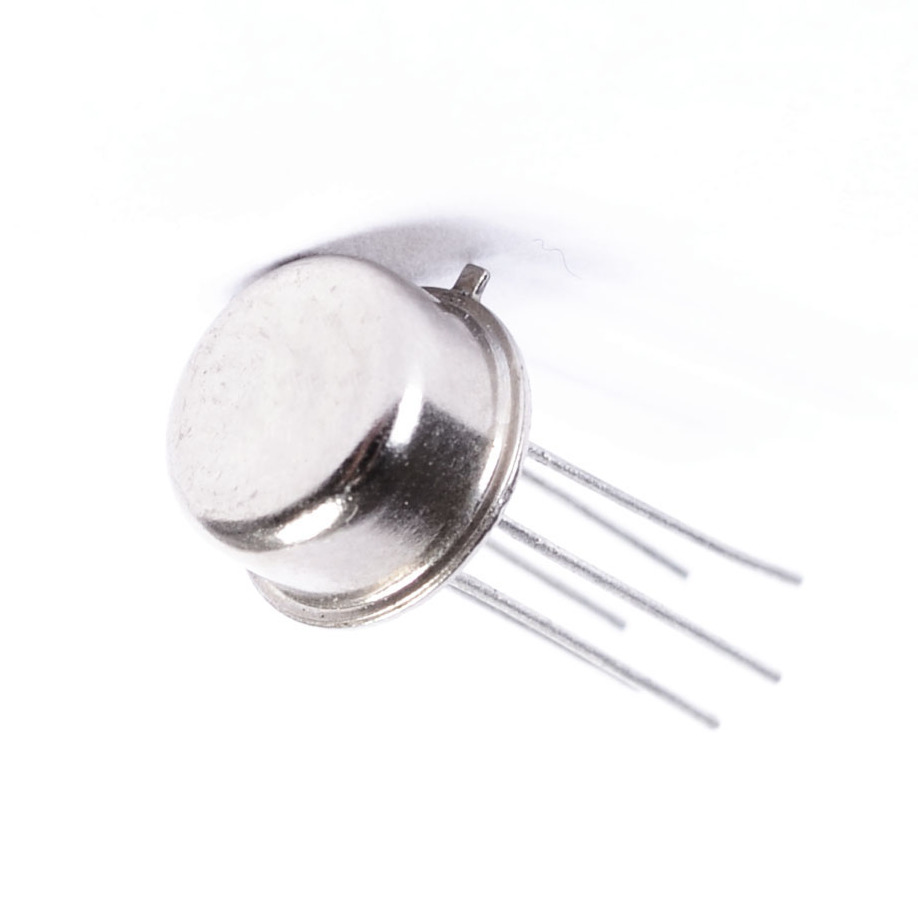

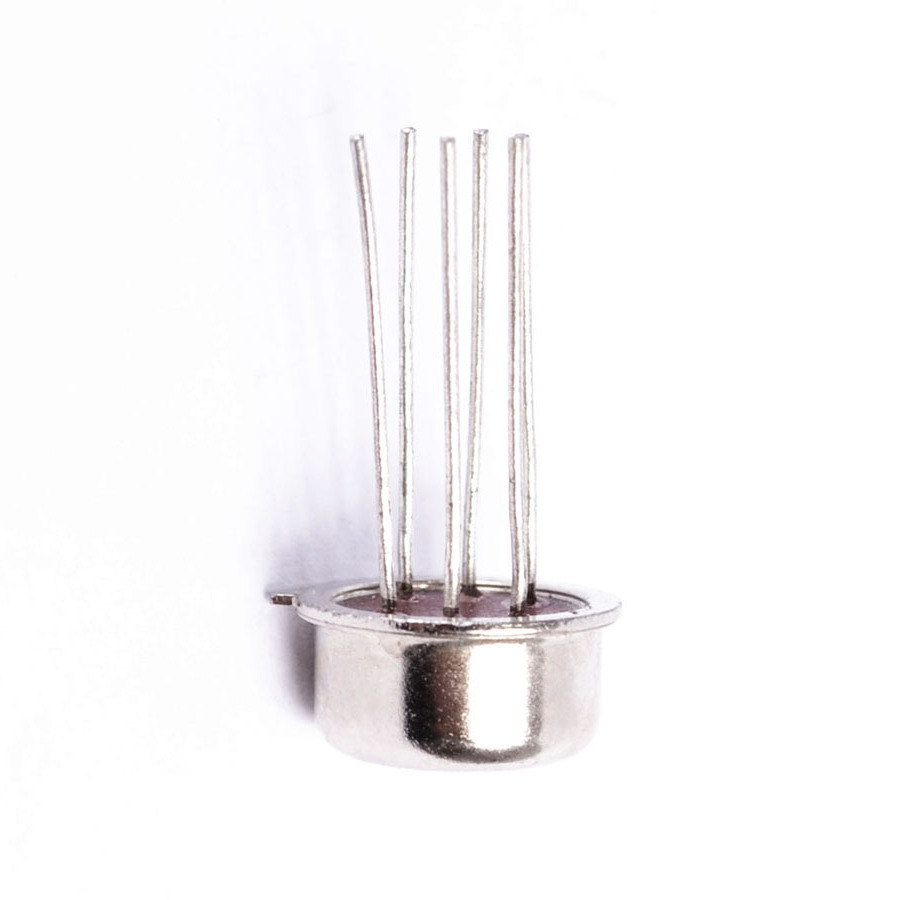

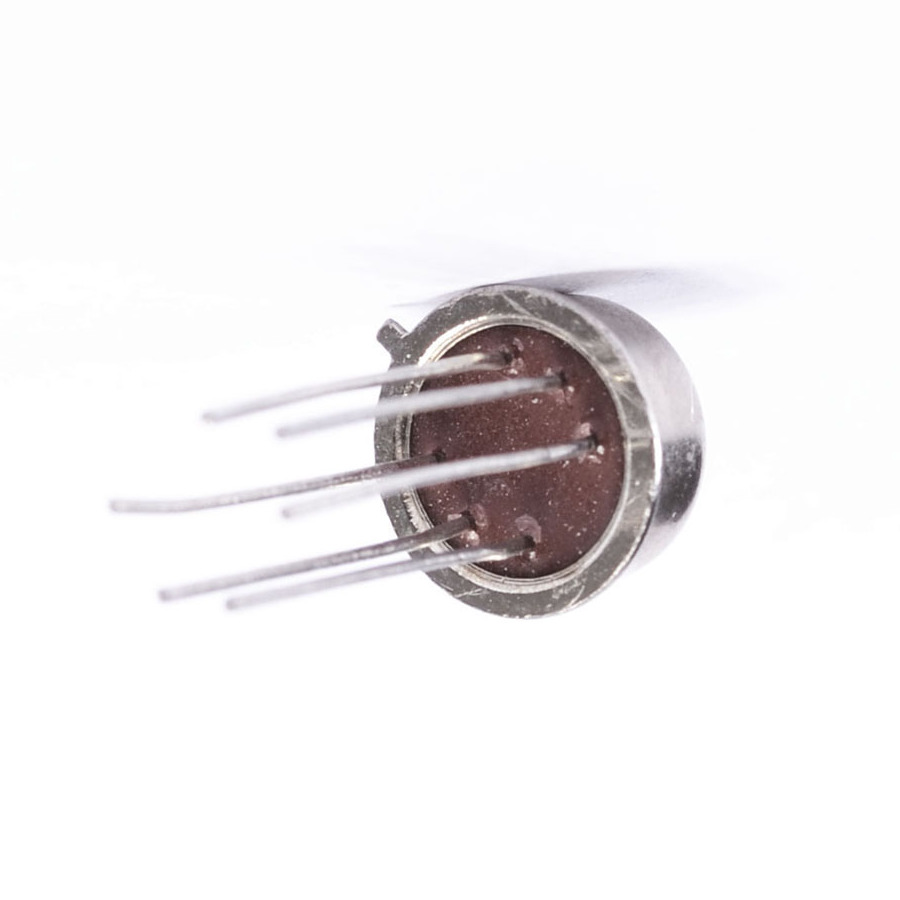

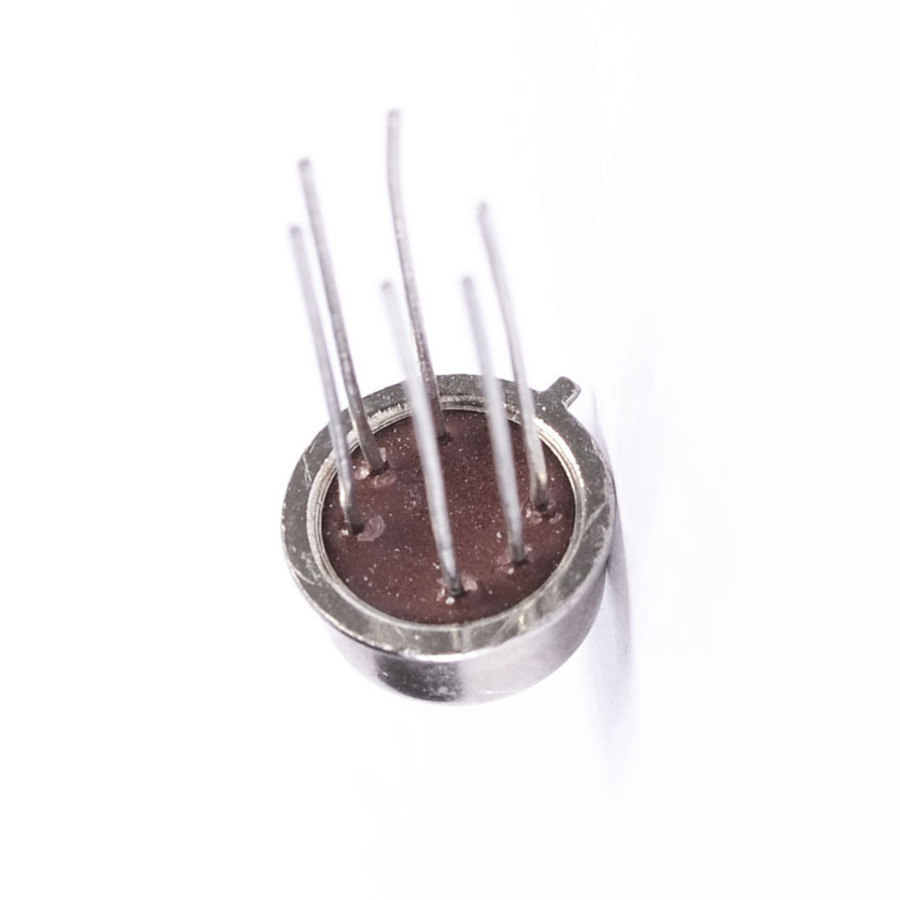

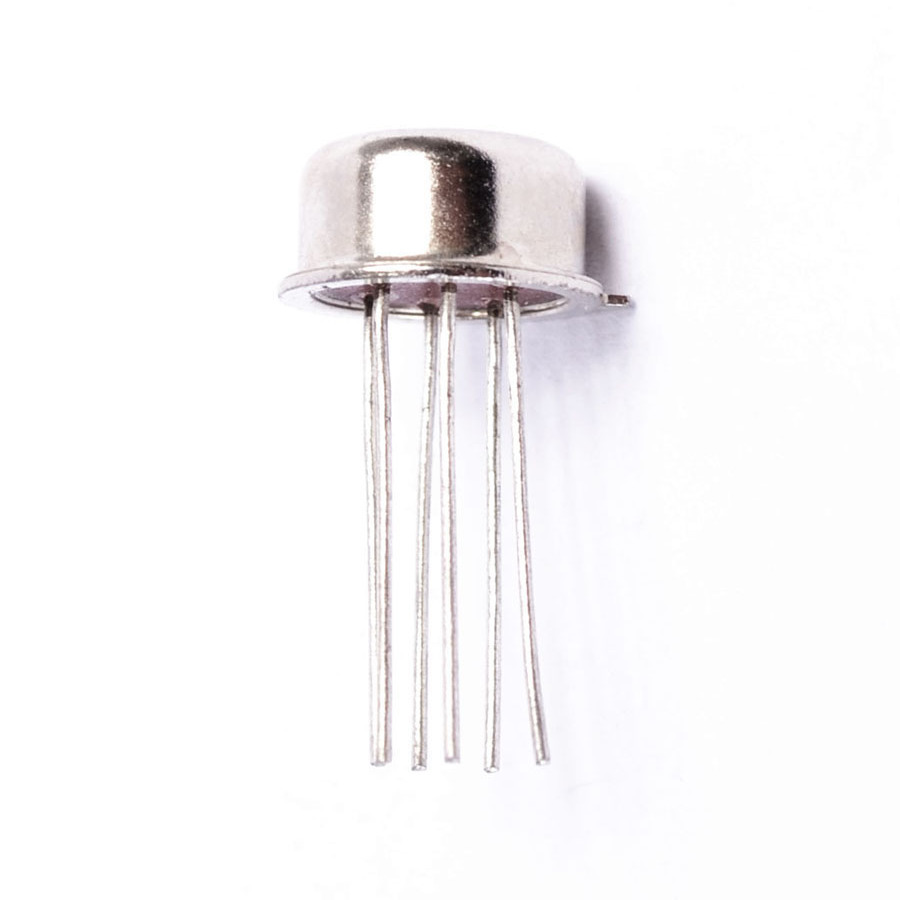

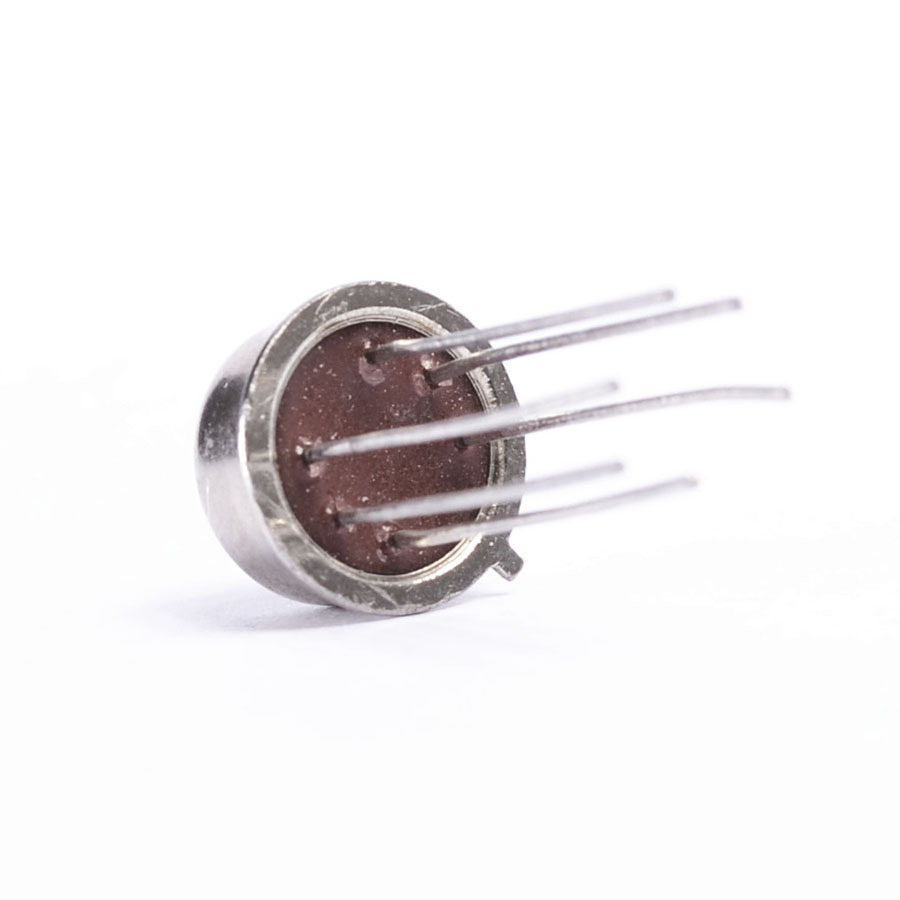

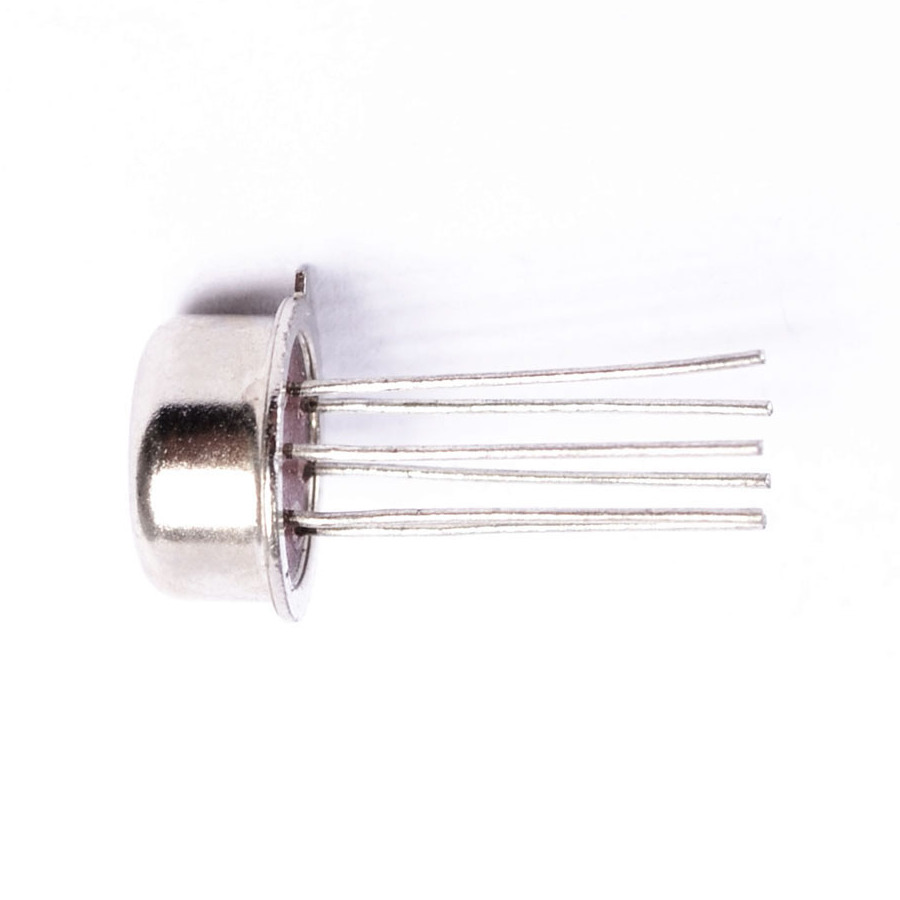

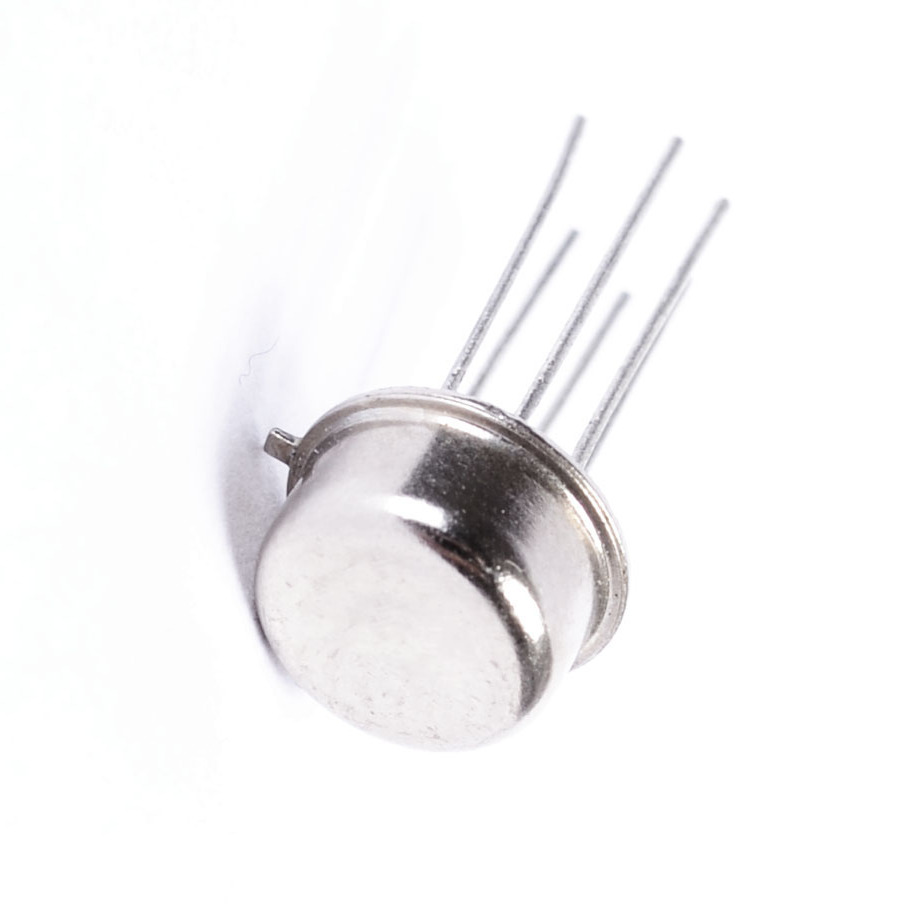

2N2802 Transistor Silicon PNP CASE: TO77 MAKE: Generic
Product specifications
Type Transistor Silicon PNP
Case TO77
Manufacturer Generic
Vbr CBO 25
Vbr CEO 20
Max. PD (W) 250m
C(ob) (F) 8.0p
Derate (Amb) (W/°C) 1.6m
hfe 20
Ic Max. (A) 30m
Icbo Max. @Vcb Max. (A) 10n
Polarity PNP
Trans. Freq (Hz) Min. 60M
@VCE (test) (V) 5.0
Oper. Temp (°C) Max. 175
@Ic (A) 1.0m
Pinout Equivalence Number 7-16
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.5 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 8 pF
Transition Frequency (ft): 60 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 606000
