2N2907ADCSM
View detailed images (4)

2N2907ADCSM

SKU: 2N2907ADCSM

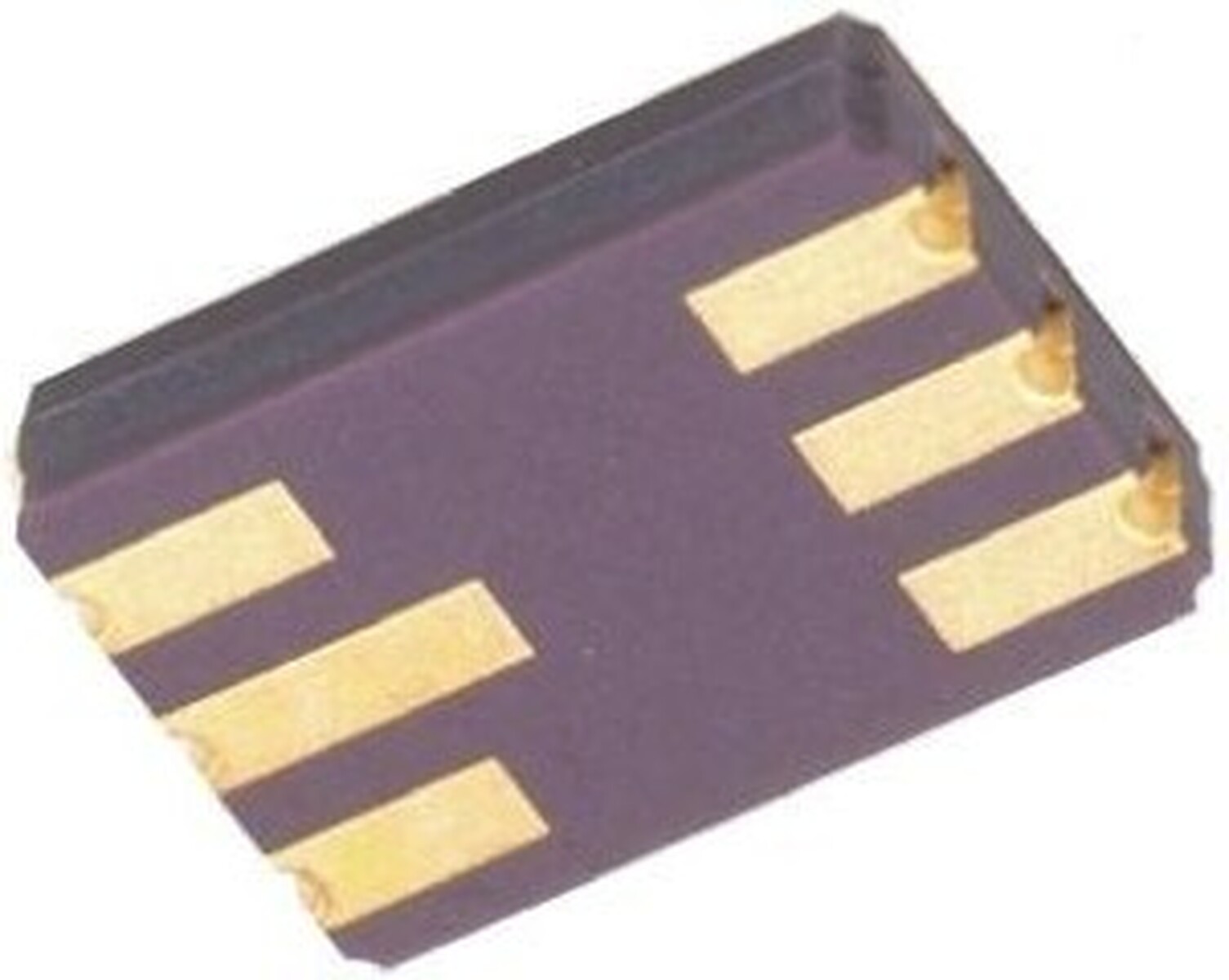

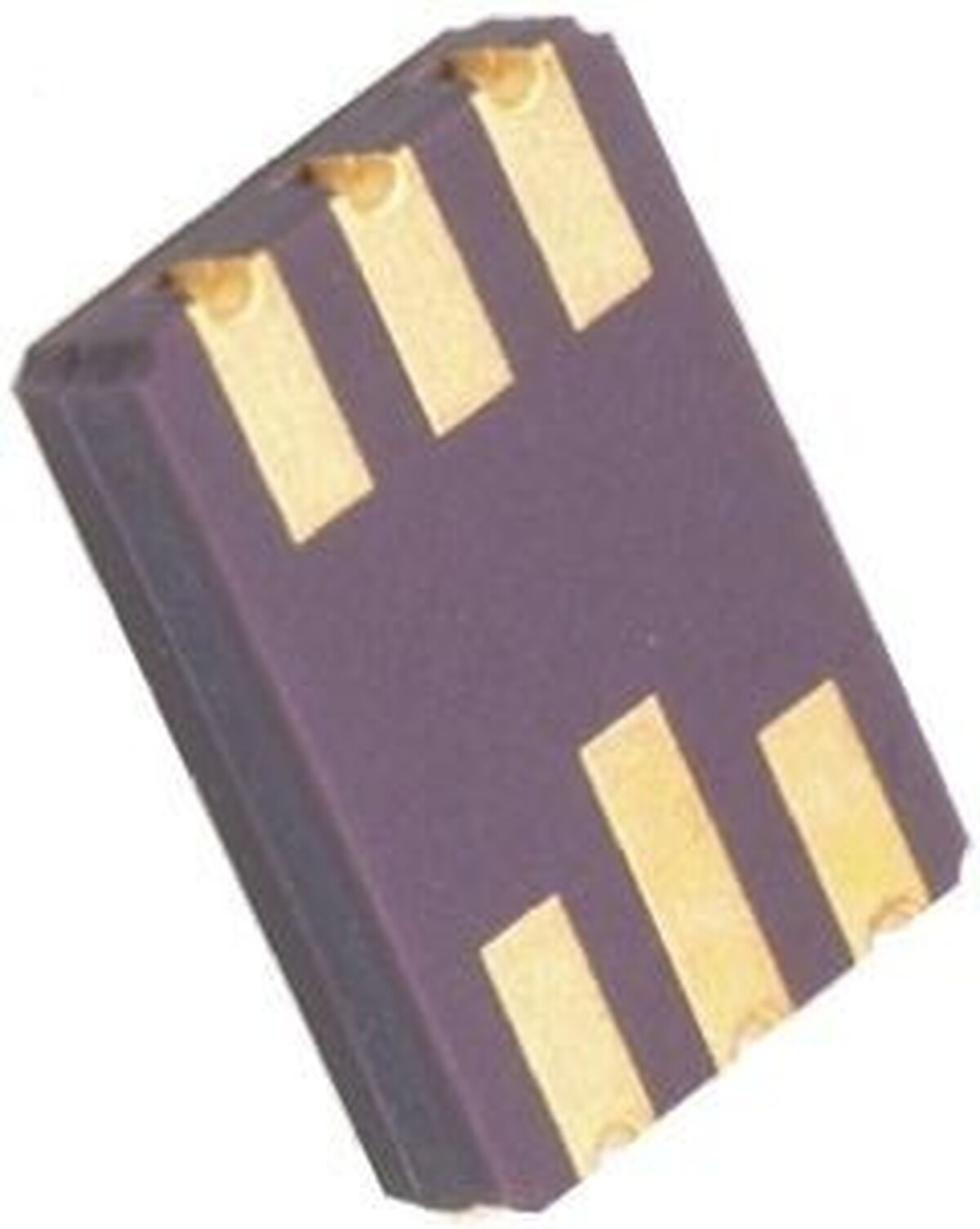

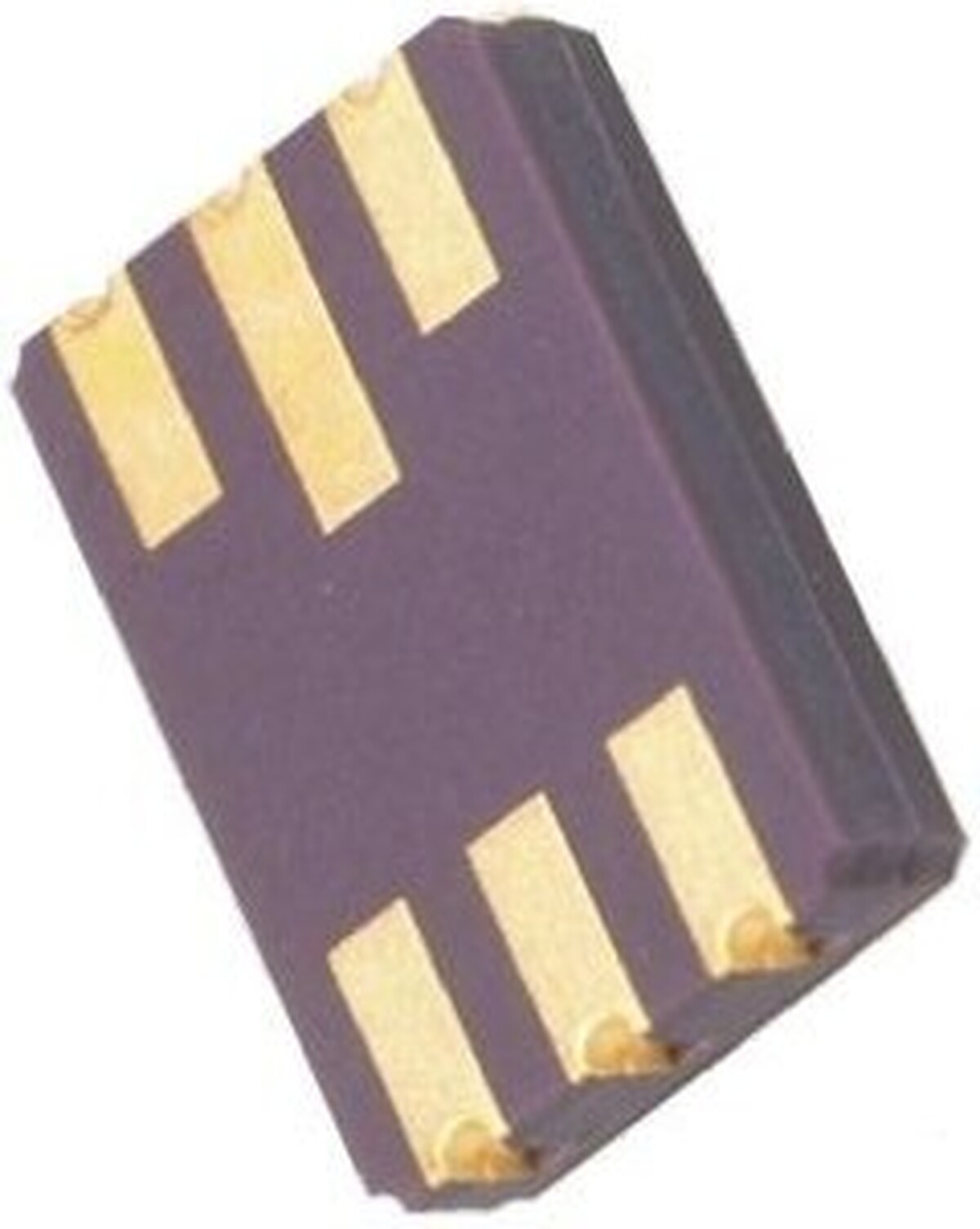

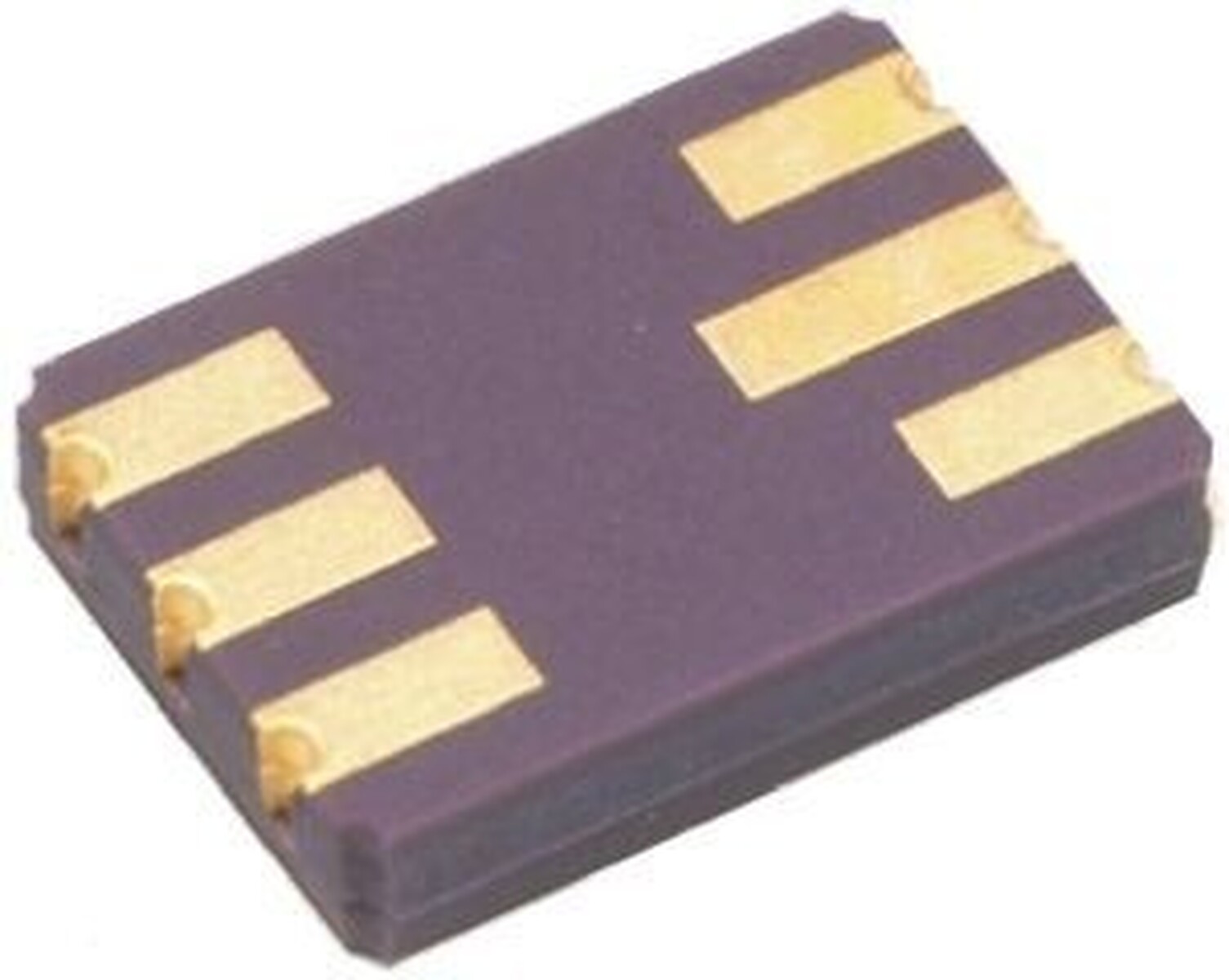

2N2907ADCSM Transistor Silicon PNP CASE: LCC2 MAKE: Generic
Datasheet
2N2907ADCSM Datasheet
Product specifications
Type Transistor Silicon PNP
Case LCC2
Manufacturer SemeLAB
Polarity PNP
Maximum Collector Power Dissipation (Pc) 0.35 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.6 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 8 pF
Forward Current Transfer Ratio (hFE), MIN 100
SKU 1421562
