2N2950

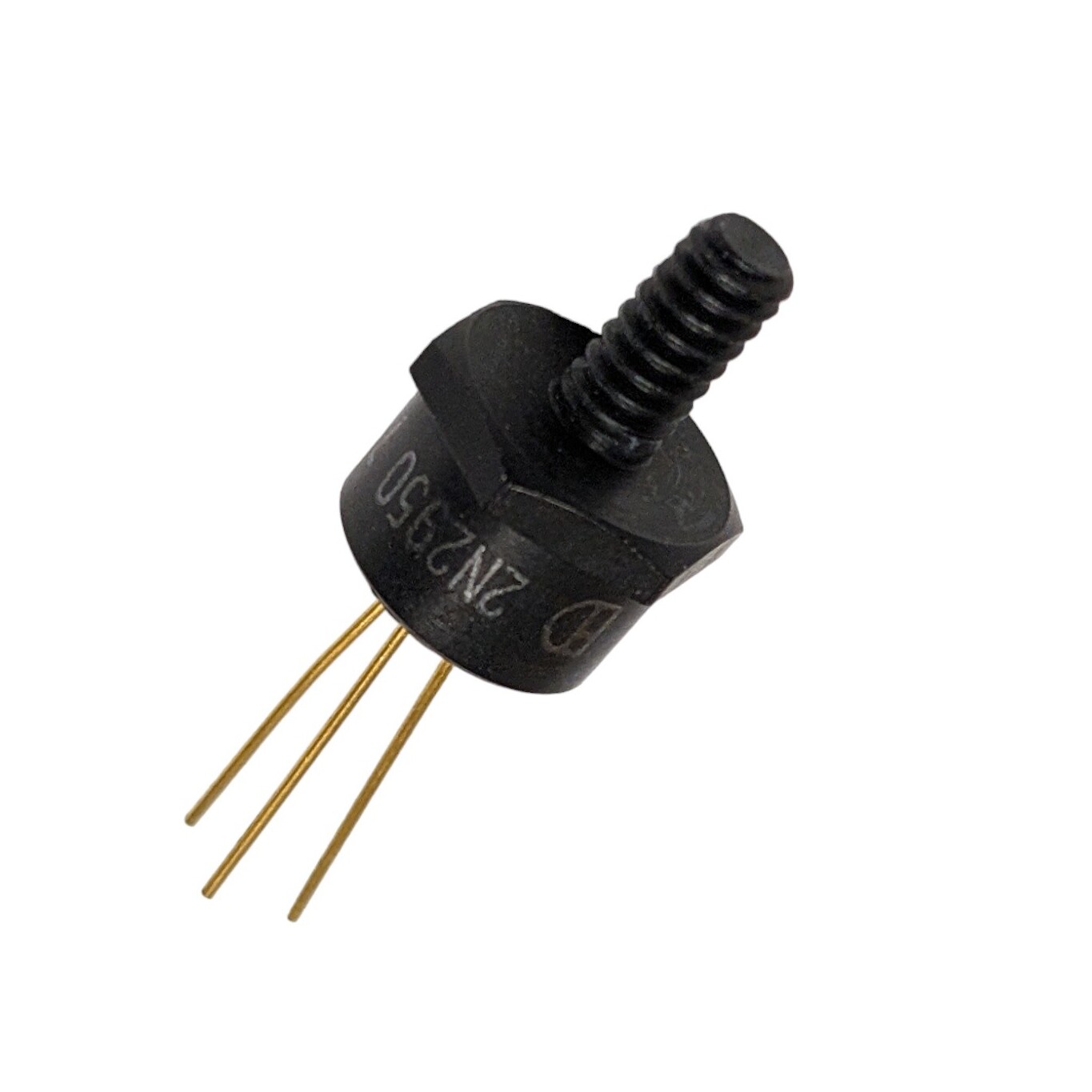

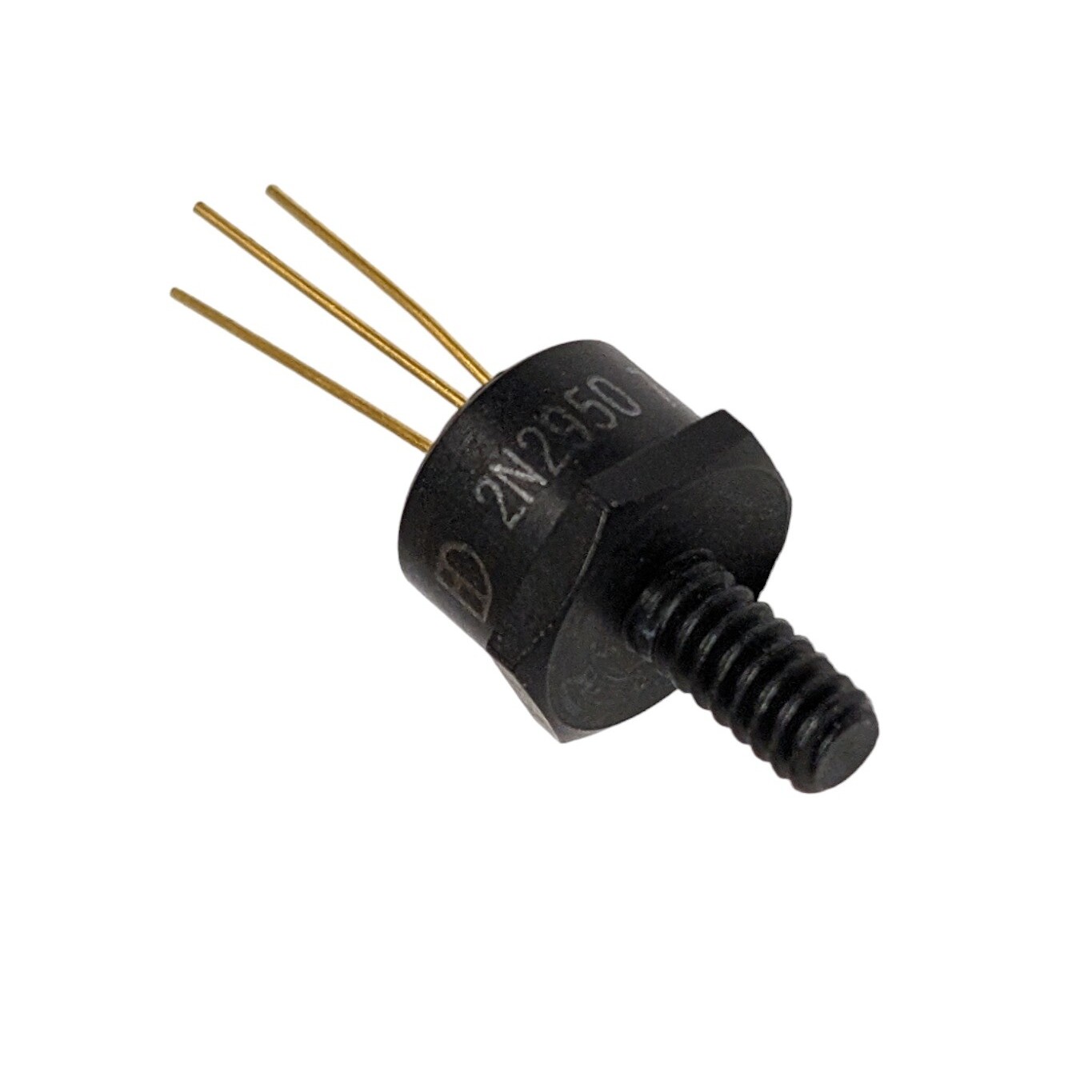

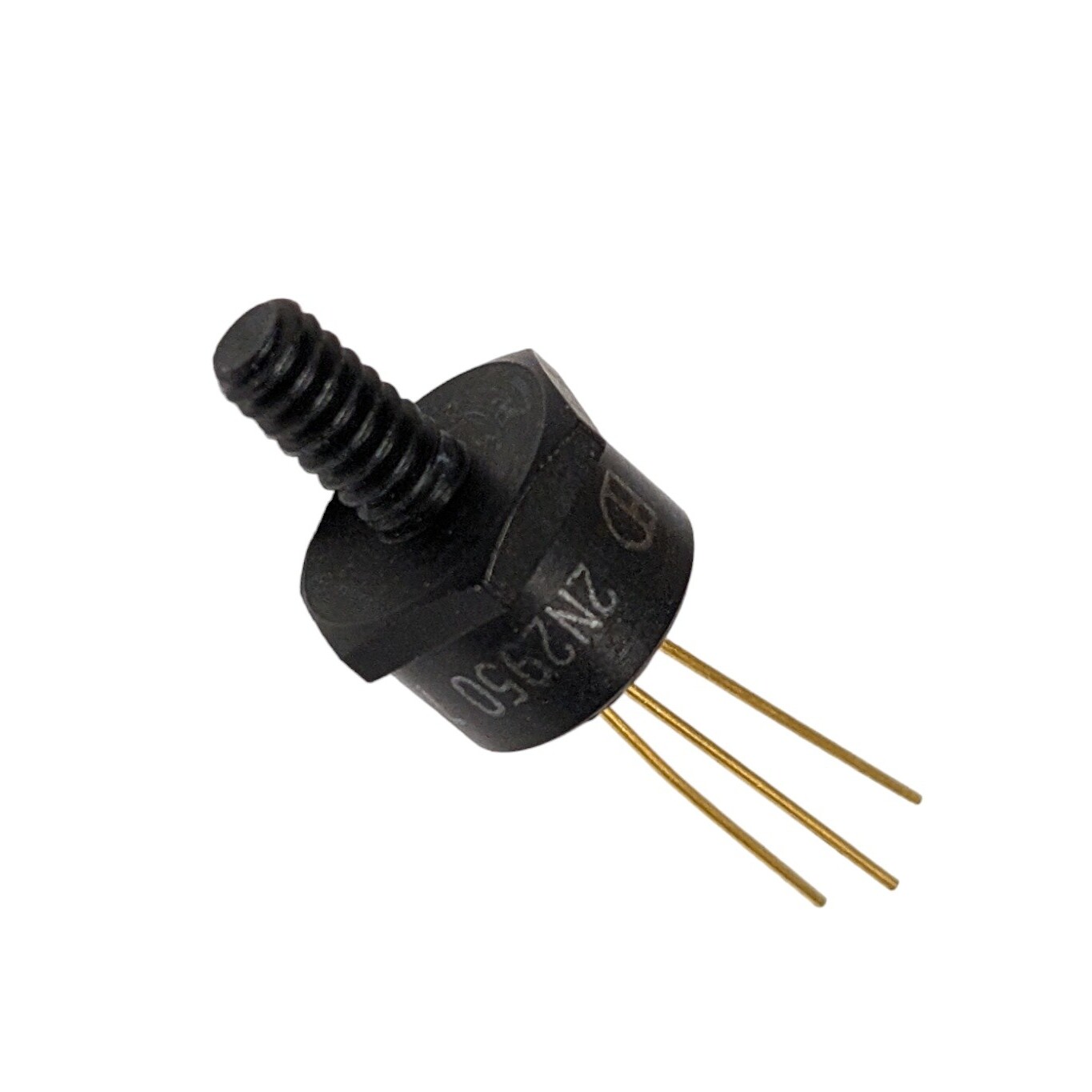

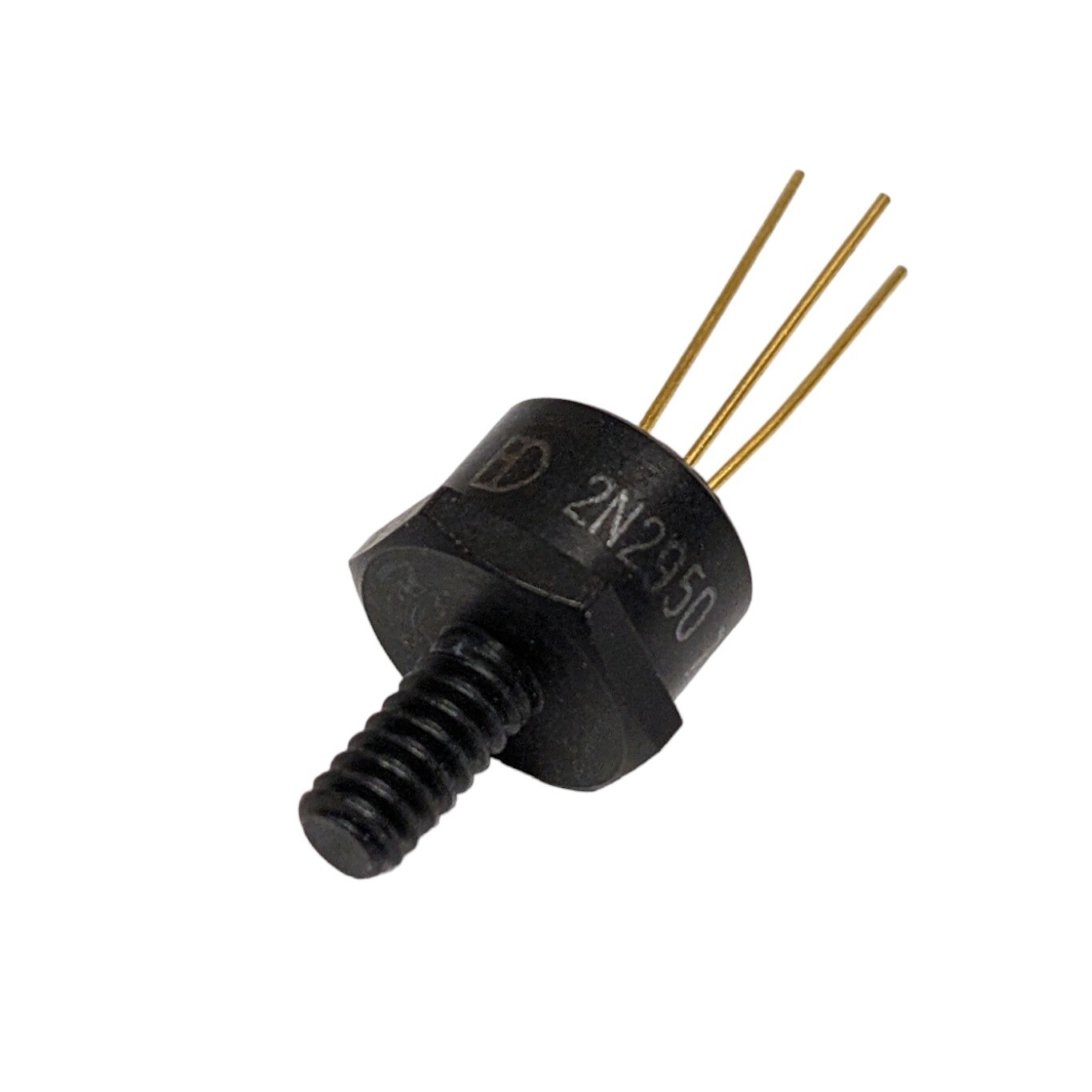

View detailed images (4)

2N2950

SKU: 2N2950
2N2950 Transistor Silicon NPN CASE: TO61 MAKE: Generic
Price:
£45.59 Inc. VAT (£37.99 Ex. VAT)
£45.59 Inc. VAT (£37.99 Ex. VAT)
Qty
  • 11 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO61
Manufacturer Generic
Vbr CBO 60
Vbr CEO 60
Max. PD (W) 6.0
Max. hFE 100
Min hFE 5.0
Ic Max. (A) 700m
@Ic (test) (A) 40m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Derate Above 25°C 40m
Oper. Temp (°C) Max. 175#
@VCE (V) 2.0
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.7 W
Maximum Collector-Base Voltage |Vcb| 85 V
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.7 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 20 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 5
SKU 394191
