2N3009
View detailed images (5)

2N3009

SKU: 2N3009

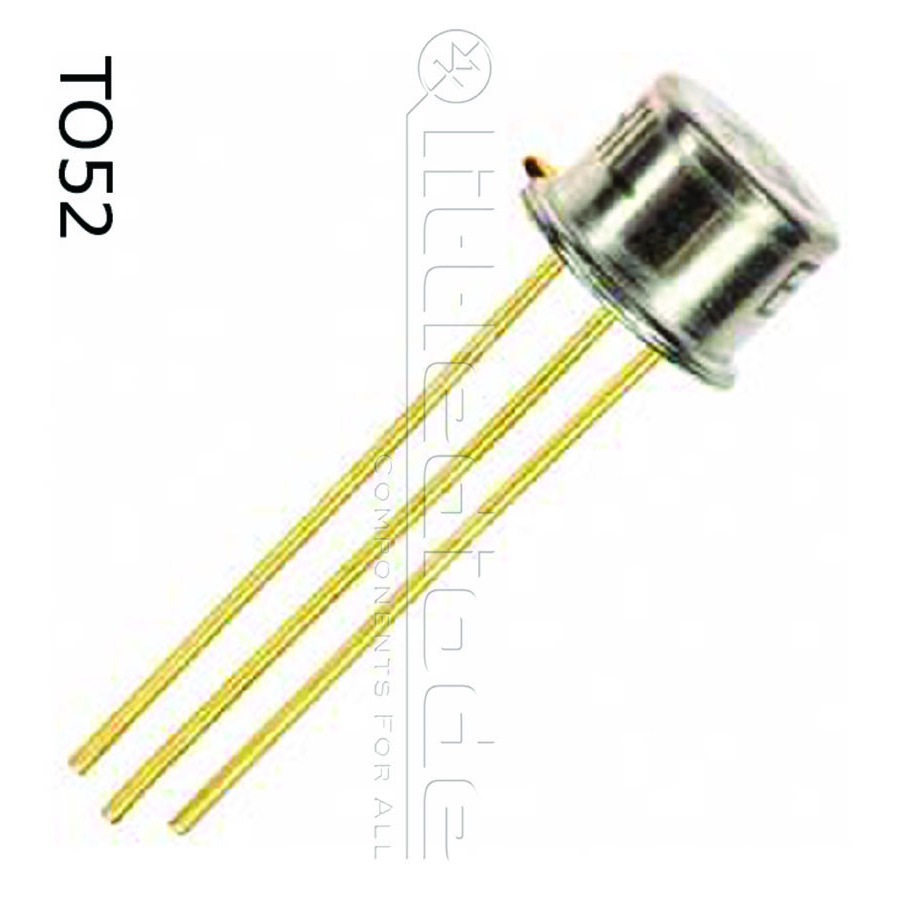

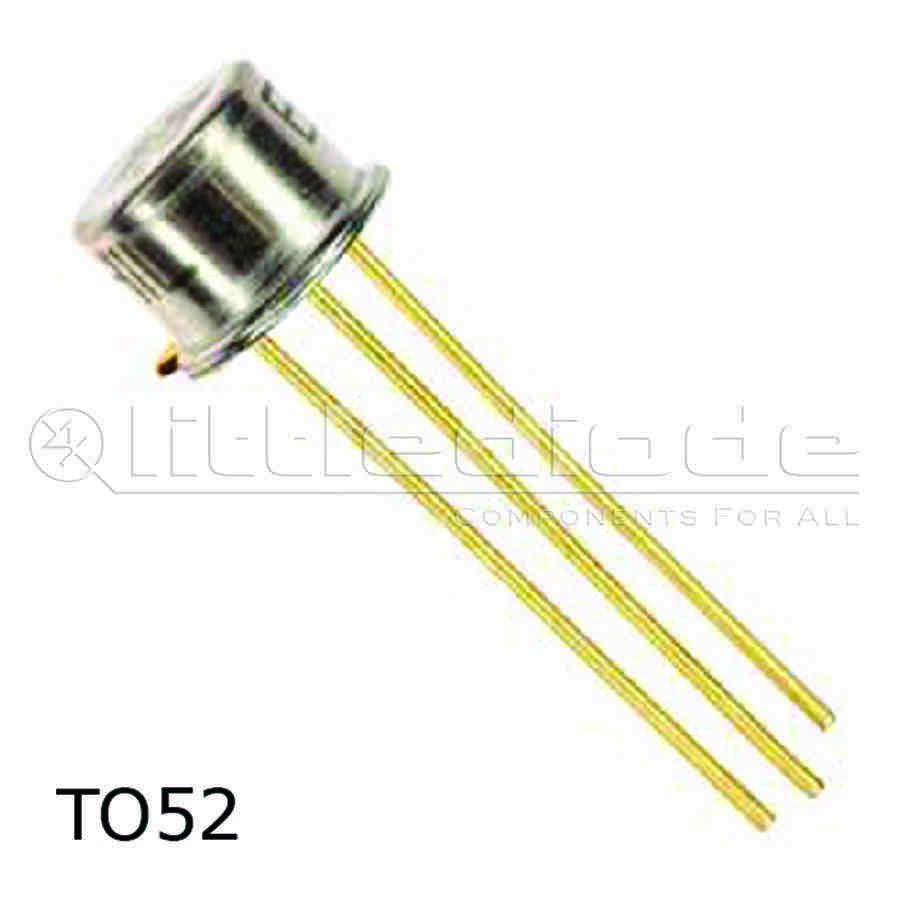

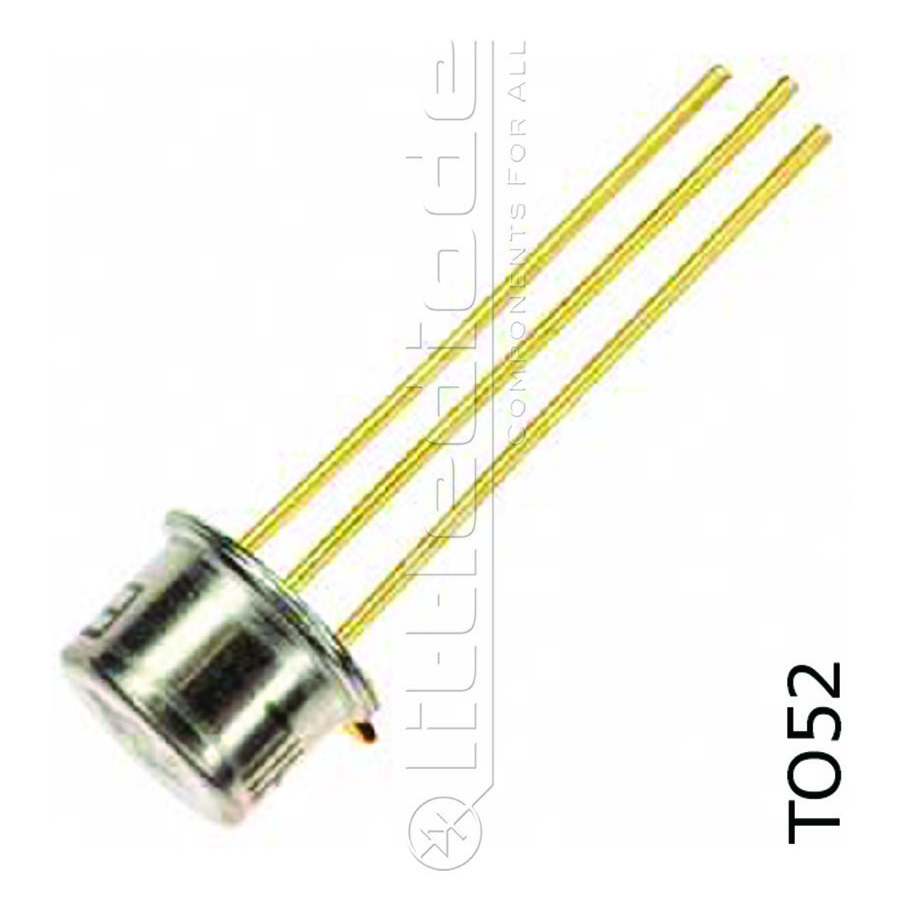

2N3009 Transistor Silicon NPN CASE: TO52 MAKE: Fairchild Semiconductor
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 42 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2N3009 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO52
Manufacturer Fairchild Semiconductor
Vbr CBO 40
Vbr CEO 15
Max. PD (W) 360m
C(ob) (F) 5.0p
Derate (Amb) (W/°C) 2.0m
hfe 30
Ic Max. (A) 200m
Icbo Max. @Vcb Max. (A) .50u
Polarity NPN
Trans. Freq (Hz) Min. 350M
@VCE (test) (V) .40
Oper. Temp (°C) Max. 175
@Ic (A) 30m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.36 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 5 pF
Transition Frequency (ft): 350 MHz
Forward Current Transfer Ratio (hFE), MIN 30
