2N3039
View detailed images (8)

2N3039

SKU: 2N3039

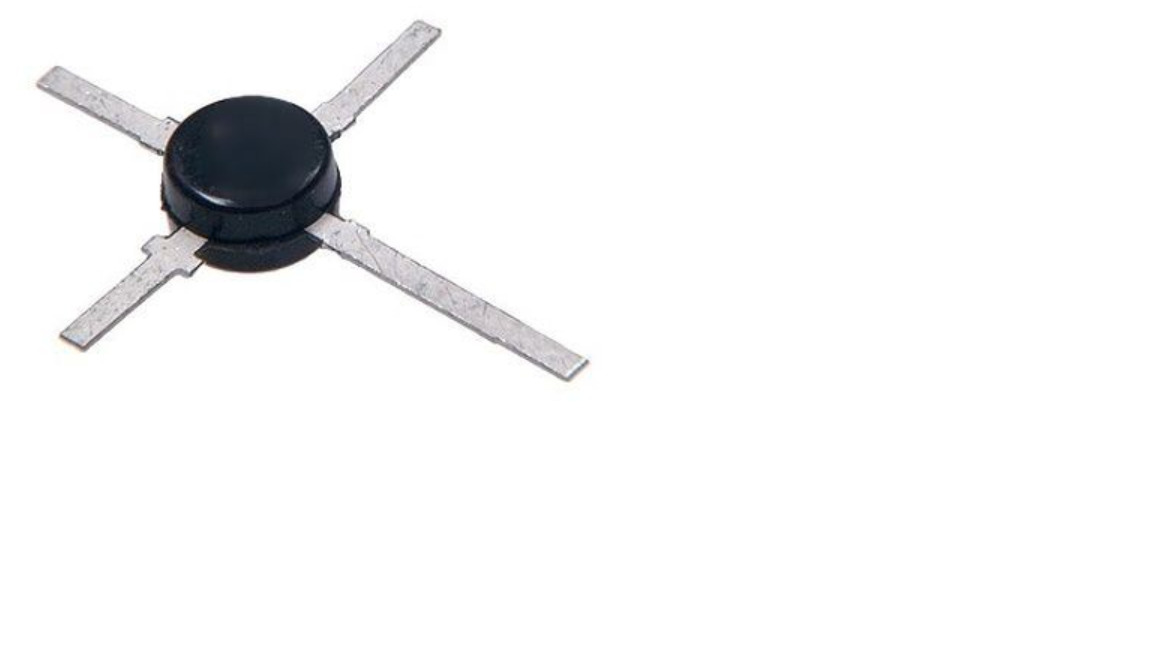

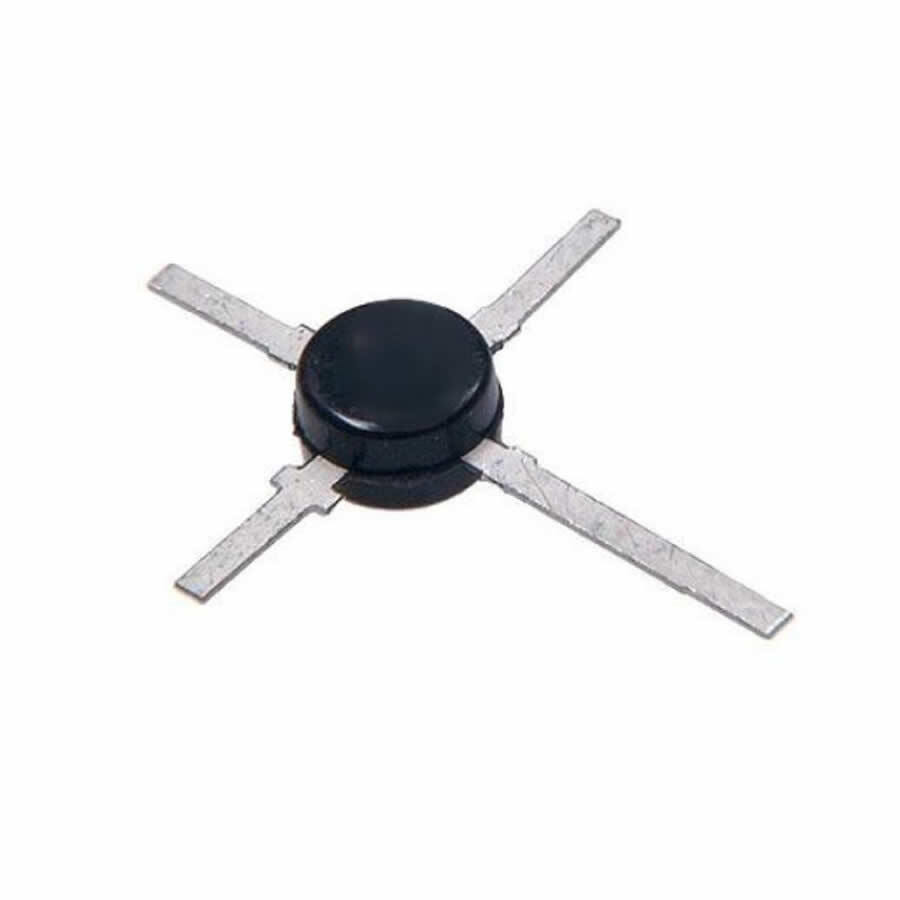

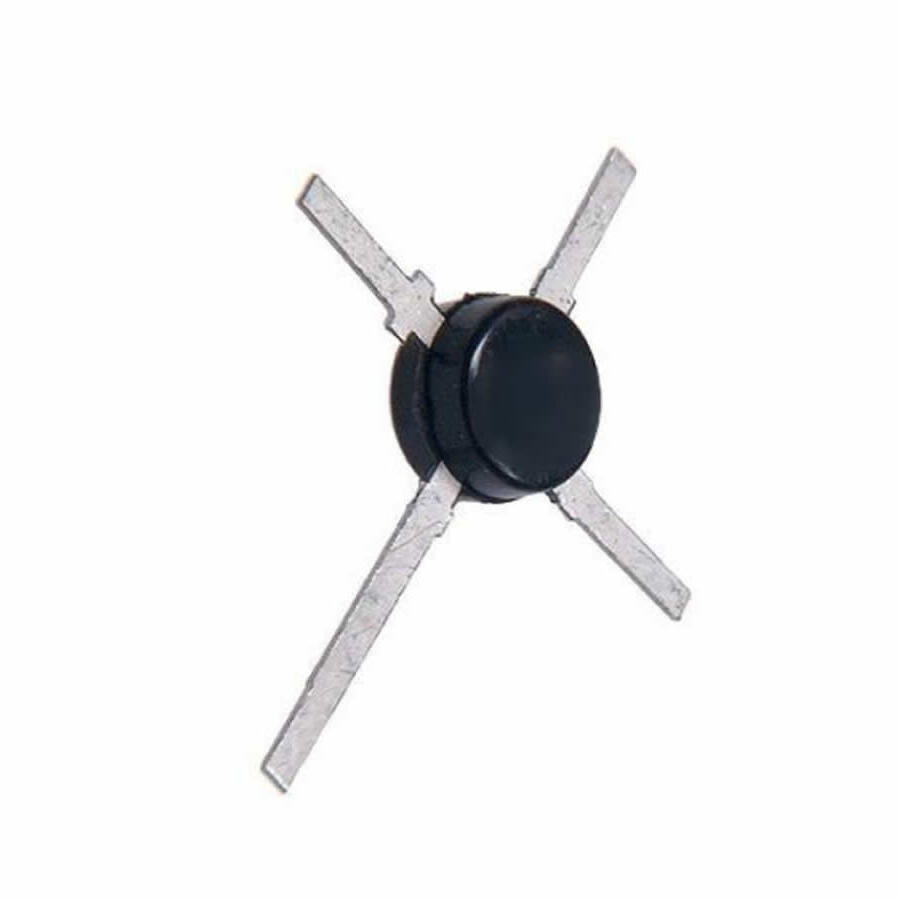

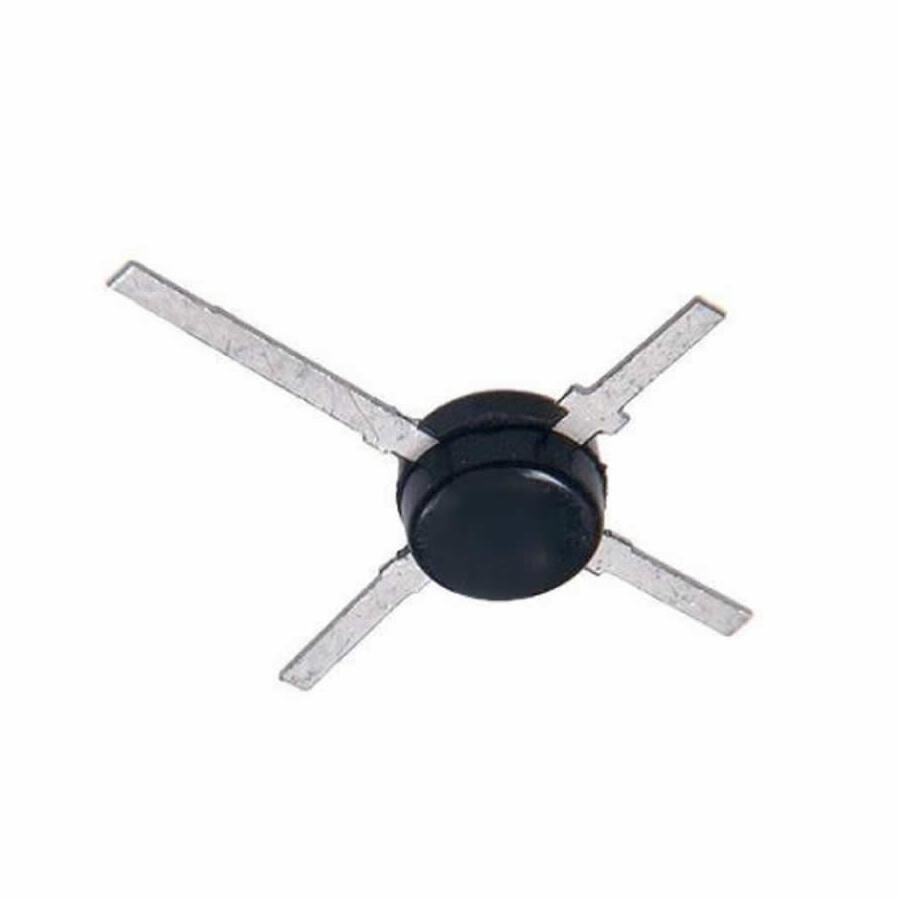

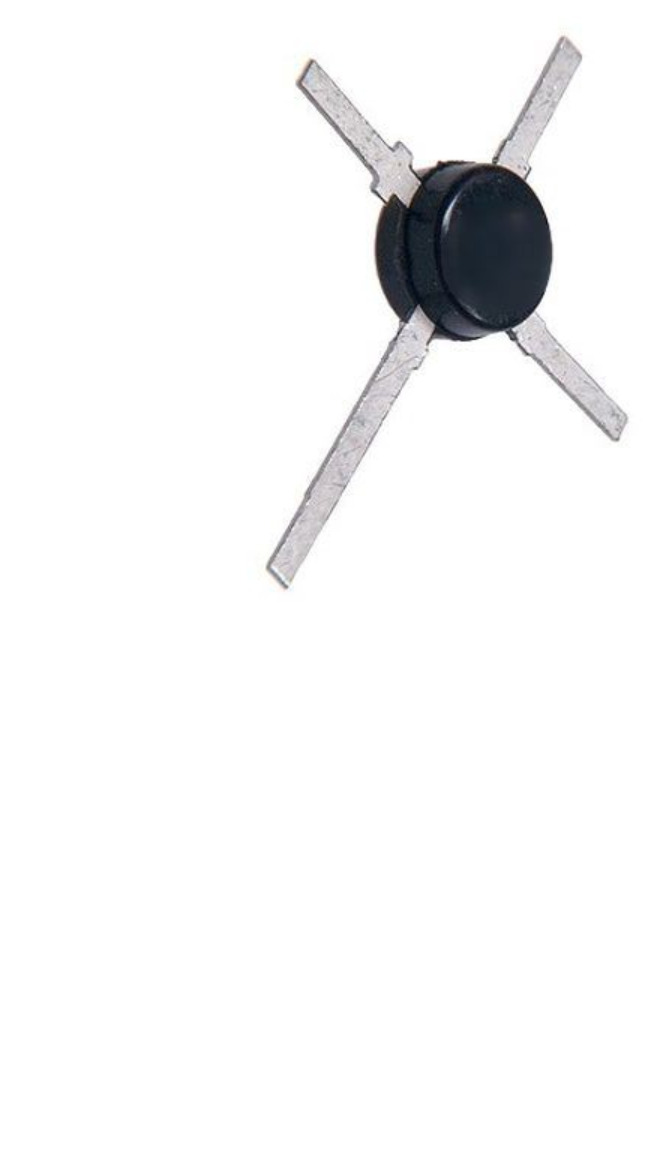

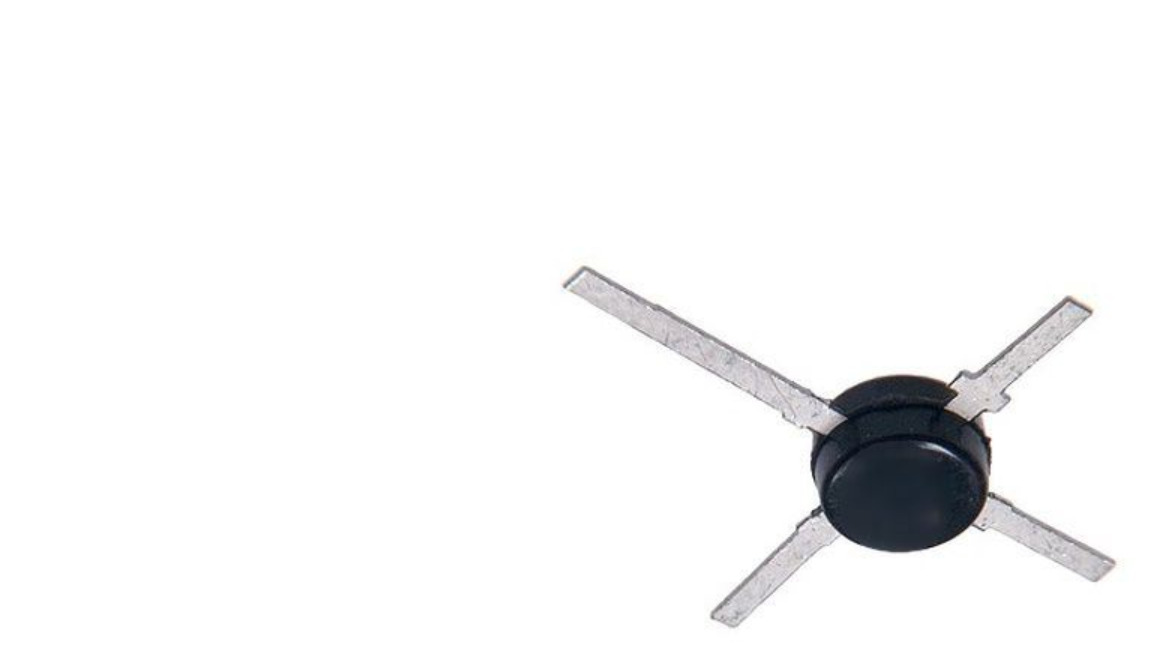

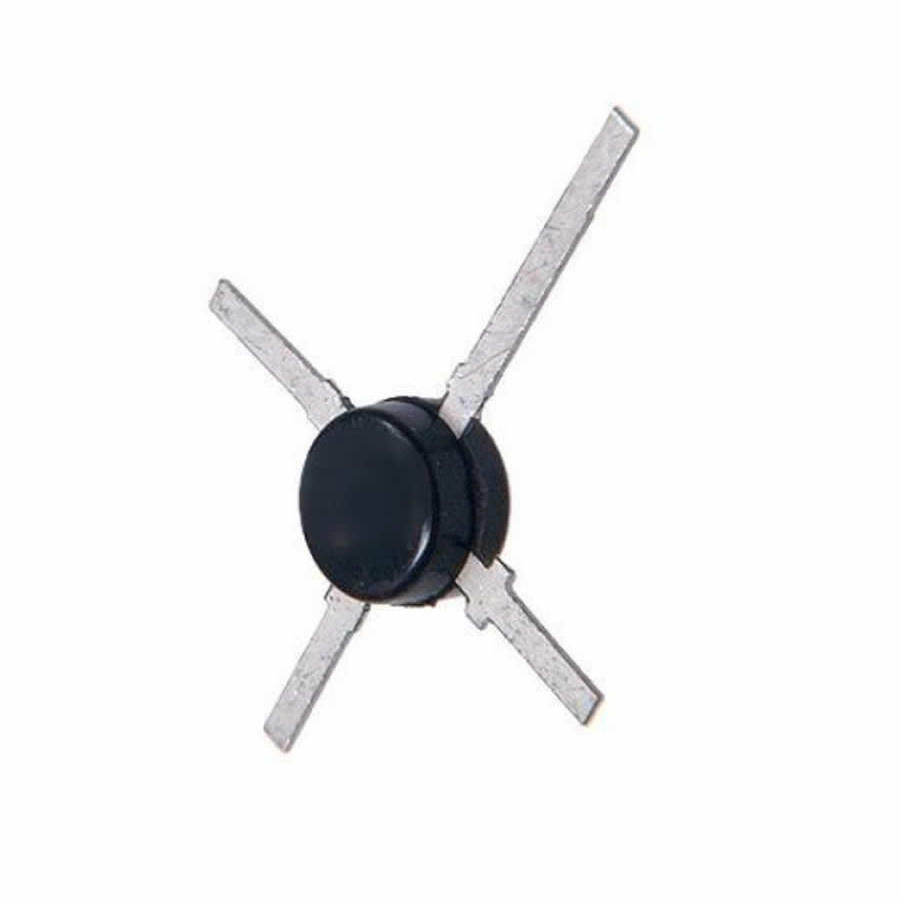

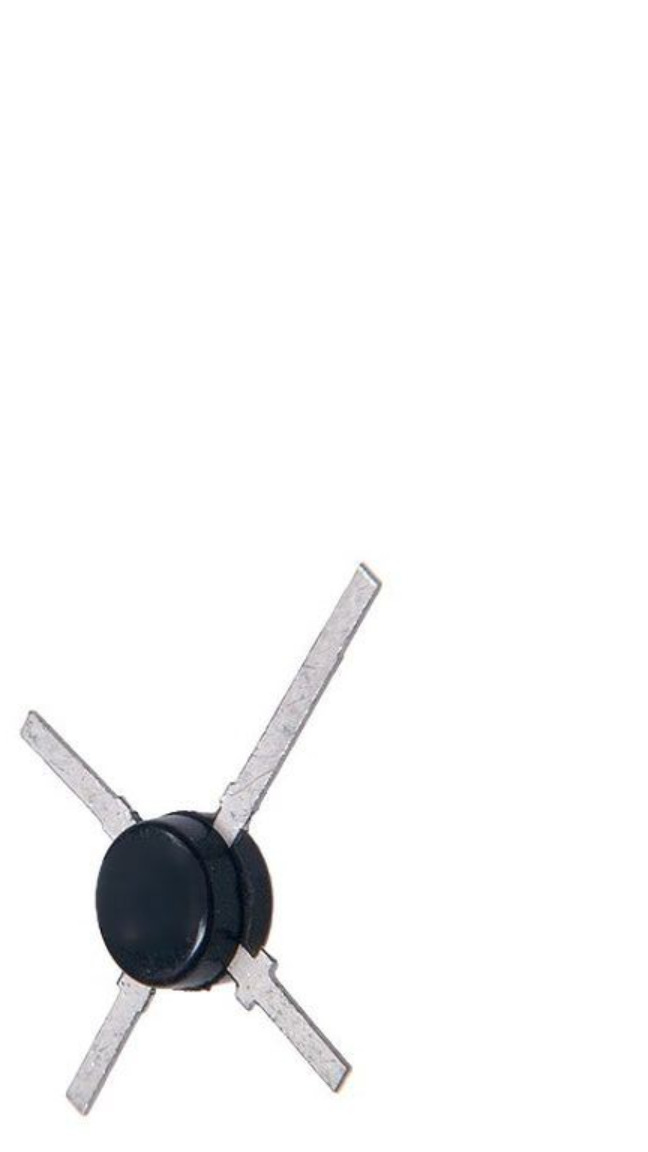

2N3039 Transistor Silicon PNP CASE: TO50 MAKE: Texas Instruments
Product specifications
Type Transistor Silicon PNP
Case TO50
Manufacturer Texas Instruments
Vbr CBO 50
Vbr CEO 35
Max. PD (W) 360m
C(ob) (F) 40p
Derate (Amb) (W/°C) 2.4m
hfe 20
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) .02u
Polarity PNP
Trans. Freq (Hz) Min. 50M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 175
@Ic (A) 10m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.36 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 35 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 40 pF
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 583334
