2N306
View detailed images (1)

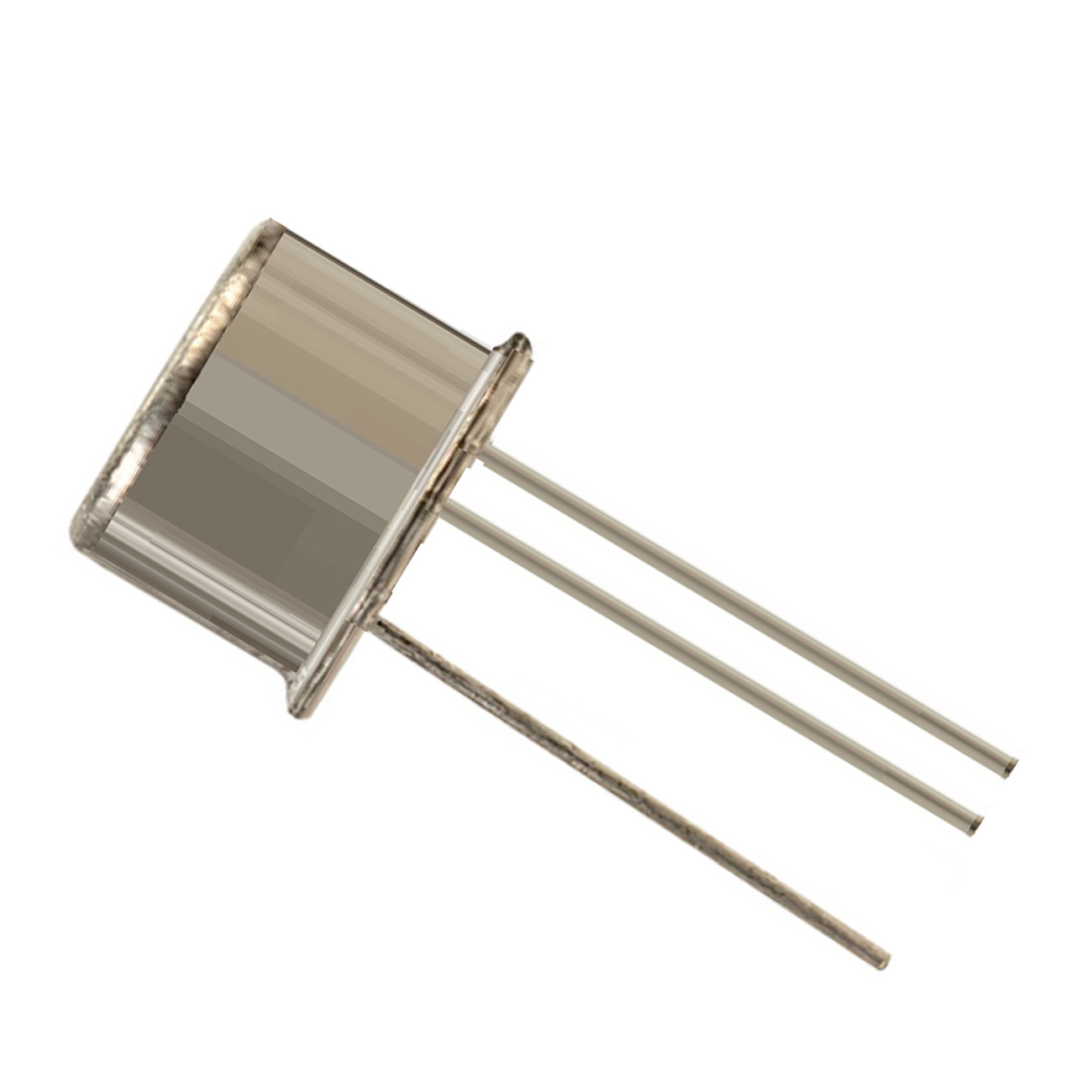

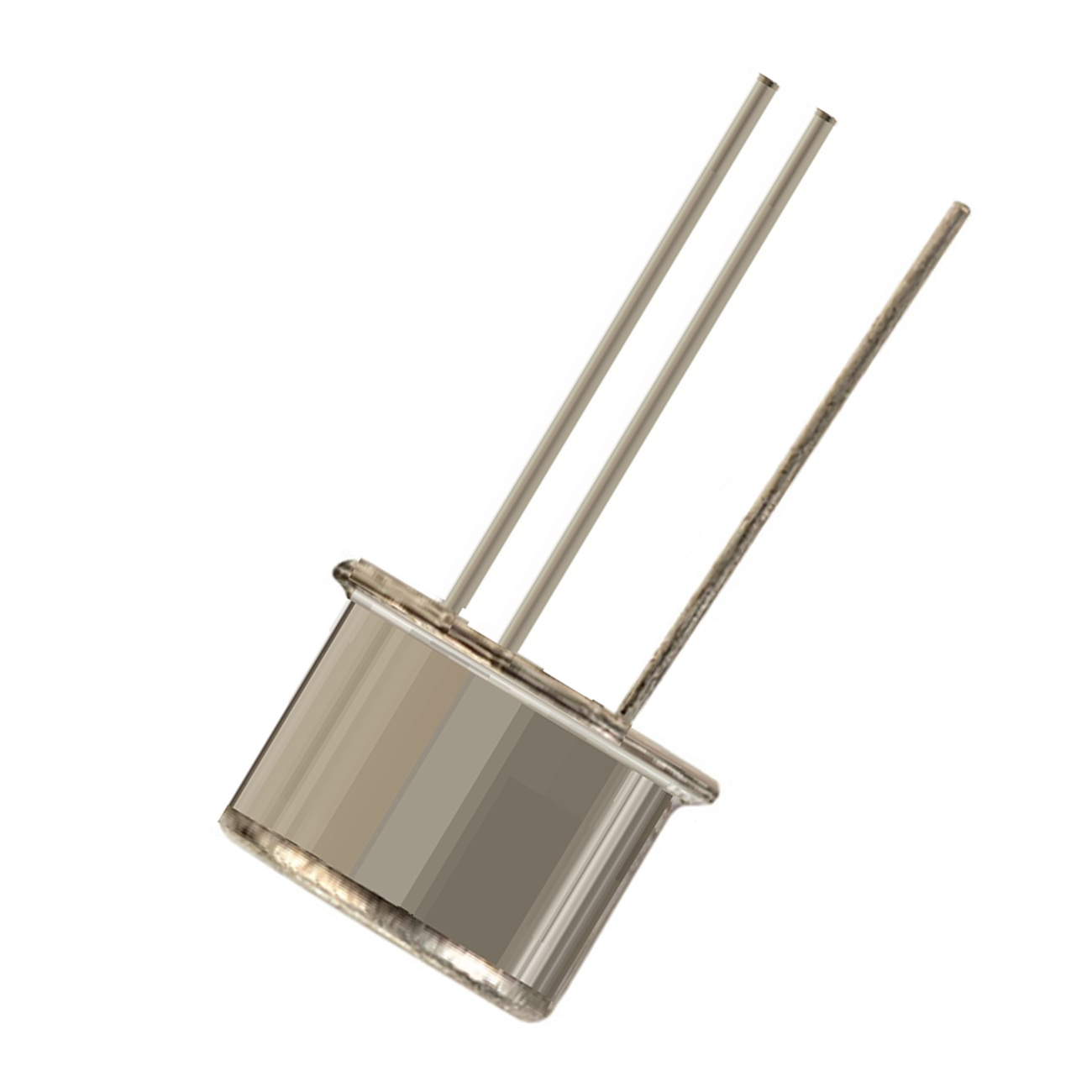

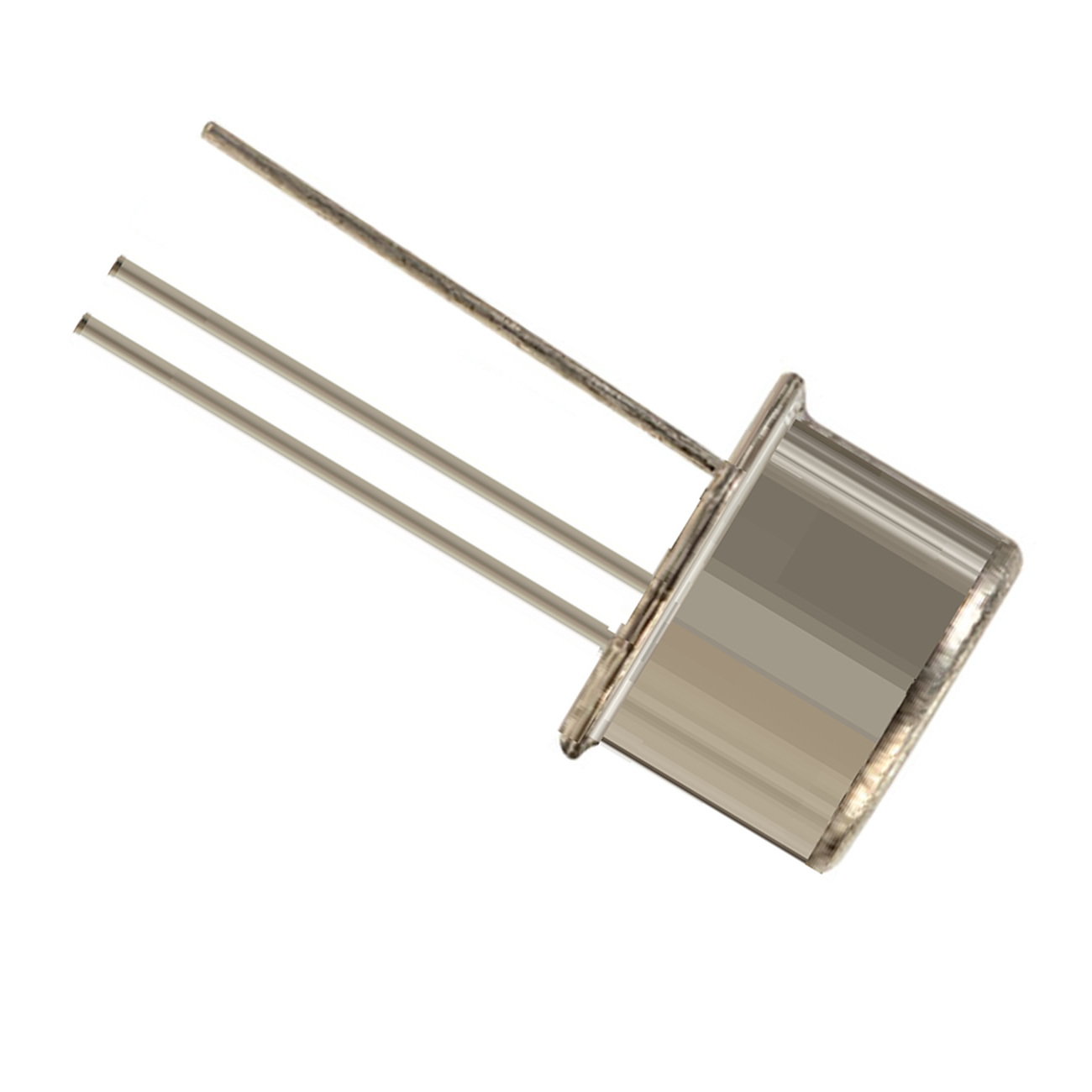

2N306

SKU: 2N306
2N306 Transistor Germanium NPN CASE: TO22 MAKE: Generic
Product specifications
Type Transistor Germanium NPN
Case TO22
Manufacturer Generic
Vbr CBO 20
Vbr CEO 15
Max. PD (W) 50m
Derate (Amb) (W/°C) 1.0m
hfe 25
Ic Max. (A) 2.0m
Icbo Max. @Vcb Max. (A) 50u
Polarity NPN
Trans. Freq (Hz) Min. 600k
@VCE (test) (V) 6.0
Oper. Temp (°C) Max. 75
@Ic (A) 1.0m
Pinout Equivalence Number 3-17
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.18 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 75 °C
Transition Frequency (ft): 0.5 MHz
Forward Current Transfer Ratio (hFE), MIN 75
SKU 775152
