2N3242
View detailed images (13)

2N3242

SKU: 2N3242

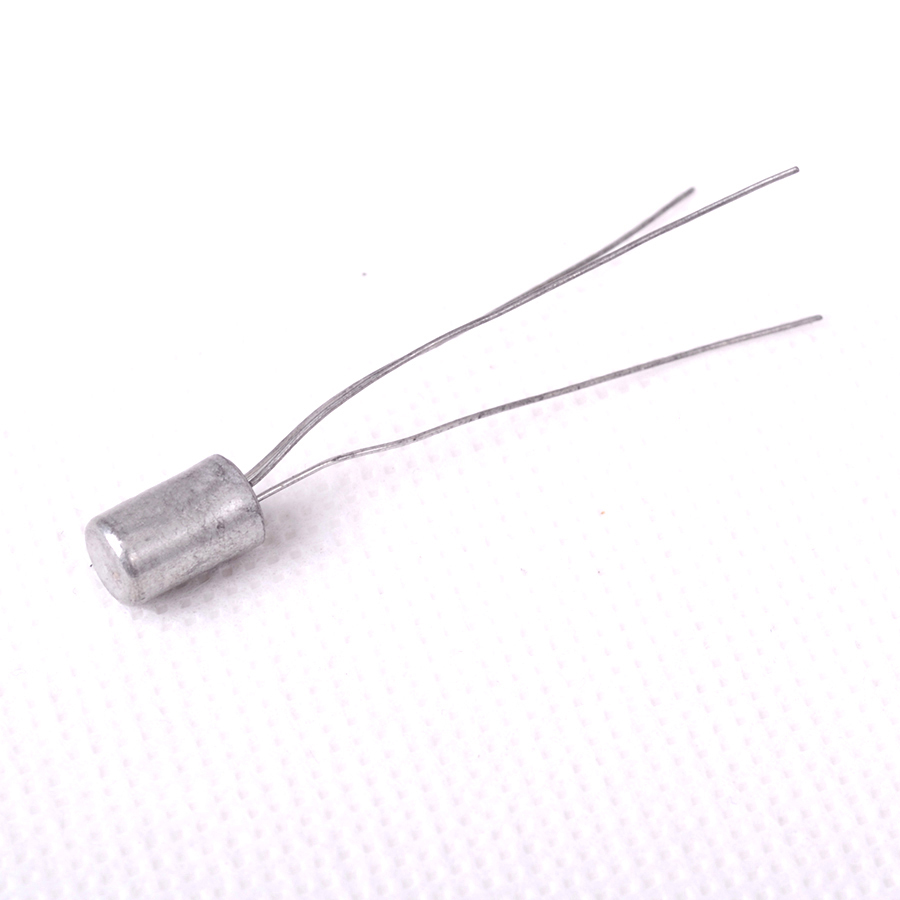

2N3242 Transistor Silicon NPN CASE: TO1 MAKE: USA Make
Product specifications
Type Transistor Silicon NPN
Case TO1
Manufacturer USA Make
Vbr CBO 30
Vbr CEO 25
Max. PD (W) 500m
C(ob) (F) 30p
Derate (Amb) (W/°C) 3.3m
hfe 100
Ic Max. (A) 200m
Icbo Max. @Vcb Max. (A) 10n
Polarity NPN
Trans. Freq (Hz) Min. 50M
@VCE (test) (V) 12
Oper. Temp (°C) Max. 175
@Ic (A) 10m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.5 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 20 pF
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SKU 115063
