2N3403

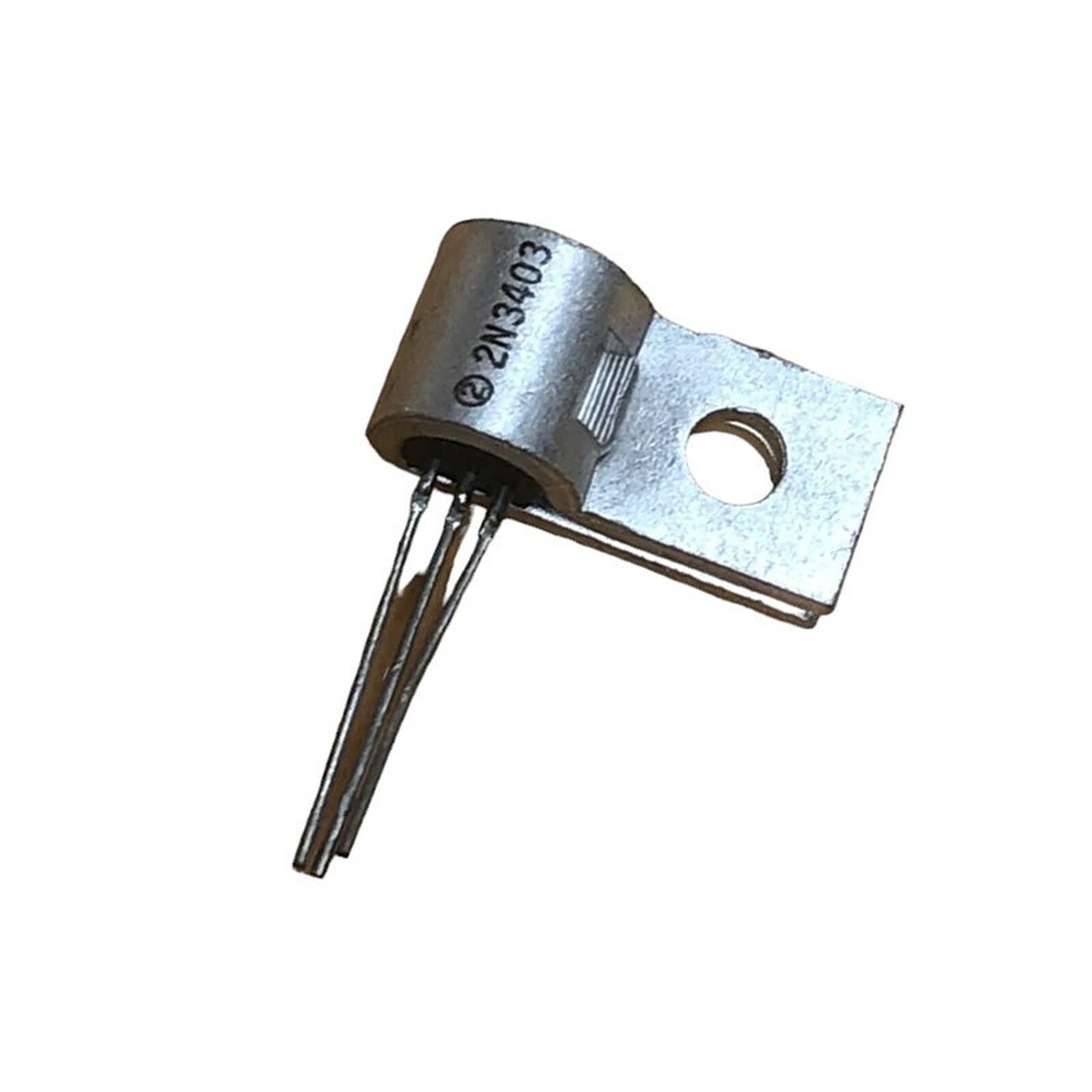

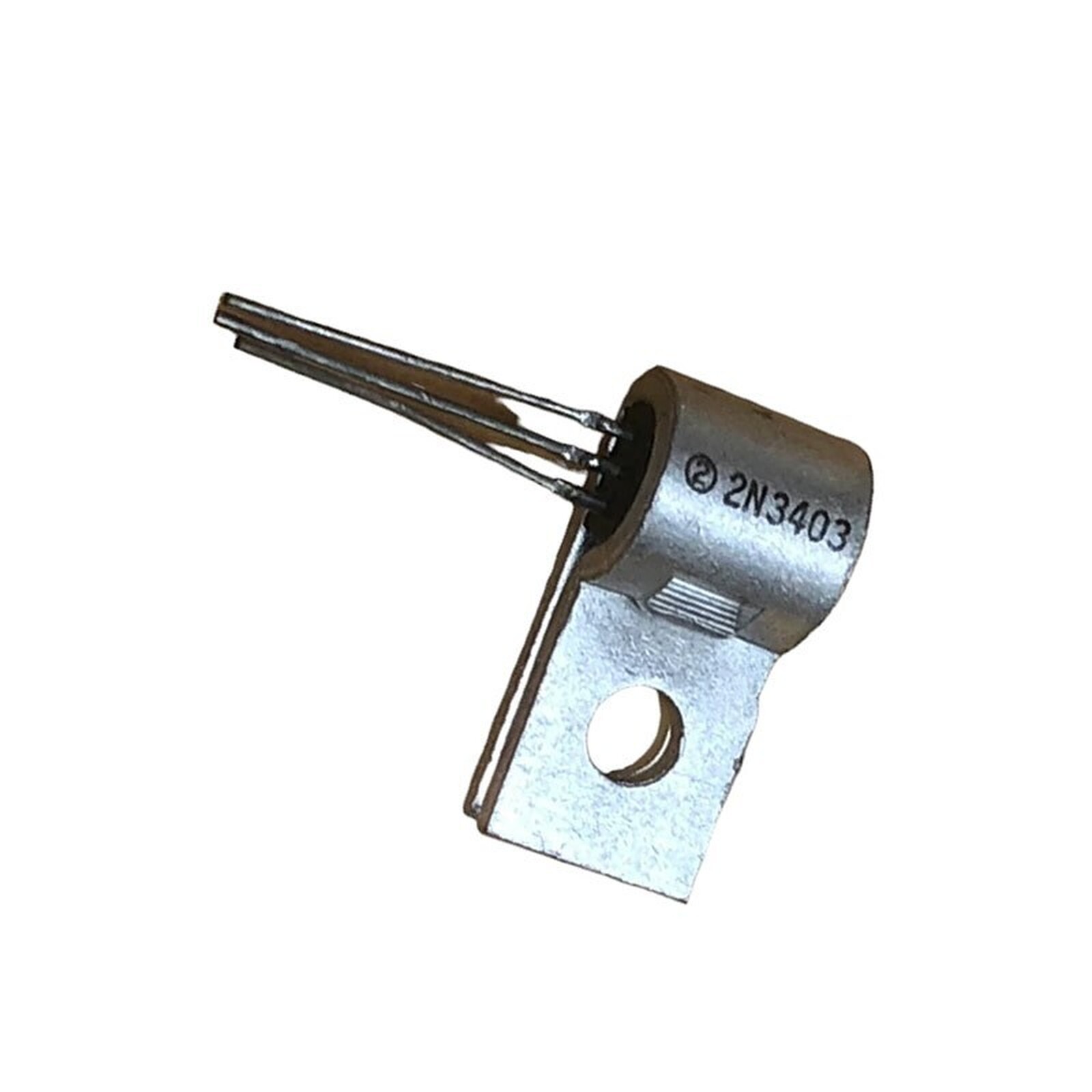

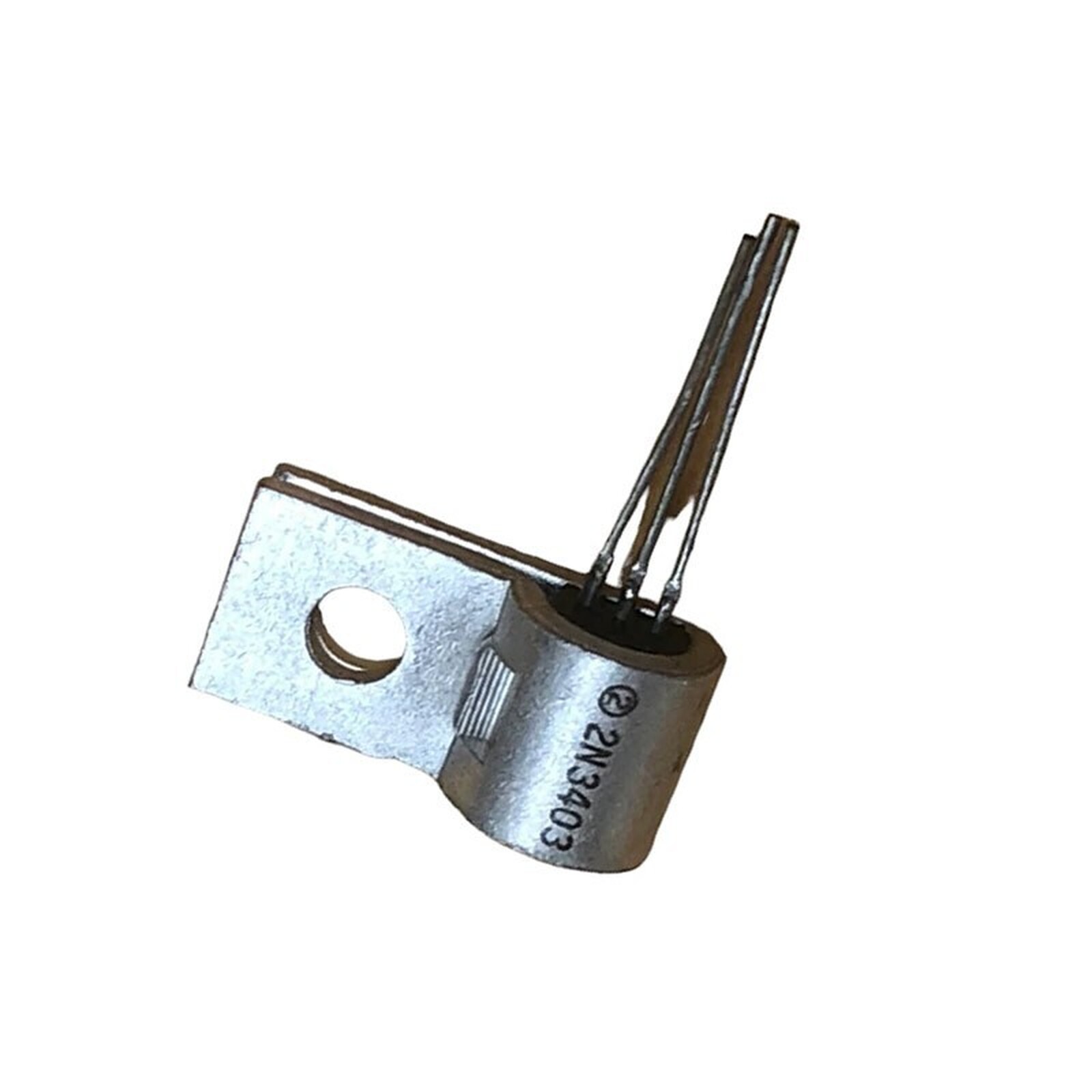

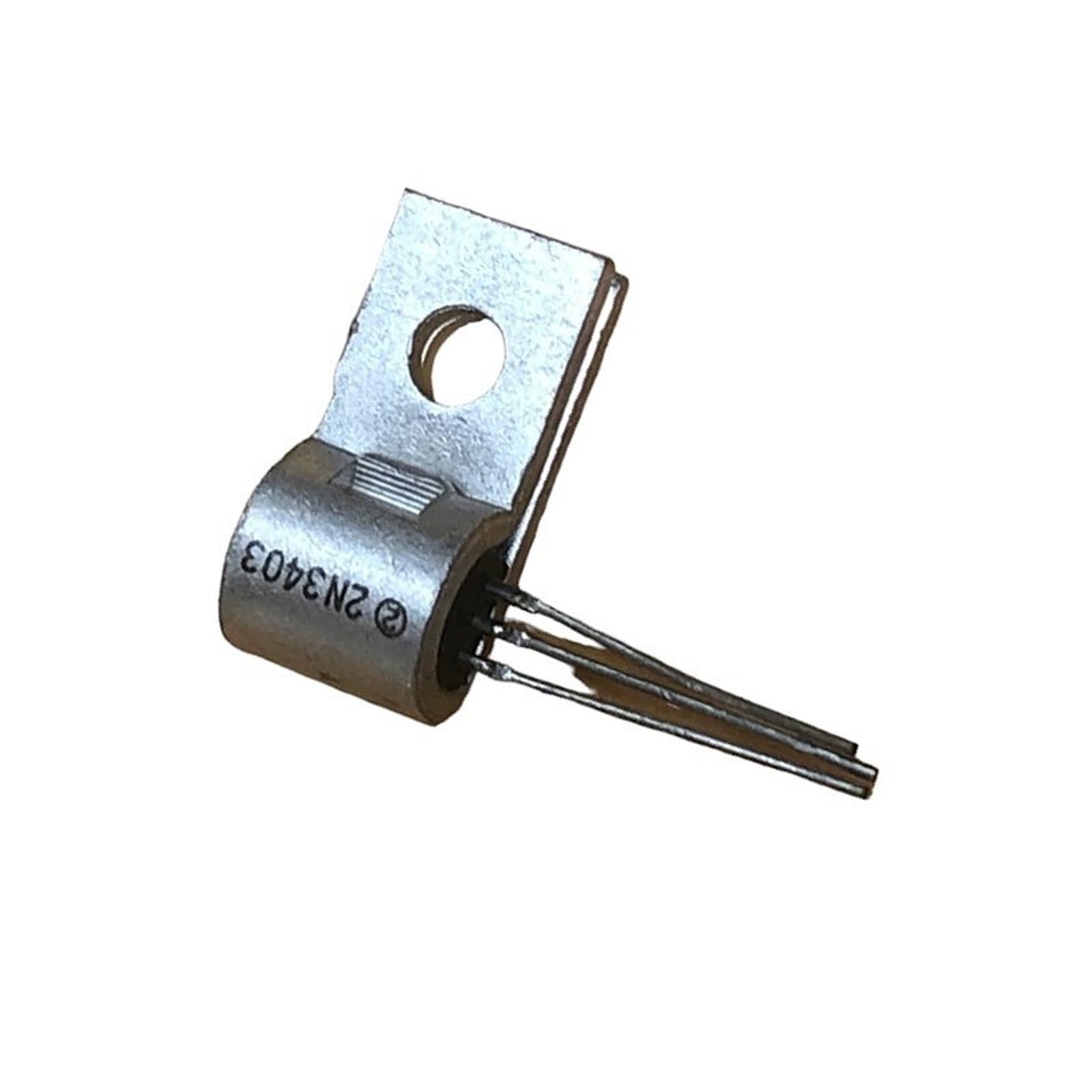

View detailed images (4)

2N3403

SKU: 2N3403
2N3403 Transistor Silicon NPN CASE: TO92 MAKE: Generic
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • 9 pieces in 1-2 Days
?
Datasheet
2N3403 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO92
Manufacturer New Jersey Semiconductor
Vbr CBO 25
Vbr CEO 25
Max. PD (W) 620m
C(ob) (F) 10p
Derate (Amb) (W/°C) 4.4m
hfe 180
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 100M
@VCE (test) (V) 4.5
Oper. Temp (°C) Max. 150
@Ic (A) 2.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.56 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 180
SKU 368305
