2N3414
View detailed images (12)

2N3414

SKU: 2N3414

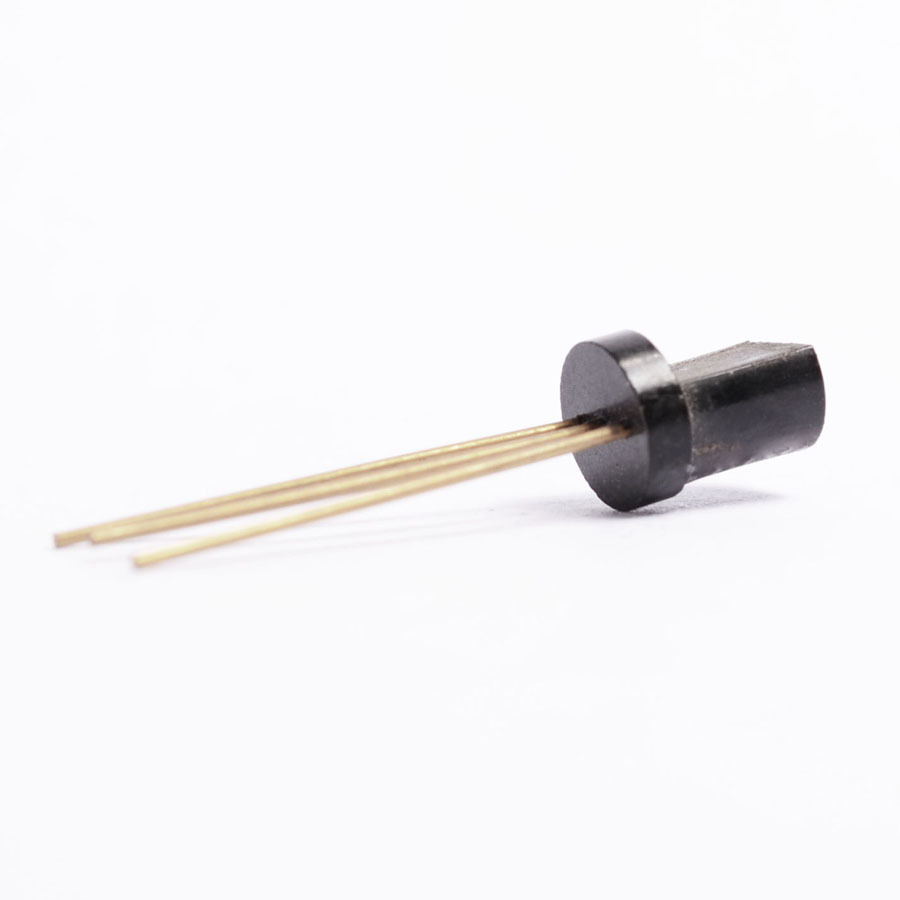

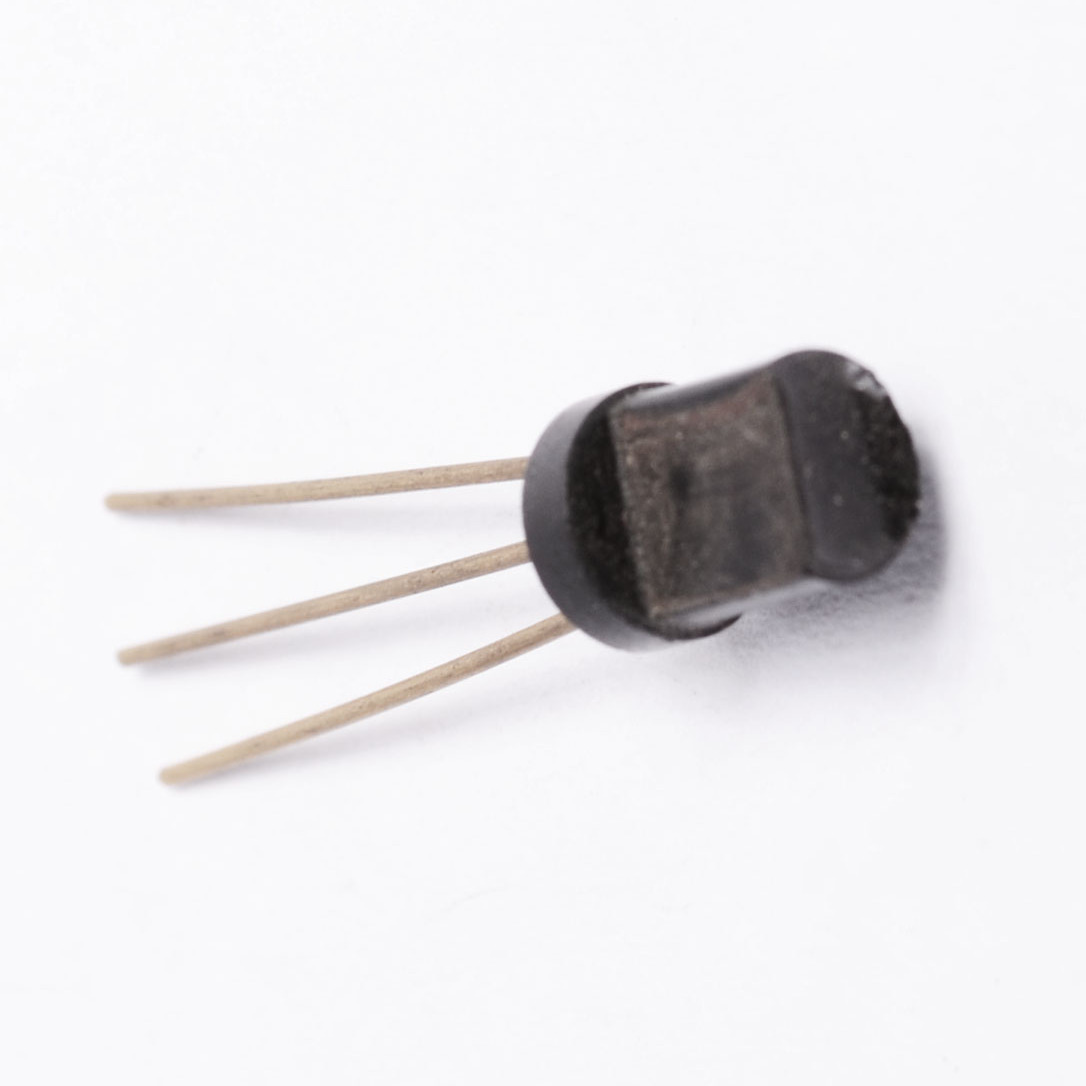

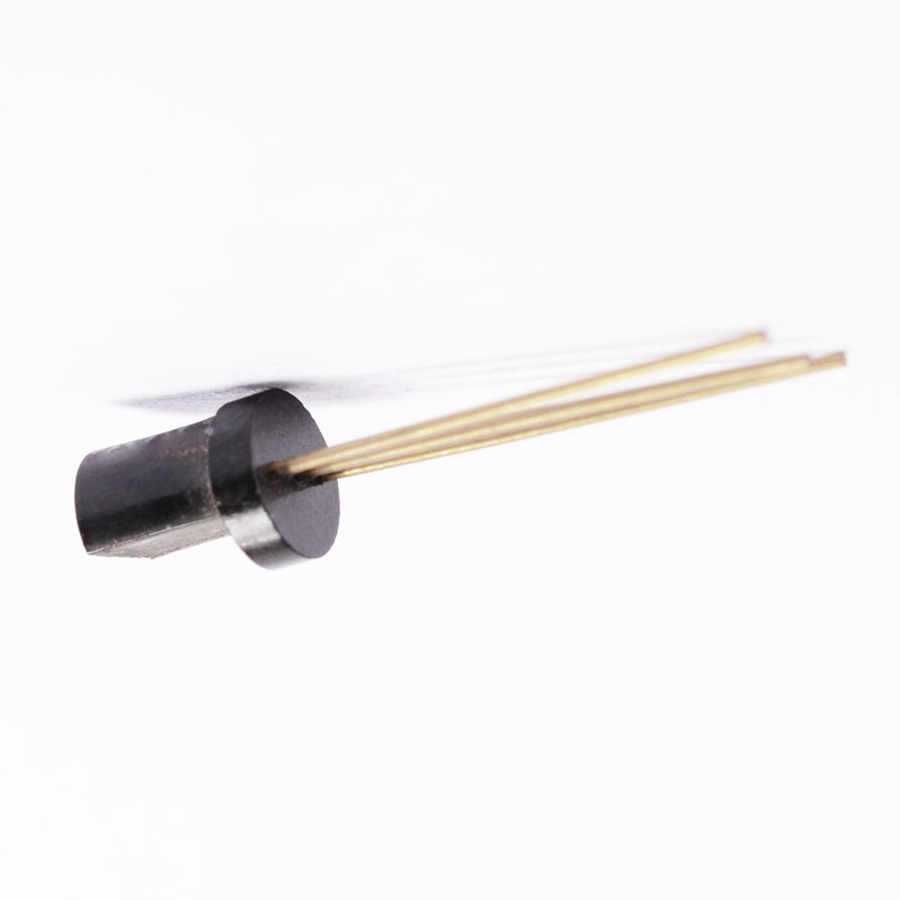

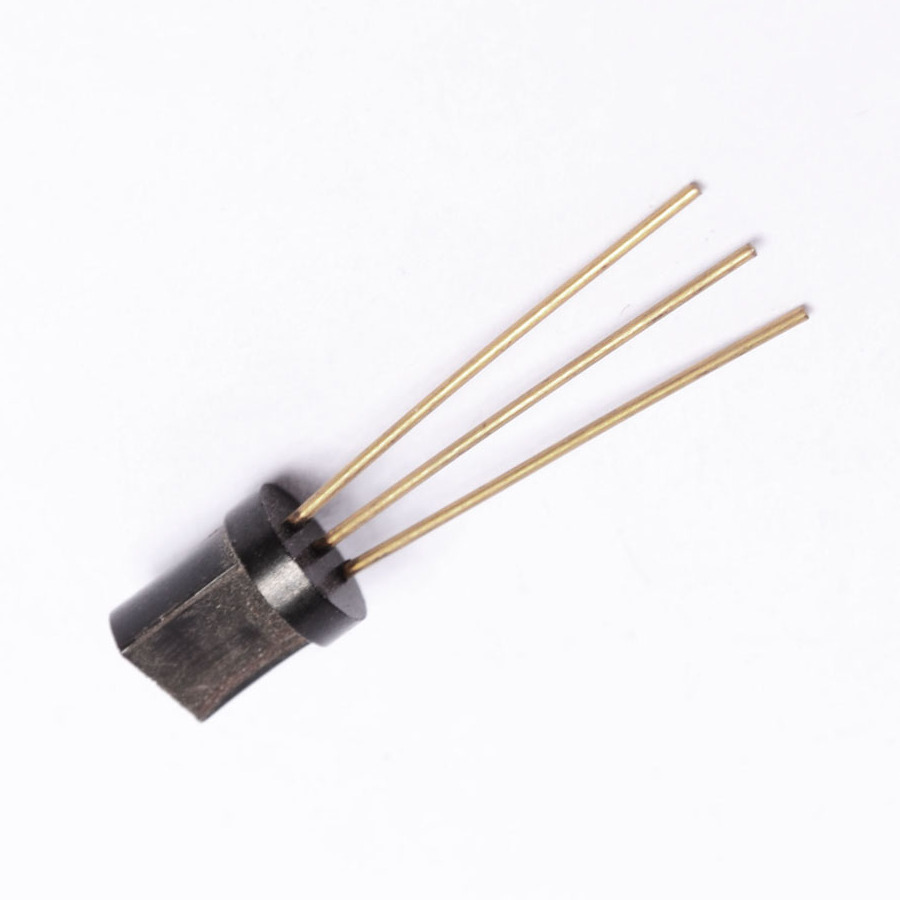

2N3414 Transistor Silicon NPN CASE: TO98 MAKE: National Semiconductor - NSC
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
2N3414 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO98
Manufacturer National Semiconductor - NSC
Vbr CBO 25
Vbr CEO 25
Max. PD (W) 620m
C(ob) (F) 10p
Derate (Amb) (W/°C) 2.6m
hfe 75
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 100M
@VCE (test) (V) 4.5
Oper. Temp (°C) Max. 150
@Ic (A) 2.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.36 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 75
SKU 115074
