2N3478

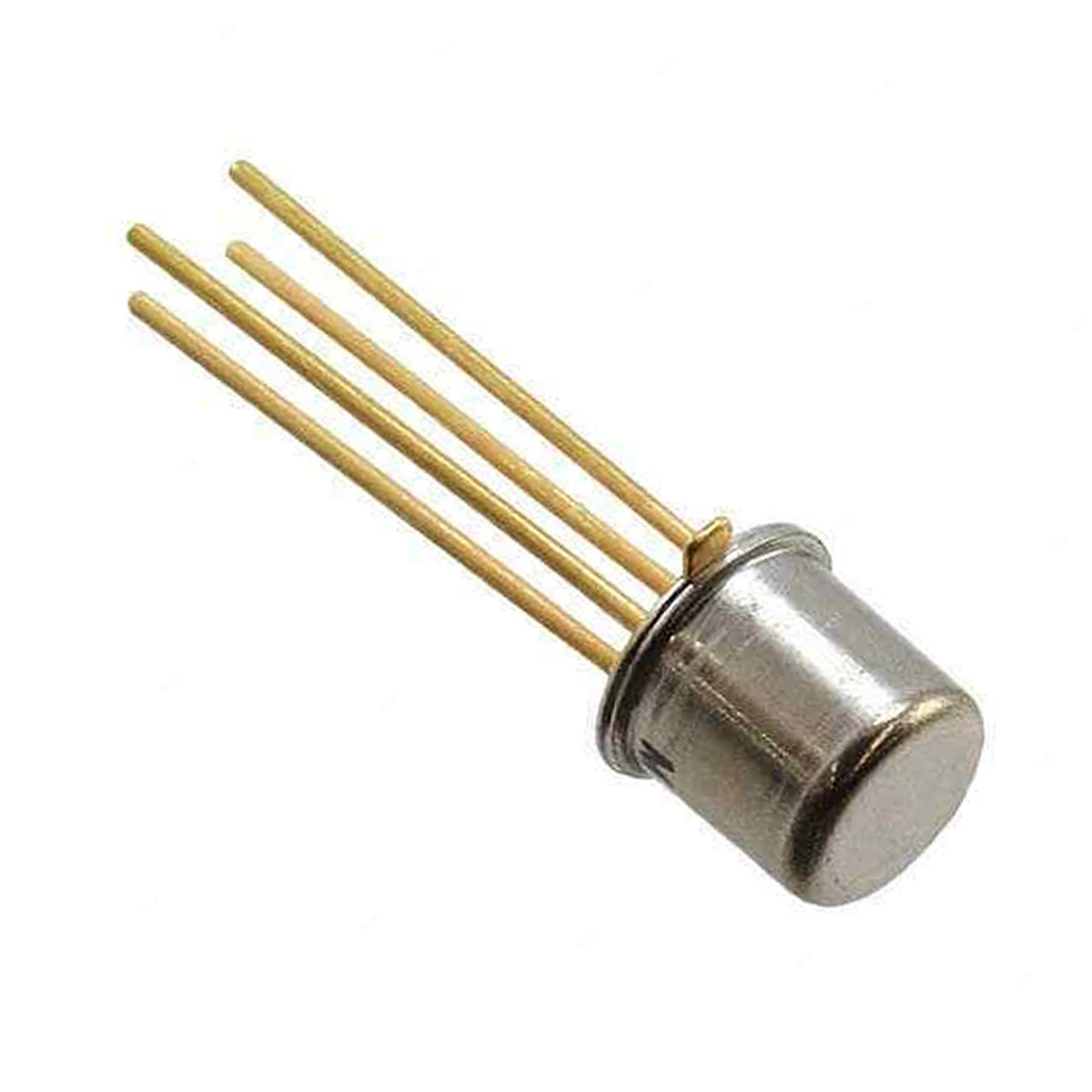

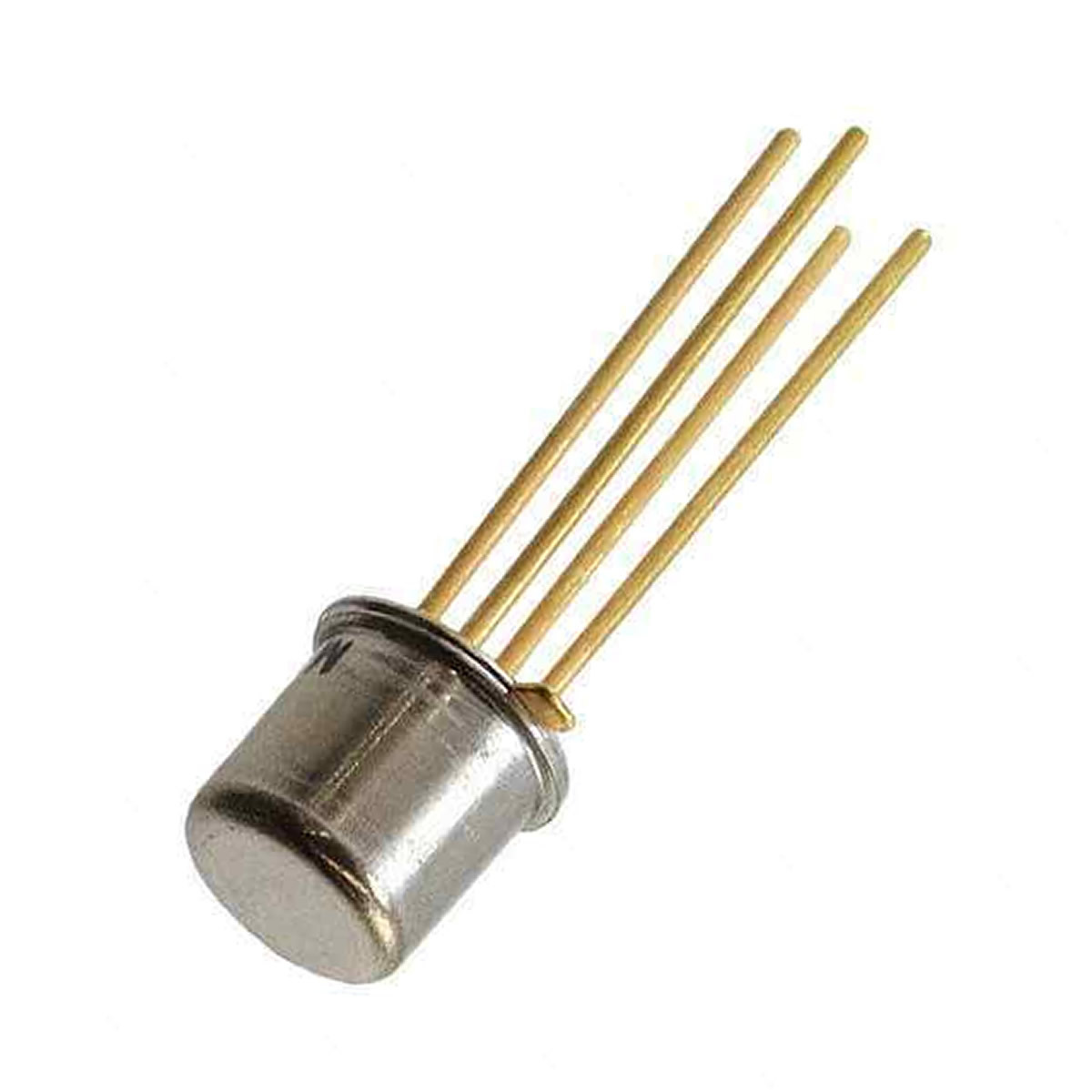

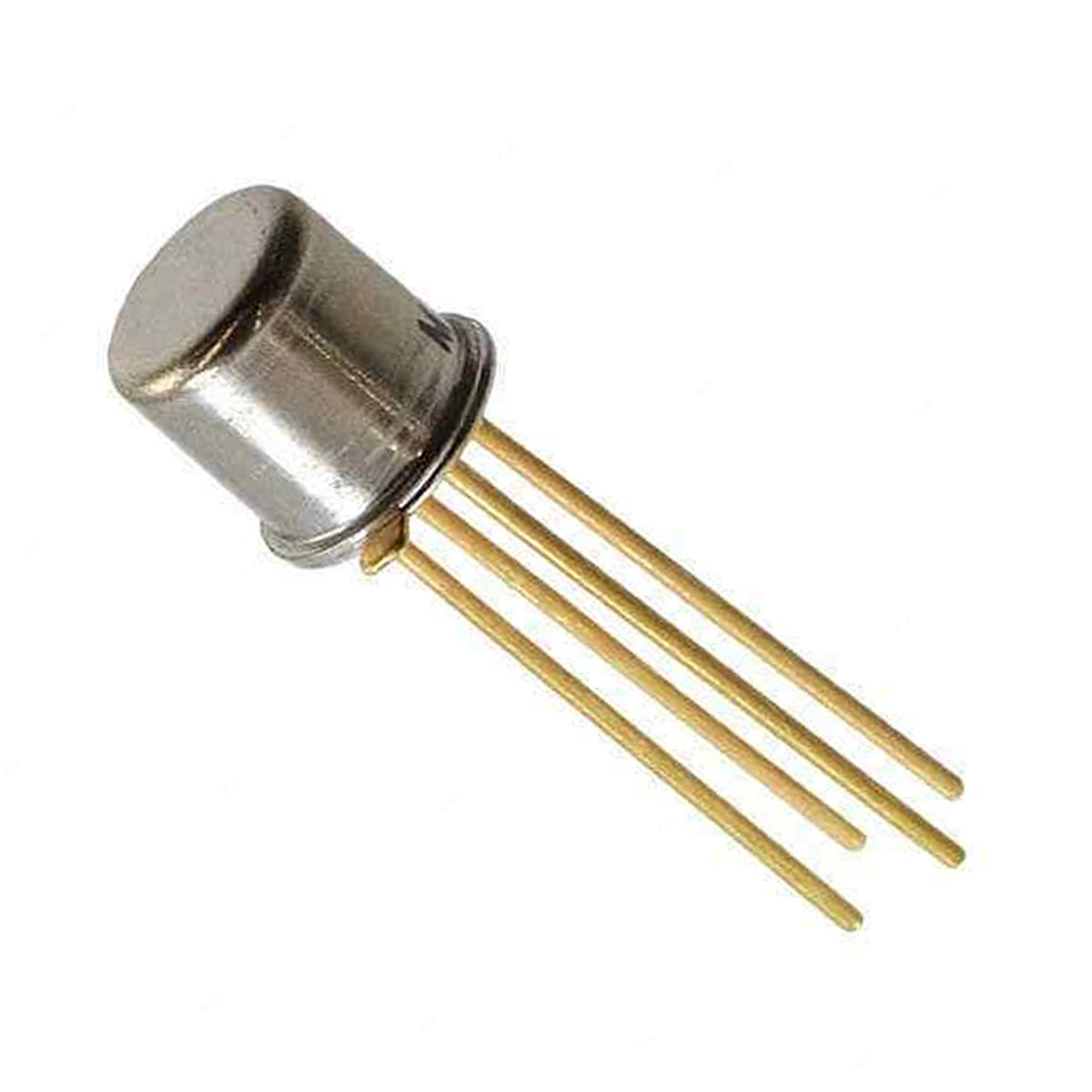

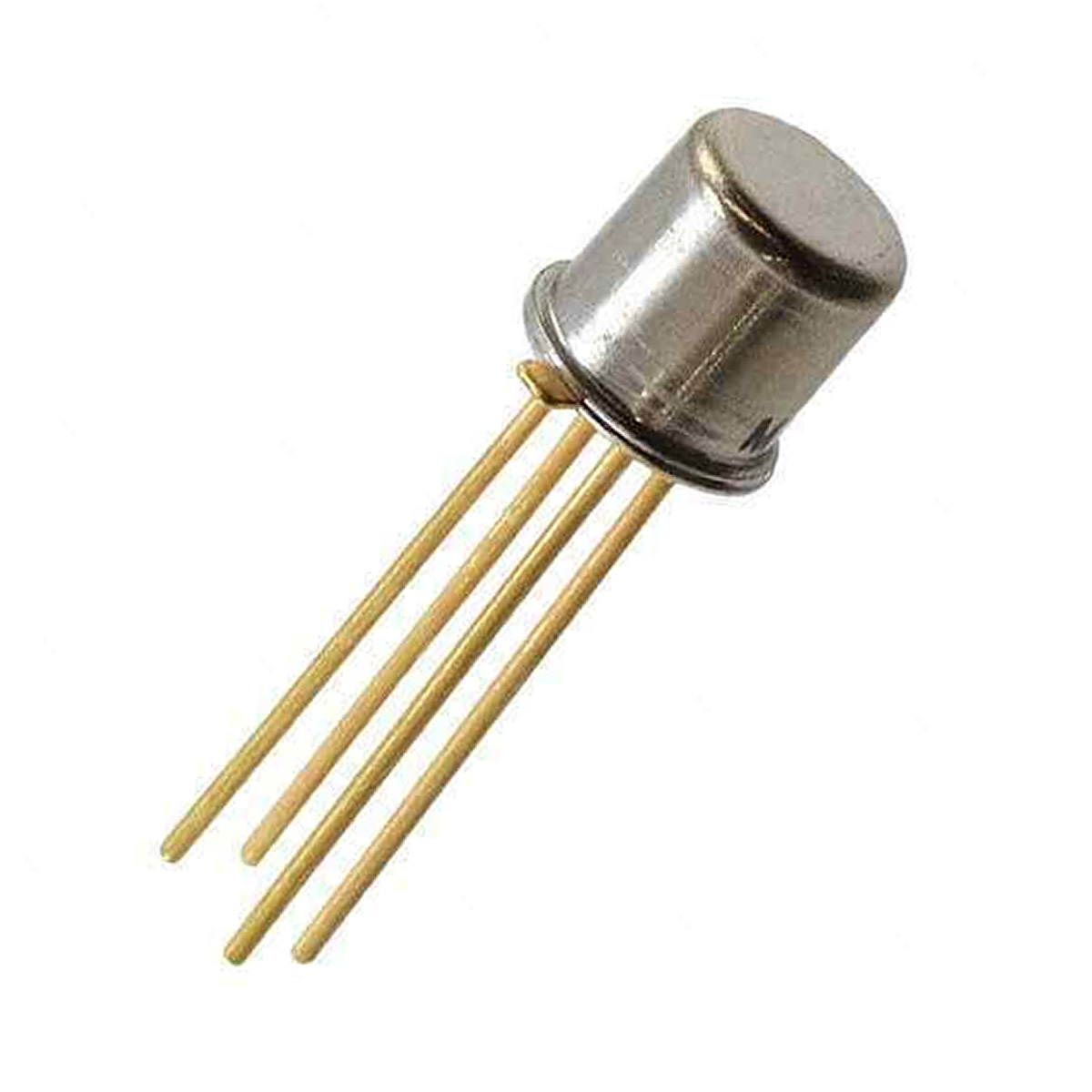

View detailed images (4)

2N3478

SKU: 2N3478
2N3478 Transistor Silicon NPN CASE: TO72-4 MAKE: Generic
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 11 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2N3478 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO72-4
Manufacturer Boca Semiconductor Corporation
Vbr CBO 30
Vbr CEO 15
Max. PD (W) 200m
C(ob) (F) 1.0p
Derate (Amb) (W/°C) 1.1m
hfe 25
Icbo Max. @Vcb Max. (A) 20n
Polarity NPN
Trans. Freq (Hz) Min. 750M
@VCE (test) (V) 8.0
Oper. Temp (°C) Max. 175
@Ic (A) 2.0m
Pinout Equivalence Number 4-20
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 2 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 1 pF
Transition Frequency (ft): 750 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 394235
