2N3510
View detailed images (5)

2N3510

SKU: 2N3510

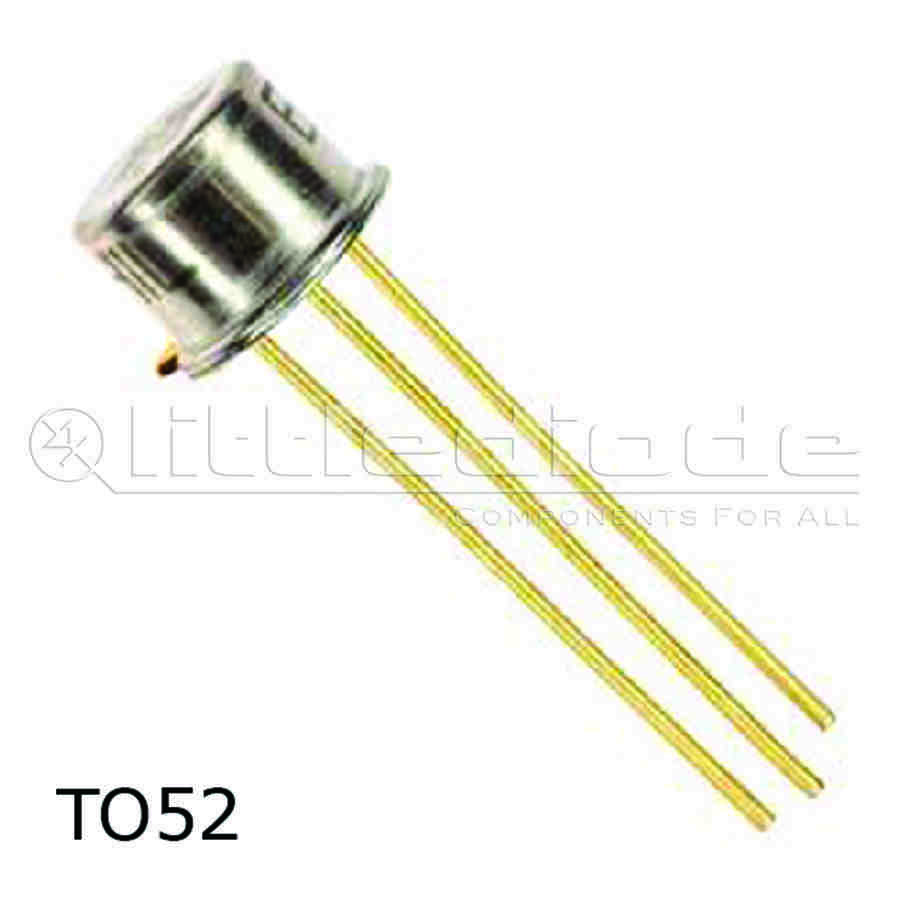

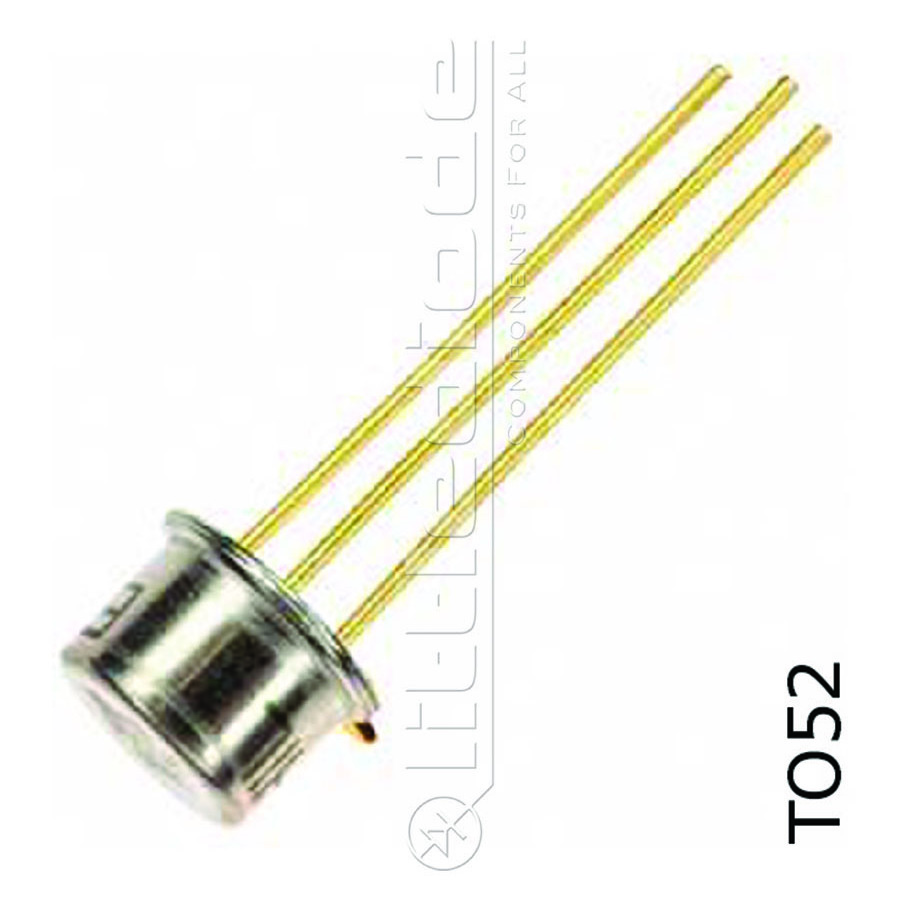

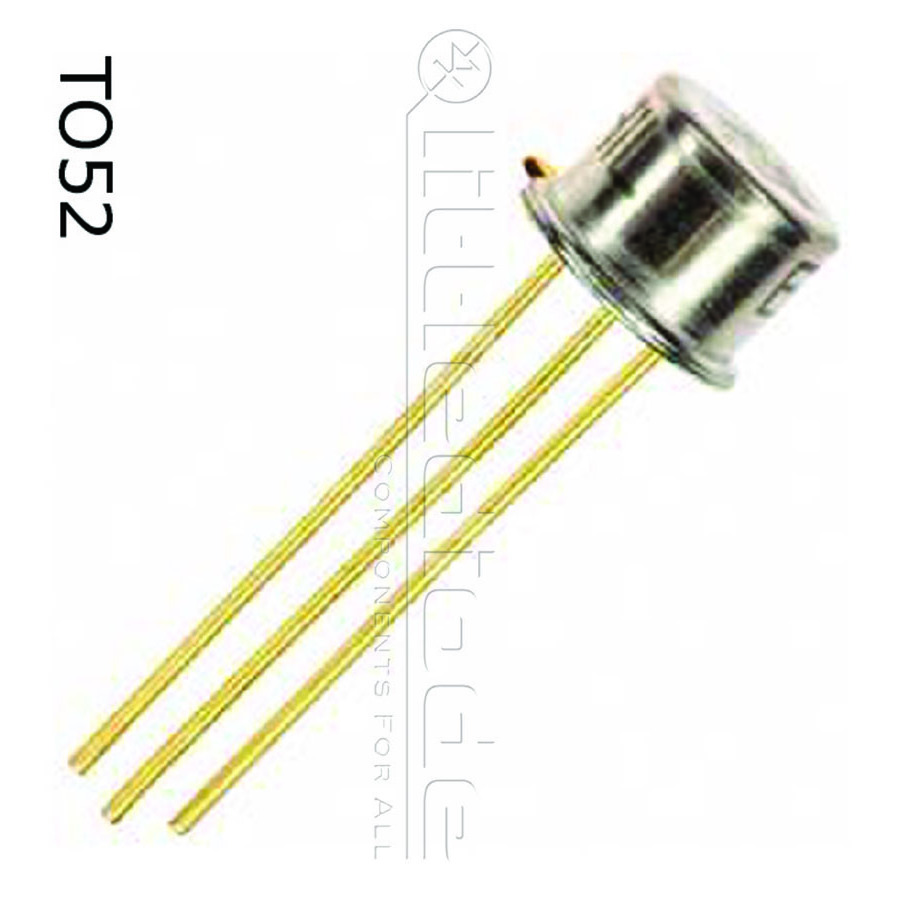

2N3510 Transistor Silicon NPN CASE: TO52 MAKE: Motorola Semiconductor
Price: £4.79
+ VAT 20% for UK purchases
£4.79
Qty
+ VAT 20% for UK purchases
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO52
Manufacturer Motorola Semiconductor
Vbr CBO 40
Vbr CEO 10
Max. PD (W) 360m
C(ob) (F) 4.0p
Derate (Amb) (W/°C) 2.0m
hfe 12
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 25n
Polarity NPN
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 175
@Ic (A) 1.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.36 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 10 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 4 pF
Transition Frequency (ft): 350 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 312870
