2N3521
View detailed images (12)

2N3521

SKU: 2N3521

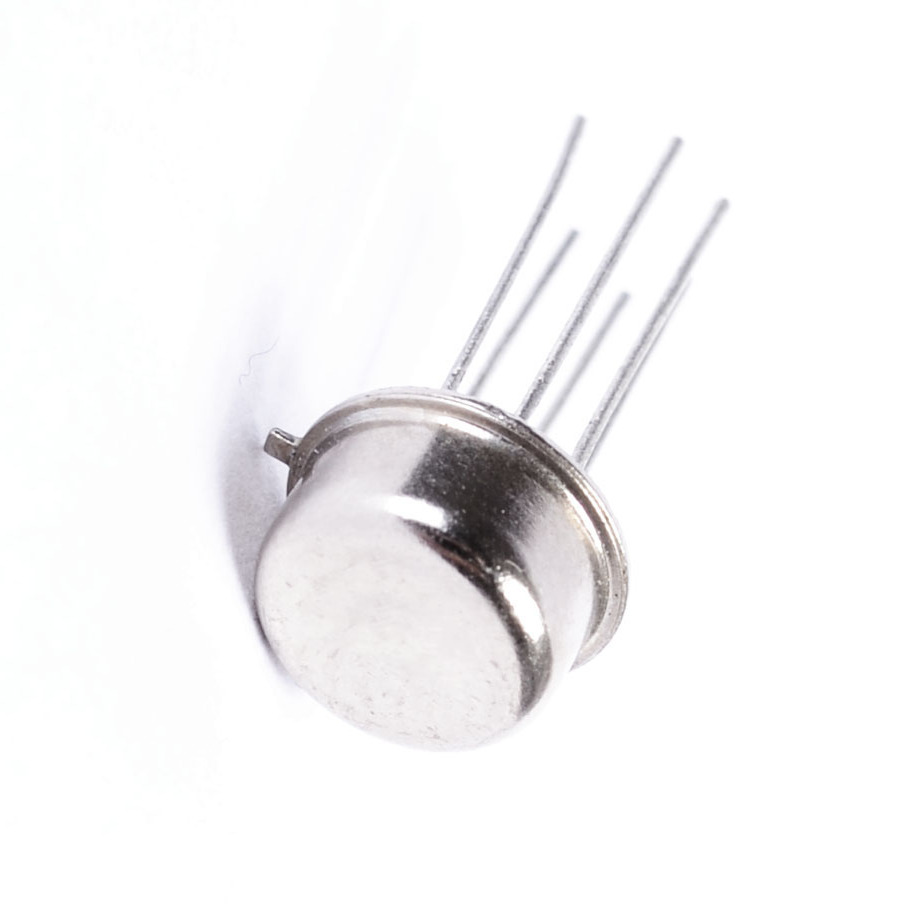

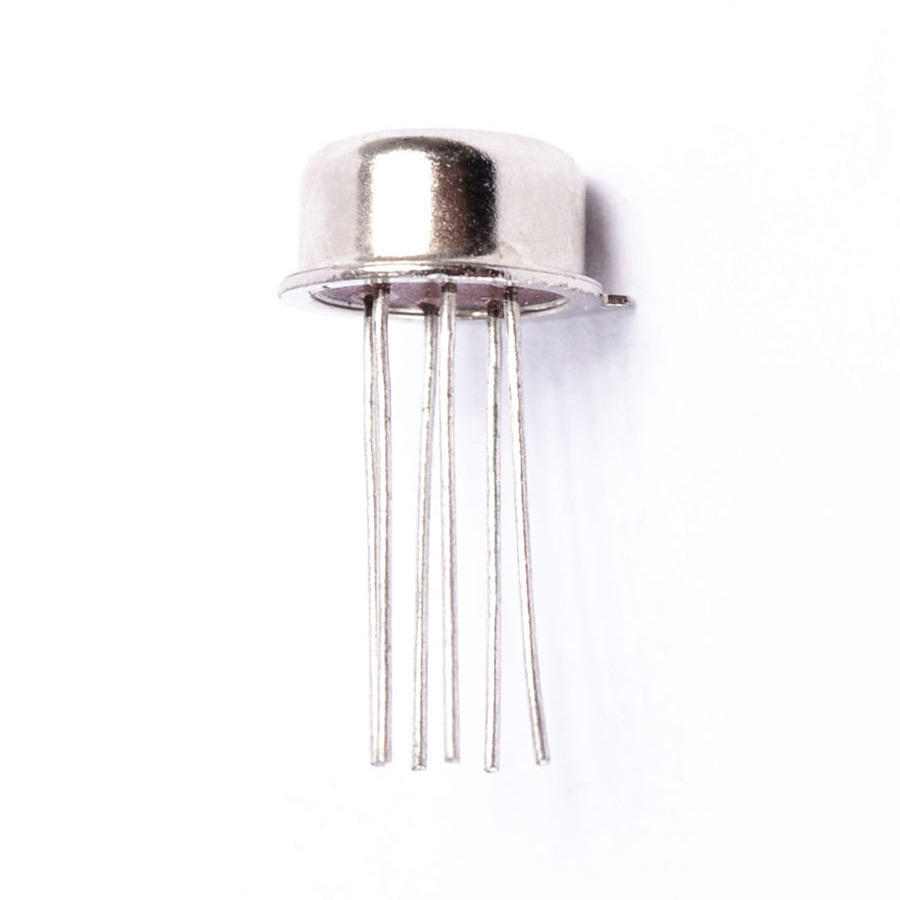

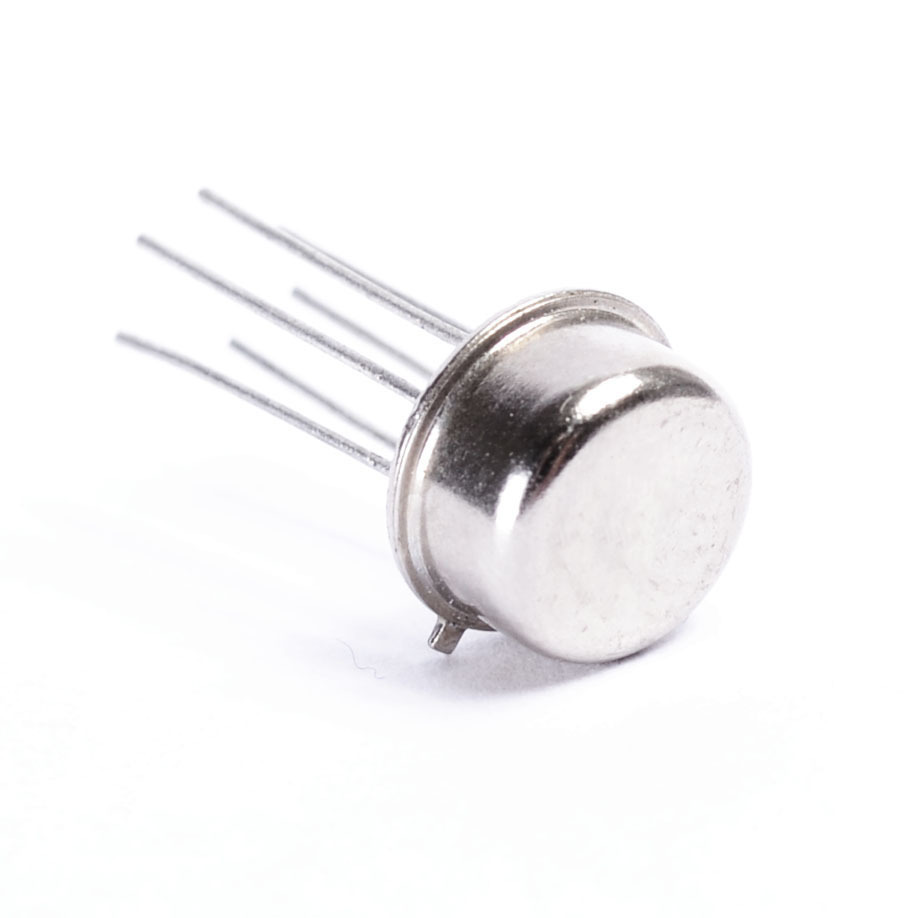

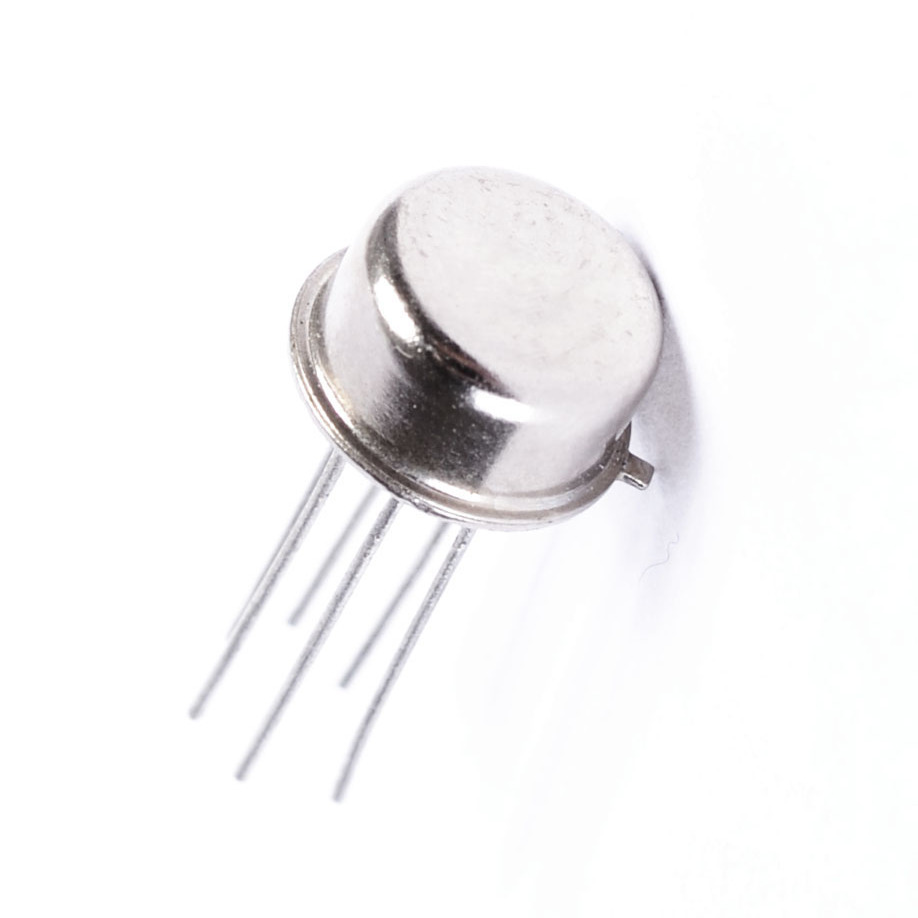

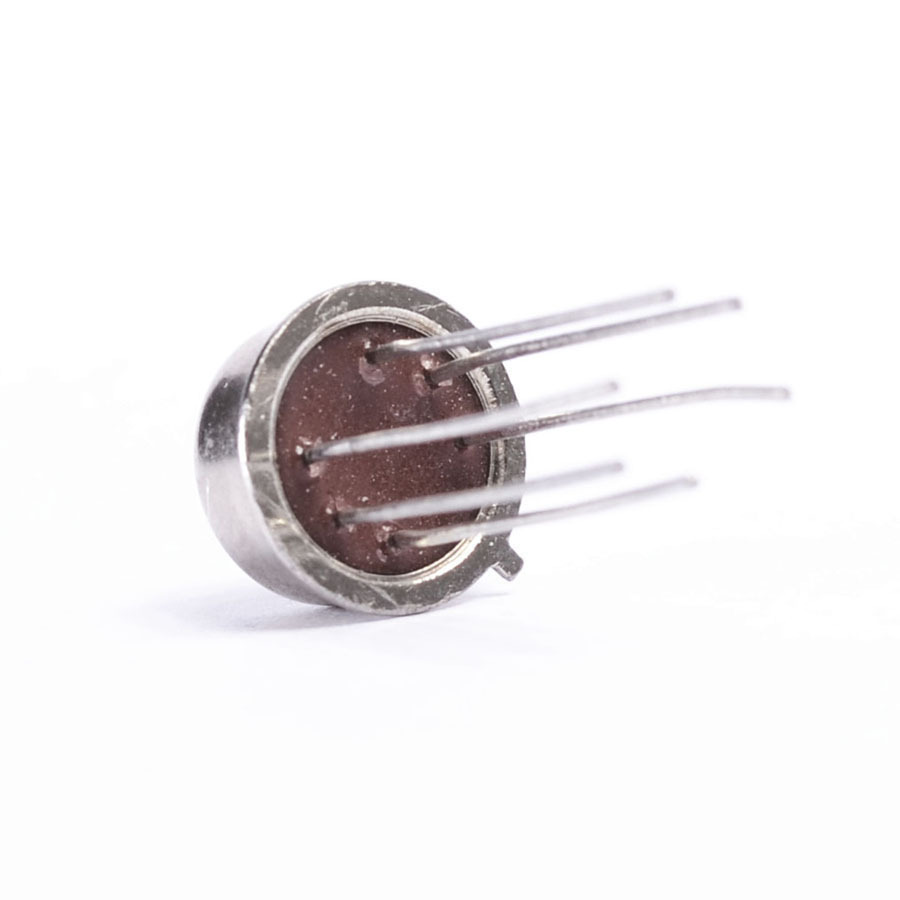

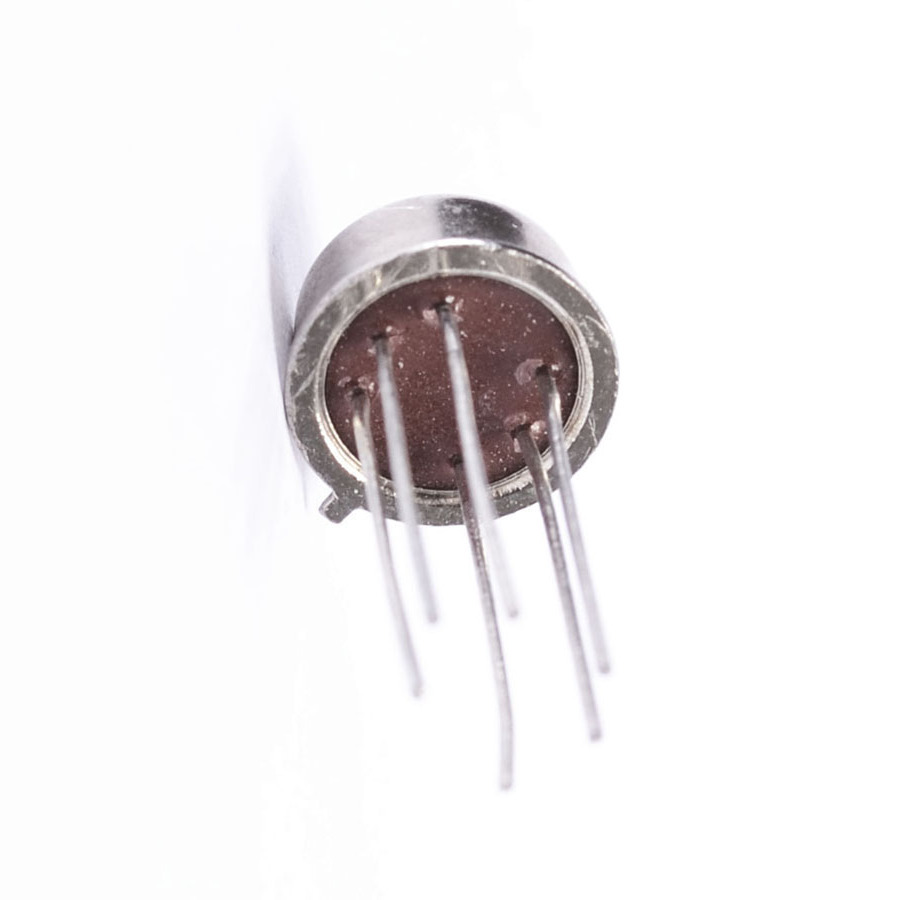

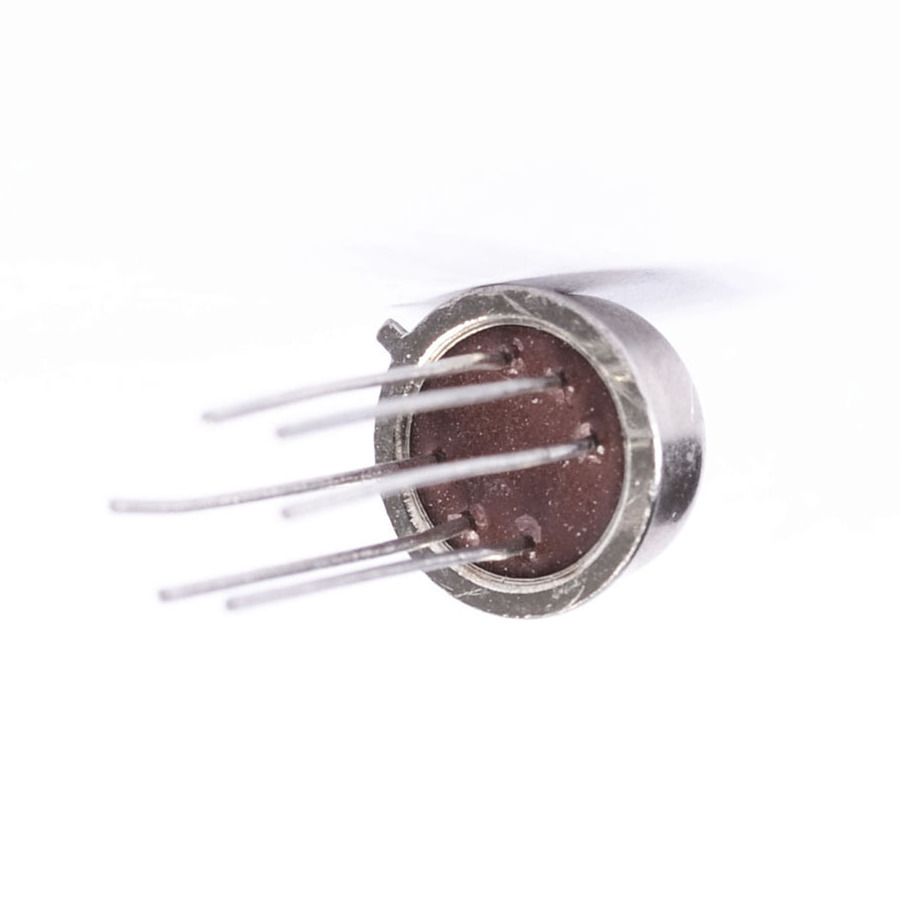

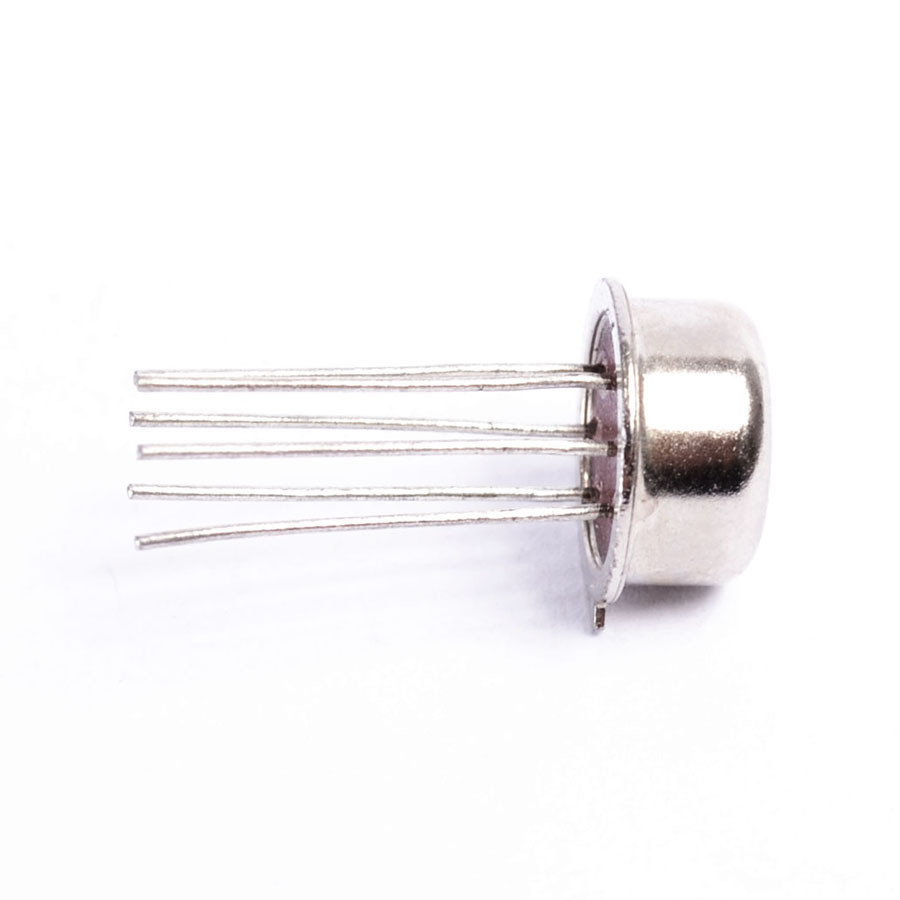

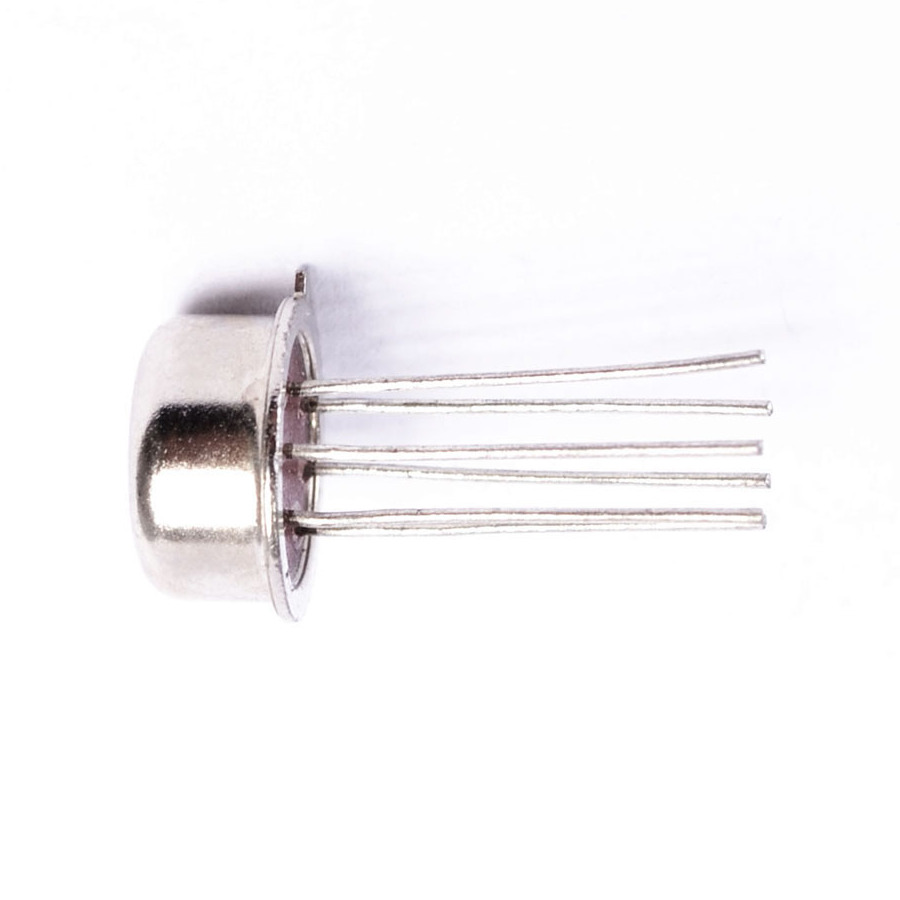

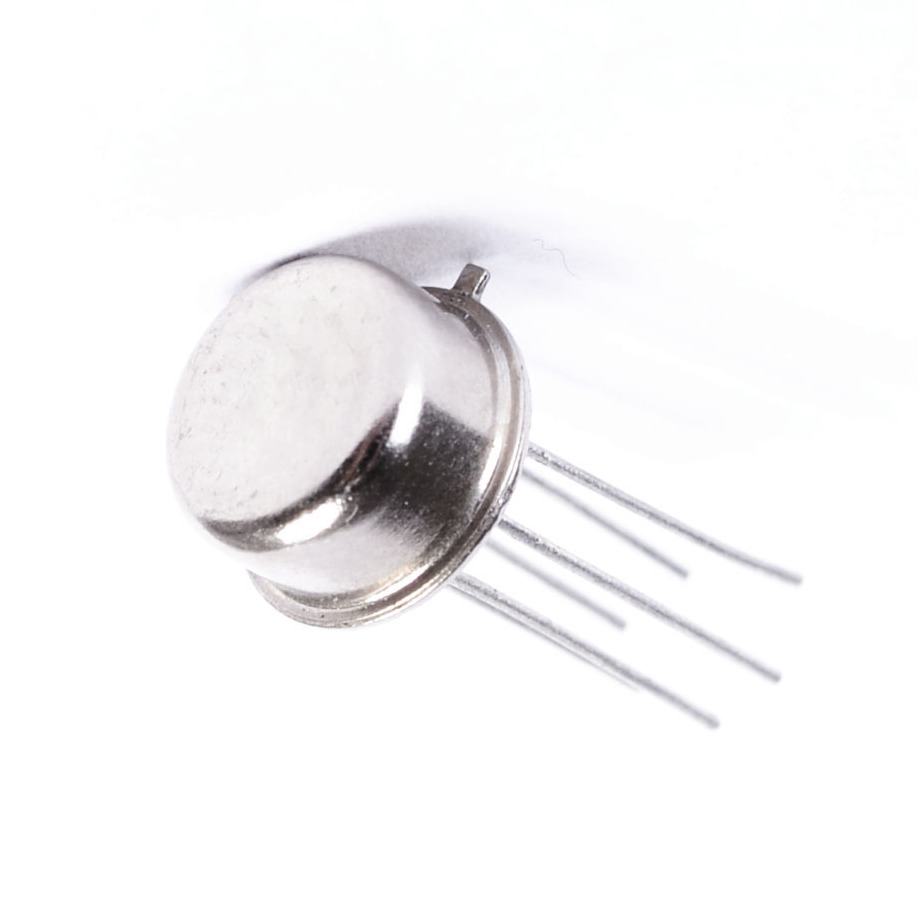

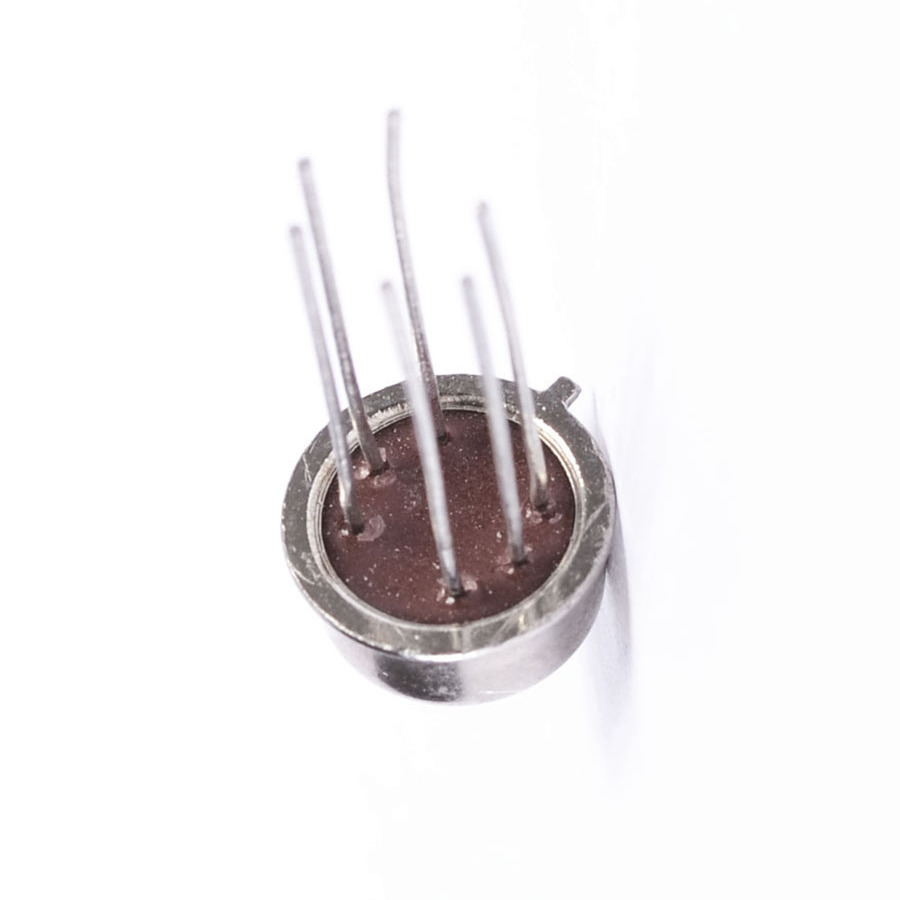

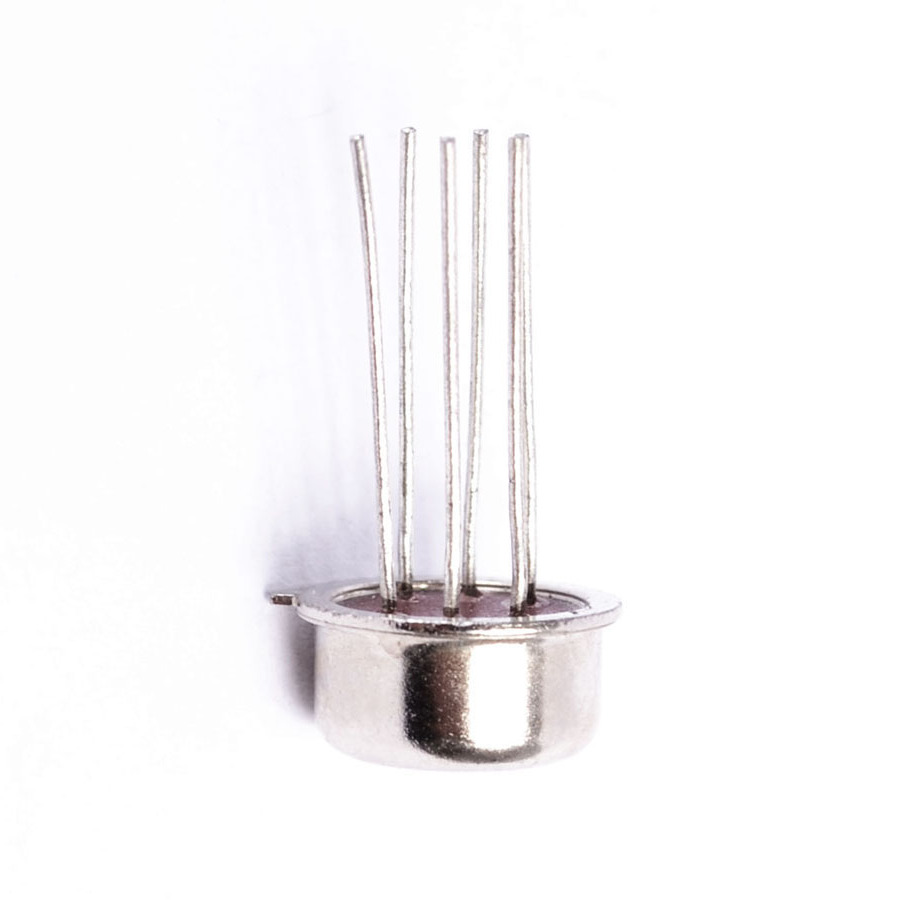

2N3521 Transistor Silicon NPN CASE: TO77 MAKE: General Electric
Product specifications
Type Transistor Silicon NPN
Case TO77
Manufacturer General Electric
Min hFE 100
Mat. Silicon Logic
Polarity NPN
PD Max. (W) 1.5
@VCE (test) (V) 5.0
@Ic (test) 10u
Vceo Max. 45
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.8 W
Maximum Collector-Base Voltage |Vcb| 70 V
Maximum Collector-Emitter Voltage |Vce| 45 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 8 pF
Transition Frequency (ft): 30 MHz
Forward Current Transfer Ratio (hFE), MIN 155
SKU 774630
