2N3563
View detailed images (12)

2N3563

SKU: 2N3563

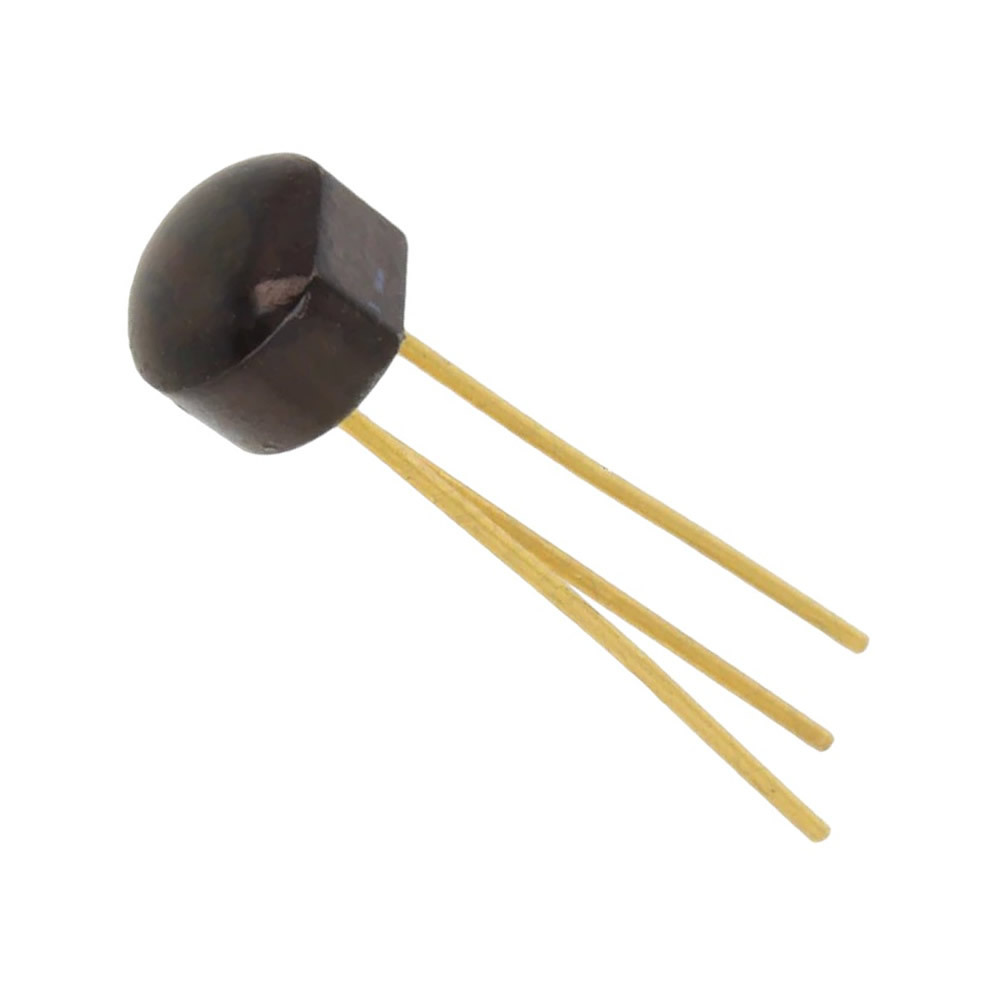

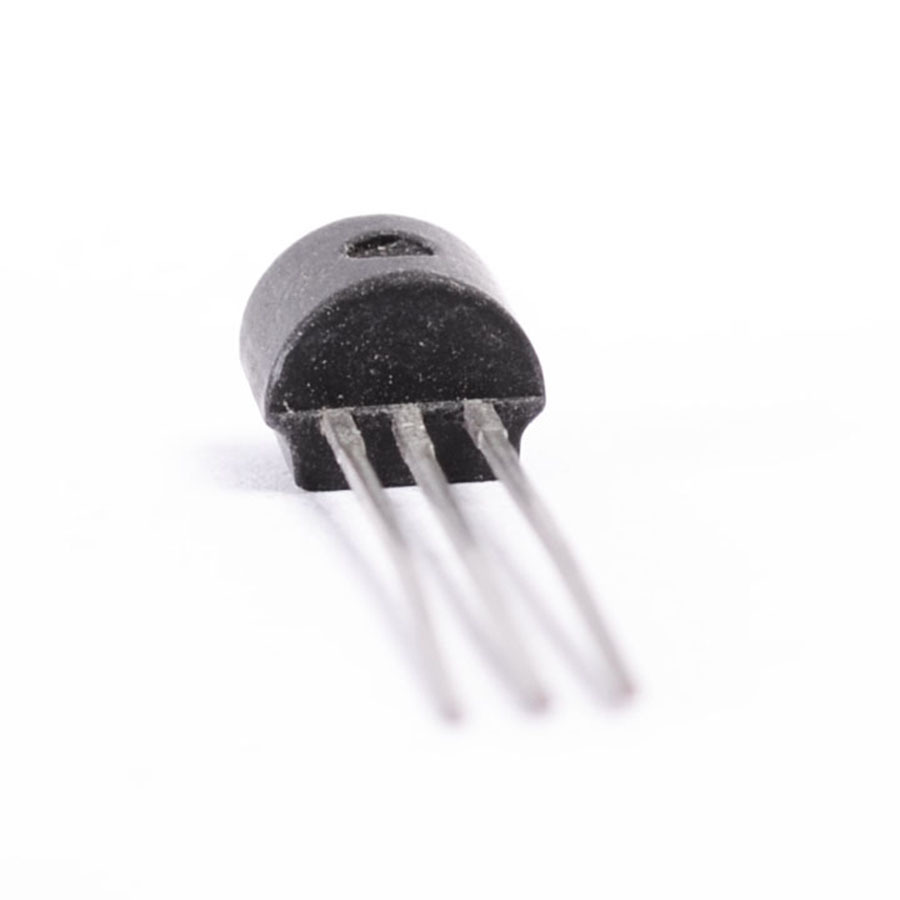

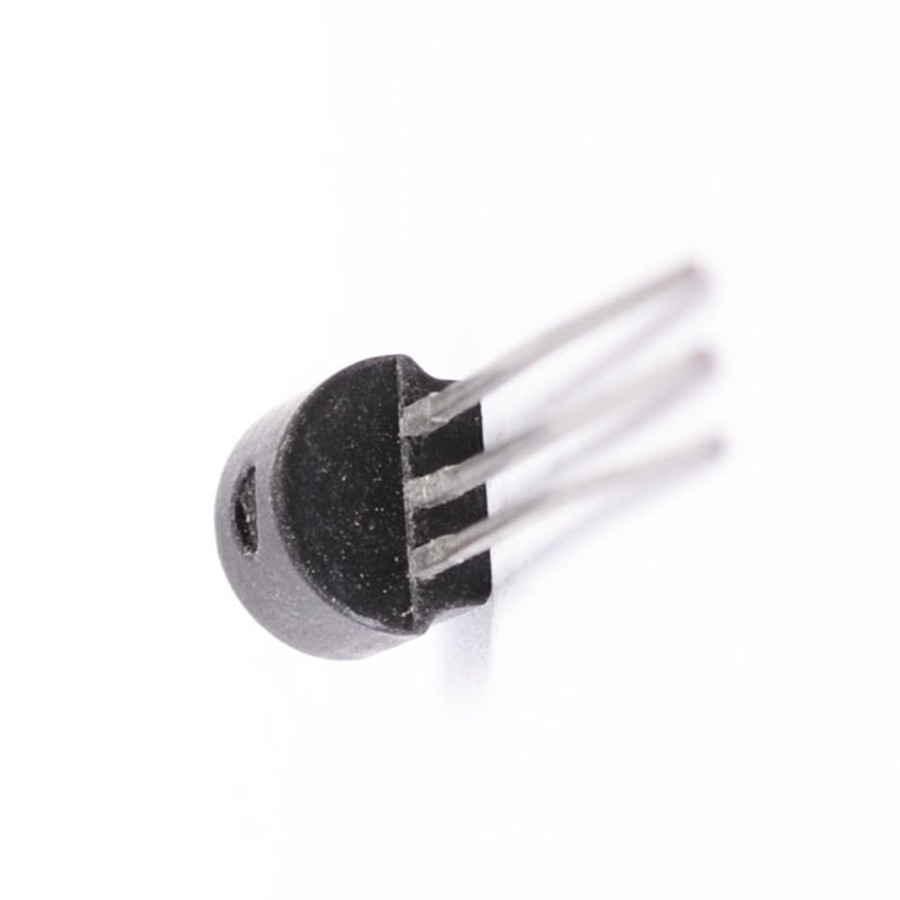

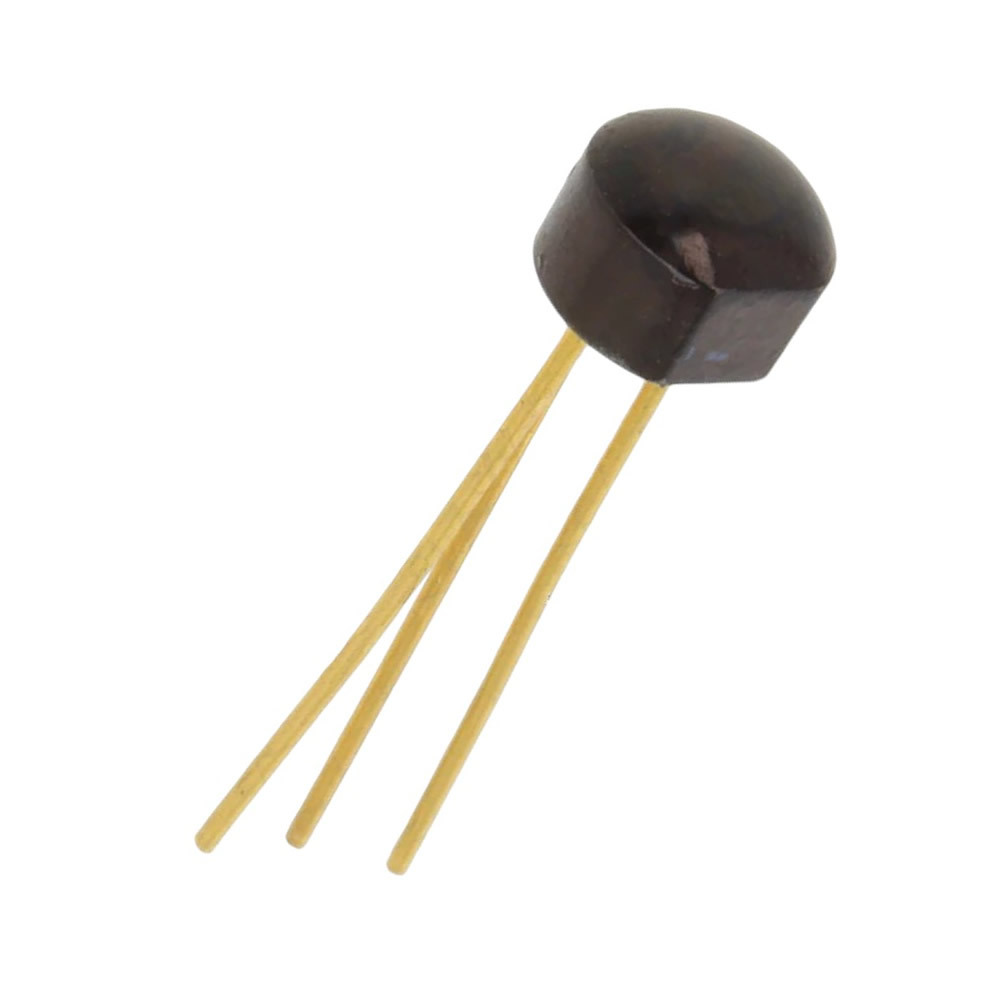

2N3563 Transistor Silicon NPN CASE: TO106 MAKE: Generic
Price:
£16.79 Inc. VAT (£13.99 Ex. VAT)
£16.79 Inc. VAT (£13.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO106
Manufacturer Generic
Vbr CBO 30
Vbr CEO 12
Max. PD (W) 200m
C(ob) (F) 1.7p
Derate (Amb) (W/°C) 2.0m
hfe 20
Ic Max. (A) 50m
Icbo Max. @Vcb Max. (A) 50n
Polarity NPN
Trans. Freq (Hz) Min. 600M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 125
@Ic (A) 8.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 12 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 1.7 pF
Transition Frequency (ft): 600 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 115077
