2N3566
View detailed images (12)

2N3566

SKU: 2N3566

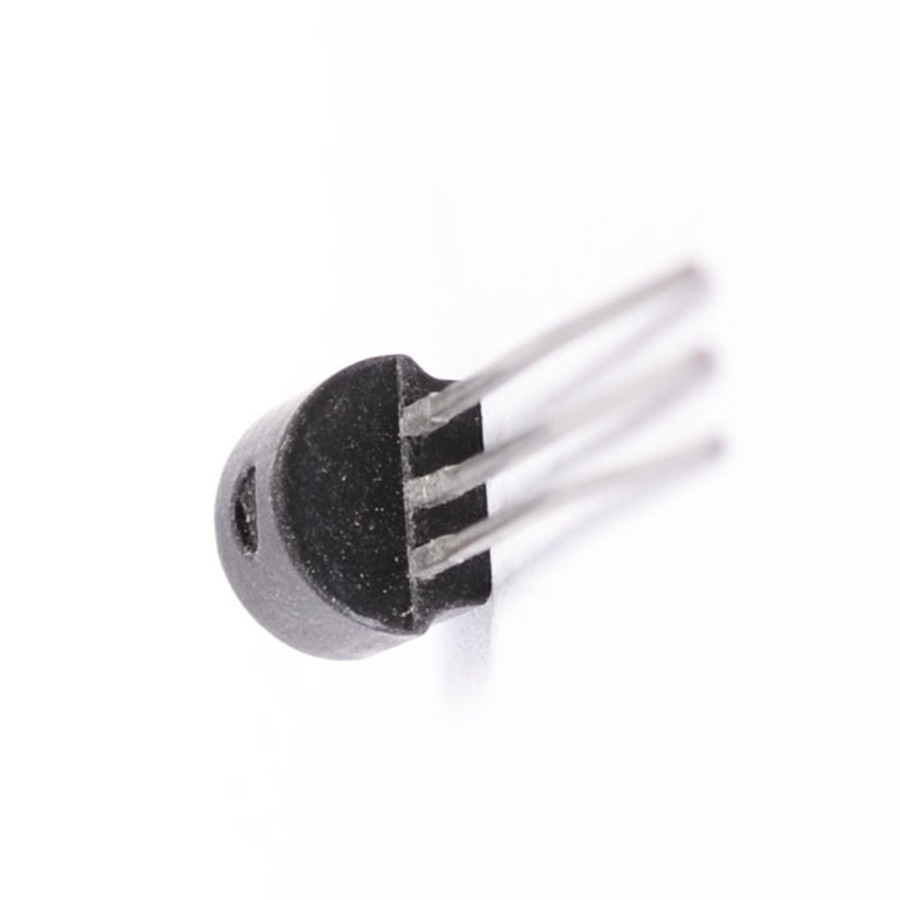

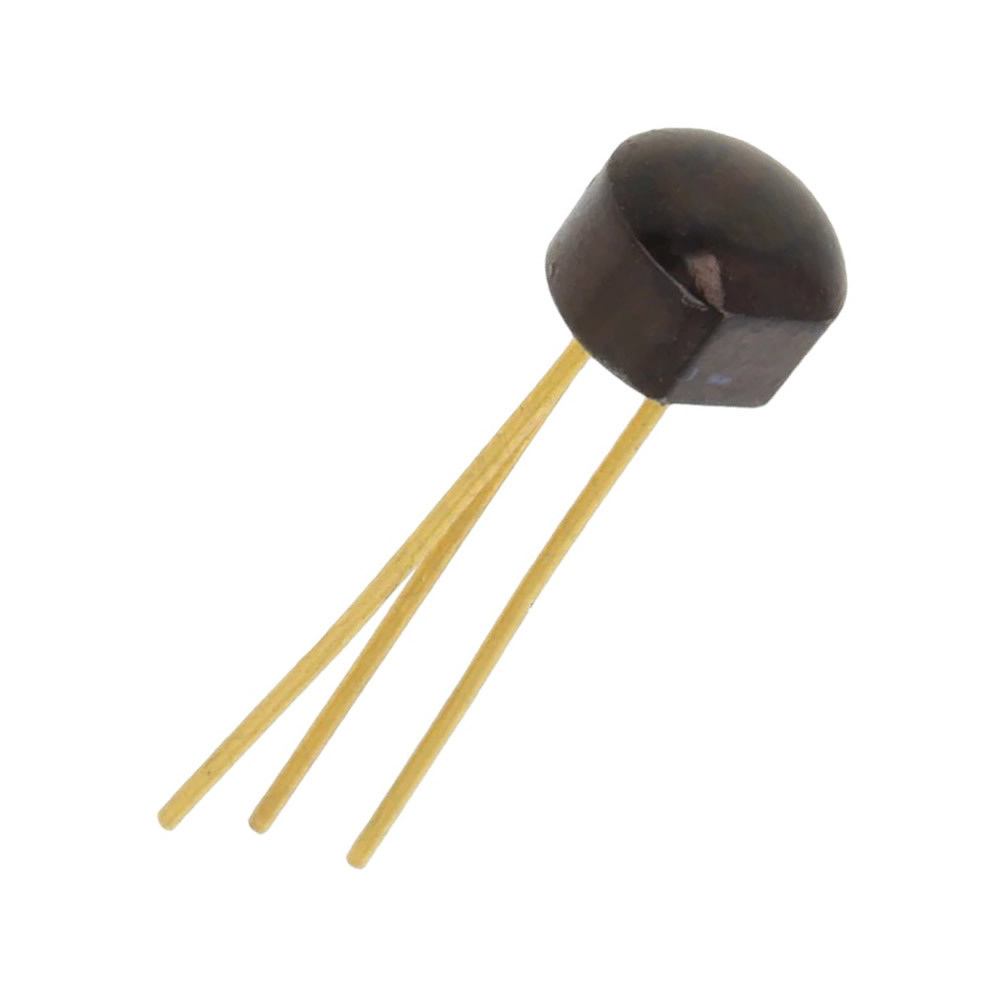

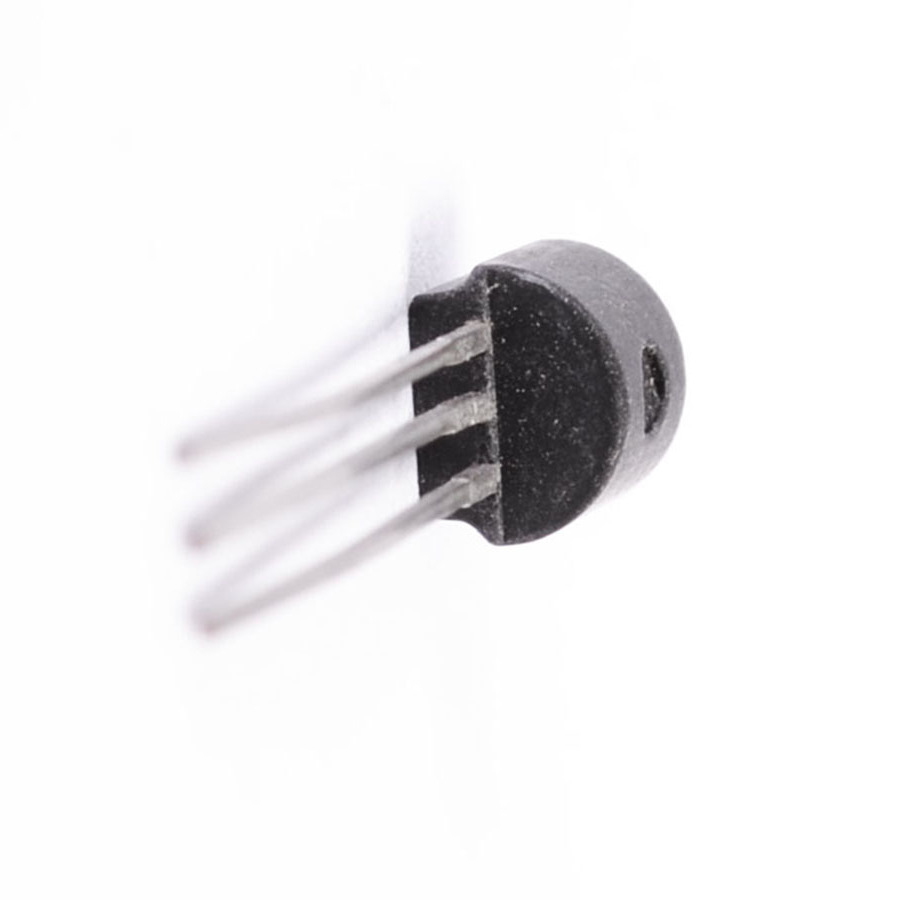

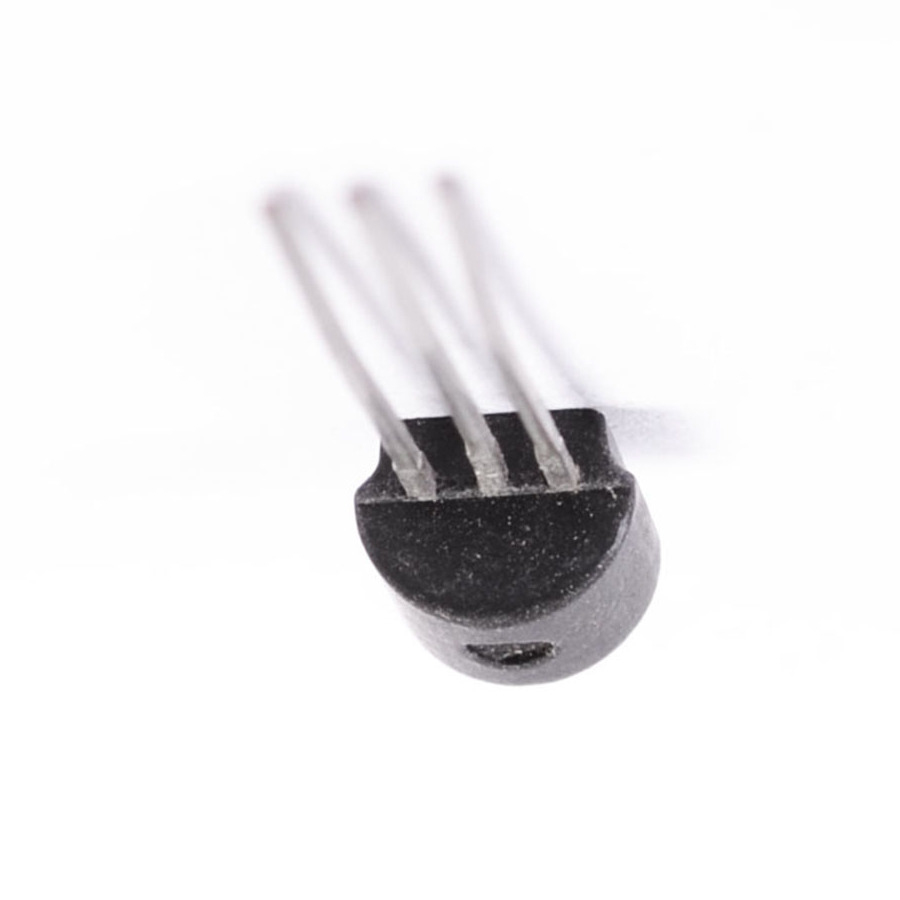

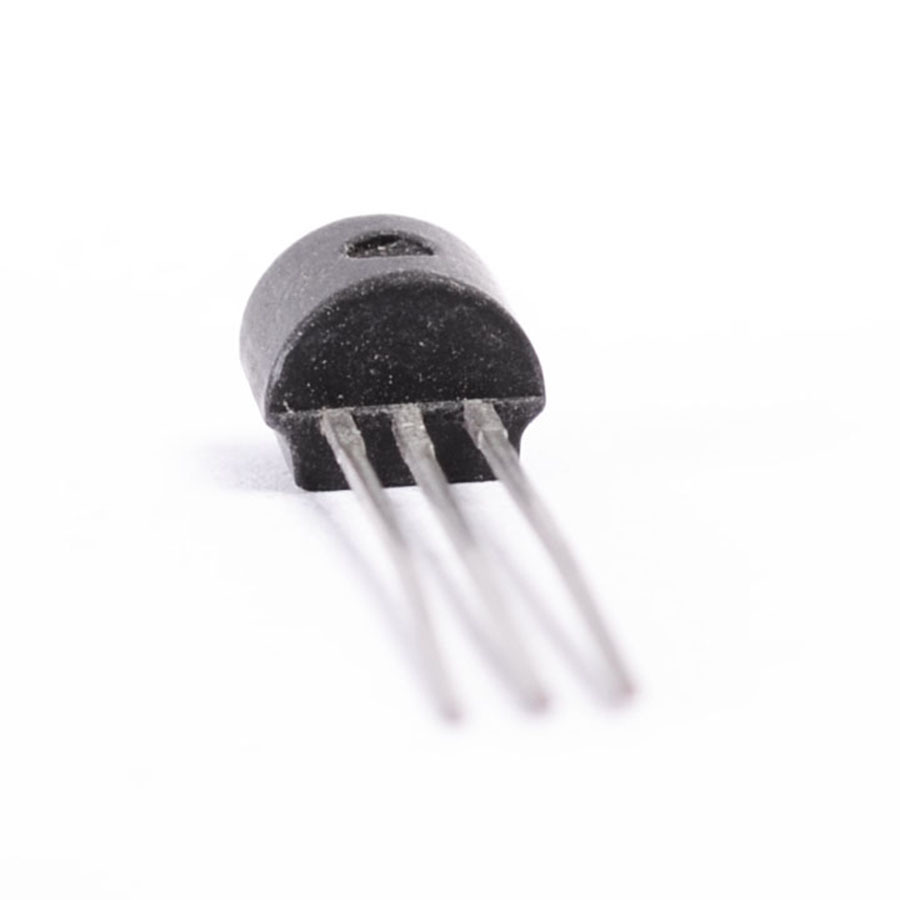

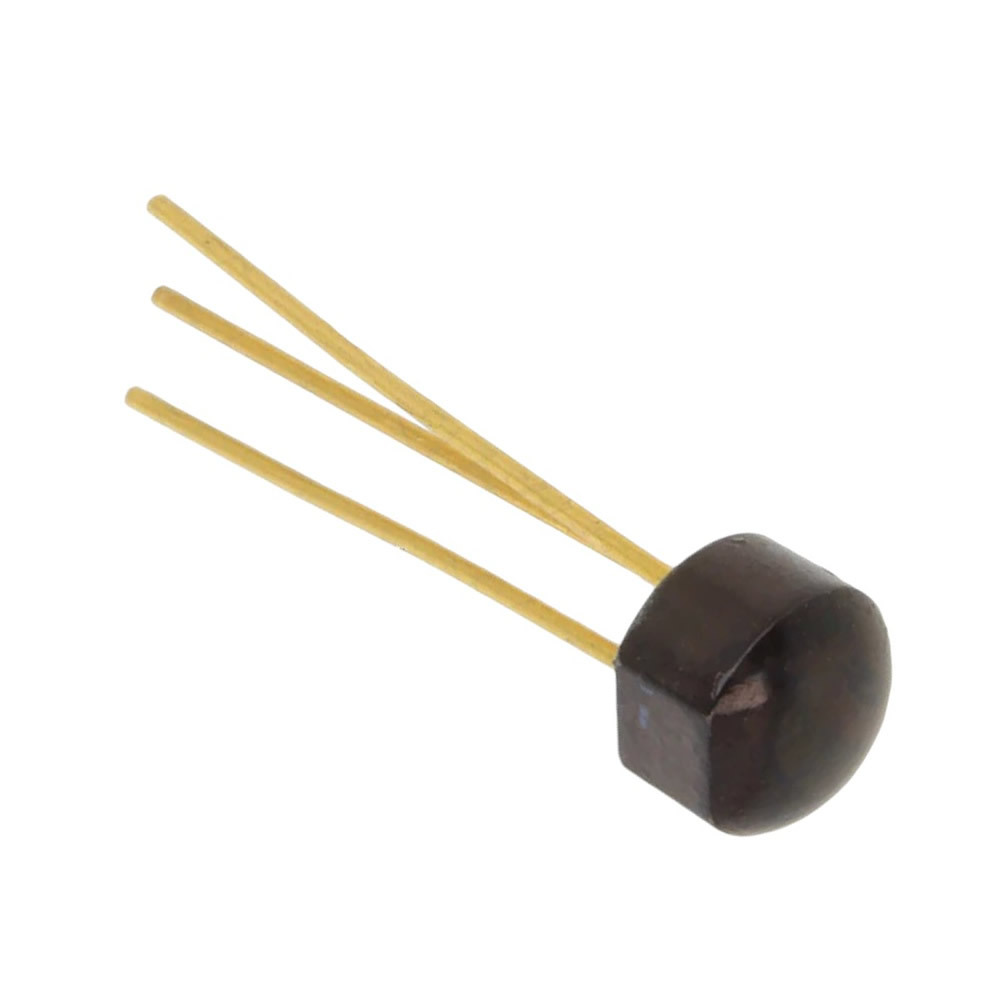

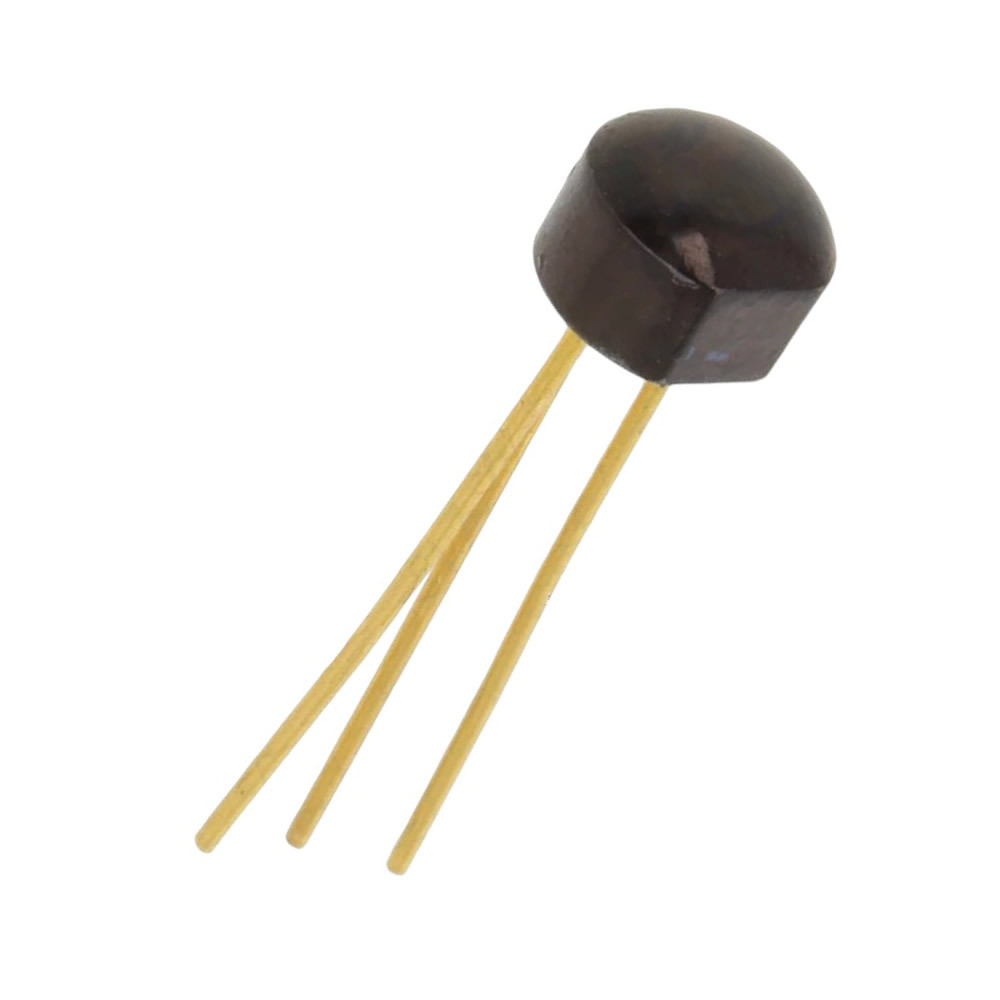

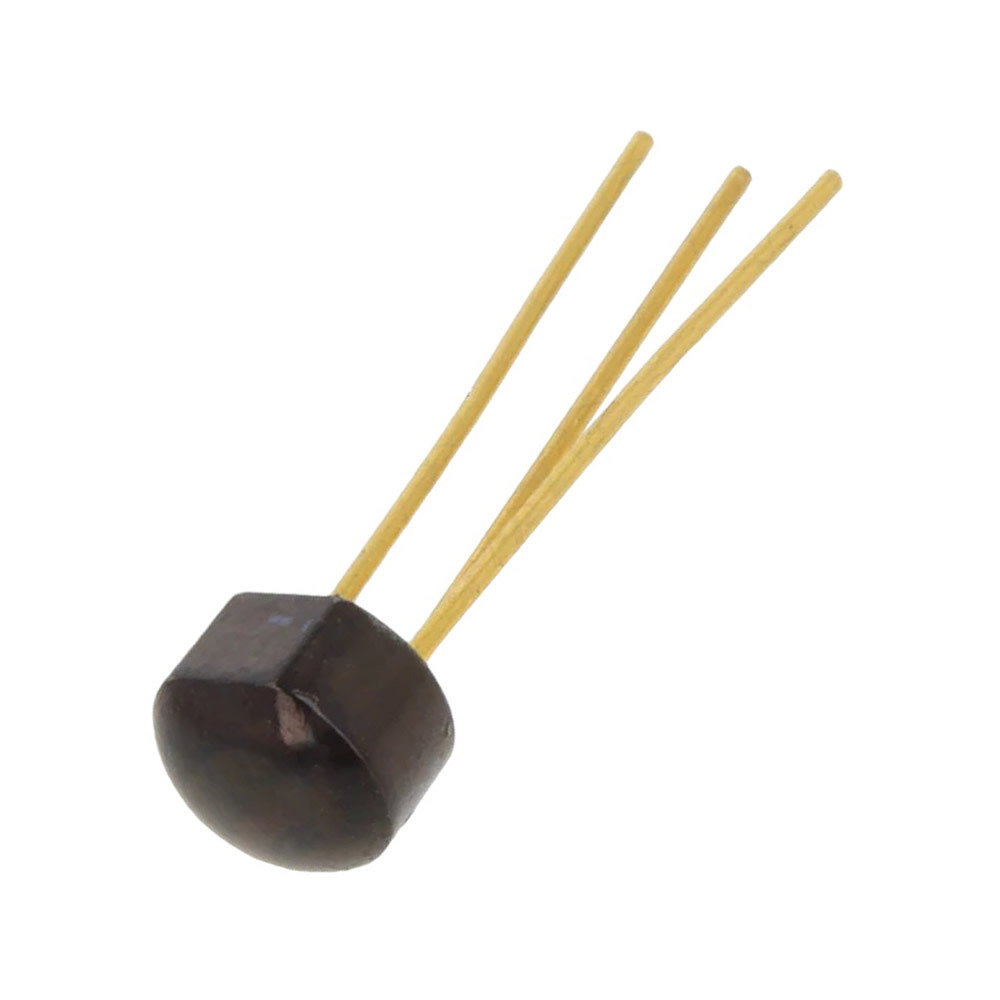

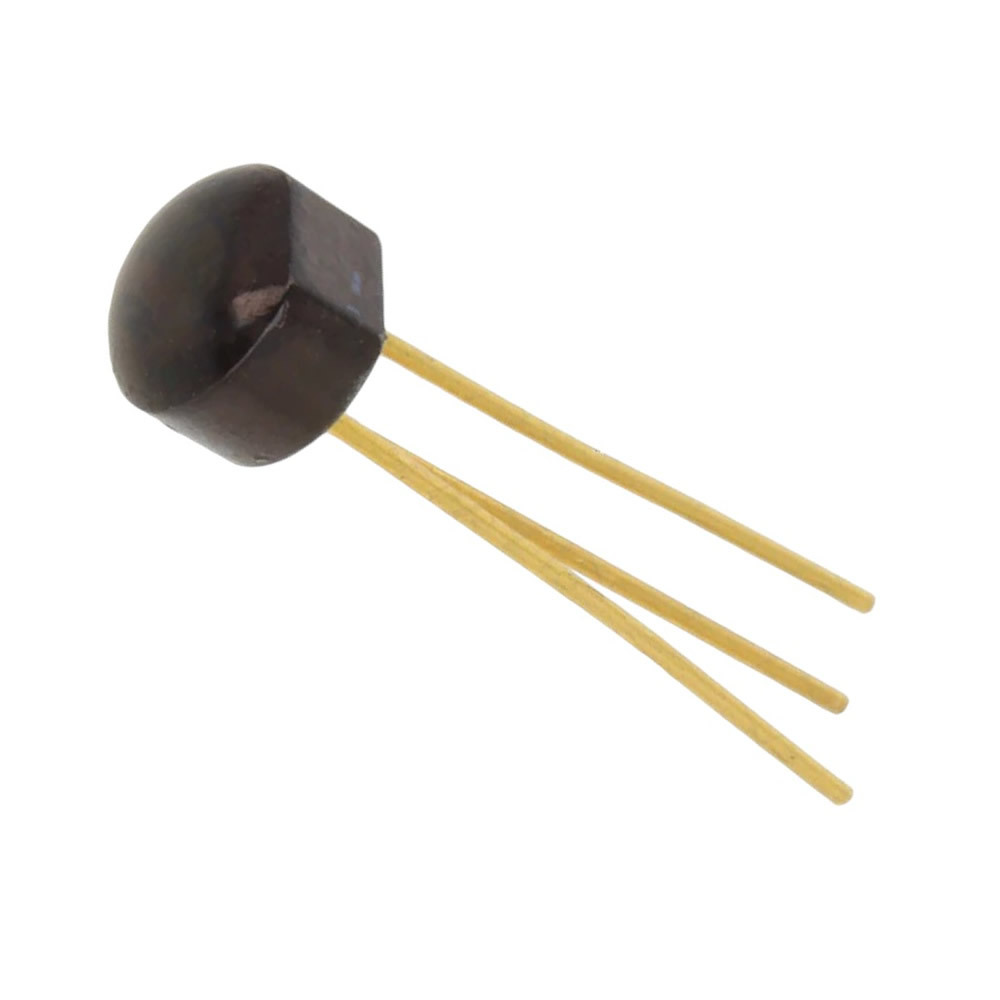

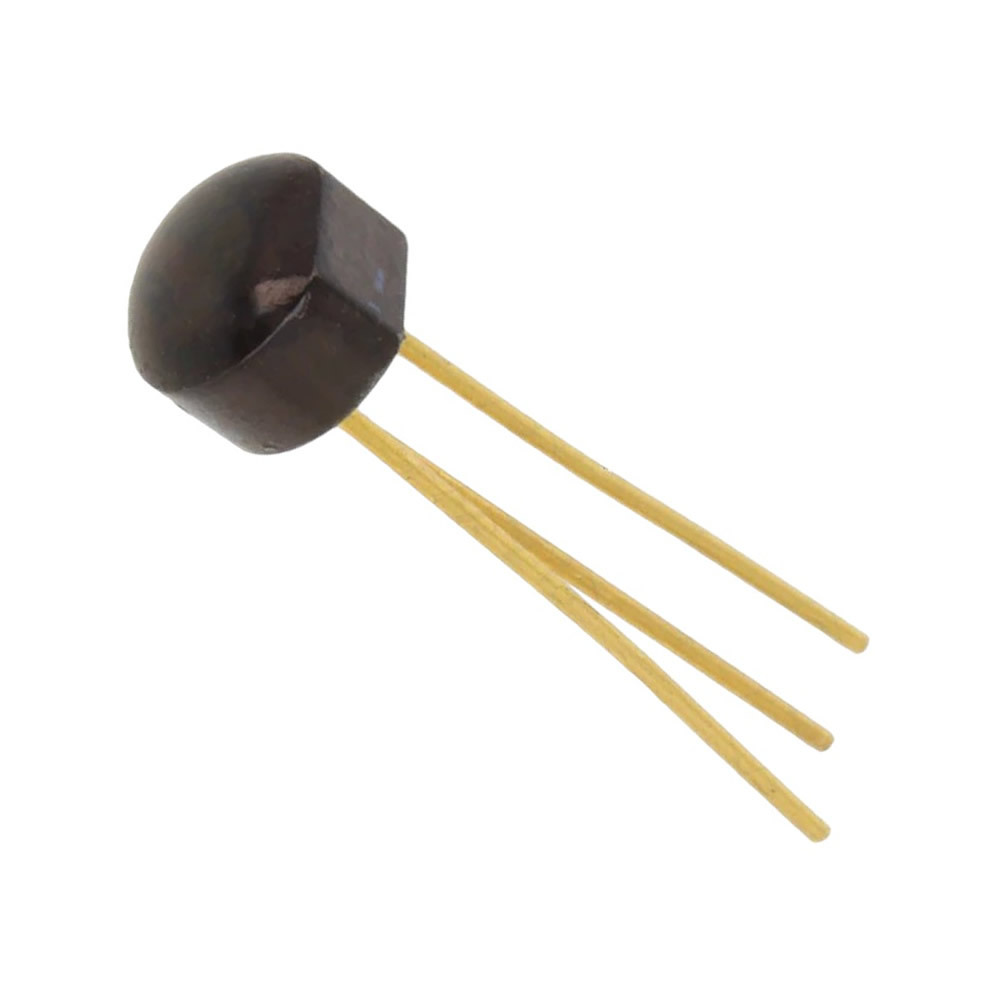

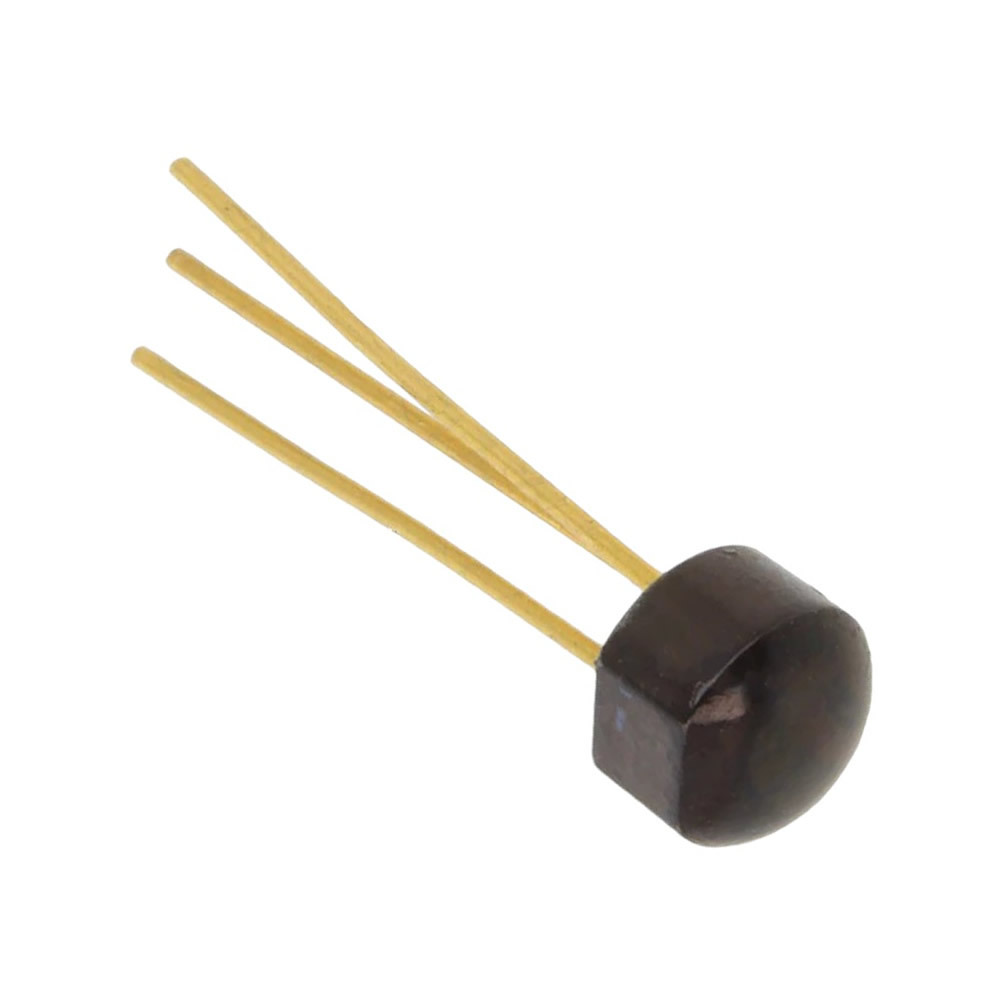

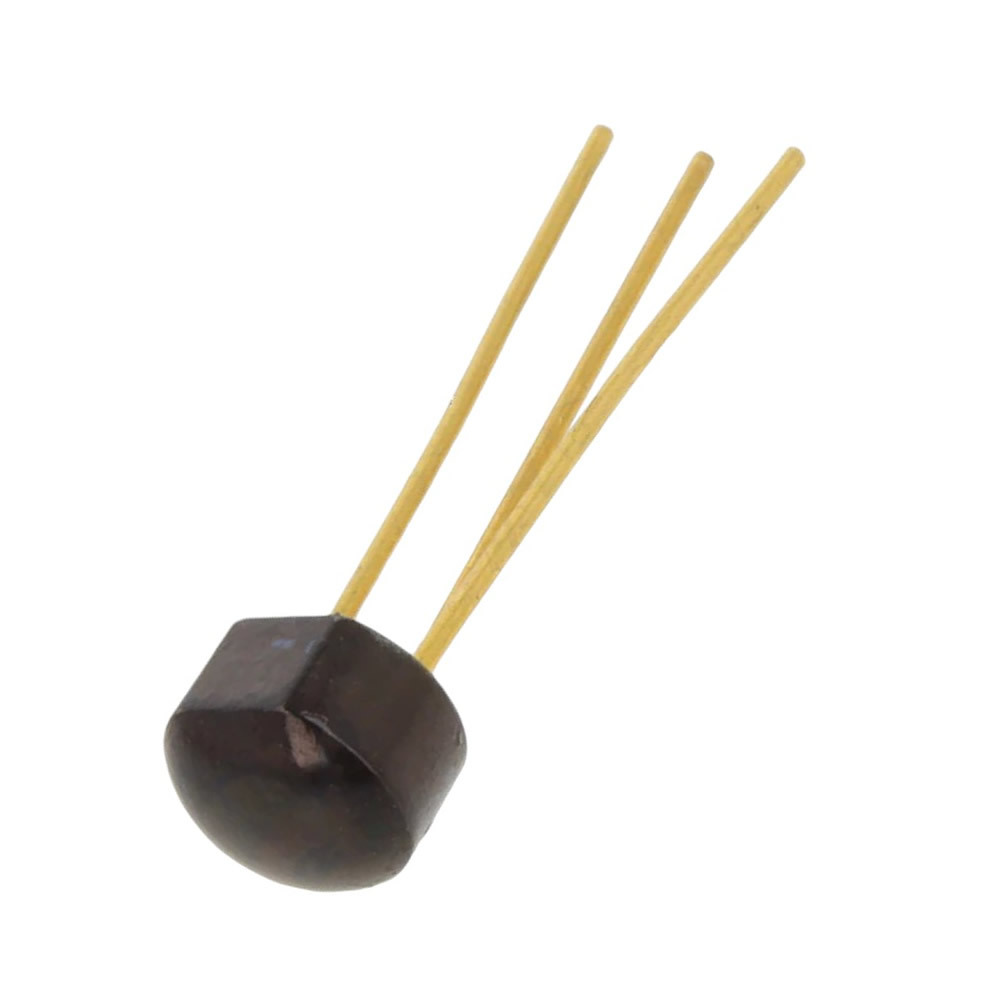

2N3566 Transistor Silicon NPN CASE: TO106 MAKE: Fairchild Semiconductor
Product specifications
Type Transistor Silicon NPN
Case TO106
Manufacturer Fairchild Semiconductor
Vbr CBO 40
Vbr CEO 30
Max. PD (W) 300m
C(ob) (F) 25p
Derate (Amb) (W/°C) 3.0m
hfe 80
Ic Max. (A) 200m
Icbo Max. @Vcb Max. (A) 50n
Polarity NPN
Trans. Freq (Hz) Min. 40M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 125
@Ic (A) 2.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 25 pF
Transition Frequency (ft): 40 MHz
Forward Current Transfer Ratio (hFE), MIN 150
