2N3605A
View detailed images (12)

2N3605A

SKU: 2N3605A

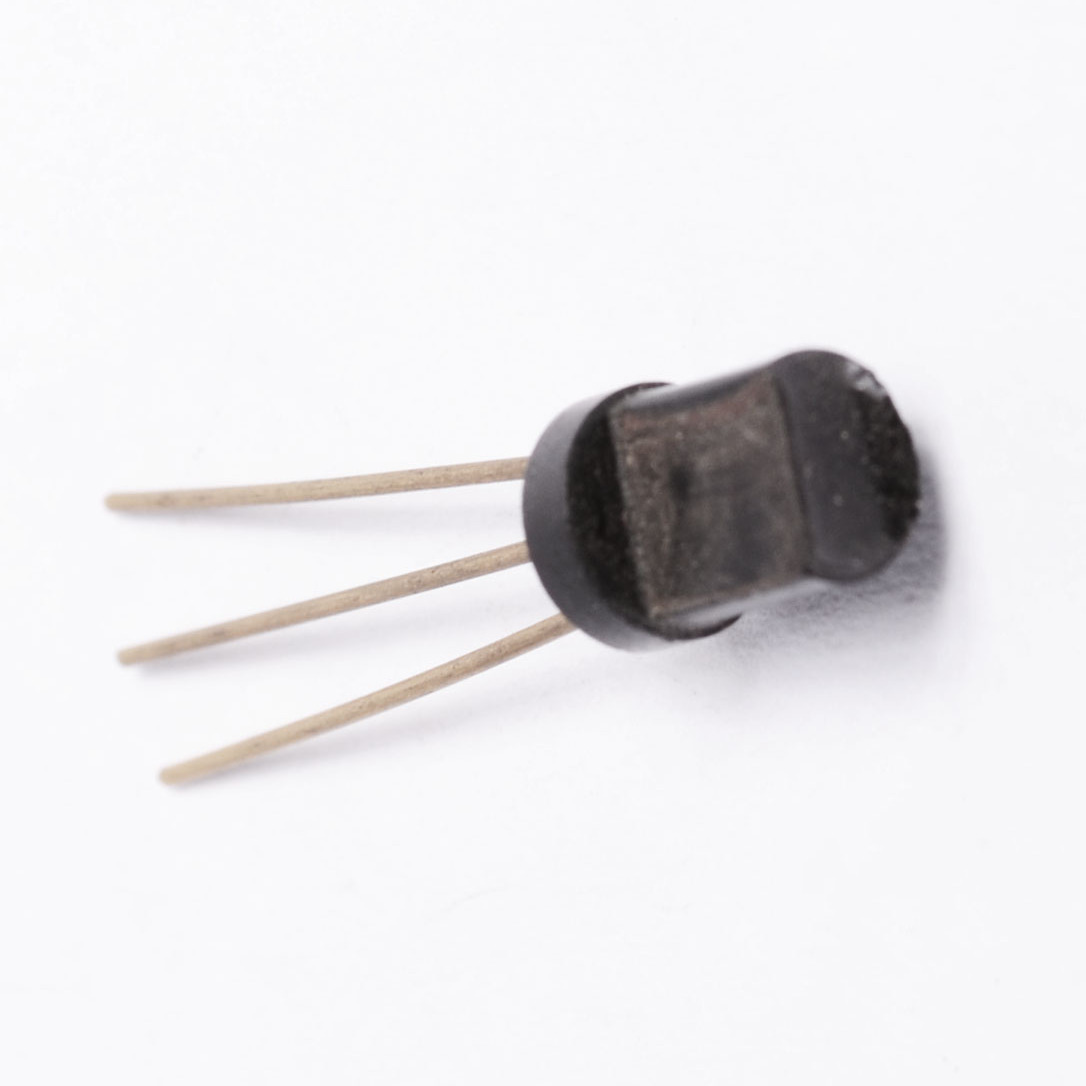

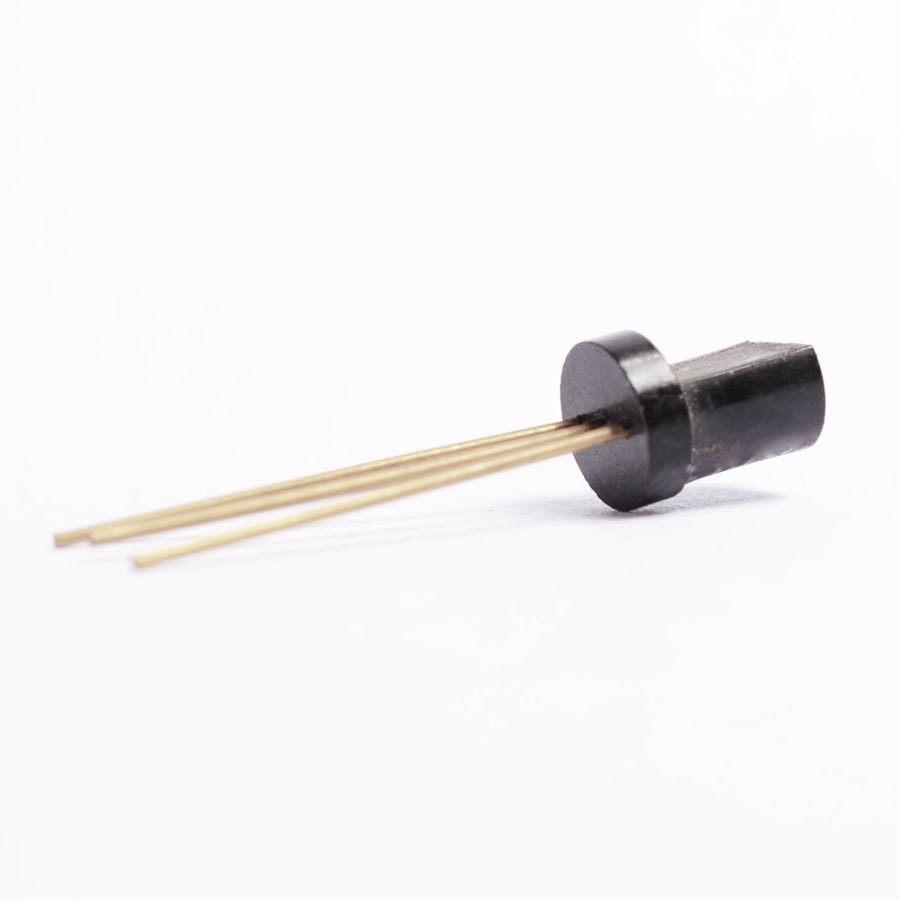

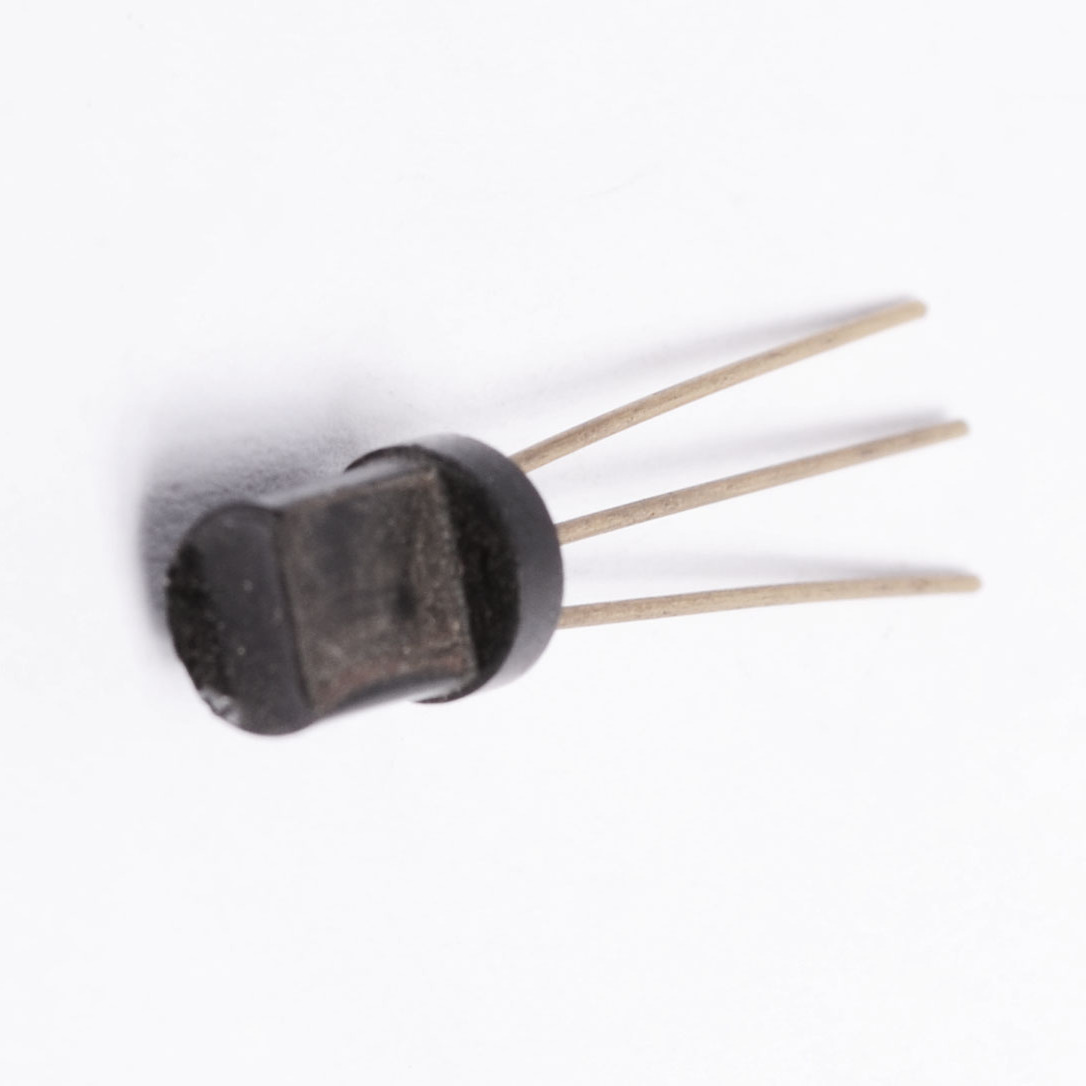

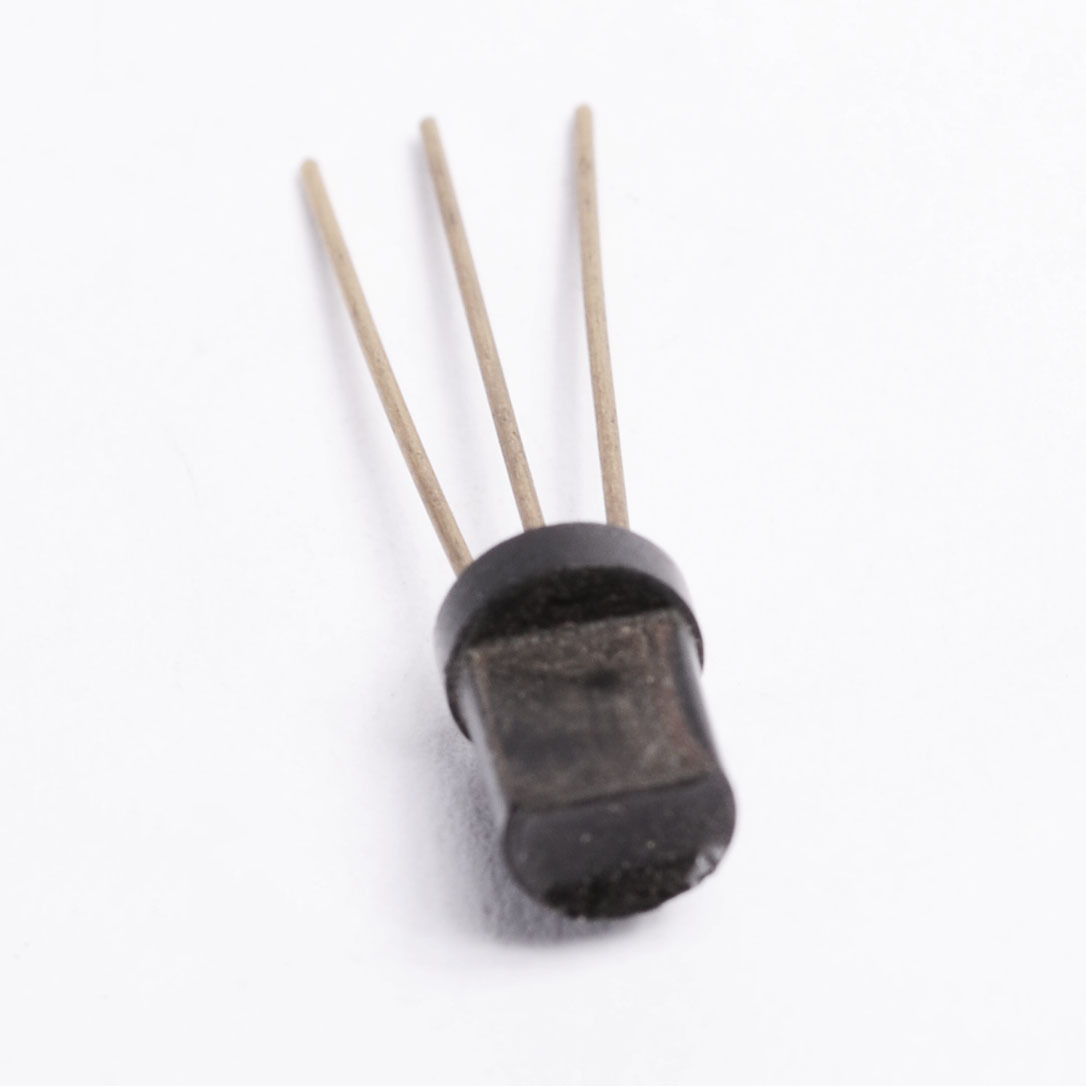

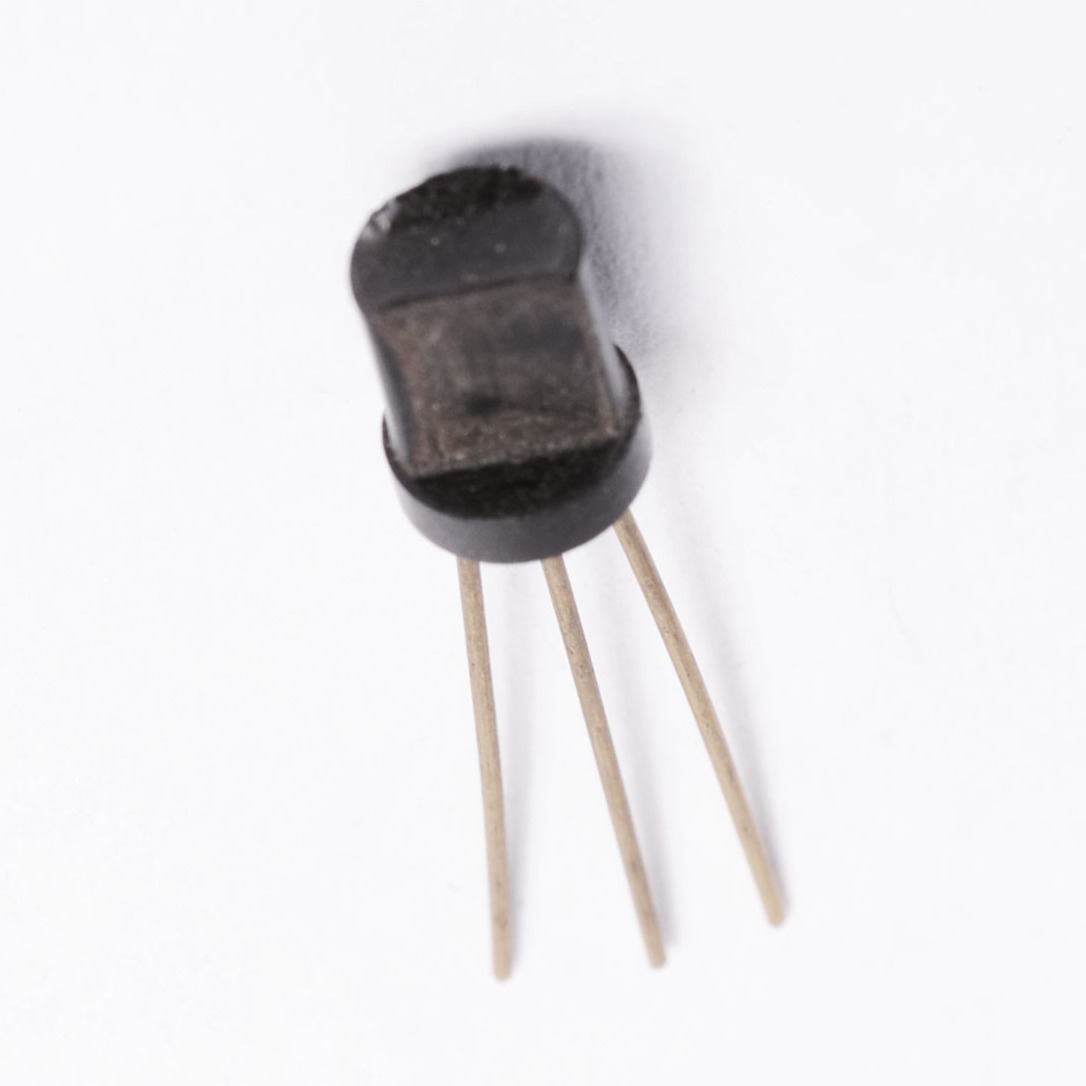

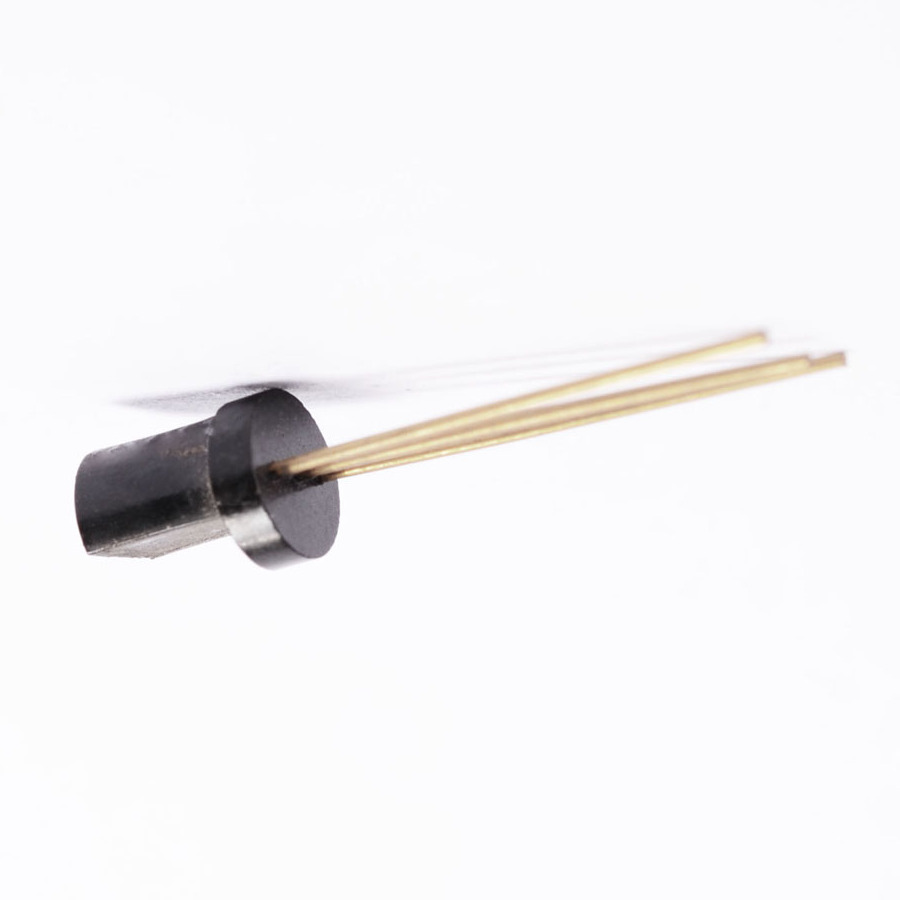

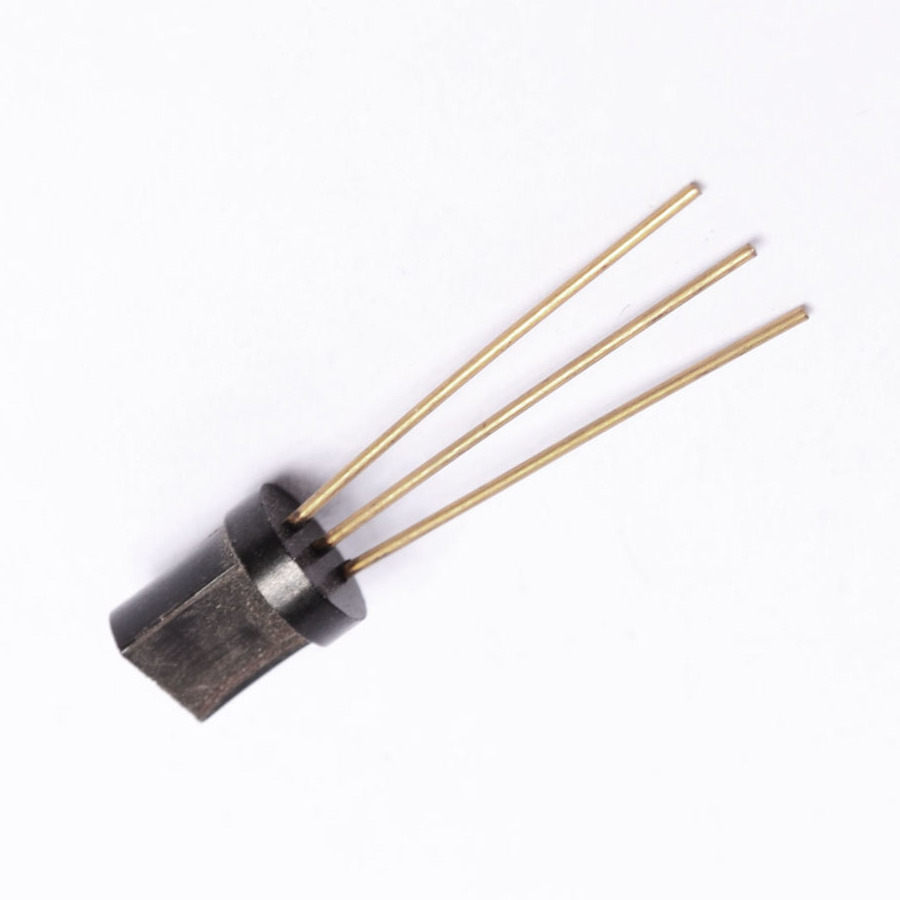

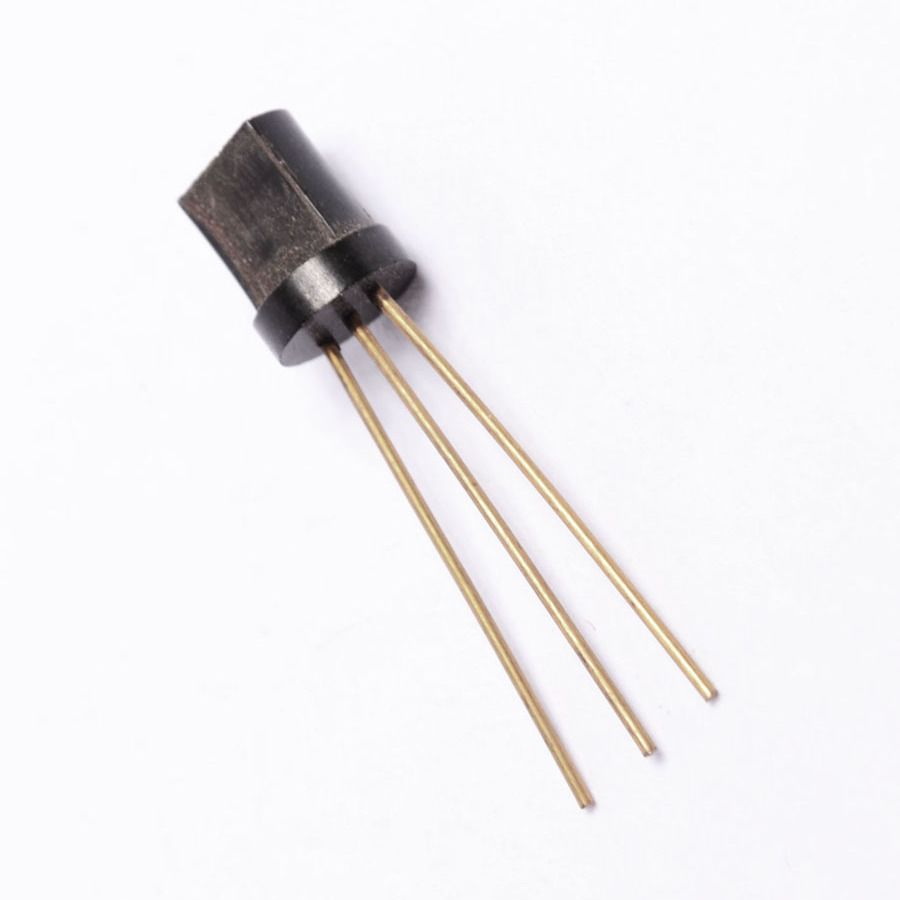

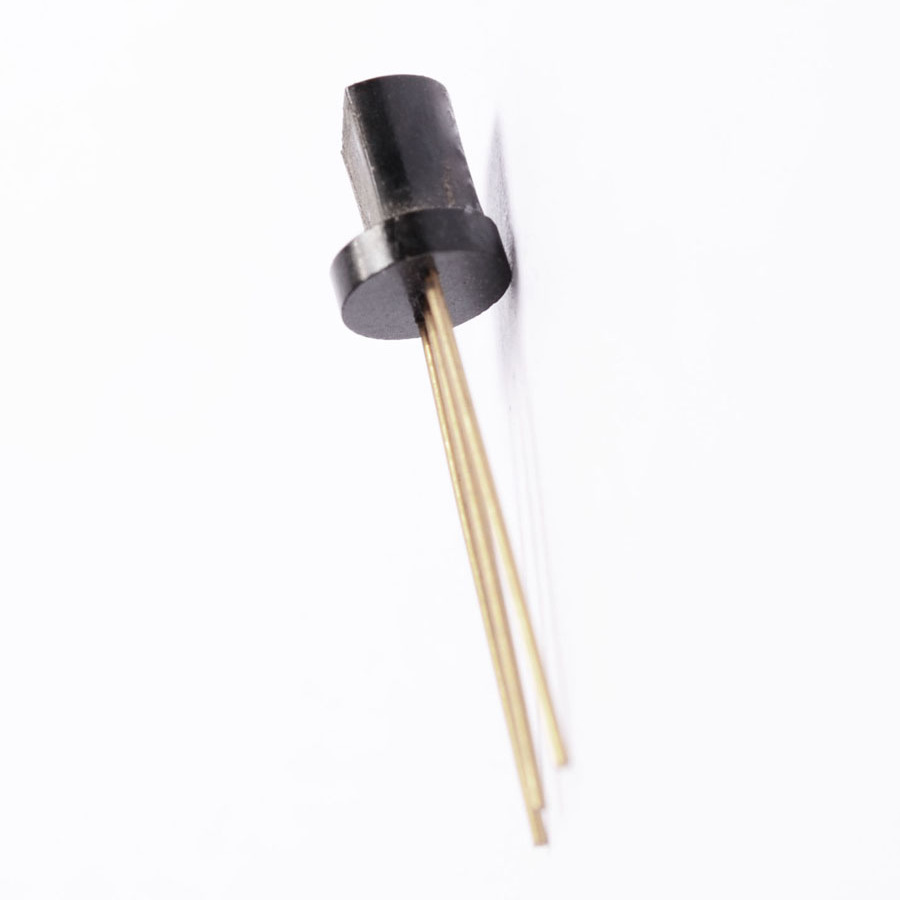

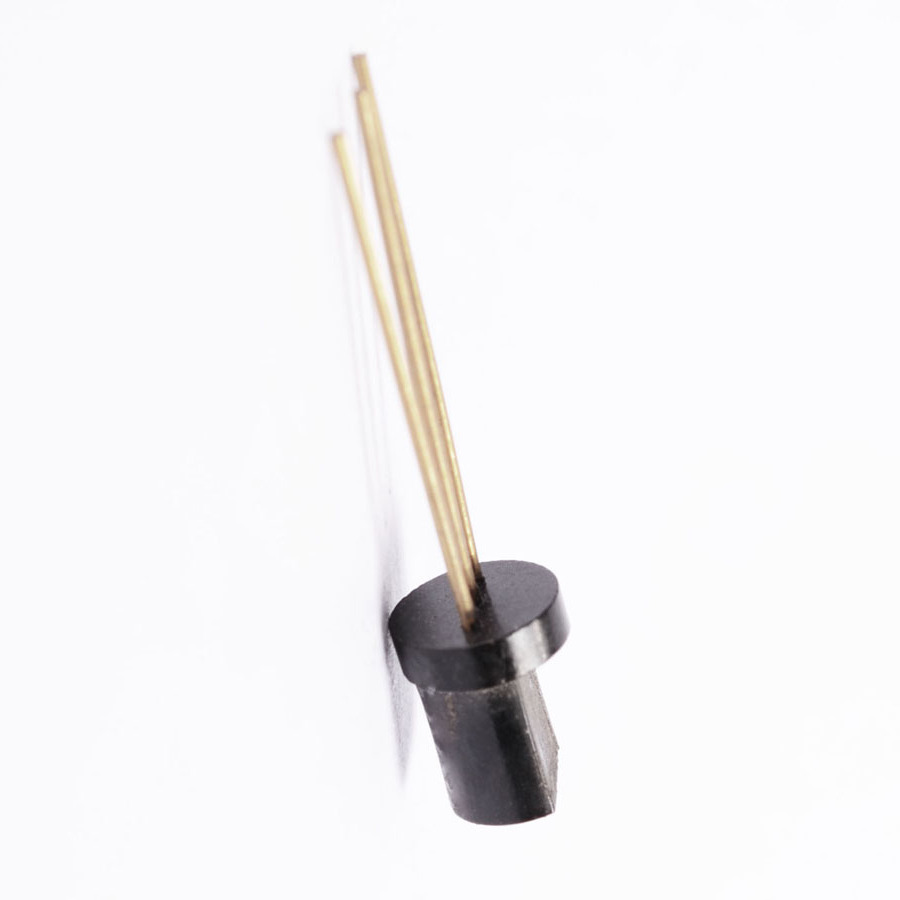

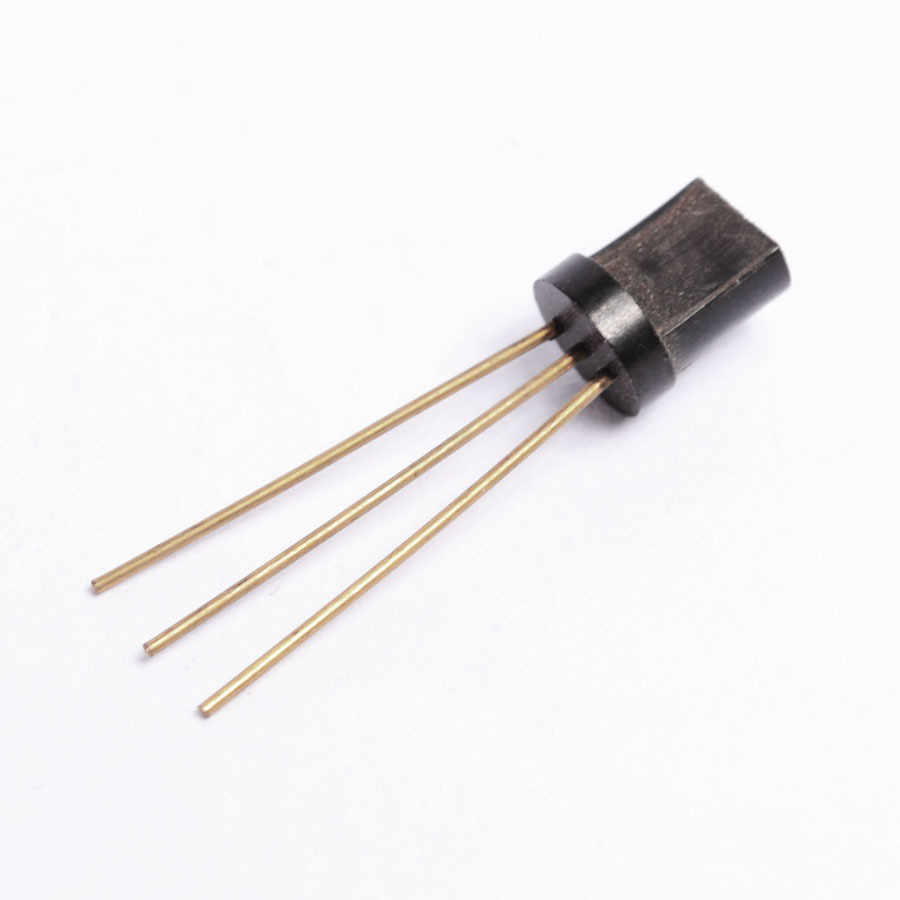

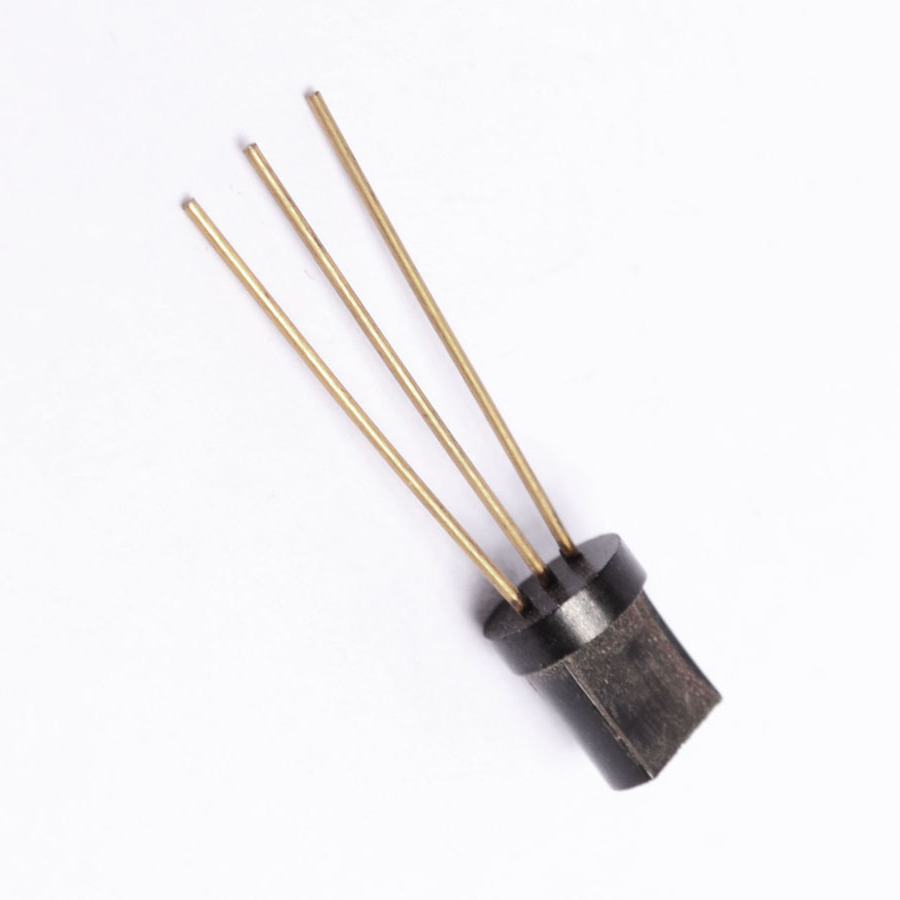

2N3605A Transistor Silicon NPN CASE: TO98 MAKE: Semitronics
Product specifications
Type Transistor Silicon NPN
Case TO98
Manufacturer Semitronics
Vbr CBO 40
Vbr CEO 15
Max. PD (W) 320m
C(ob) (F) 6.0p
t(on) Delay (S) 20n
Derate (Amb) (W/°C) 3.4m
t(f) Max. (S) 45n+
hfe 30
Ic Max. (A) 200m
Icbo Max. @Vcb Max. (A) 25n
Polarity NPN
Tr Max. (s) 35n
Trans. Freq (Hz) Min. 300M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 125
@Ic (A) 10m
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.32 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 6 pF
Transition Frequency (ft): 300 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 573423
