Home / Semiconductors / 2N3654M
2N3654M

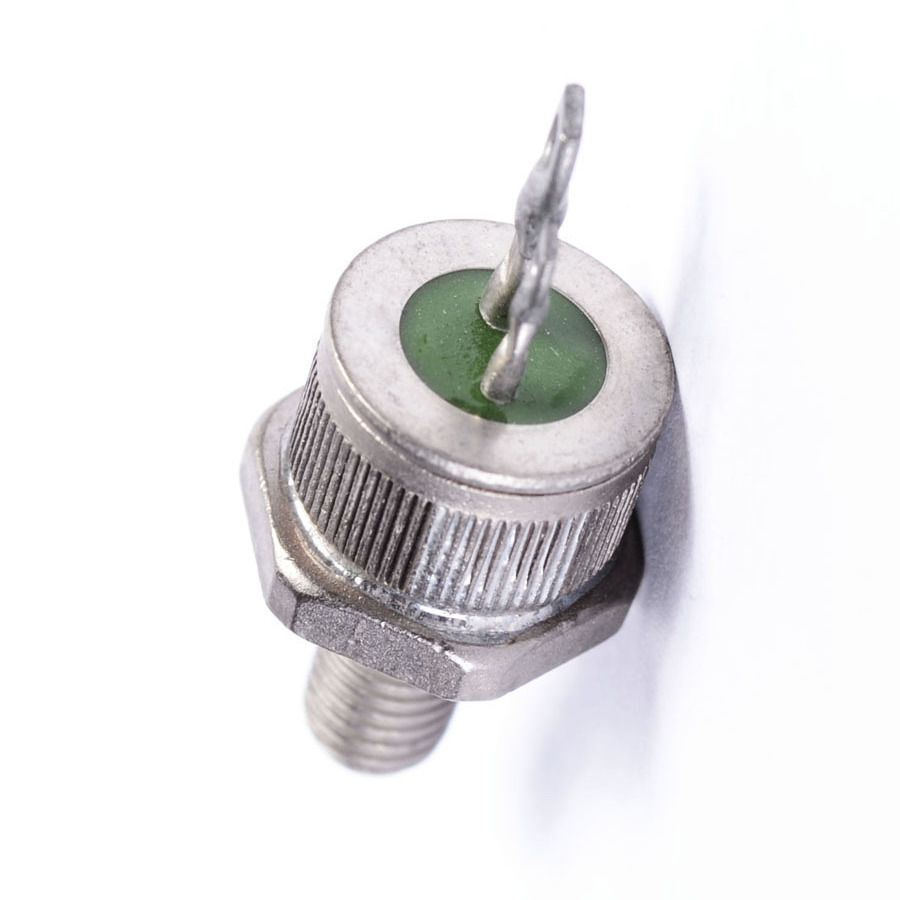

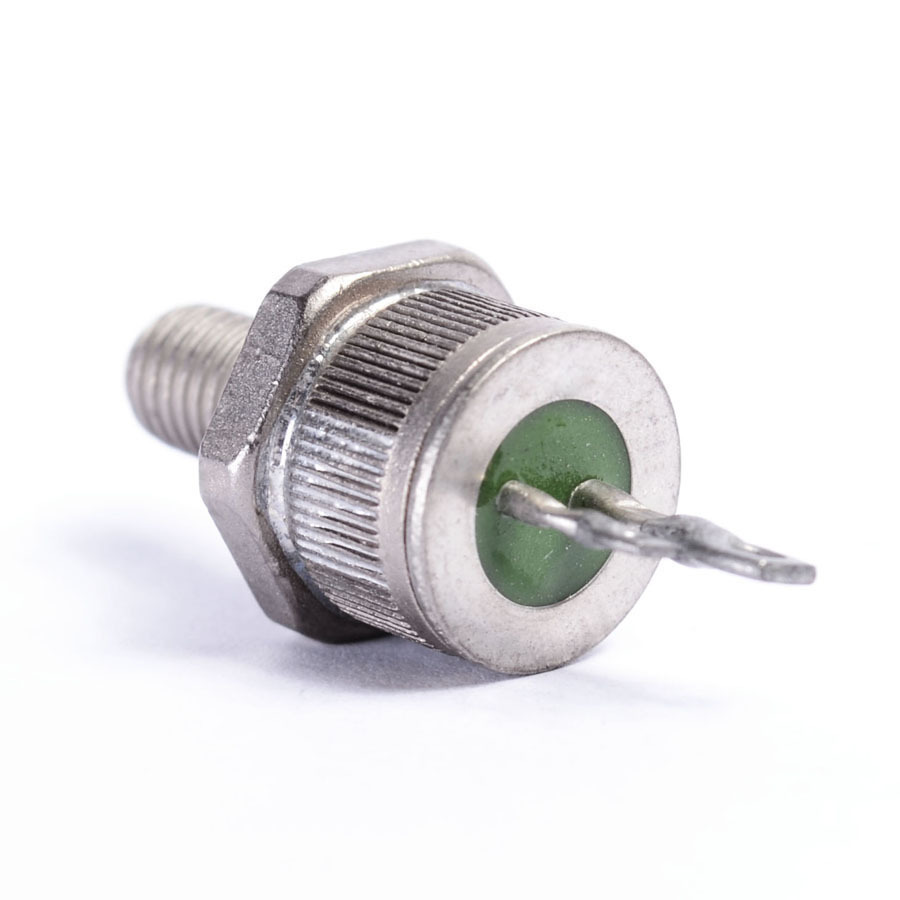

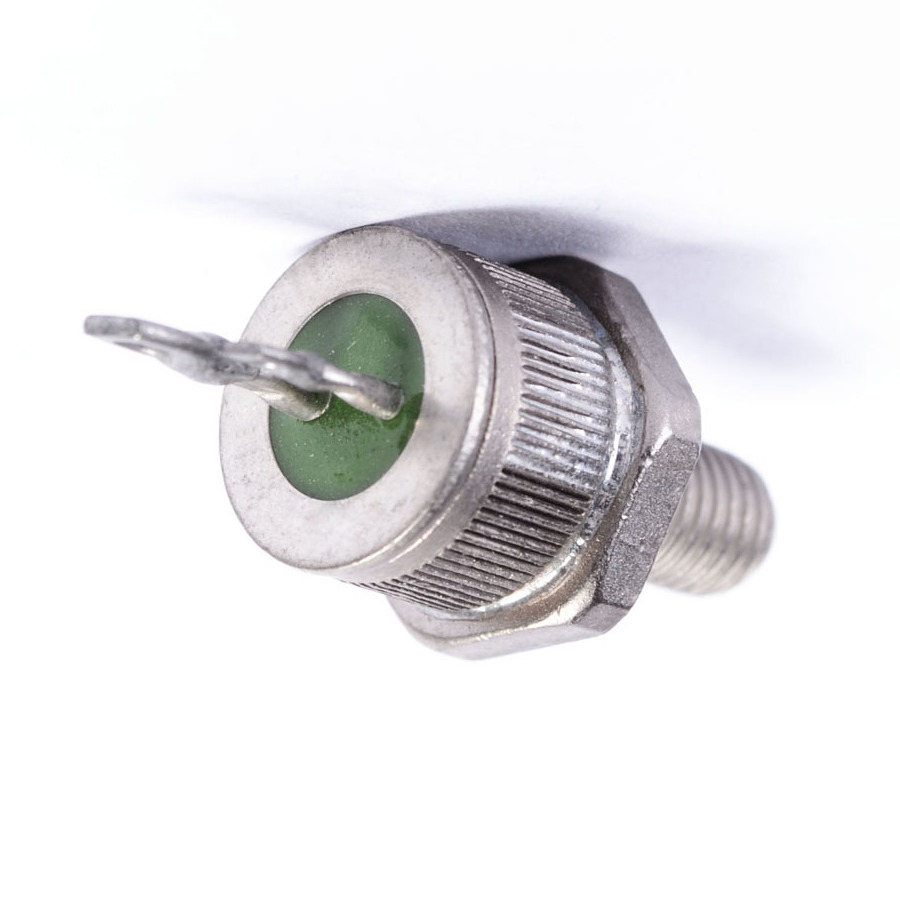

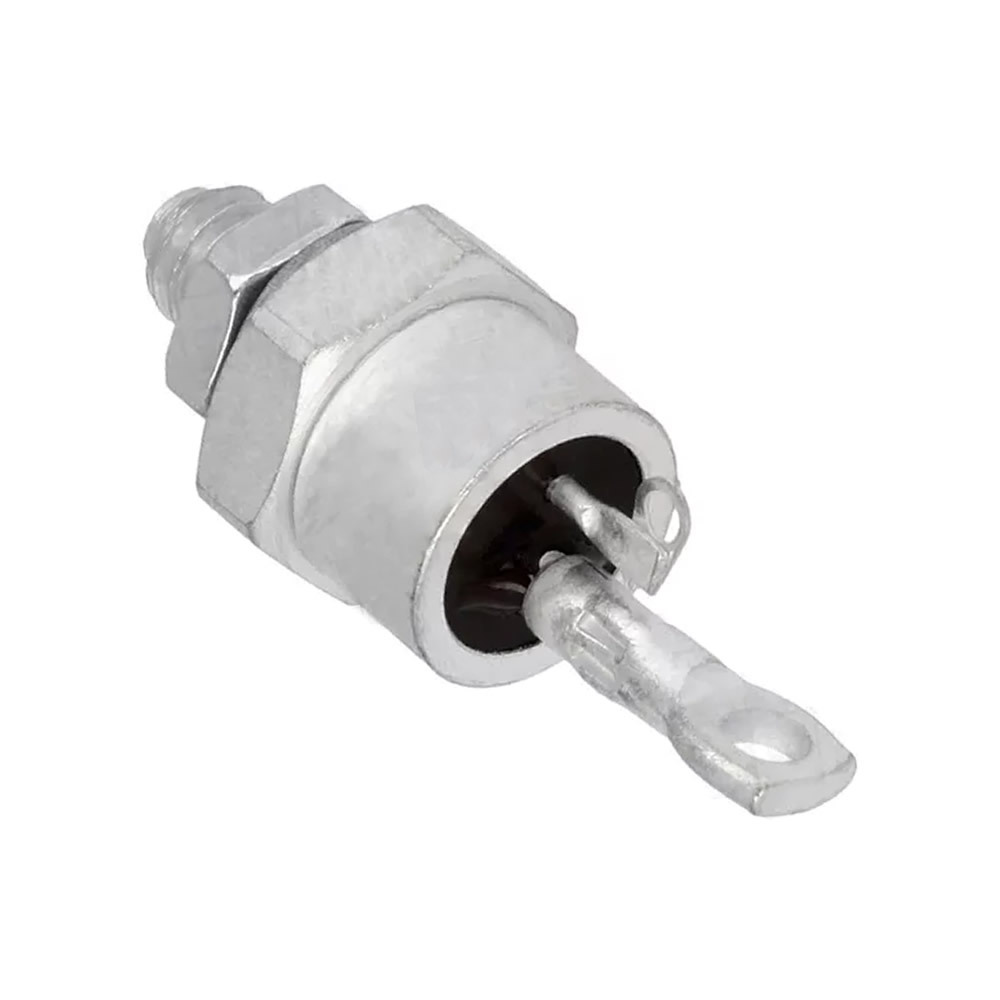

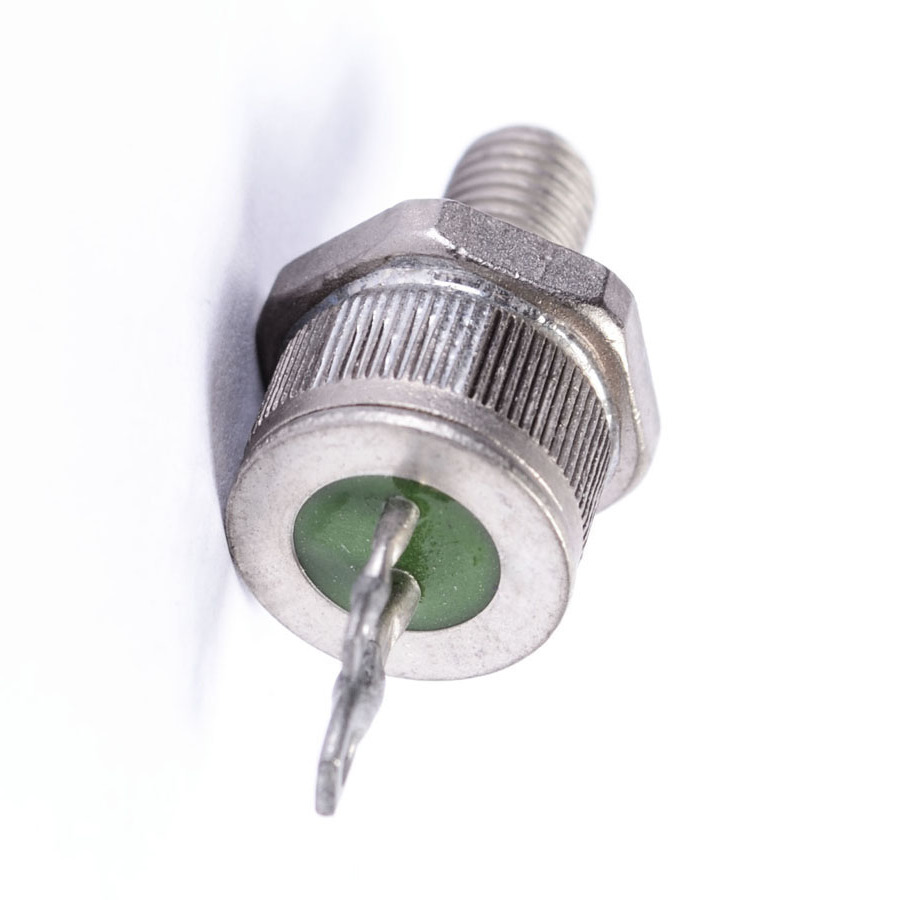

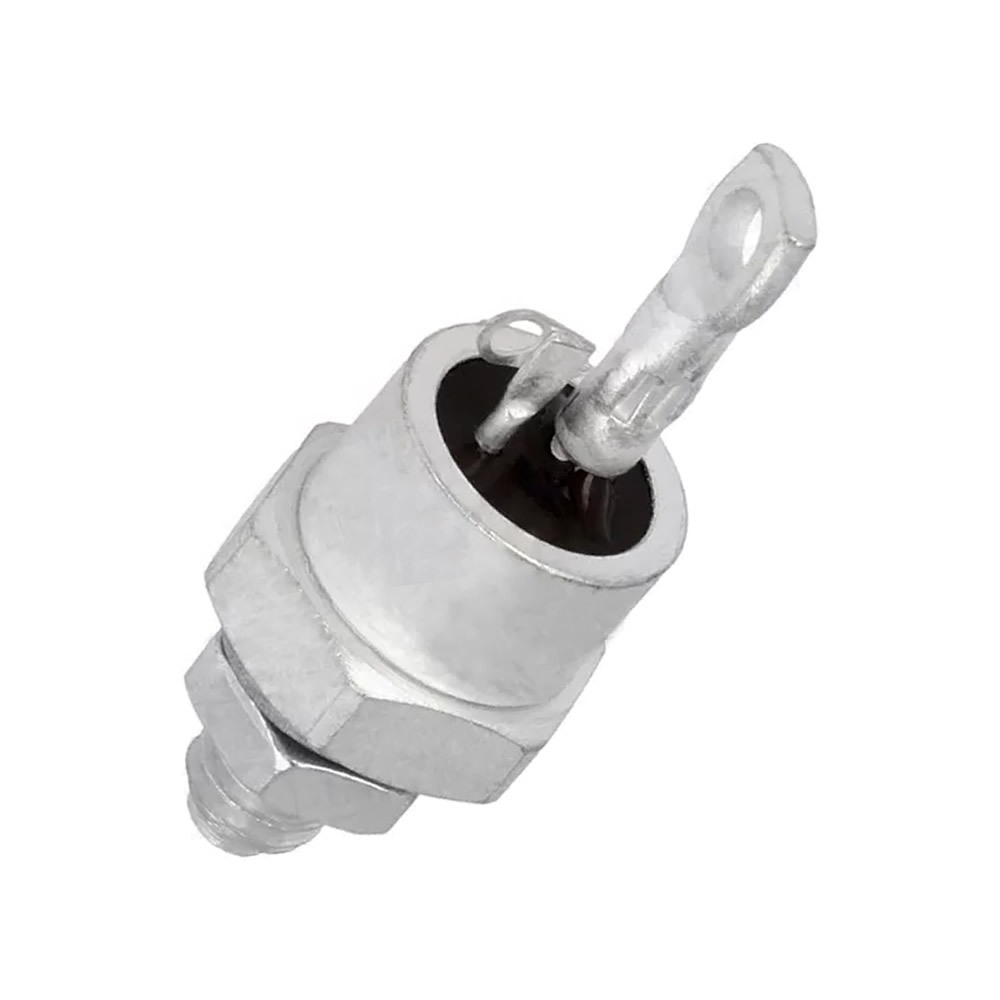

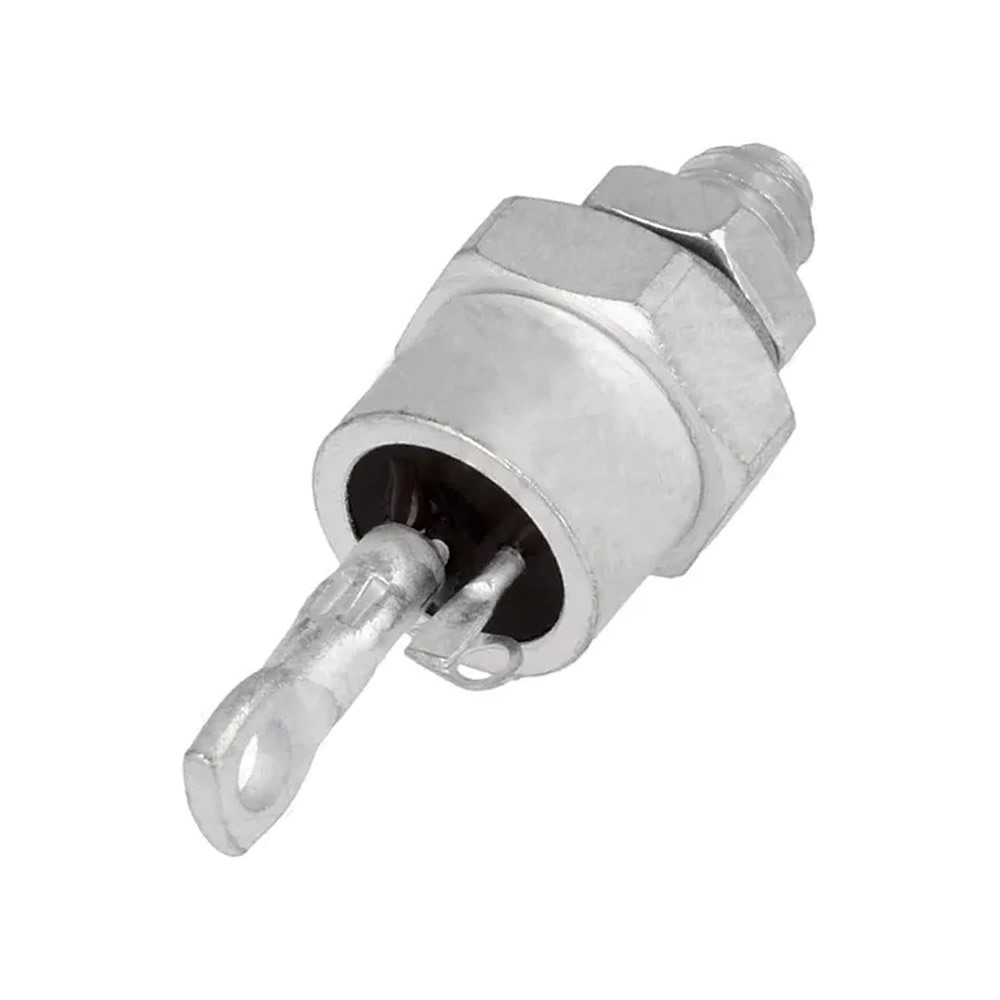

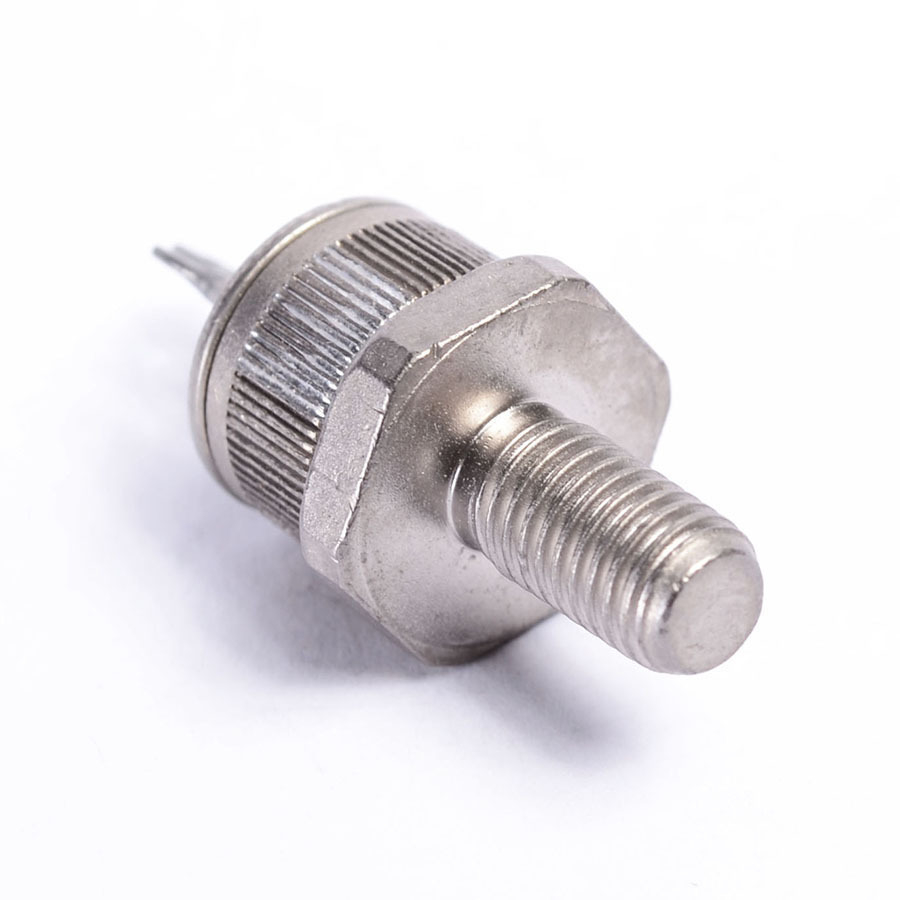

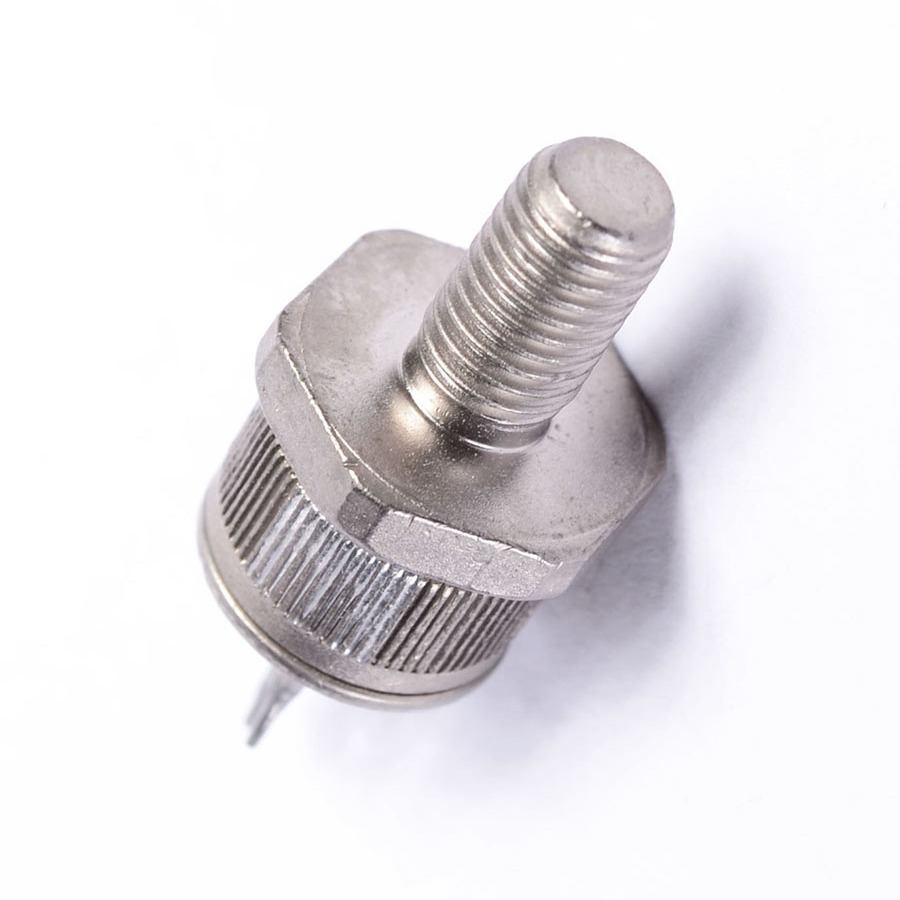

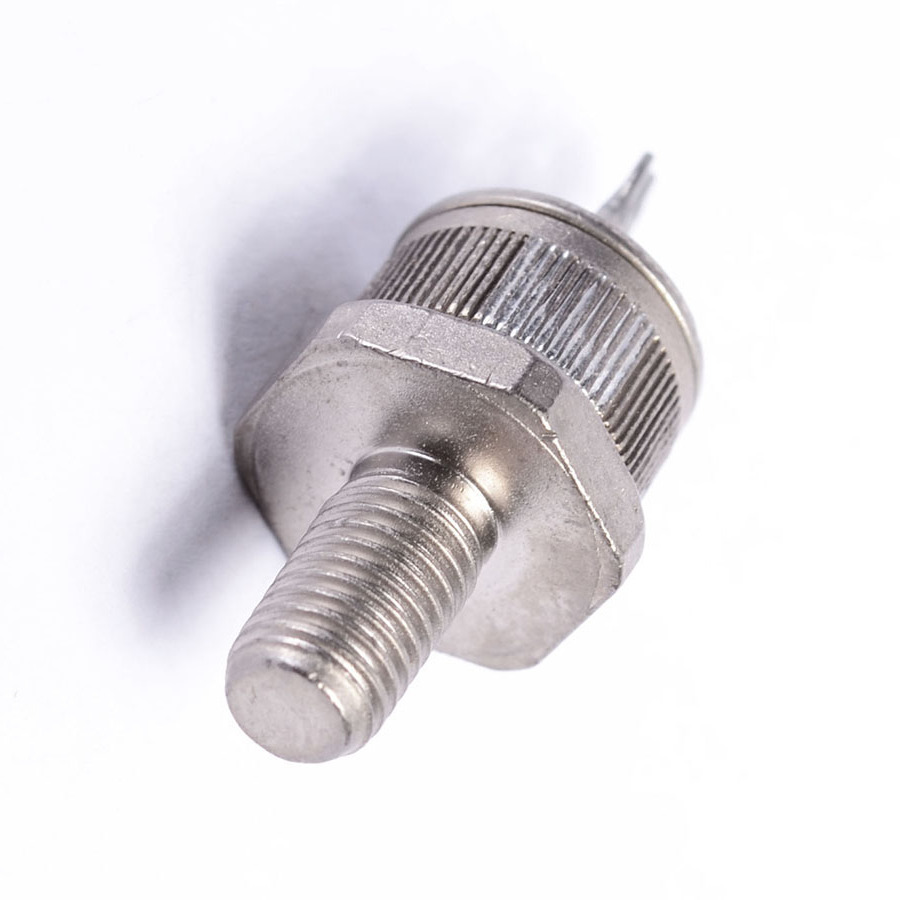

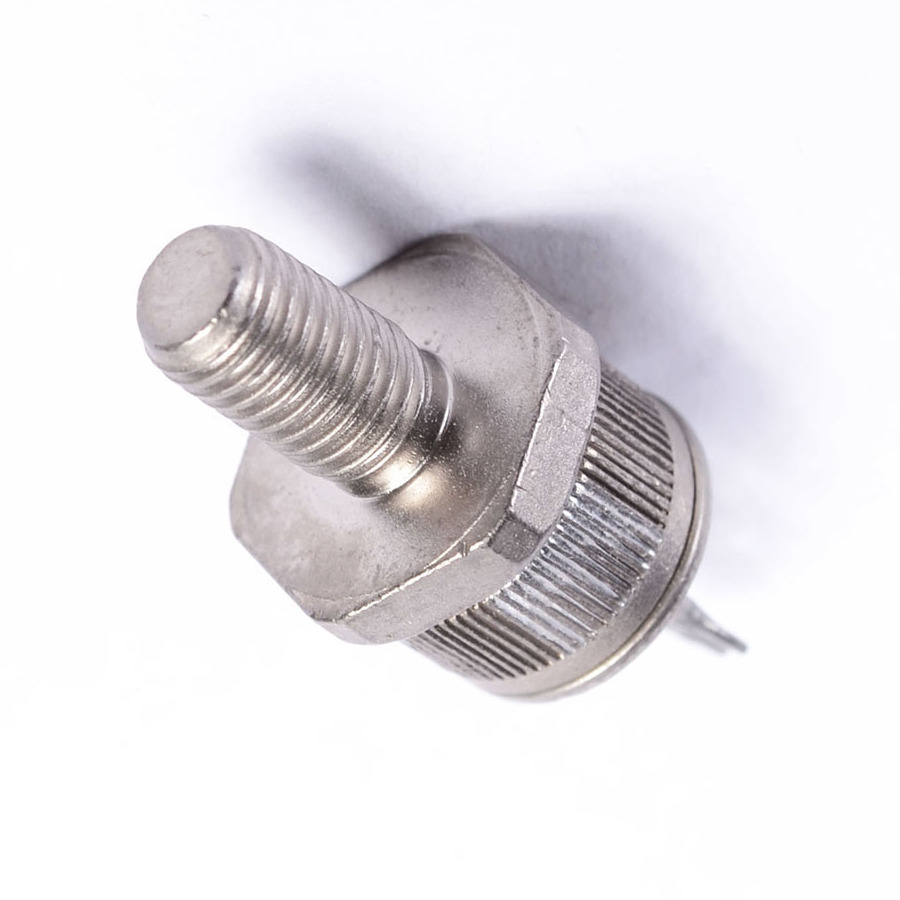

View detailed images (12)

2N3654M

SKU: 2N3654M
2N3654M SemiConductor CASE: TO48 MAKE: SGS Thomson
Product specifications
Type SemiConductor
Case TO48
Manufacturer SGS Thomson
Dv/Dt Worst Case 200
Firing Char-Igt Max. 500m
Firing Char-Vgt Max. 4.5
I(h) Max. (A) 350m
Id(off) Max. (A) 6.0m
It(stat) Max. (A) 16
Supp Curr. I(TSM) 180
t(switch) Off Typ. Time (S) 10u
V(drm) Max. 50
V(T) Max. 2.0
@Temp. (test) (°C) 120#
@Temp. (test) (°C) 70#
Oper. Temp (°C) Min -60
Oper. Temp (°C) Max. 125#
@It (A) 25
Surface Mounted Yes/No NO
SKU 774517
