2N3694
View detailed images (12)

2N3694

SKU: 2N3694

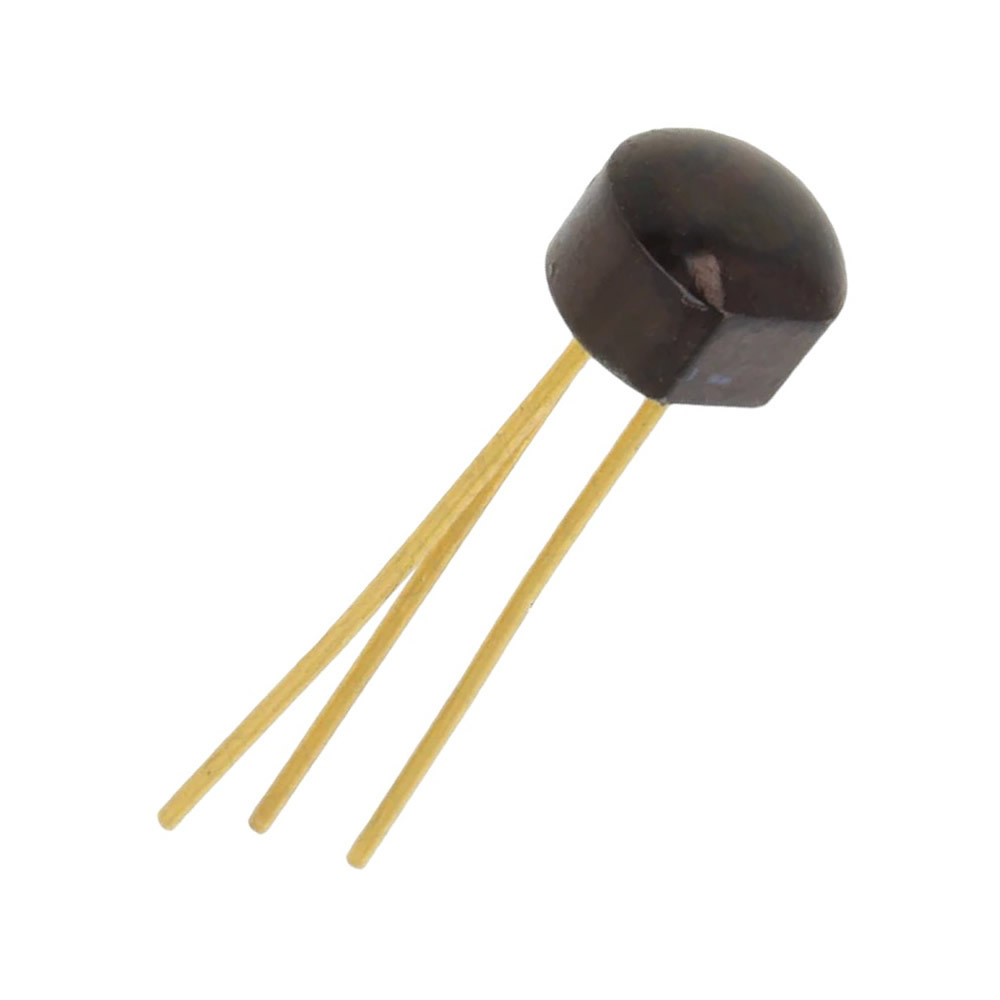

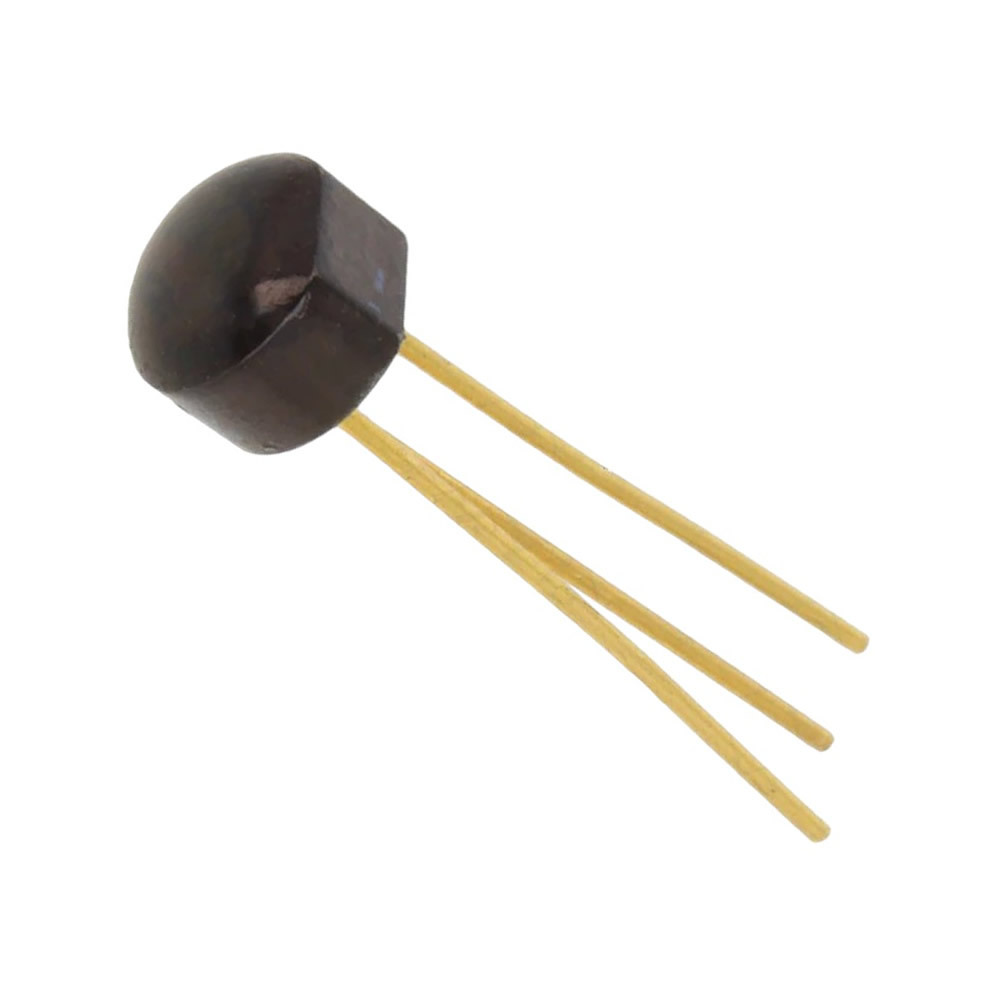

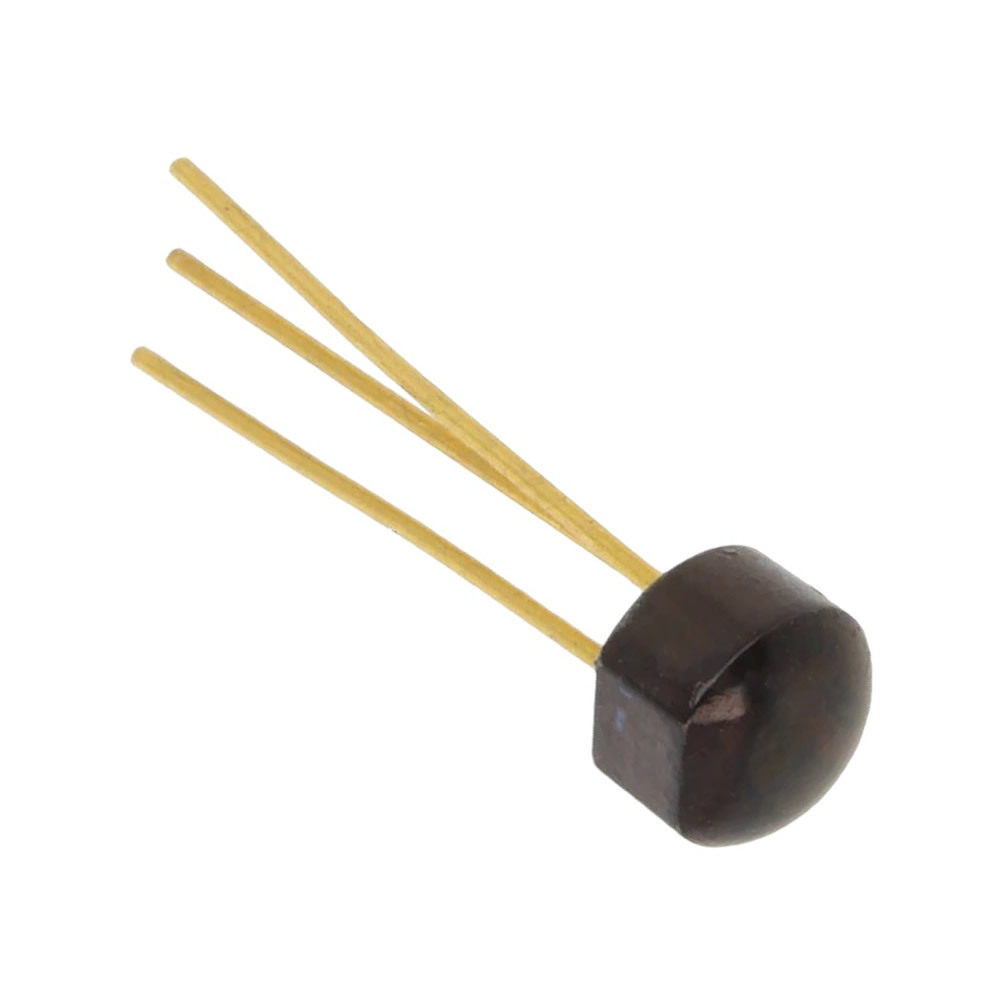

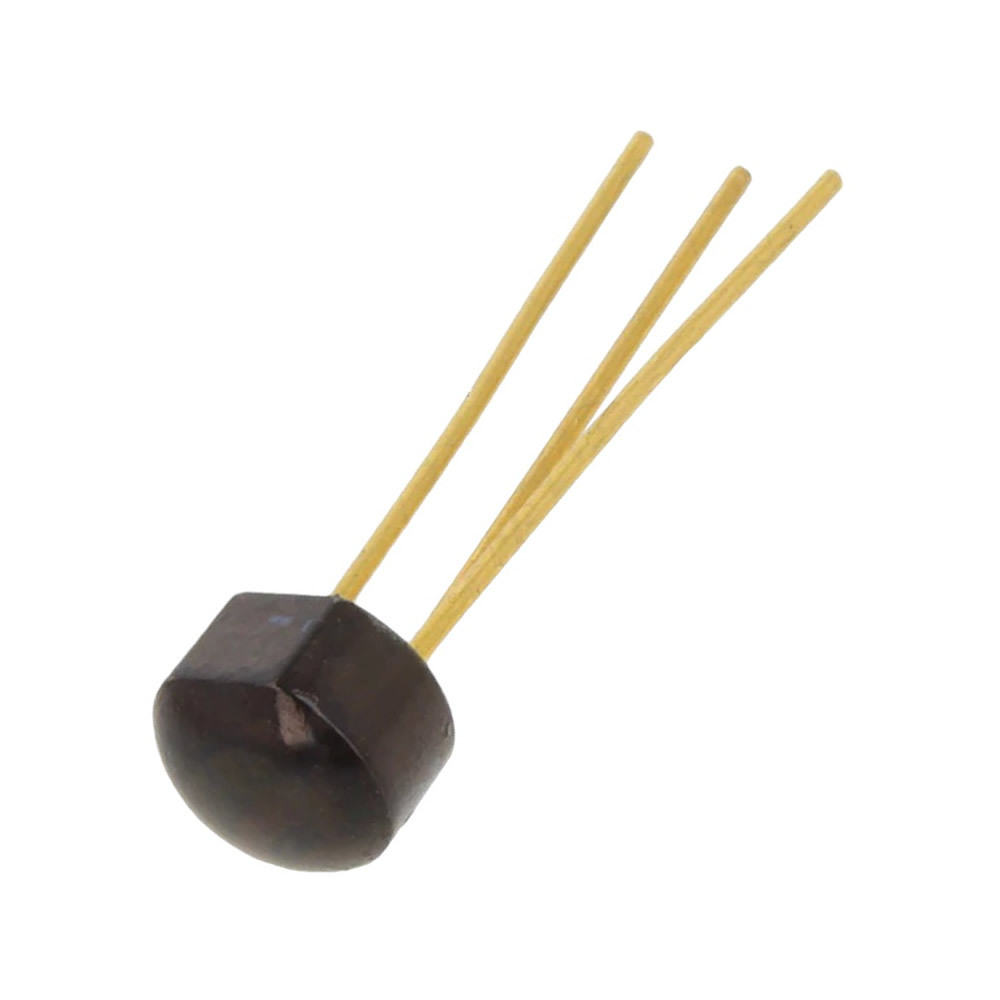

2N3694 Transistor Silicon NPN CASE: TO106 MAKE: Fairchild Semiconductor
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO106
Manufacturer Fairchild Semiconductor
Vbr CBO 45
Vbr CEO 45
Max. PD (W) 200m
C(ob) (F) 6.0p
Derate (Amb) (W/°C) 2.0m
hfe 100
Ic Max. (A) 30m
Icbo Max. @Vcb Max. (A) 50u
Polarity NPN
Trans. Freq (Hz) Min. 200M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 125
@Ic (A) 10m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 45 V
Maximum Collector-Emitter Voltage |Vce| 45 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 6 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SKU 115091
