2N3726
View detailed images (12)

2N3726

SKU: 2N3726

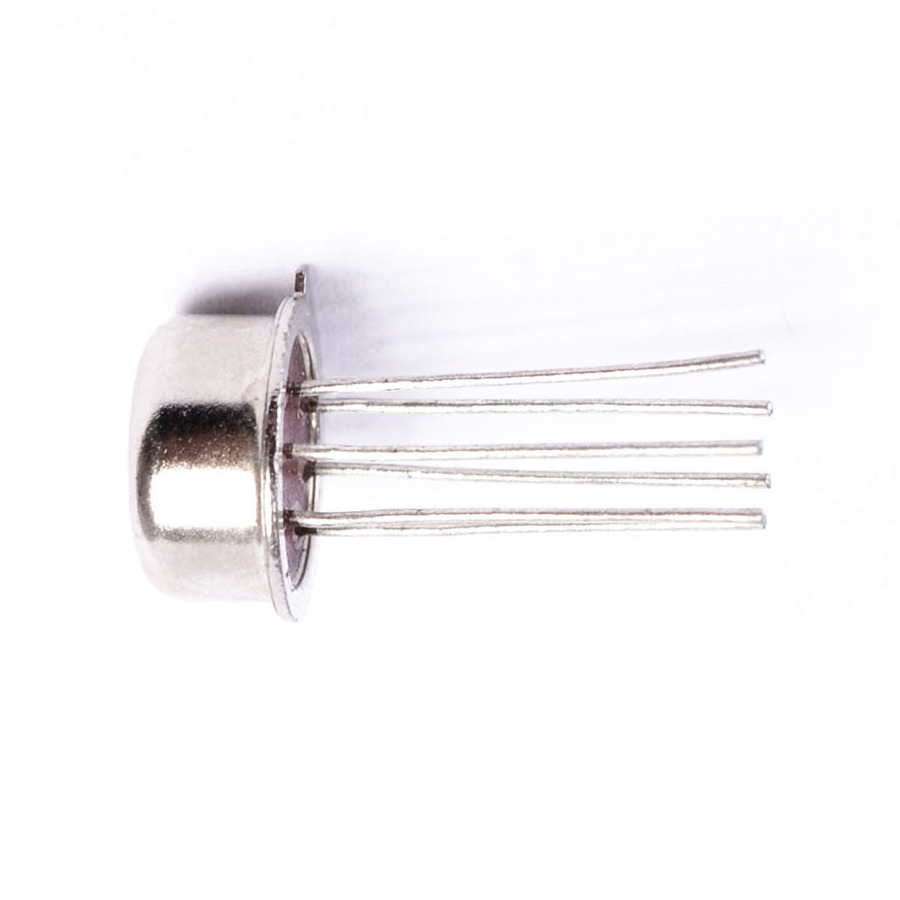

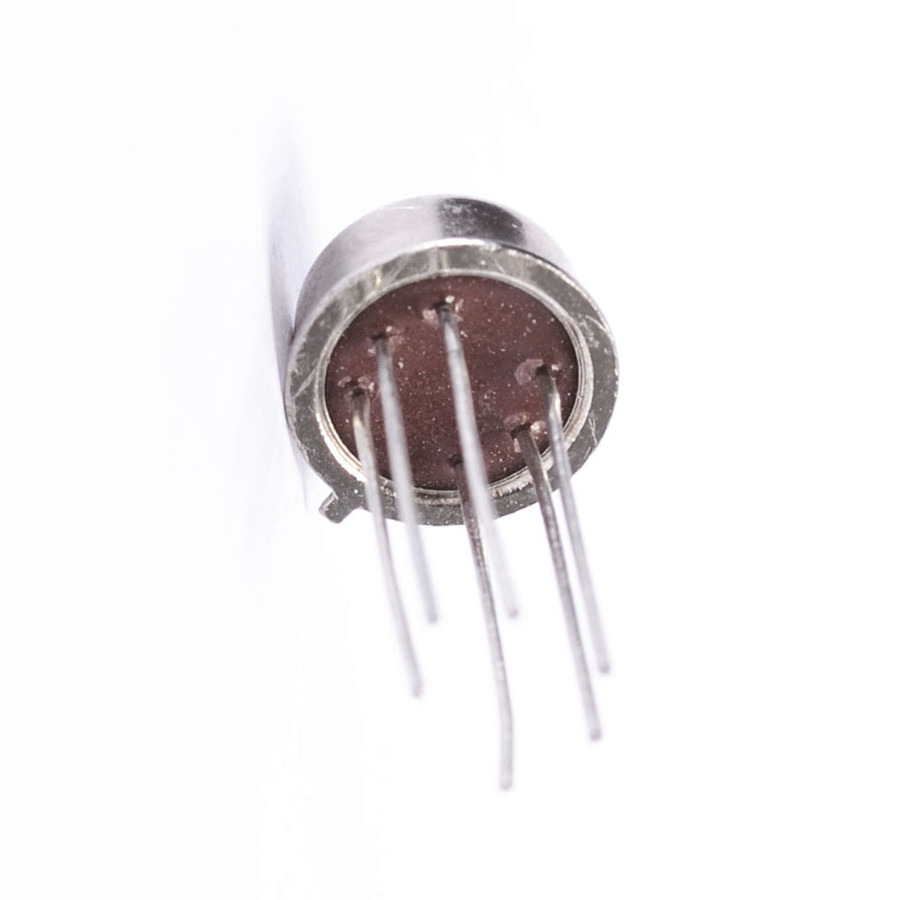

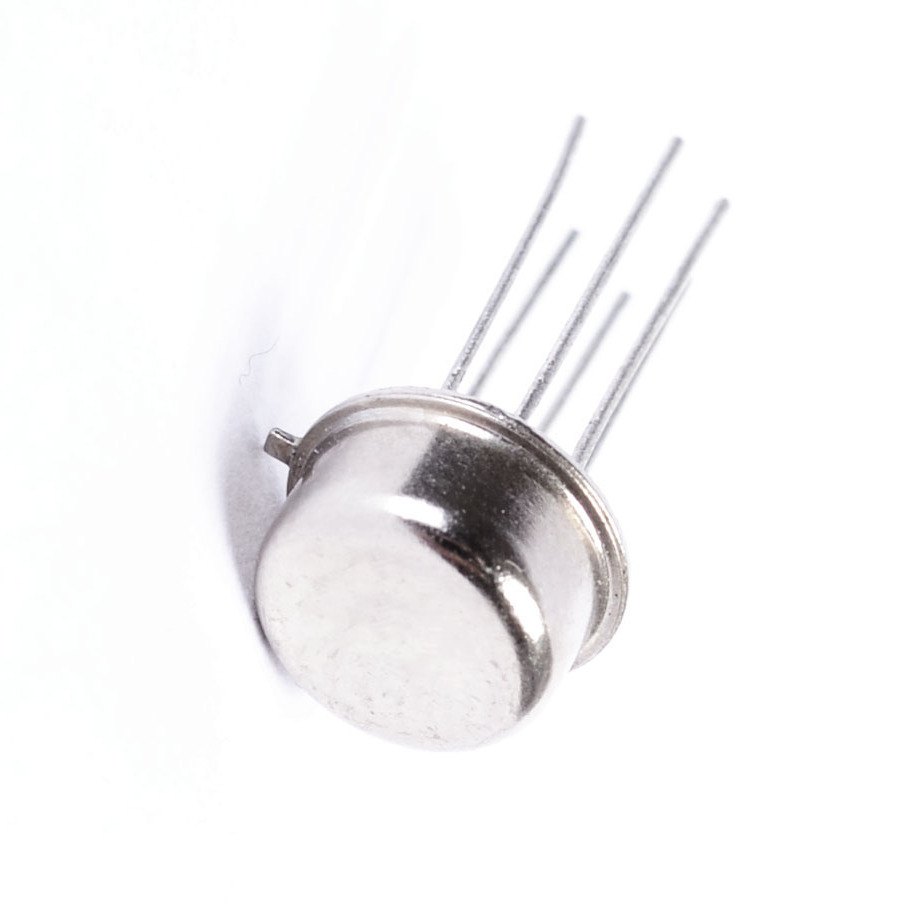

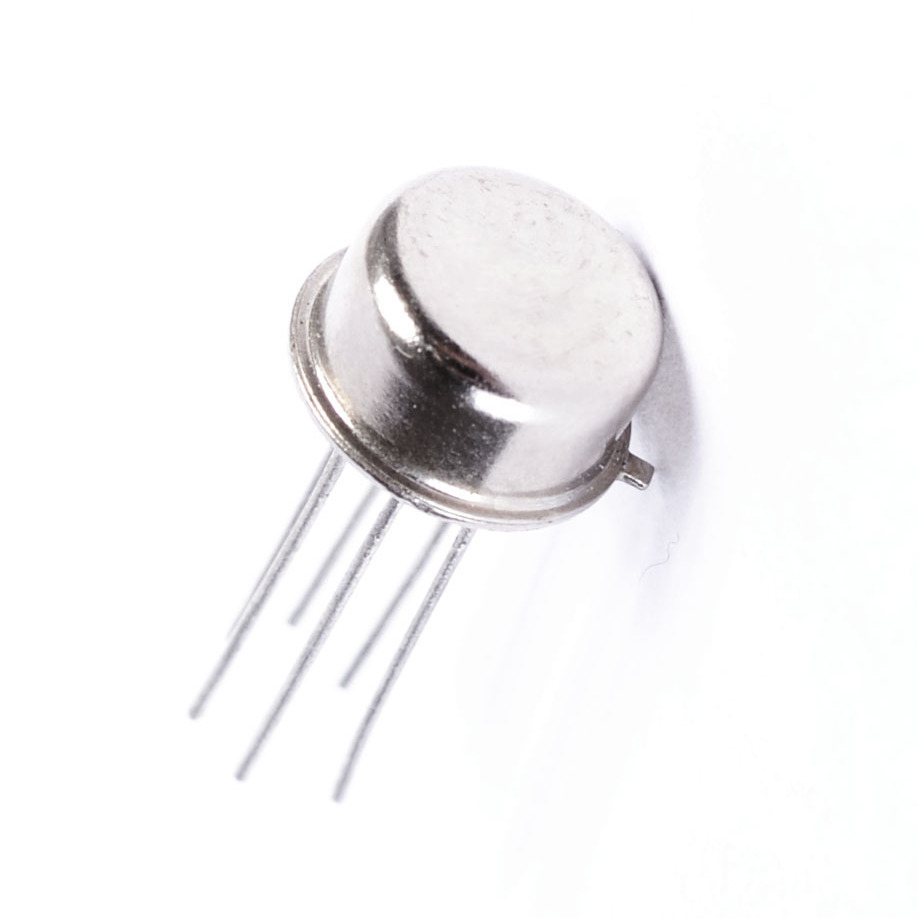

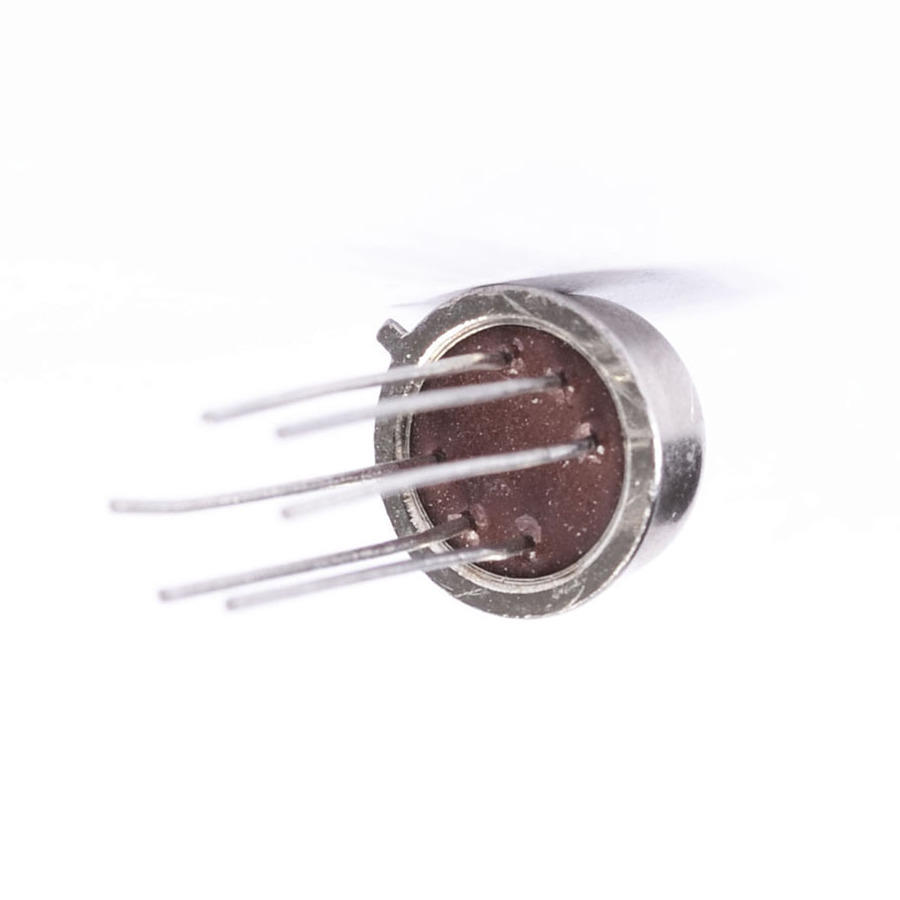

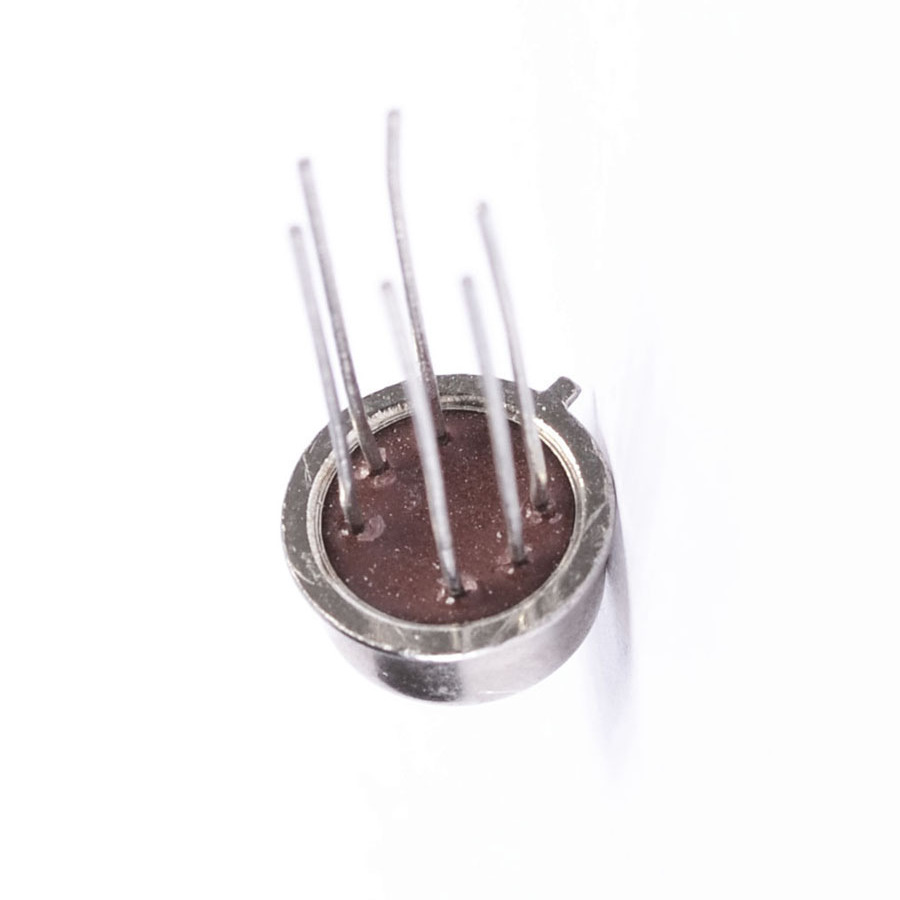

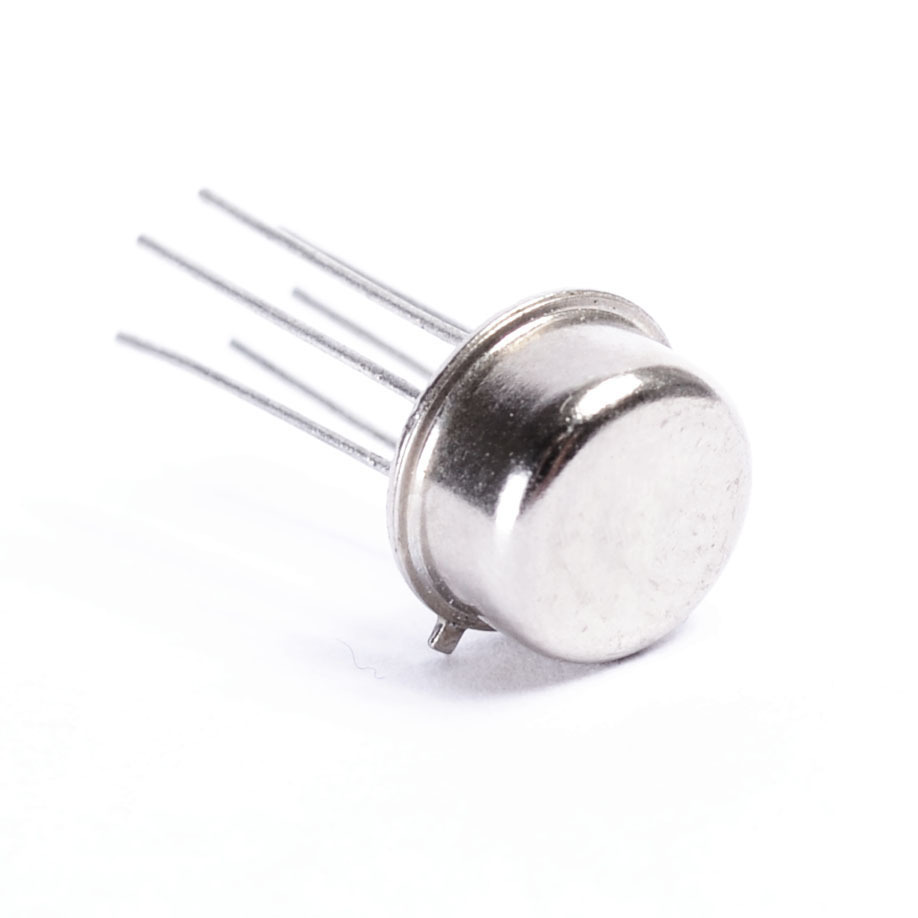

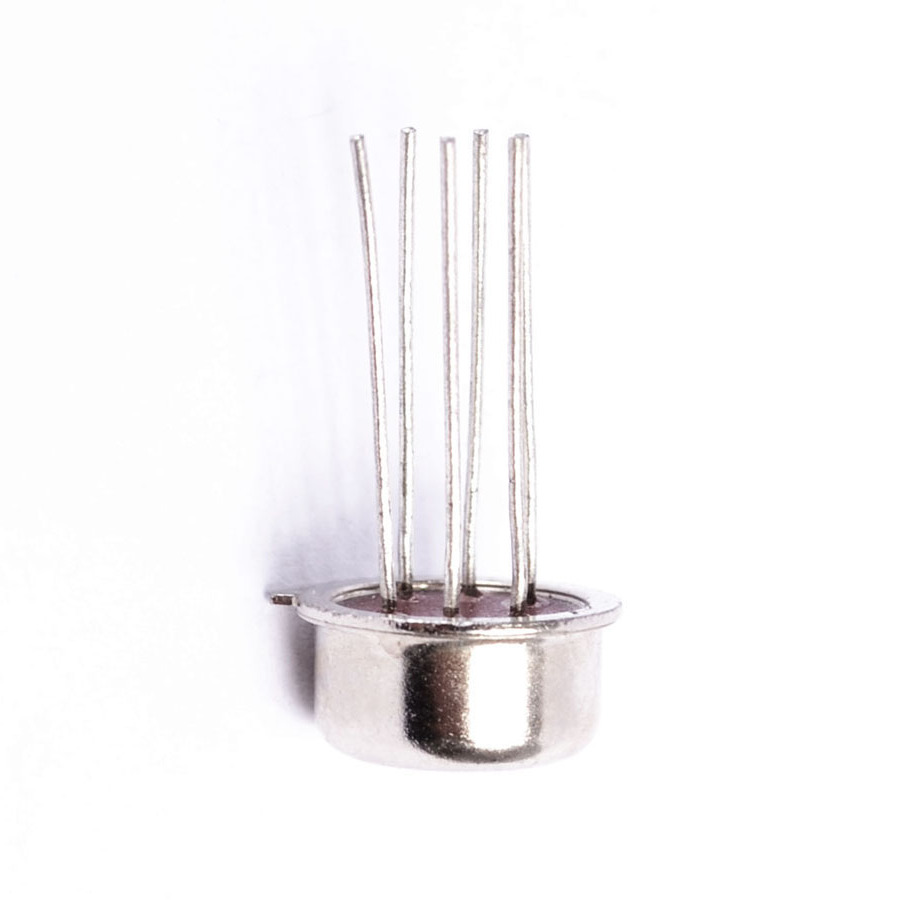

2N3726 Transistor Silicon PNP CASE: TO77 MAKE: Generic
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
2N3726 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO77
Manufacturer New Jersey Semiconductor
Vbr CBO 45
Vbr CEO 45
Max. PD (W) 400m
C(ob) (F) 8.0p
Derate (Amb) (W/°C) 2.2m
hfe 135
Ic Max. (A) 300m
Icbo Max. @Vcb Max. (A) 10n
Polarity PNP
Trans. Freq (Hz) Min. 60M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 175
@Ic (A) 1.0m
Pinout Equivalence Number 7-16
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.5 W
Maximum Collector-Base Voltage |Vcb| 45 V
Maximum Collector-Emitter Voltage |Vce| 45 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.3 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 8 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 135
SKU 116997
