2N3729
View detailed images (12)

2N3729

SKU: 2N3729

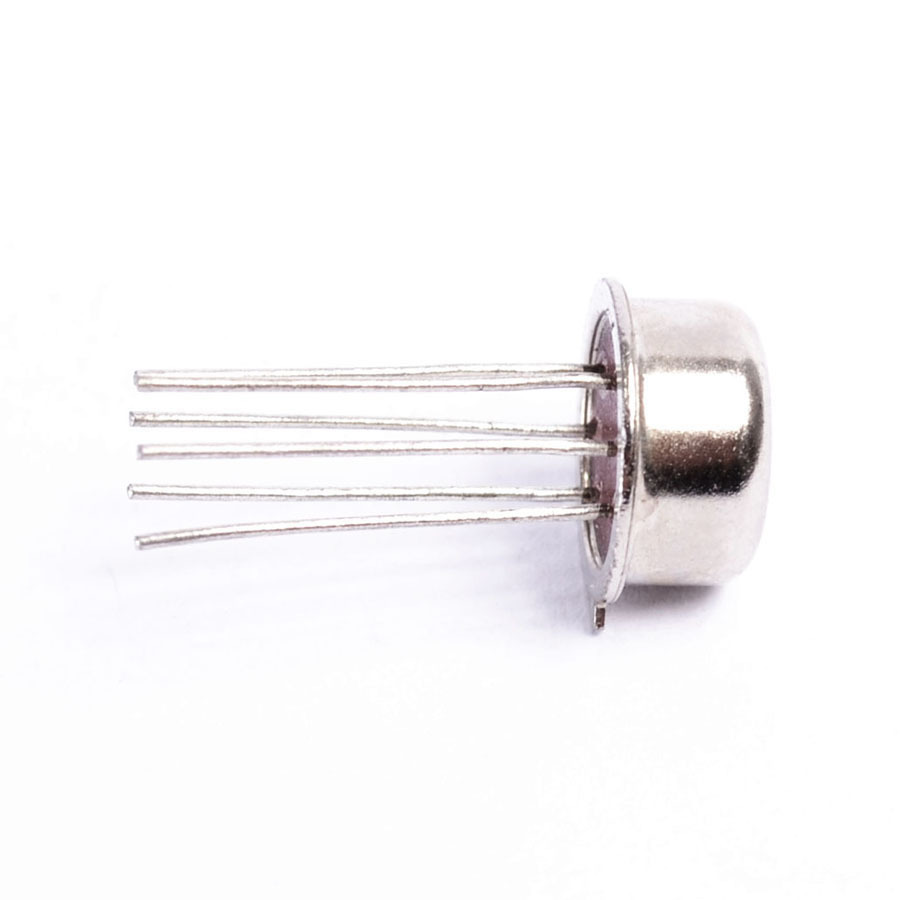

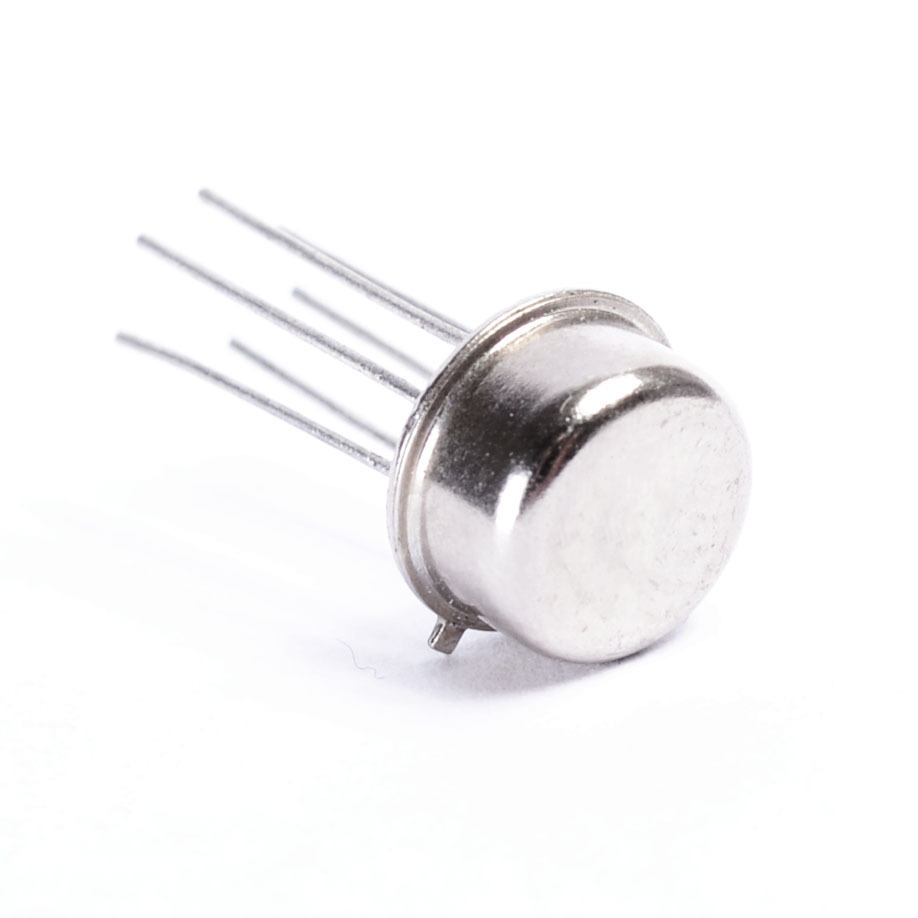

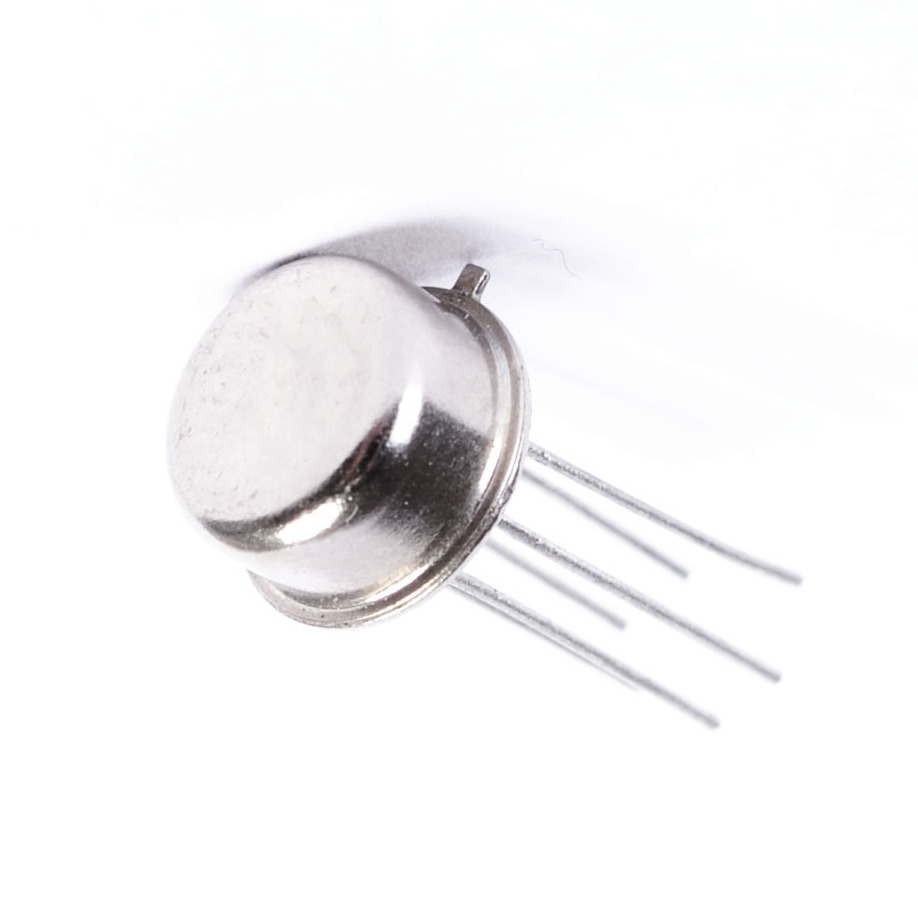

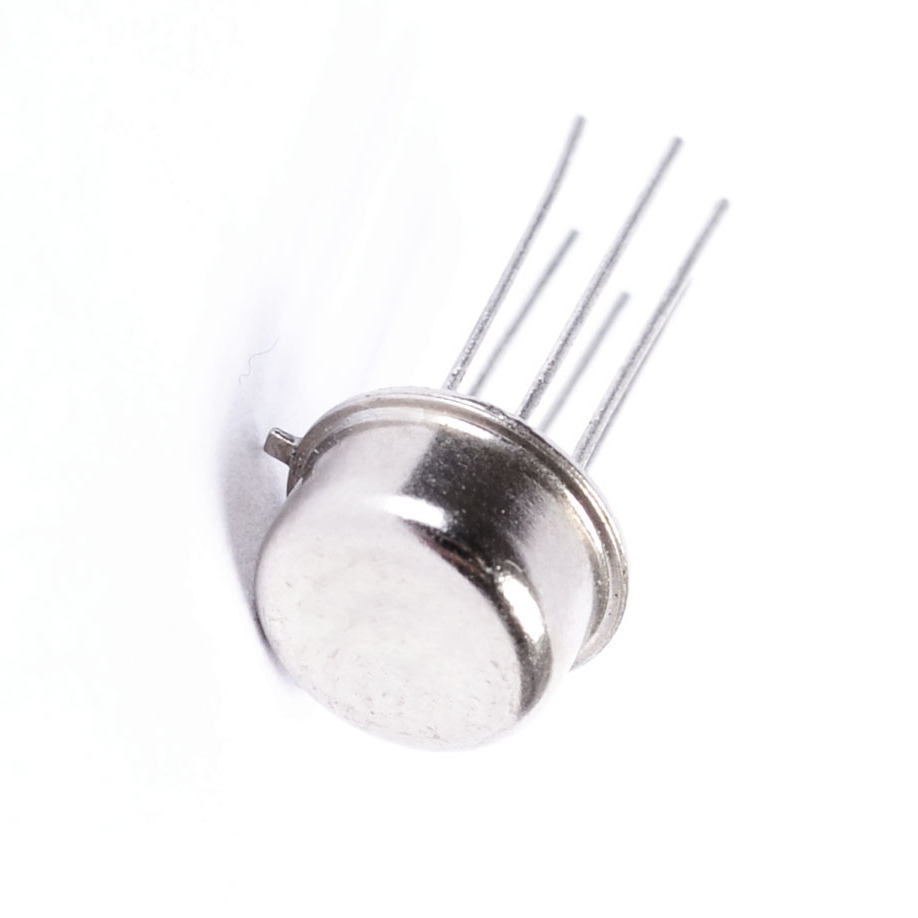

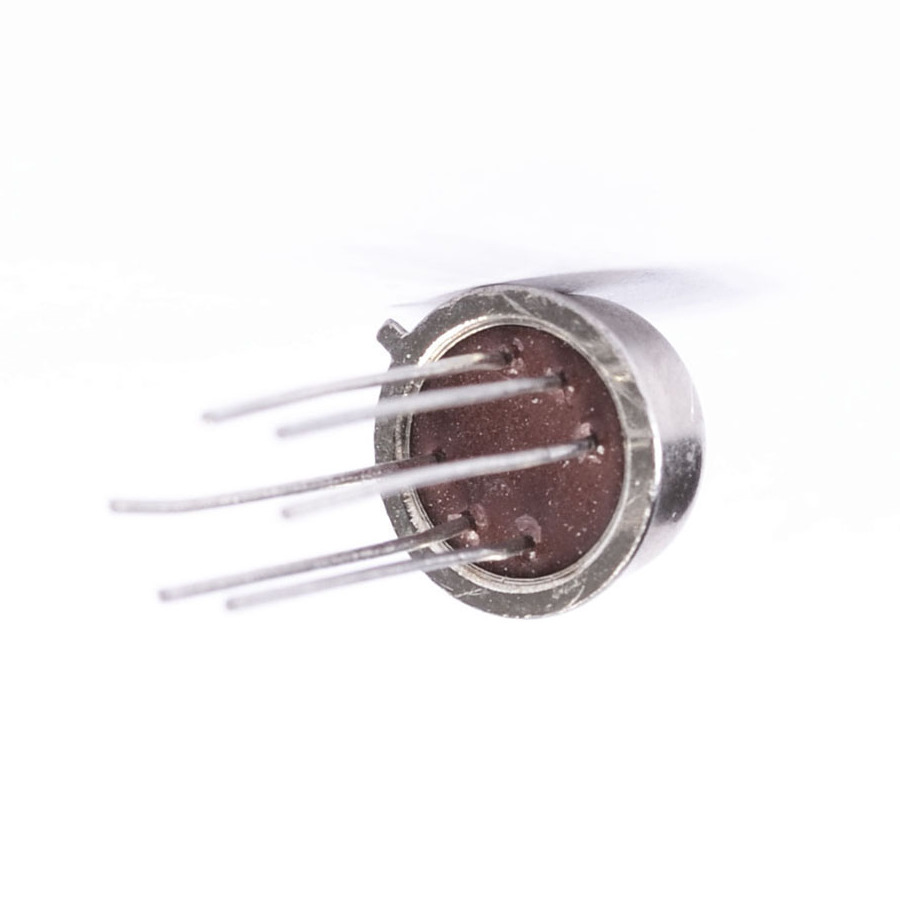

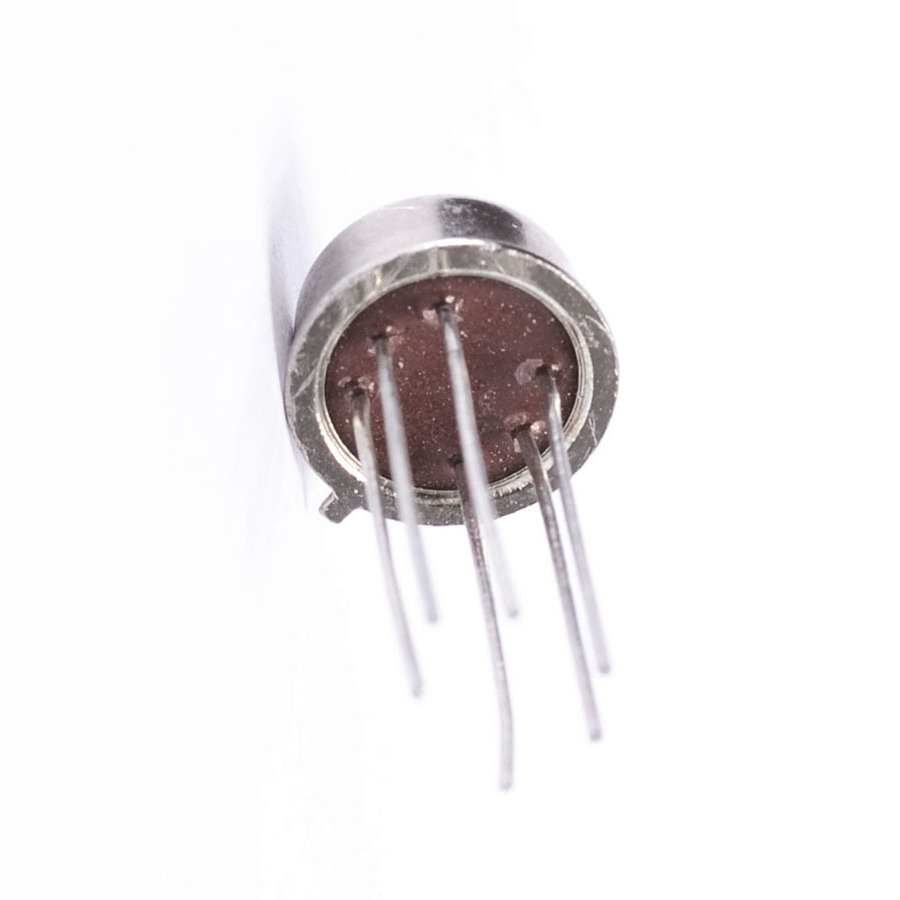

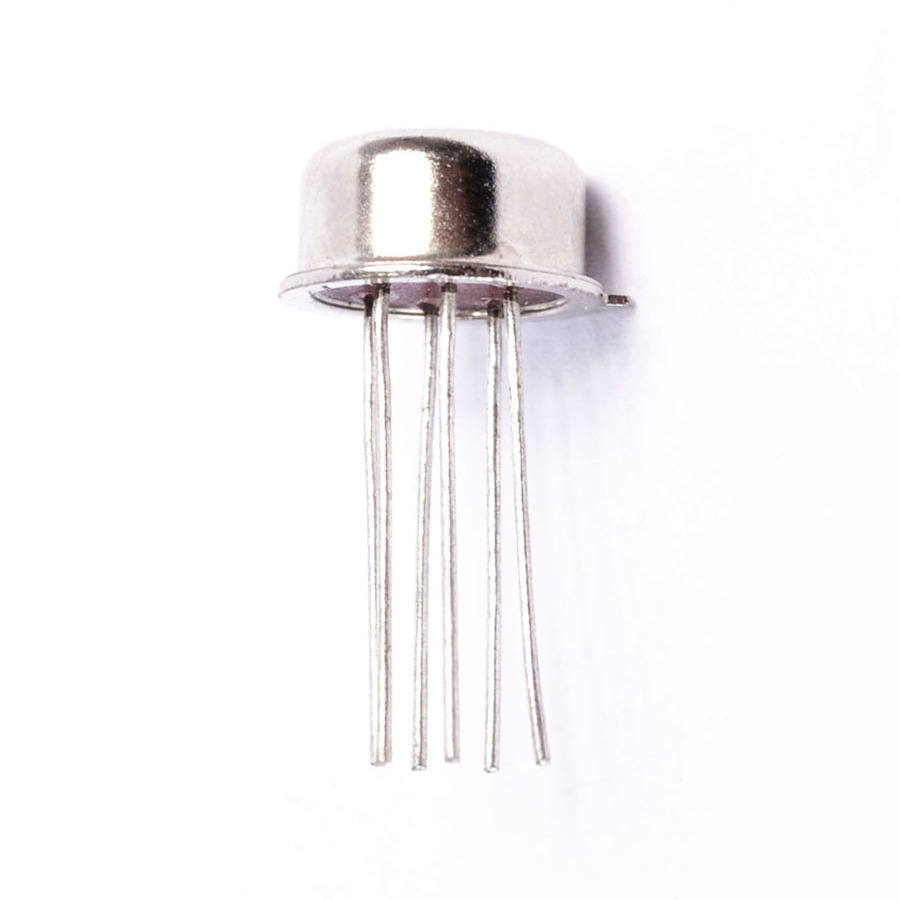

2N3729 Transistor Silicon NPN CASE: TO77 MAKE: Motorola Semiconductor
Product specifications
Type Transistor Silicon NPN
Case TO77
Manufacturer Motorola Semiconductor
Vbr CBO 60
Vbr CEO 30
Max. PD (W) 450m
C(ob) (F) 8p
Derate (Amb) (W/°C) 2.6m
hfe 50
Icbo Max. @Vcb Max. (A) .01u
Polarity NPN
Trans. Freq (Hz) Min. 80M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 175
@Ic (A) 1.0m
Pinout Equivalence Number 7-16
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.45 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 8 pF
Transition Frequency (ft): 80 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 774457
