2N3811A
View detailed images (12)

2N3811A

SKU: 2N3811A

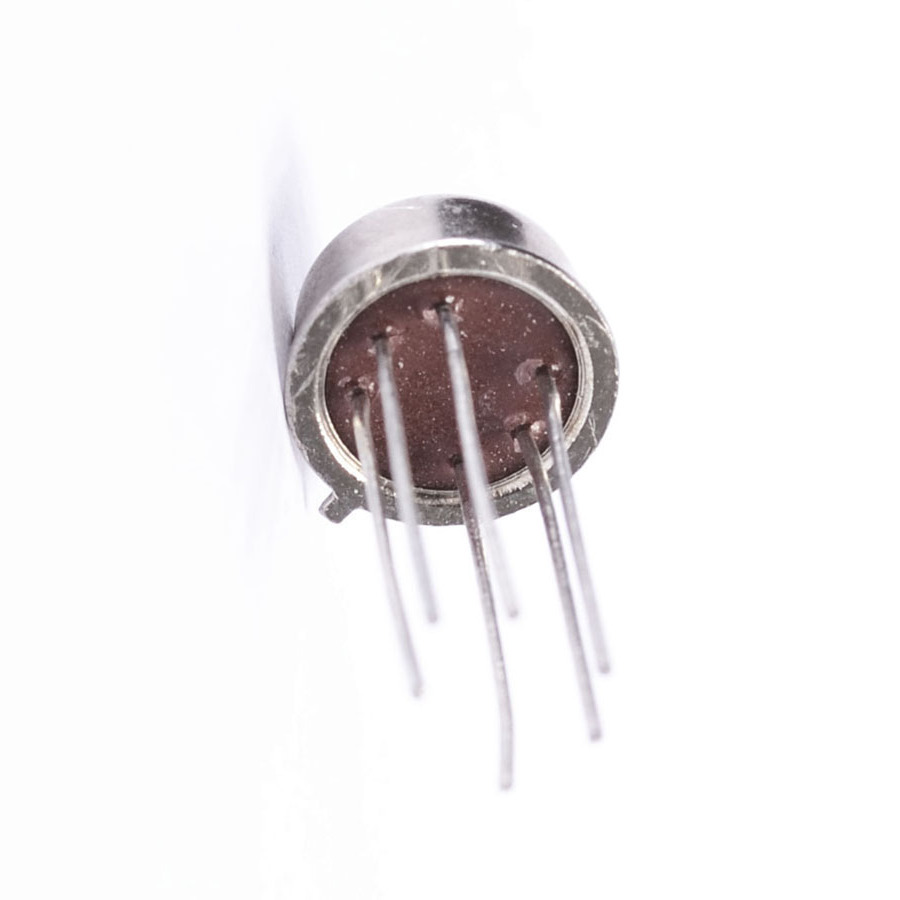

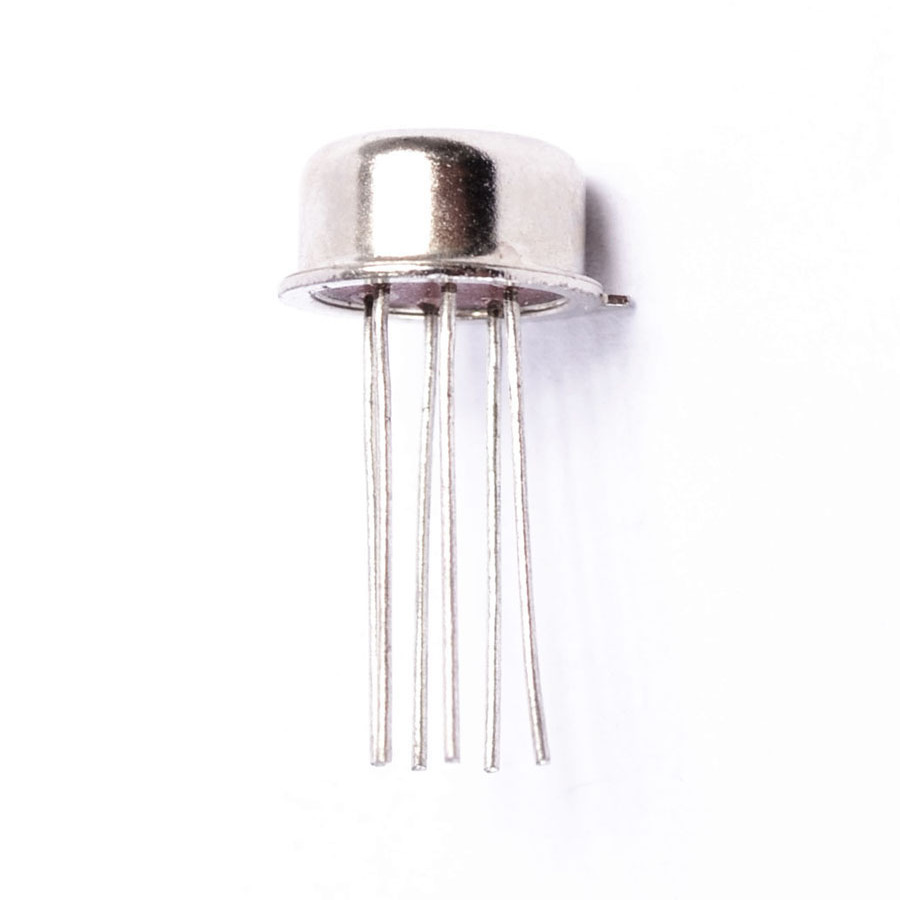

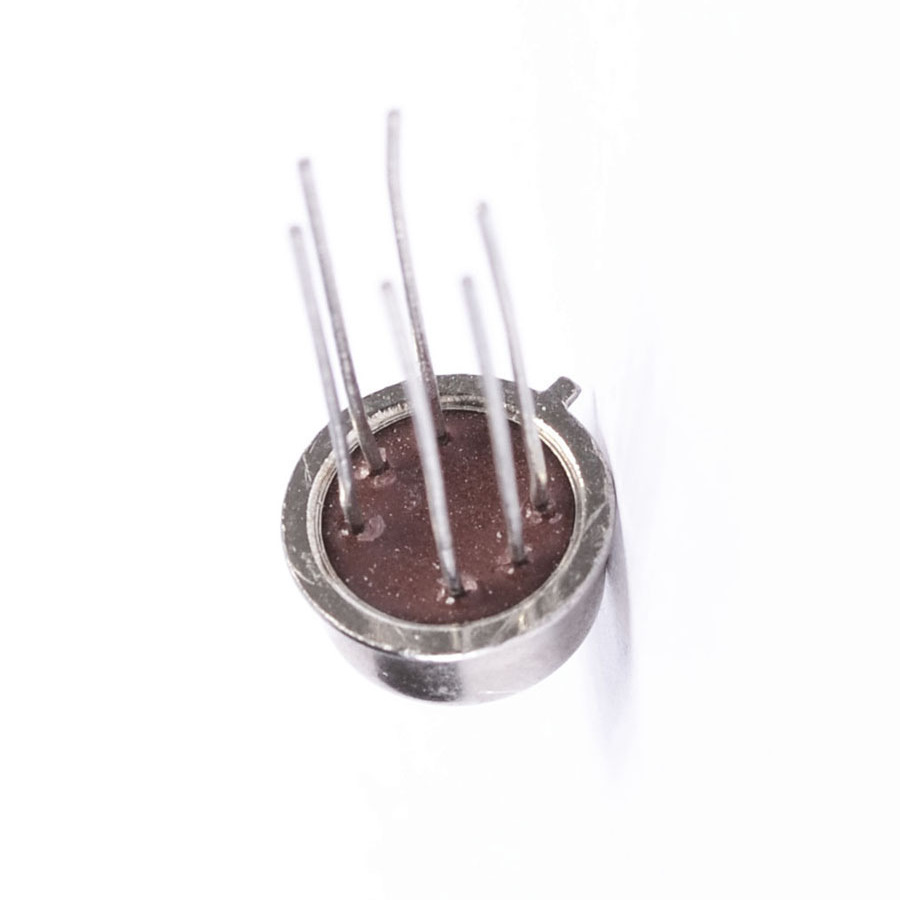

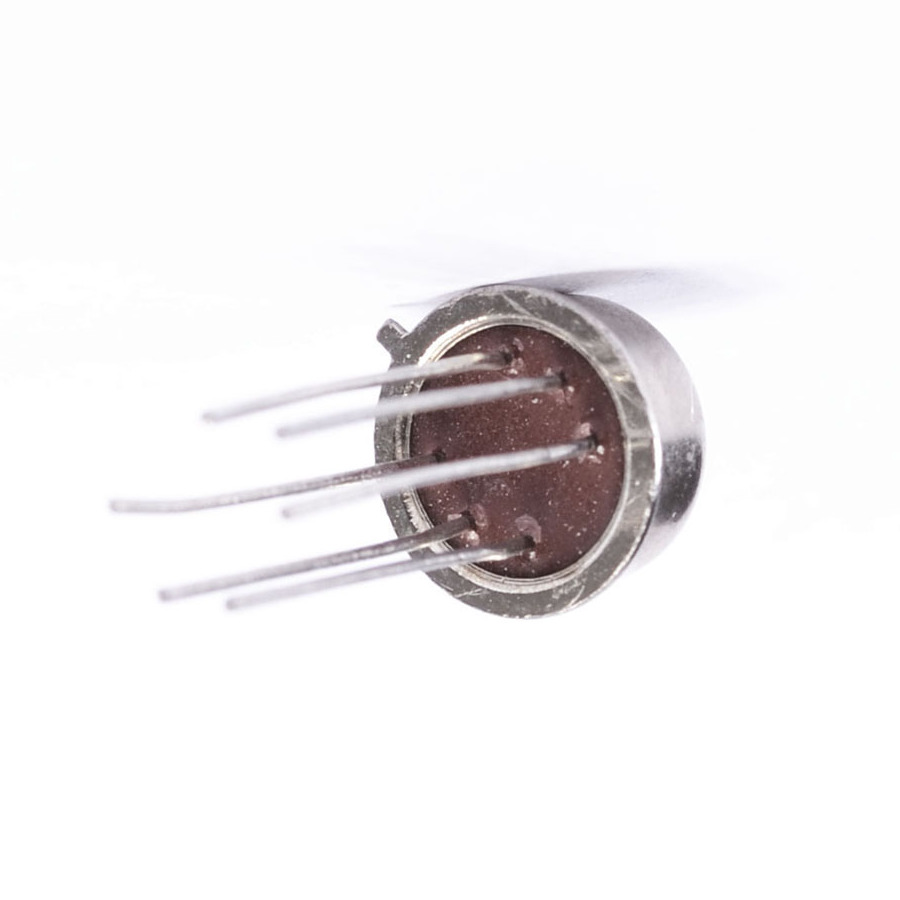

2N3811A Transistor Silicon PNP CASE: TO77 MAKE: Motorola Semiconductor
Datasheet
2N3811A Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO77
Manufacturer Motorola Semiconductor
Min hFE 300
Mat. Silicon Logic
Polarity PNP
PD Max. (W) 0.6
@VCE (test) (V) 5.0
@Ic (test) 1.0m
Ic Max. 50m
Vceo Max. 60
Pinout Equivalence Number 8-48
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.6 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 4 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 300
SKU 774309
