2N3811L
View detailed images (4)

2N3811L

SKU: 2N3811L

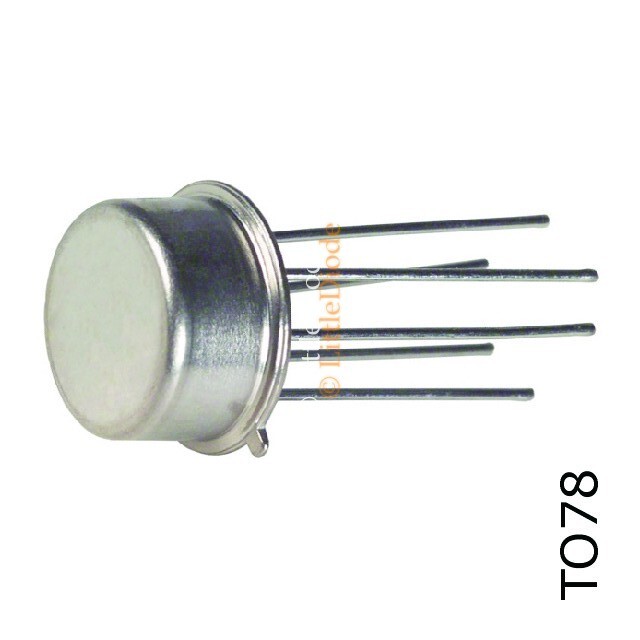

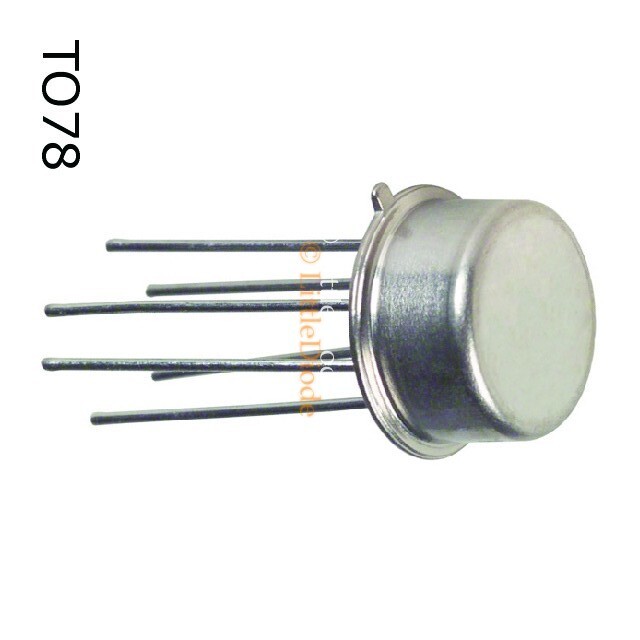

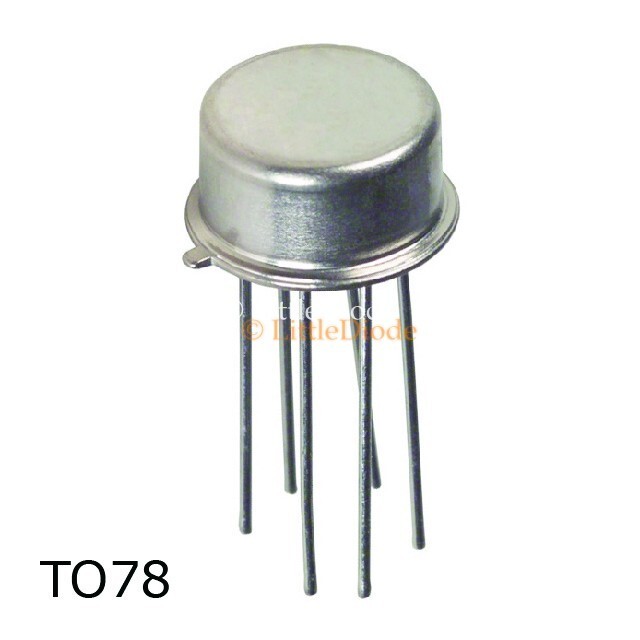

2N3811L Transistor Silicon PNP CASE: TO78 MAKE: Raytheon
Datasheet
2N3811L Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO78
Manufacturer Raytheon
Min hFE 300
Mat. Silicon Logic
Polarity PNP
PD Max. (W) 0.6
@VCE (test) (V) 5.0
@Ic (test) 1.0m
Ic Max. 50m
Vceo Max. 60
Pinout Equivalence Number 8-48
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.35 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 5 pF
Forward Current Transfer Ratio (hFE), MIN 300
SKU 774303
