2N389
View detailed images (9)

2N389

SKU: 2N389

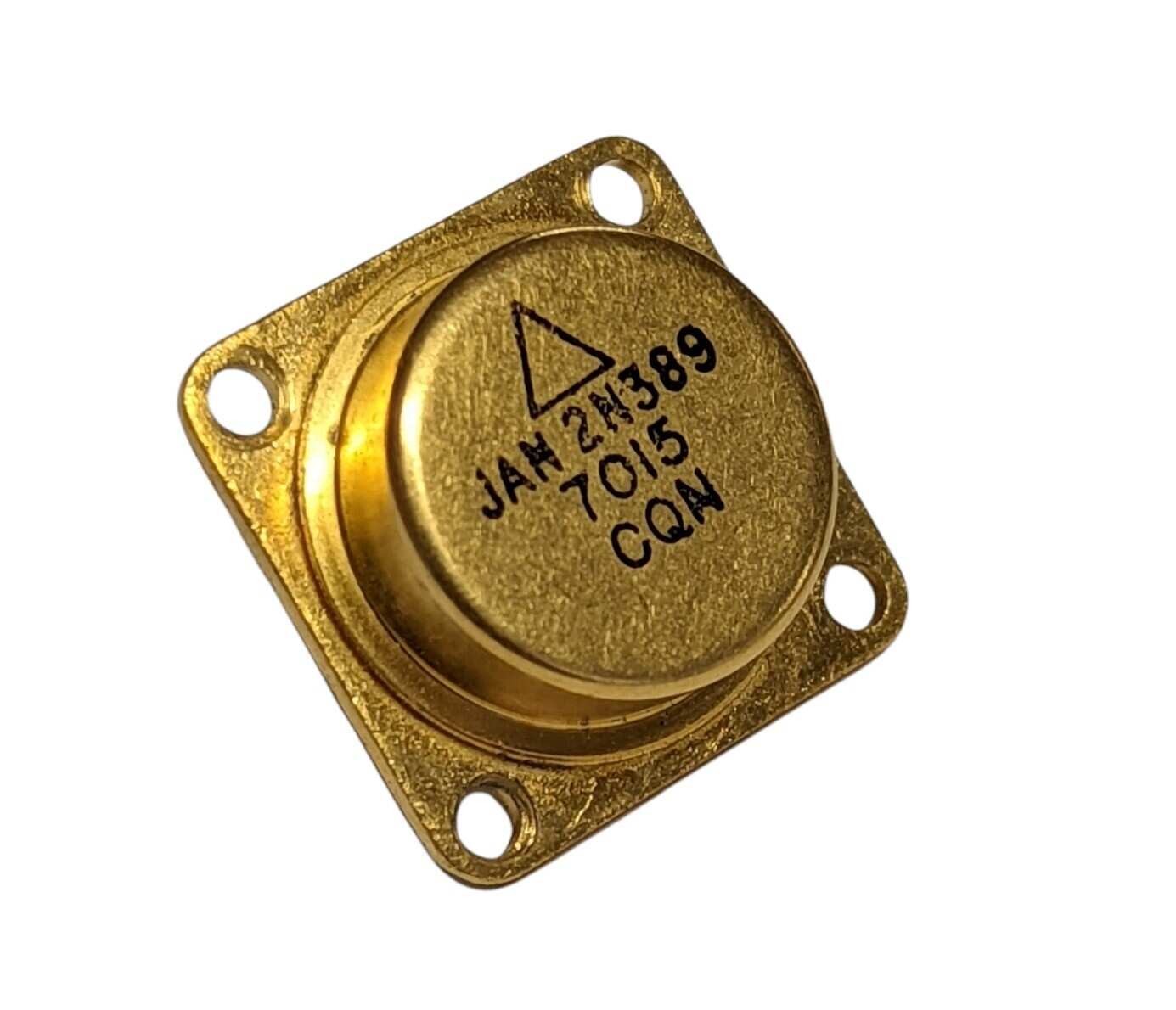

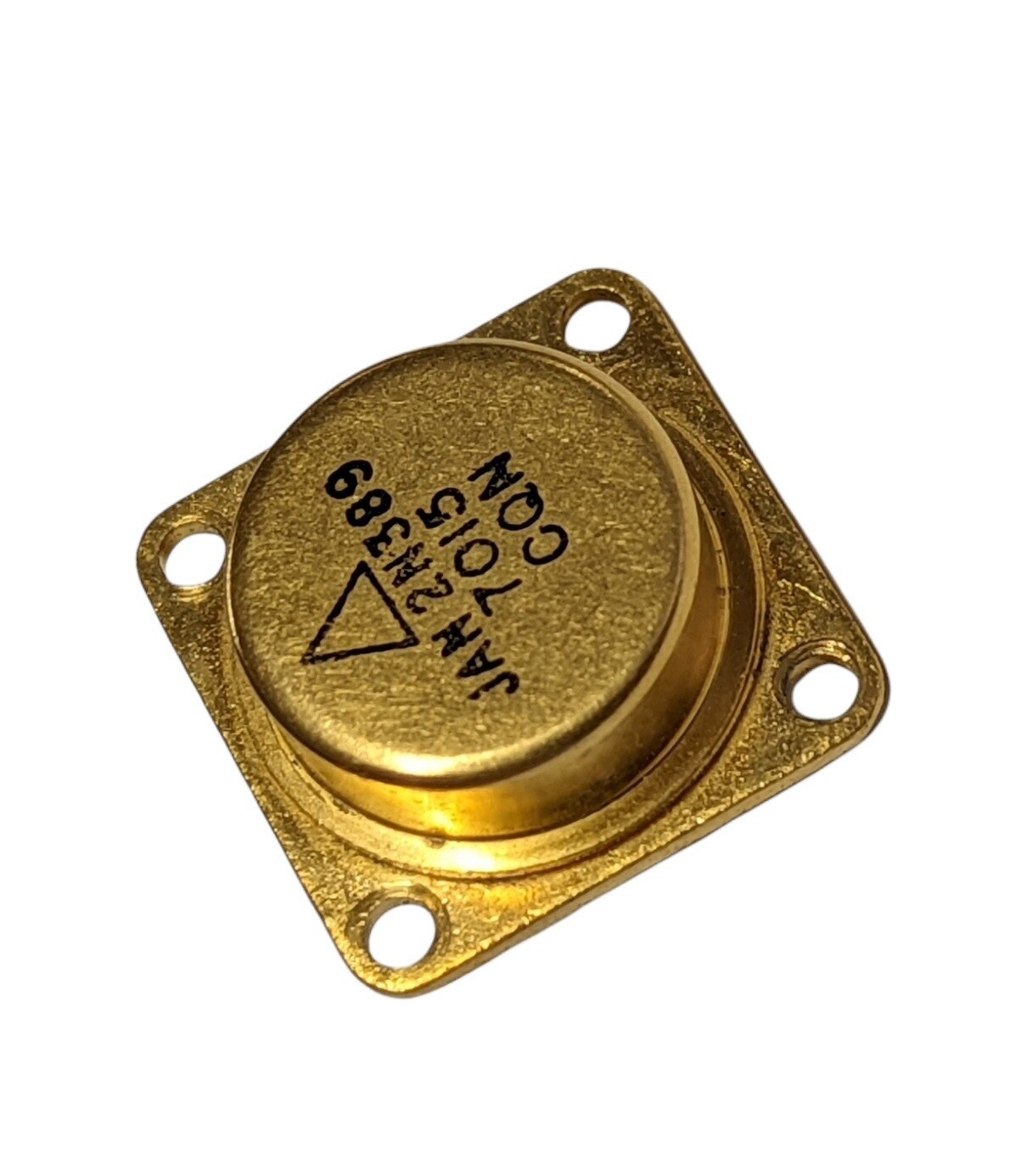

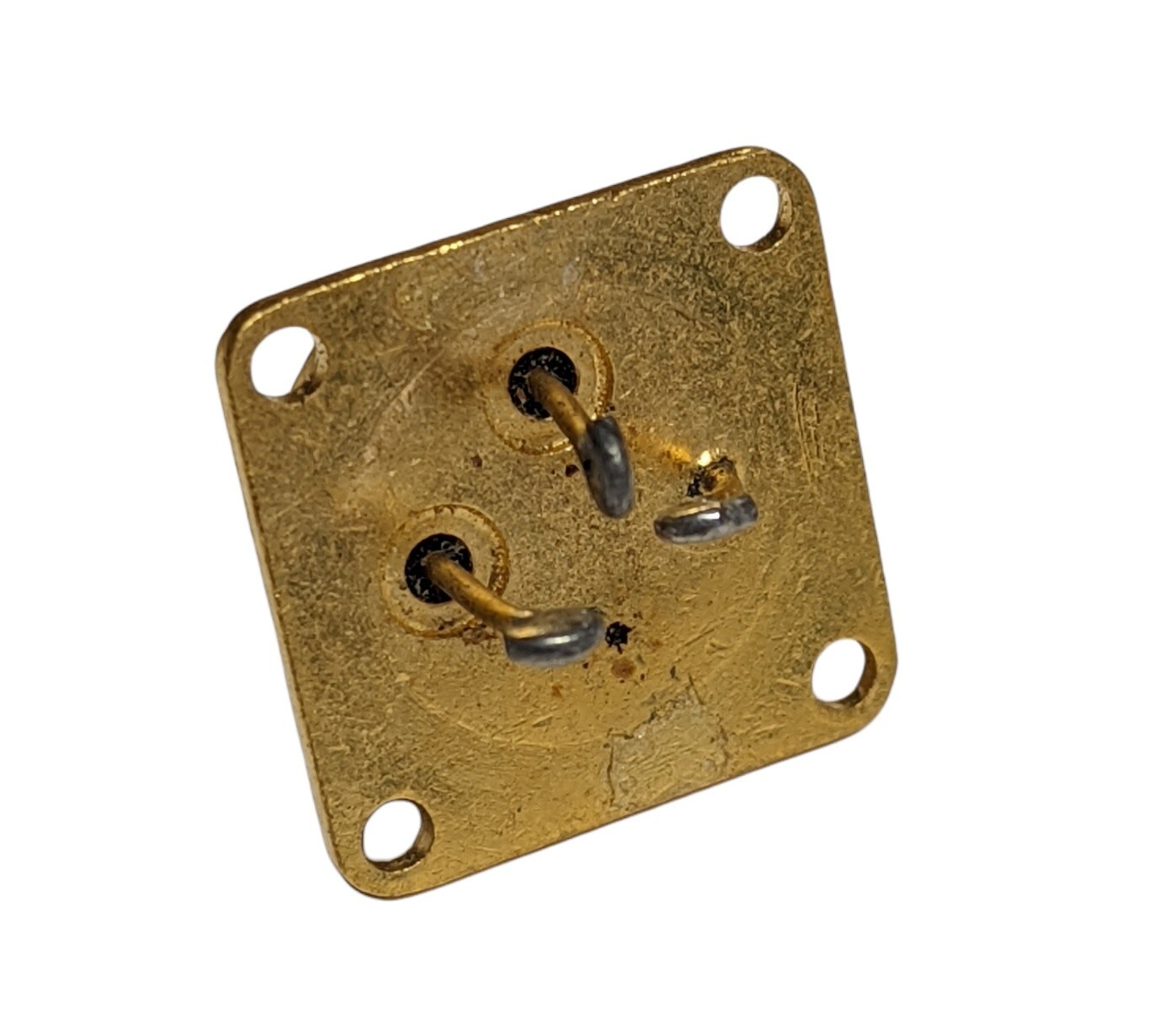

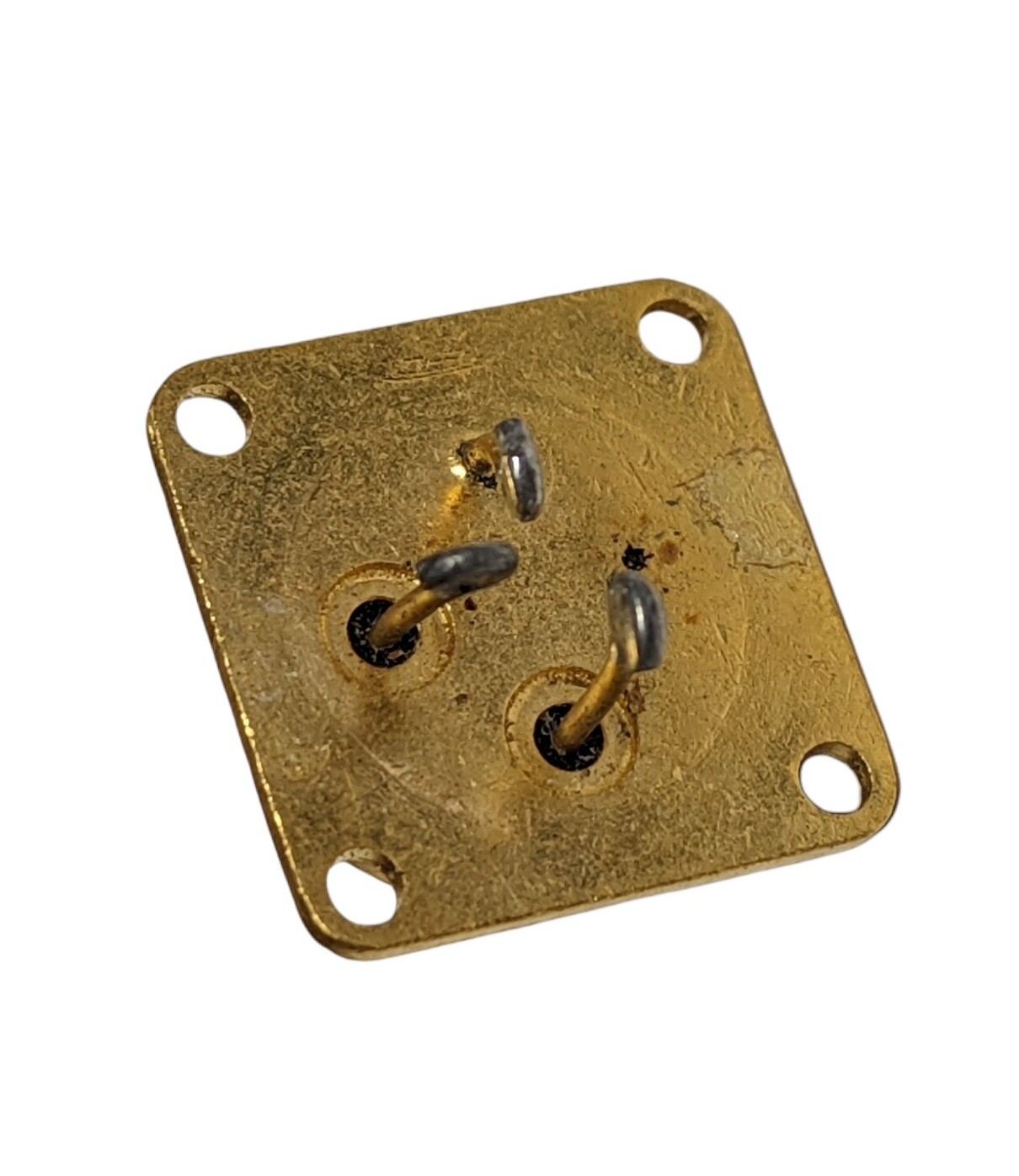

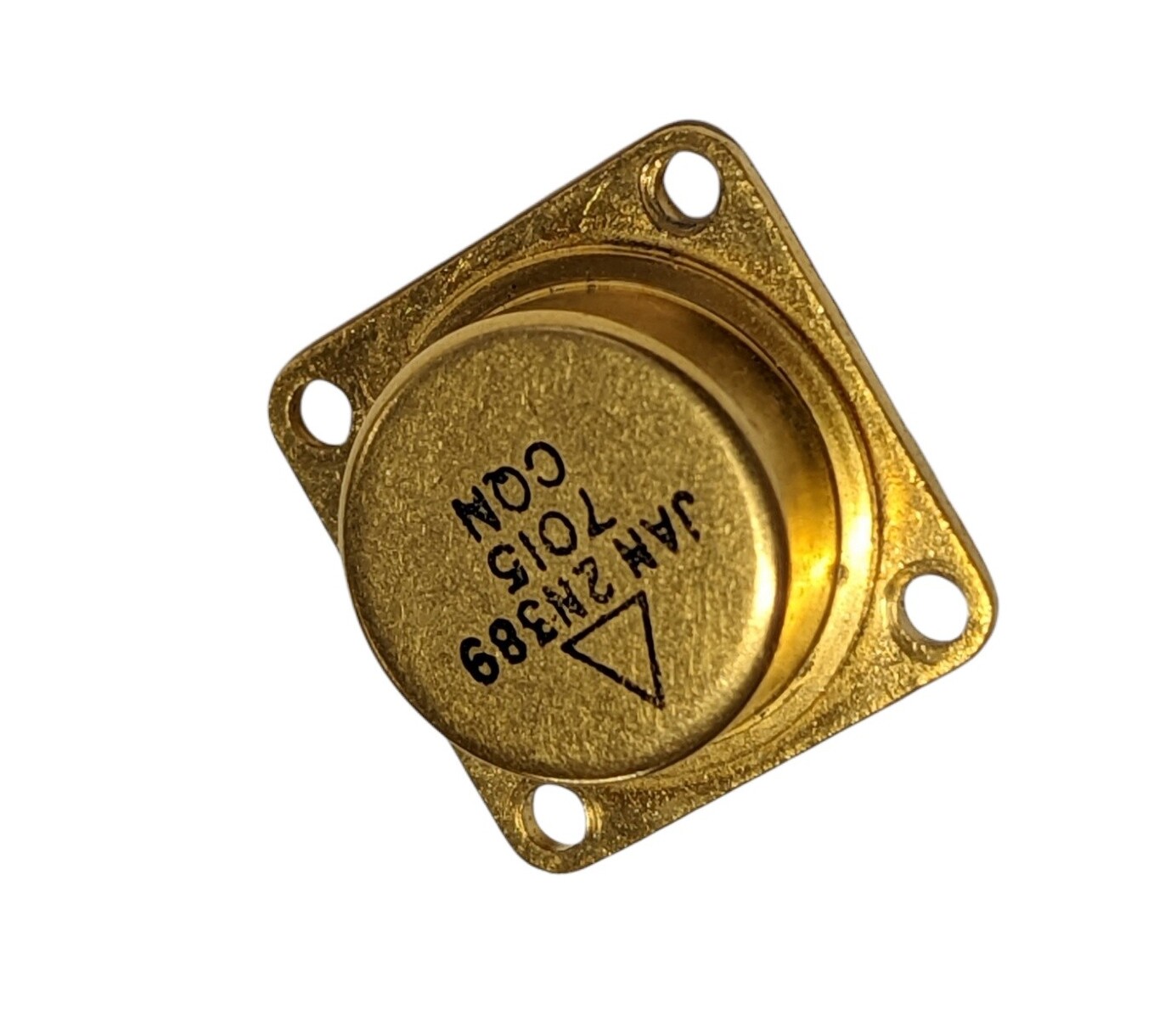

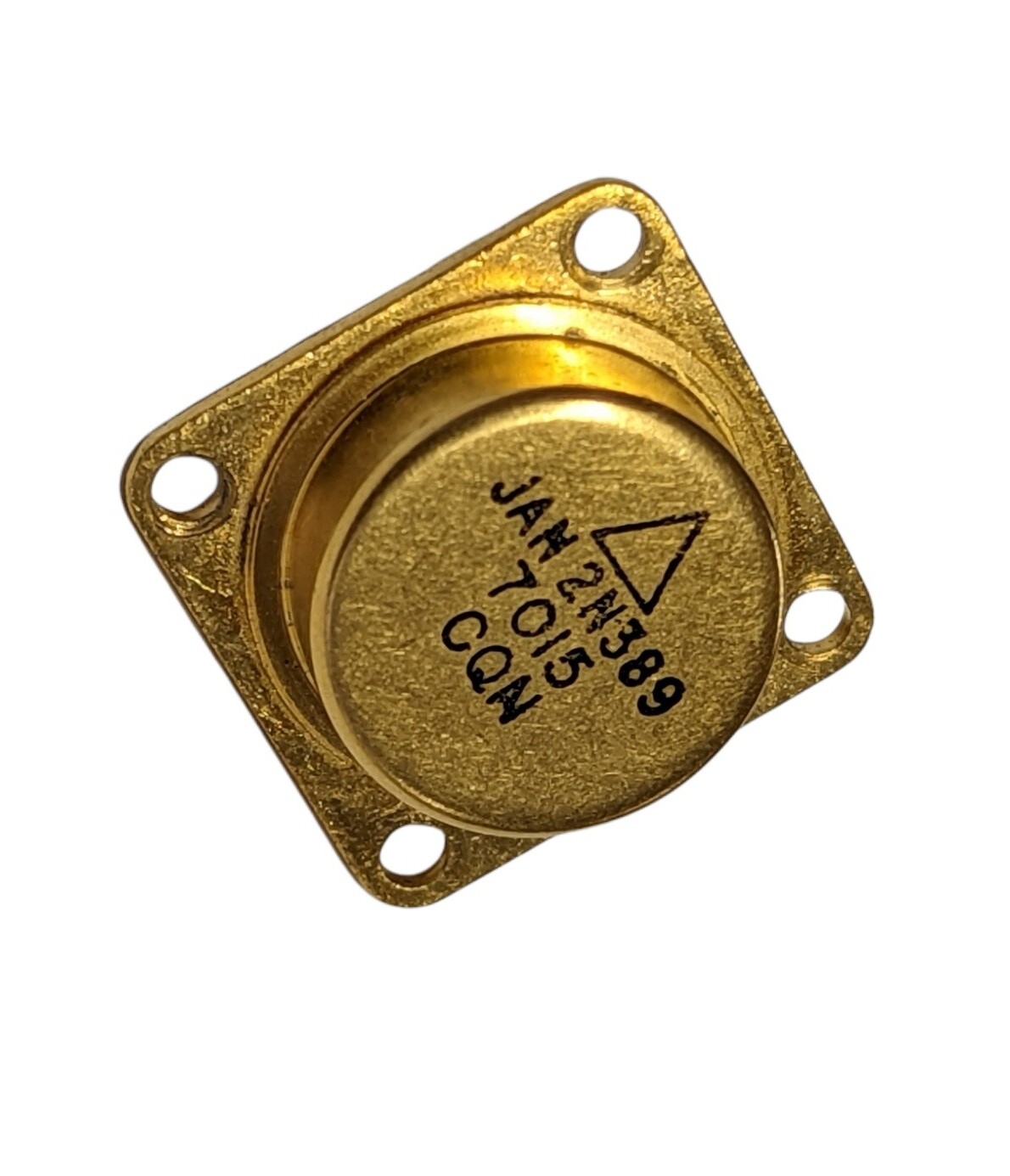

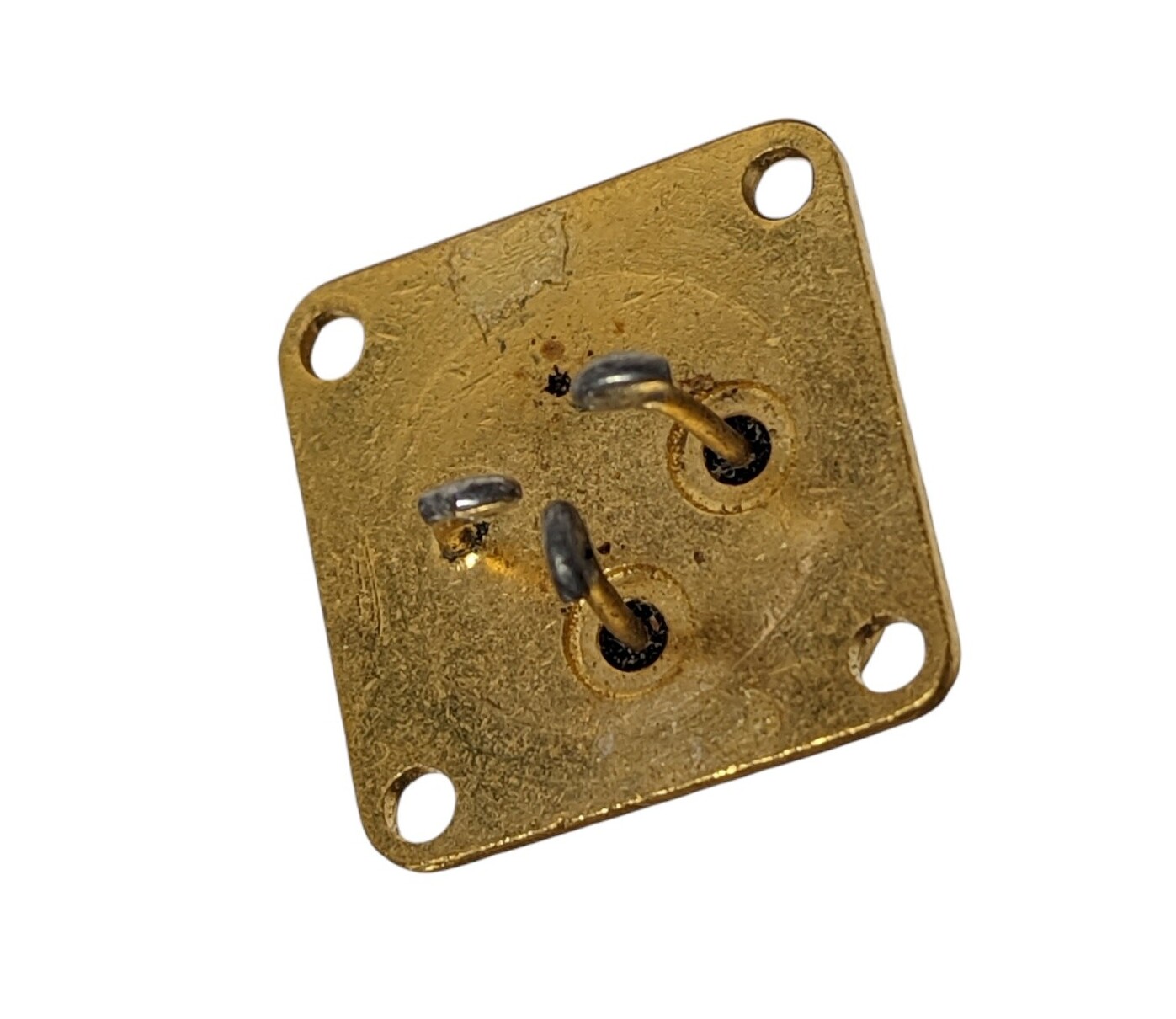

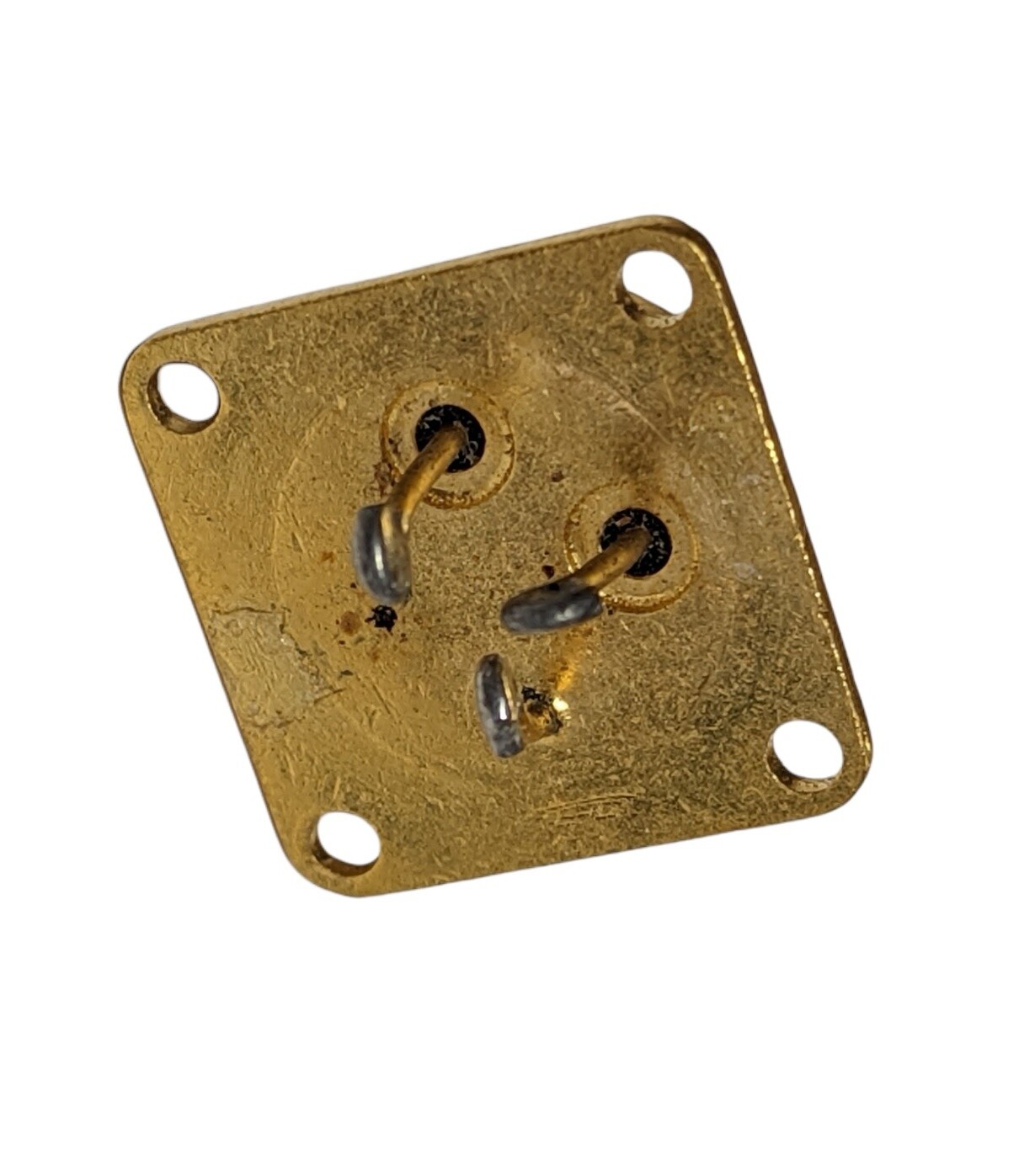

2N389 Transistor Silicon NPN CASE: TO53 MAKE: Generic
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • 4 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Equivalent 2N389A
Type Transistor Silicon NPN
Case TO53
Manufacturer Generic
Vbr CEO 60
Max. PD (W) 85
Max. hFE 60
Min hFE 12
Ic Max. (A) 3.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 10m
Polarity NPN
R(sat) (Û) 5.0
Derate Above 25°C 485m
Oper. Temp (°C) Max. 200
@VCE (V) 15
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 45 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 200 °C
Transition Frequency (ft): 8.5 MHz
Forward Current Transfer Ratio (hFE), MIN 12
SKU 606068
