2N3896
View detailed images (12)

2N3896

SKU: 2N3896

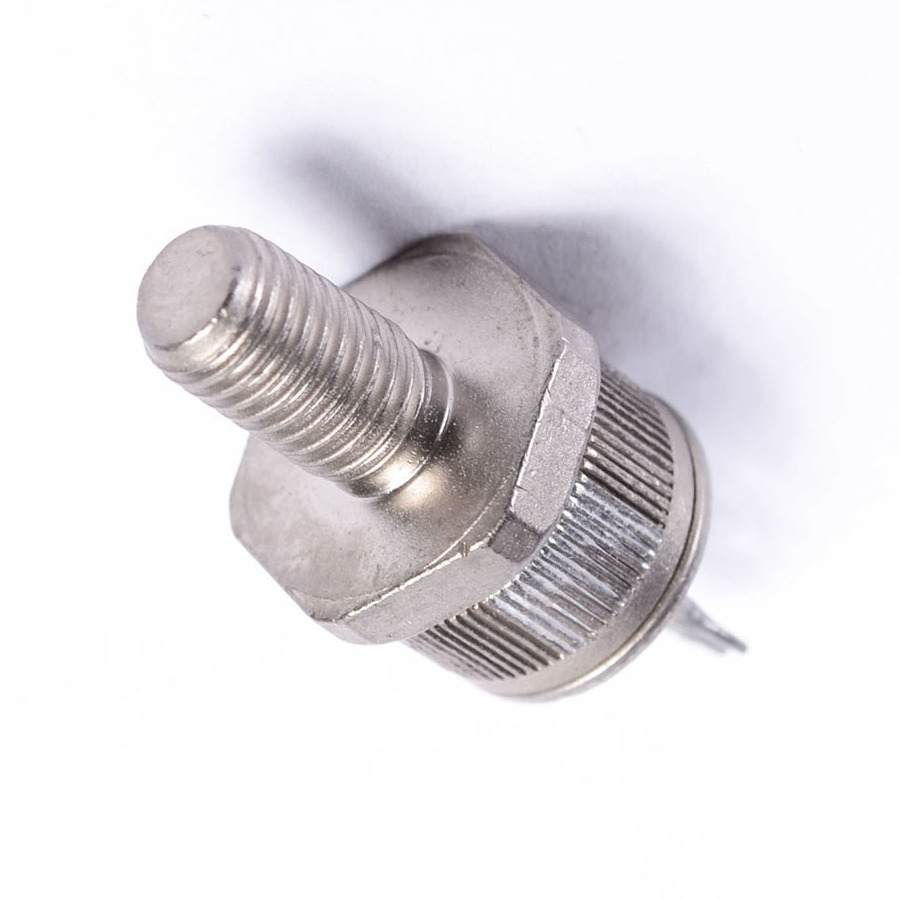

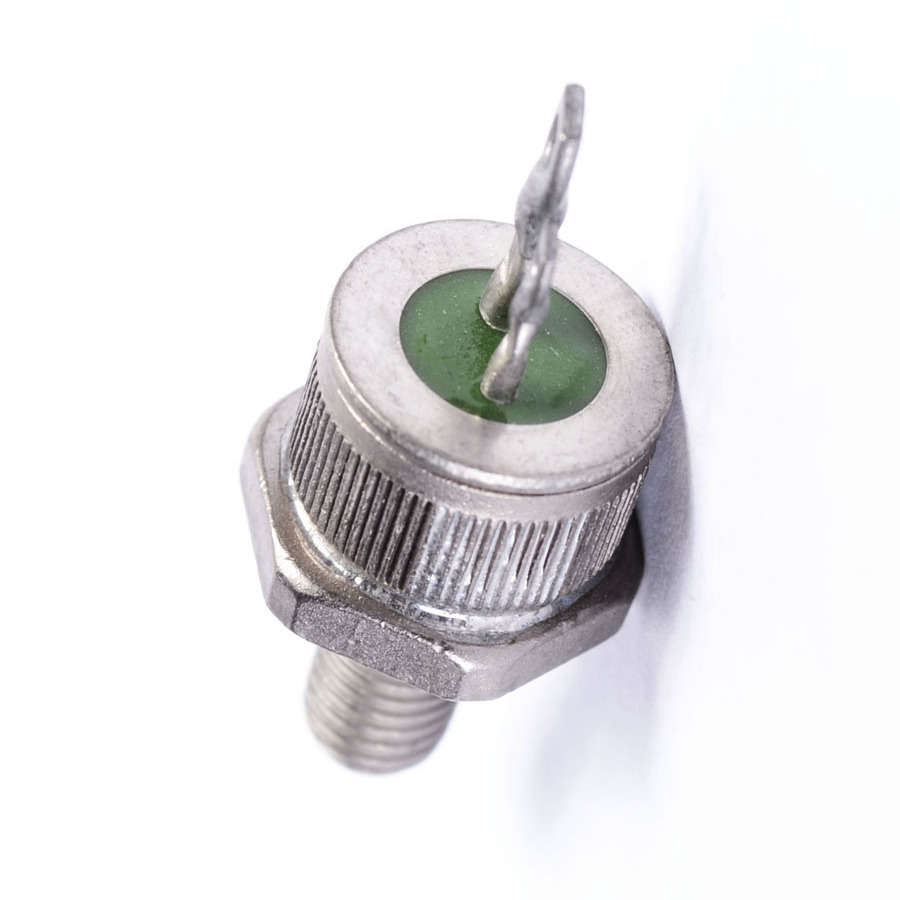

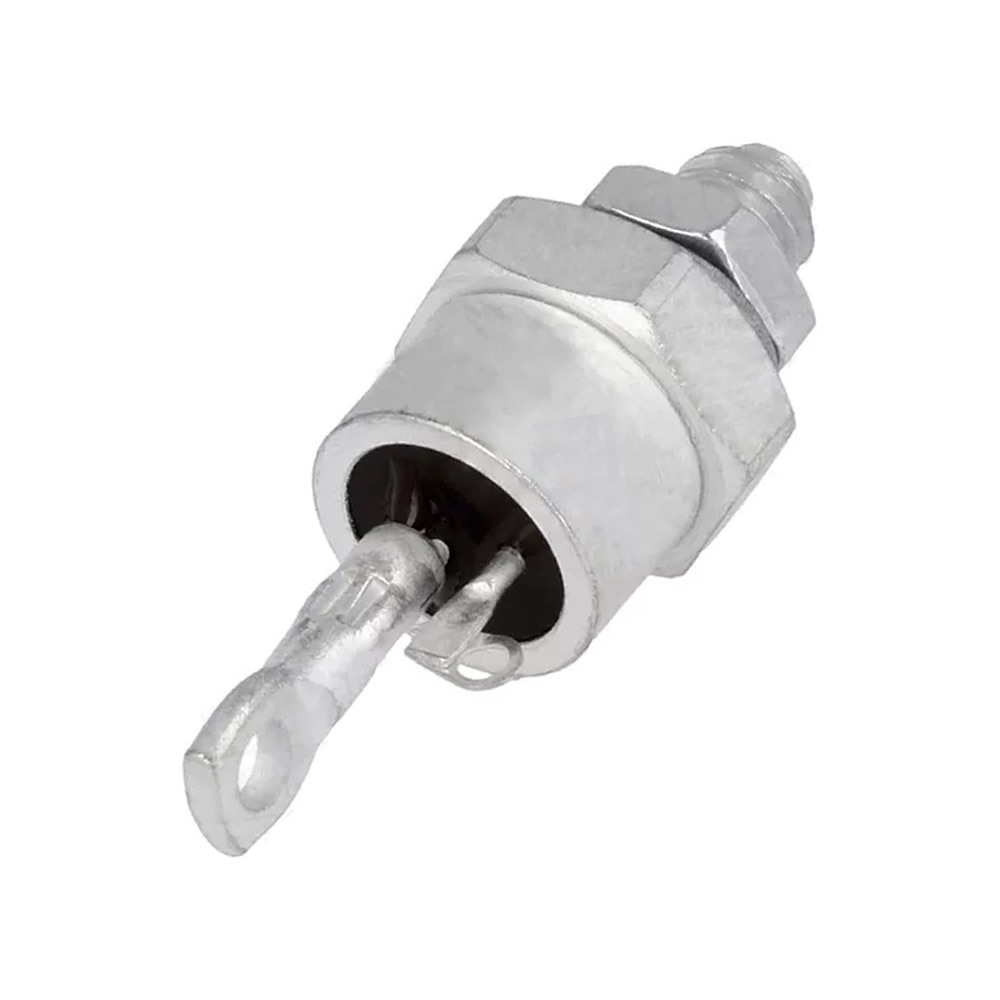

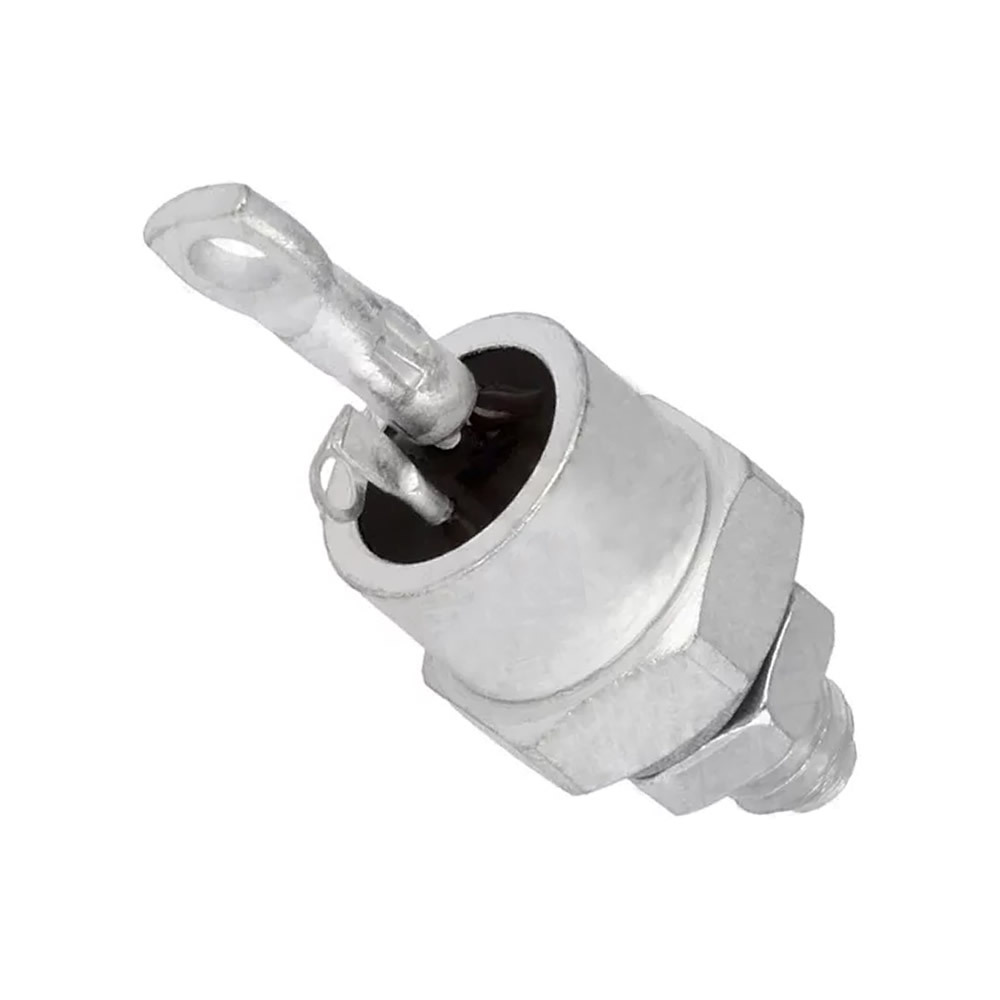

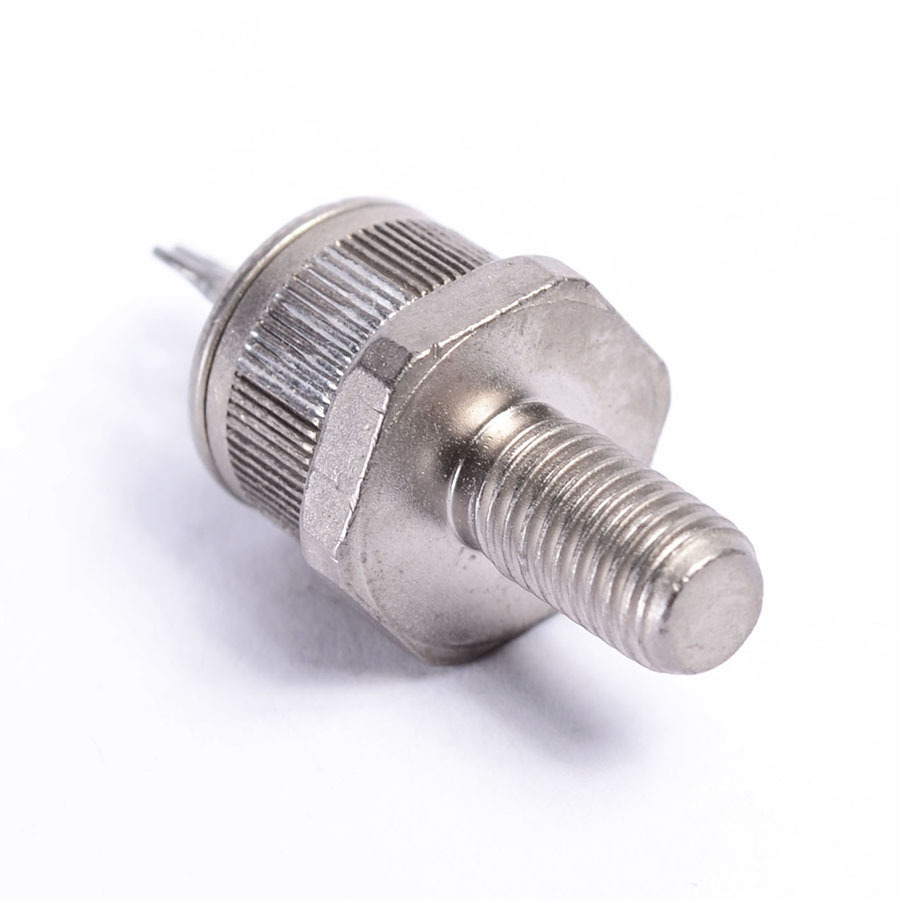

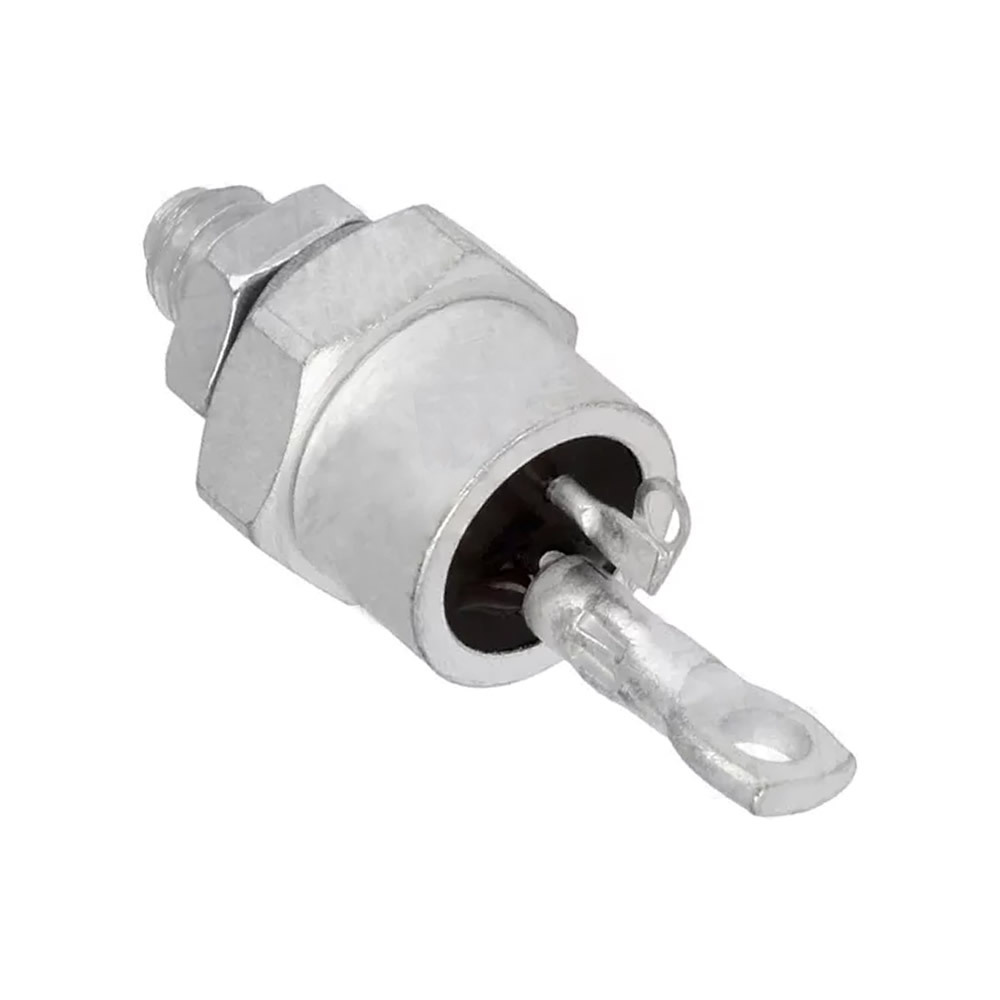

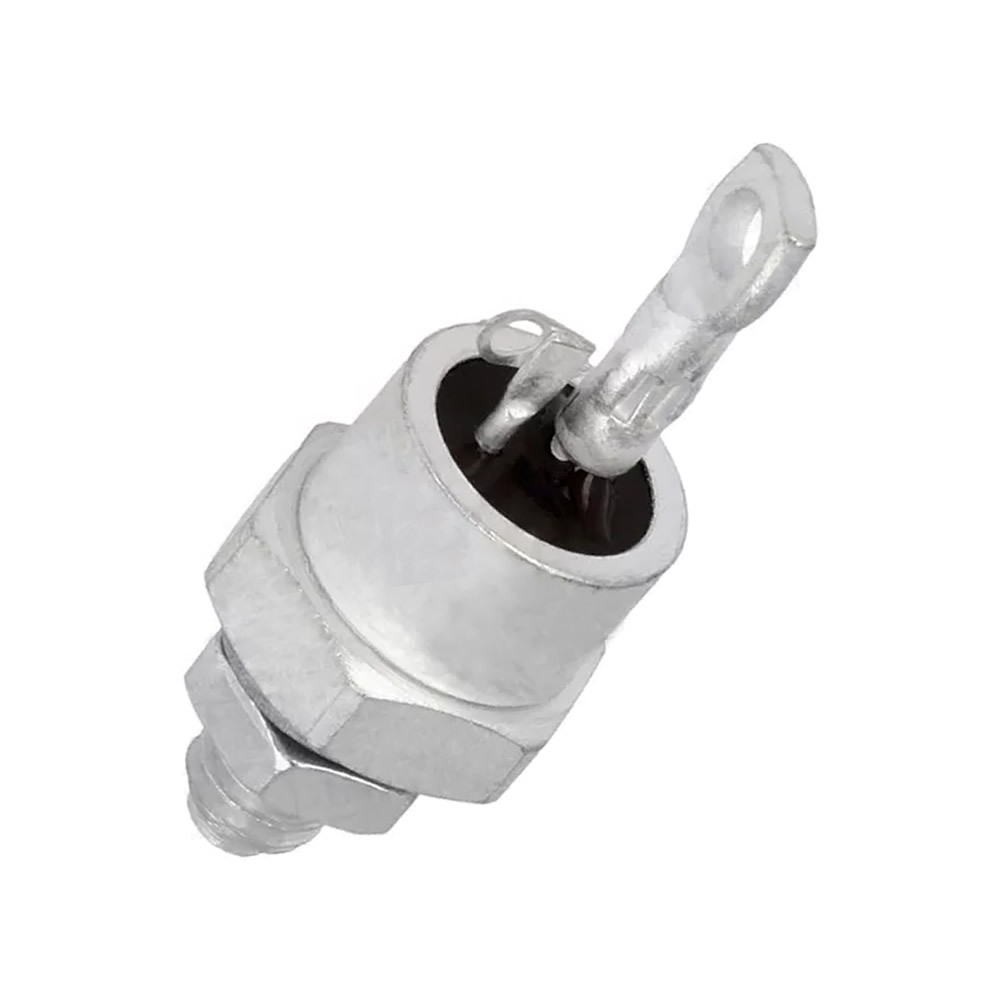

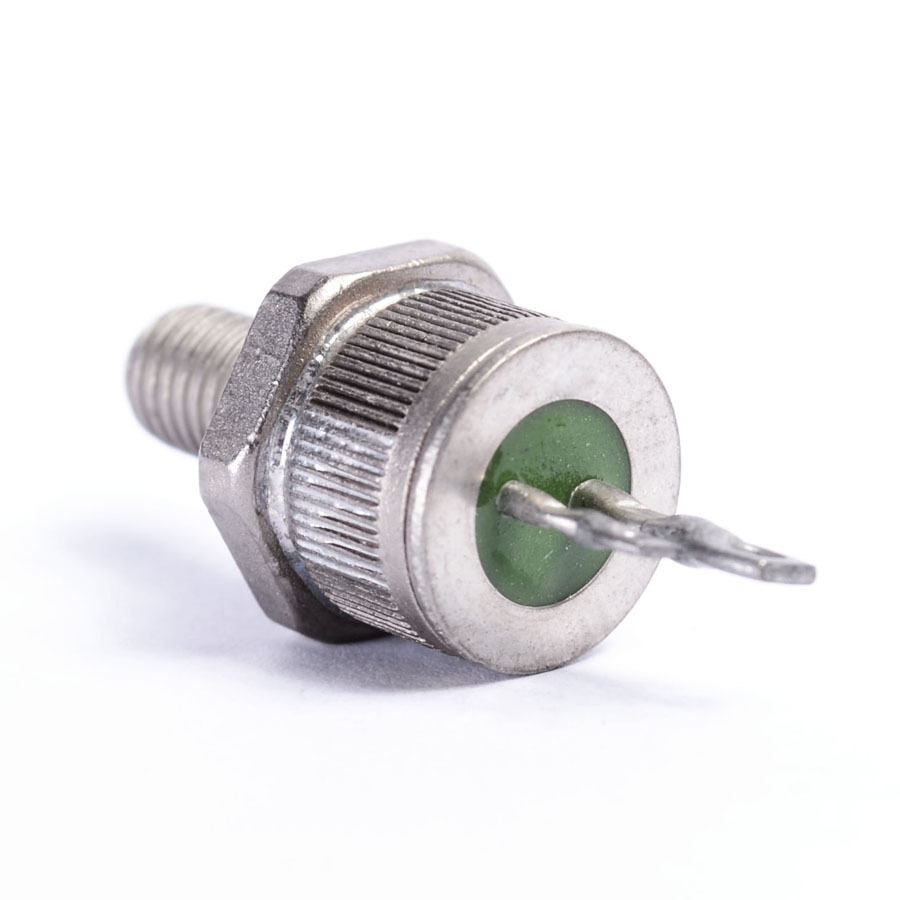

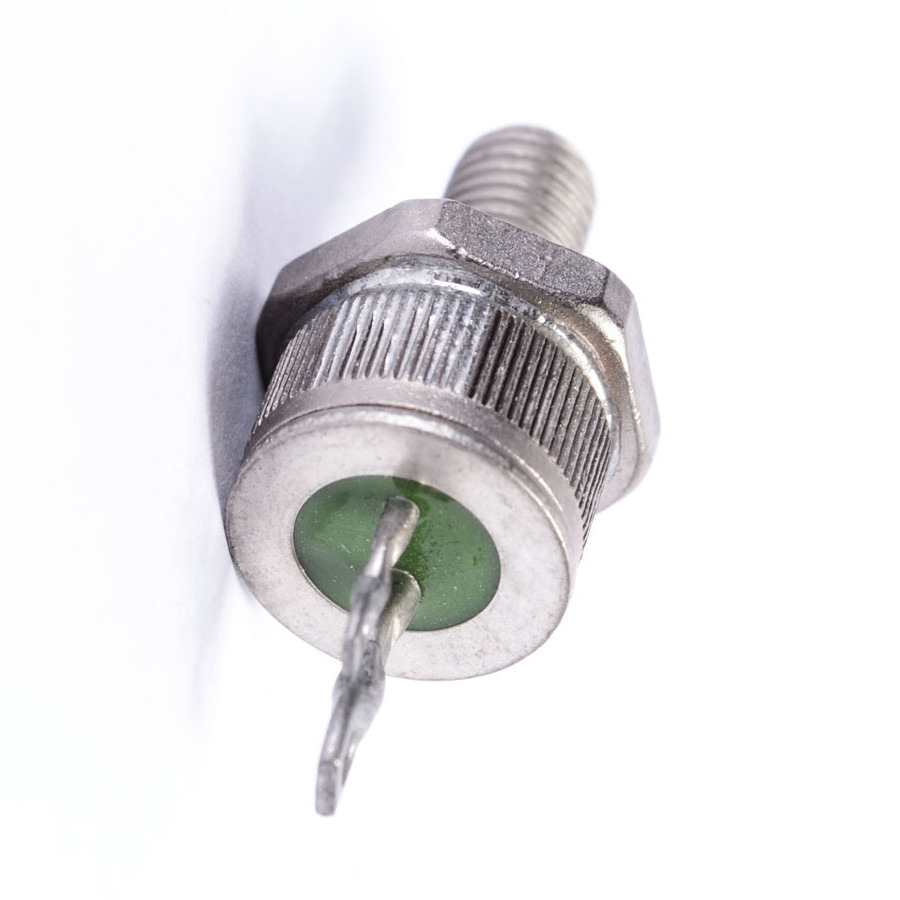

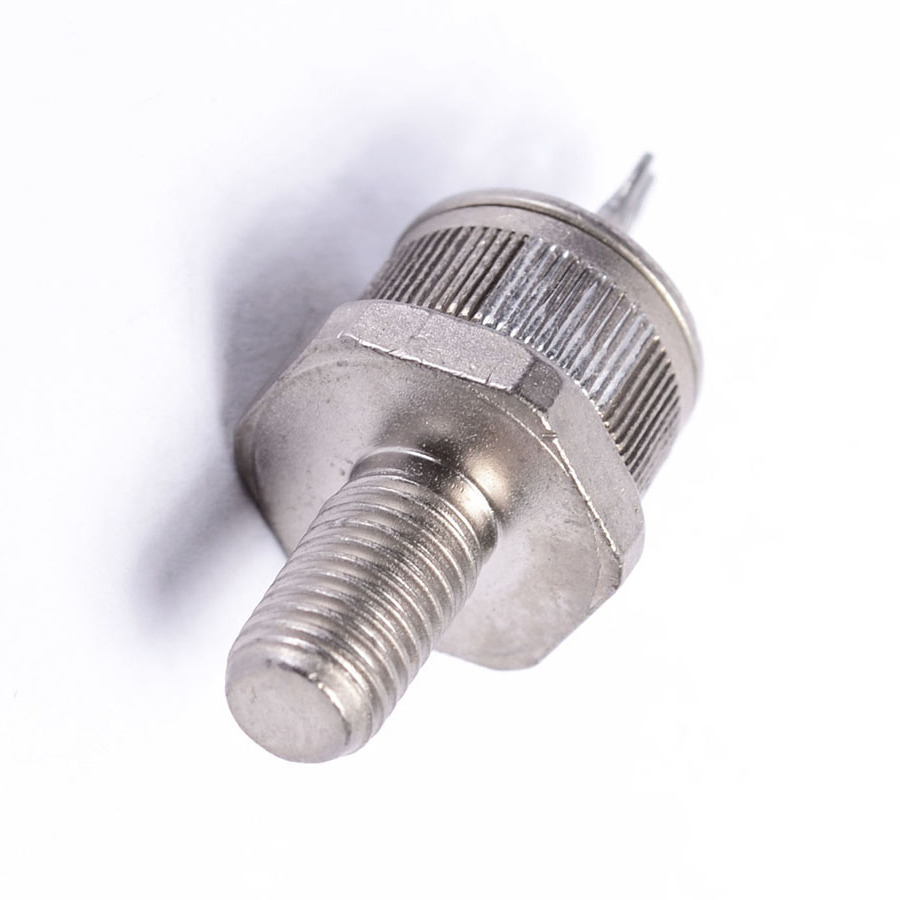

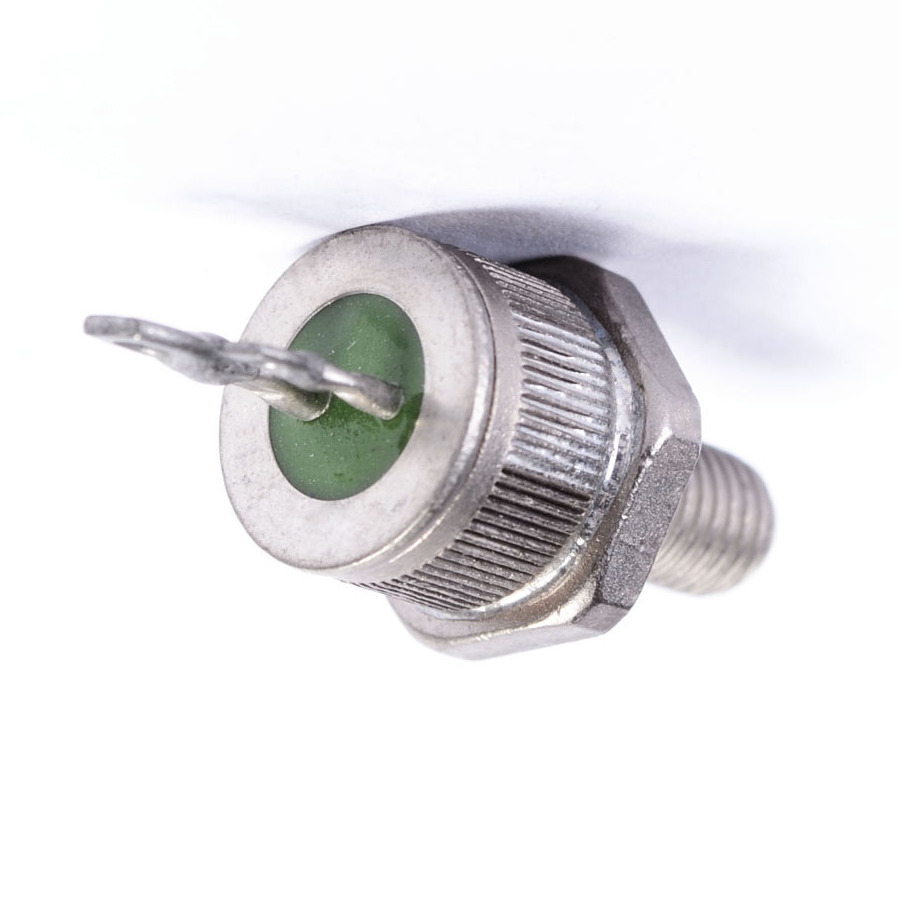

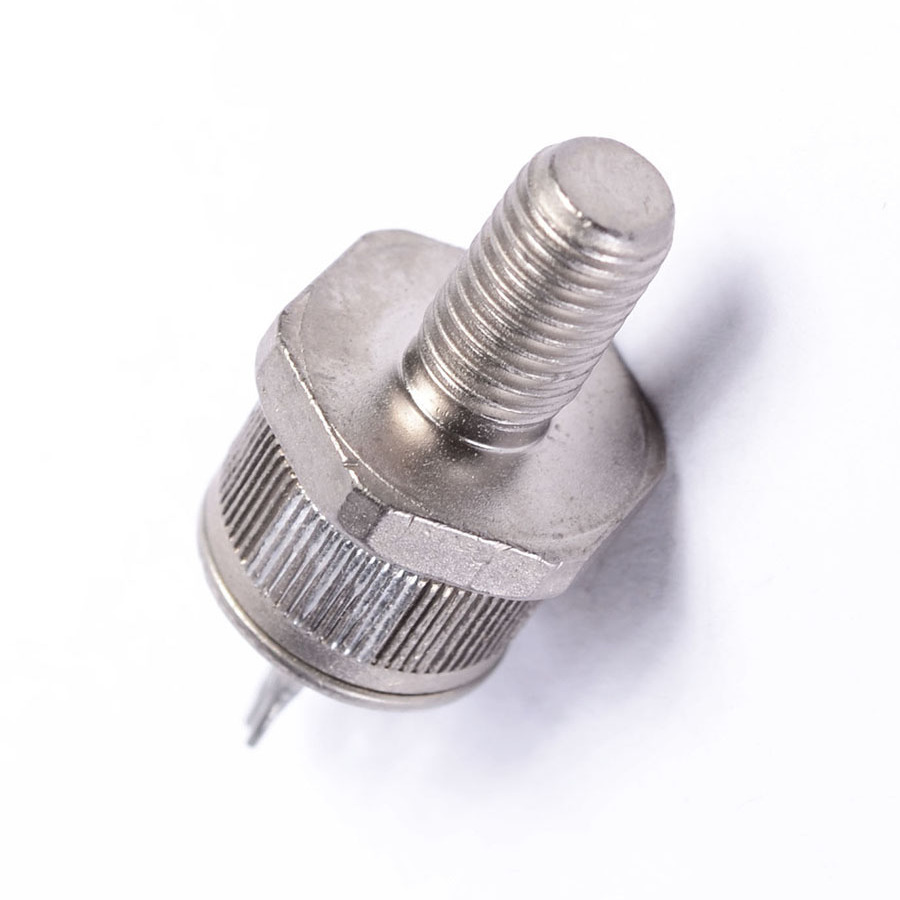

2N3896 Thyristor 50Hz CASE: TO48 MAKE: Solid State Scientific
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • 5 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
2N3896 Datasheet
Product specifications
Type Thyristor 50Hz
Case TO48
Manufacturer Solid State Scientific
Dv/Dt Worst Case 50-
Firing Char-Igt Max. 80m
Firing Char-Vgt Max. 3.0
I(h) Max. (A) 90m
Id(off) Max. (A) 2.0m
@It (test) (A) 41
It(stat) Max. (A) 11
Supp Curr. I(TSM) 350
t(switch) Off Typ. Time (S) 25u
t(switch) Off Typ. Time (S) 1.5u=
V(drm) Max. 100
V(T) Max. 1.8
@Temp. (test) (°C) 100#
@Temp. (test) (°C) 85#
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 100
@It (A) 69
Surface Mounted Yes/No NO
SKU 87507
