2N4015
View detailed images (12)

2N4015

SKU: 2N4015

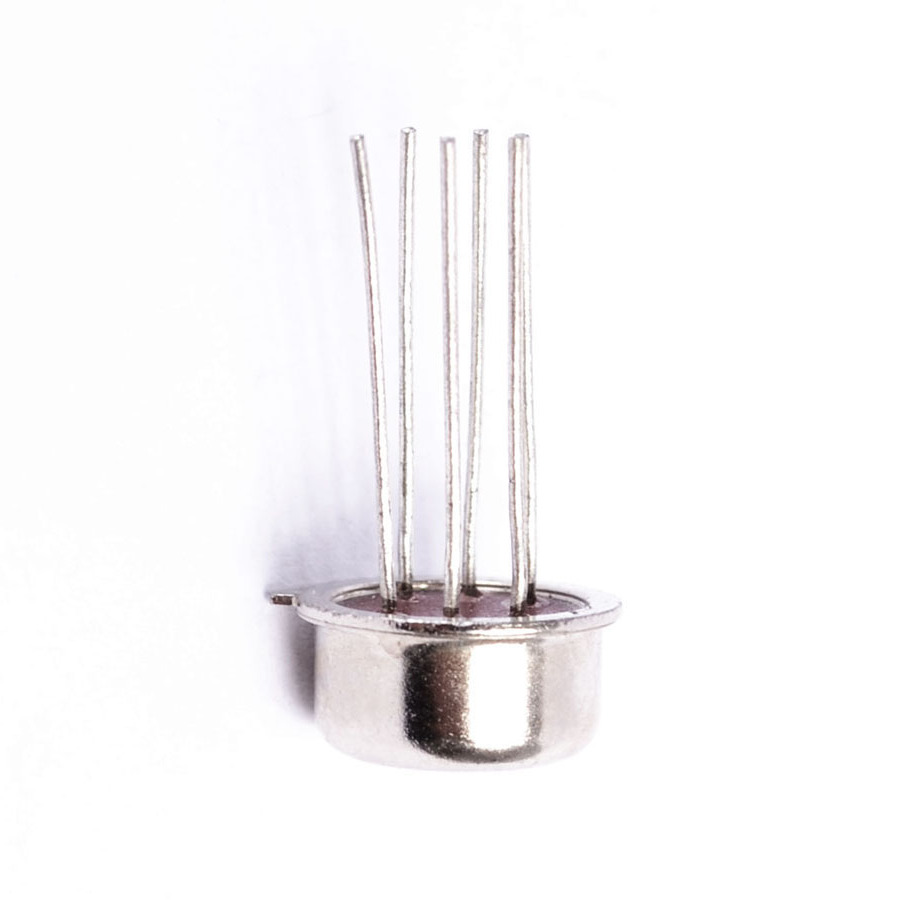

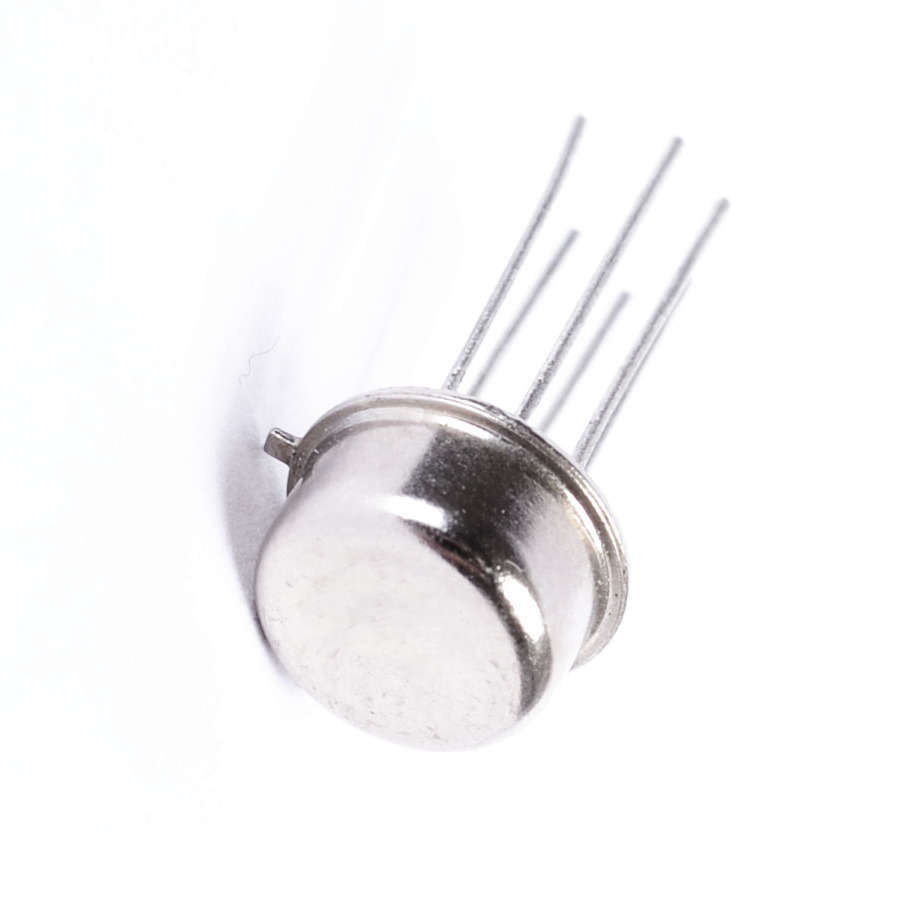

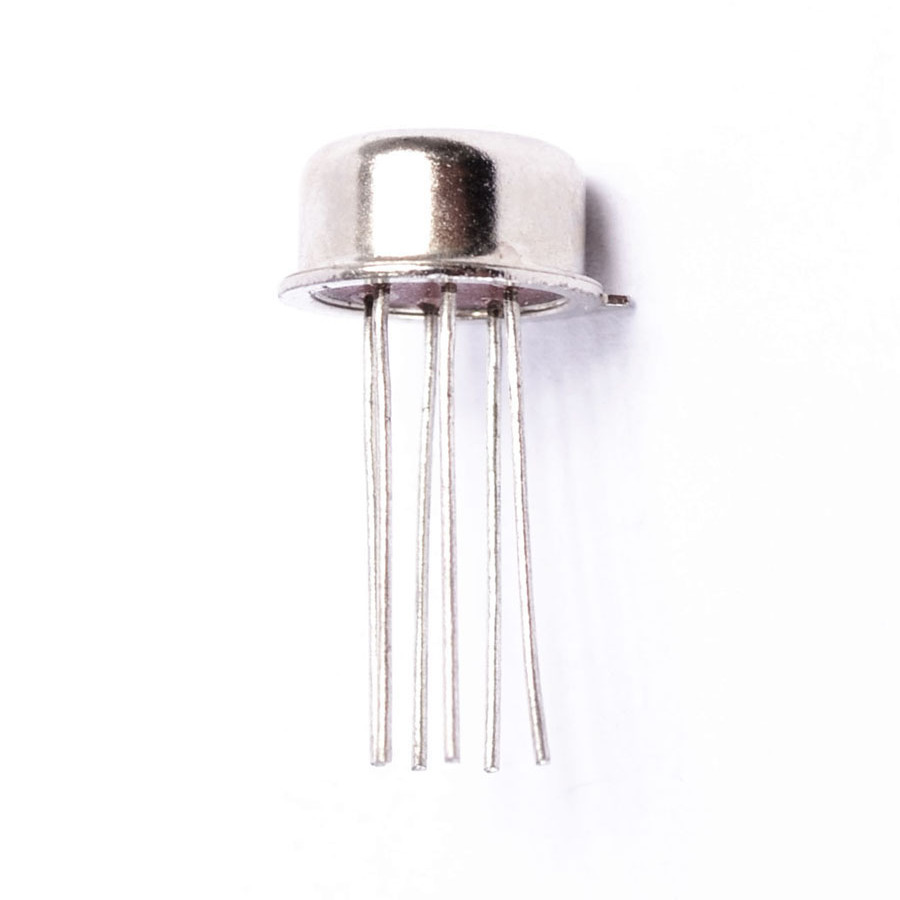

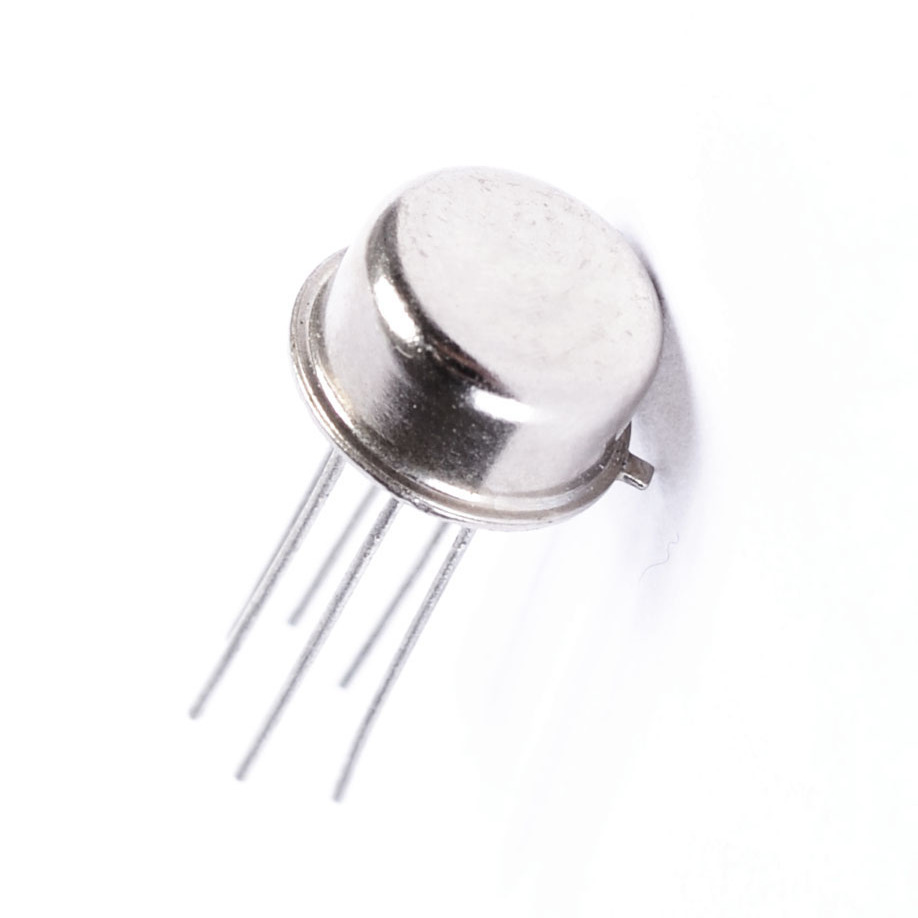

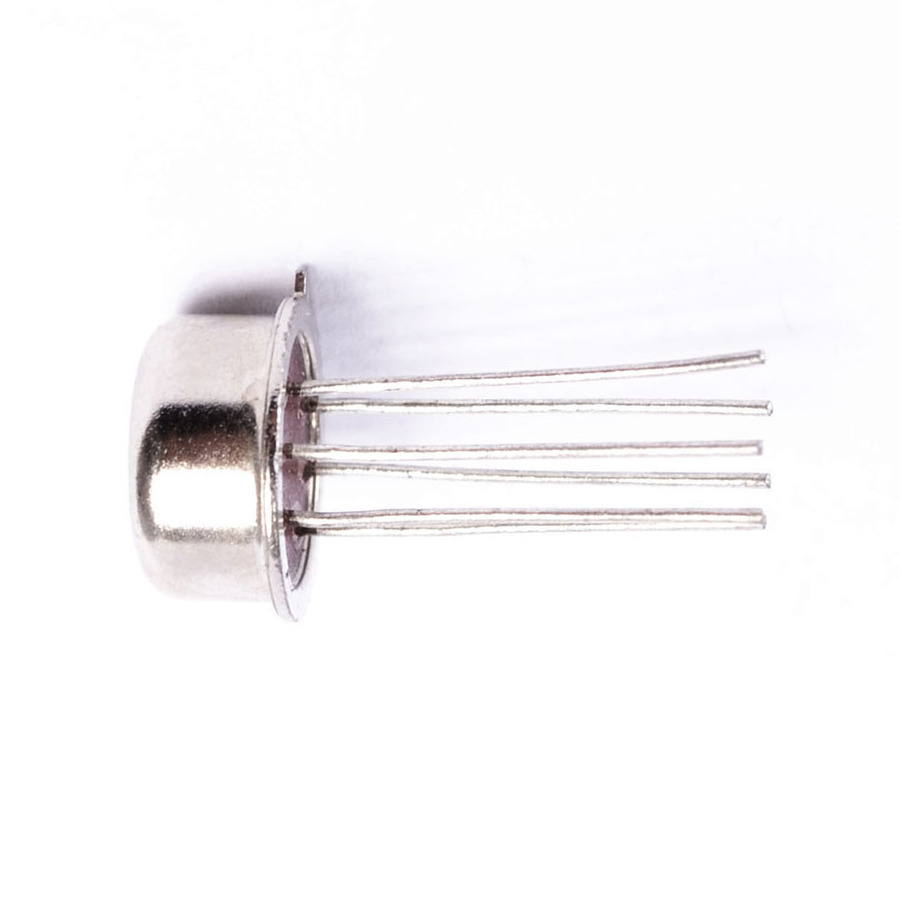

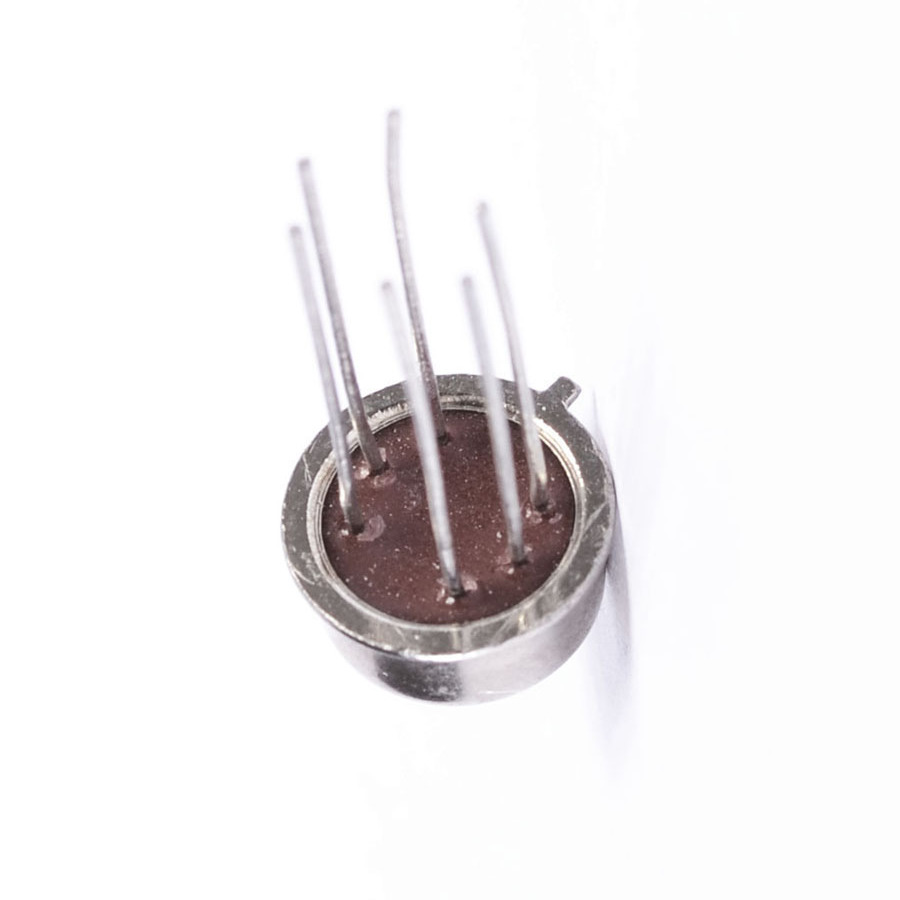

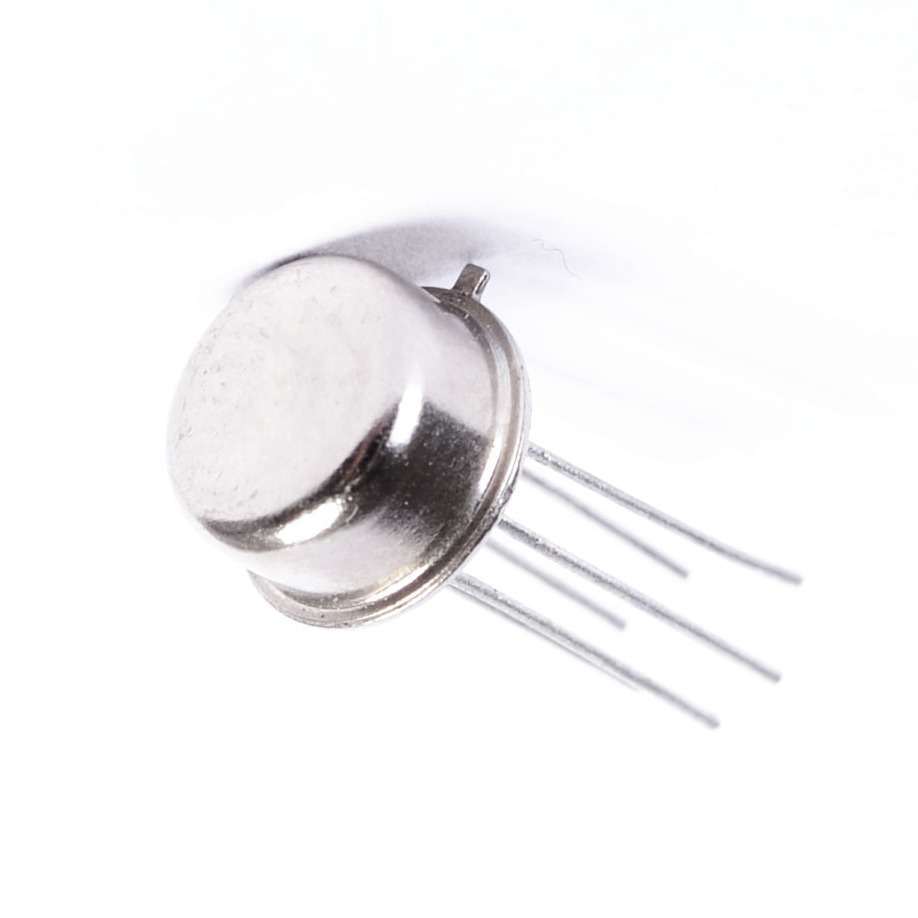

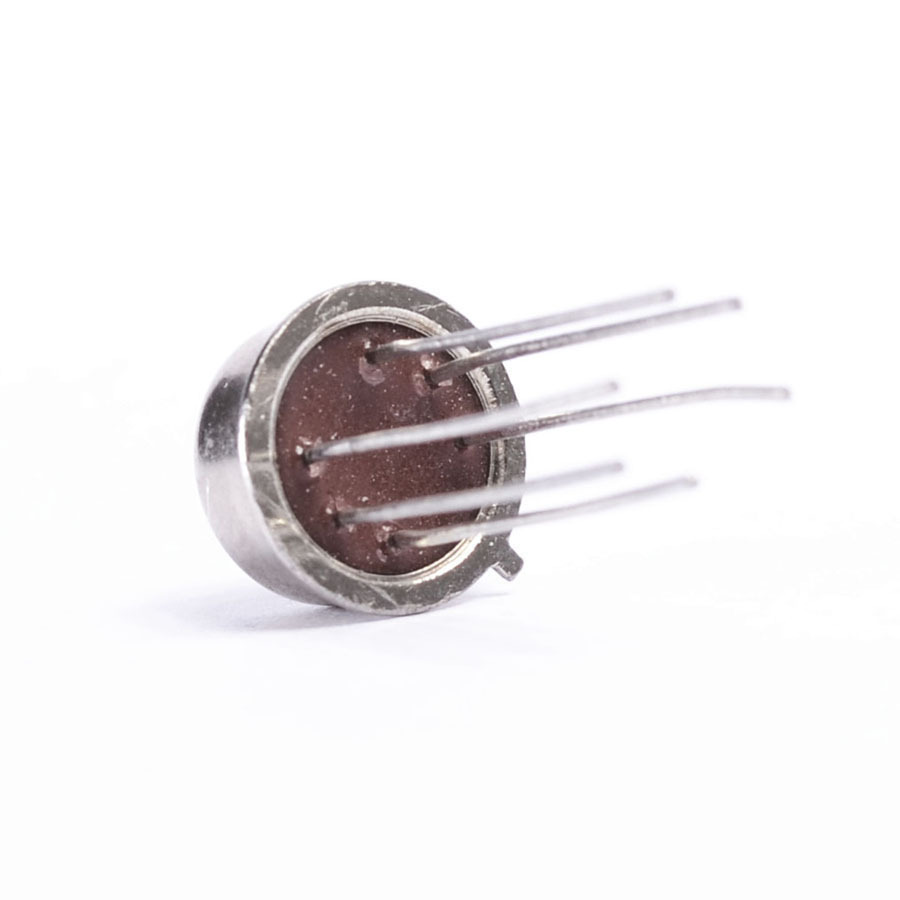

2N4015 Transistor Silicon PNP CASE: TO77 MAKE: Generic
Datasheet
2N4015 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO77
Manufacturer Central Semiconductor
fT Min (Hz) 60M
Min hFE 135
Mat. Silicon Logic
Polarity PNP
PD Max. (W) 500m
@VCE (test) (V) 5.0
@Ic (test) 1.0m
Ic Max. 300m
Vceo Max. 60
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.5 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.3 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 8 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 135
SKU 368418
